Product Description

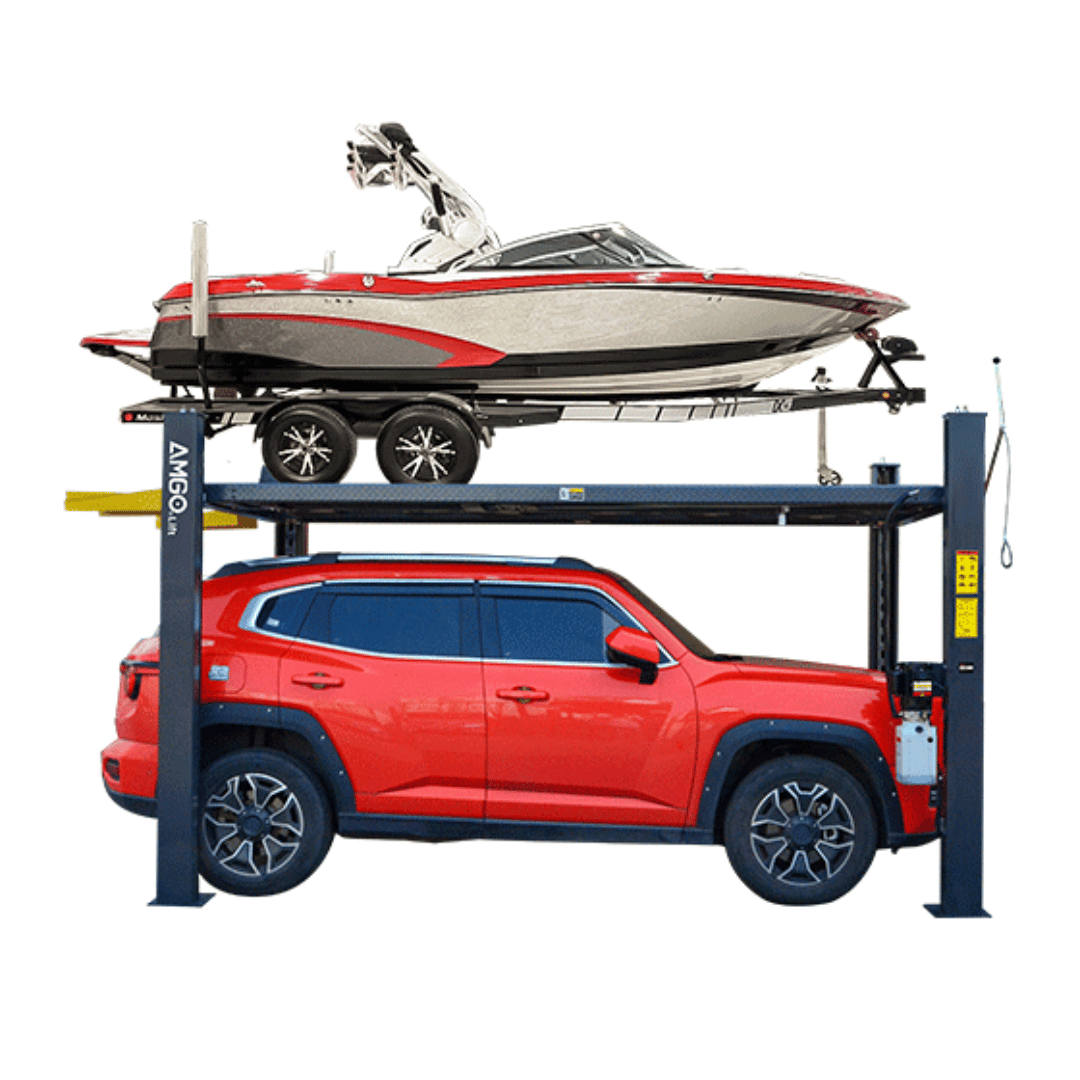

Amgo 408-HPX 8,000 lb Capacity Boat / Trailer Storage Lift
The Amgo 408-HPX is designed to make boat and trailer storage simpler, safer, and more efficient. With an 8,000 lb lifting capacity, this lift is built to handle a wide range of recreational boats and trailers while maximizing garage or storage space.
Engineered with two adjustable platform width settings, the 408-HPX provides a spacious drive-in clearance of over 110 inches, ensuring compatibility with many different trailer styles and widths. This flexibility makes it ideal for boat owners who need a dependable storage solution that adapts to their equipment.

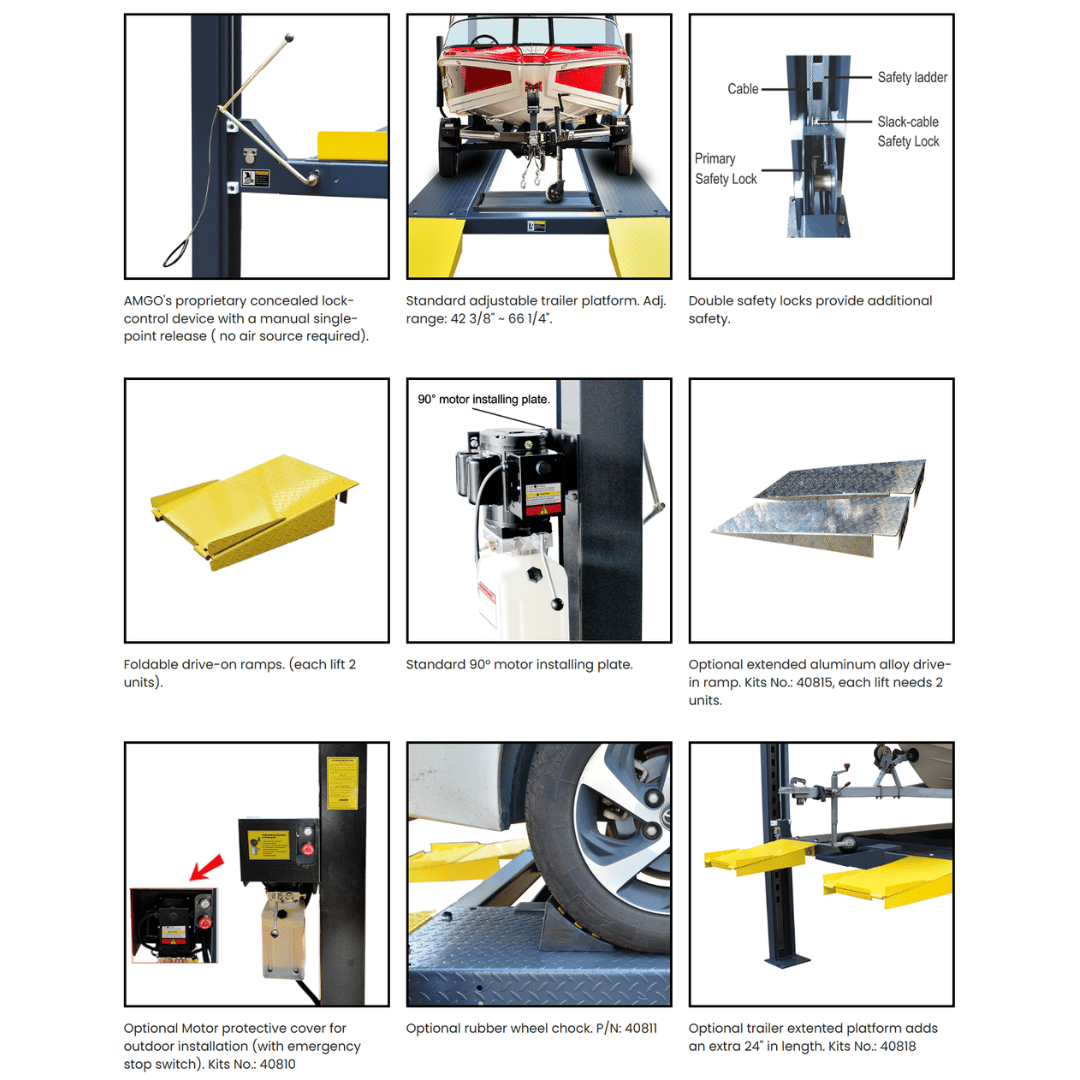

The lift features AMGO’s proprietary concealed lock-control system, allowing for manual single-point lock release without requiring an air source. Dual safety mechanisms—including primary safety locks and cable slack protection—provide added peace of mind during lifting and storage.
Integrated non-skid diamond platforms ensure secure vehicle positioning, while the foldable drive-in ramps make loading and unloading trailers quick and convenient. For installation flexibility, the power unit can be mounted at any corner of the lift, making it easier to adapt the lift to different garage layouts.
Available through Gearforce USA, the Amgo 408-HPX provides a practical and durable solution for boat owners, recreational vehicle storage, and marine service facilities.
Product Features
- 8,000 lb lifting capacity for boats and trailers
- Over 110” drive-in clearance accommodates a variety of trailer widths
- Two adjustable platform width settings for flexible trailer fitment
- AMGO concealed lock-control system with manual single-point release
- No air source required for lock release operation
- Dual safety mechanisms with primary safety locks and cable slack protection
- Integrated non-skid diamond platforms for improved traction and stability
- Flexible installation with power unit mountable at any corner
- Standard foldable drive-in ramps for easy loading
- ETL certified power unit for dependable operation

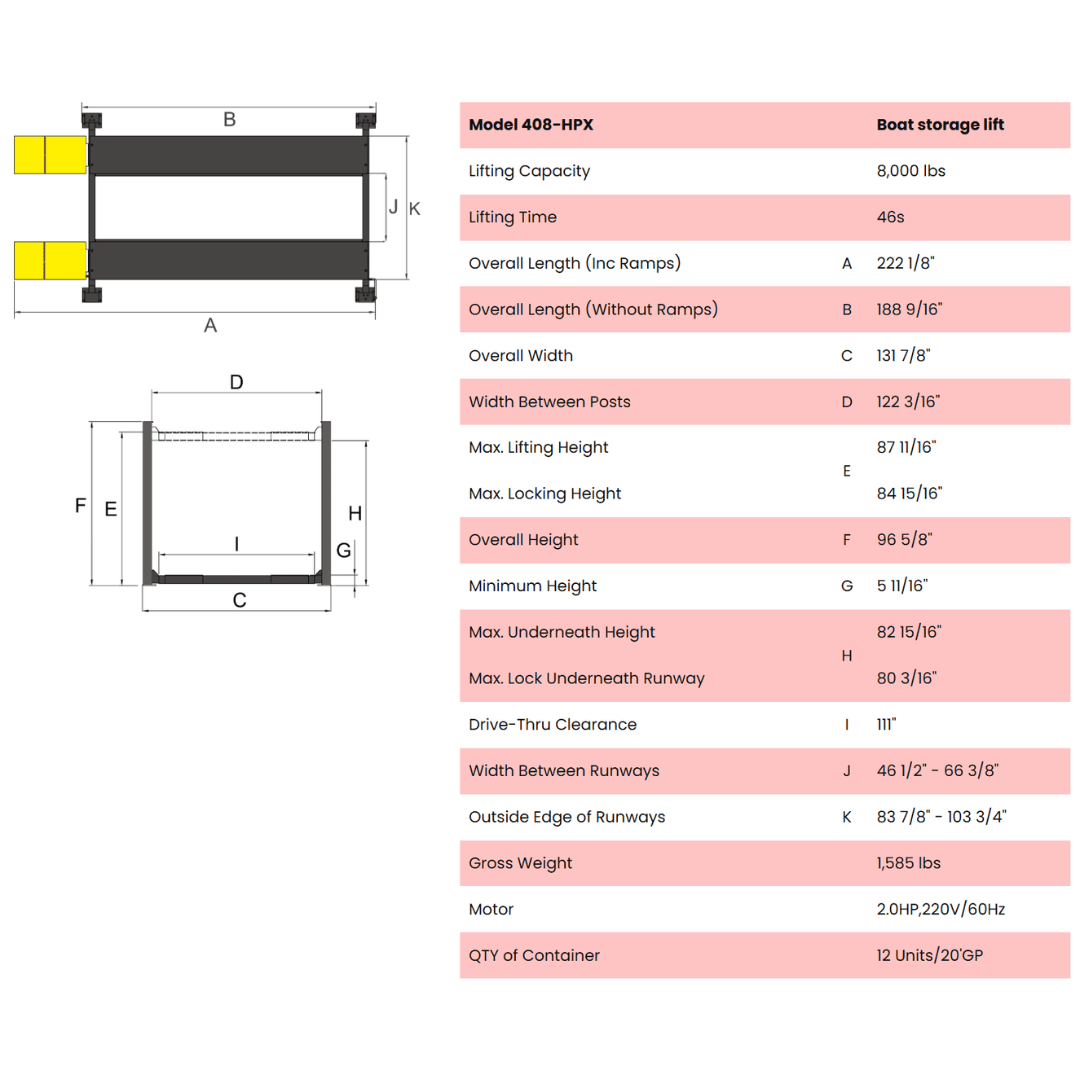

Product Specifications
| Model | 408-HPX |
|---|---|
| Lifting Capacity | 8,000 Ibs |
| Lifting Time | 46s |
| A: Overall Length (Inc.Ramps) | 222 1/8″ |
| B: Overall Length (Without Ramps) | 188 9/16″ |
| C: Overall Width | 131 7/8″ |
| D: Width Between Posts | 122 3/16″ |
| E: Max. Lifting Height | 87 11/16″ |
| E: Max. Locking Height | 84 15/16″ |
| F: Overall Height | 96 5/8″ |
| G: Minimum Height | 5 11/16″ |
| H: Max. Underneath Height | 82 15/16″ |
| H: Max. Lock Underneath Runway | 80 3/16″ |
| I: Drive-Thru Clearance | 111″ |
| J: Width Between Runways | 46 1/2″ - 66 3/8″ |
| K: Outside Edge of Runways | 83 7/8″ - 103 3/4″ |
| Gross Weight | 1,585 lbs |
| Motor | 2.0HP, 220V/60Hz |
| QTY of Container | 12 Units/20'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
