Product Description

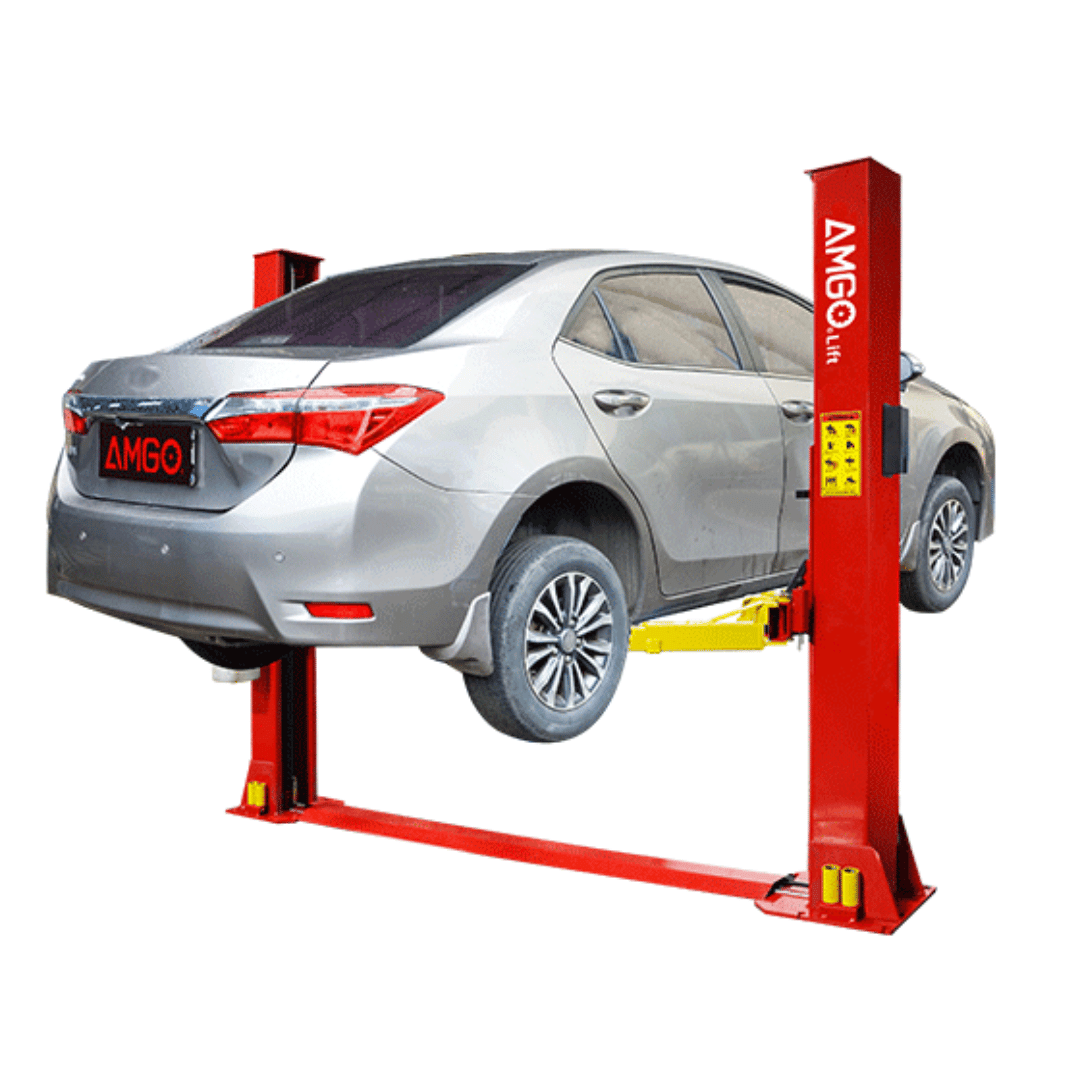

Amgo BP-9 9,000 lb Two Post Car Lift
The Amgo BP-9 9,000 lb Two Post Lift is a dependable and space-efficient lifting solution designed for automotive repair shops and home garages. With a 9,000 lb lifting capacity, the BP-9 is capable of servicing a wide range of passenger cars, SUVs, and light trucks, making it a versatile option for everyday maintenance and repair work.
This lift features a base plate design with shorter columns, allowing installation in garages with ceiling heights as low as 9 feet. Its symmetric arm configuration with four 3-stage retractable arms provides a wide swing range, allowing technicians to easily position the lift under different vehicle types while maintaining proper balance during lifting.
Safety and reliability are key components of the BP-9. The lift includes a dual safety lock structure combined with a single-point manual lock release, allowing both columns to be safely disengaged from one side. The automatic arm restraint system helps keep the lifting arms securely positioned once the vehicle is raised.
Built for durability, the BP-9 uses self-lubricating UHMW polyethylene sliders and aircraft-grade synchronization cables, ensuring smooth operation and long service life. Additional conveniences such as detachable toe guards and tool trays make daily operation more efficient.
Available through Gearforce USA, the Amgo BP-9 is a reliable and practical solution for shops looking for a compact two-post lift capable of handling a wide variety of vehicles while fitting into lower ceiling garages.

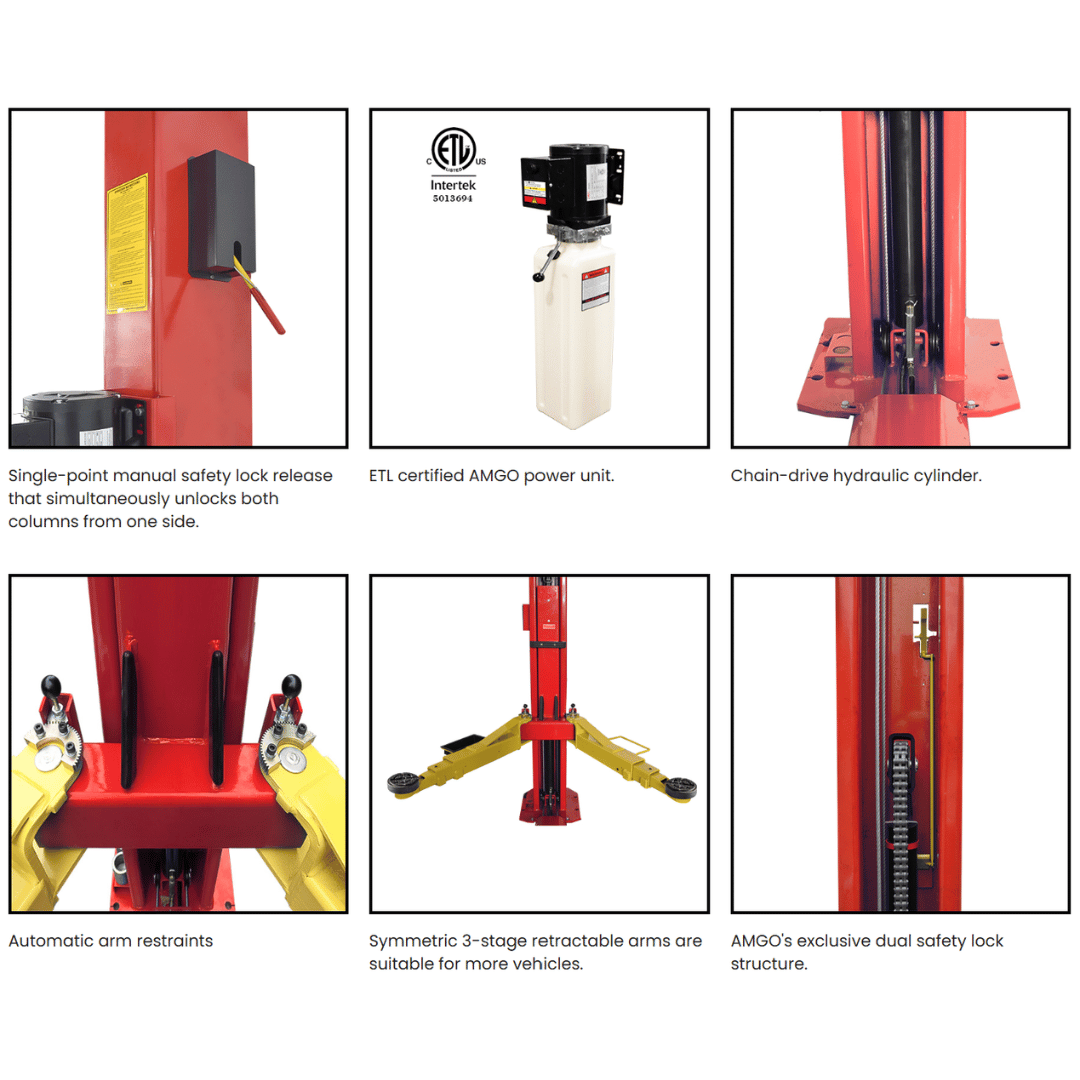

Key Features
- 9,000 lb lifting capacity for cars, SUVs, and light trucks
- Base plate design suitable for garages with 9 ft or higher ceilings
- Symmetric four 3-stage retractable arms provide wide vehicle compatibility
- Automatic arm restraint system for secure arm positioning
- Single-point manual safety lock release unlocks both columns from one side
- Dual safety lock structure for added protection during operation
- Self-lubricating UHMW polyethylene sliders for smooth performance
- Aircraft-grade synchronization cables included

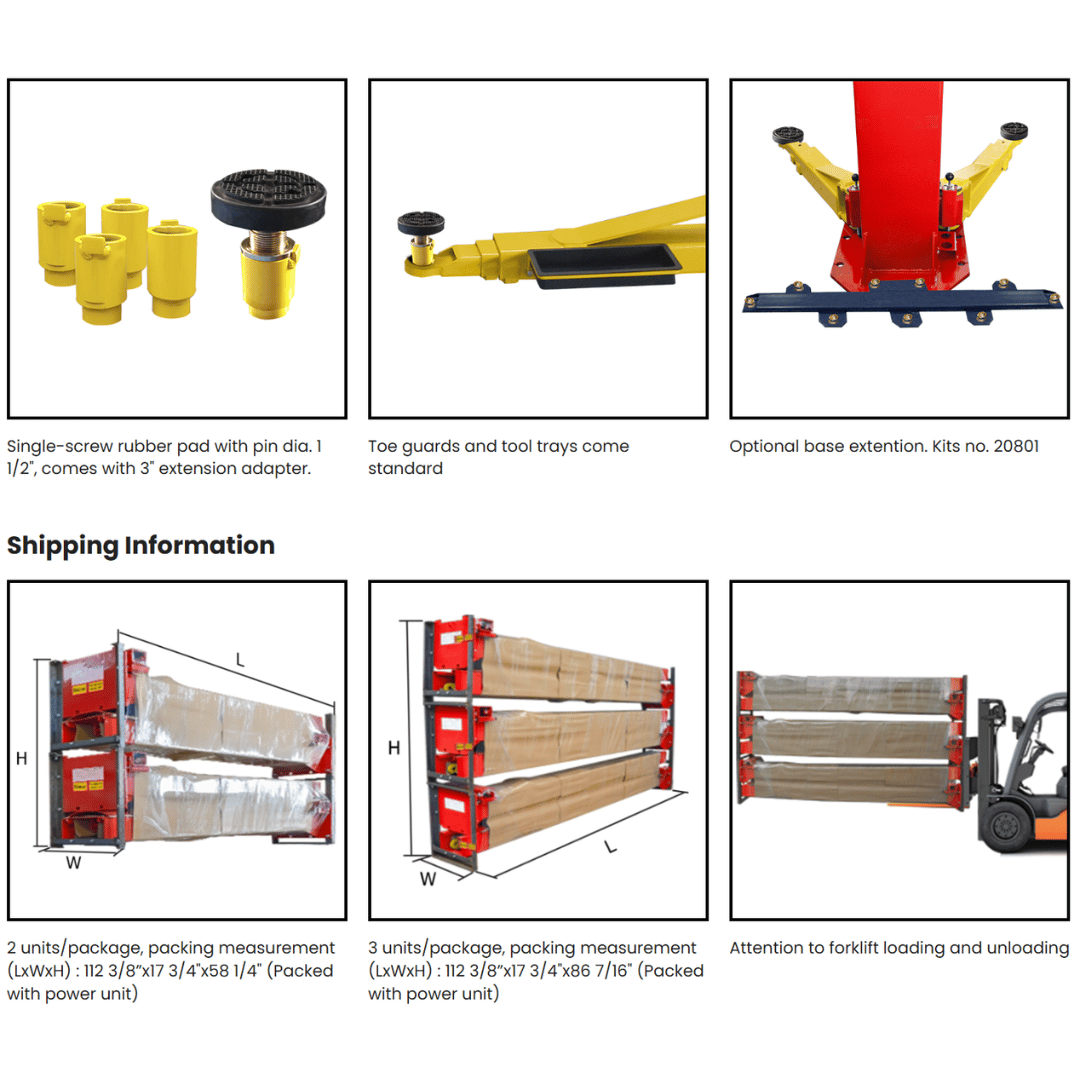

- Detachable toe guards and tool trays for convenience
- Single-screw rubber pads with 3″ extension adapters included

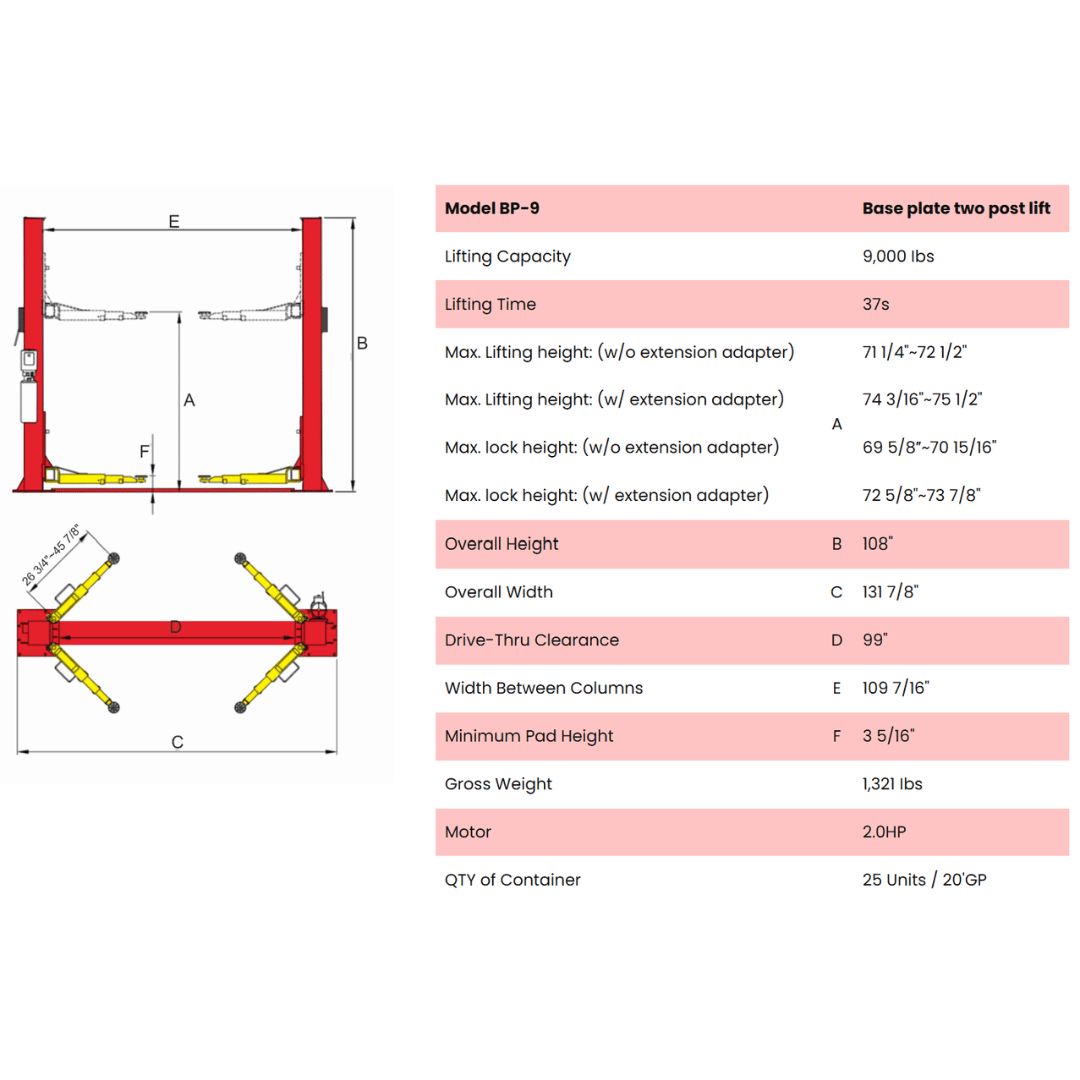

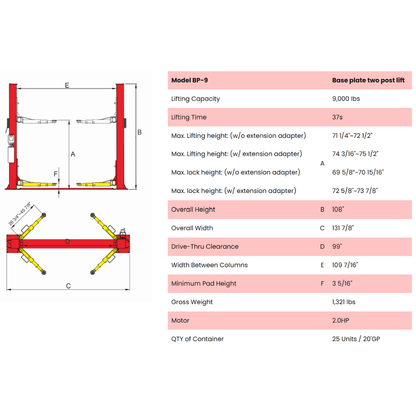

Product Specifications
| Model | BP-9 |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 37S |
| A: Max. Lifting Height: (w/o extension adapter) | 71 1/4"~72 1/2" |
| A: Max. Lifting Height: (w/ extension adapter) | 74 3/16"~75 1/2" |
| A: Max. Lock Height: (w/o extension adapter) | 69 5/8″~70 15/16" |
| A: Max. Lock Height: (w/ extension adapter) | 72 5/8"~73 7/8" |
| B: Overall Height | 108" |
| C: Overall Width | 131 7/8" |
| D: Drive Thru Clearance | 99" |
| E: Width Between Columns | 109 7/16" |
| F: Minimum Pad Height | 3 5/16" |
| Gross Weight | 1,321 lbs |
| Motor | 2.0HP |
| QTY of Container | 25 Units/20'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
