Product Description

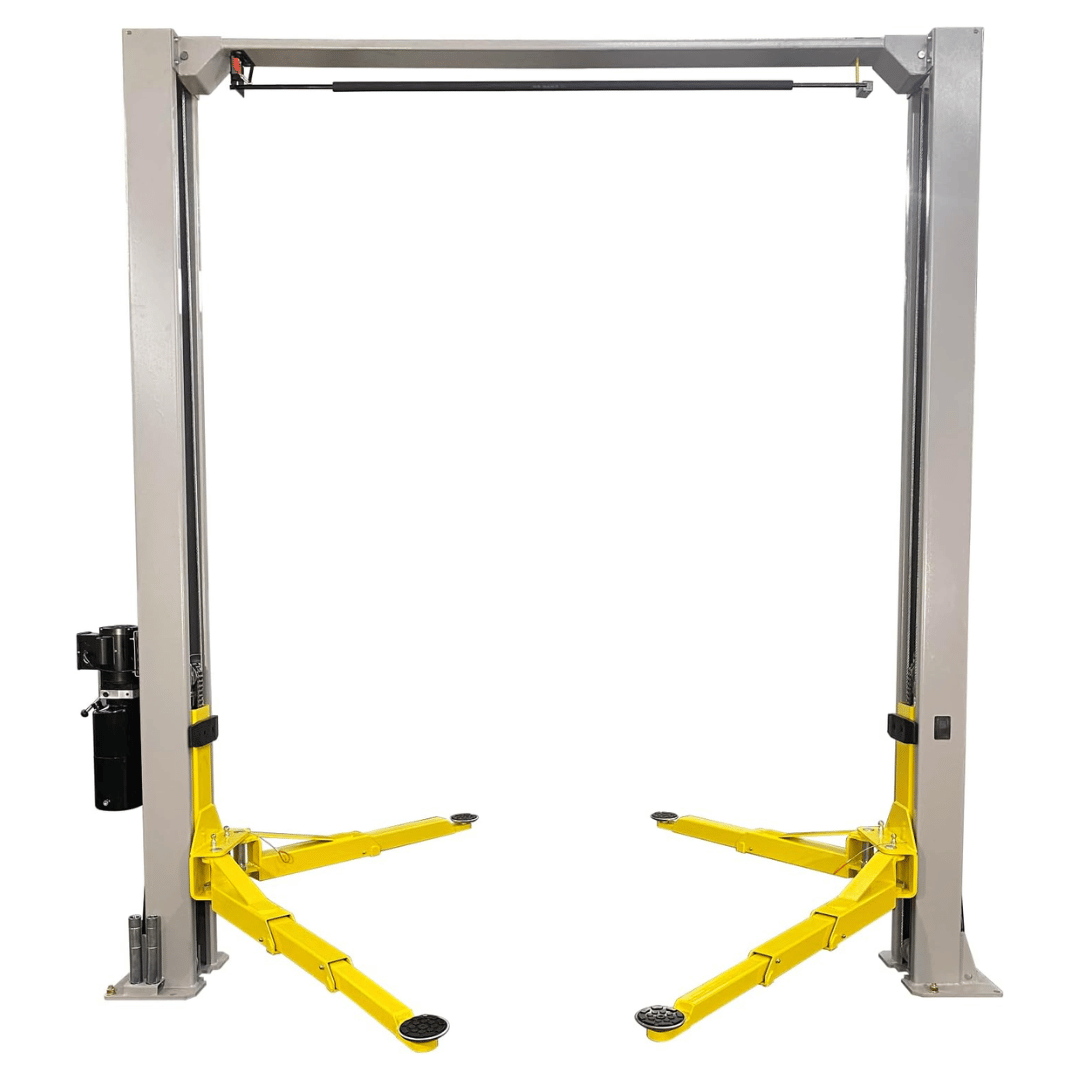

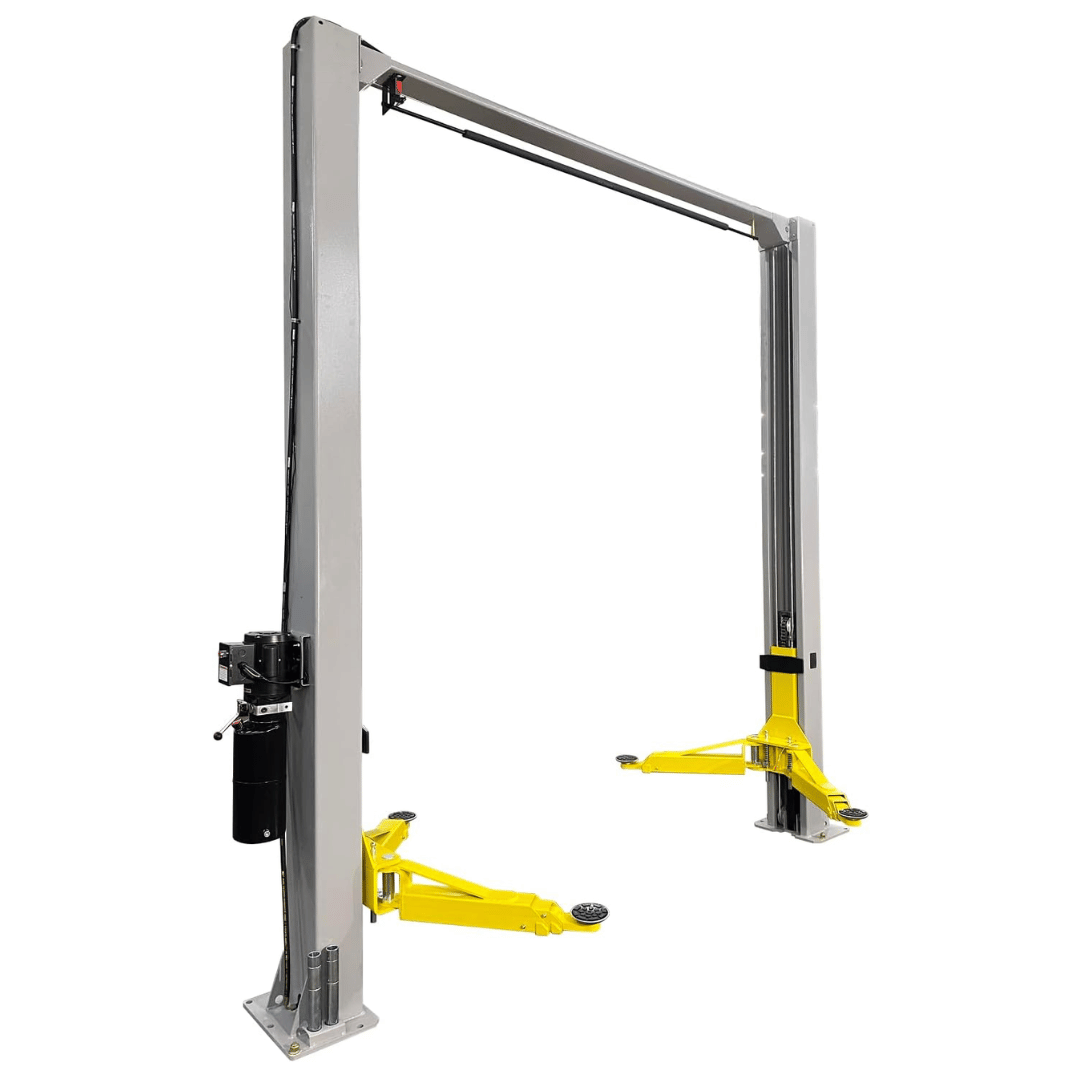

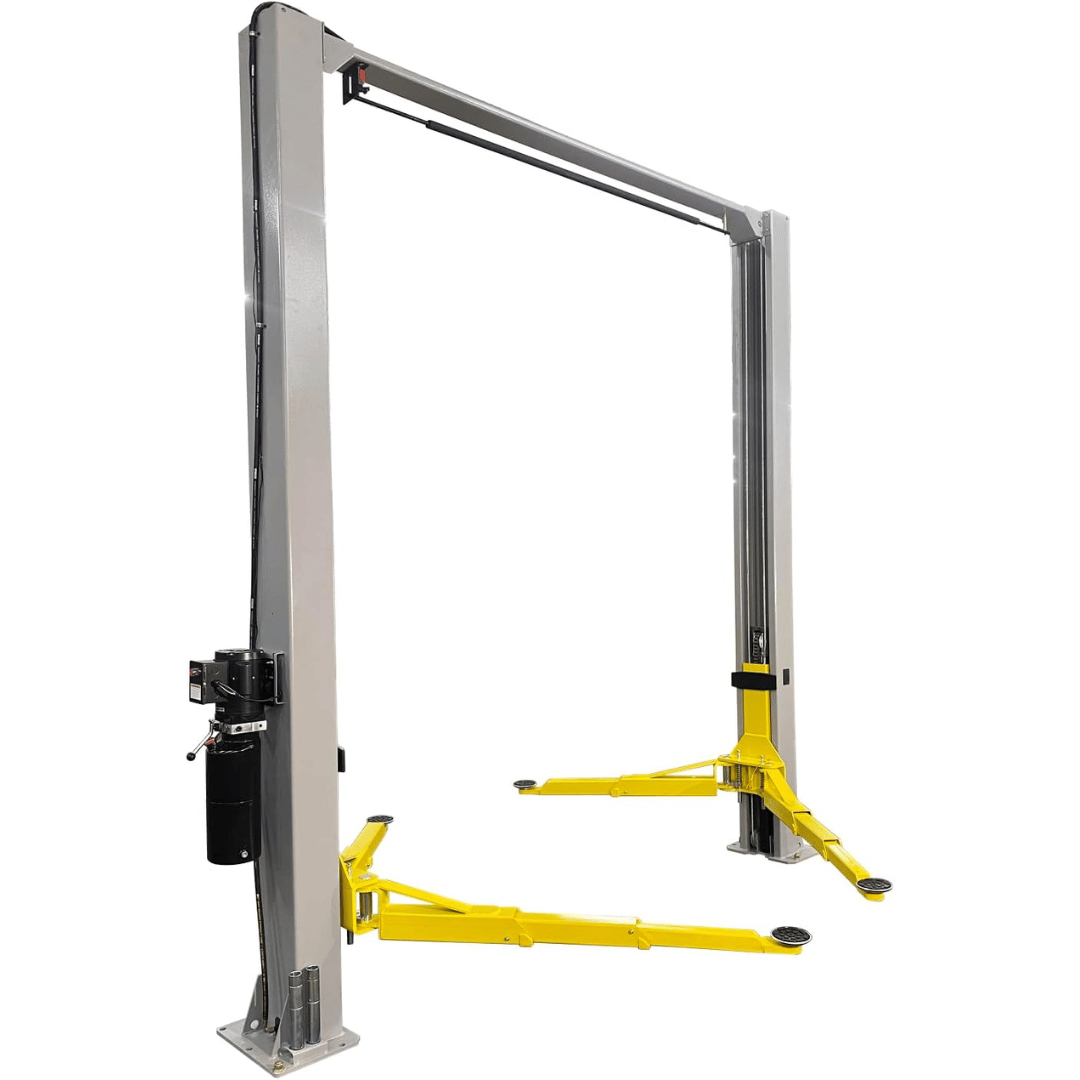

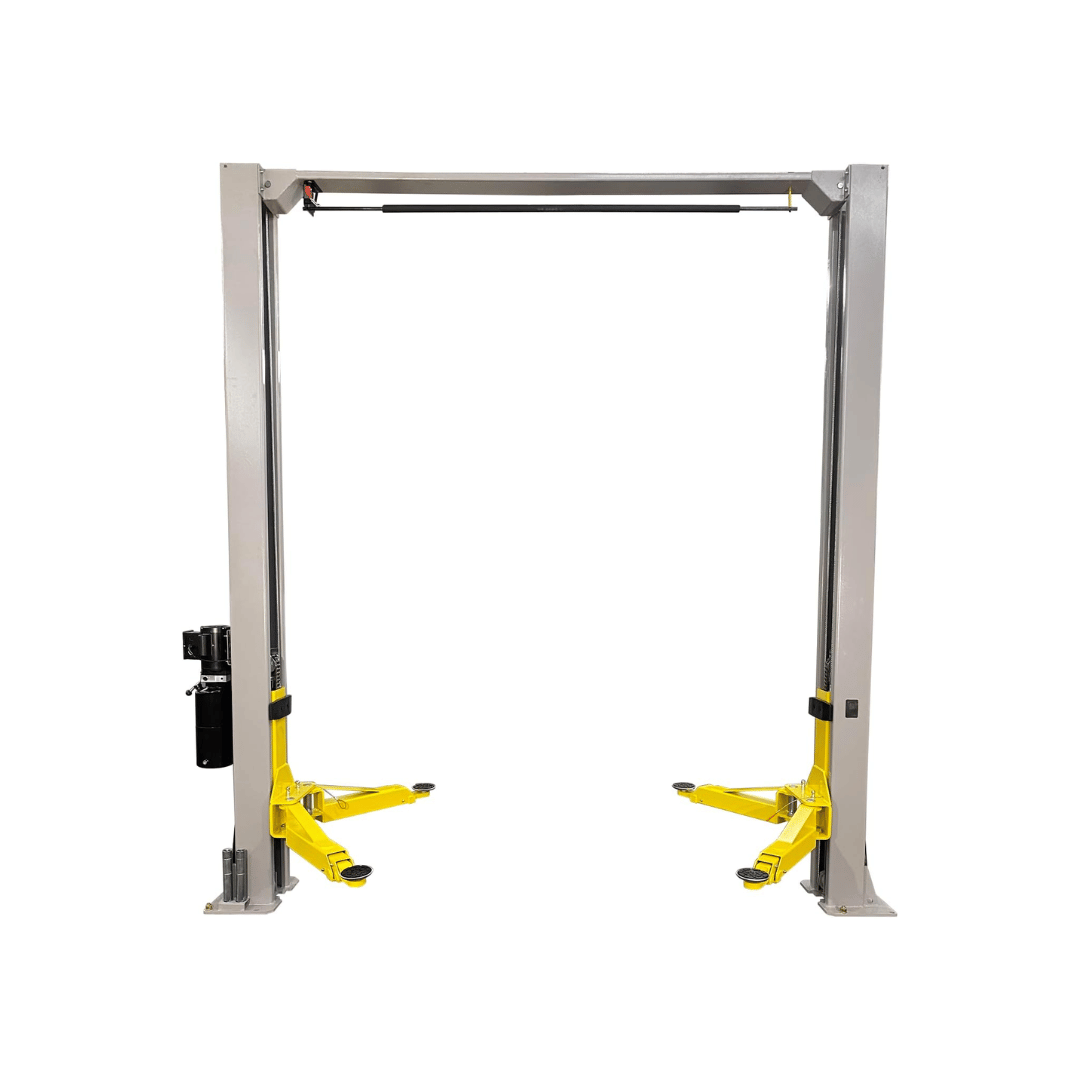

Triumph NTO-9AE Overhead 2-Post Auto Lift – 9,000 lb Capacity
The Triumph NTO-9AE Overhead Two-Post Lift combines essential lifting power with a streamlined design for value-conscious shop owners and home mechanics. With a 9,000 lb capacity, dual-point safety locks, and overhead cable routing, this lift offers excellent performance while keeping your workspace clean and accessible.
Designed for straightforward installation and ease of use, the NTO-9AE comes equipped with truck adapters, anchor bolts, and a 110V motor, making it an ideal choice for garages that want commercial lifting capability without the need for high-voltage power upgrades. The overhead-style frame keeps cables and hydraulic lines off the ground, giving you unobstructed floor space and a safer working area.
This lift features a lifting height of 72" and a drive-thru width of 99", making it versatile enough for a wide variety of vehicles — from passenger cars to light trucks. Safety features like an electric shut-off bar and dual-point lock release system ensure smooth, secure operation with every lift.
At Gearforce USA, we offer the NTO-9AE as a reliable, budget-friendly solution for professionals and DIYers who need power, performance, and simplicity — all in one durable package.
Key Features
- 9,000 lb lifting capacity – ideal for most cars, SUVs, and light-duty trucks
- Overhead design – keeps cables and hoses off the floor for a cleaner workspace
- Dual-point safety lock release – stable and secure vehicle positioning

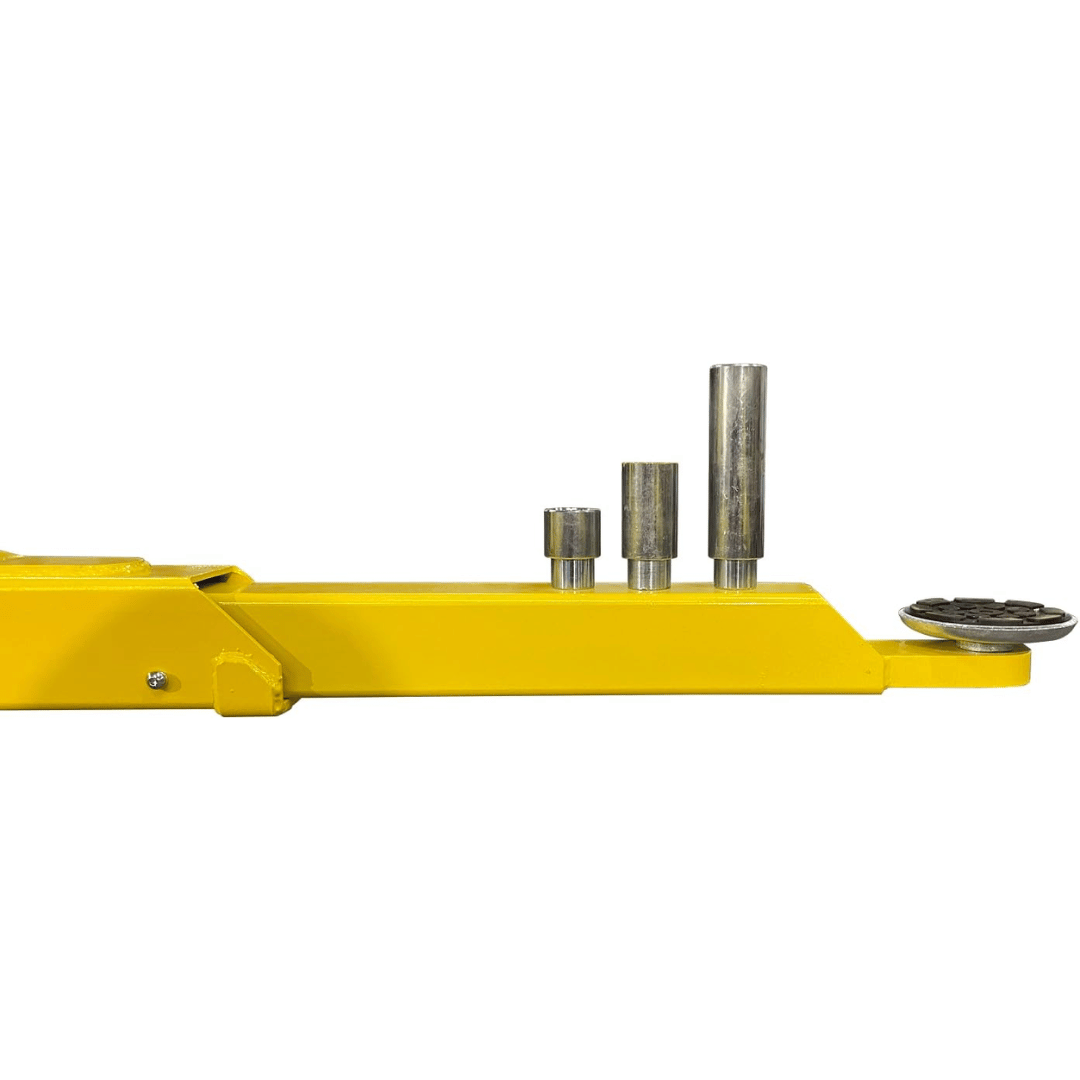

- Includes truck adapters and anchor bolts – ready for installation
- 99" drive-thru width and 111" between posts – wide access for various vehicles
- 72" lifting height with 4.5" lowered clearance – optimized for full-service range
- Electric safety shutoff bar – prevents over-extension and improves operator safety

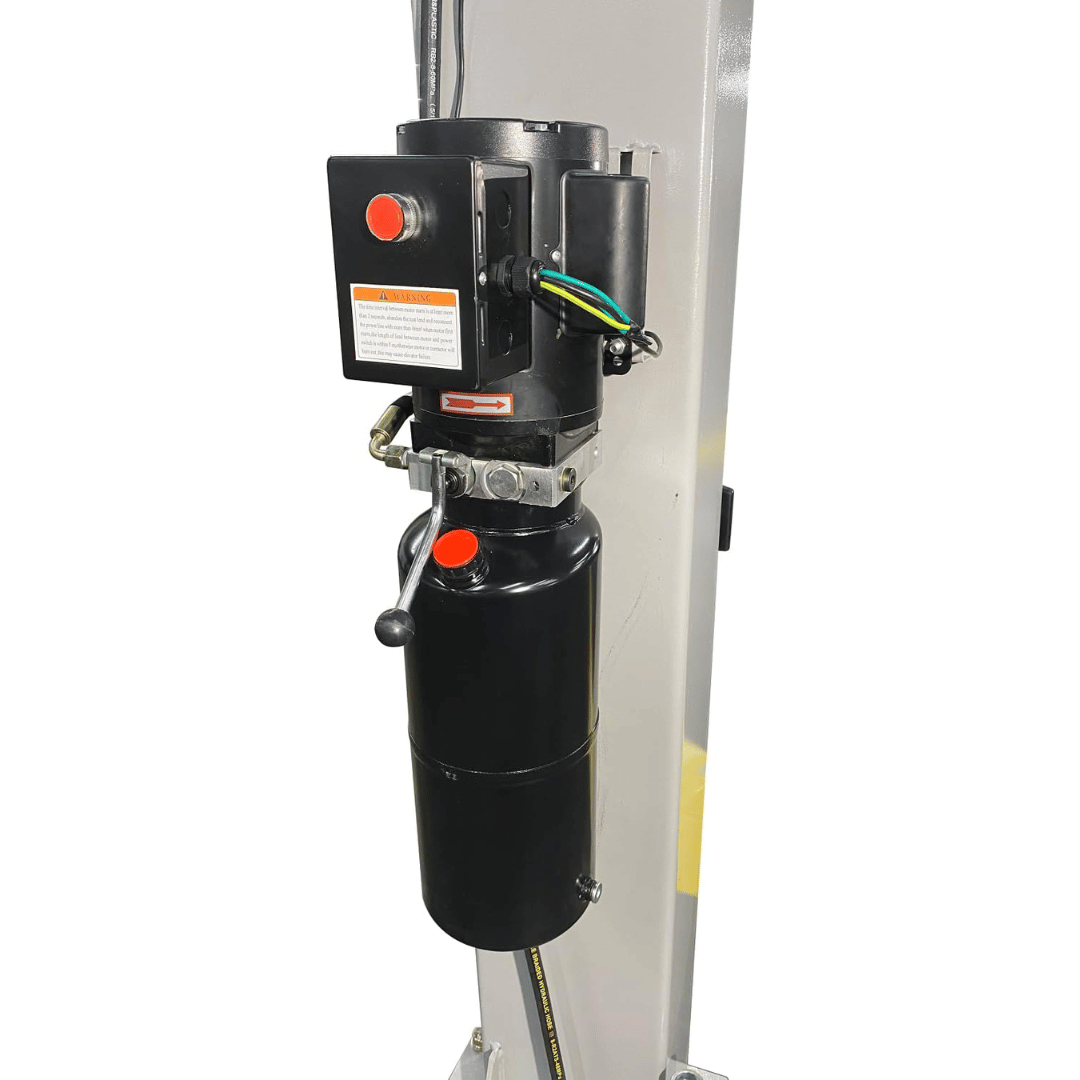

- Powered by 110V, 3 HP motor – plug-and-play for most garage environments
- Heavy-duty 18"x14" base plates – stable, secure mounting footprint
- Built for 4" thick, 3,000 PSI concrete – ensures long-term durability
- Backed by Gearforce USA – trusted tools and equipment for your garage
Product Specifications
| Lift Model | NTO-9AE |
|---|---|
| Capacity | 9,000 lbs |
| Overall Height | 145-1/2″ |
| Overall Width | 134-1/2″ |
| Lifting Height | 72″ |
| Distance Between Posts | 109″ |
| Drive Thru Width | 92″ |
| Lowered Height | 4-1/2″ |
| Base Plate Size | 18x14″ |
| Truck Adapters | Yes |
| Lock Release | Dual Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 50 Seconds |
| Voltage | 220 Volt |
| Horsepower | 3 HP |
| Concrete | 4" Slab, 3,000 PSI |
| Style | Overhead |
| Shipping Weight | 1,407 lbs |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Las Vegas, NV.
Downloads
