How Stable are Two Post Lifts?
A properly installed two-post lift is exceptionally stable, capable of safely holding thousands of pounds high in the air for extended periods. This stability, however, is not an inherent feature of the lift alone but is entirely conditional upon a triad of critical factors: the structural integrity of the concrete foundation it is anchored to, the precision of the installation, and the correct positioning of the vehicle's center of gravity. When these elements are perfectly aligned, a two-post lift is an unshakable pillar of workshop efficiency and safety; if any one of them is compromised, it can become dangerously unstable.

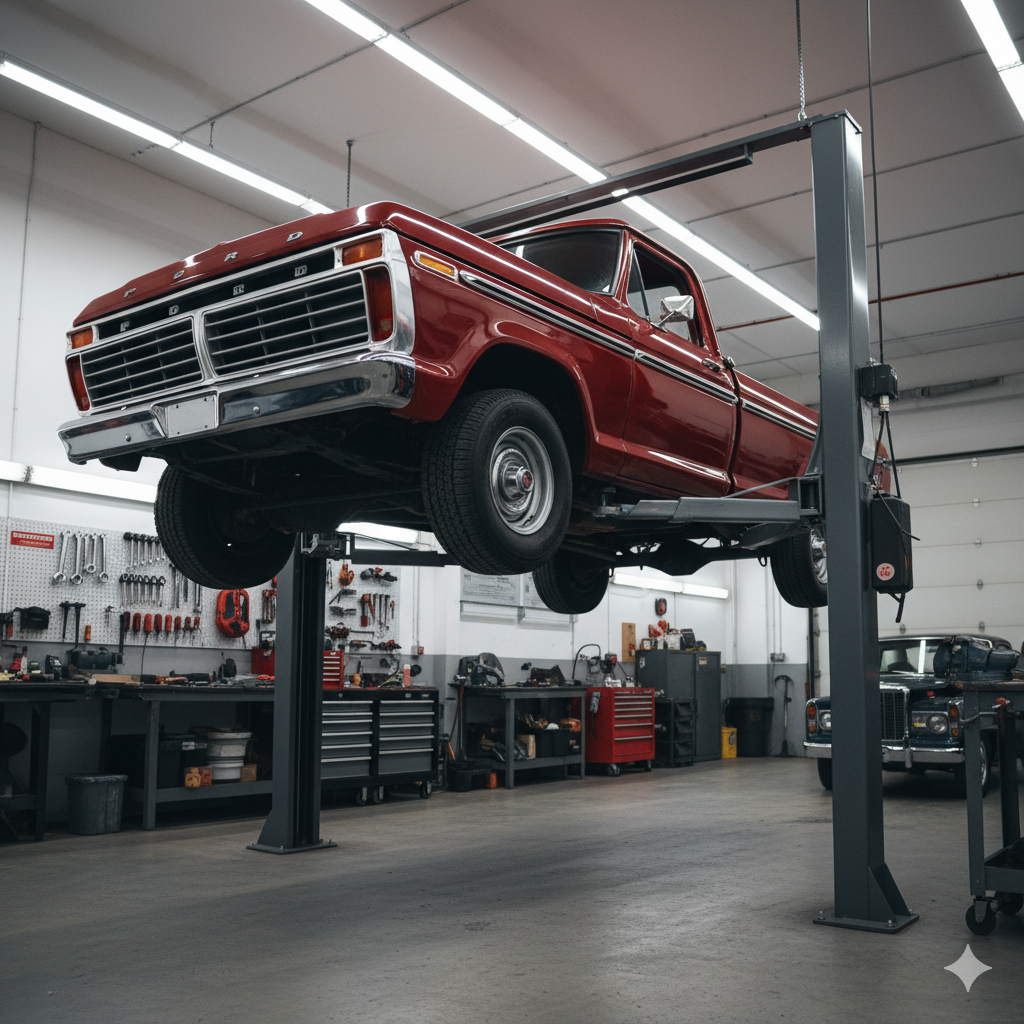

The image of a heavy pickup truck, weighing over three tons, seemingly floating ten feet in the air on two relatively slim steel posts is a testament to modern engineering. It can also be a source of understandable apprehension for those unfamiliar with their design. To truly understand the stability of these machines, we must look beyond the steel columns and hydraulics and appreciate the complete system at play—a system where the floor beneath your feet and the knowledge in your head are just as important as the lift itself. This article will delve into the engineering principles, critical installation requirements, and operational disciplines that transform a two-post lift from two separate columns into a single, unified, and remarkably stable lifting platform.
The Engineering of Stability: More Than Just Steel
The stability of a two-post lift is not derived from brute force or sheer mass, but from the intelligent application of physics. It relies on successfully transferring the massive vertical load of the vehicle, through the lift's columns, into the concrete floor, which then dissipates that force across a wide area.
The foundation is the undisputed cornerstone of this entire system. Before a lift can be stable, its base must be immovable. The forces exerted on the anchor bolts at the base of each column are immense, constantly trying to pull, shear, and pry the columns from the floor. To resist this, the concrete must have sufficient compressive strength and thickness. The industry standard, and a non-negotiable minimum for most lifts up to a 10,000-pound capacity, is four inches of 3,000 PSI concrete that has been allowed to cure for at least 28 days. Installing a lift on thinner, weaker, or freshly poured "green" concrete is the single most common cause of catastrophic failure. In such cases, the wedge anchors used to secure the lift cannot achieve the necessary holding power. Under load, they can slowly pull out or crack the surrounding concrete, leading to a column leaning and eventually toppling over with the vehicle still on it.
Equally important is the physics of the load itself. Every vehicle has a center of gravity, a single invisible point where its entire weight is balanced. The fundamental goal of the lift operator is to position the vehicle so that this center of gravity is situated squarely between the two columns and properly supported by the four lifting arms. A heavy-duty truck with a large diesel engine will have its center of gravity far forward, while a mid-engine sports car will have it further back. Placing the lifting pads incorrectly, even by a few inches, can create a dangerous imbalance. This imbalance may not be apparent when the vehicle's tires are only an inch off the ground, but as the lift rises, the leverage increases, and a slight imbalance can become a powerful tipping force, causing the vehicle to lurch and fall from the arms.
This is where lift design, specifically symmetric versus asymmetric, plays a role. Symmetric lifts center the vehicle directly between the posts, ideal for vehicles with a near 50/50 weight distribution. Asymmetric lifts feature rotated columns and arms of different lengths, allowing the vehicle to be positioned further back. This provides the convenience of opening the doors more fully but requires an even greater awareness from the operator to ensure the vehicle's mass is still balanced correctly relative to the columns' load-bearing capacity.
The Installation Process: A Chain of Critical Connections
A high-quality, ALI-certified lift can be rendered unstable and dangerous by a rushed or uninformed installation. The process is a meticulous chain of events where every link is critical to the final outcome. It begins with a thorough site assessment. Before the lift is even delivered, the floor must be verified. This involves checking for a significant slope, as a lift must be installed on a level surface to prevent side-loading on the columns. It also means verifying the concrete's thickness, often by drilling a small test hole in an inconspicuous area. Discovering that your slab is inadequate before installation is a scheduling problem; discovering it after the lift has been anchored is a recipe for disaster.
Check out the AMGO OH-9 9,000LB 2 Post Lift Here:
The art of anchoring is the next critical link. The manufacturer’s specifications for the anchor bolts—their diameter, length, and required torque value—are the result of extensive engineering calculations. The process involves drilling a precise hole, cleaning it thoroughly of all dust and debris to ensure maximum friction, driving the anchor into place, and then tightening it with a torque wrench to the exact specification. Under-torquing the bolt means the column could shift under load. Over-torquing can fracture the concrete below the surface or stretch the bolt past its yield point, permanently weakening it.
Once the columns are anchored, they must be made perfectly vertical, or "plumb." Since no concrete floor is perfectly flat, this is achieved by using thin metal shims under the base plates. If one column leans even slightly inward or outward, it will not bear the load vertically as intended. This introduces dangerous side forces and can compromise the smooth operation of the internal carriage and safety lock systems. Finally, the equalization cables and hydraulic lines are connected. It is a common misconception that these cables carry the weight of the vehicle. They do not. Their primary purpose is to ensure both sides of the lift rise and lower at the same rate, keeping the vehicle level. A properly maintained cable system is crucial for a smooth and stable lifting experience.
The Operator's Role: The Final Guardian of Stability
Even with a perfect foundation and a flawless installation, the final variable that determines a two-post lift's stability on any given day is the operator. A disciplined and knowledgeable operator is the active safety system that prevents most accidents. This responsibility begins with a pre-lift walkaround. Before positioning a vehicle, the operator should visually inspect the lift arms, pads, and arm lock mechanisms for any signs of wear or damage and ensure the surrounding area is clear of obstructions.
Mastering the placement of the vehicle is a skill that demands focus. It involves more than just driving between the posts. It requires a deliberate process of identifying the vehicle manufacturer’s recommended lifting points, which are specific reinforced areas of the frame or unibody. The operator must then carefully position the four swing arms, ensuring the pads make full, secure contact with these points. This is particularly crucial for modern Electric Vehicles (EVs). While their heavy battery packs create a very low and stable center of gravity on the road, they also mean that the vehicle's underbody is a sensitive, high-voltage component. Using the wrong lift points can result in a punctured battery, creating a severe fire risk. Therefore, consulting OEM service information is not just recommended, it is mandatory for EVs.
The most crucial moment for verifying stability is during the initial stage of the lift. The vehicle should be lifted just until the tires are a few inches off the ground. At this point, the operator should pause and give the vehicle a firm shake at the front and rear bumpers. If the vehicle is stable, it will feel solidly connected to the lift. If there is any wobble, sway, or shifting, it is a clear sign that the vehicle is not properly balanced. It must be lowered immediately and repositioned. Attempting to "correct" an unstable vehicle by raising it higher is exceptionally dangerous. Once stability is confirmed, the lift can be raised to the desired working height. True stability for the mechanic, however, is only achieved when the lift is then lowered slightly to rest on the mechanical safety locks. These locks are the failsafe that bears the vehicle's weight, removing the load from the hydraulic system and providing a secure mechanical hold that is impervious to hydraulic failure.
When Stability Fails: The Anatomy of an Accident
Understanding how a lift can fail reinforces the importance of following every safety protocol. Failure is rarely a single, sudden event but often the result of a chain of oversights. Consider the slow creep of a pull-out failure. An operator using a lift installed on weak concrete might not notice a problem for weeks or months. But with each lift, the anchor bolts microscopically shift and fracture the surrounding concrete. One day, with a heavy vehicle near the top, a column will begin to lean. This is not a sudden crash but a terrifying, groaning tilt, providing only seconds for an operator to realize the catastrophic failure that is unfolding.
Alternatively, imagine the sudden slip of a mis-spotted vehicle. An operator in a hurry might place the rear arm pads on a weaker section of the floor pan instead of the reinforced frame rail just a few inches away. The lift goes up, and everything seems fine. But as they begin to work, the weight shifts, the thin metal of the floor pan deforms, and the pad slips. The vehicle is now supported by only three arms. In an instant, its balance is gone, and it crashes violently to the floor, destroying the vehicle and anything—or anyone—in its path.
These scenarios are not freak accidents; they are the predictable outcomes of neglecting the foundational principles of stability.
Conclusion: An Engineered Outcome
A two-post lift is not inherently stable or unstable; its stability is an engineered outcome that must be deliberately and consistently achieved. It is a system built on a partnership between the equipment manufacturer, the installer, and the end-user. The manufacturer provides a certified, well-designed machine. The installer must anchor that machine to a suitable foundation with precision and care. And ultimately, the operator must treat every single lift with a disciplined, methodical approach. The stability of that vehicle floating in the air is a direct reflection of the knowledge and respect invested in the entire process. When that respect is unwavering, a two-post lift stands as one of the most reliable and stable tools in the modern workshop.
