Amgo 407-P 7,000 lb 4 Post Parking Lift

$2,980.00

Skip to product information
1 of 4

Regular price $2,980.00
Sale price $2,980.00 Regular price

Tap to Call 866-642-5888


Product Description

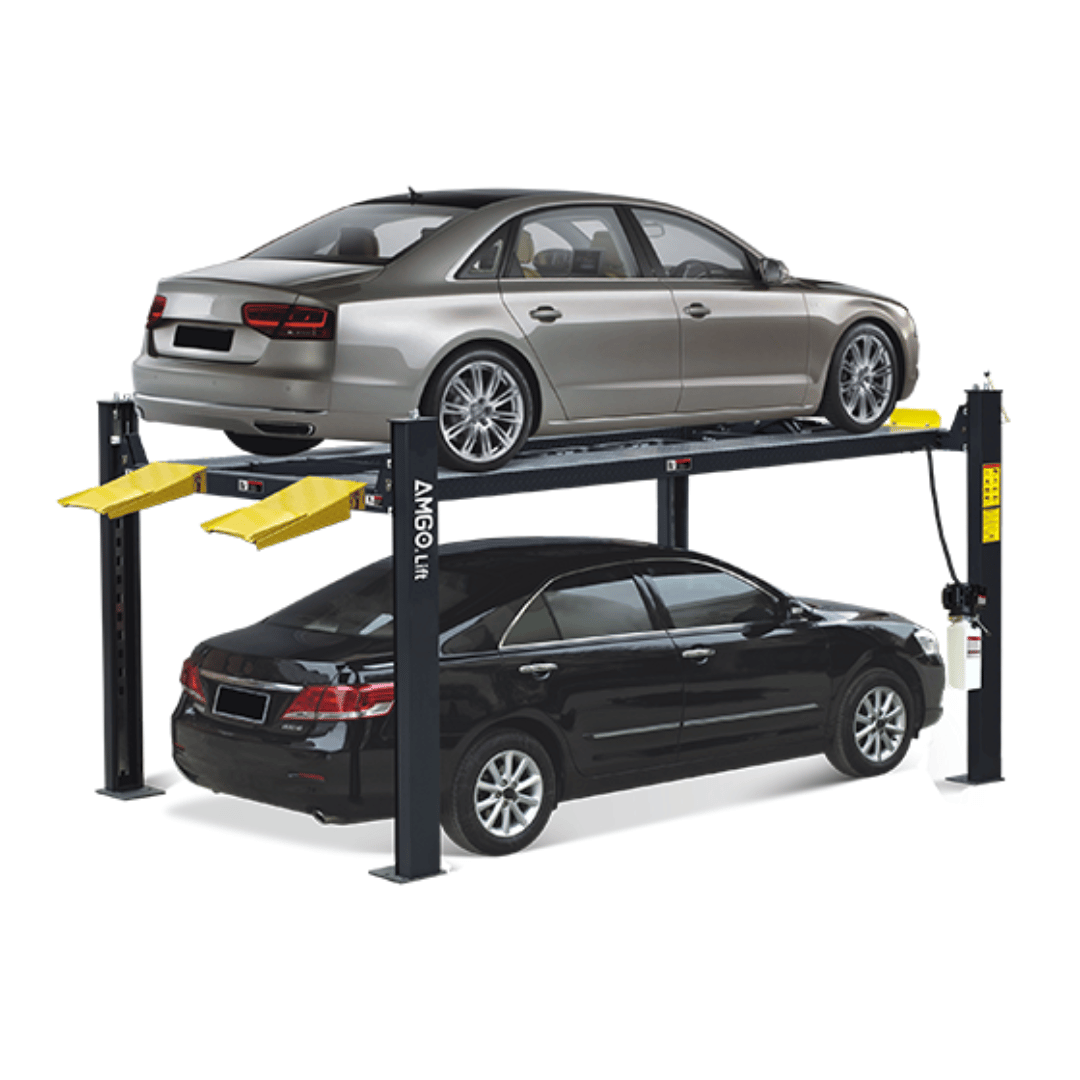

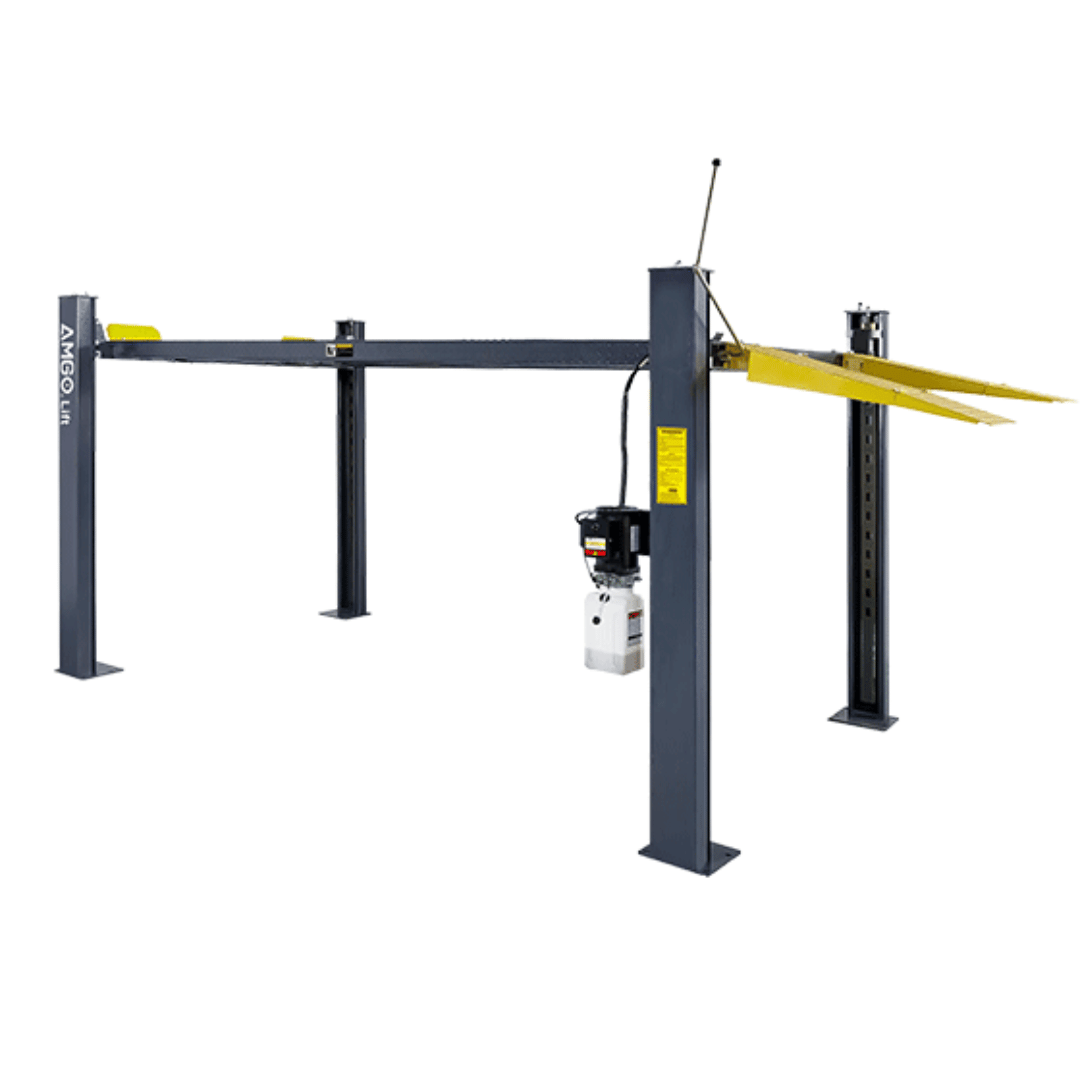

AMGO 407-P Compact 4-Post Parking Lift – 7,000 lb Capacity

Maximize parking efficiency without sacrificing safety or strength with the AMGO 407-P 4-Post Parking Lift. Designed for tight spaces and back-to-back installation, this 7,000 lb capacity lift is perfect for home garages, commercial storage, valet services, and auto dealerships. With a streamlined profile, foldable ramps, and manual single-point safety lock release, the 407-P combines ease of use with advanced safety engineering.

The lift features AMGO’s patented concealed safety lock system, housed within the structure for a cleaner look and enhanced protection. Its manual single-point safety release, combined with aero-grade steel cables and double-shaped support columns, ensures safe and secure lifting in any environment. The lift’s non-skid platforms with included foldable drive-on ramps make vehicle loading simple and stable.

Whether installed solo or in a back-to-back configuration, the AMGO 407-P offers minimal footprint with maximum storage capability, and the power column can be installed in any corner for flexible layout options. It also comes with AMGO’s ETL-certified power unit for dependable, long-term performance.

Now available at Gearforce USA, the 407-P is a commercial-grade parking lift in a space-conscious form, built for everyday use in garages of all sizes.

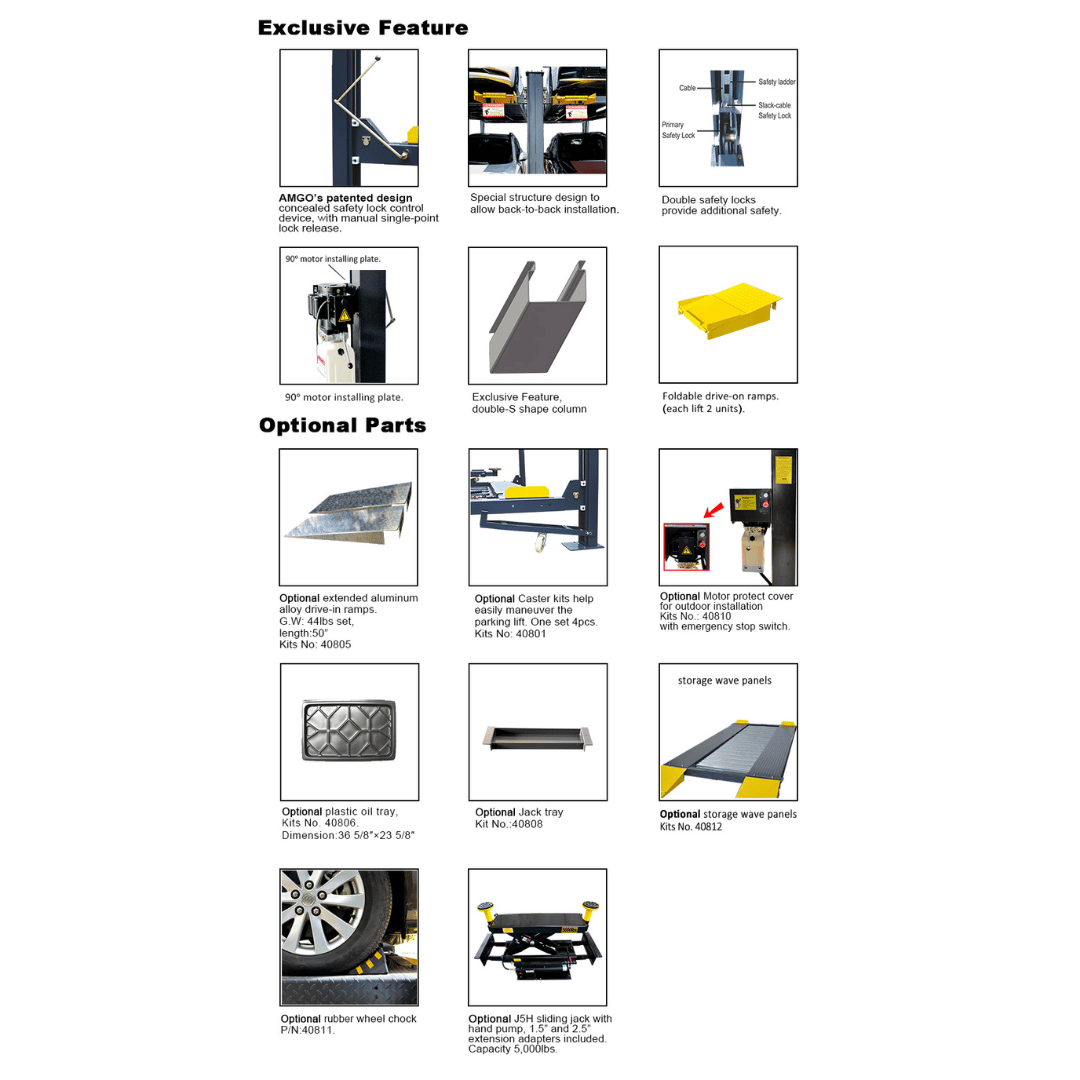

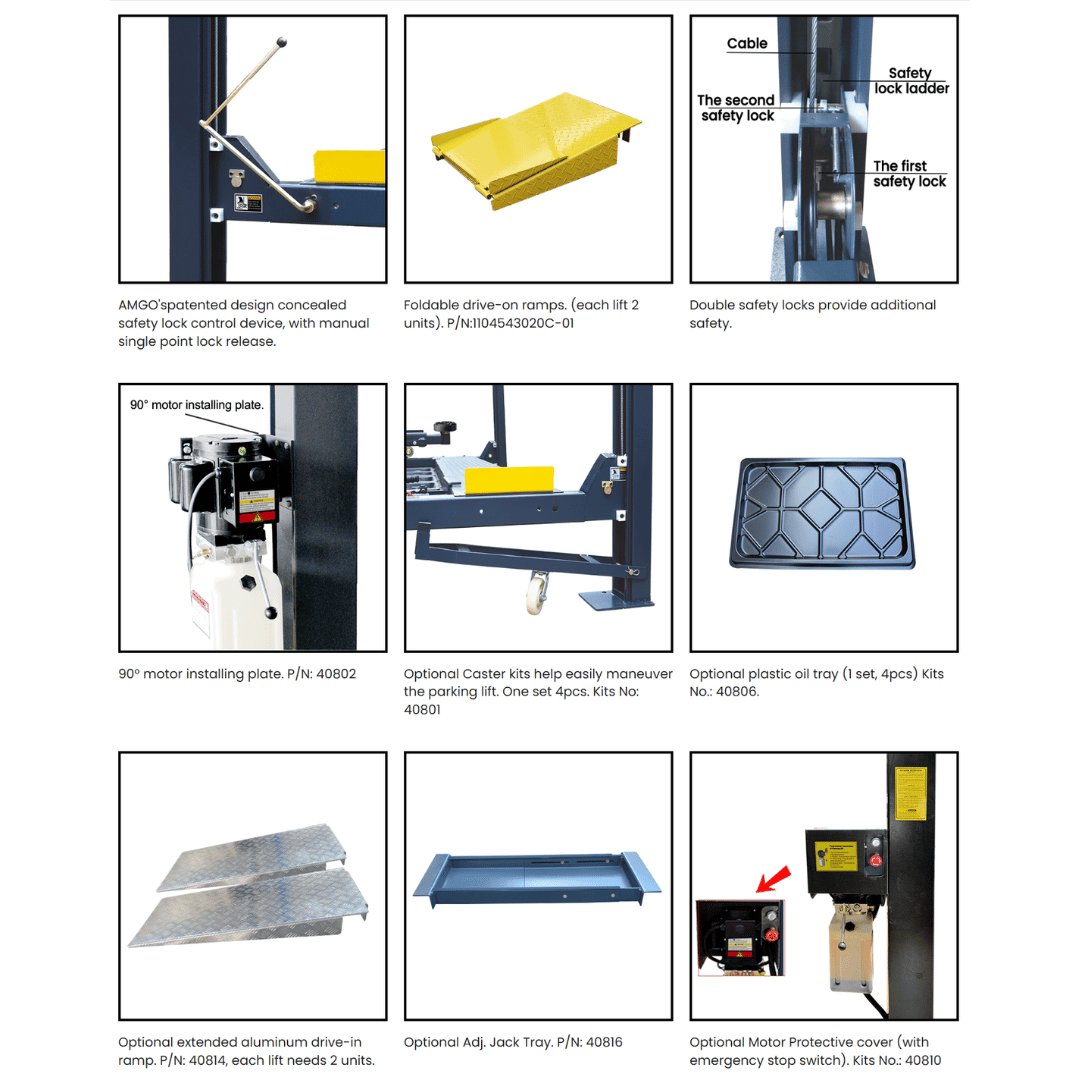

Key Features

  • 7,000 lb lifting capacity – supports standard vehicles, small trucks, and SUVs
  • Compact footprint – supports back-to-back installation for maximum space efficiency
  • Patented concealed safety lock control system – secure and sleek manual locking mechanism
  • Manual single-point safety lock release – no air system required
  • AMGO ETL-certified power unit – safe and reliable motor performance
  • Double-shaped columns – enhanced vertical load strength
  • Non-slip diamond plate platforms – secure tire grip during lift
  • Foldable drive-on ramps included – standard for easier access
  • Power column can be installed in any corner – improves garage layout flexibility
  • Max lifting height: 73 11/16" | Under-runway clearance: 69 3/4"
  • Overall length (with ramps): 185 13/16" | Overall width: 94 7/8"
  • Drive-thru clearance: 77" | Width between columns: 85 5/16"
  • Motor options: 1.0 HP (110V) or 2.0 HP (220V)
  • Lift time: 83s (110V) / 31s (220V) – efficient operation in any setting
  • Gross weight: 1,431 lbs
  • AMGO Warranty: 5 years on steel components, 3 years on hydraulics, 2 years on electrical components

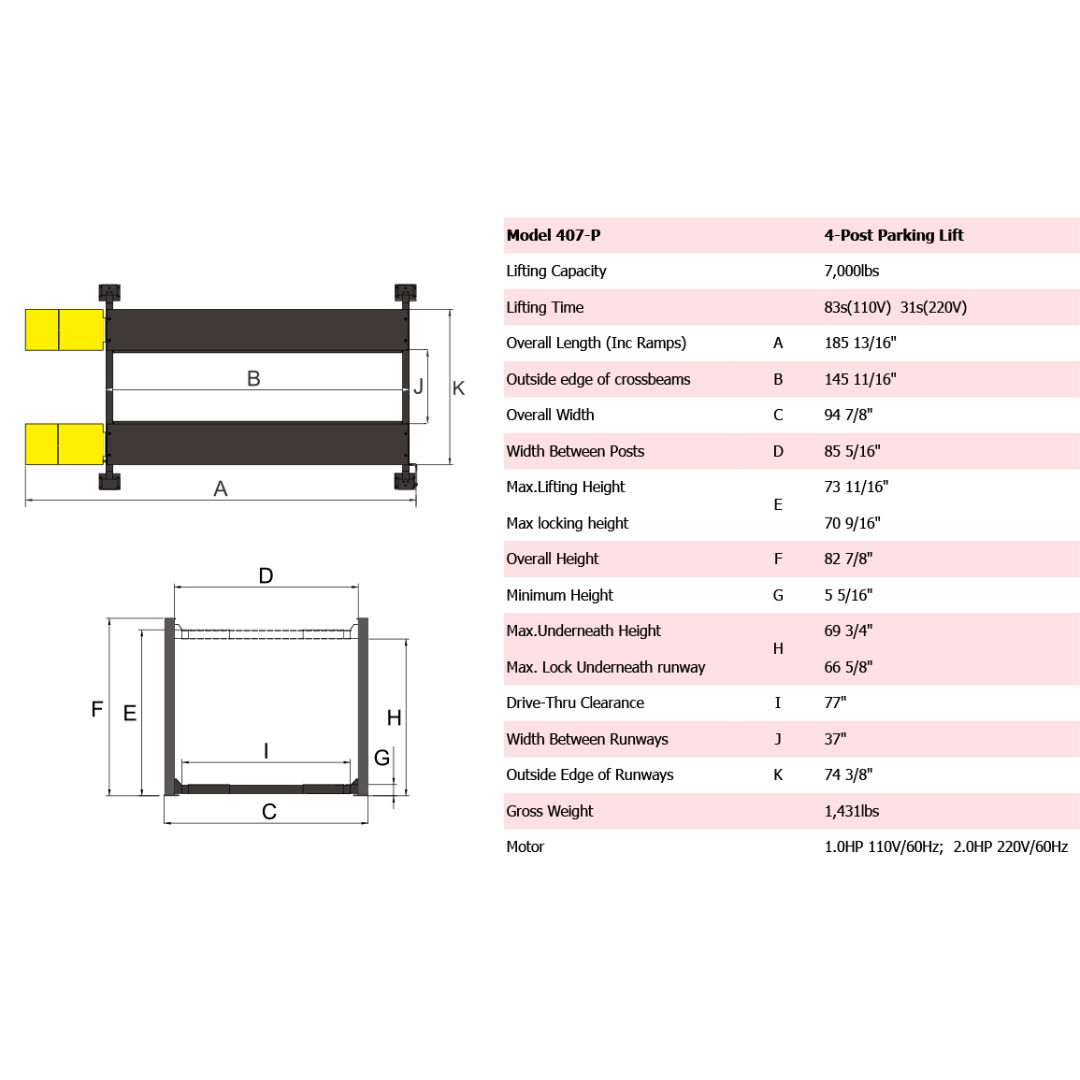

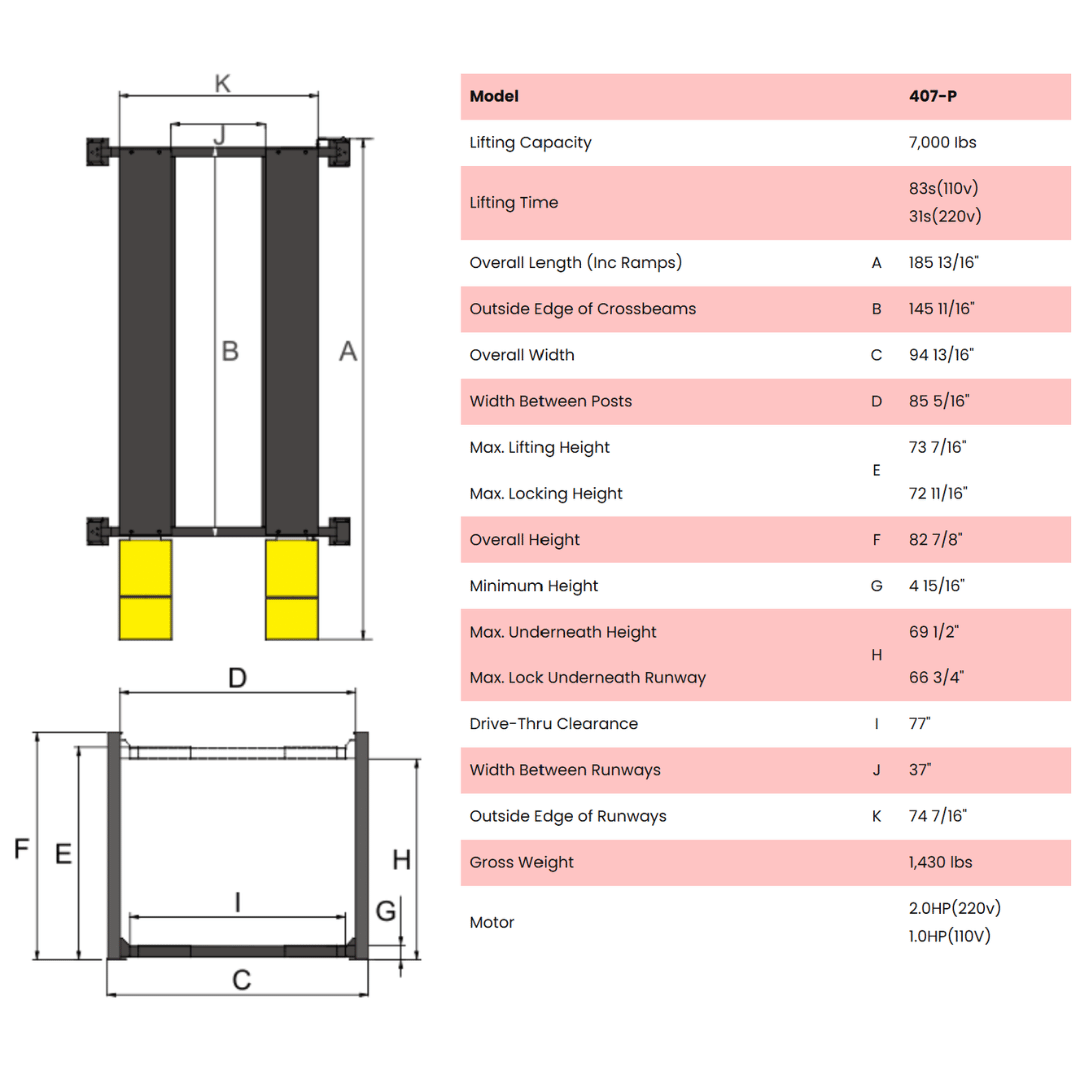

Product Specifications

Model 407-P
Lifting Capacity 7,000 lbs
Lifting Time 83s(110V) 31s(220V)
A: Overall Length (Inc.Ramps) 185 13/16″
B: Outside Edge of Crossbeams 145 11/16″
C: Overall Width 94 7/8″
D: Width Between Columns 85 5/16″
E: Max. Lifting Height 73 11/16″
E: Max. Locking Height 70 9/16″
F: Overall Height 82 7/8″
G: Minimum Height 5 5/16″
H: Max. Underneath Height 69 3/4″
H: Max.Lock Underneath Runway 66 5/8″
I: Drive-Thru Clearance 77″
J: Width Between Runways 37″
K: Outside Edge of Runways 74 3/8″
Gross Weight 1,431 lbs
Motor 1.0HP 110V/60Hz or 2.0HP 220V/60Hz

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
