Product Description

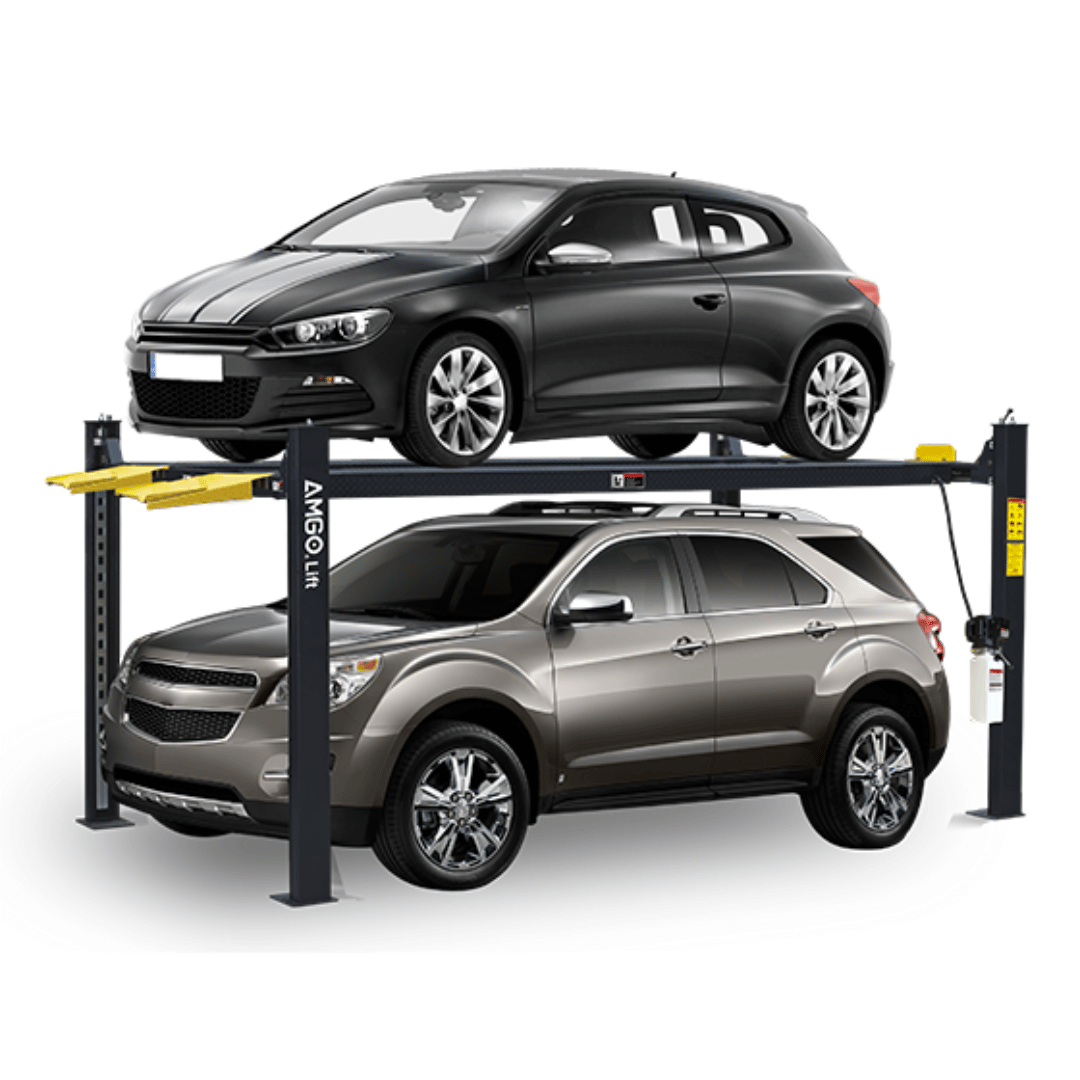

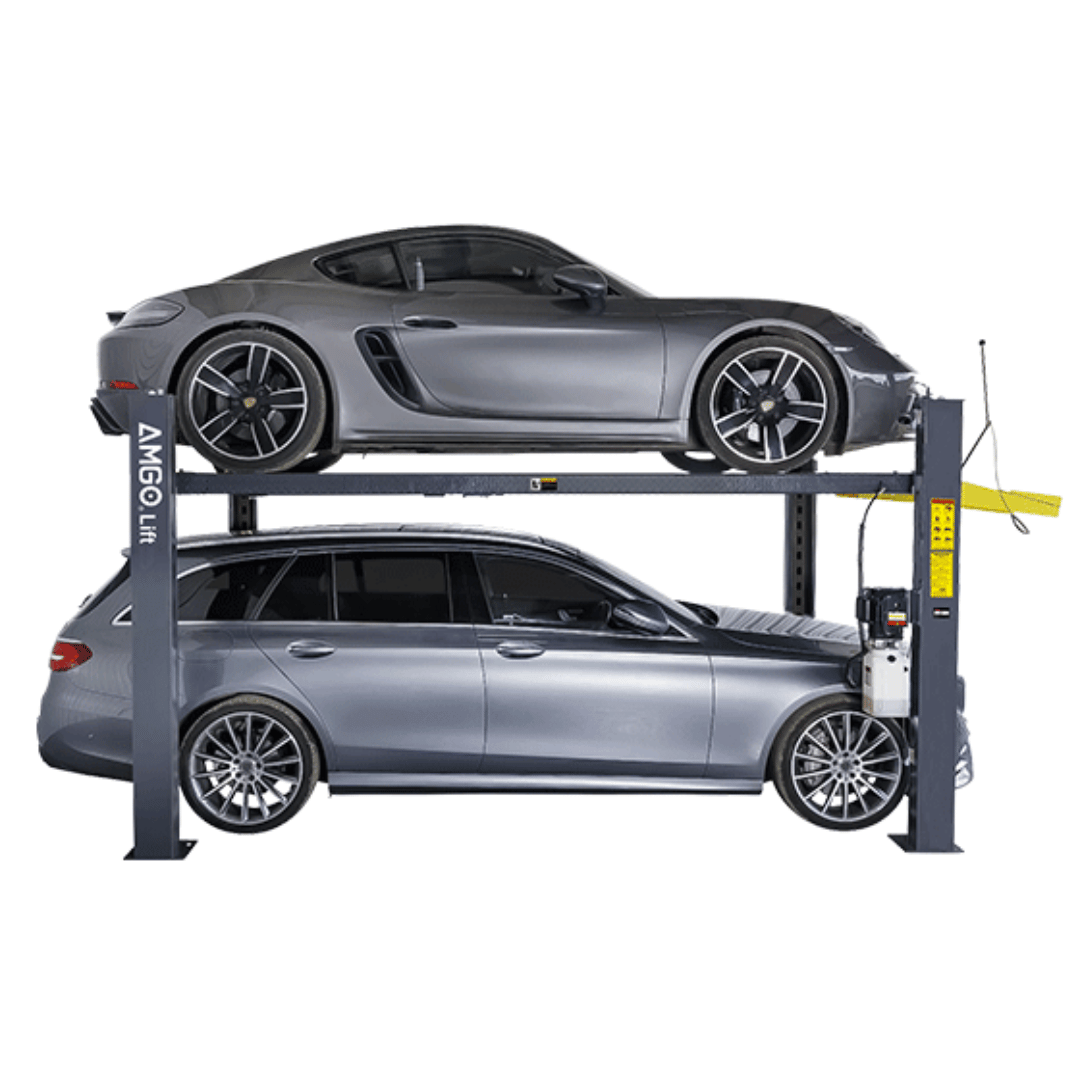

AMGO 408-HP High-Lift 4-Post Parking Lift – 8,000 lb Capacity
The AMGO 408-HP builds on the trusted design of the 408-P, delivering all the same benefits with the added advantage of 14" of extra lift height. With a maximum platform height of 87 11/16″, the 408-HP is specially designed to accommodate taller vehicles, lifted SUVs, and applications where maximum clearance underneath is essential — all while maintaining a compact footprint ideal for residential and commercial garages.
Engineered with AMGO’s patented concealed safety lock system, the lift features a manual single-point safety release, non-slip diamond platforms, and foldable drive-on ramps for quick and secure vehicle access. Reinforced double-shaped columns and aero-grade steel cables provide enhanced strength and stability, while the power column can be installed in any corner for maximum installation flexibility.
The 408-HP requires no anchoring to the floor and can be moved easily with an optional caster kit. With back-to-back installation support and a pull rope included for easy locking disengagement, this lift is a premium parking solution for professionals and enthusiasts alike.
Now available at Gearforce USA, the 408-HP is the perfect blend of lift height, storage capacity, and space-saving design for garages that need to go higher.

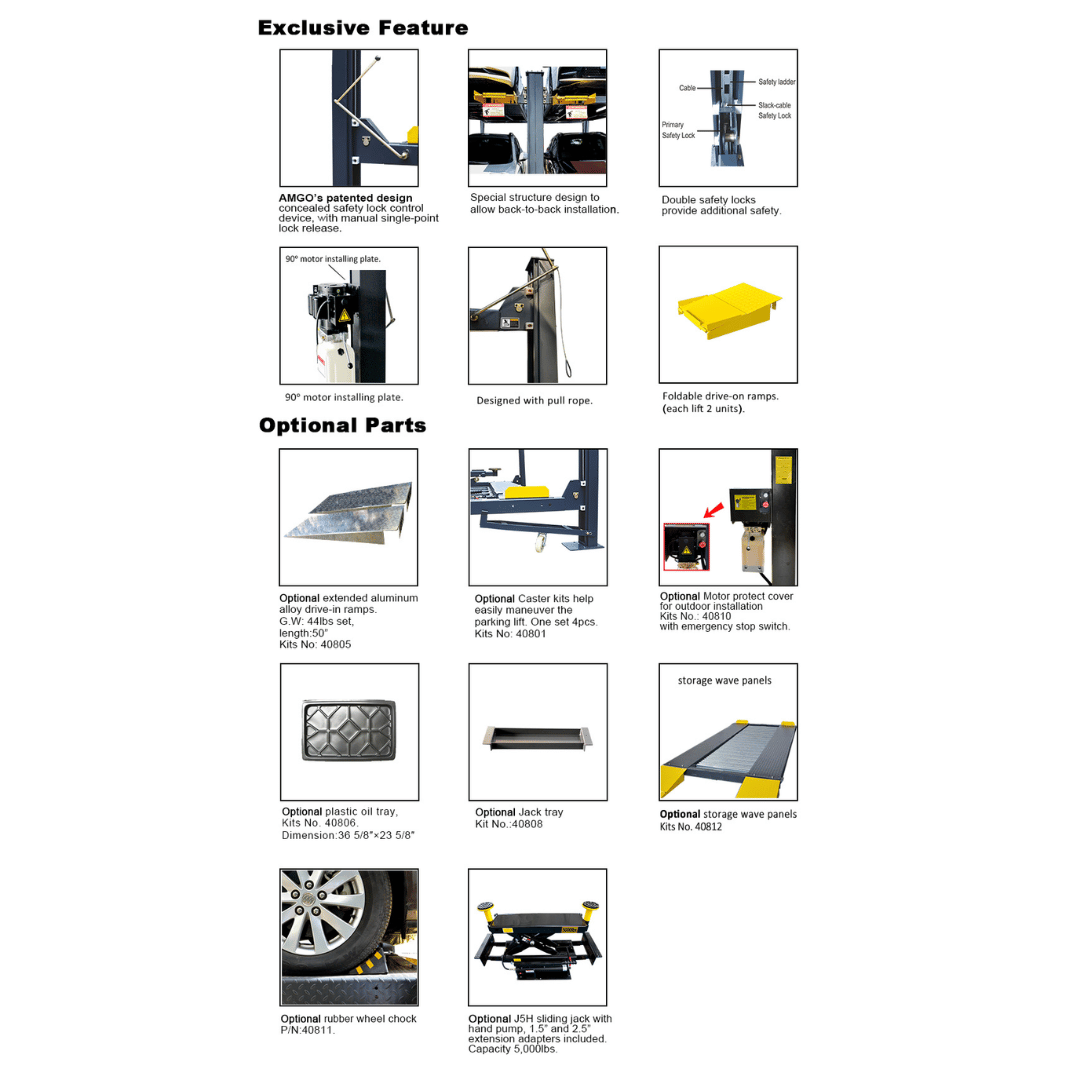

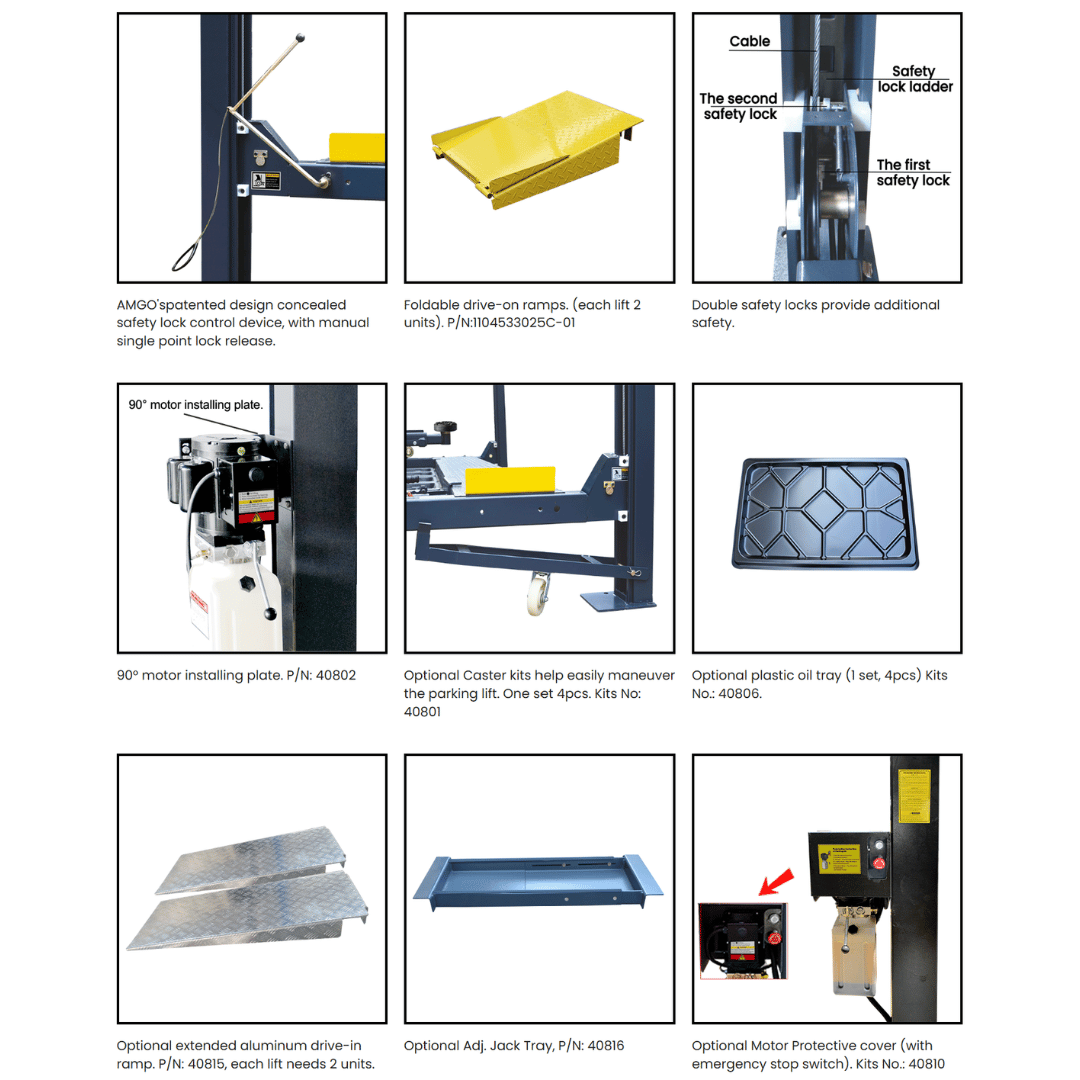

Key Features
- 8,000 lb lifting capacity – perfect for cars, SUVs, light-duty trucks, and lifted vehicles
- Extra-high lifting height: 87 11/16″ – provides 14″ more height than the 408-P
- Freestanding design – does not require floor anchoring, caster kit compatible for mobility
- Manual single-point lock release – no air required, includes pull rope for easy release
- Patented concealed safety lock control system – safe, clean, and reliable
- Double-structured columns – enhanced vertical support and long-term durability
- Foldable drive-on ramps included – improve vehicle access while saving space
- Non-slip diamond plate platforms – enhance tire grip and operational safety
- Supports back-to-back installation – ideal for commercial and space-efficient layouts
- Max underneath clearance: 82 15/16″ | Drive-thru clearance: 81 11/16″
- Overall length (with ramps): 207 1/4″ | Platform length: 166 7/8″ | Overall width: 102 1/2″
- Motor: 1.0 HP (110V) or 2.0 HP (220V)
- Lifting time: 98s (110V) / 46s (220V)
- Gross weight: 1,726 lbs
- AMGO Warranty: 5 years on structural steel, 3 years on hydraulics, 2 years on electrical components

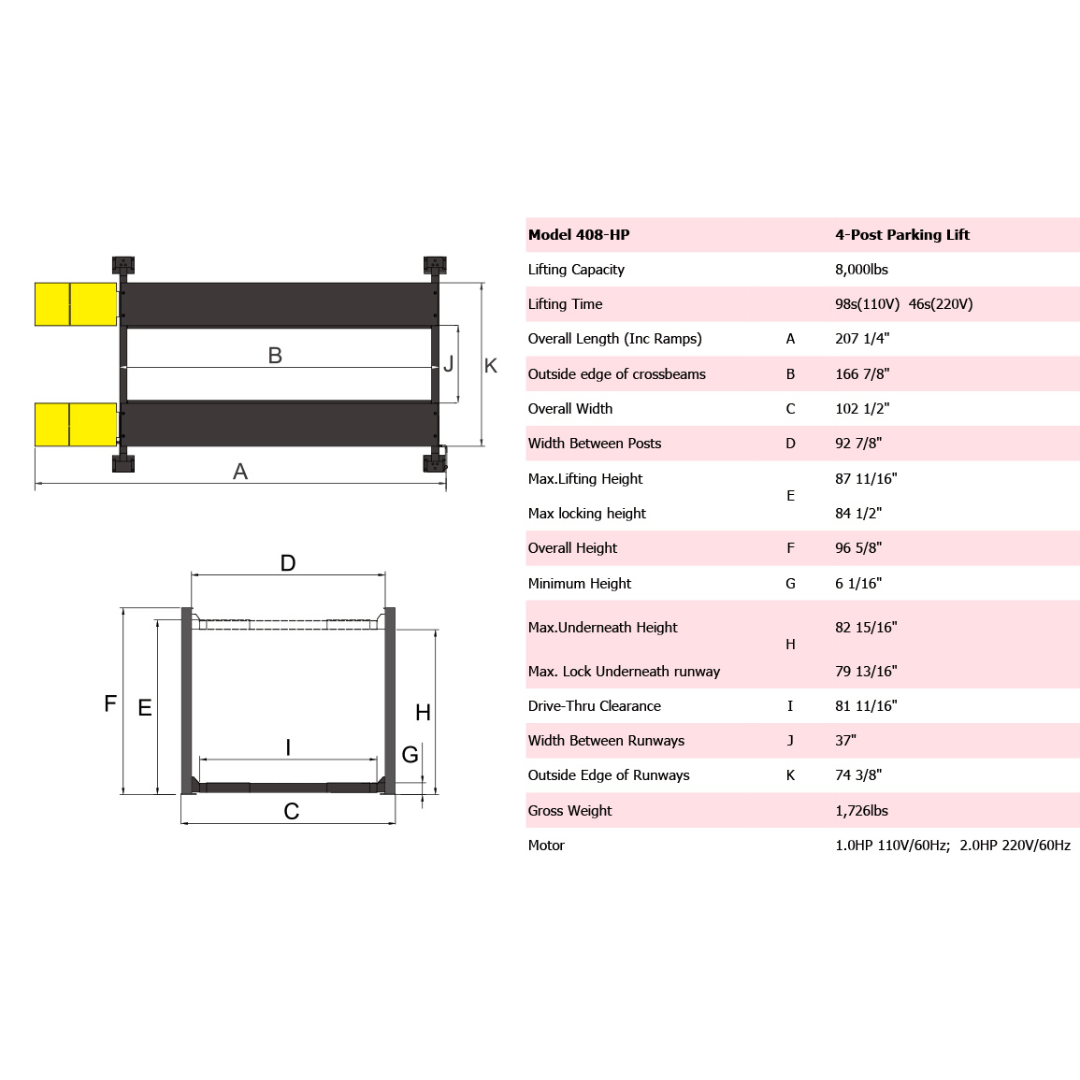

Product Specifications
| Model | 408-HP |
|---|---|
| Lifting Capacity | 8,000 lbs |
| Lifting Time | 98s(110V) 46s(220V) |
| A: Overall Length (Inc.Ramps) | 207 1/4″ |
| B: Outside Edge of Crossbeams | 166 7/8″ |
| C: Overall Width | 102 1/2″ |
| D: Width Between Posts | 92 7/8″ |
| E: Max. Lifting Height | 87 11/16″ |
| E: Max. Locking Height | 84 1/2″ |
| F: Overall Height | 96 5/8″ |
| G: Minimum Height | 6 1/16″ |
| H: Max. Underneath Height | 82 15/16″ |
| H: Max. Lock Underneath Runway | 79 13/16″ |
| I: Drive-Thru Clearance | 81 11/16″ |
| J: Width Between Runways | 37″ |
| K: Outside Edge of Runways | 74 3/8″ |
| Gross Weight | 1,726 lbs |
| Motor | 1.0HP 110V/60Hz or 2.0HP 220V/60Hz |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
