Product Description

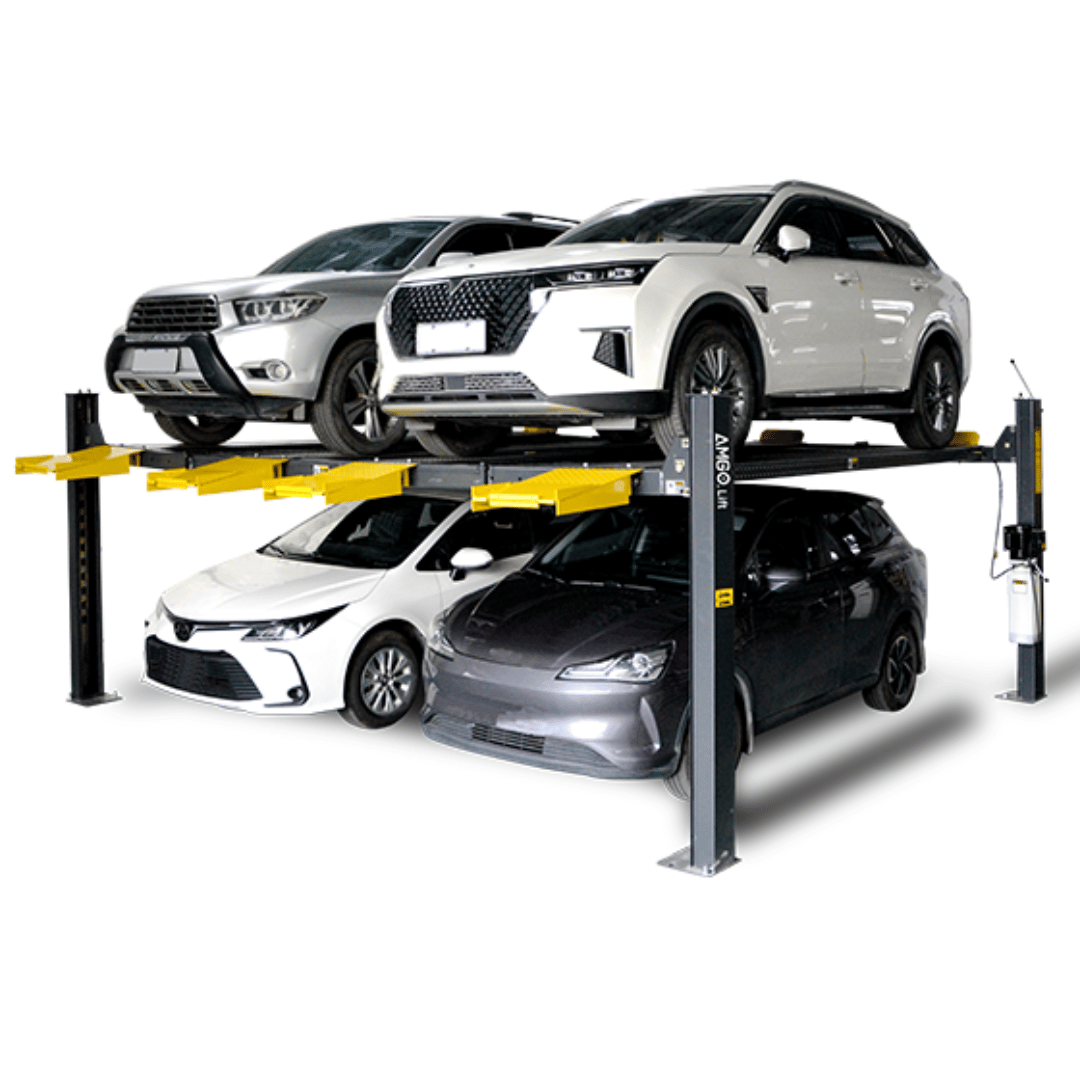

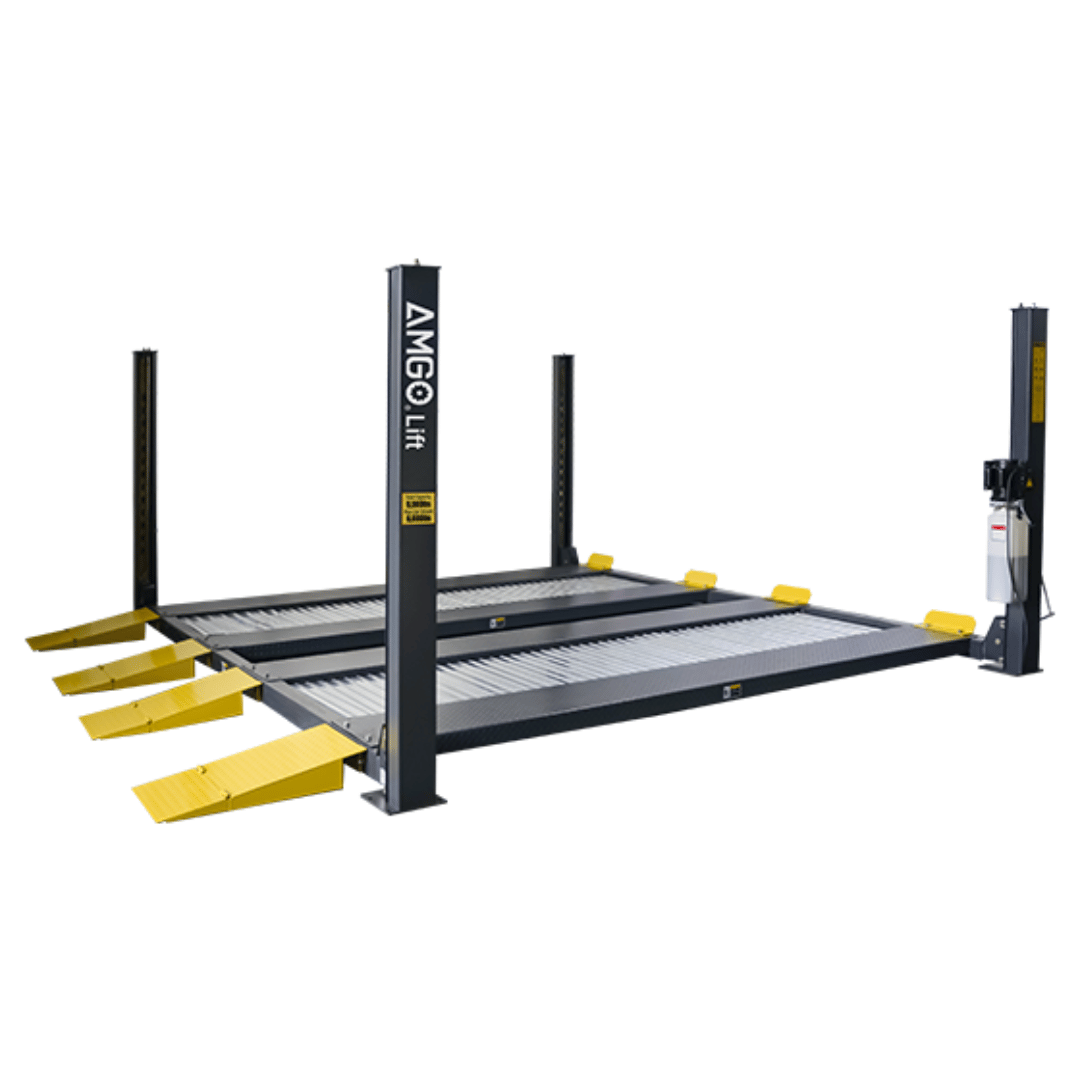

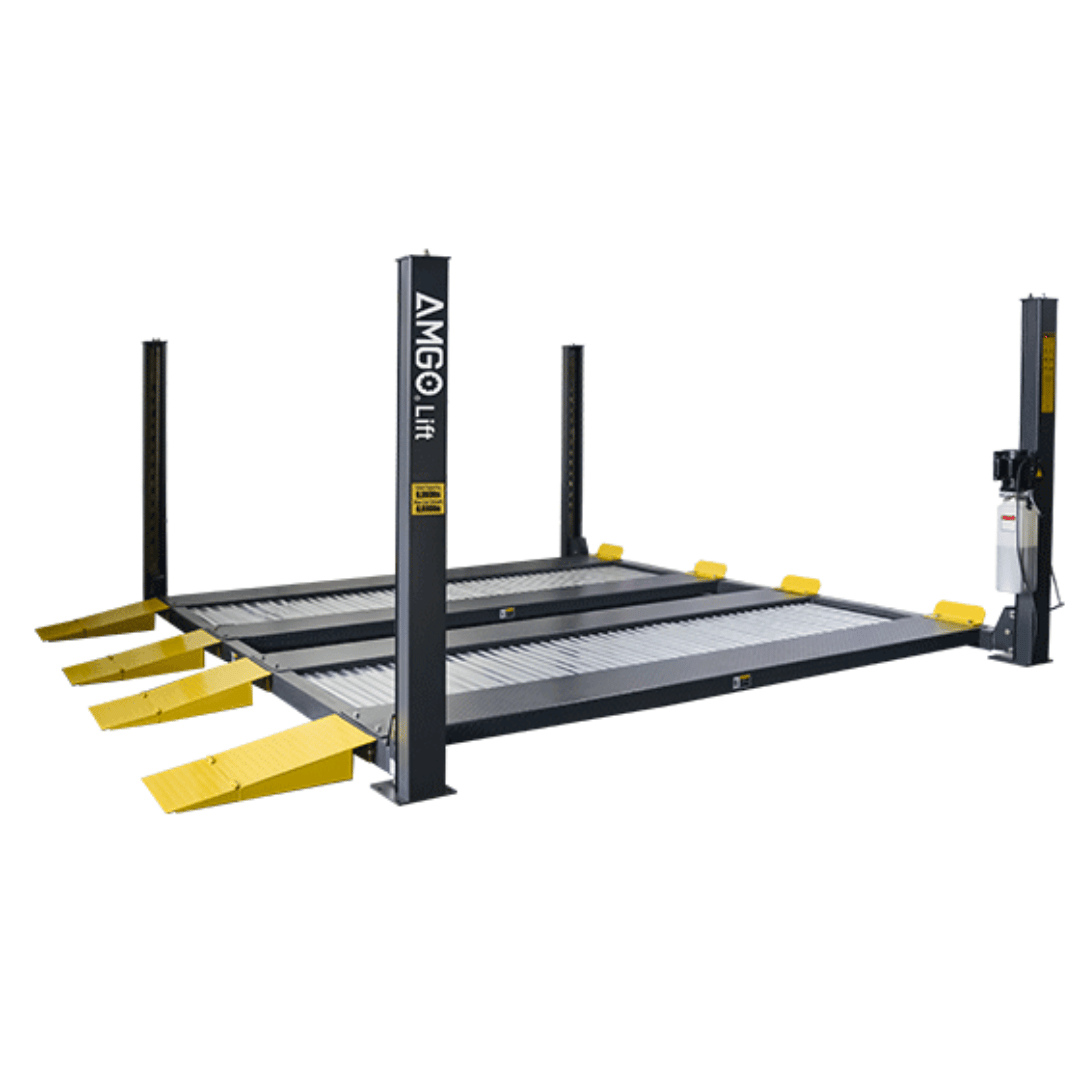

AMGO 409-DP Double Parking 4-Post Lift – 9,000 lb Capacity (Two Vehicles)

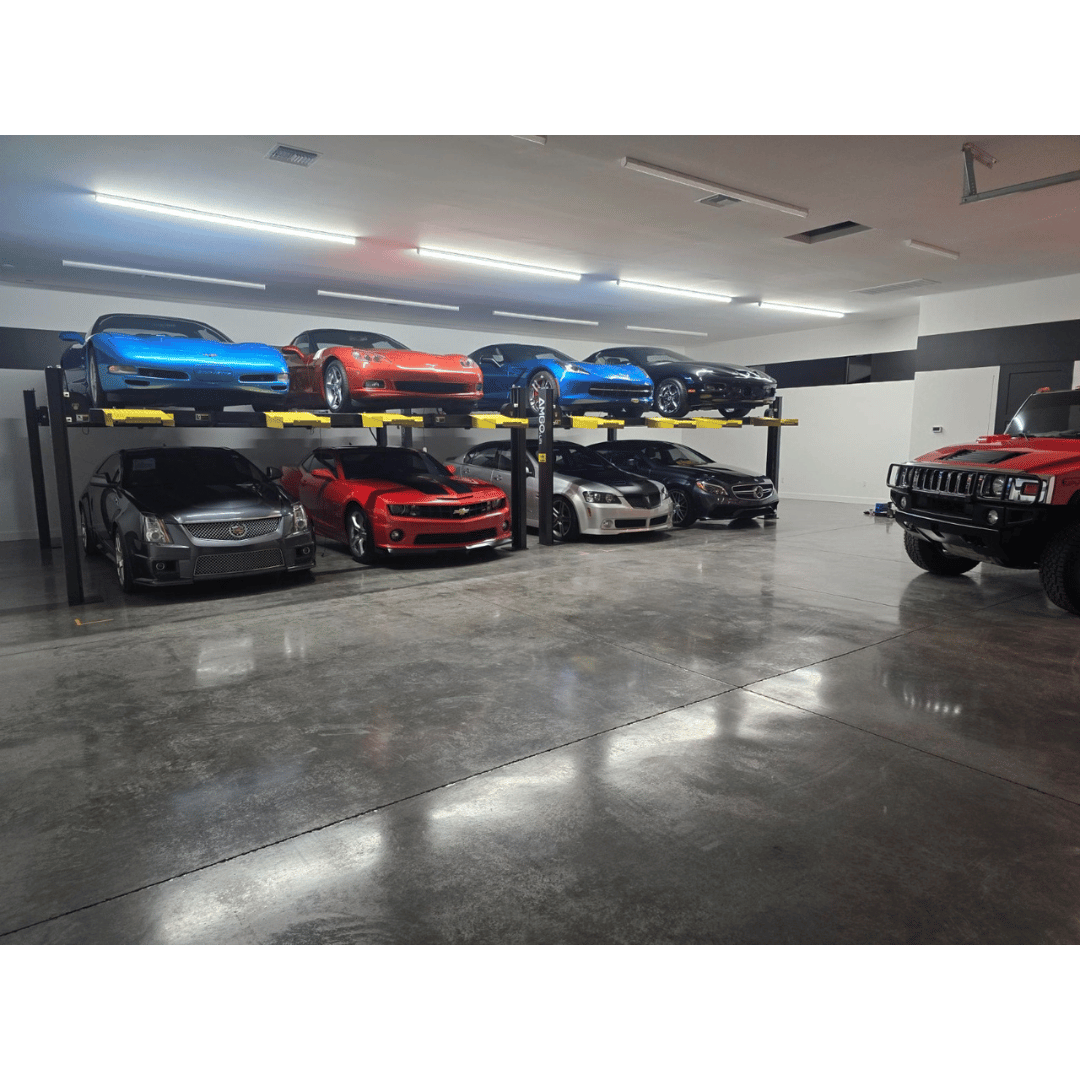

The AMGO 409-DP is an advanced double-width 4-post parking lift designed to maximize vertical and horizontal space by accommodating two stacked vehicles per side, allowing for 4-vehicle parking in one footprint. With a total lifting capacity of 9,000 lbs (max. 6,000 lbs per vehicle), this system is ideal for garages, dealerships, condos, and valet services that need to store multiple cars efficiently without sacrificing access or safety.
Built with a low-profile design and a minimum platform height of just 6 1/8″, the 409-DP offers seamless drive-on access while rising to a maximum lift height of 73 11/16″, allowing most full-size vehicles to park beneath with ease. It features dual mechanical safety locks, a cable-slack protection system, and AMGO’s patented concealed safety lock control system with a single-point manual release, making it as safe as it is space-saving.
The lift comes standard with four foldable drive-on ramps, non-slip diamond plate platforms, and double-shaped columns for enhanced load-bearing stability. Designed with adjustable safety ladders and innovative packaging dimensions to reduce shipping and storage costs, the 409-DP is engineered for efficiency from delivery to daily use.
Now available from Gearforce USA, the AMGO 409-DP is the ultimate solution for those looking to double up on vehicle storage without doubling the space.
Key Features
- Total lifting capacity: 9,000 lbs (max 6,000 lbs per vehicle) – accommodates four vehicles across two platforms
- Double-parking layout – park two cars side-by-side, then lift both to free up space below
- Low-profile runways – just 6 1/8″ high for easy drive-on access
- Max platform height: 73 11/16″ | Underneath clearance: 69 3/4″ – suitable for most cars, SUVs, and light-duty trucks

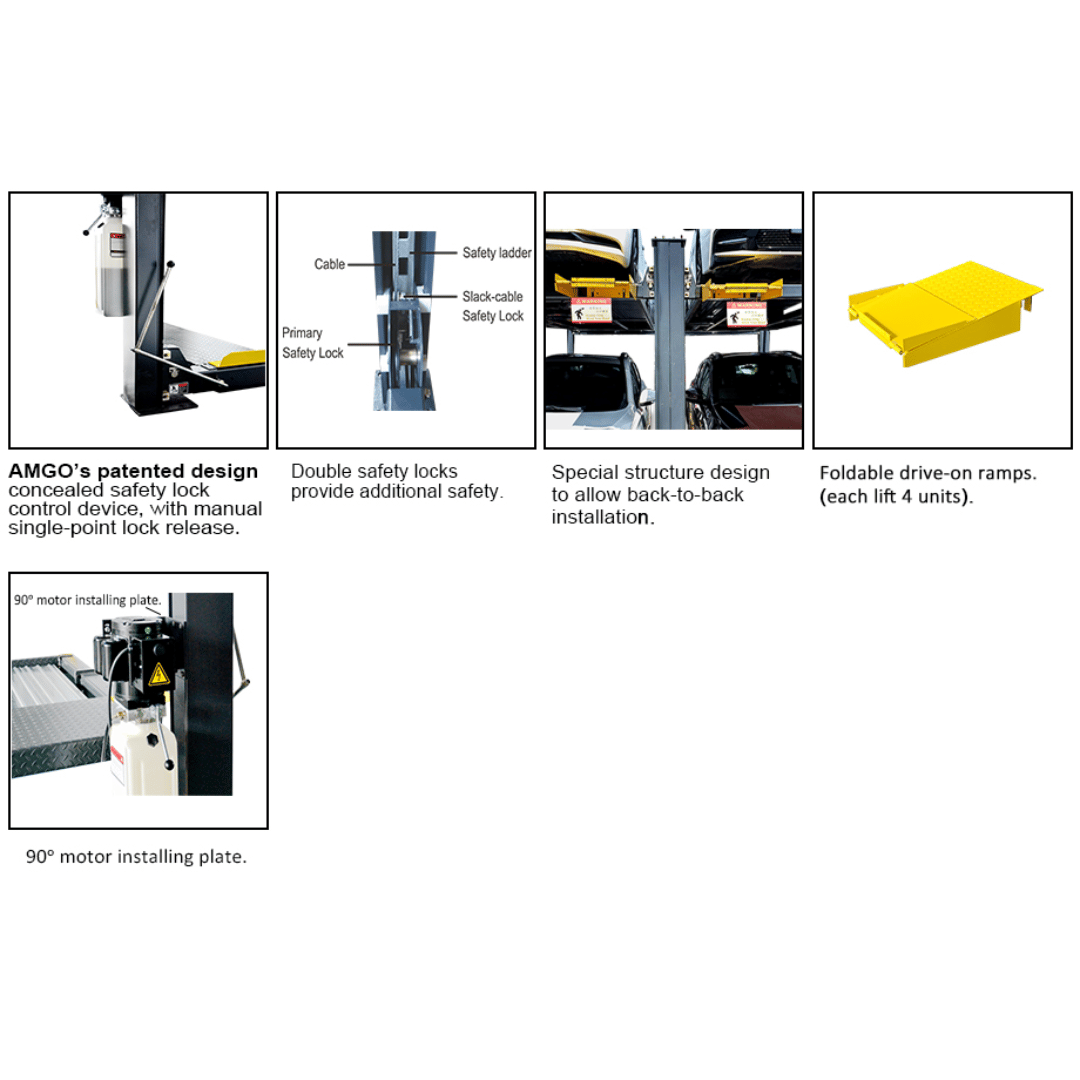

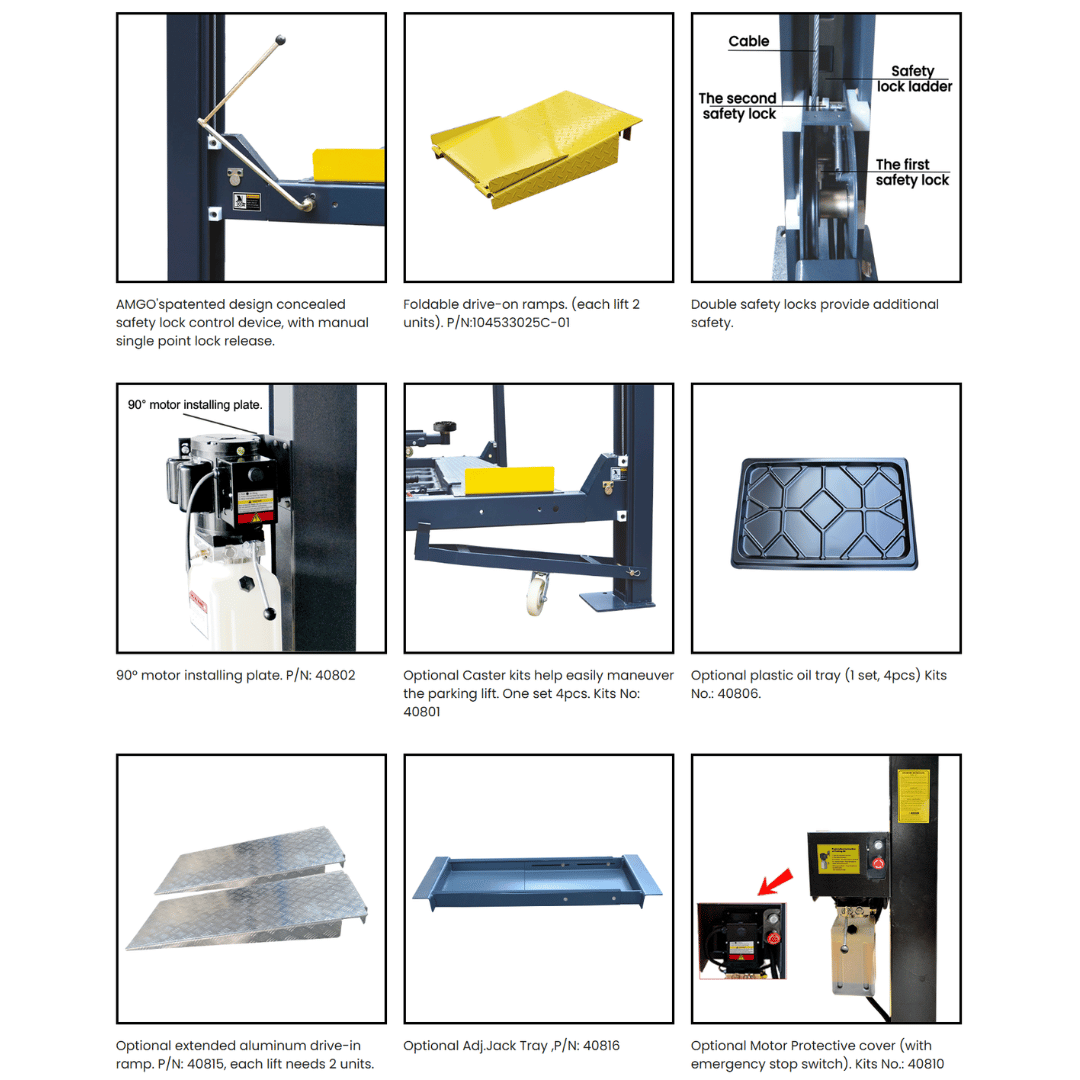

- AMGO patented concealed safety lock system – includes manual single-point lock release for both platforms
- Dual mechanical locks + cable-slack protection system – comprehensive safety engineering
- Four foldable drive-on ramps included – easy vehicle loading across both lift platforms
- Double-shaped columns – structural reinforcement for heavy-duty operation
- Adjustable safety ladders – customizable for precise safety lock engagement

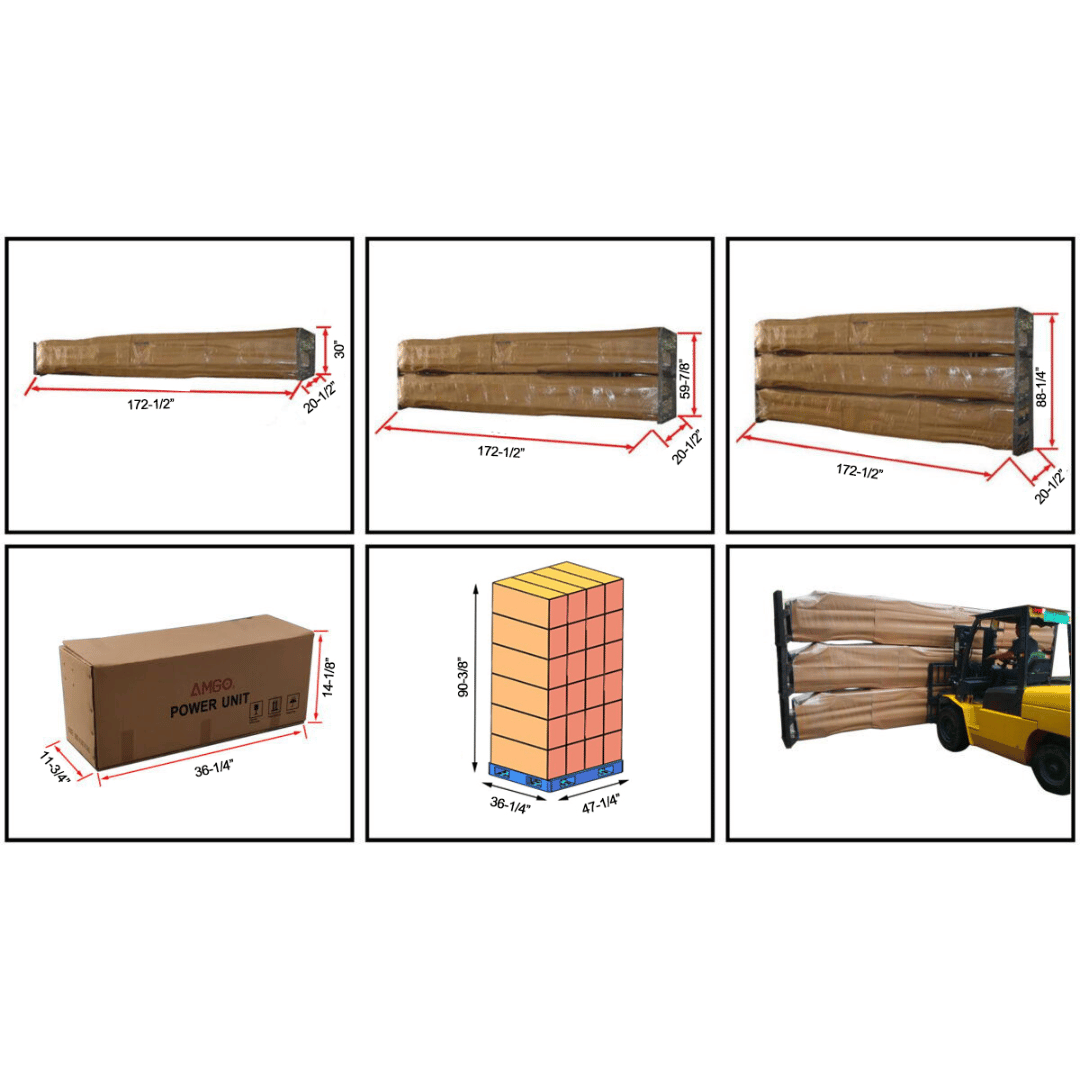

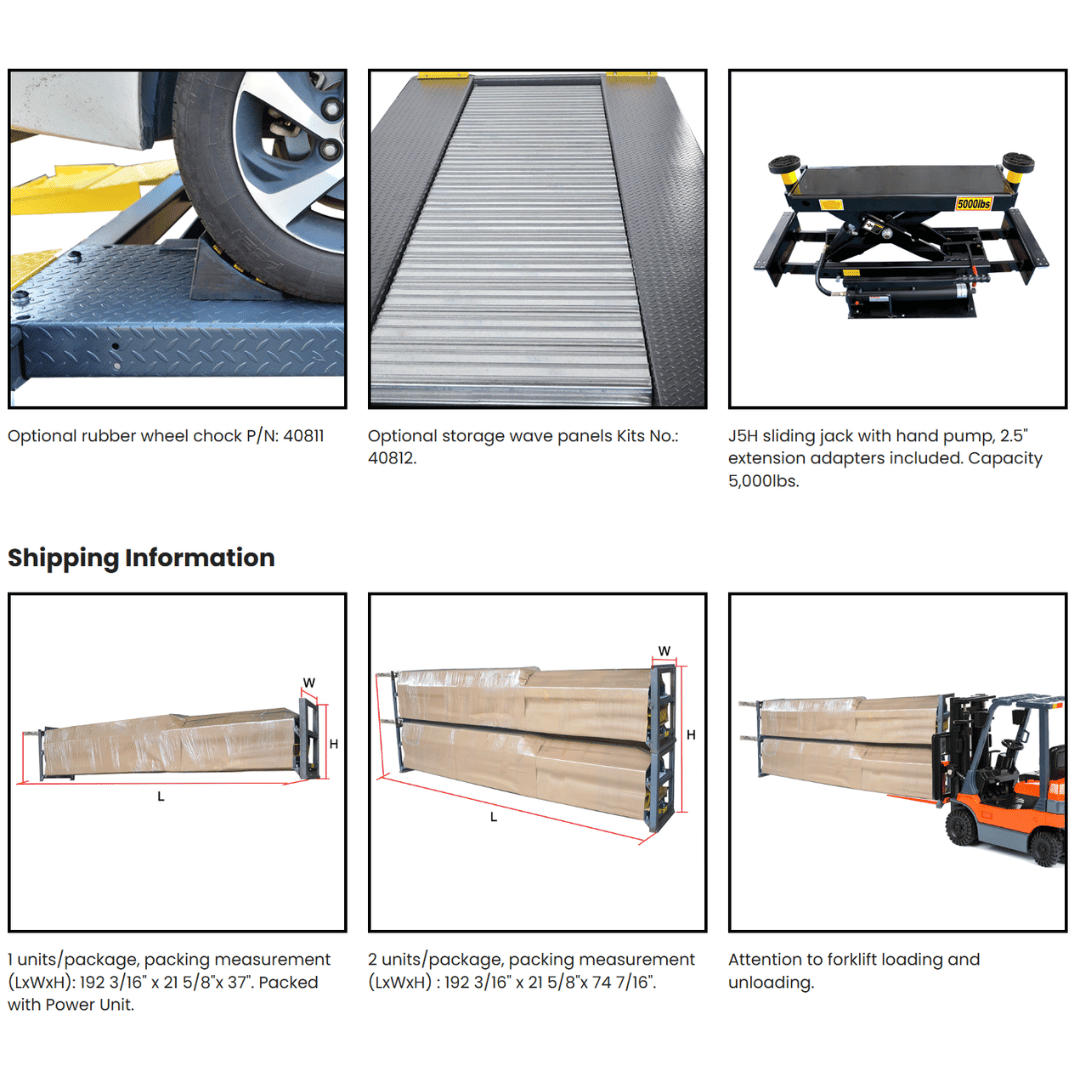

- Designed to minimize shipping volume – reduced delivery costs and easier storage before installation
- Drive-thru width: 177 3/4″ | Width between columns: 188 7/8″
- Overall width: 198 7/16″ | Platform width (per unit): 74 7/16″ | Spacing between platforms: 21 5/8″
- Motor: 2.0 HP, 220V, single-phase – commercial-grade power and reliability
- Lift time: 47s (220V) / 100s (110V; specify when ordering)
- Gross weight: 2,810 lbs
- AMGO Warranty: 5 years on structural steel, 3 years on hydraulics, 2 years on electrical components

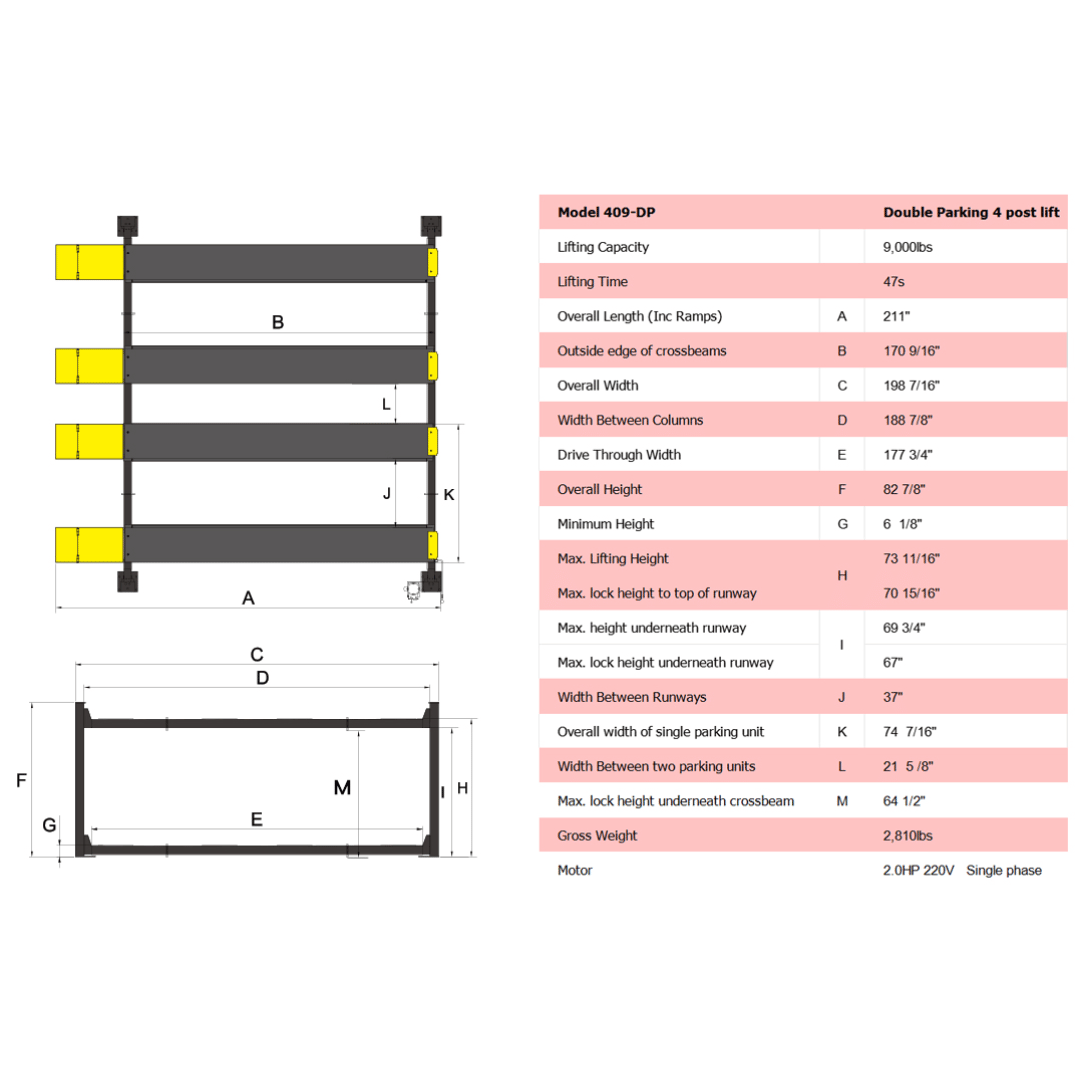

Product Specifications
| Model | 409-DP |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 47s |
| A: Overall Length (Inc Ramps) | 211″ |
| B: Outside Edge of Crossbeams | 170 9/16″ |
| C: Overall Width | 198 7/16″ |
| D: Width between Columns | 188 7/8″ |
| E: Drive-Thru Width | 177 3/4″ |
| F: Overall Height | 82 7/8″ |
| G: Minimum Height | 6 1/8″ |
| H: Max. Lifting Height | 73 11/16″ |
| H: Max. Locking Height to Top of Runway | 70 15/16″ |
| I: Max. height underneath runway | 69 3/4″ |
| I: Max. lock height underneath runway | 67″ |
| J: Width between runways | 37″ |
| K: Overall width of single parking unit | 74 7/16″ |
| L: Width between two parking unit | 21 5/8″ |
| M: Max. Lock Height Underneath Crossbeam | 64 1/2″ |
| Gross weight | 2,810 lbs |
| Motor | 2.0HP 220V/60Hz, Single Phase |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
