Product Description

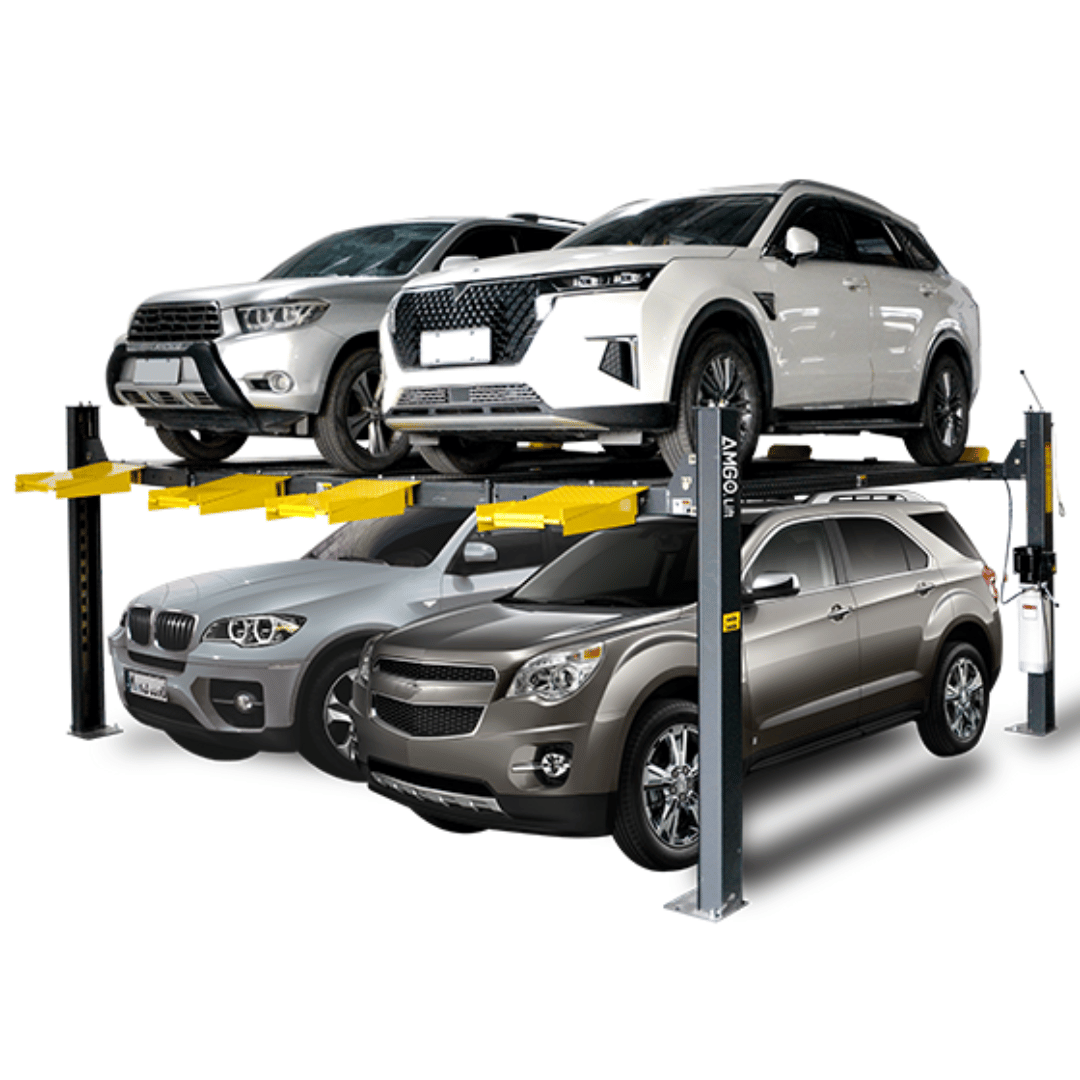

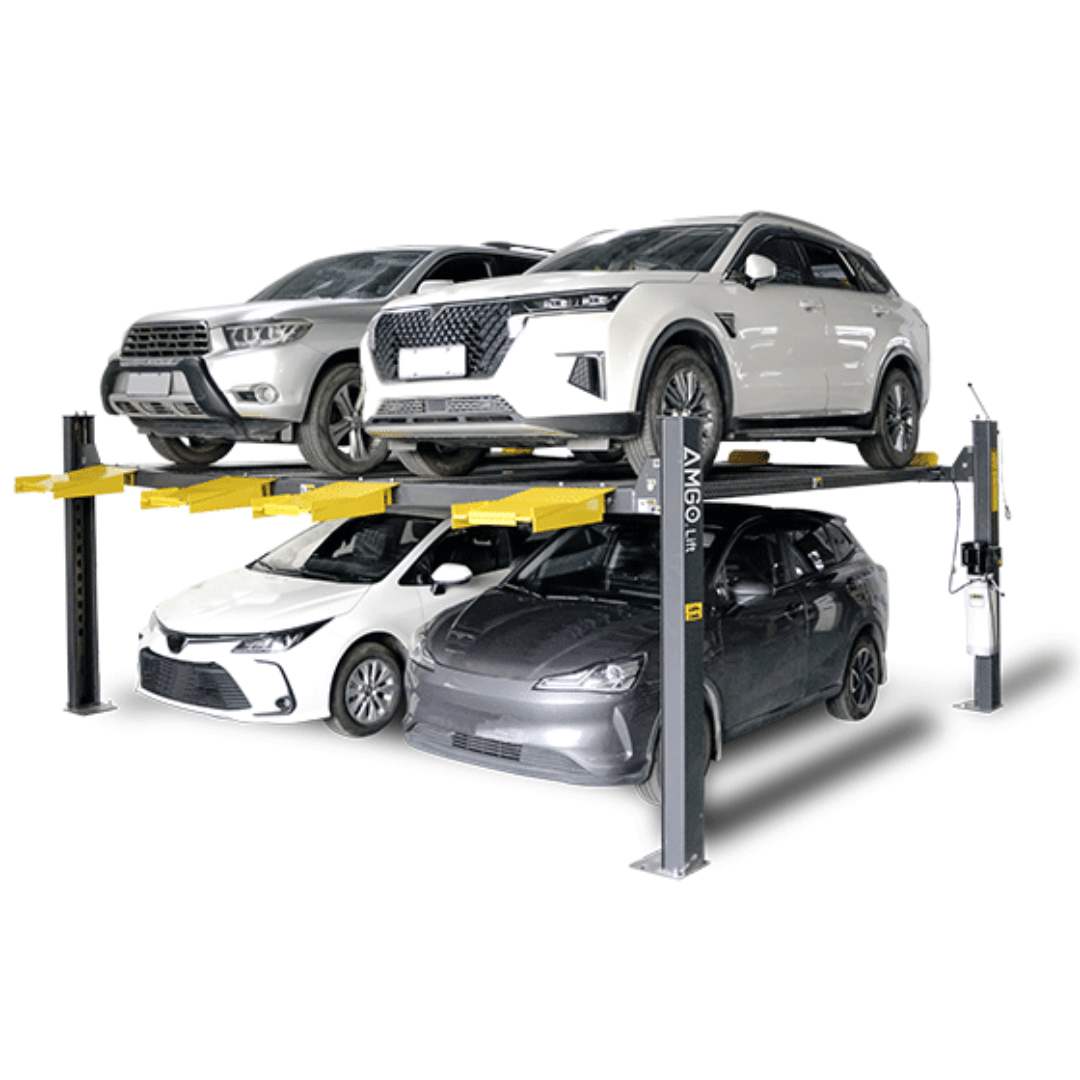

AMGO 409-DPX Extended Double Parking Lift – 9,000 lb Capacity (Two Vehicles)
The AMGO 409-DPX takes the space-saving power of the 409-DP to new heights—literally. This extended version offers greater platform length and an extra-high lifting range of 87 11/16″, making it the ideal solution for parking taller vehicles such as SUVs, vans, and light trucks beneath another vehicle. With a total lifting capacity of 9,000 lbs (6,000 lbs per car max), the 409-DPX is purpose-built for residential garages, luxury car collectors, and commercial operations that need maximum flexibility in a minimal footprint.

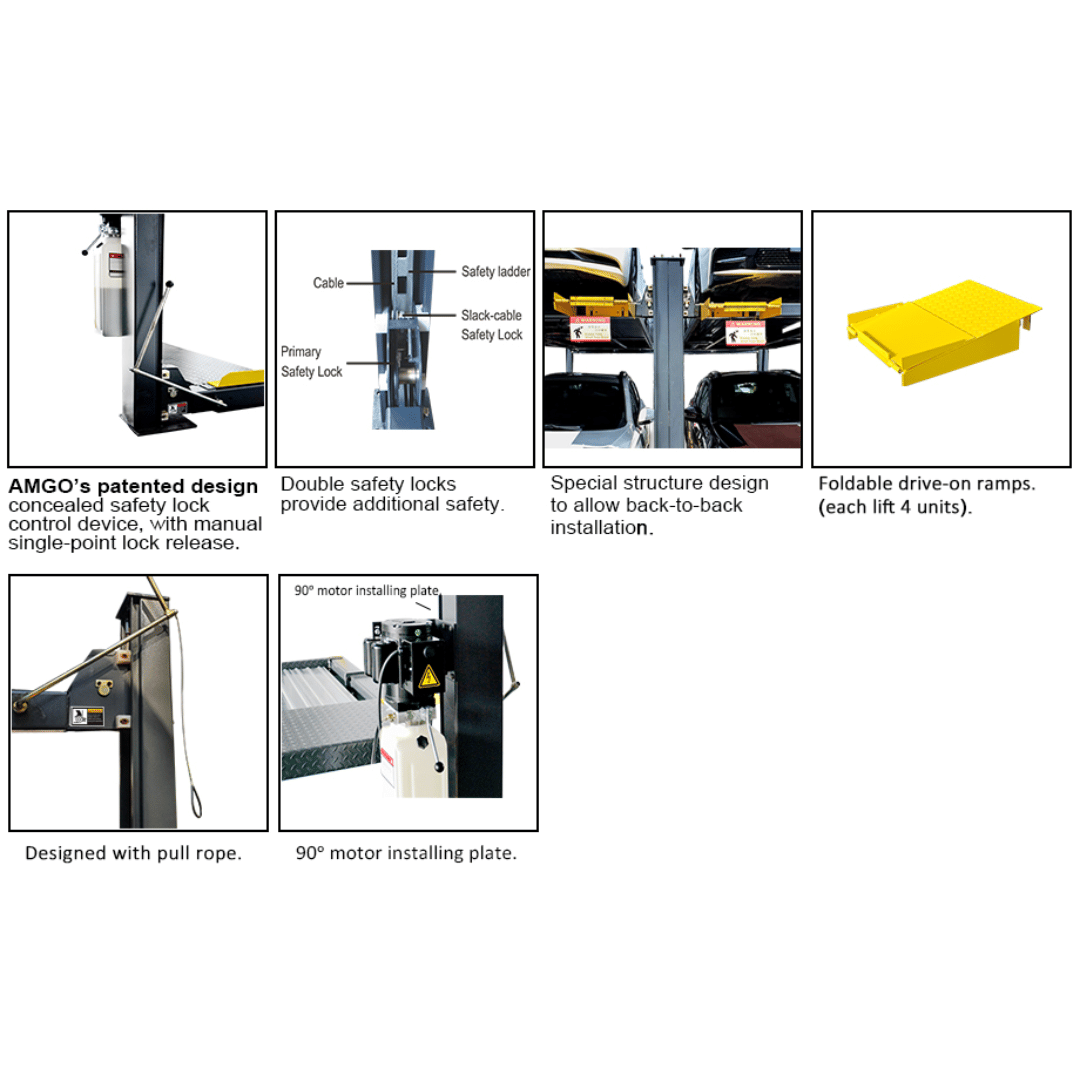

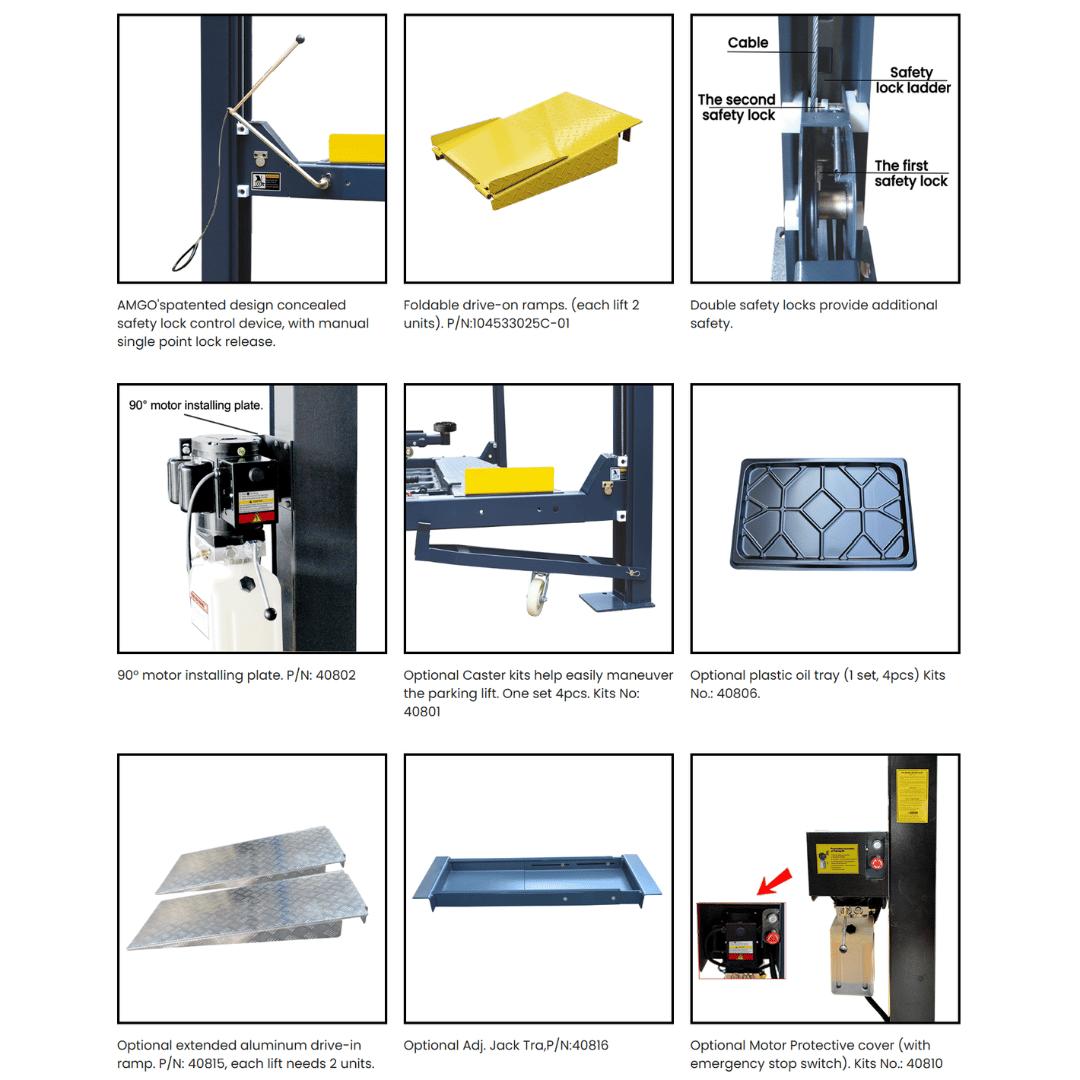

Featuring dual independent parking bays, this lift stores up to four vehicles in two stackable positions. It comes equipped with AMGO’s patented concealed safety lock system, manual single-point release, and adjustable multi-position safety ladders for maximum safety. The non-slip diamond plate platforms and reinforced double-shaped columns ensure structural integrity even under full load, while foldable drive-on ramps simplify vehicle access across all four runways.
With a minimum platform height of just 6 1/8″, the 409-DPX remains easily accessible for low-clearance vehicles, while the extra height underneath (up to 83 3/4″) allows even lifted or commercial vehicles to be parked below.
Now available at Gearforce USA, the 409-DPX is your ultimate solution for high-clearance, dual-space vehicle storage with unmatched structural strength and safety.
Key Features
- 9,000 lb lifting capacity total (6,000 lbs max per car) – accommodates up to 4 vehicles simultaneously
- Extra-long platform length: 198 1/8″ | Overall length (with ramps): 238 9/16″ – fits long sedans and light trucks
- Ultra-high lifting height: 87 11/16″ | Underneath clearance: up to 83 3/4″ – perfect for lifted SUVs and vans
- Low-profile design – only 6 1/8″ high when lowered for easy drive-on access
- Dual mechanical safety locks + cable-slack protection – robust safety measures built in
- Manual single-point safety lock release – easy operation with no air system required
- Foldable drive-on ramps included (4 units) – compact and user-friendly
- Double-shaped support columns – enhanced load-bearing capacity and rigidity
- Adjustable safety ladders – multi-position locks for varied parking setups
- Pull rope standard – convenient safety lock disengagement
- Drive-thru clearance: 177 3/4″ | Width between columns: 188 7/8″ | Overall width: 198 7/16″
- Platform width (each unit): 74 7/16″ | Center spacing: 21 5/8″ | Between runways: 37″
- Motor: 2.0 HP, 220V, single-phase | Optional 110V motor (120s lift time) – specify when ordering
- Lift time: 57 seconds (220V)
- Gross weight: 3,142 lbs
- AMGO Warranty: 5 years on steel structure, 3 years on hydraulics, 2 years on electrical

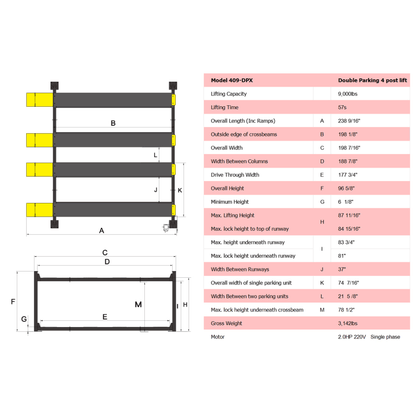

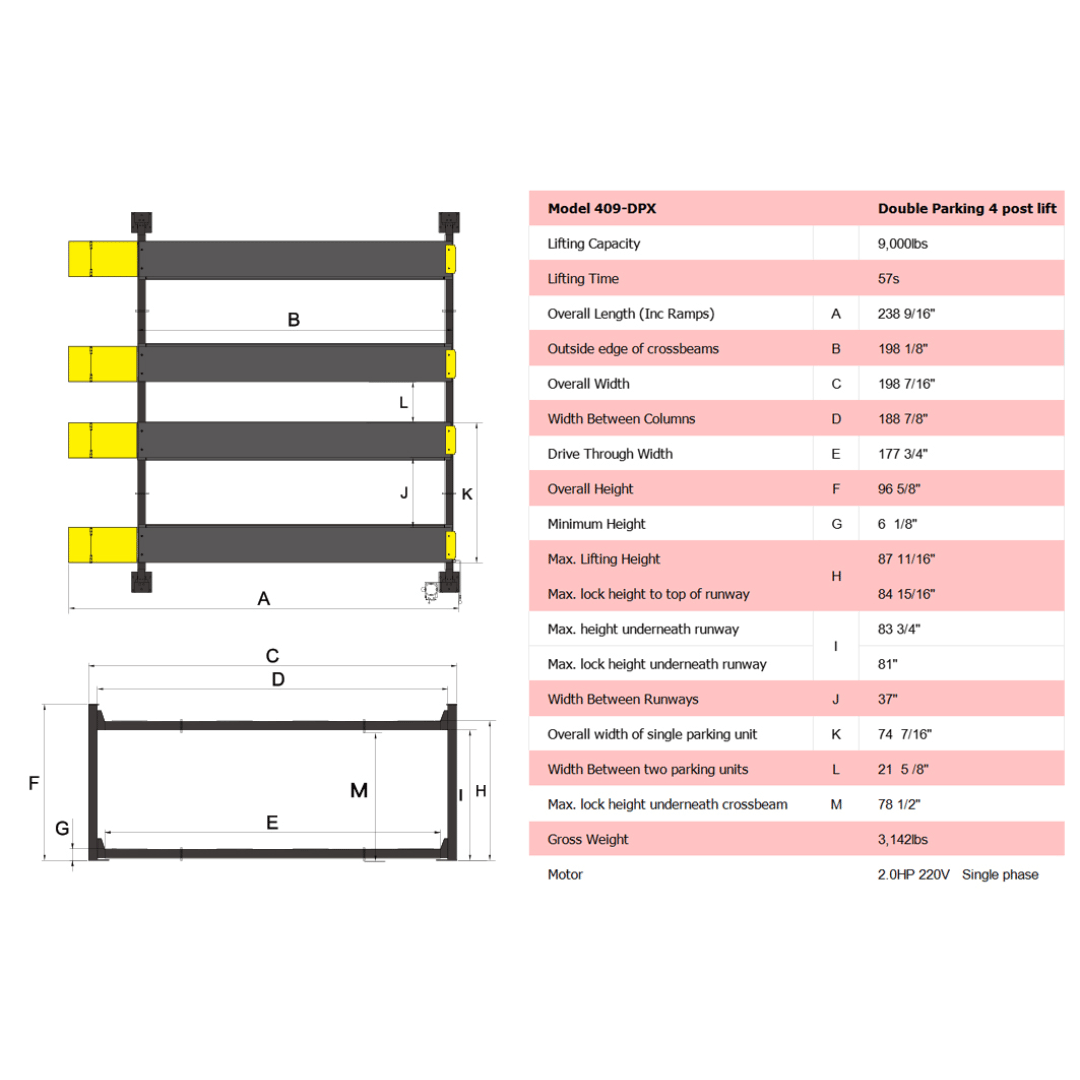

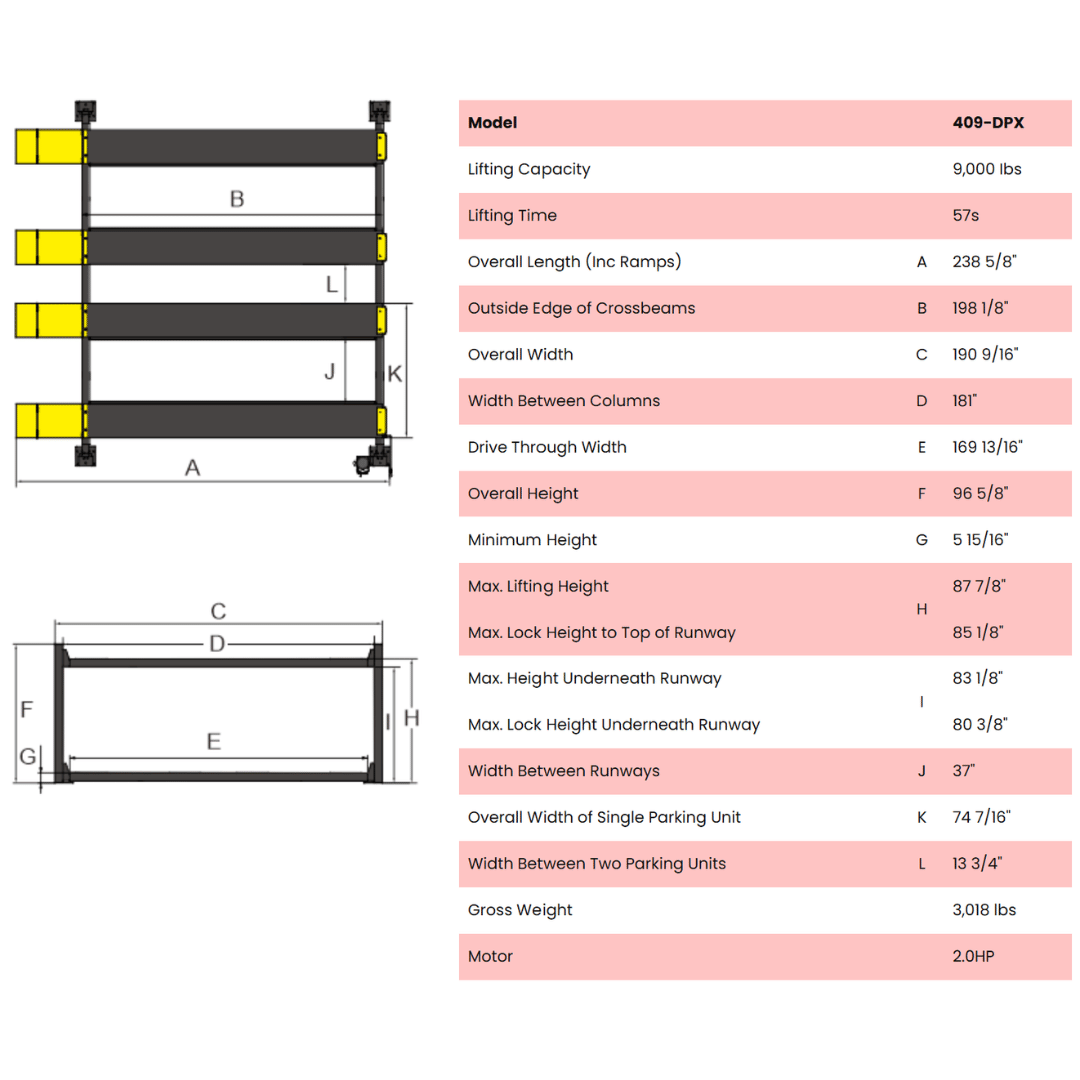

Product Specifications
| Model | 409-DPX |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 57s |
| A: Overall Length (Inc Ramps) | 238 9/16″ |
| B: Outside Edge of Crossbeams | 198 1/8″ |
| C: Overall Width | 198 7/16″ |
| D: Width between Columns | 188 7/8″ |
| E: Drive-Thru Width | 177 3/4″ |
| F: Overall Height | 96 5/8″ |
| G: Minimum Height | 6 1/8″ |
| H: Max. Lifting Height | 87 11/16″ |
| H: Max. Locking Height to Top of Runway | 84 15/16″ |
| I: Max. height underneath runway | 83 3/4″ |
| I: Max. lock height underneath runway | 81″ |
| J: Width between runways | 37″ |
| K: Overall width of single parking unit | 74 7/16″ |
| L: Width between two parking unit | 21 5/8″ |
| M: Max. Lock Height Underneath Crossbeam | 78 1/2″ |
| Gross weight | 3,142 lbs |
| Motor | 2.0HP 220V/60Hz, Single Phase |
