Product Description

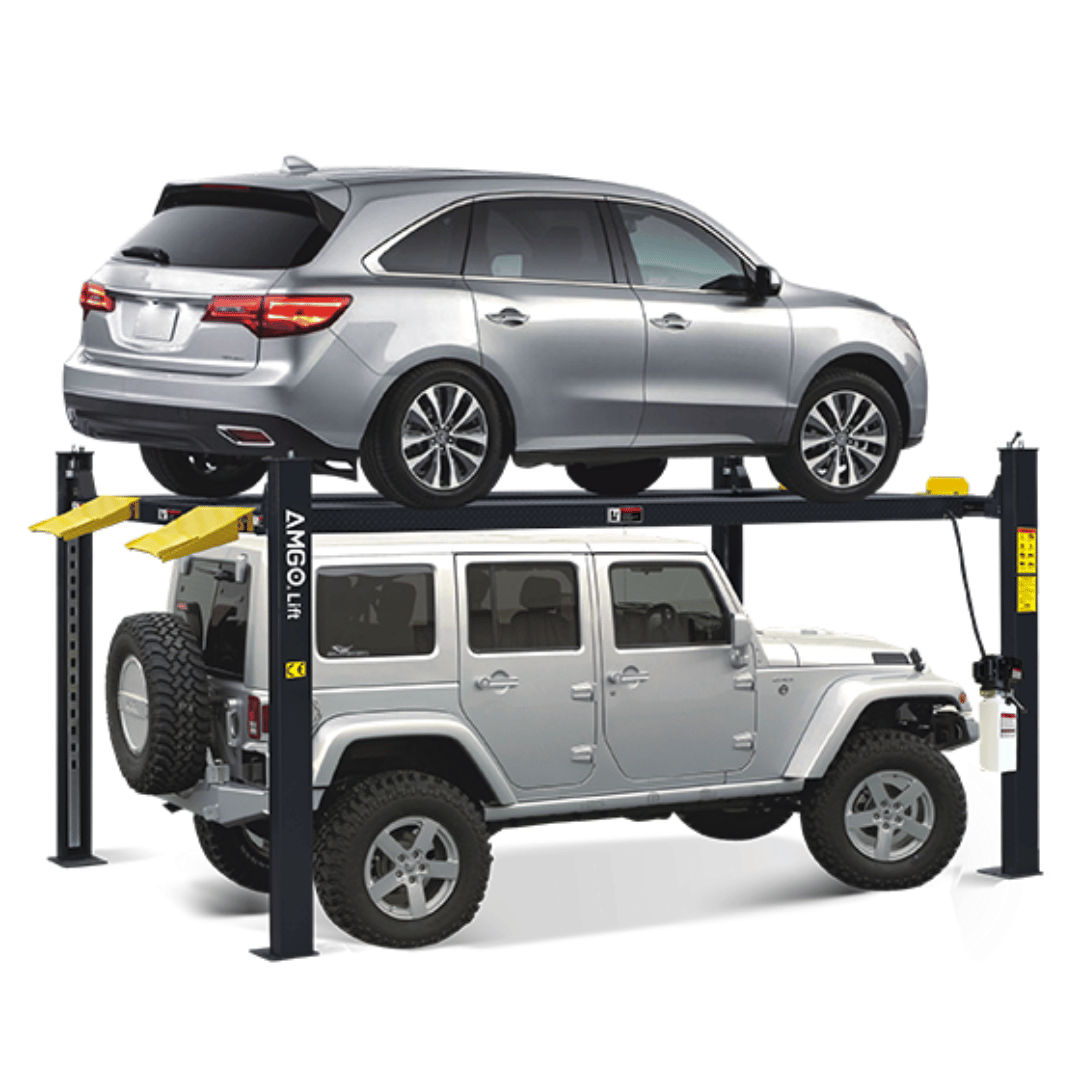

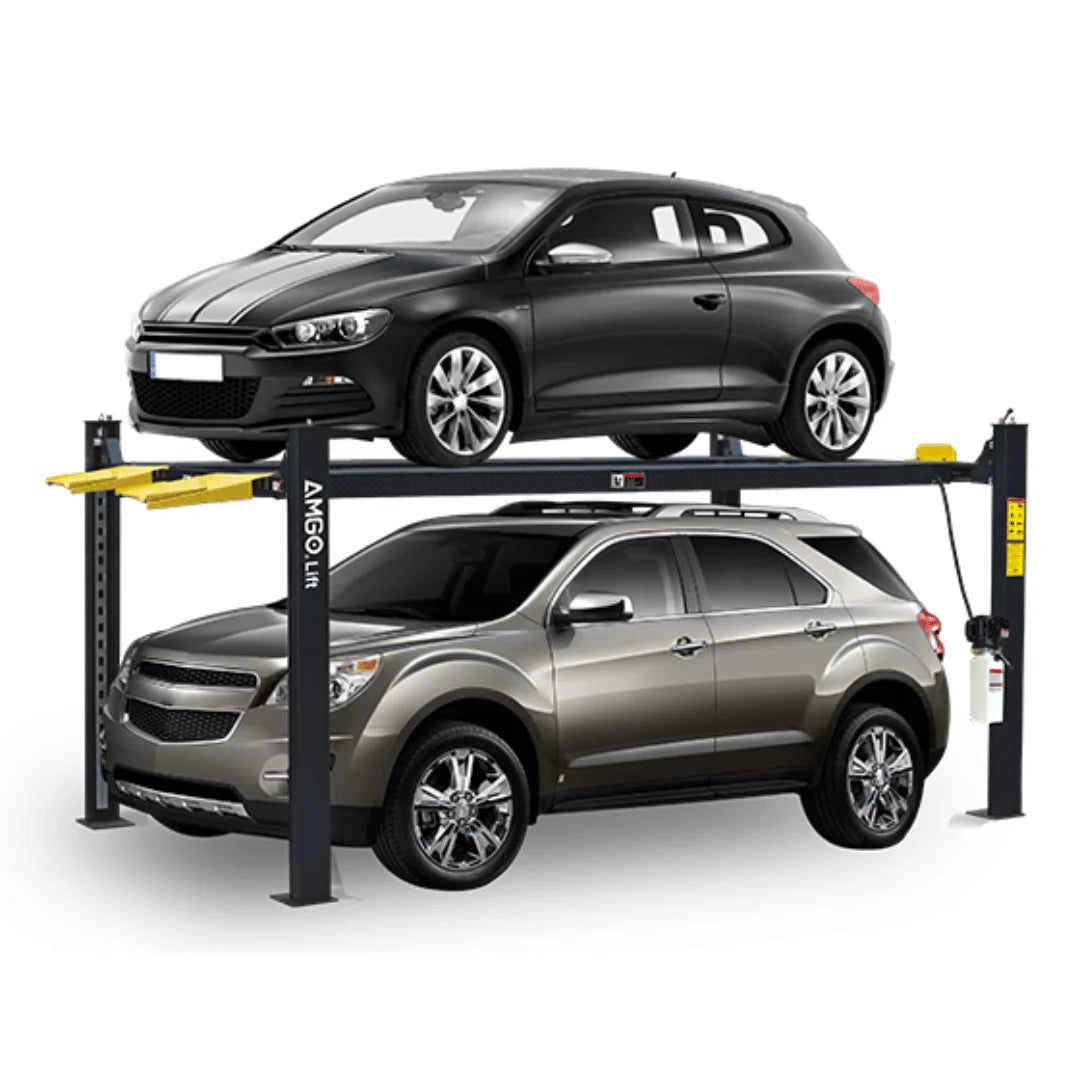

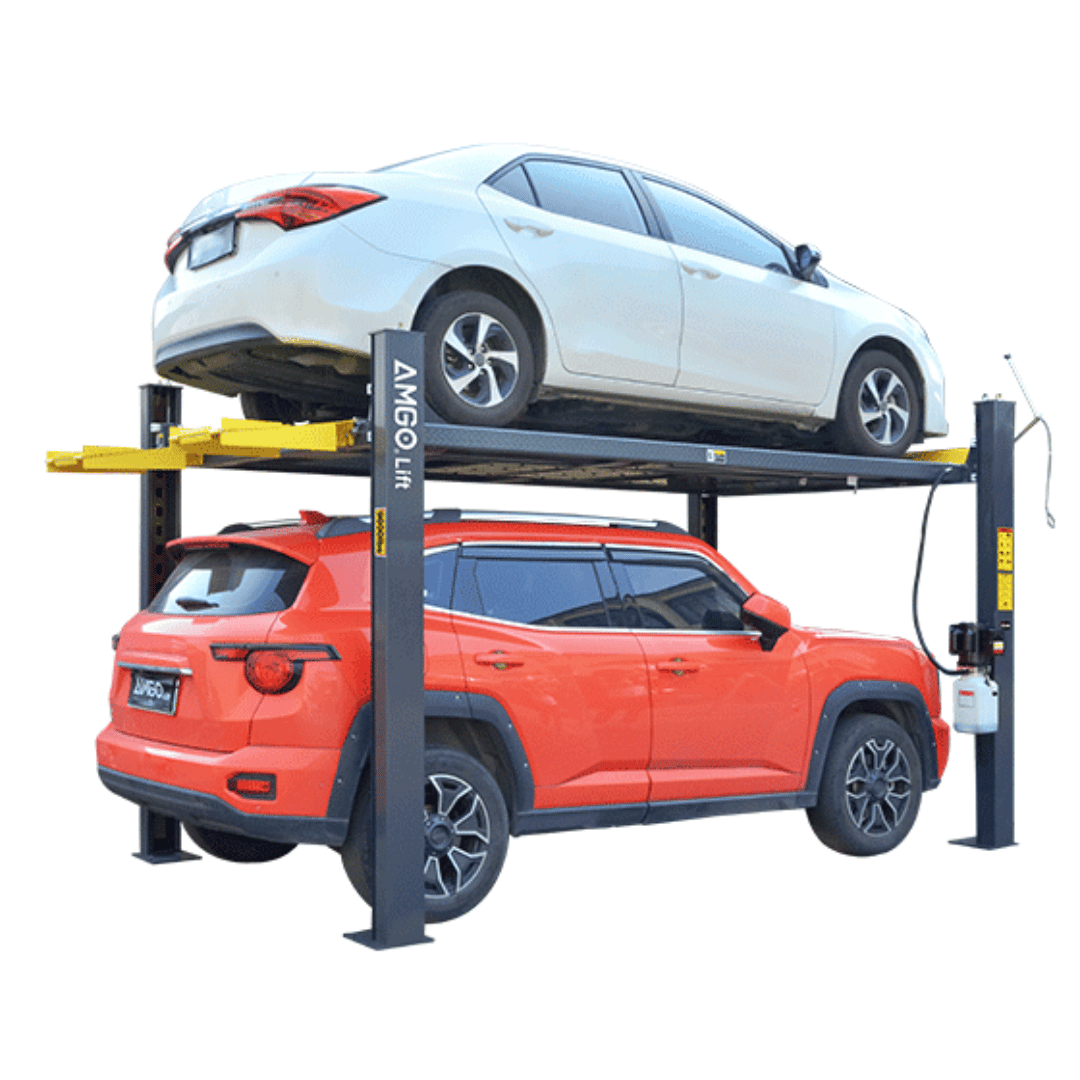

AMGO 409-HP High-Lift 4-Post Parking Lift – 9,000 lb Capacity

The AMGO 409-HP is the professional-grade answer for customers who need to lift longer, taller, and heavier vehicles — without sacrificing space, safety, or convenience. With a robust 9,000 lb lifting capacity and a towering maximum lift height of 87 11/16″, this lift is perfect for cars, SUVs, light-duty trucks, and lifted or oversized vehicles.

Part of AMGO’s Pro Series, the 409-HP is built on a foundation of reinforced double-shaped columns, non-slip diamond plate runways, and a concealed safety lock system with manual single-point release. Whether you're optimizing parking in a home garage or outfitting a commercial storage facility, this lift provides unmatched reliability, safety, and clearance.

The 409-HP supports back-to-back installations and is freestanding — no anchoring required. It comes standard with foldable drive-on ramps, a pull rope for convenient lock release, and aero-grade cables for long-term durability. The power column can be placed at any corner to suit your garage layout, and its longer platform is designed to accommodate extended vehicles with ease.

Now available at Gearforce USA, the 409-HP is the ultimate high-clearance, high-capacity parking lift for garages that need to go bigger and higher.

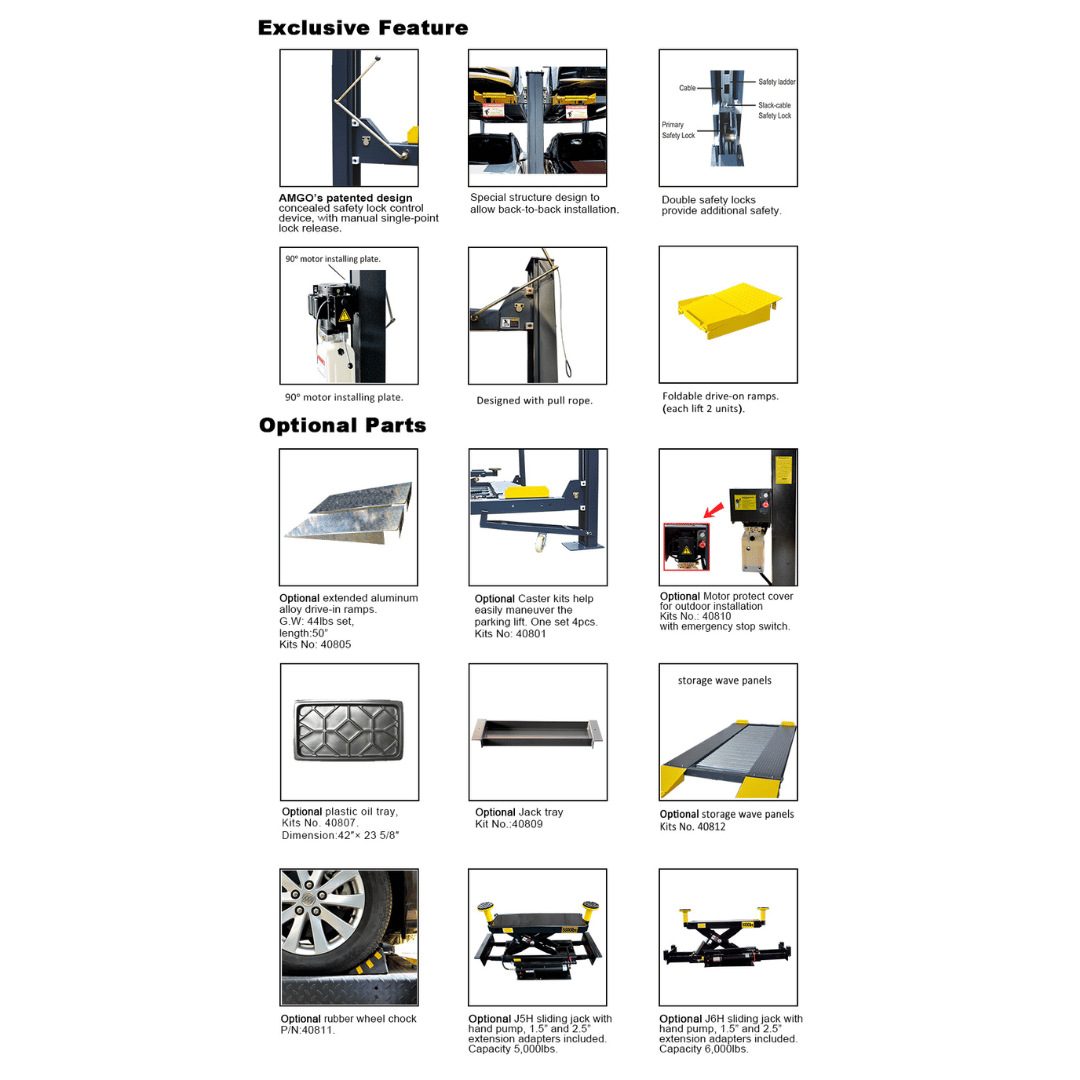

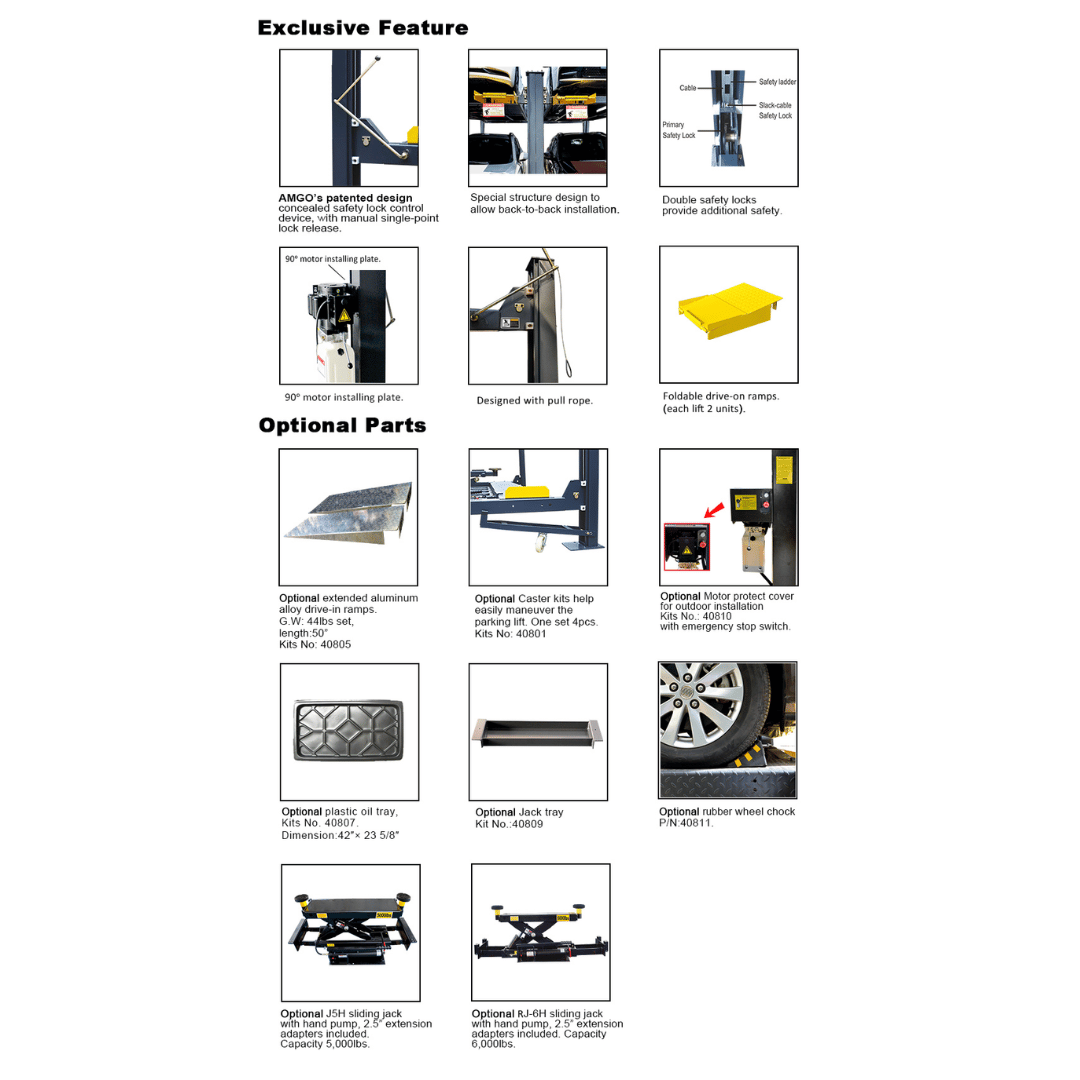

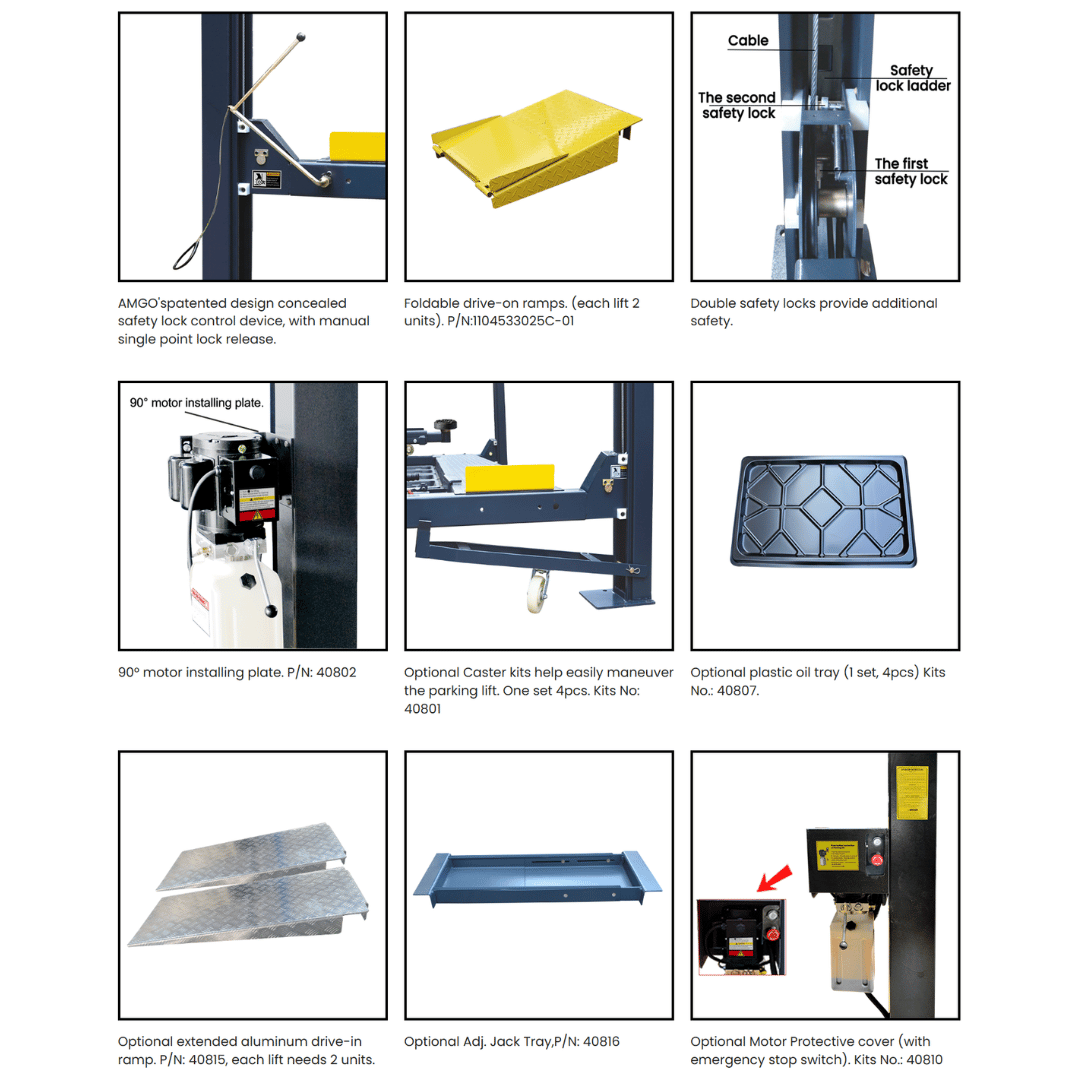

Key Features

  • 9,000 lb lifting capacity – ideal for larger vehicles, including trucks, SUVs, and extended-wheelbase sedans
  • Extra-high platform lift: 87 11/16″ | Clearance underneath: 82 15/16″ – accommodates lifted or taller vehicles with ease
  • Freestanding design – no floor anchoring required; compatible with caster kit for added mobility
  • Manual single-point lock release – patented concealed safety system with pull rope for easy operation
  • Double-structured columns – reinforced for maximum strength and stability
  • Foldable drive-on ramps included – simplify vehicle entry and storage
  • Non-slip diamond plate platforms – enhance traction and safety during loading
  • Back-to-back installation supported – excellent for high-density vehicle storage
  • Overall length (with ramps): 238 1/8″ | Platform length: 197 3/4″ | Overall width: 119 1/8″
  • Drive-thru clearance: 98 1/4″ | Width between posts: 109 7/16″ | Runway spacing: 42 3/8″
  • Motor options: 1.0 HP (110V) or 2.0 HP (220V)
  • Lift time: 143s (110V) / 57s (220V) – powerful yet efficient performance
  • Gross weight: 1,984 lbs
  • AMGO Warranty: 5 years on steel components, 3 years on hydraulics, 2 years on electrical

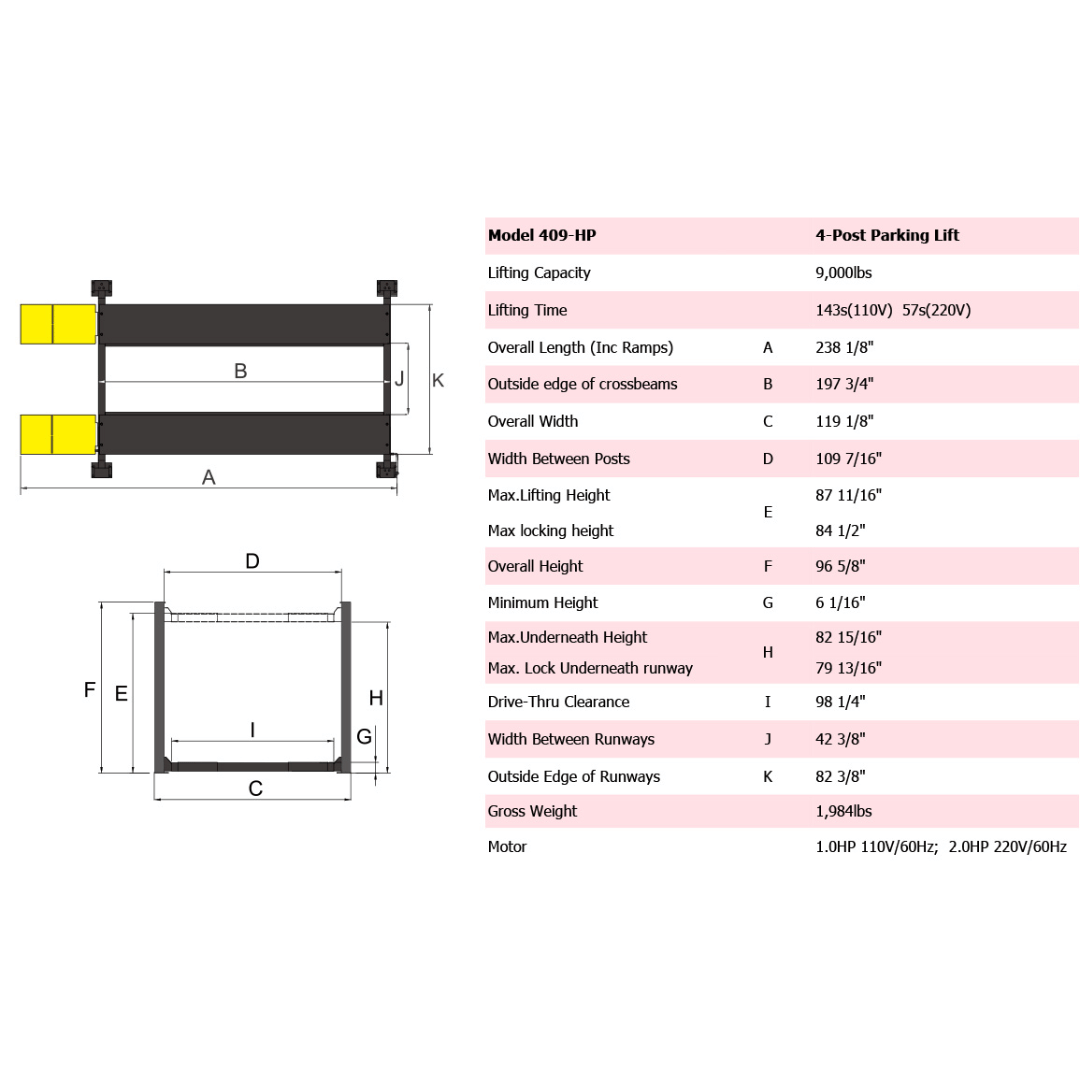

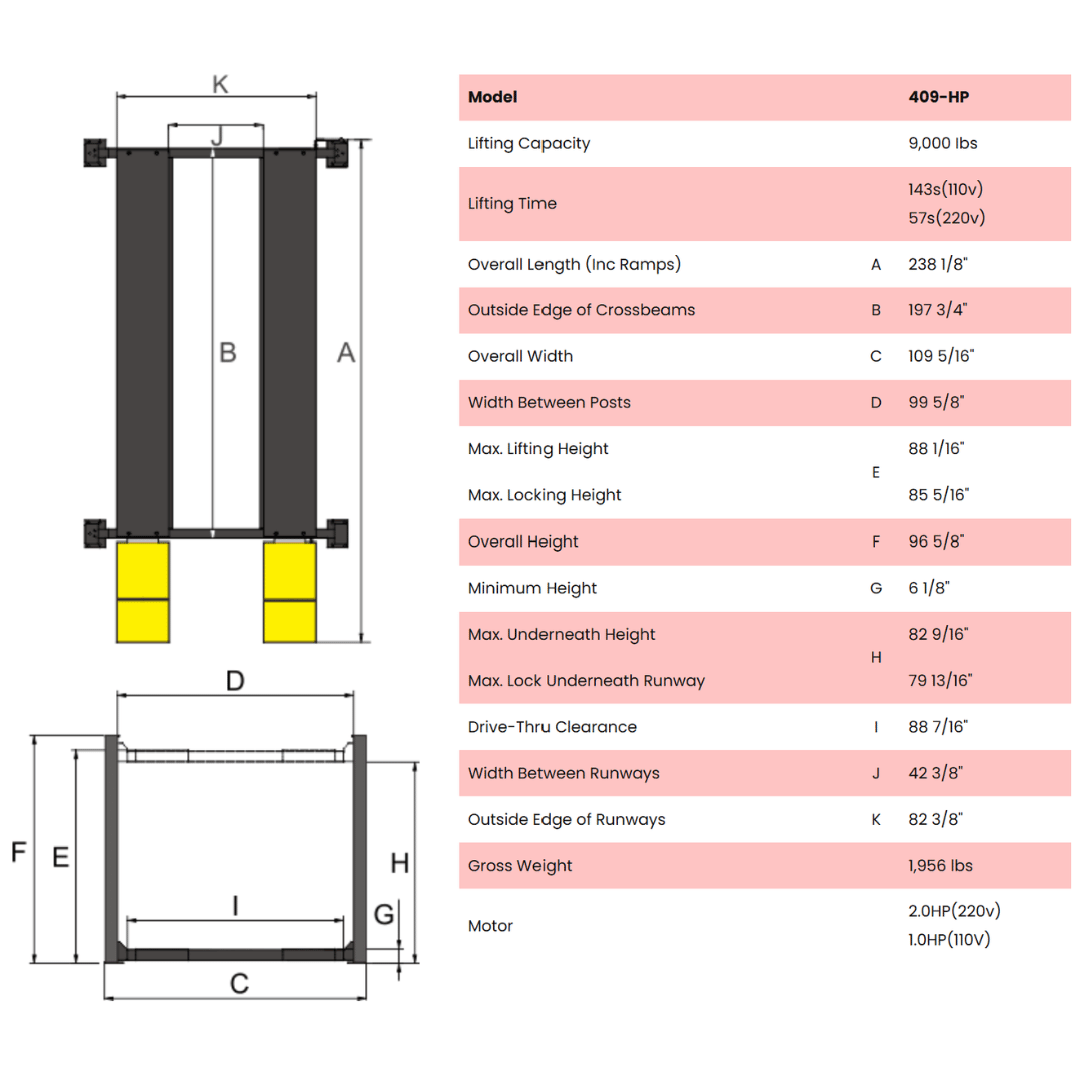

Product Specifications

Model 409-HP
Lifting Capacity 9,000 lbs
Lifting Time 143s(110V) 57s(220V)
A: Overall Length (Inc.Ramps) 238 1/8″
B: Outside Edge of Crossbeams 197 3/4″
C: Overall Width 119 1/8″
D: Width Between Posts 109 7/16″
E: Max. Lifting Height 87 11/16″
E: Max. Locking Height 84 1/2″
F: Overall Height 96 5/8″
G: Minimum Height 6 1/16″
H: Max. Underneath Height 82 15/16″
H: Max. Lock Underneath Runway 79 13/16″
I: Drive-Thru Clearance 98 1/4″
J: Width Between Runways 42 3/8″
K: Outside Edge of Runways 82 3/8″
Gross Weight 1,984 lbs
Motor 1.0HP 110V/60Hz or 2.0HP 220V/60Hz

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
