Product Description

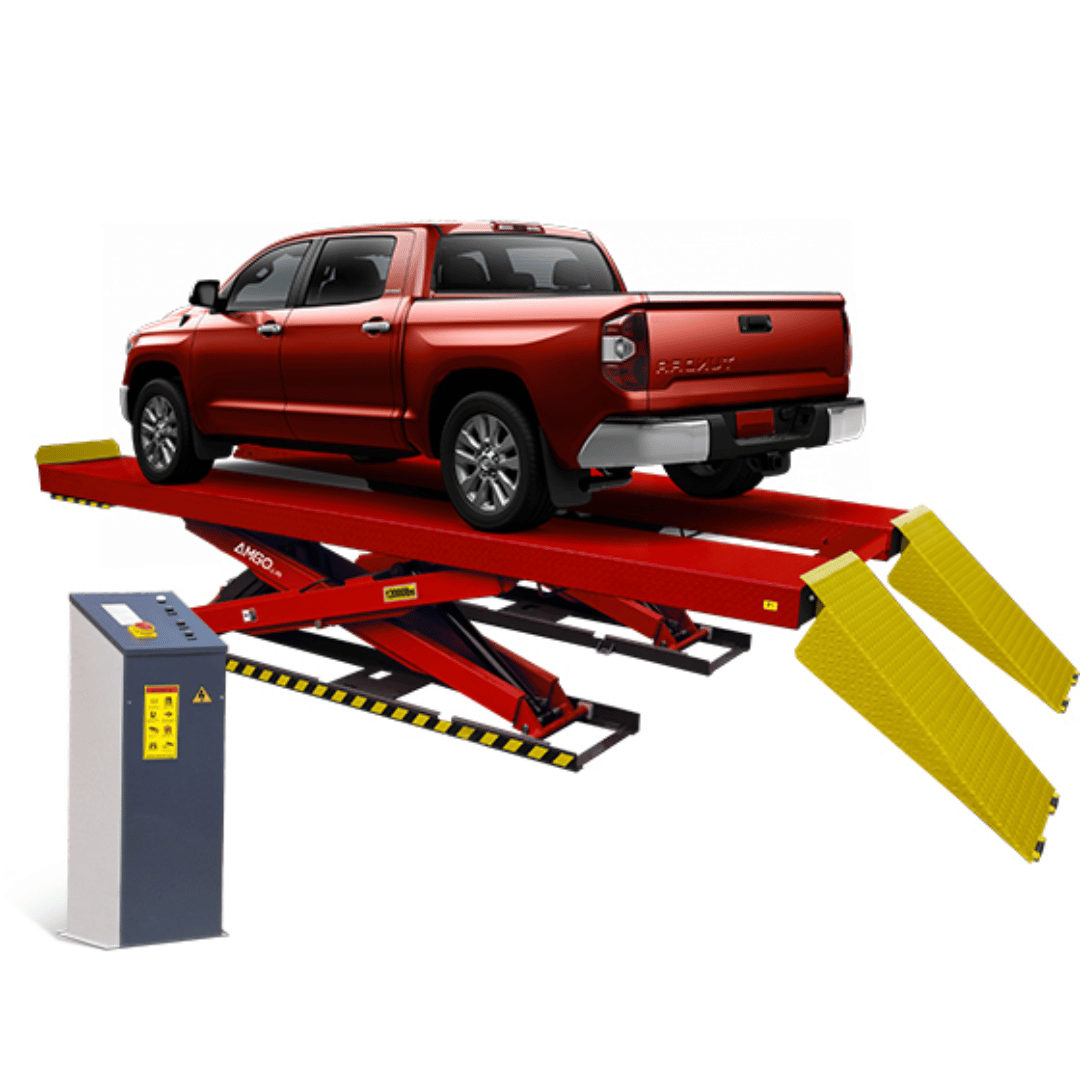

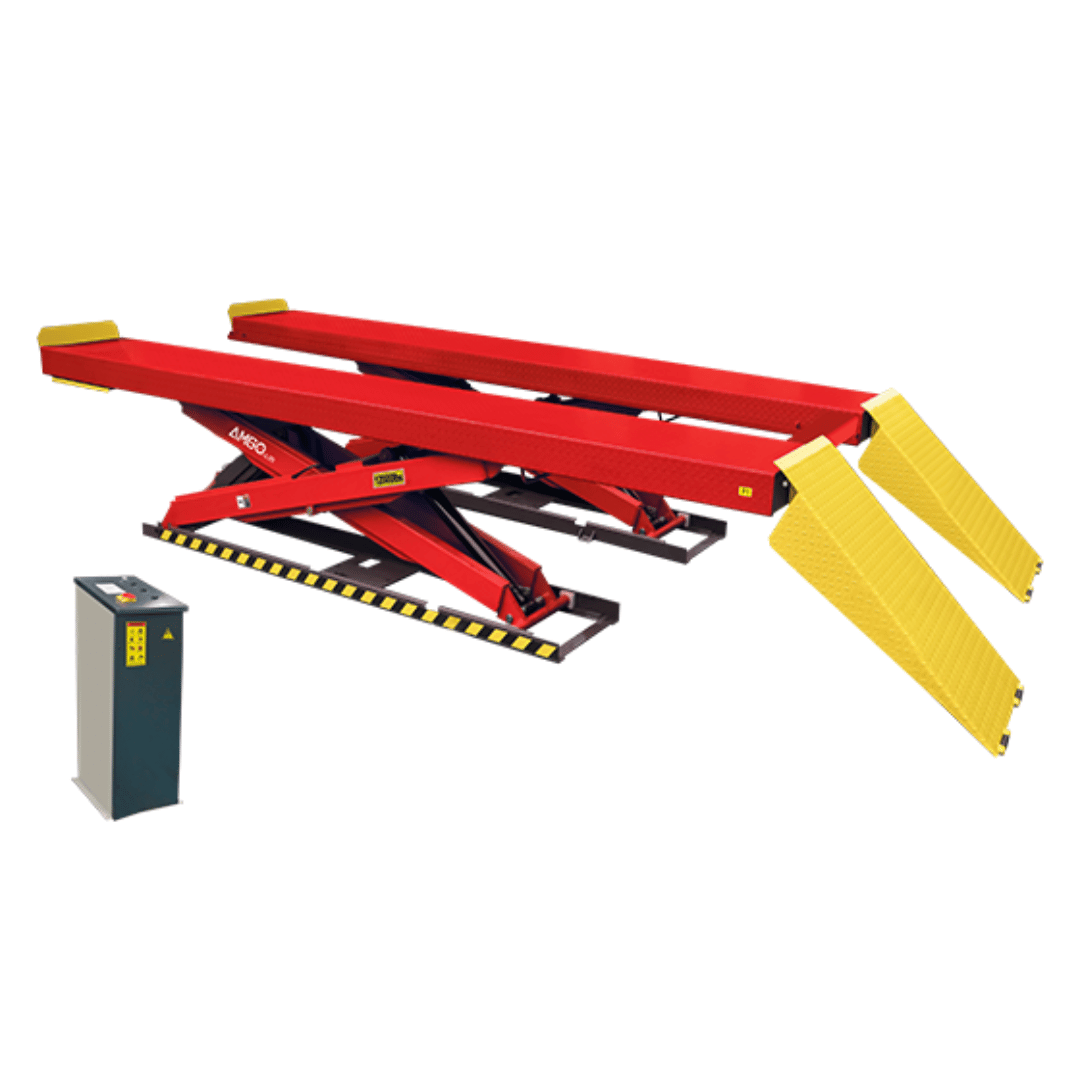

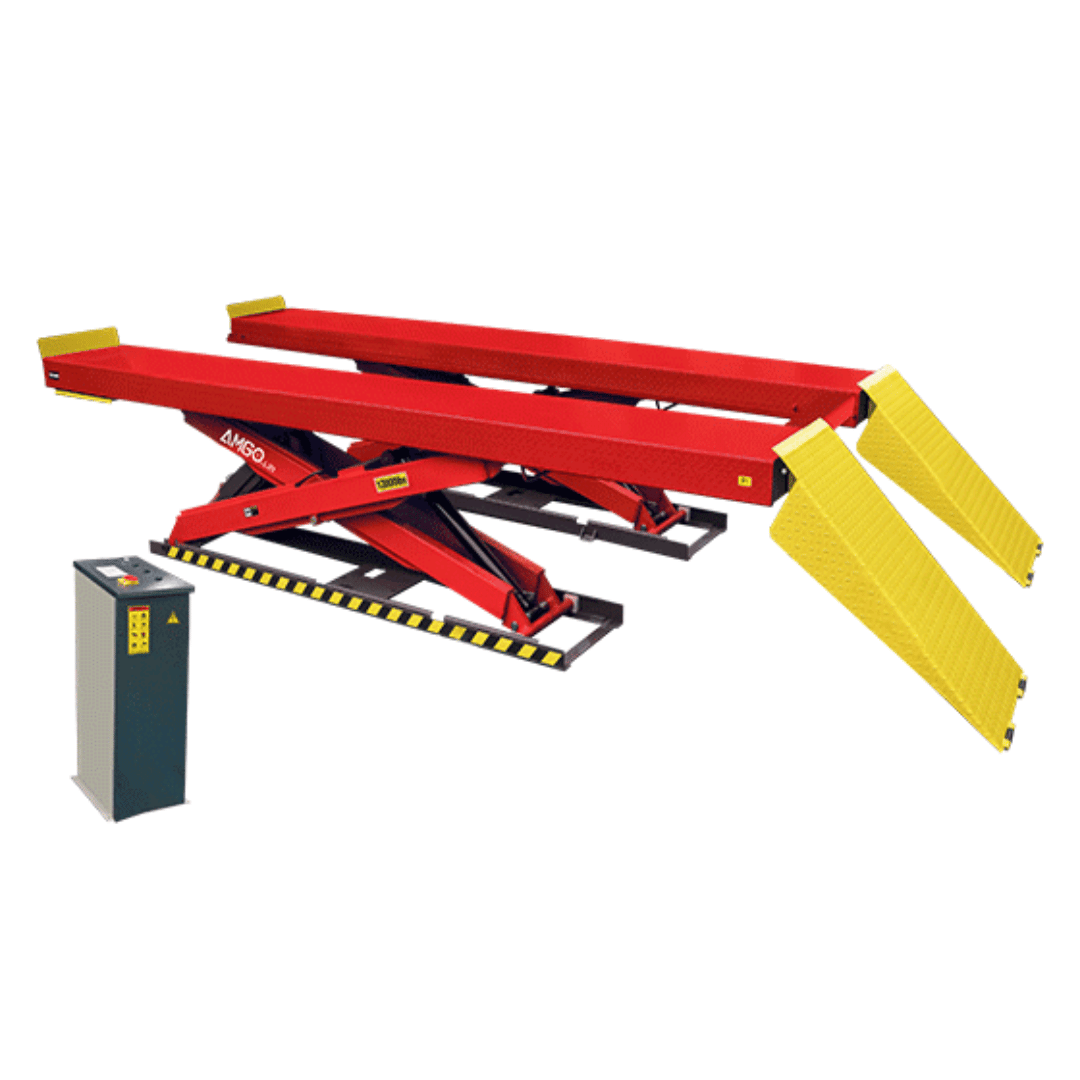

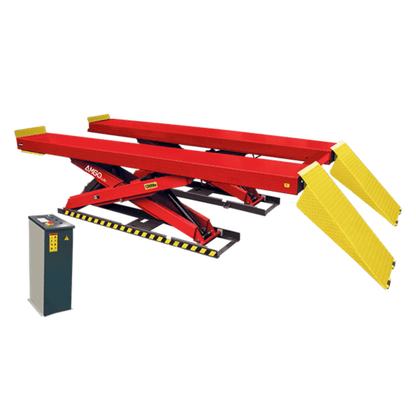

AMGO AX-12 Heavy-Duty Scissor Lift – 12,000 lb Capacity

The AMGO AX-12 Scissor Lift is a powerhouse built for strength, safety, and reliability. Designed for high-capacity, professional-grade lifting, the AX-12 features a reinforced heavy-duty structure with oversized X-style scissor arms, making it ideal for raising commercial vehicles, full-size pickups, and fleet service vans with confidence.

With a 12,000 lb lifting capacity and runway length of over 197 inches, this full-rise scissor lift provides extensive platform coverage and a maximum lifting height of 72 13/16″ — giving technicians ample undercar access. The dual synchronized hydraulic cylinders ensure consistent platform leveling, while the electro-air safety control system engages the mechanical locks automatically for added peace of mind.

Built for rugged use, the AX-12 features non-skid diamond plate runways for tire traction, and includes a built-in service shelf for tool placement and increased efficiency. Its low-profile design (12 3/16″ min height) and high ground stability make it a favorite for alignment bays, heavy service centers, and high-volume repair shops.

Available now from Gearforce USA, the AX-12 combines industrial-grade performance with smart safety and usability features — making it one of the most versatile and secure scissor lifts in its class.

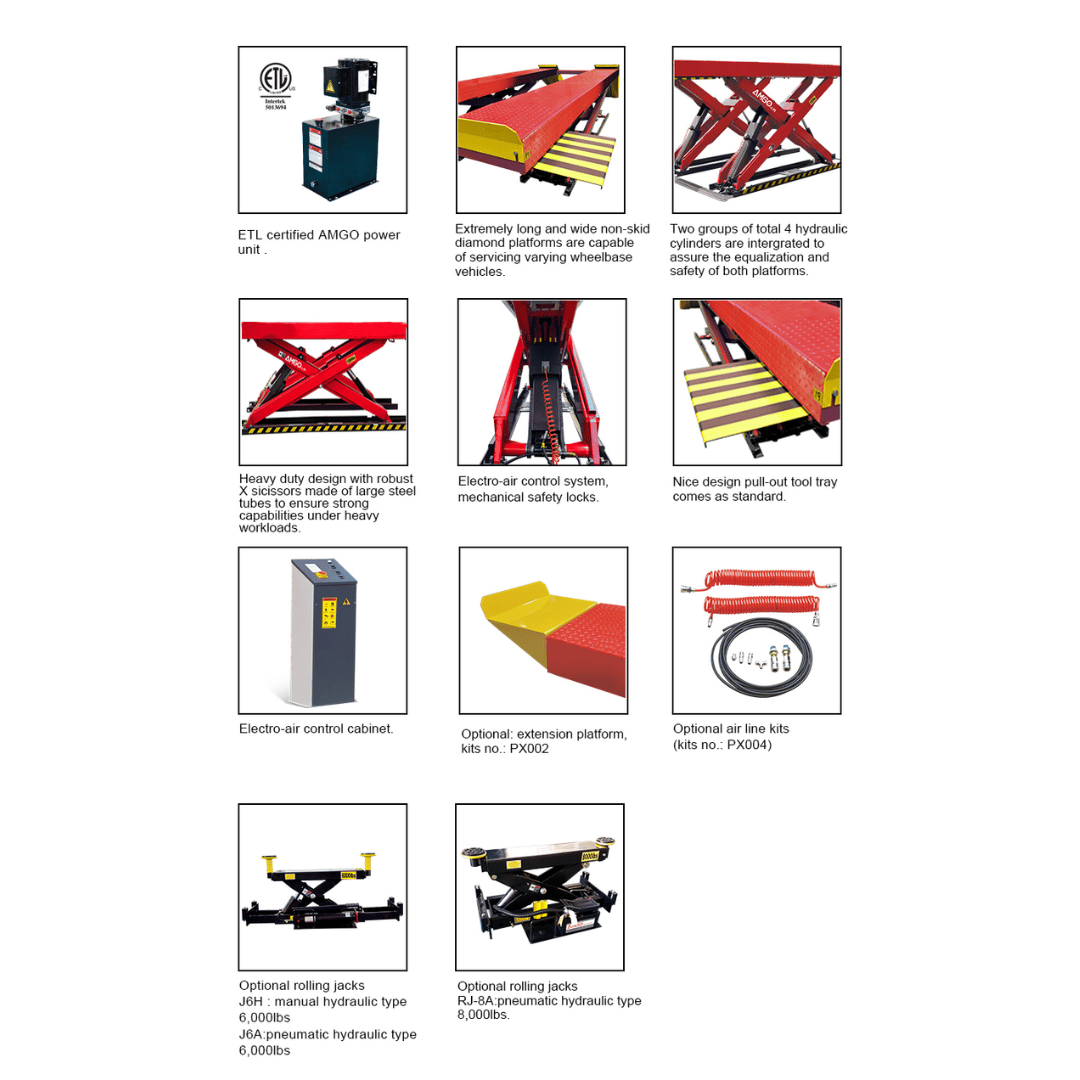

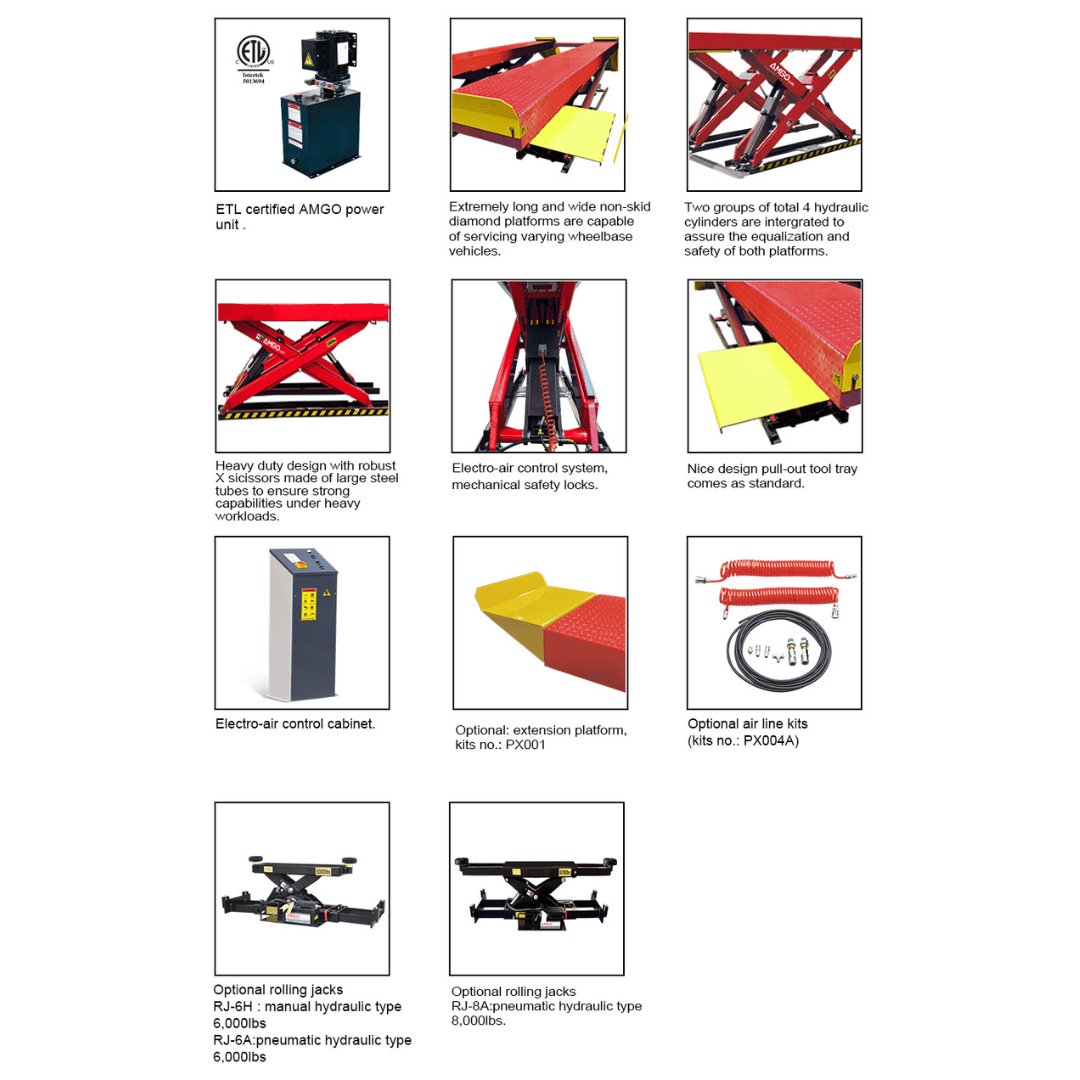

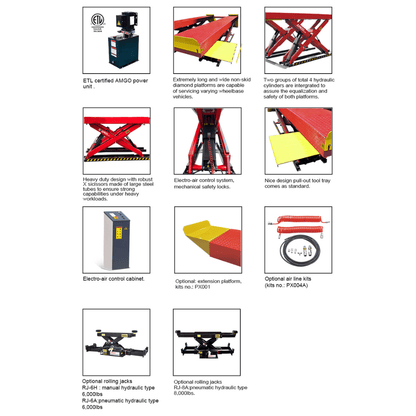

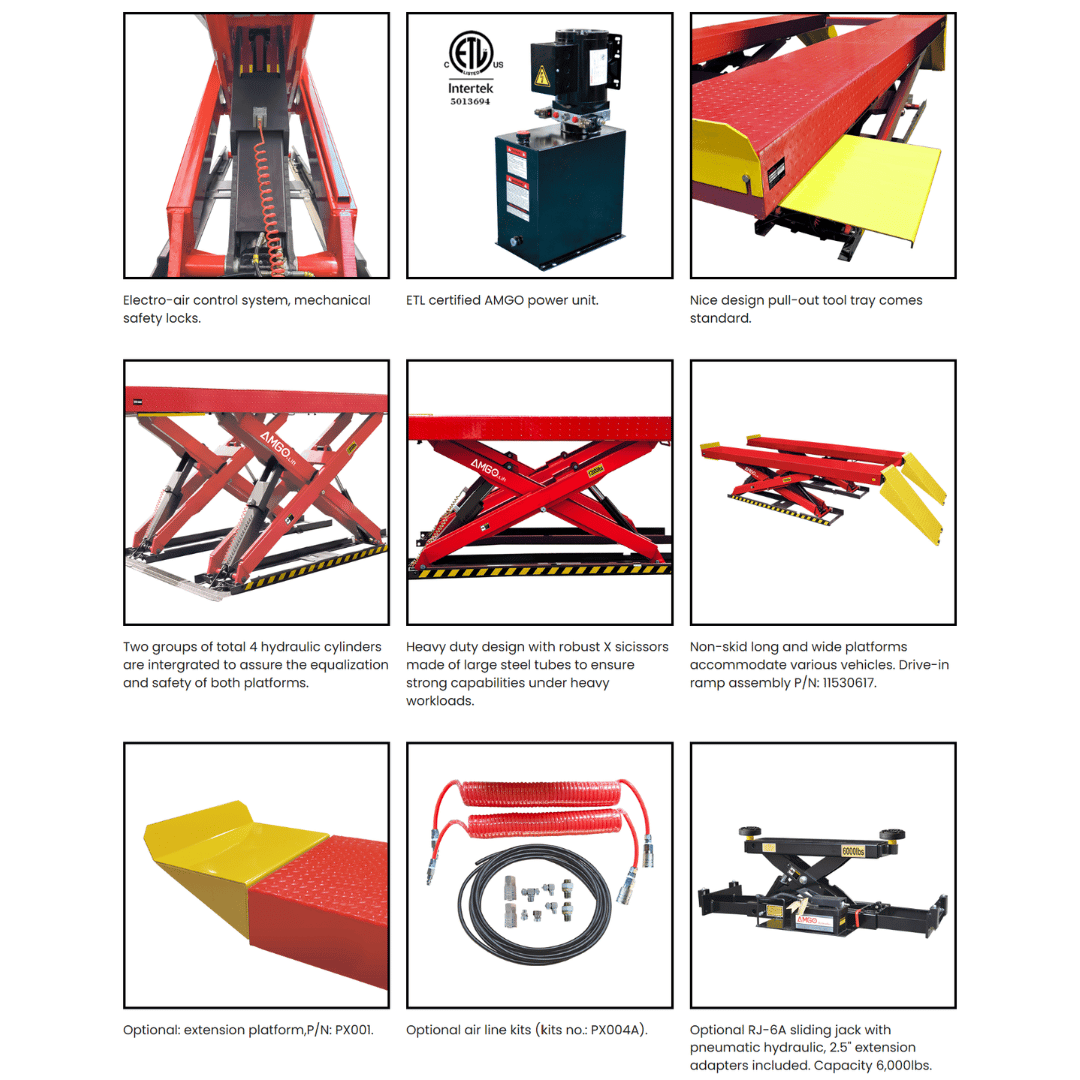

Key Features

  • 12,000 lb lifting capacity – perfect for commercial vehicles, trucks, and heavy-duty applications
  • Heavy-duty X-frame scissors – built with large-tube construction for superior structural strength
  • Max lifting height: 72 13/16″ | Lock height: 71 1/16″
  • Minimum lift height: 12 3/16″ – low-profile entry for taller vehicles or shop integration
  • Runway length: 197 9/16″ | Overall length with ramps: 267 1/16″
  • Dual synchronous hydraulic cylinders – keep platforms level and stable during lifts
  • Electro-air safety system – engages mechanical locks automatically for maximum protection
  • Non-skid diamond plate platforms – ensures tire traction and operator safety
  • Convenient service shelf – built-in space for tool storage or small components
  • Overall width: 90 1/8″ | Width between runways: 40 15/16″
  • 2.0 HP motor (220V, single-phase) – reliable, shop-ready power delivery
  • Gross Weight: 4,934 lbs – robust, industrial-quality construction
  • AMGO Warranty: 5 years on structural steel, 3 years on hydraulics, 2 years on electrical components

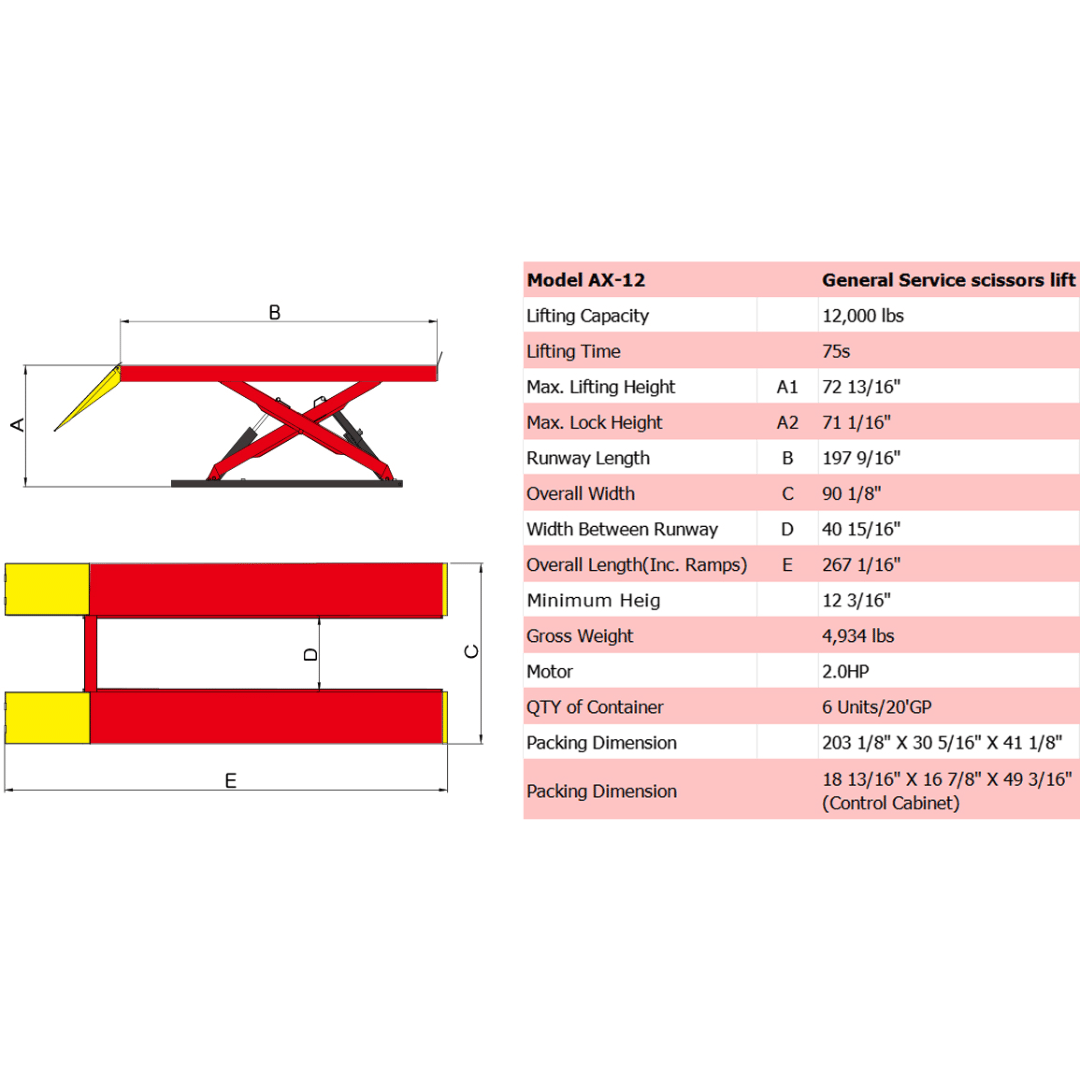

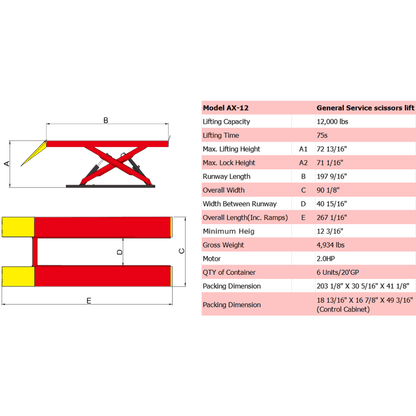

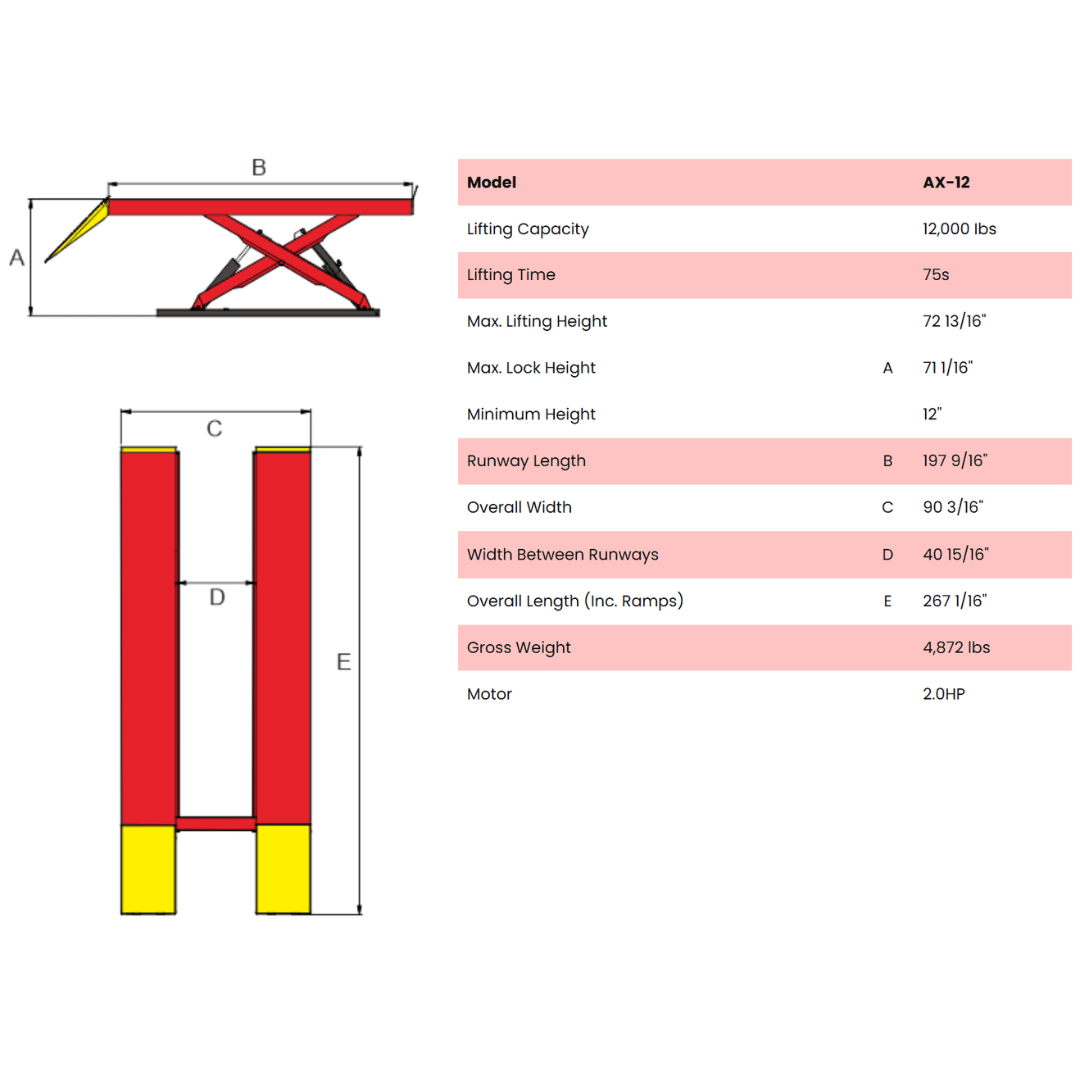

Product Specifications

Model AX-12
Lifting Capacity 12,000 lbs
Lifting Time 75 seconds
A1: Max. Lifting Height 72 13/16″
A2: Max. Lock Height 71 1/16″
B: Runway Length 197 9/16″
C: Overall Width 90 1/8″
D: Width Between Runways 40 15/16″
E: Overall Length (Inc.Ramps) 267 1/16″
Minimum Height 12 3/16″
Motor 2.0HP
Gross Weight 4,934 lbs
QTY of Container 6 Units/20'GP

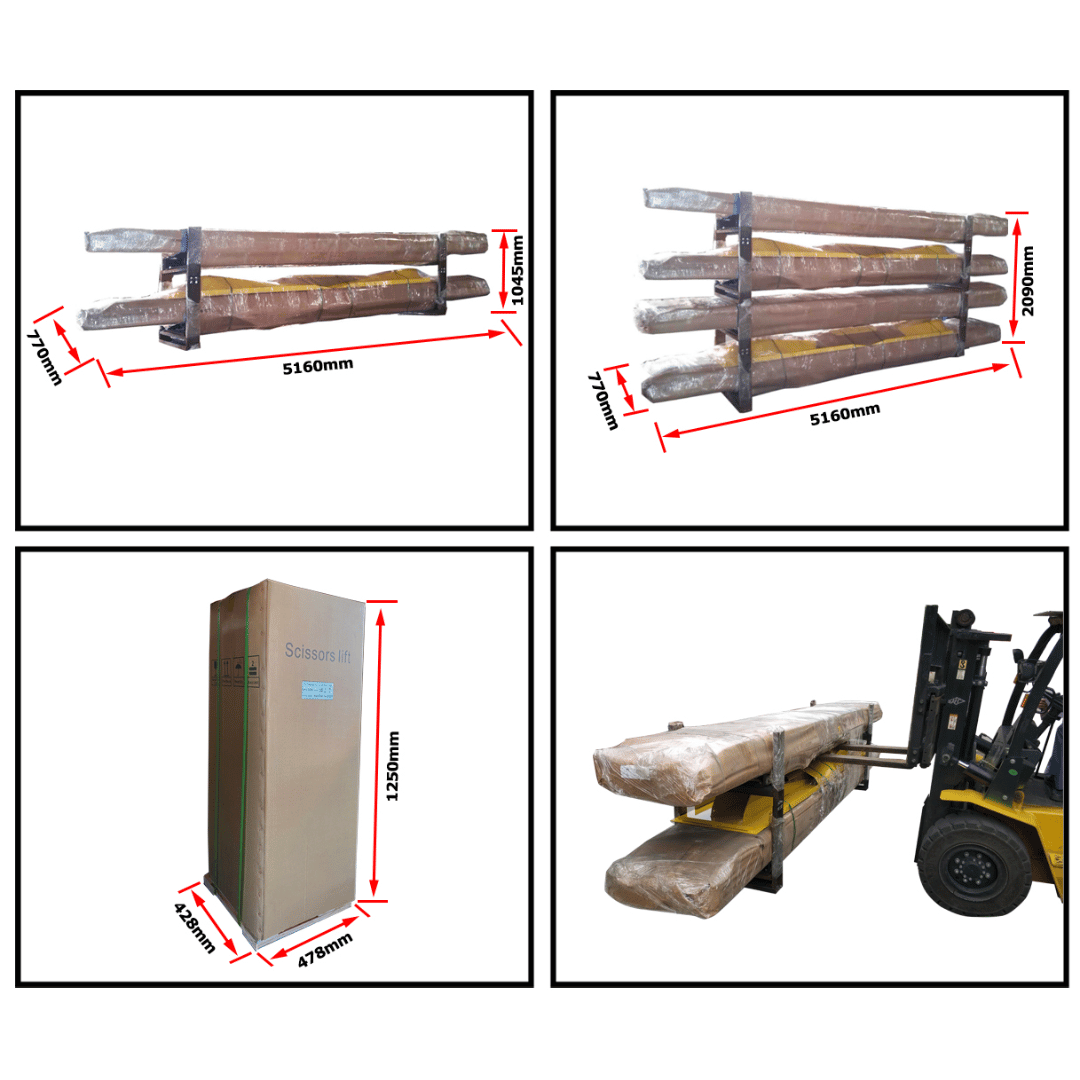

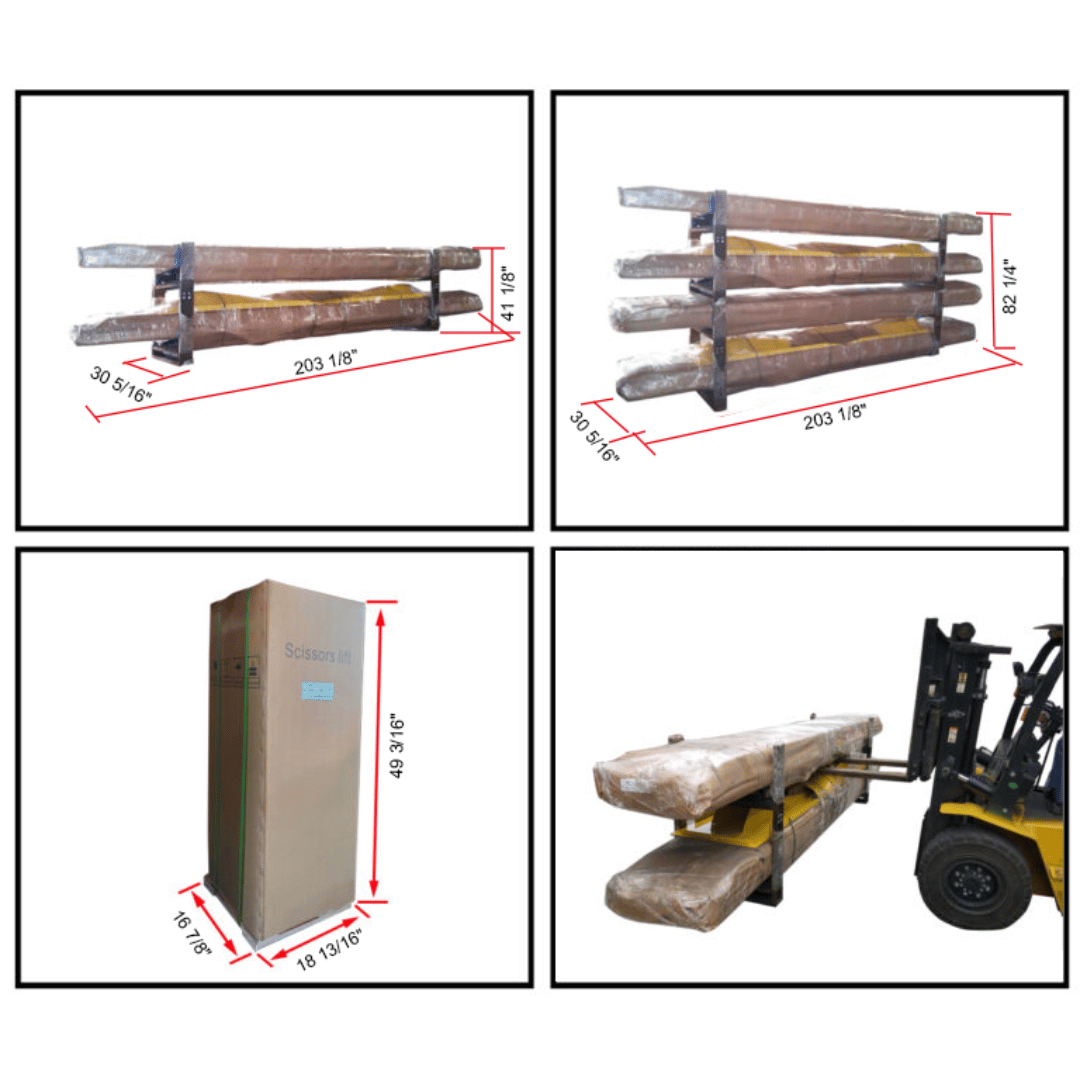

Packing Dimension 203 1/8″ X 30 5/16″ X 41 1/8″
Packing Dimension 18 13/16″ X 16 7/8″ X 49 3/16″ (Control Cabinet)

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
