Product Description

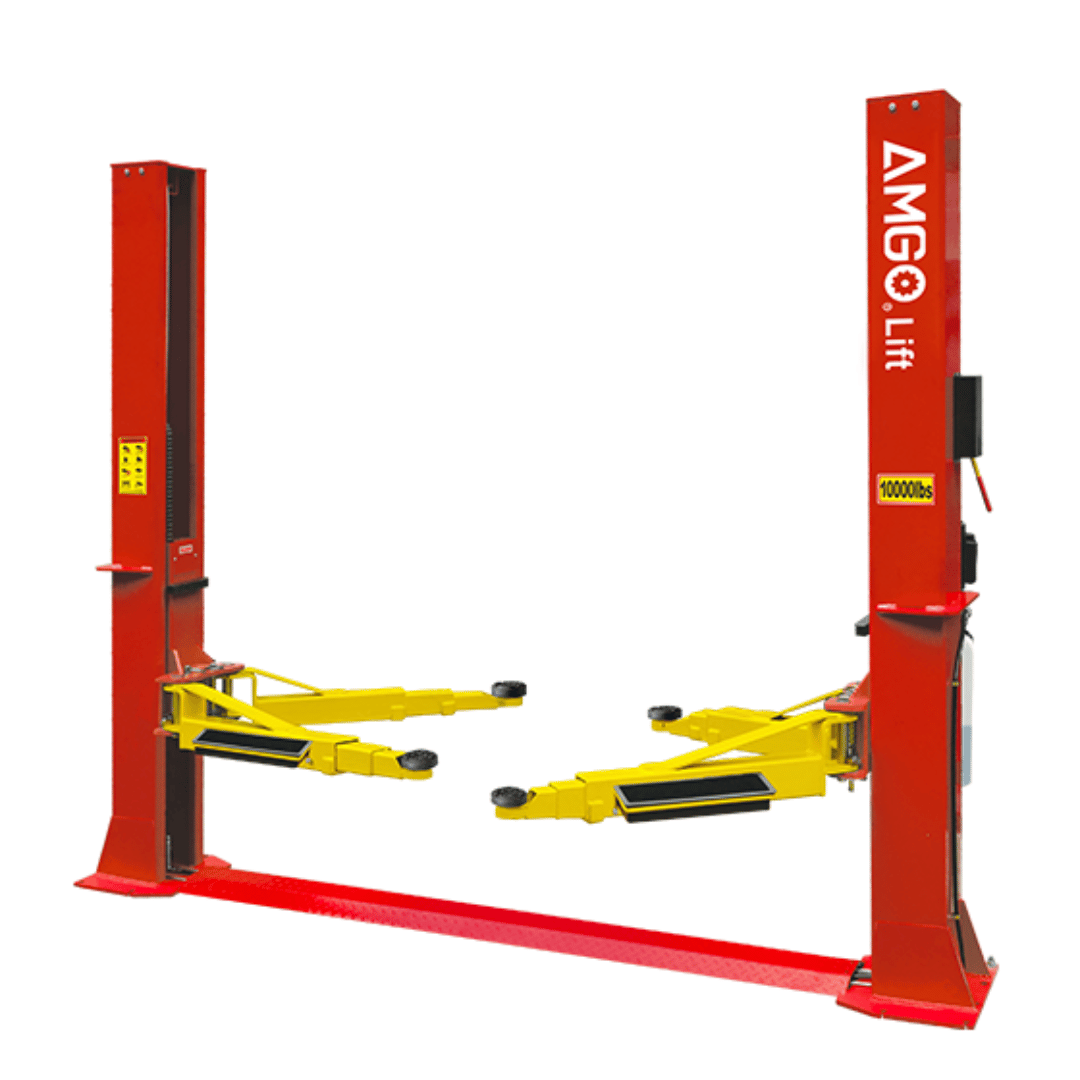

AMGO BP-10 Base Plate 2-Post Lift – 10,000 lb Capacity
Built for strength, safety, and versatility, the AMGO BP-10 Base Plate 2-Post Lift is the flagship model in AMGO’s acclaimed BP series — designed to handle everything from compact sedans to long-wheelbase, heavy-duty vehicles. With a 10,000 lb lifting capacity and a robust base plate design, the BP-10 delivers maximum lifting performance in shops and garages with ceiling heights as low as 9 feet.
Ideal for both commercial mechanics and serious DIY users, this lift features symmetric 3-stage arms with broad reach and stability, ensuring compatibility with a wide range of vehicle frames. Its extended lifting height of up to 86 inches (with adapters) provides ample clearance for undercar repairs, wheel service, and inspections.
Engineered with dual safety locks, single-point column release, and automatic arm restraints, the BP-10 prioritizes operator safety and ease of use. It also comes equipped with aero sync cables, self-lubricating UHMW sliders, and a low-profile 3.5" pad height, allowing easy access even for lowered vehicles.
As part of the high-performance lift collection at Gearforce USA, the BP-10 reflects AMGO's commitment to cutting-edge technology, long-term durability, and smooth, reliable operation — making it one of the most powerful and versatile 2-post lifts in its class.

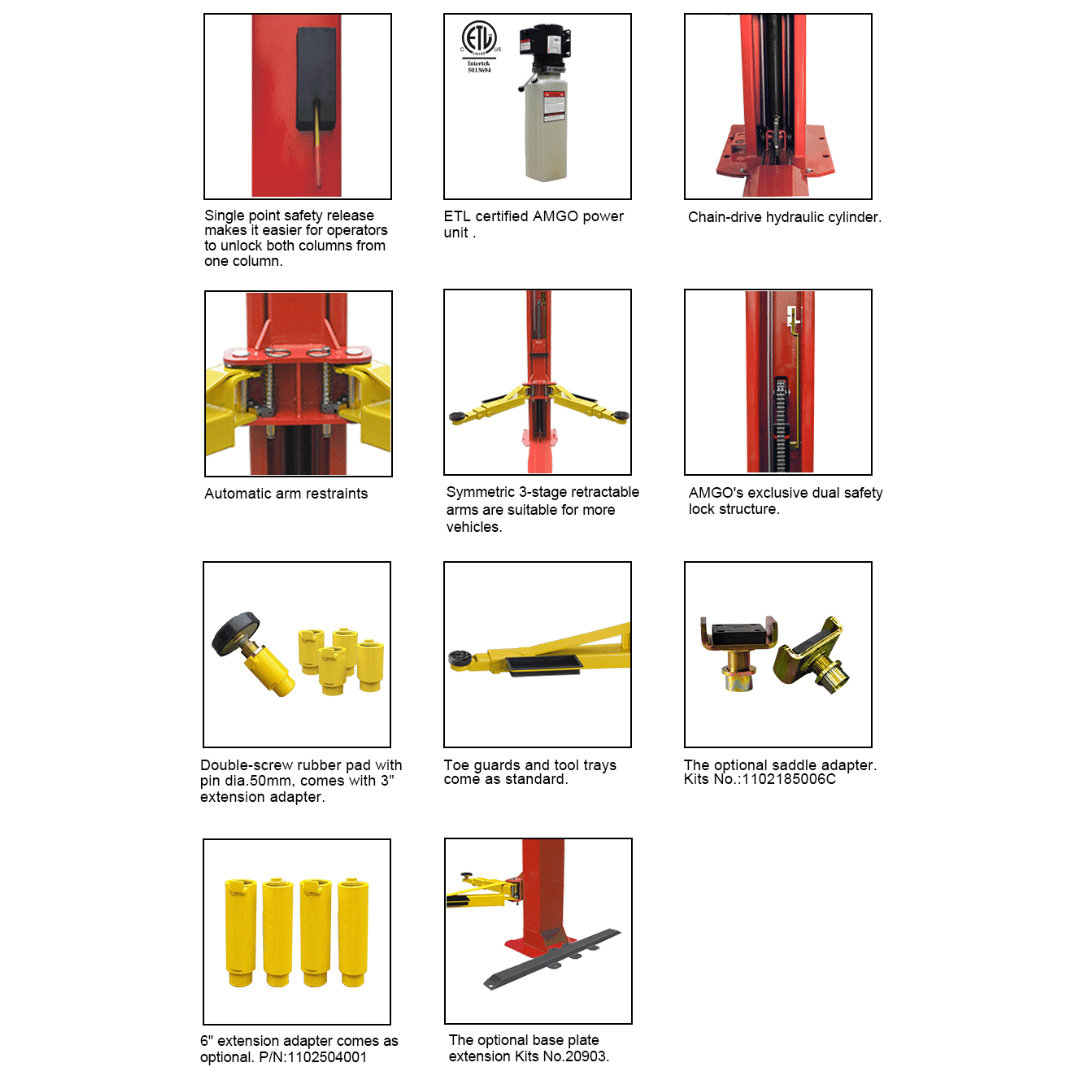

Key Features
- 10,000 lb lifting capacity – supports compact cars, SUVs, long-wheelbase trucks, and more
- Base plate design – perfect for garages with 9 ft ceiling height or greater
- Symmetric 3-stage arms – optimized swing range for better vehicle compatibility
- Max lifting height up to 86″ (with adapters) – full undercar access for service work
- Drive-thru clearance: 100 3/4″ – spacious access for larger vehicles
- Dual-safety lock system – reliable protection during lifts
- Single-point manual lock release – unlocks both columns from one side
- Automatic arm restraints – secure lifting engagement
- Self-lubricating UHMW Polyethylene sliders – smooth, long-lasting performance
- Aero synchronization cables – balanced lifting action across both posts
- Low pad height (3.5") – ideal for low-clearance vehicles
- Powered by a 2.0 HP motor for steady and consistent lift operation
Product Specifications
| Model | BP-10 |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Lifting Time | 49S |
| A: Max. Lifting Height: (w/o extension adapter) | 77″ |
| A: Max. Lifting Height: (w/ extension adapter) | 86″ |
| A: Max. Lock Height: (w/o extension adapter) | 75 3/8″ |
| A: Max. Lock Height: (w/ extension adapter) | 84 3/8″ |
| B: Overall Height | 111 7/8″ |
| C: Overall Width | 139 1/8″ |
| D: Drive Thru Clearance | 100 3/4″ |
| E: Width Between Columns | 112 1/4″ |
| F: Minimum Pad Height | 3 1/2″ |
| Motor | 2.0HP |
| Gross Weight | 1,698lbs |
| QTY of Container | 20 Units/20'GP | 40 Units/40'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
