Product Description

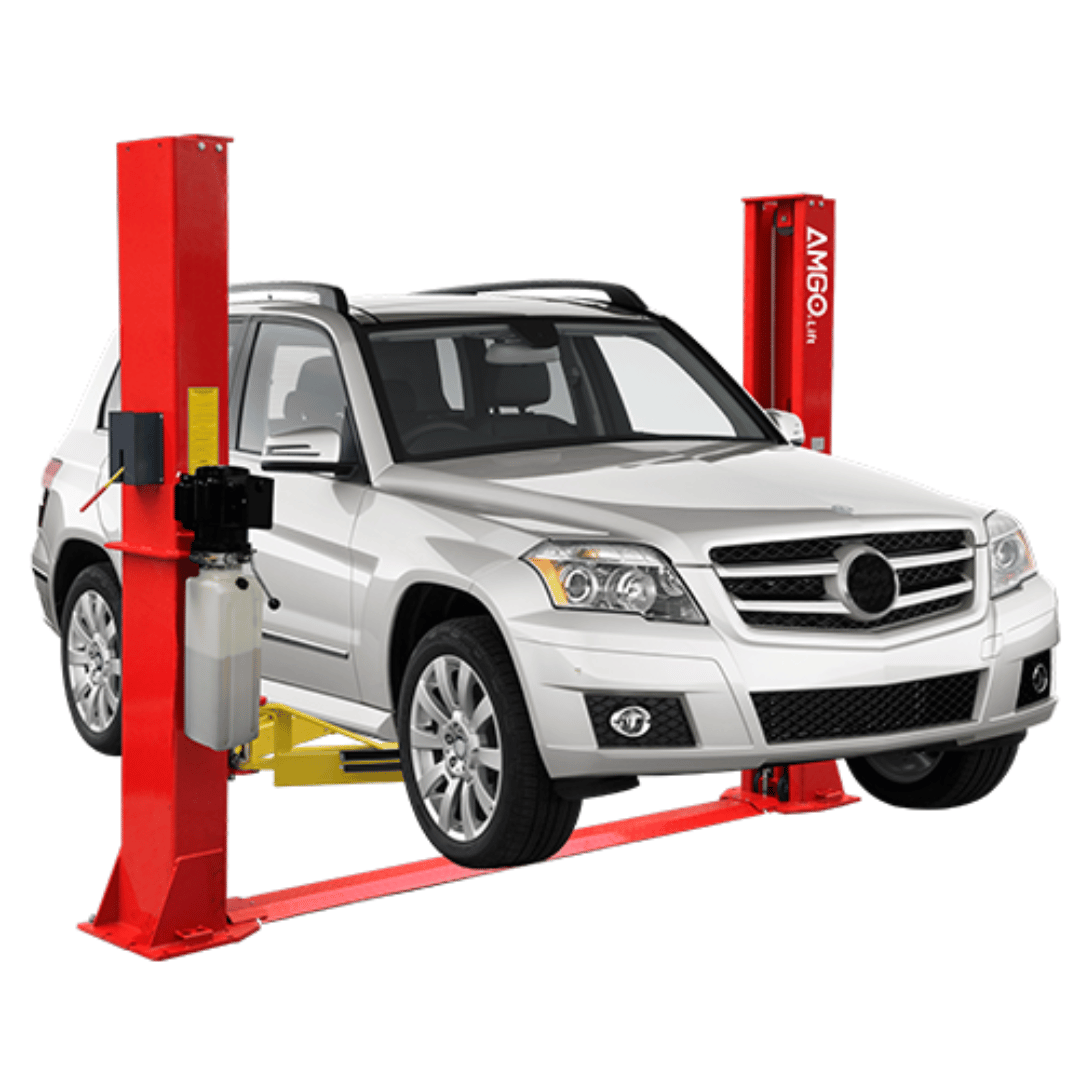

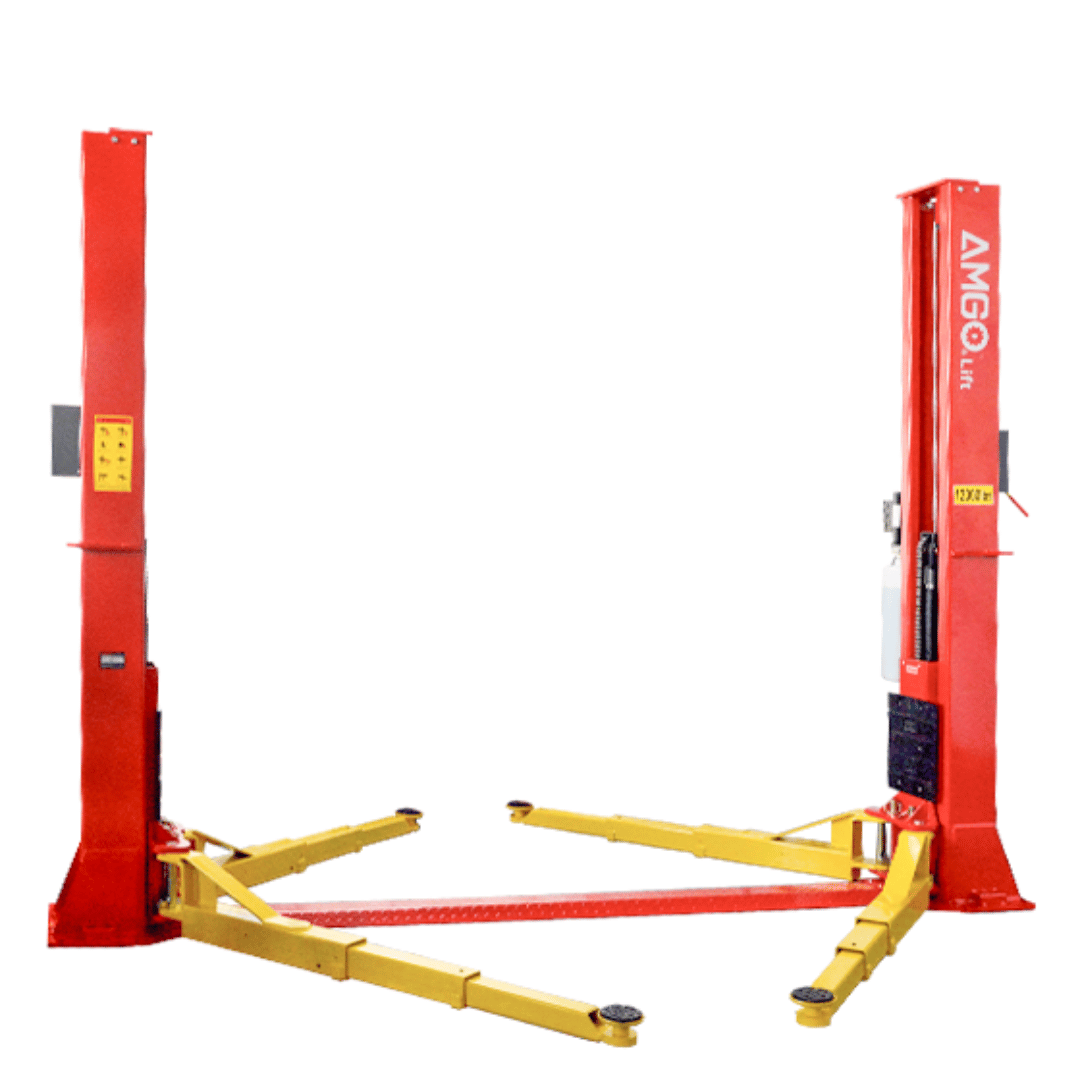

AMGO BP-12 Base Plate 2-Post Lift – 12,000 lb Capacity
When strength, reach, and versatility are non-negotiable, the AMGO BP-12 Base Plate 2-Post Lift delivers heavy-duty lifting performance with advanced flexibility for wide and oversized vehicles. Designed with extra-long 3-stage arms, two adjustable width settings, and a 12,000 lb capacity, the BP-12 is built for the toughest service jobs — from standard sedans to lifted trucks and commercial fleet vehicles.
Its base plate configuration makes it ideal for spaces where ceiling height is limited but maximum lifting power is needed. With an open-top design and adjustable column width options up to 150 3/4", the BP-12 provides the freedom to accommodate wider, taller vehicles while maintaining strong post-to-post stability.
The BP-12 features a lifting height of up to 81 27/32 inches (with adapters) and a drive-thru clearance of up to 110 5/8 inches, giving you the room and access required for undercar repairs, tire service, and general maintenance on larger vehicles.
Backed by AMGO’s reputation for quality engineering and available through Gearforce USA, this lift combines durability, safety, and versatility — making it a powerhouse for busy commercial garages or serious home users who demand professional-grade lifting capability.

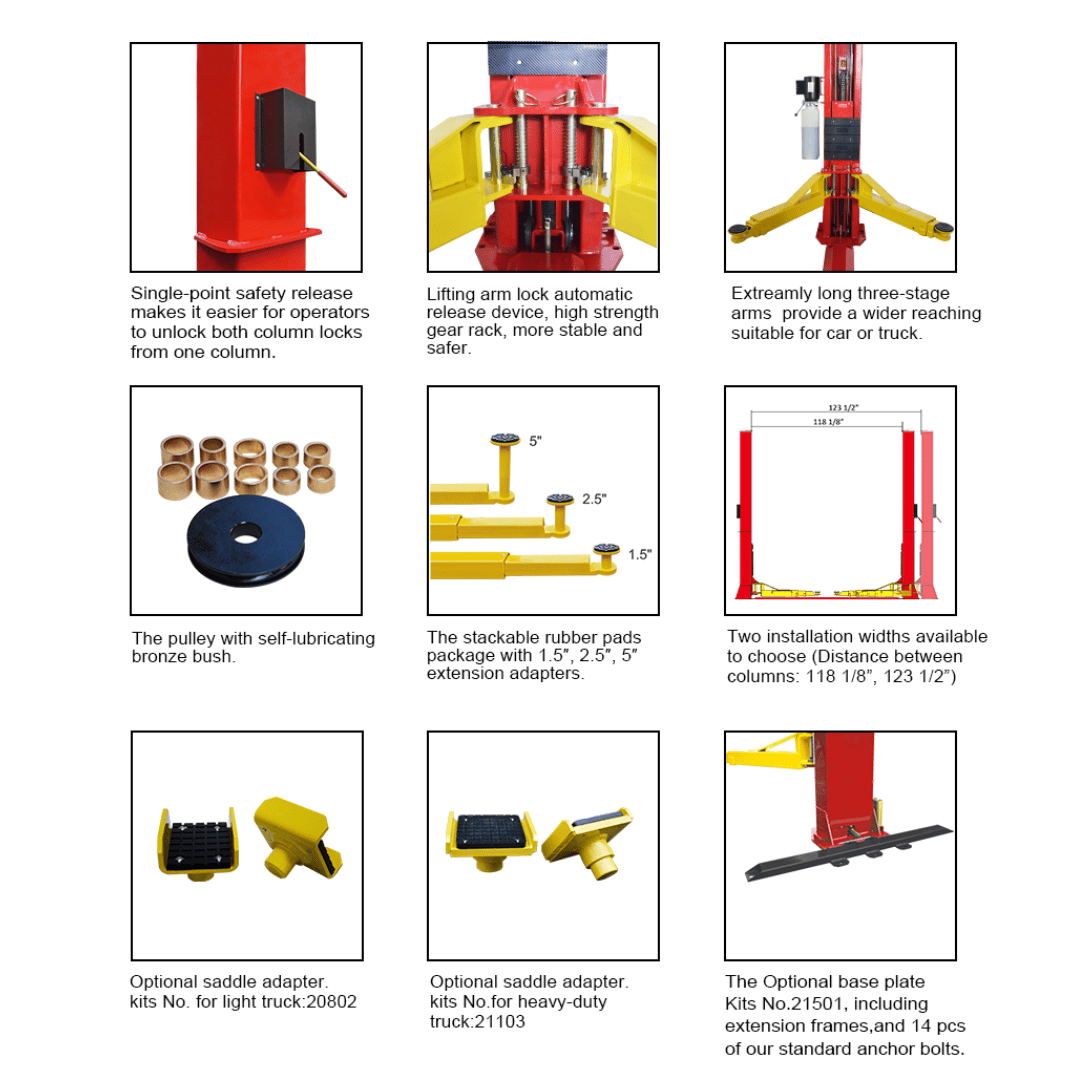

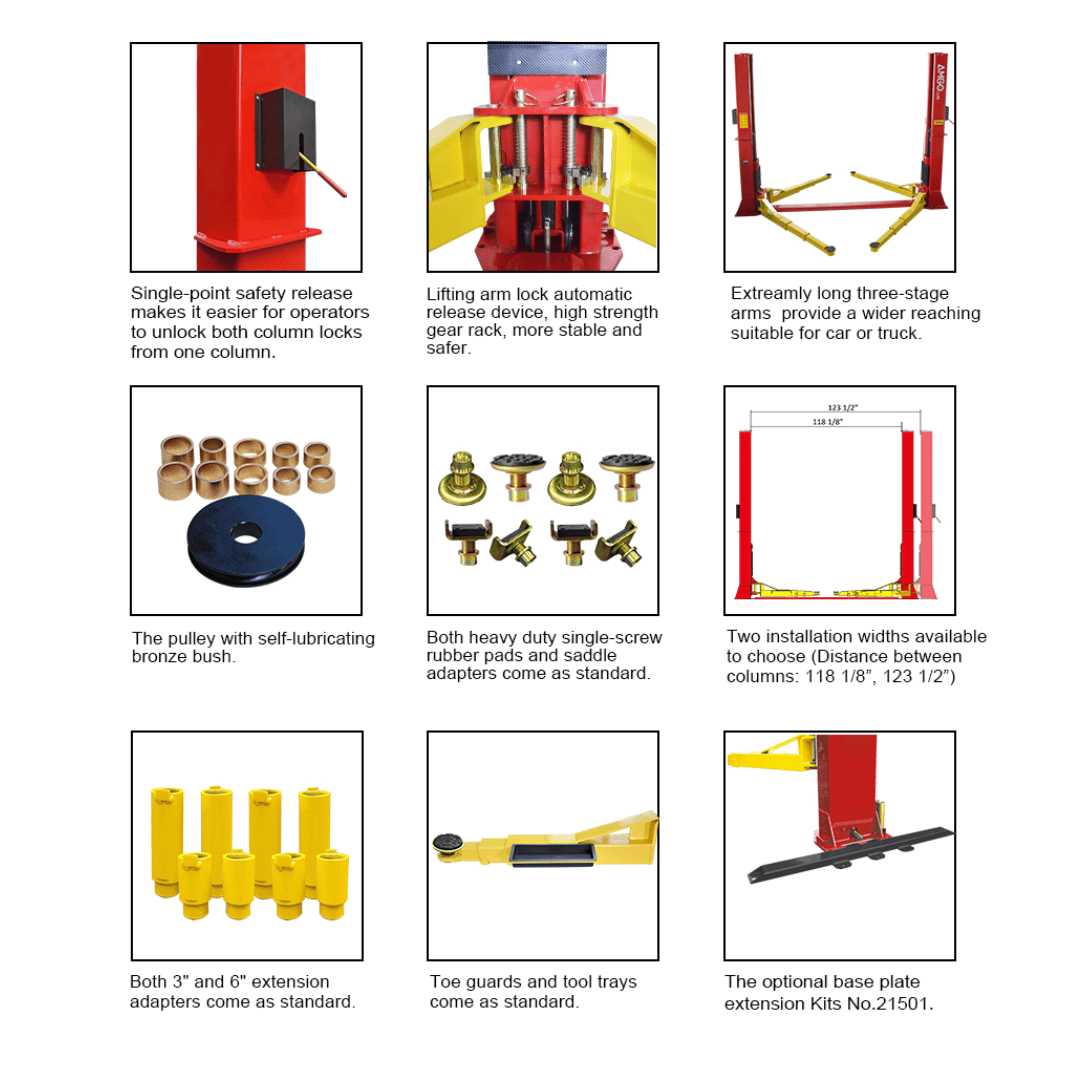

Key Features
- 12,000 lb lifting capacity – ideal for full-size trucks, vans, SUVs, and commercial vehicles
- Open-top base plate design – suited for garages with ceiling height constraints
- Extra-long 3-stage arms – extended reach for long-wheelbase and oversized vehicles
- Two adjustable width settings – maximum flexibility for wide vehicle access
- Max lifting height: 81 27/32" (with adapters) – ideal for high-clearance work
- Drive-thru clearance up to 110 5/8" – easily accommodates larger vehicles
- Width between columns up to 123 1/2" – exceptional space for positioning
- Dual-safety lock mechanism – reliable hold at multiple heights
- Self-lubricating UHMW sliders – reduce friction, improve longevity
- Single-point manual lock release – simplified operation
- Operates on a 2.0 HP motor – smooth, consistent lifting action
- Heavy-duty construction – built to perform in high-demand shop environments
- CE Approved and Certified
- Meets or exceeds the standards prescribed by European Standard EN-1493

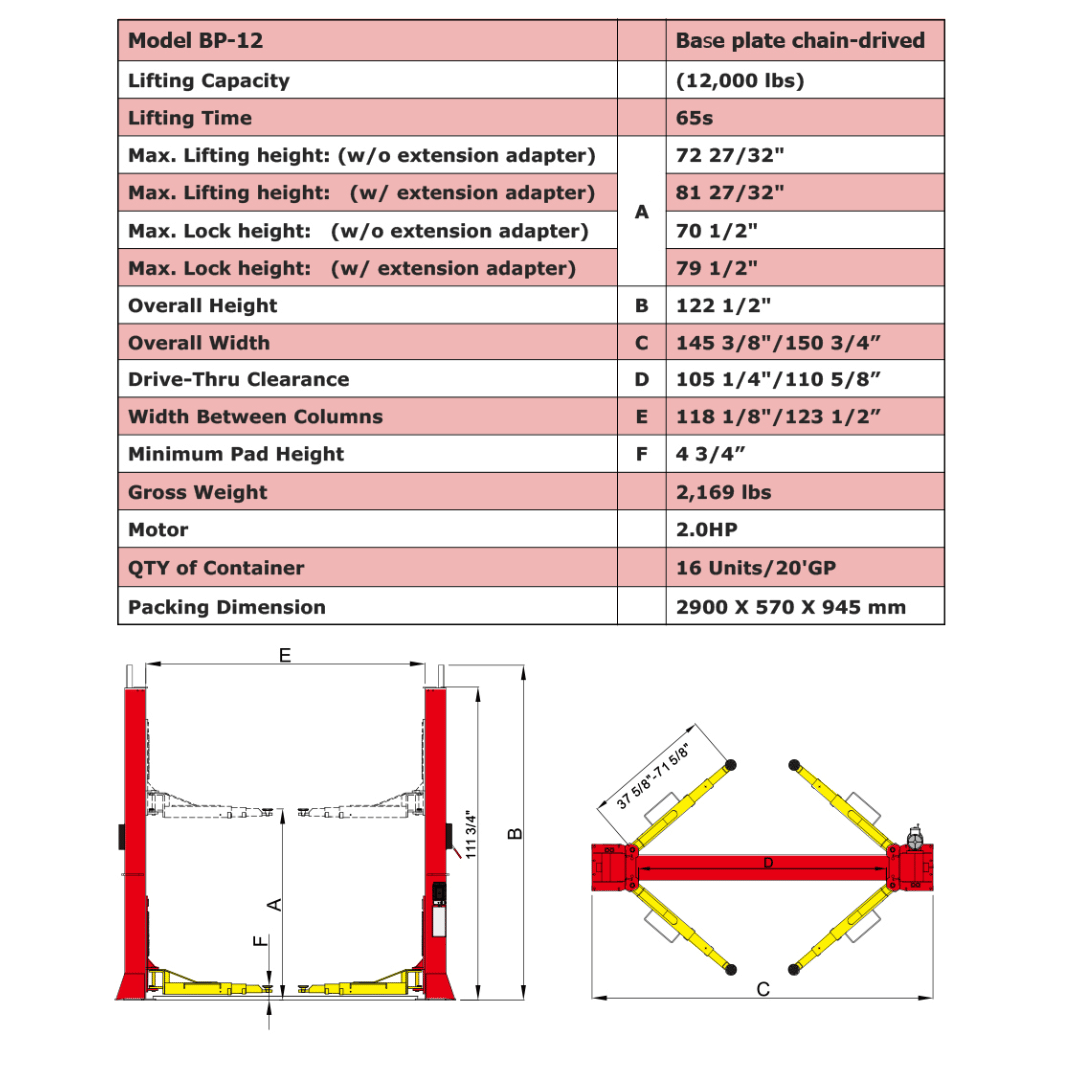

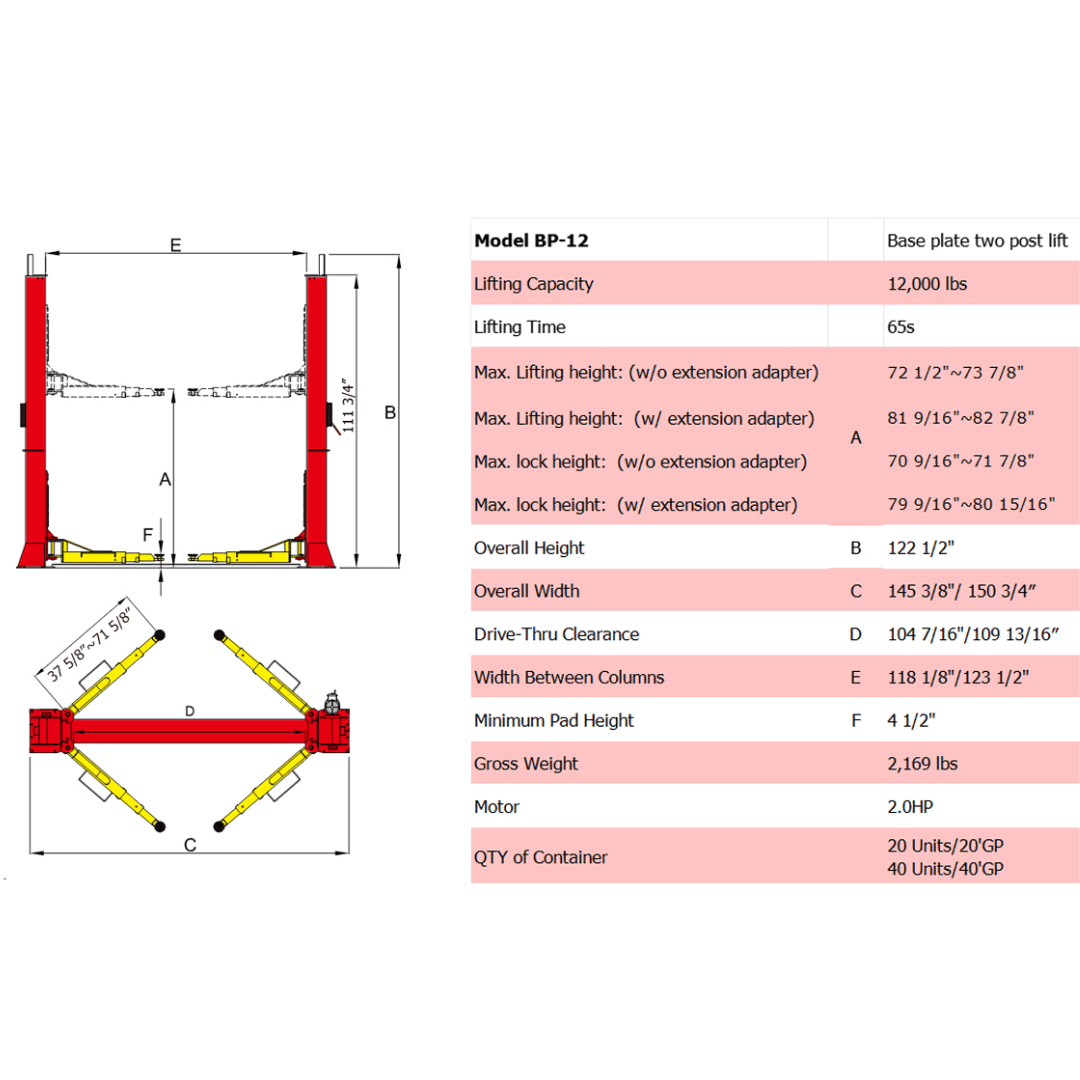

Product Specifications
| Model | BP-12 |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 65S |
| A: Max. Lifting Height: (w/o extension adapter) | 72 27/32″ |
| A: Max. Lifting Height: (w/ extension adapter) | 81 27/32″ |
| A: Max. Lock Height: (w/o extension adapter) | 70 1/2″ |
| A: Max. Lock Height: (w/ extension adapter) | 79 1/2″ |
| B: Overall Height | 122 1/2″ |
| C: Overall Width | 145 3/8″ / 150 3/4″ |
| D: Drive Thru Clearance | 105 1/4″ / 110 5/8″ |
| E: Width Between Columns | 118 1/8″ / 123 1/2″ |
| F: Minimum Pad Height | 4 3/4″ |
| Motor | 2.0HP |
| Gross Weight | 2,169 lbs |
| QTY of Container | 16 Units/20'GP |
| Packing Dimension | 2900 X 570 X 945 mm |
