Product Description

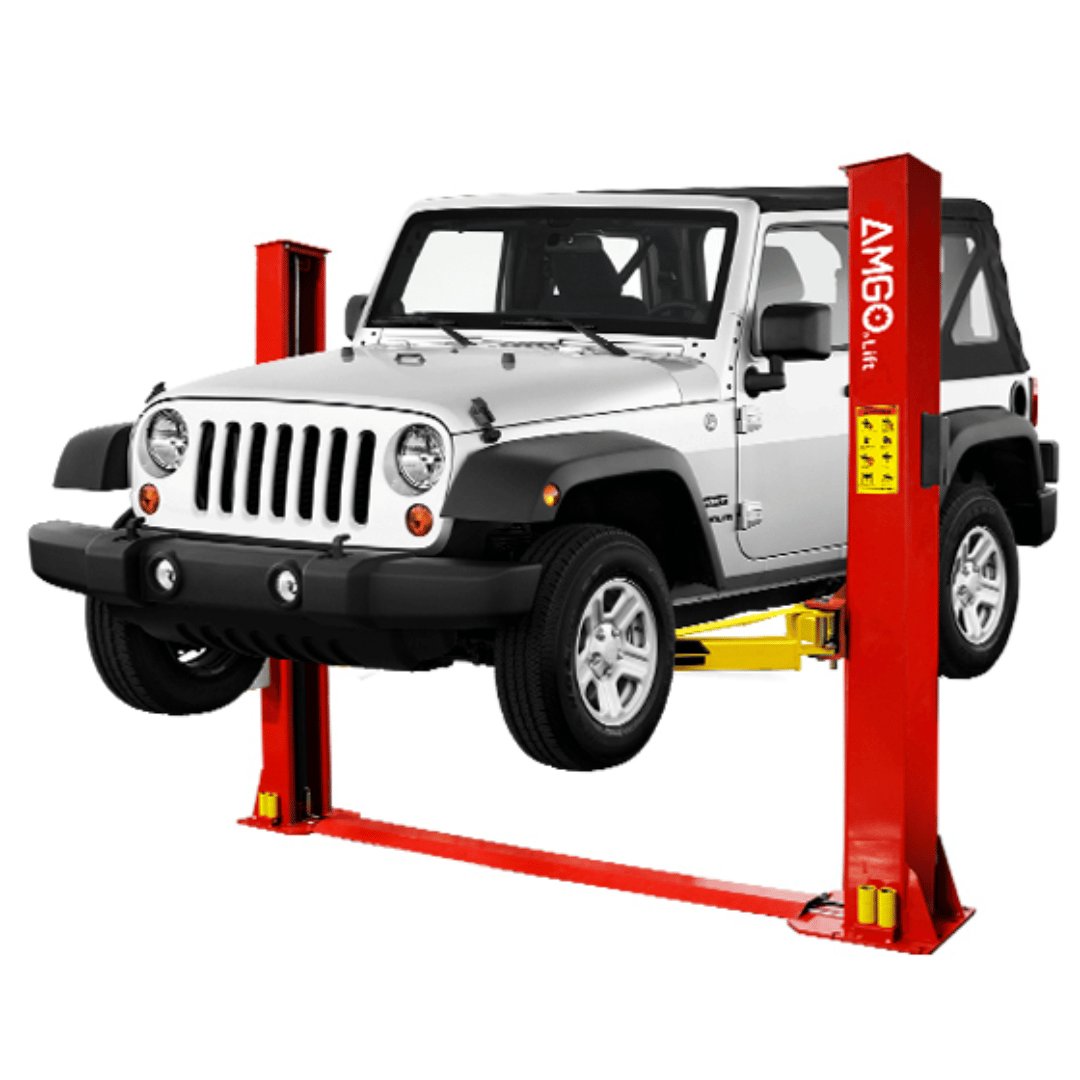

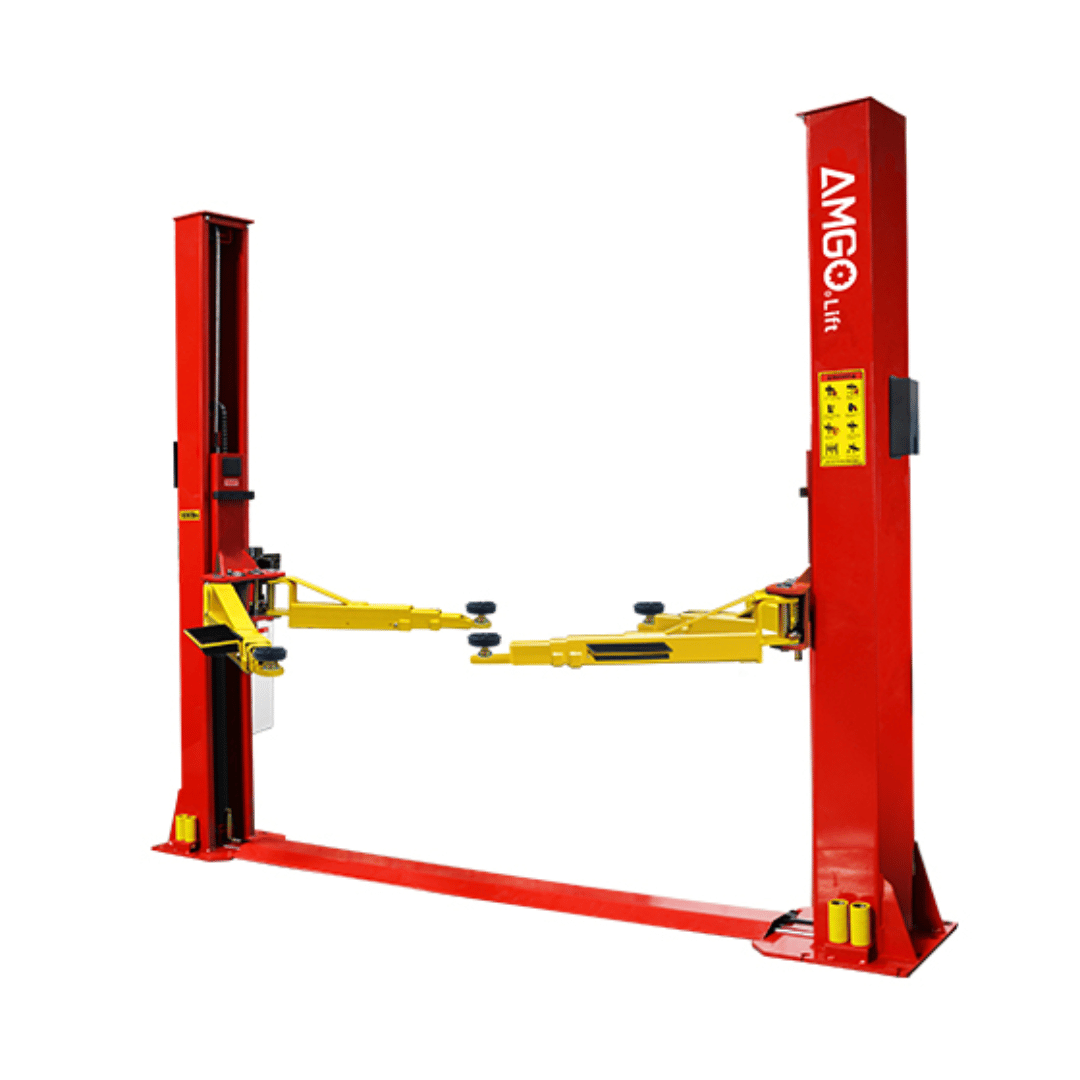

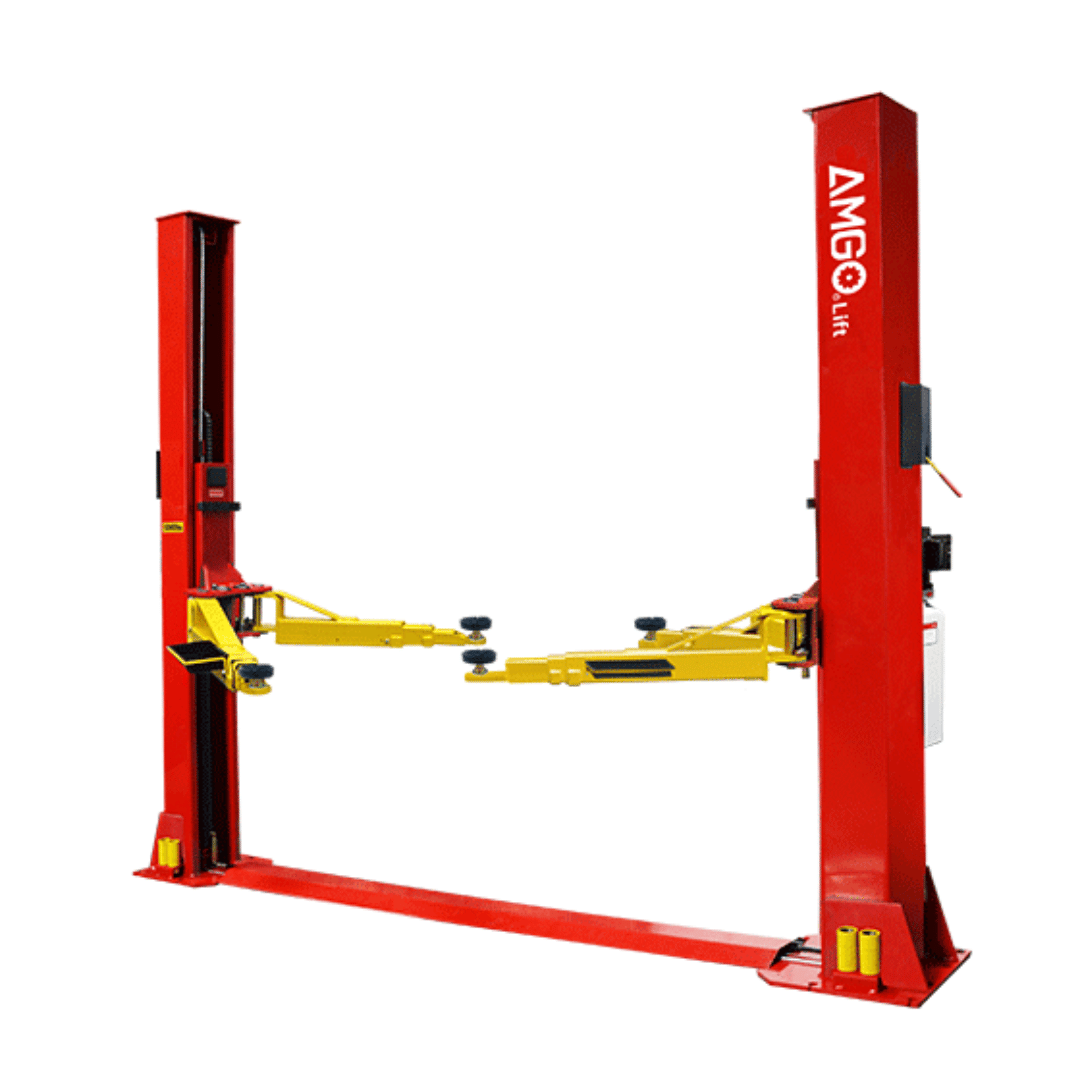

AMGO BP-9X Base Plate 2-Post Lift – 9,000 lb Capacity
For those who need more height, more width, and more lifting confidence, the AMGO BP-9X Base Plate 2-Post Lift takes the proven BP-9 platform to the next level. Built with a reinforced structure, expanded column spacing, and a taller frame, the BP-9X is ideal for servicing a broader range of vehicles — from compact cars to SUVs and light-duty trucks — in garages and workshops with at least 9.5 ft of ceiling clearance.
The BP-9X offers the same 9,000 lb lifting capacity as the original BP-9, but with enhanced dimensions and structural rigidity to improve overall stability and accessibility. The symmetric 3-stage arms deliver flexible vehicle positioning, while the extended lifting height of up to 86 inches (with adapters) ensures excellent access for service and repairs.
Equipped with AMGO’s signature dual-safety lock system, single-point manual release, and aero synchronization cables, this model prioritizes both safety and ease of operation. Additional features like automatic arm restraints, self-lubricating UHMW polyethylene sliders, and a low 3.5" pad height make this lift both durable and highly practical for any serious technician or garage enthusiast.
At Gearforce USA, the BP-9X stands out as a robust, space-optimized solution for garages that need more lifting power without upgrading to a full commercial overhead model.

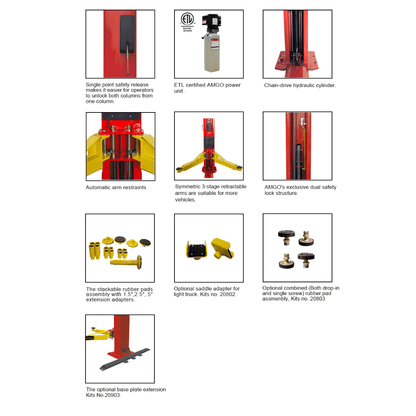

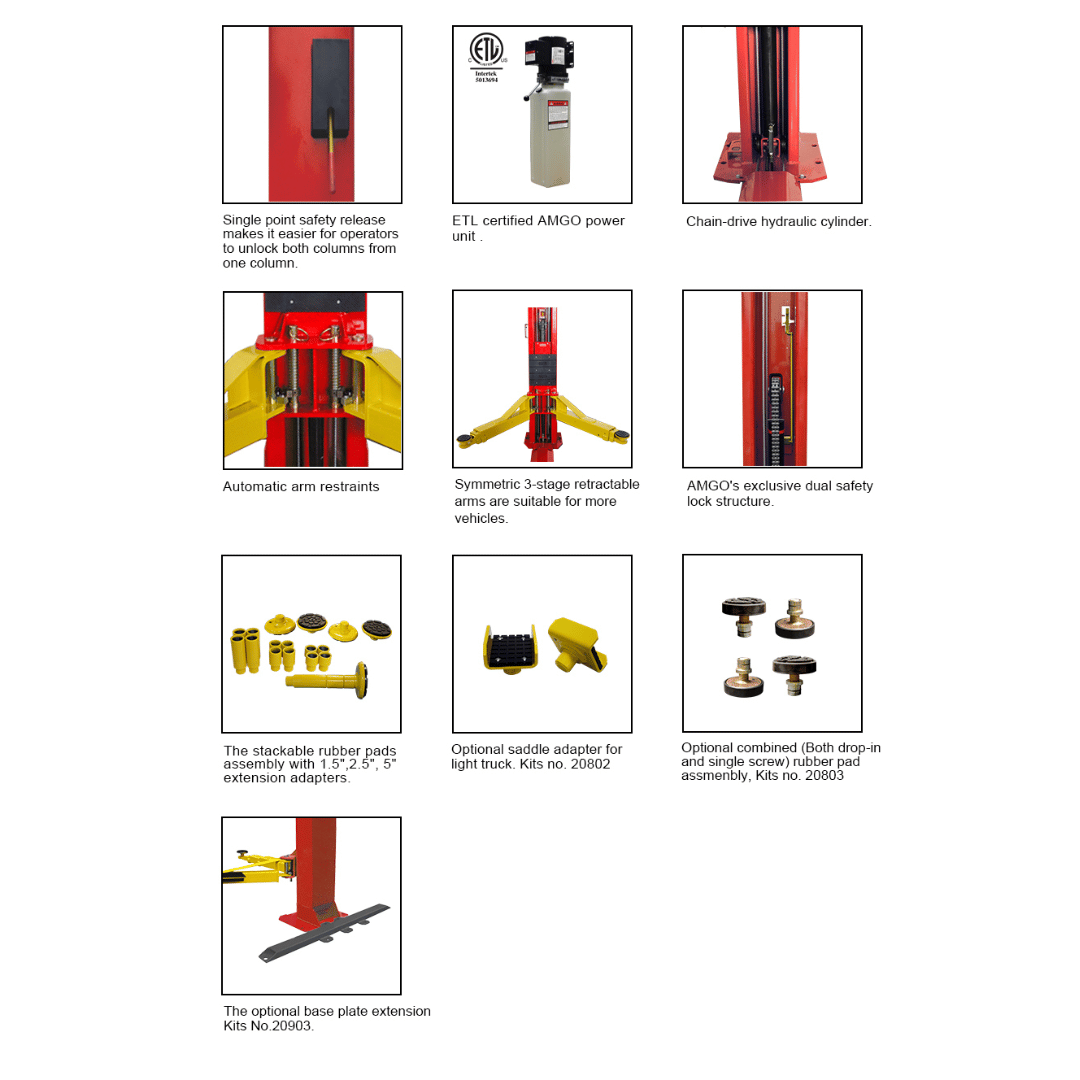

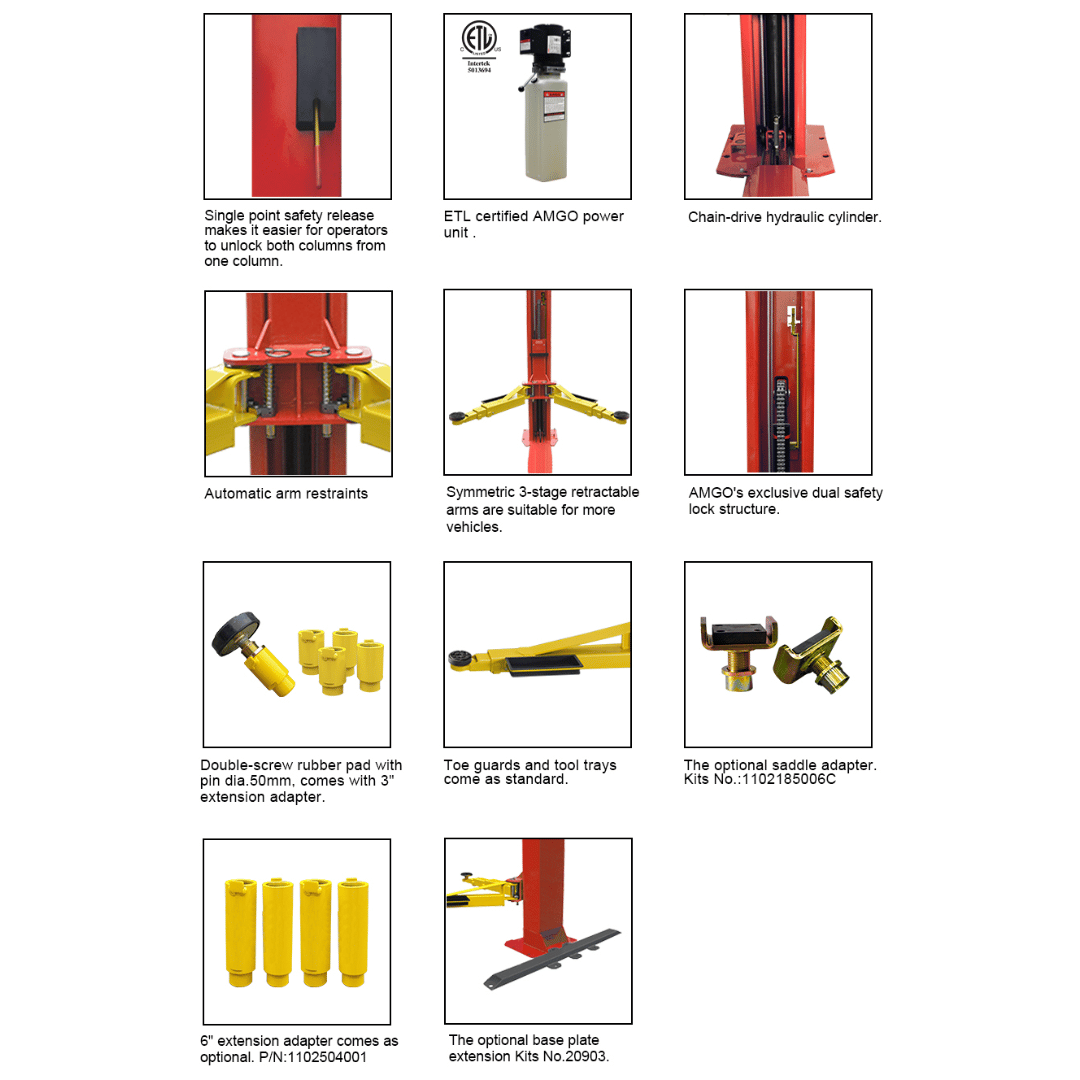

Key Features
- 9,000 lb lifting capacity – handles cars, SUVs, and light trucks
- Reinforced wide and tall design – more room and more strength than the standard BP-9
- Taller frame – installs in garages with 9.5 ft or higher ceiling height
- Max lifting height: 86" with adapters – ideal for service work and inspections
- Drive-thru clearance: 100 3/4" – roomy entry for larger vehicles

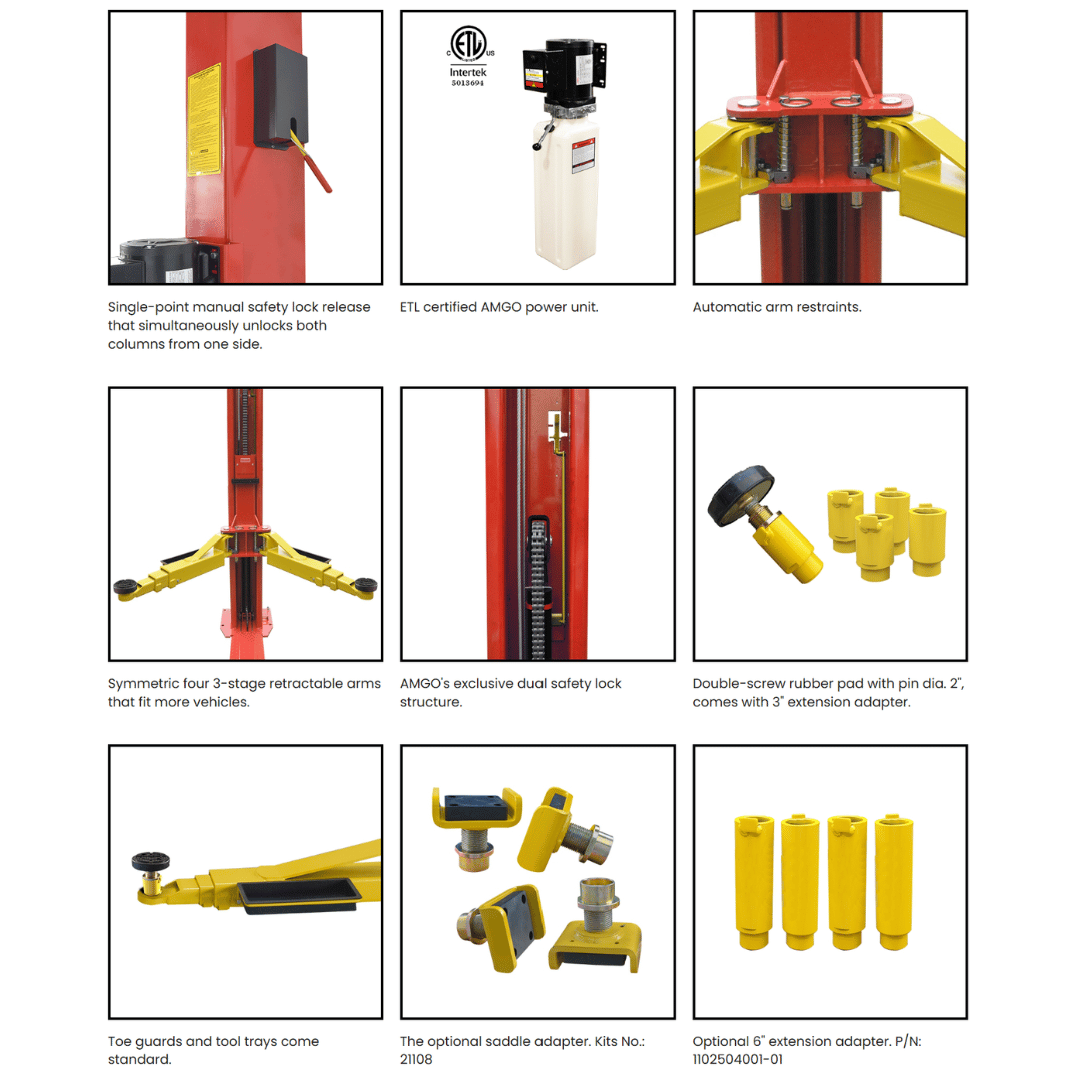

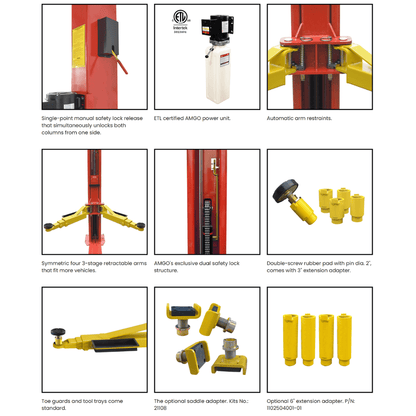

- Symmetric 3-stage retractable arms – wide swing range for multiple vehicle types
- Dual-safety lock system – secure positioning at multiple lift points
- Single-point manual safety release – disengage both posts from one side
- Automatic arm restraints – safe, stable lifting every time
- UHMW self-lubricating sliders – long-lasting and quiet operation
- Aero sync cables – balanced lift across both columns
- 3.5" minimum pad height – accommodates low-clearance vehicles
- 2.0 HP motor – smooth, reliable hydraulic lift performance

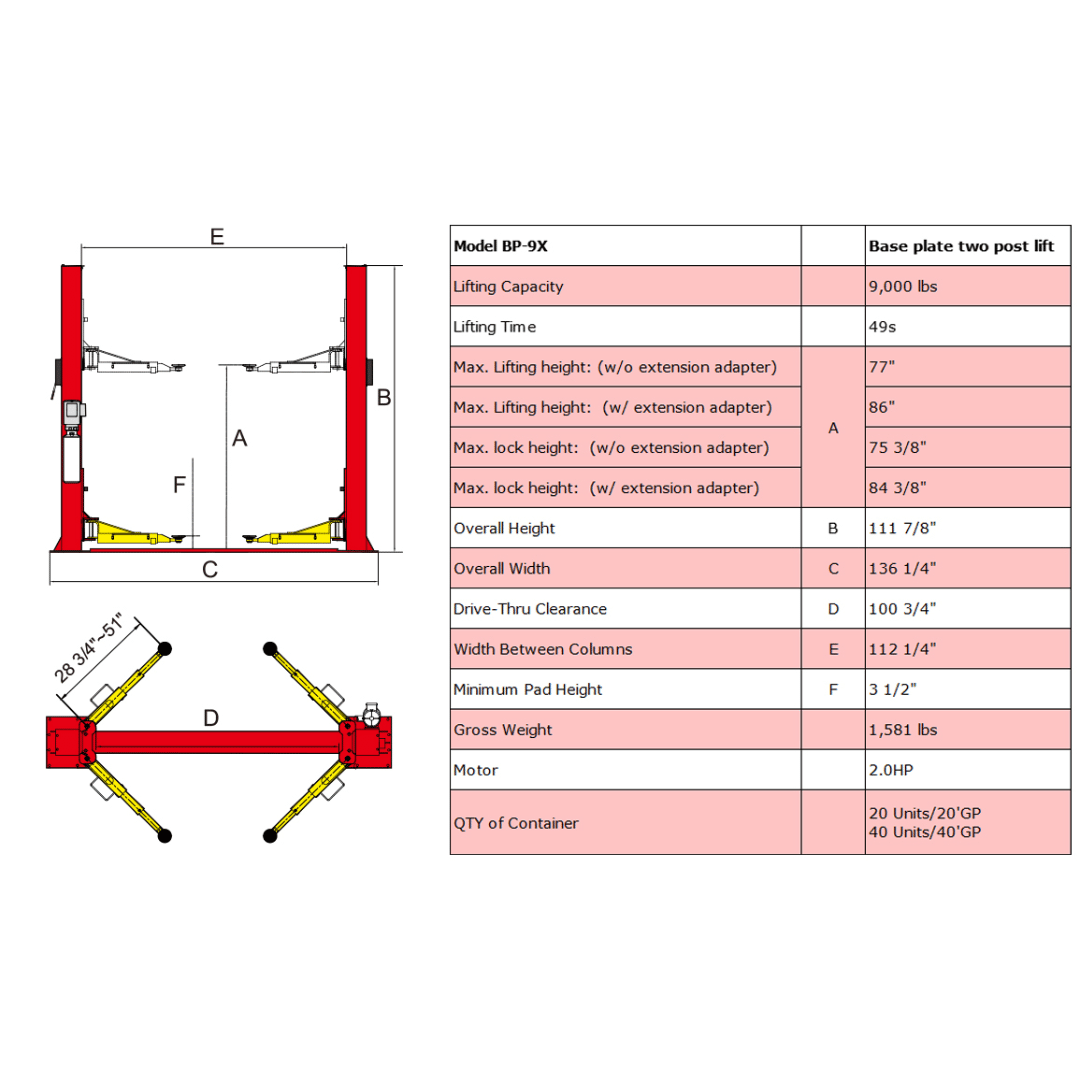

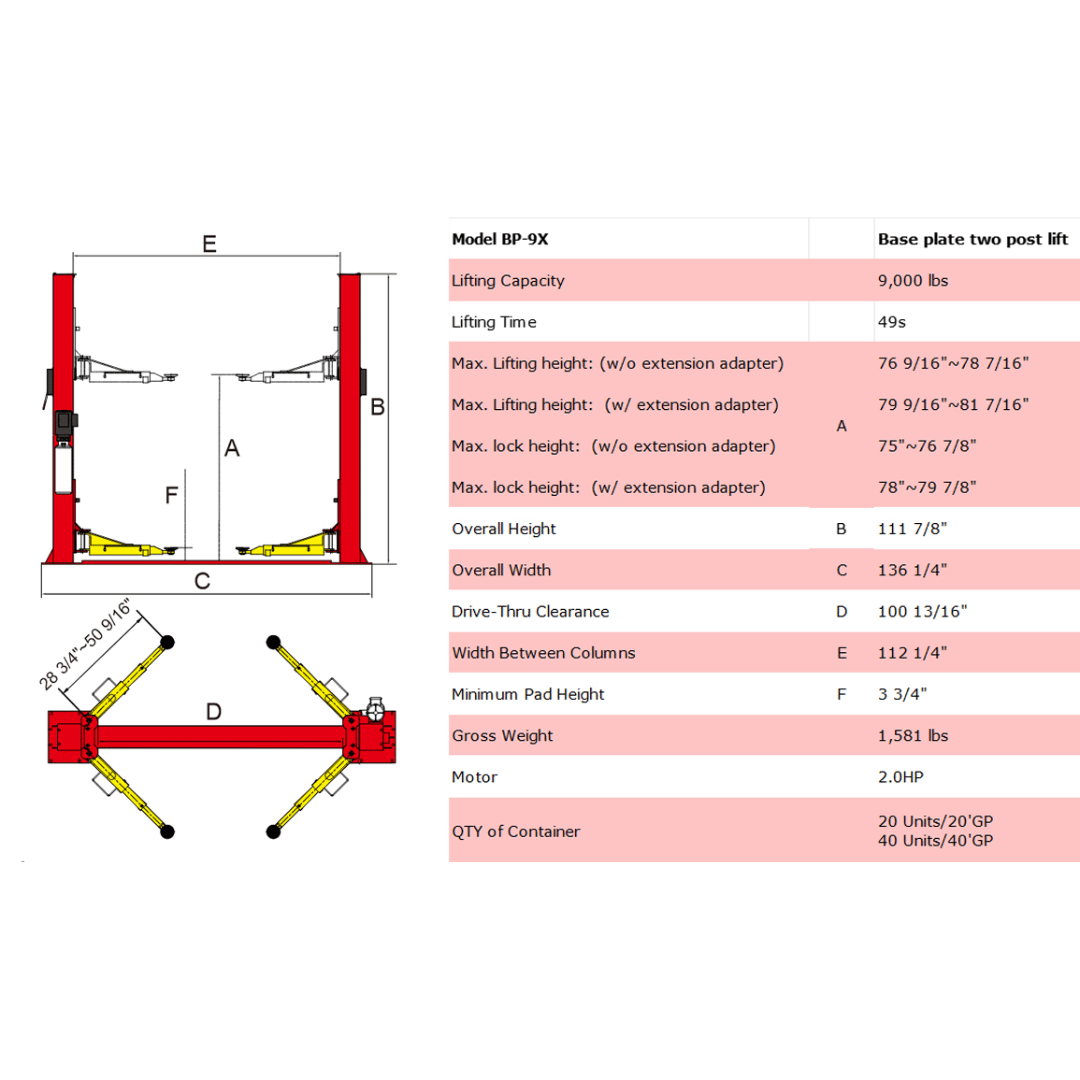

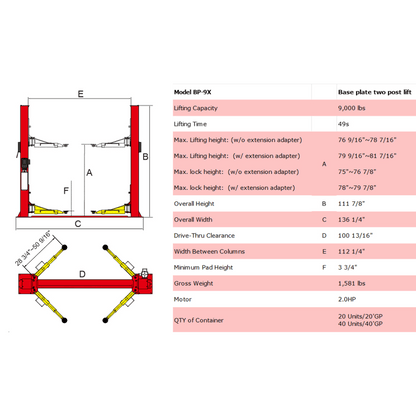

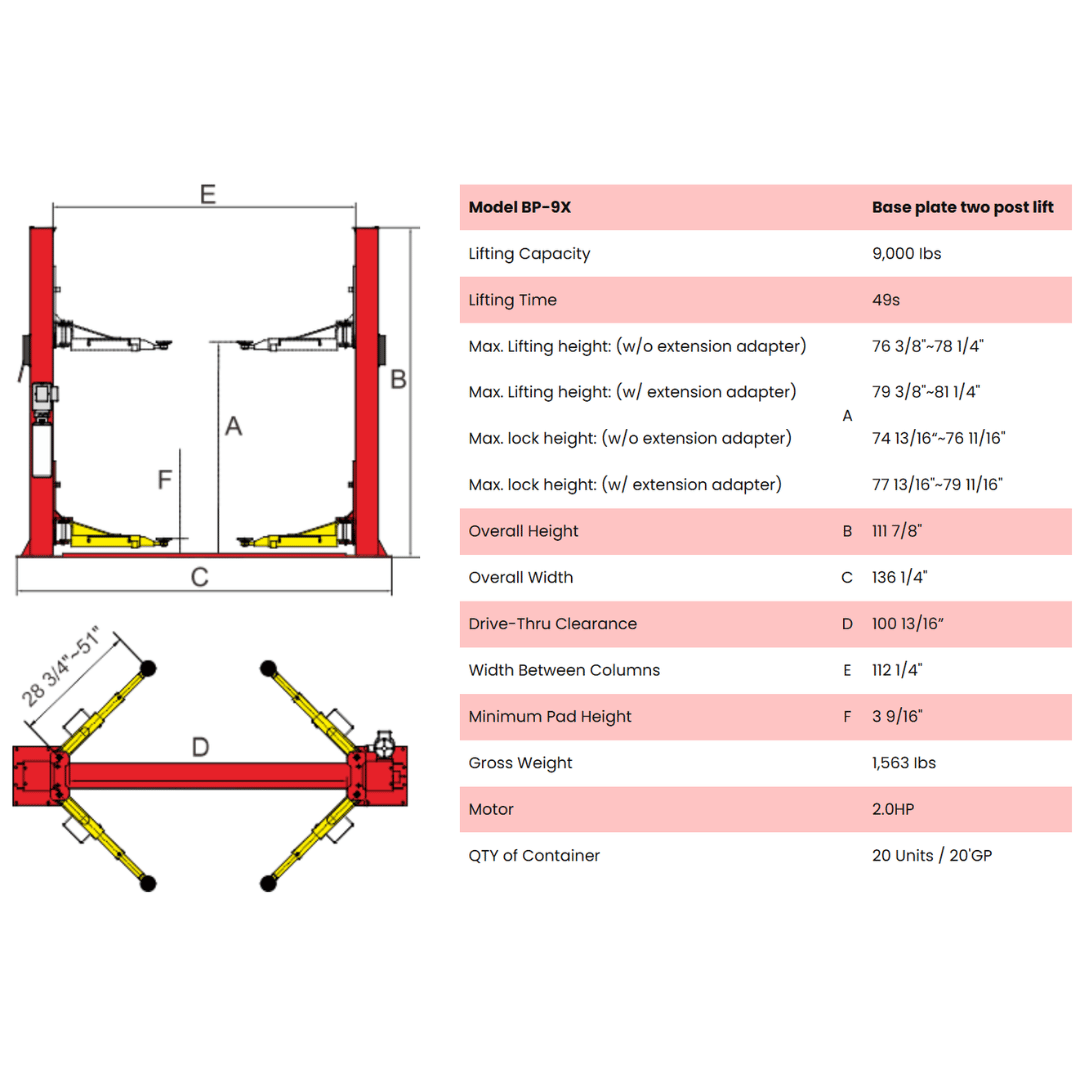

Product Specifications
| Model | BP-9X |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 49S |
| A: Max. Lifting Height: (w/o extension adapter) | 77" |
| A: Max. Lifting Height: (w/ extension adapter) | 86" |
| A: Max. Lock Height: (w/o extension adapter) | 75 3/8" |
| A: Max. Lock Height: (w/ extension adapter) | 84 3/8" |
| B: Overall Height | 111 7/8" |
| C: Overall Width | 136 1/4" |
| D: Drive Thru Clearance | 100 3/4" |
| E: Width Between Columns | 112 1/4" |
| F: Minimum Pad Height | 3 1/2" |
| Motor | 2.0HP |
| Gross Weight | 1,581 lbs |
| QTY of Container | 20 Units/20'GP | 40 Units/40'GP |

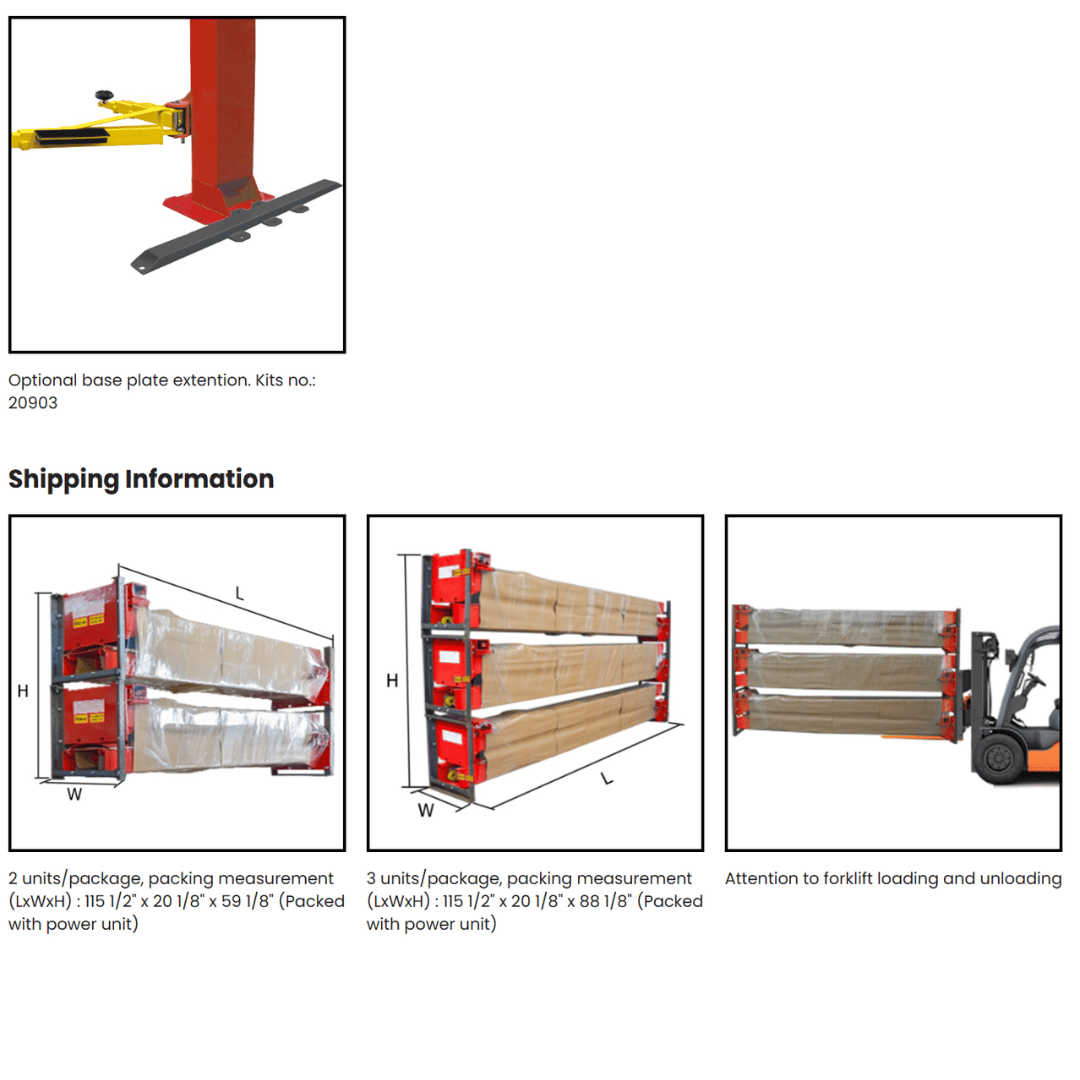

Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
