Product Description

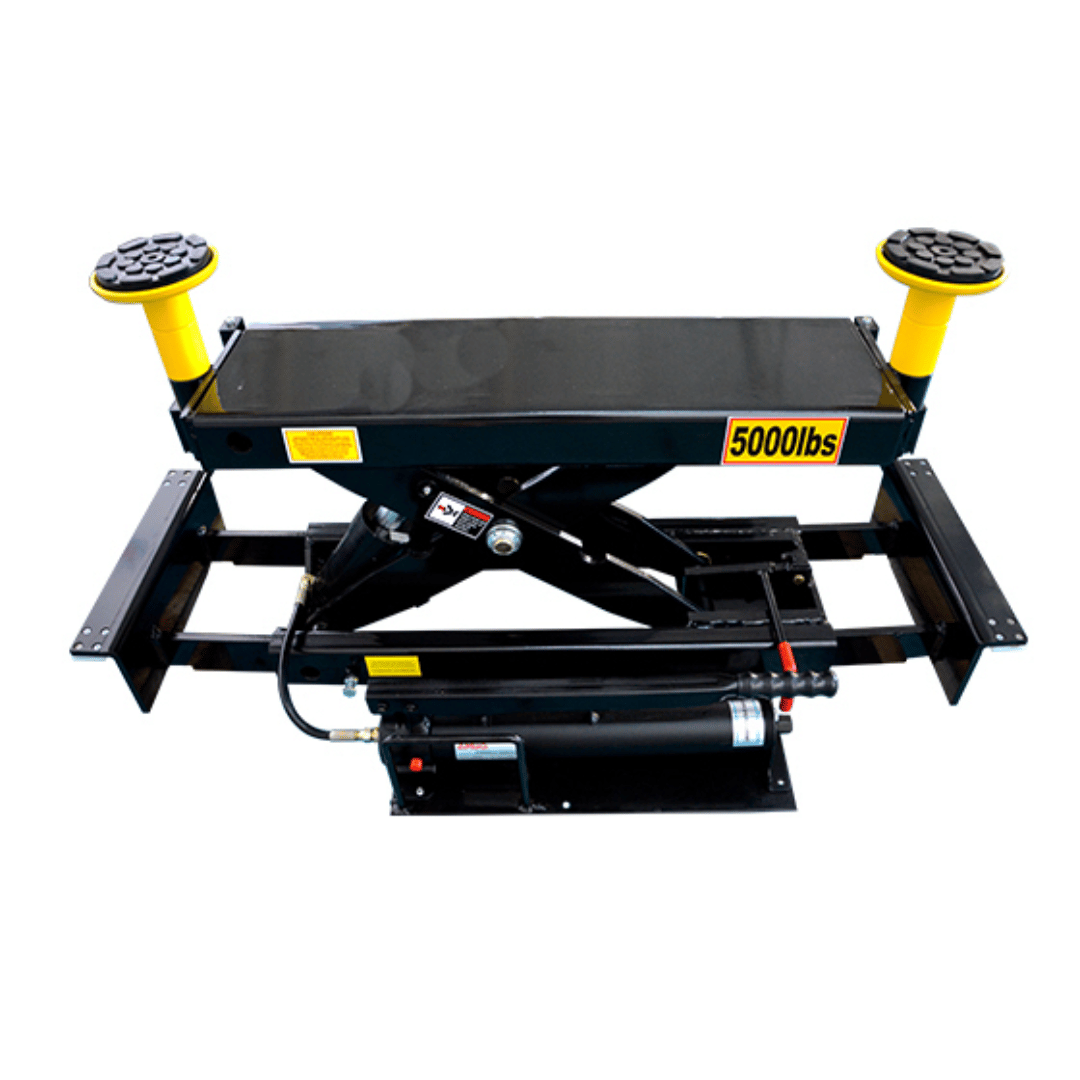

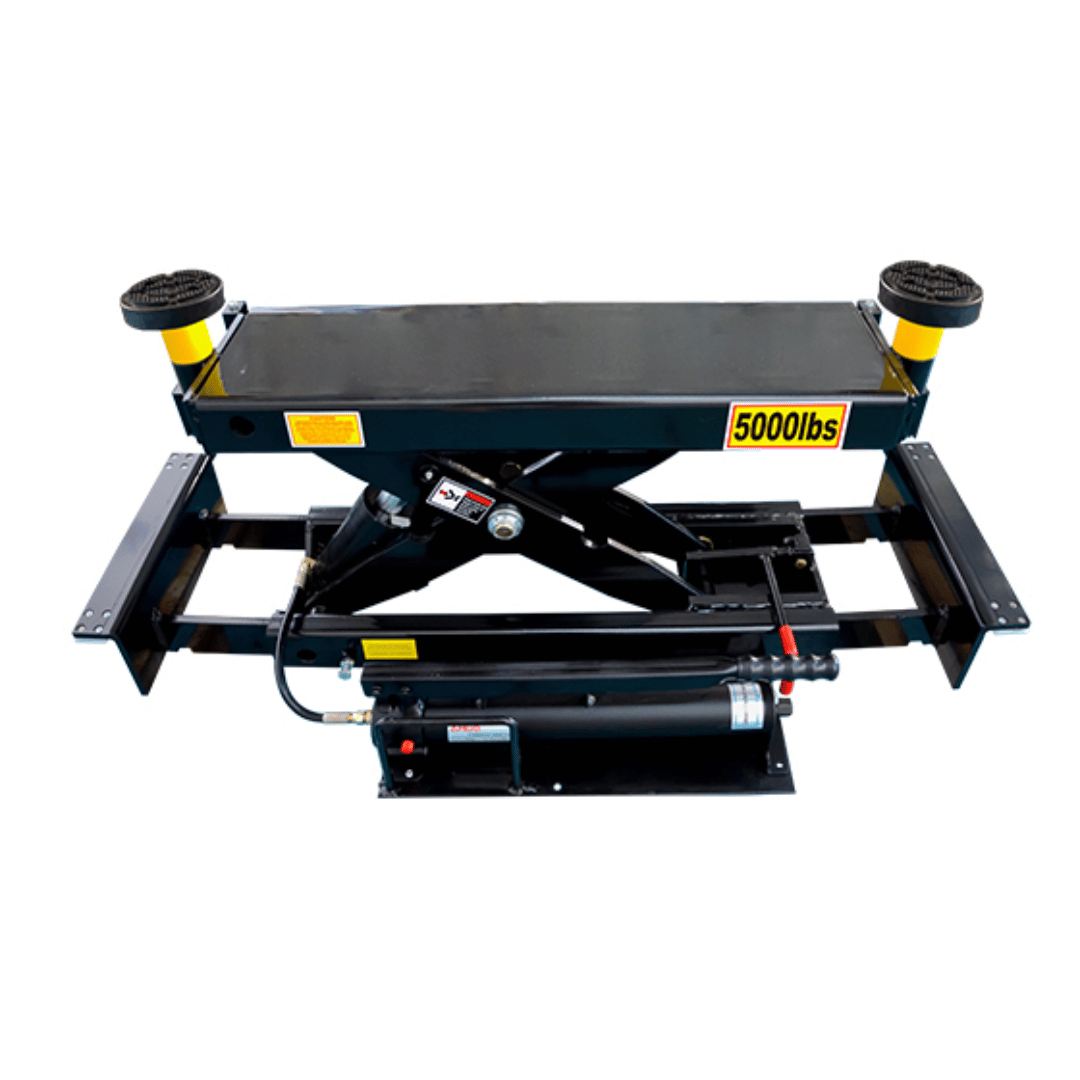

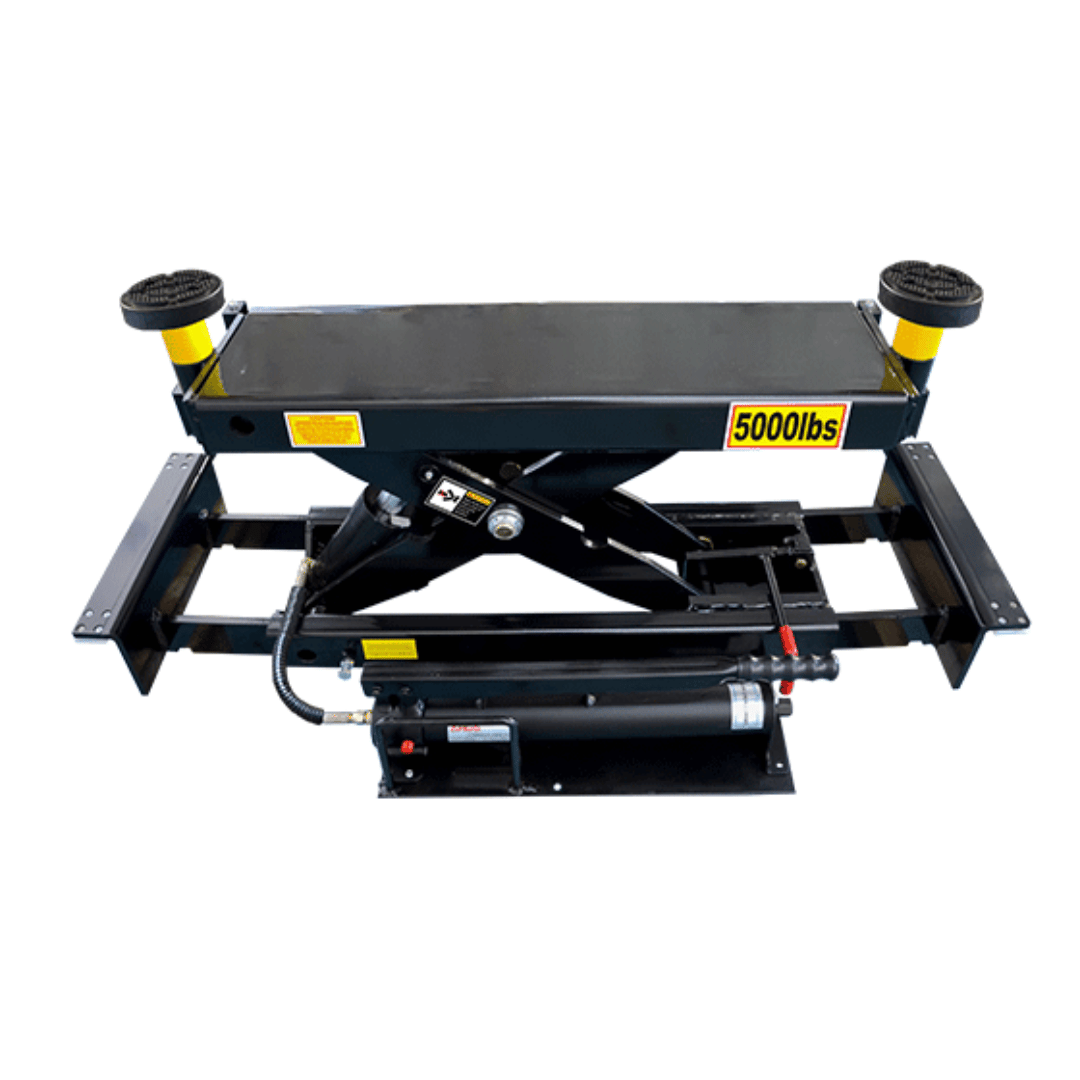

AMGO J5H Sliding Jack with Manual Pump – 5,000 lb Capacity
The AMGO J5H is the perfect solution for additional lifting flexibility on rail-less 4-post and scissor lifts. With a 5,000 lb capacity, this manual hand pump-operated sliding jack is ideal for lifting one end of a vehicle for wheel, brake, and suspension service, even when standard jack rails are not available.
Designed with a compact footprint and smooth sliding movement, the J5H features an adjustable lower base that fits runways spaced between 35 5/8″ and 50 1/4″, making it widely compatible with many lift platforms. The jack's manual hydraulic system provides steady, controlled lifting without needing pneumatic hookups — ideal for both commercial and home shop environments.
This model includes durable rubber pad assemblies and 2.5″ stackable adapters, allowing you to reach various chassis heights with ease. Telescoping lifting arms expand from 33″ to 53 7/16″, enabling precise positioning at key support points. The low-profile frame (min. height 8 11/16″) accommodates a wide range of vehicle types, including lowered or modified cars.
An ergonomic guardrail protects hydraulic lines while doubling as a booster handle for easy movement across your lift surface. With simple controls and proven AMGO durability, the J5H is a versatile and dependable sliding jack for any workspace.

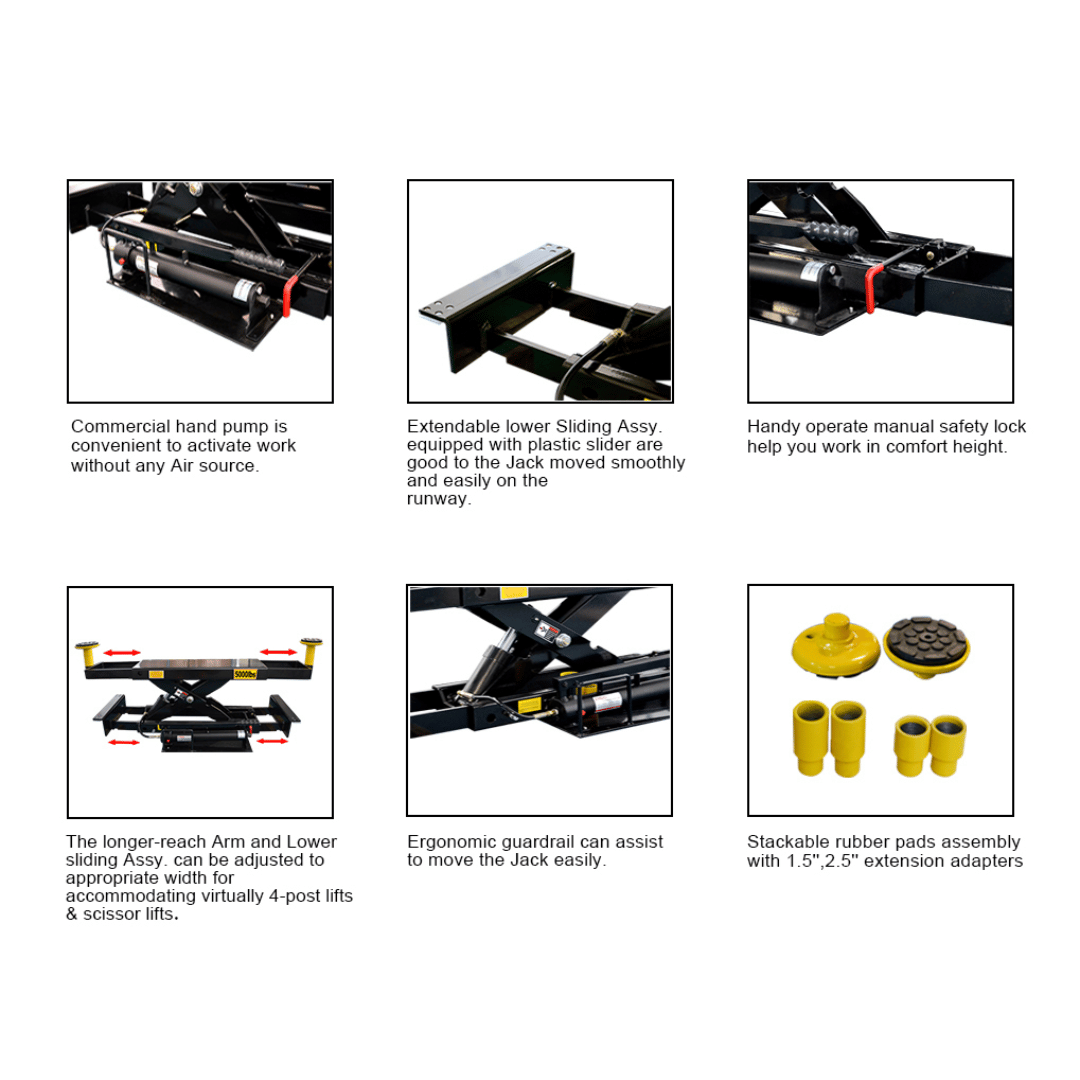

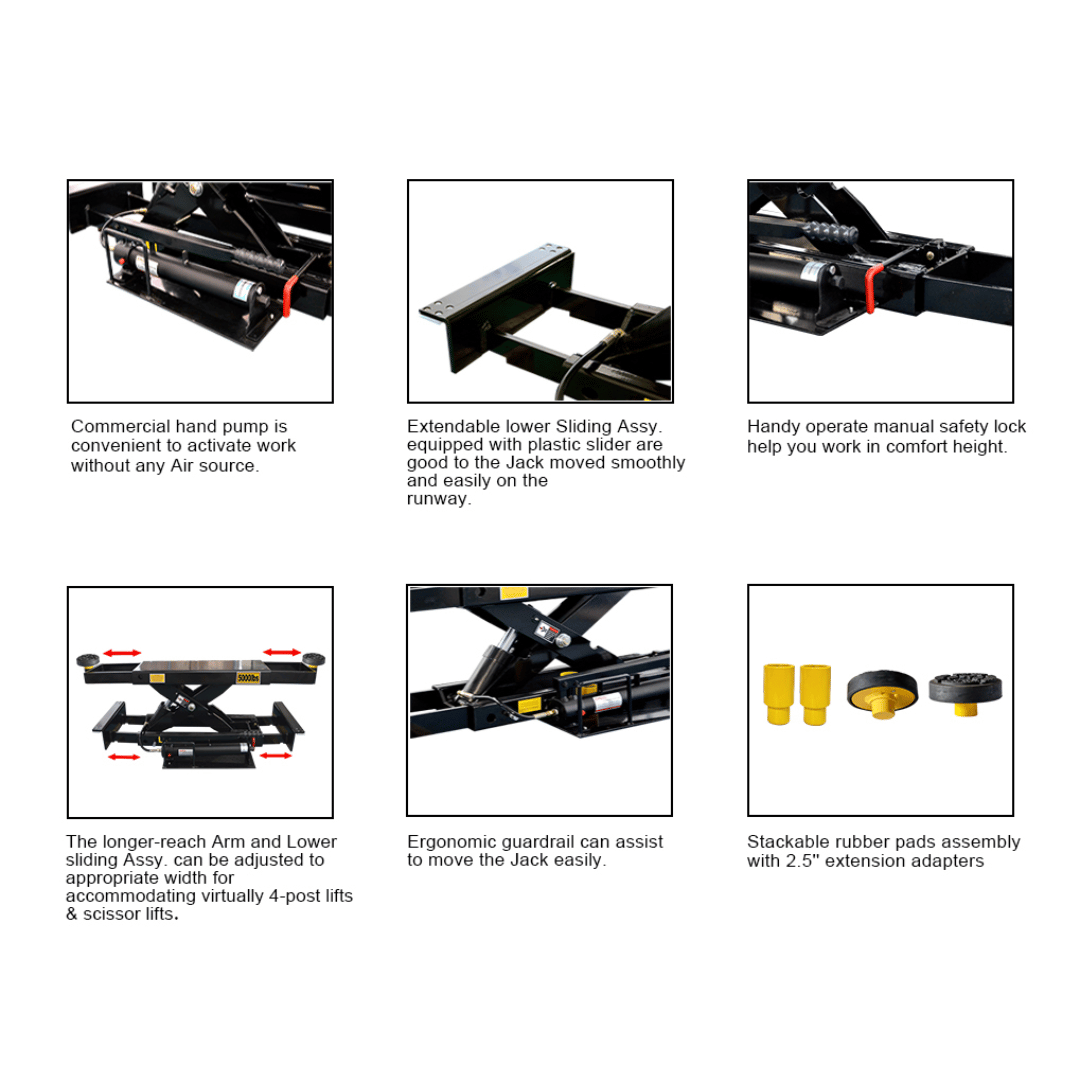

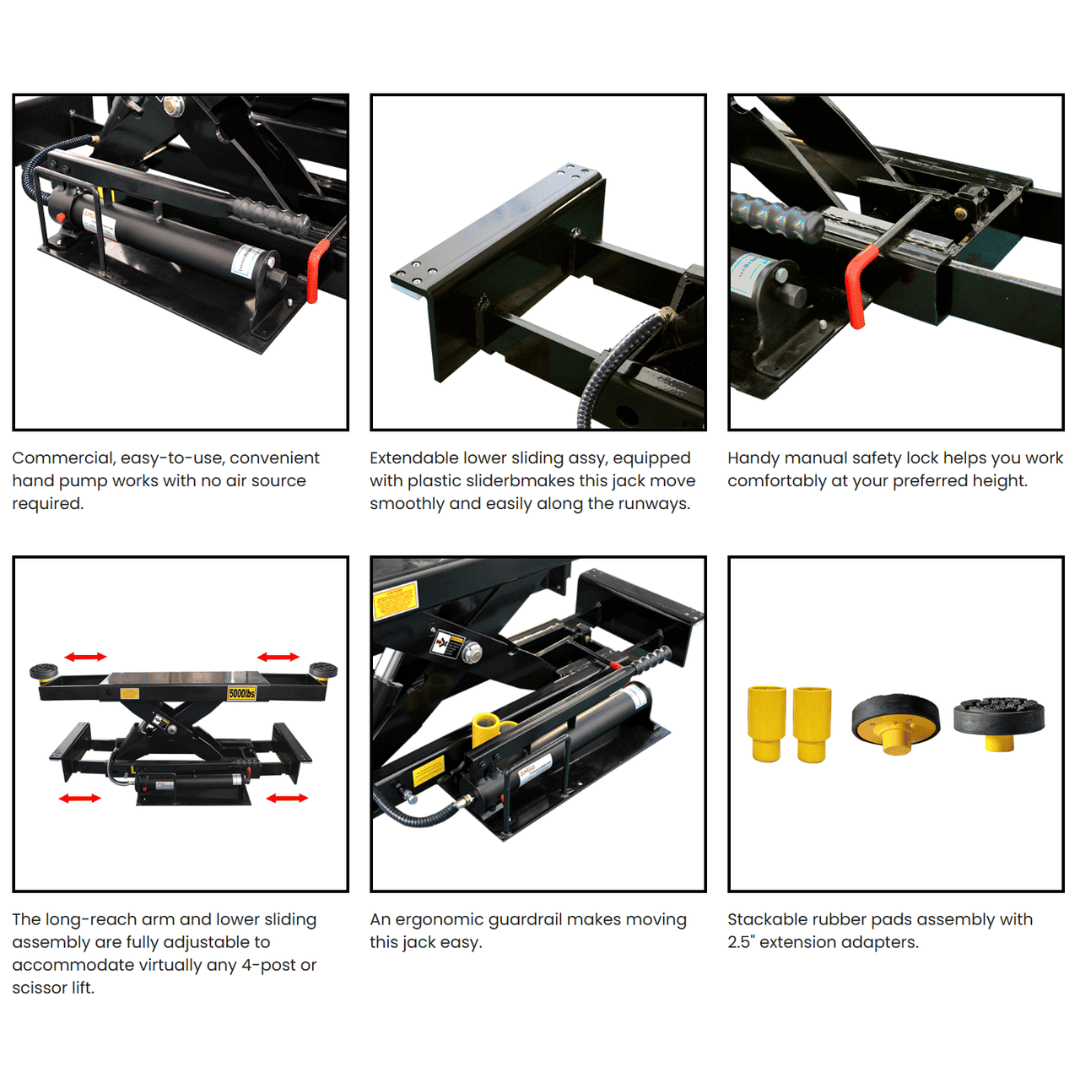

Key Features
- 5,000 lb lifting capacity – ideal for sedans, small SUVs, and light trucks
- Manual hand pump operation – simple, reliable lifting without air or electricity
- Designed for rail-less 4-post and scissor lifts – works on platforms with runway spacing of 35 5/8″ to 50 1/4″
- Sliding base with plastic gliders – provides smooth movement between lift runways
- Adjustable telescoping arms – reach from 33″ to 53 7/16″ for flexible chassis engagement
- Includes 2.5″ stackable adapters and sturdy rubber pads – supports various vehicle frame heights
- Lifting height: 14″ (without adapters), 18″ (with adapters)
- Minimum pad height: 5″ | Minimum jack height: 8 11/16″
- Manual safety lock with stable positioning
- Overall width: 20″ | Lift time: 50 seconds (manual)
- Ergonomic guardrail – protects hoses and doubles as a handle for repositioning
- AMGO Warranty: 5 years on structural components, 3 years on hydraulic parts

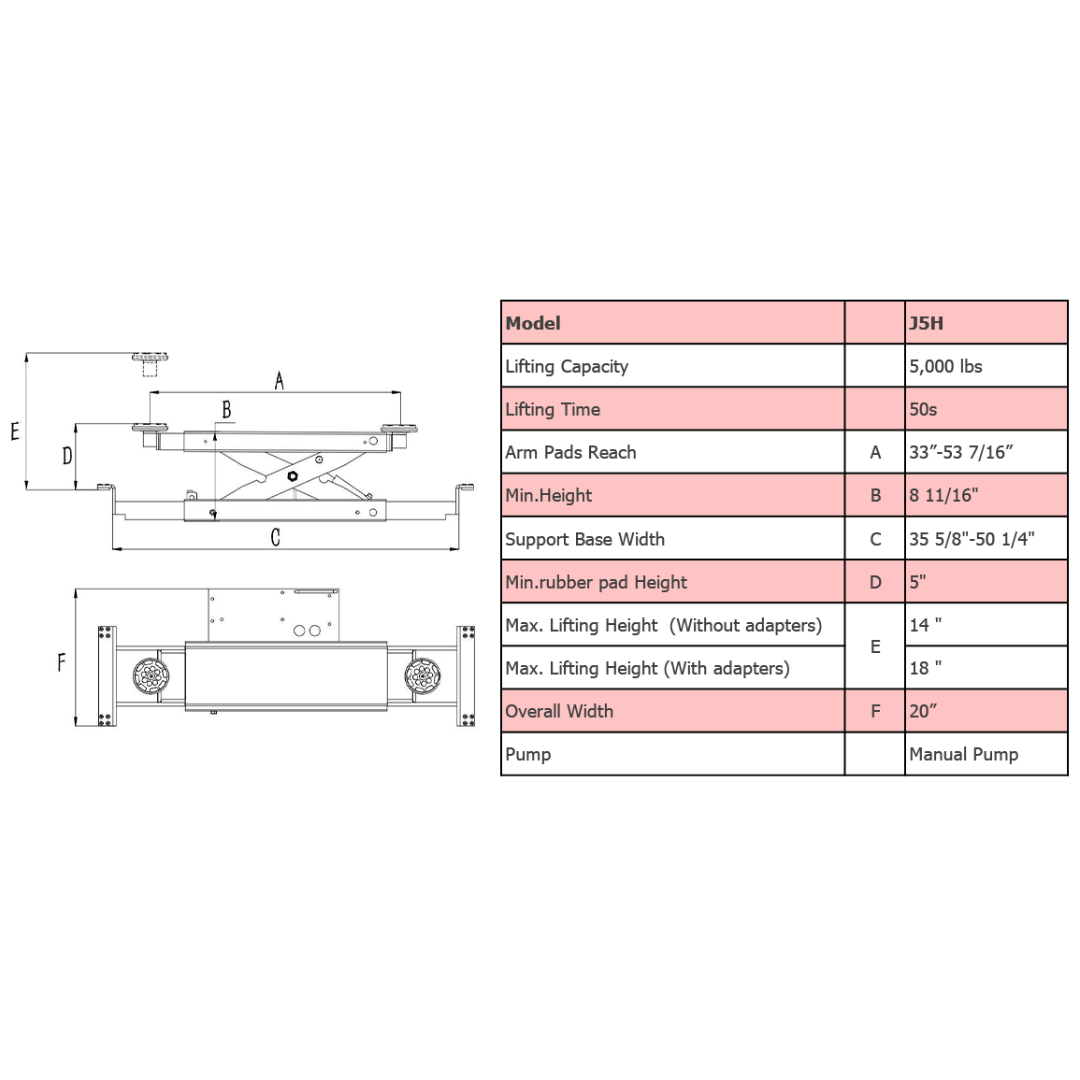

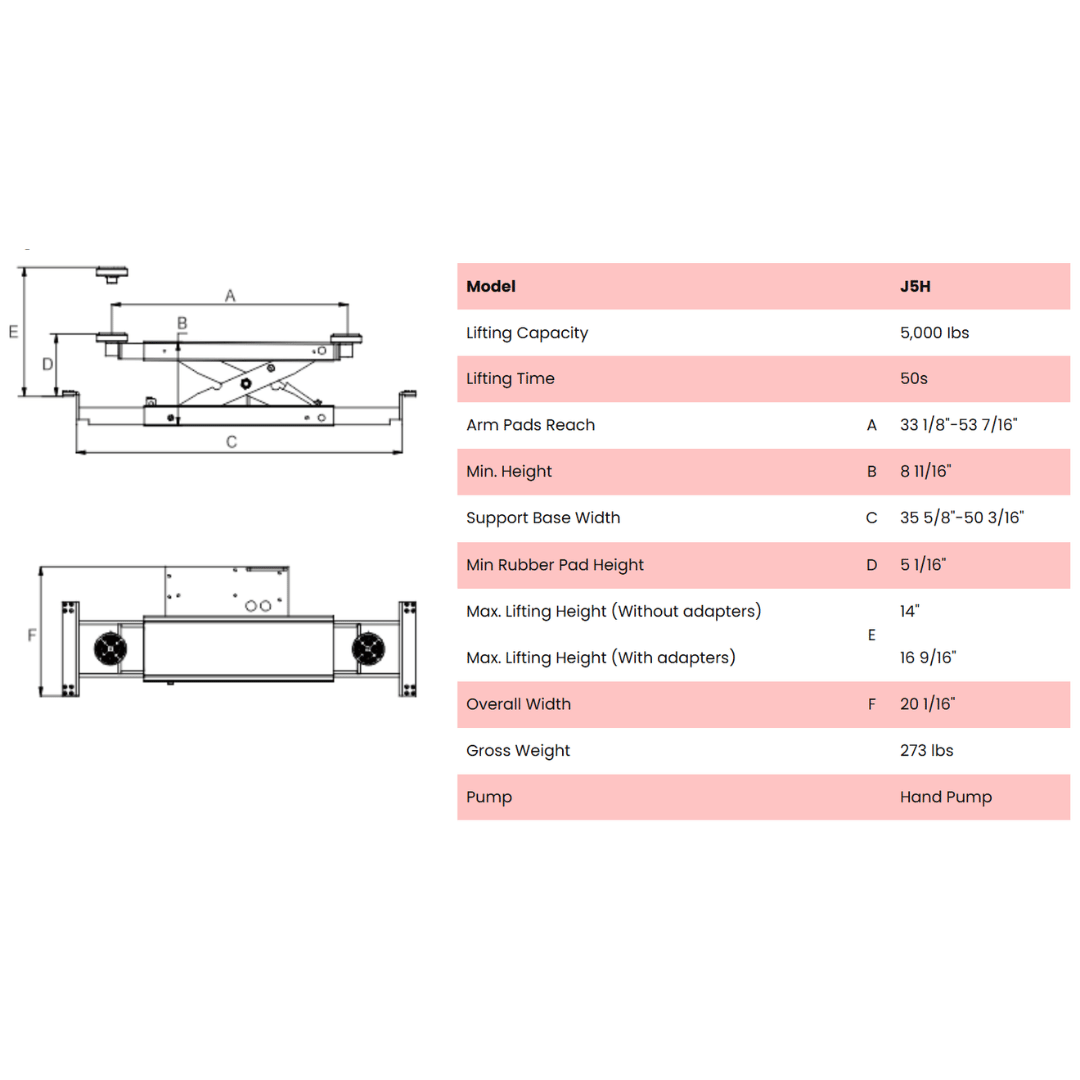

Product Specifications
| Model | J5H |
| Lifting Capacity | 5,000 lbs |
| Lifting Time | 50 Seconds |
| A: Arm Pads Reach | 33″-53 7/16″ |
| B: Min. Height | 8 11/16″ |
| C: Support Base Width | 35 5/8″-50 1/4″ |
| D: Min. Rubber Pad Height | 5″ |
| E: Lifting Height (Without Adapters) | 14″ |
| E: Lifting Height (With Adapters) | 18″ |
| F: Overall Width | 20″ |
| Pump | Manual Pump |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
