Product Description

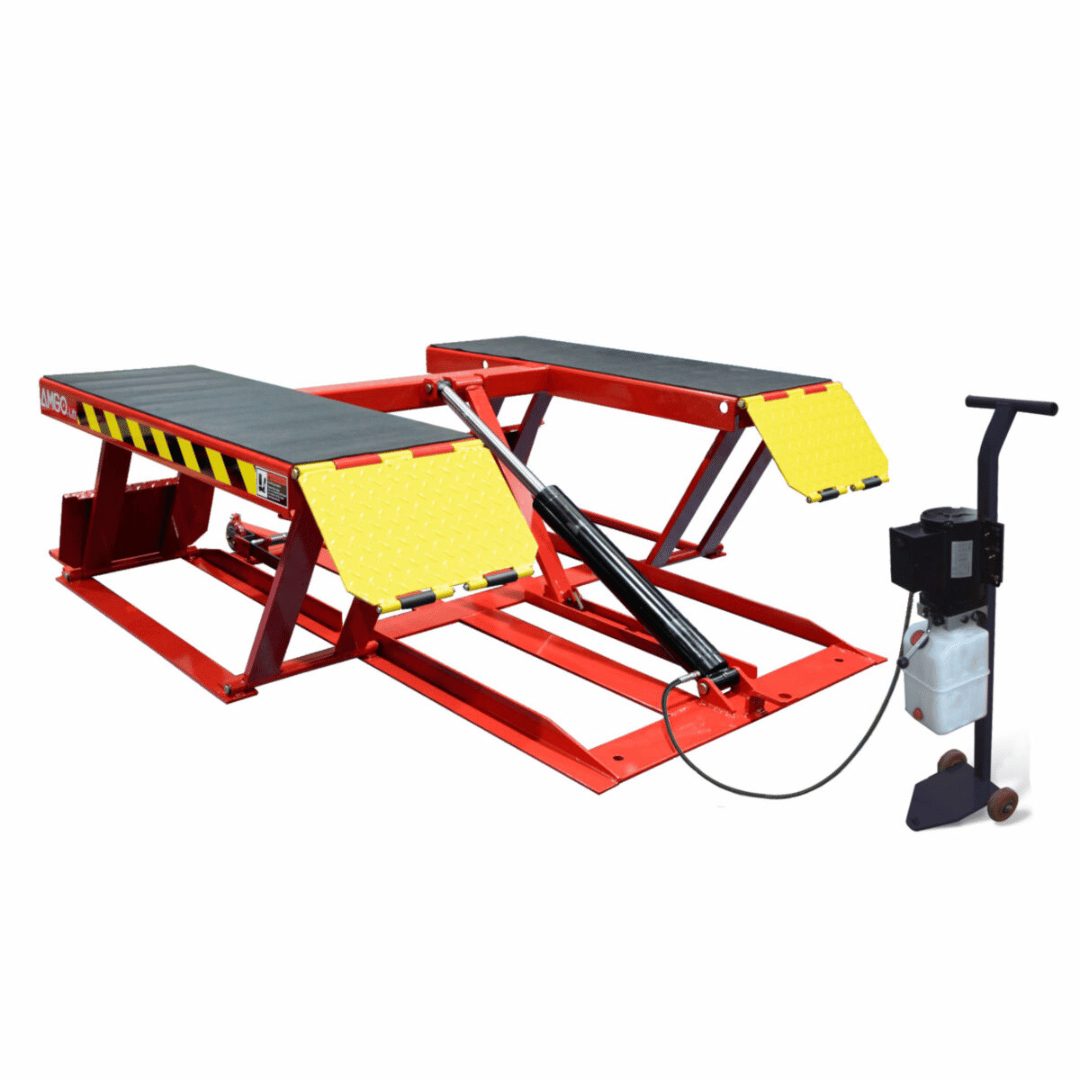

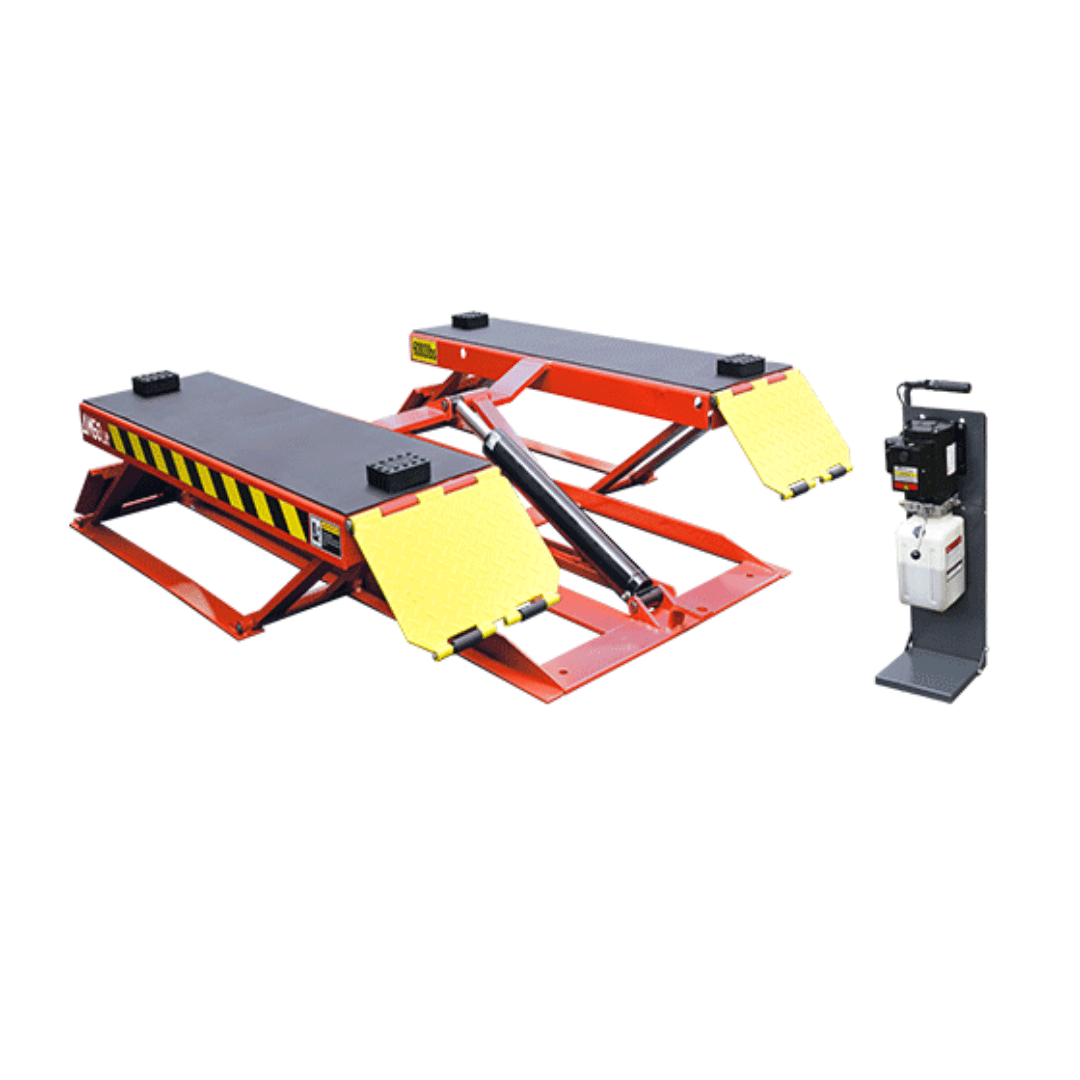

AMGO LR06 Portable Low-Rise Scissor Lift – 6,000 lb Capacity
The AMGO LR06 is the go-to lift when space is limited but performance can't be compromised. Designed for low-ceiling garages, tire service, and mobile repair bays, this portable low-rise lift delivers 6,000 lbs of lifting power with fast operation and exceptional accessibility for brake, wheel, and body work.
With a maximum lift height of 23 5/8″ and a low profile of just 4 1/8″, the LR06 handles a wide variety of vehicles, including those with low ground clearance. Its mechanical multi-position safety locks engage automatically, while the gravitational lock release ensures quick and safe lowering. The included portable power unit stand allows a single operator to move the lift easily, making it perfect for temporary bays or seasonal capacity increases.
The LR06 is built tough with dual runways, high-density rubber lift pads, and a rugged frame, delivering dependable performance with minimal setup time. Whether you're running a detail shop, a quick-lube lane, or a home garage, the LR06 gives you the lift height you need without the installation hassle.
Now available from Gearforce USA, the LR06 is a compact yet powerful solution for professionals who need portable precision and lifting flexibility.

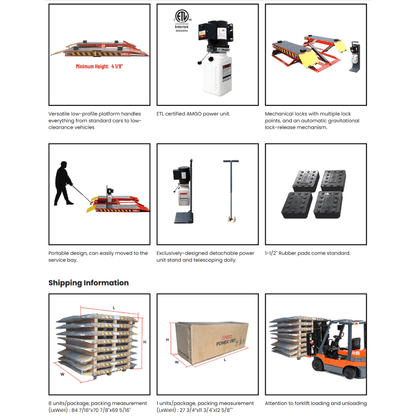

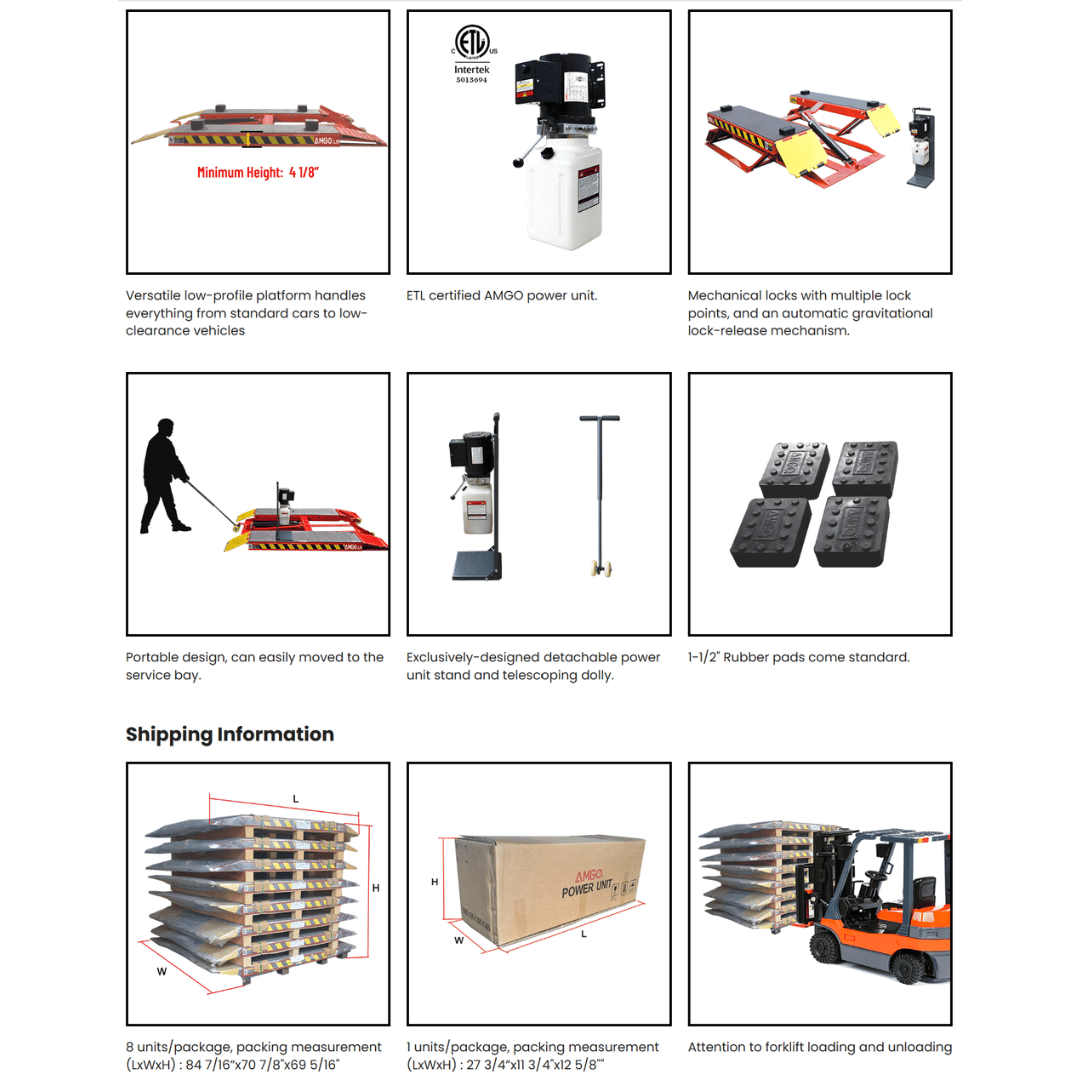

Key Features
- 6,000 lb lifting capacity – ideal for sedans, SUVs, light trucks, and low-clearance vehicles
- Low-rise lift with max height: 23 5/8″ – perfect for tire, brake, and body repairs
- Ultra-low minimum platform height: 4 1/8″ – accessible for lowered or sports vehicles

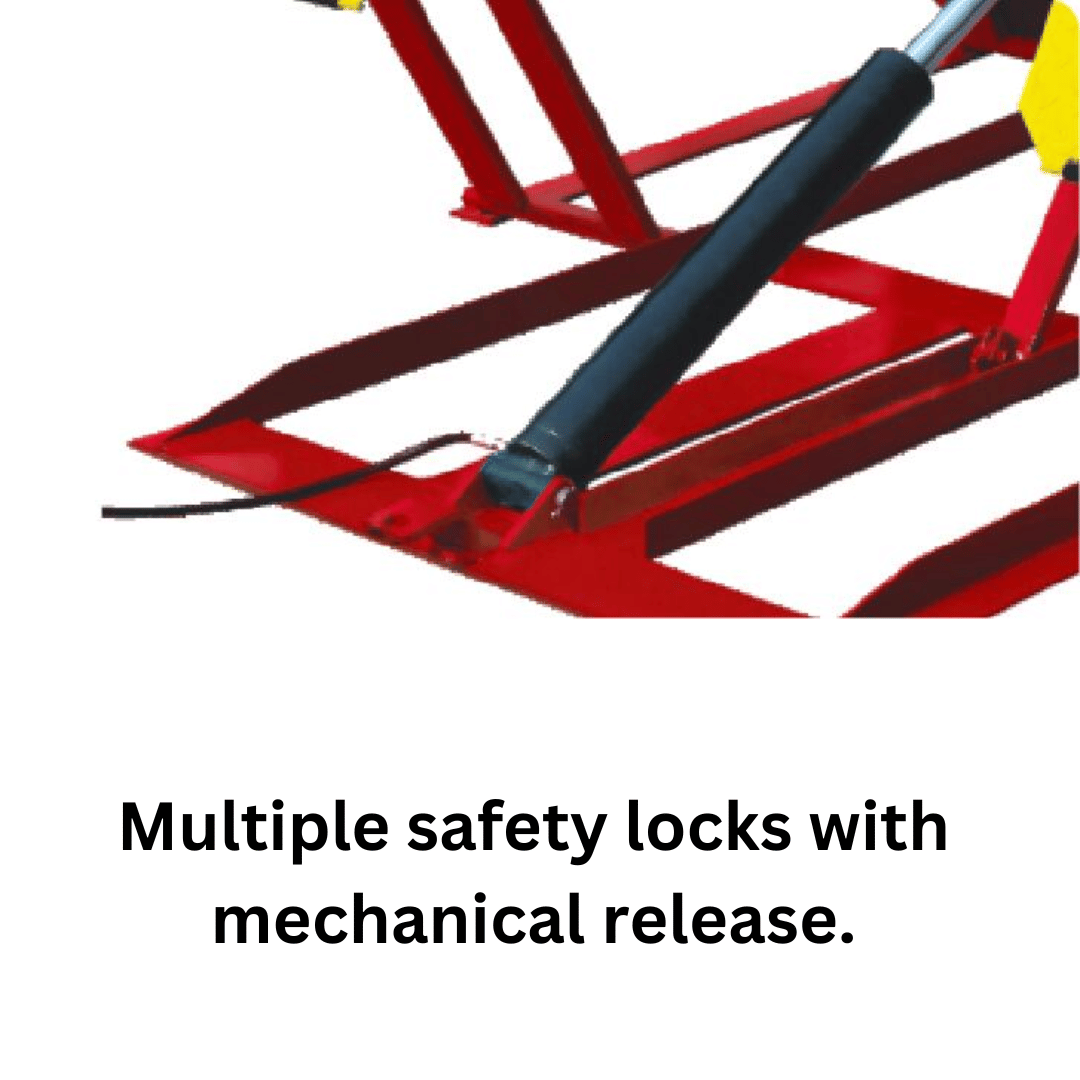

- Multi-position mechanical safety locks – automatically engage for secure lifting
- Gravitational release mechanism – allows for smooth and safe lowering
- Portable power unit stand included – move the lift easily between bays or service areas

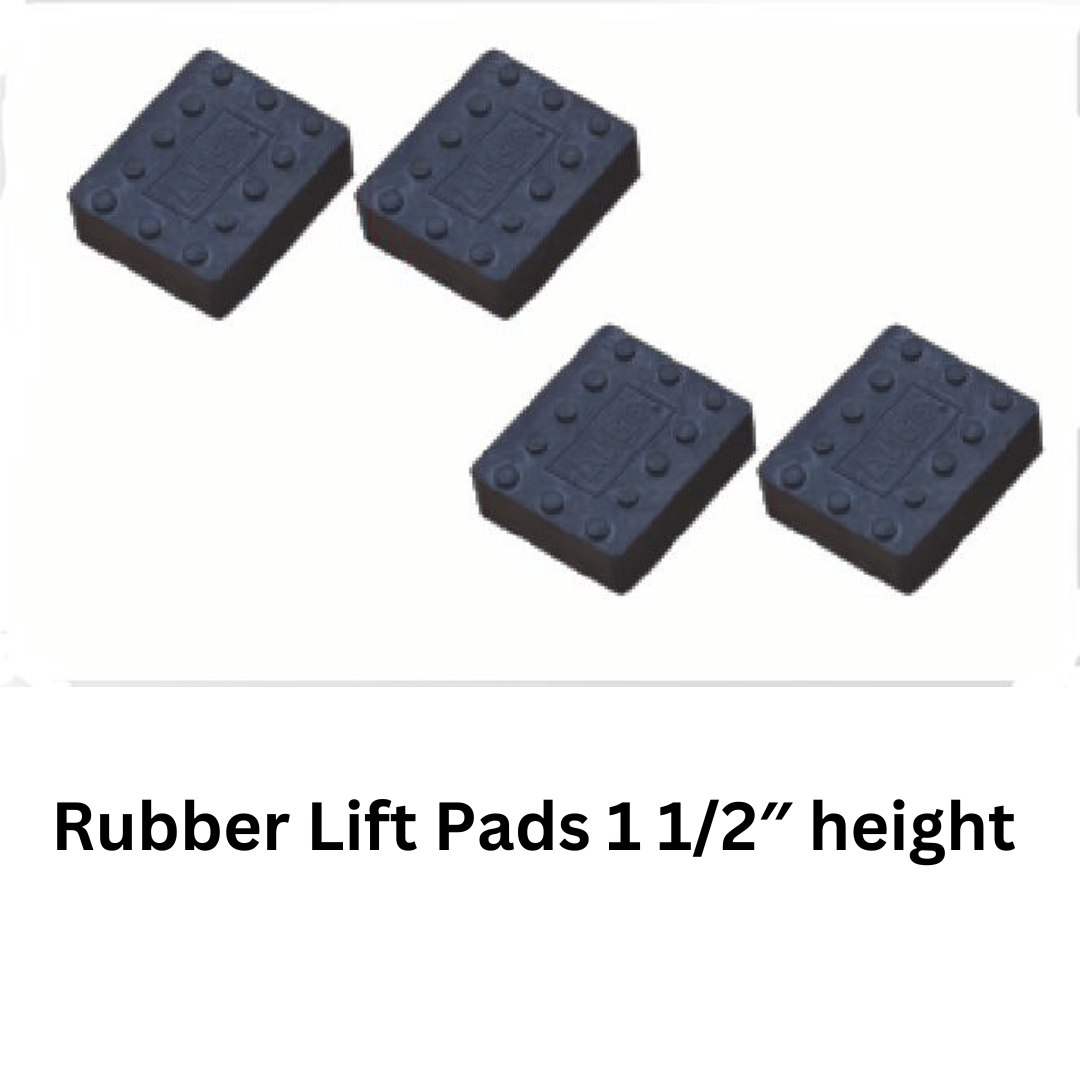

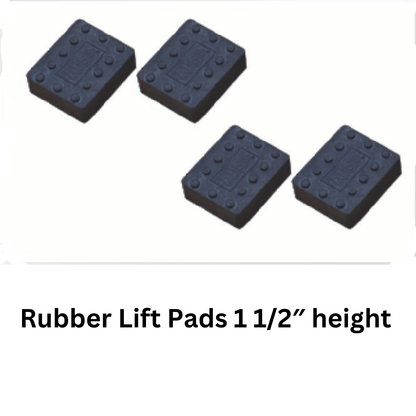

- High-density rubber pads included – protect vehicle chassis and enhance stability
- Compact footprint – excellent for mobile service and seasonal expansion
- Runway length: 53 1/4″ | Overall length: 76 1/4″ | Width between runways: 34 1/8″
- AMGO Warranty: 5 years on structural components, 3 years on hydraulics, 2 years on electrical
Product Specifications

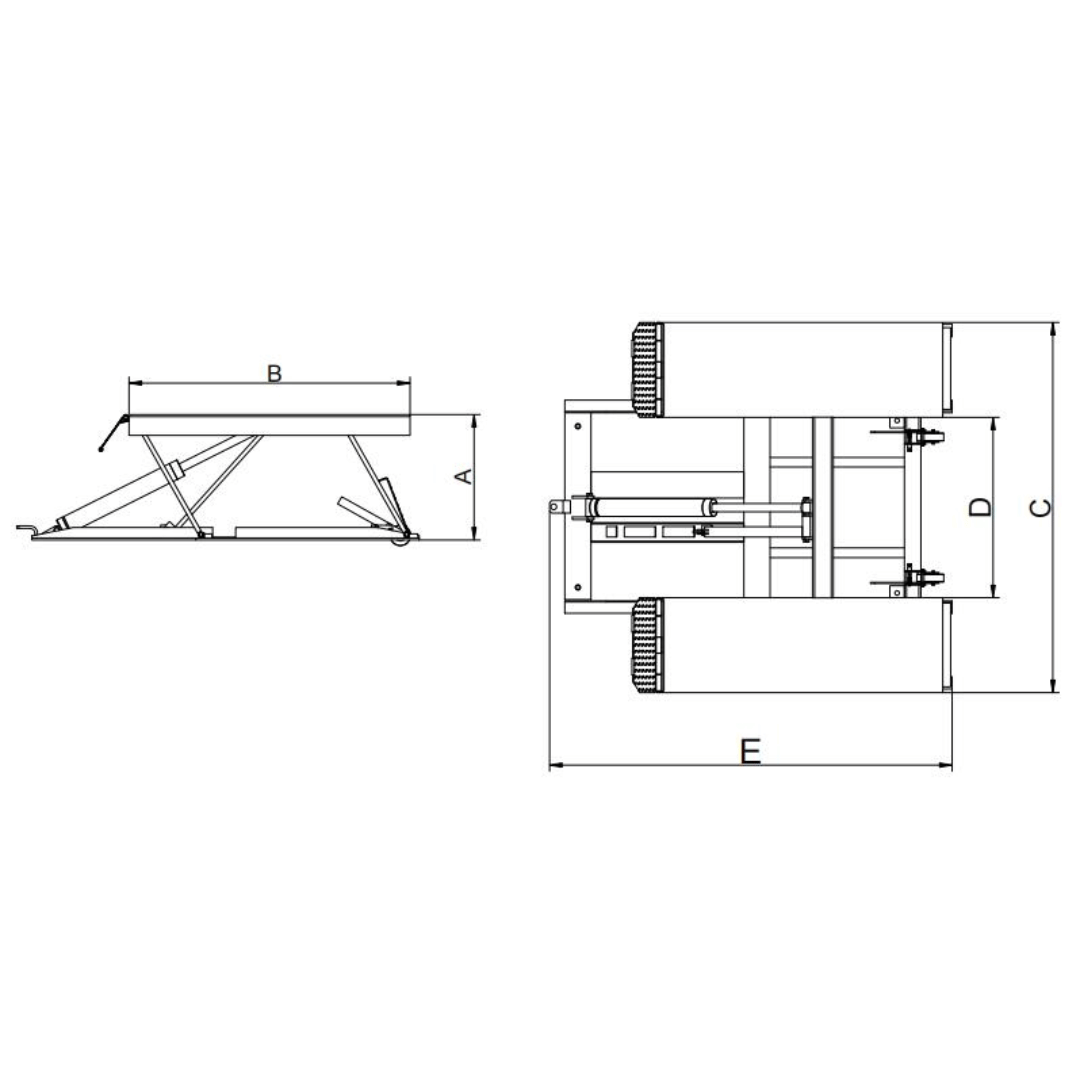

| Model | LR06 |
| Lifting Capacity | 6,000 lbs |
| Lifting Time | 25 seconds |
| A1: Max. Lifting Height | 23 5/8″ (600mm) |
| A2: Minimum Height | 4 1/8″ (105mm) |
| B: Runway Length | 53 1/4″ (1352mm) |
| C: Overall Width | 70″ (1780mm) |
| D: Width Between Runways | 34 1/8″ (868mm) |
| E: Overall Length | 76 1/4″ (1938mm) |
| Gross Weight | 849 lbs (385kg) |
| Motor | 1.0HP 110V/60Hz, Single Phase |
