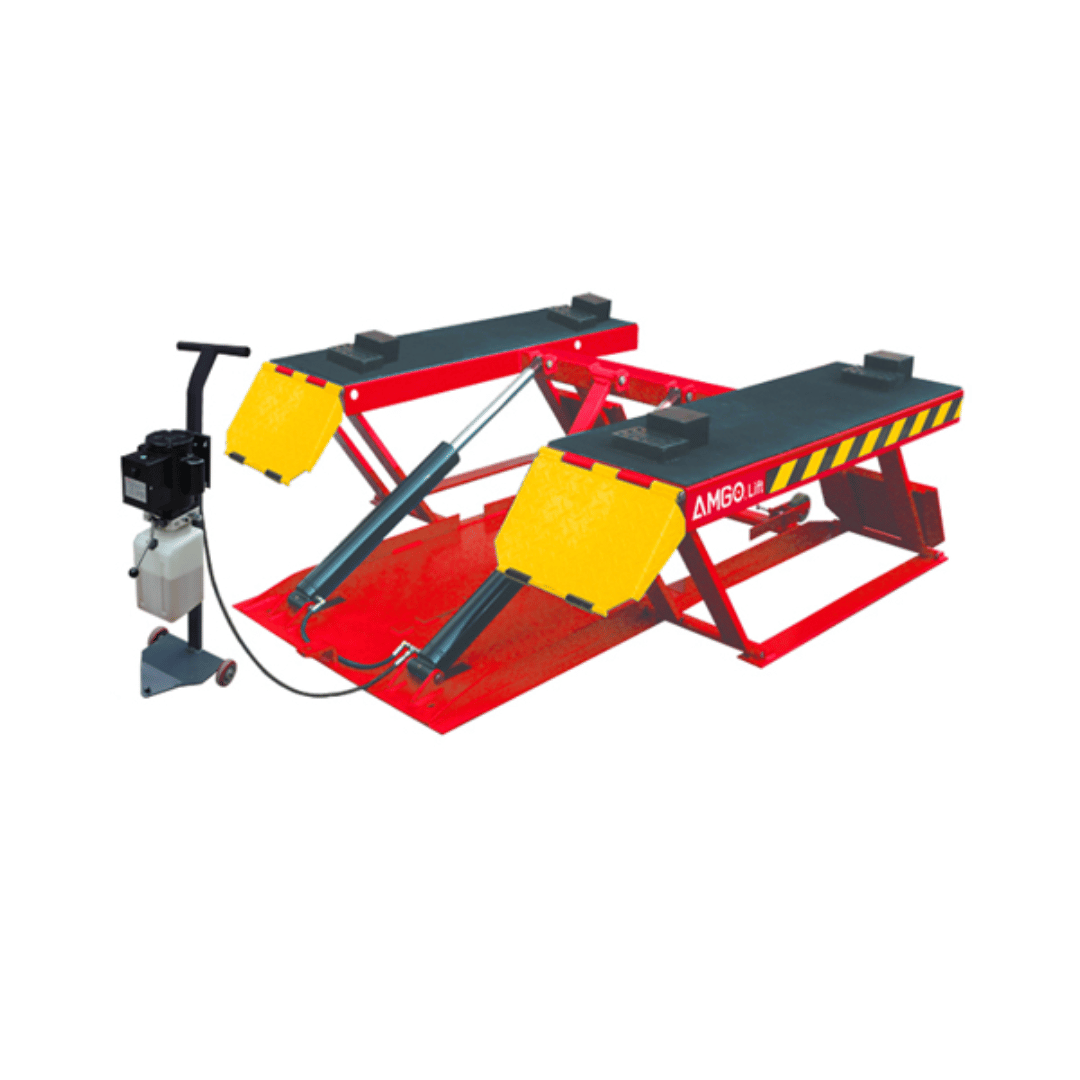

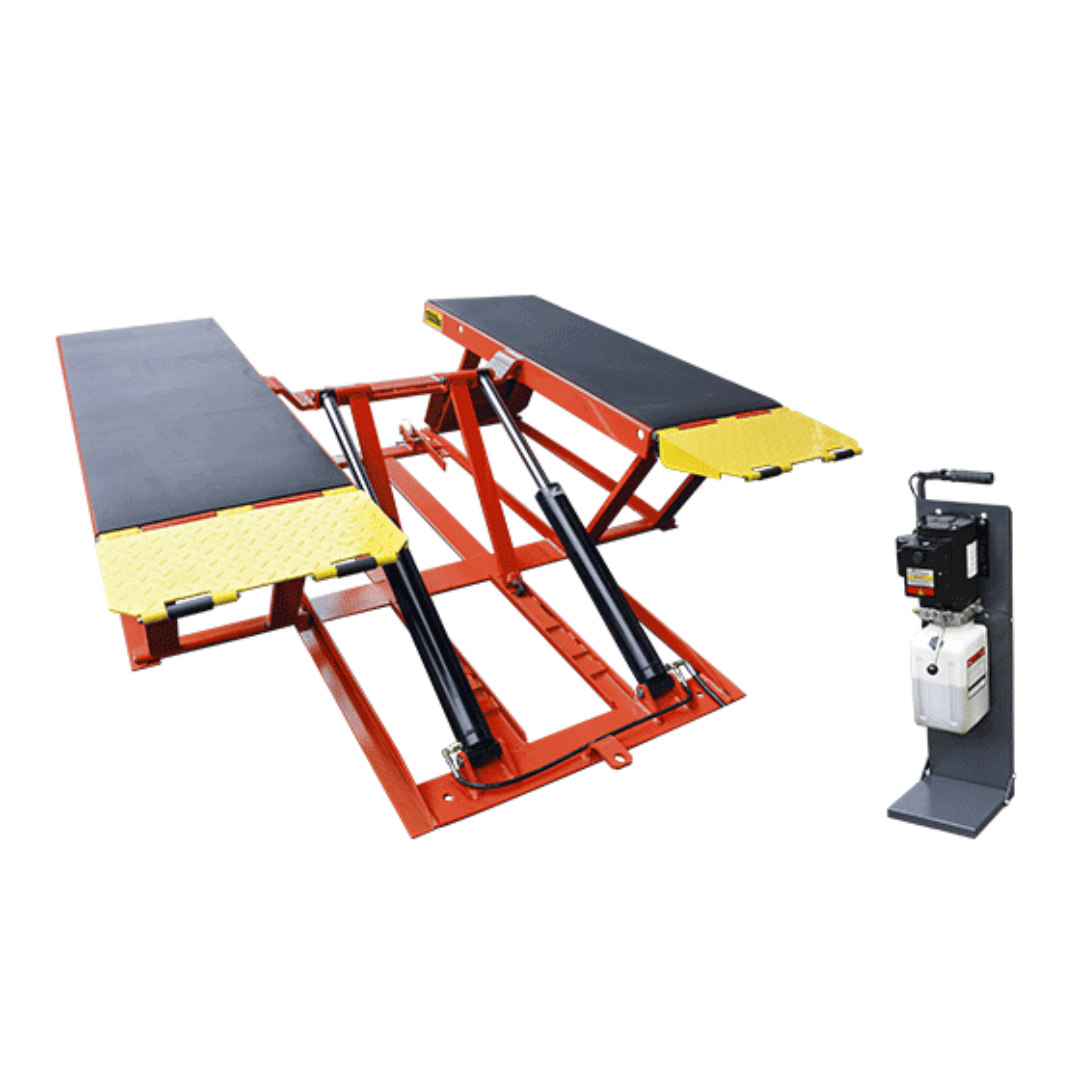

AMGO LR10 Portable Low-Rise Lift – 10,000 lb Capacity

Built for shops that demand more lifting power in tight spaces, the AMGO LR10 delivers a hefty 10,000 lb capacity in a compact, portable low-rise frame. Whether you're servicing cars, SUVs, or light-duty trucks, this lift provides a safe, stable solution for tire changes, brake jobs, and underbody repairs — all without the need for a fixed bay or ceiling clearance concerns.

The LR10 features automatic multi-point safety locks with an automatic release system, allowing fast and secure lifting with added convenience. Its gravitational lock release mechanism ensures smooth lowering, and the included power unit stand makes it easy for a single technician to move the lift wherever it's needed. The ultra-low 4 1/8" platform height ensures compatibility with low-clearance vehicles while still reaching a full 23 5/8" lift height.

Designed with rugged construction, multi-position locking, and included rubber lift pads, the LR10 brings commercial-grade performance to shops that need mobility and capacity. Whether you're expanding during seasonal demand or equipping a mobile repair setup, the LR10 is your go-to solution for power, portability, and safety.

Now available at Gearforce USA, the LR10 brings next-level low-rise lifting to modern automotive service operations.

Key Features

  • 10,000 lb lifting capacity – ideal for full-size cars, trucks, and SUVs
  • Low-rise design with max height: 23 5/8″ – great for tire, brake, and underbody service
  • Ultra-low platform height: 4 1/8″ – allows use with low-profile and performance vehicles
  • Automatic multi-position mechanical locks – secure lifting with automated lock release
  • Gravitational safety system – allows for safe, controlled lowering
  • Portable power unit stand – move the lift between bays with ease

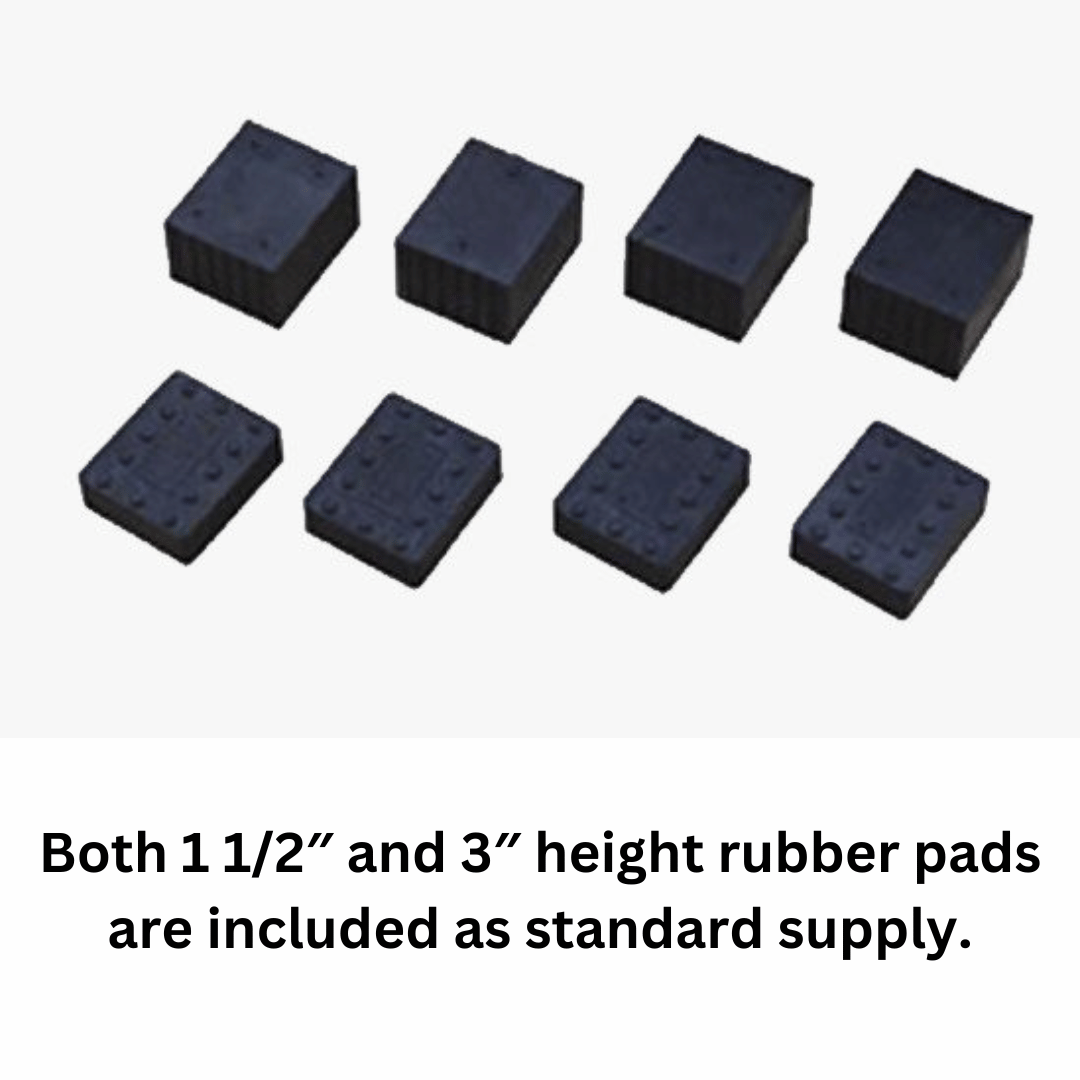

  • Standard rubber lift pads included – ready for immediate vehicle servicing
  • Compact footprint for space-limited shops or temporary bays
  • Runway length: 53 1/4″ | Width between runways: 34 1/8″ | Overall width: 70″

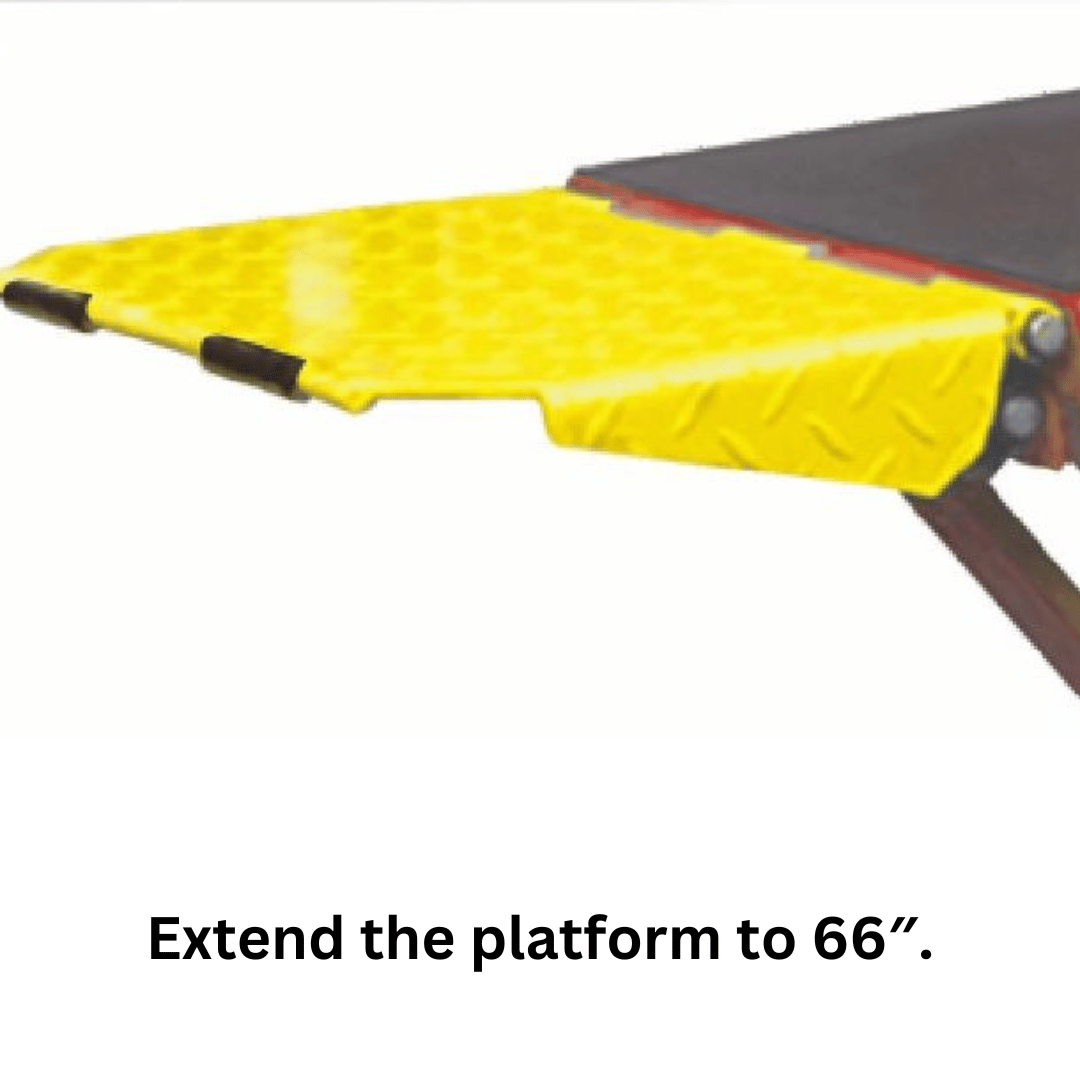

  • Overall length: 76 1/4″ | Runway length w/ ramps: 66″
  • AMGO Warranty: 5 years on steel structure, 3 years on hydraulics, 2 years on electrical

Product Specifications

Model LR10
Lifting Capacity 10,000 lbs
Lifting Time 50 seconds

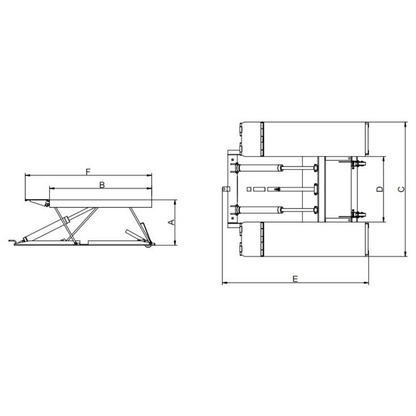

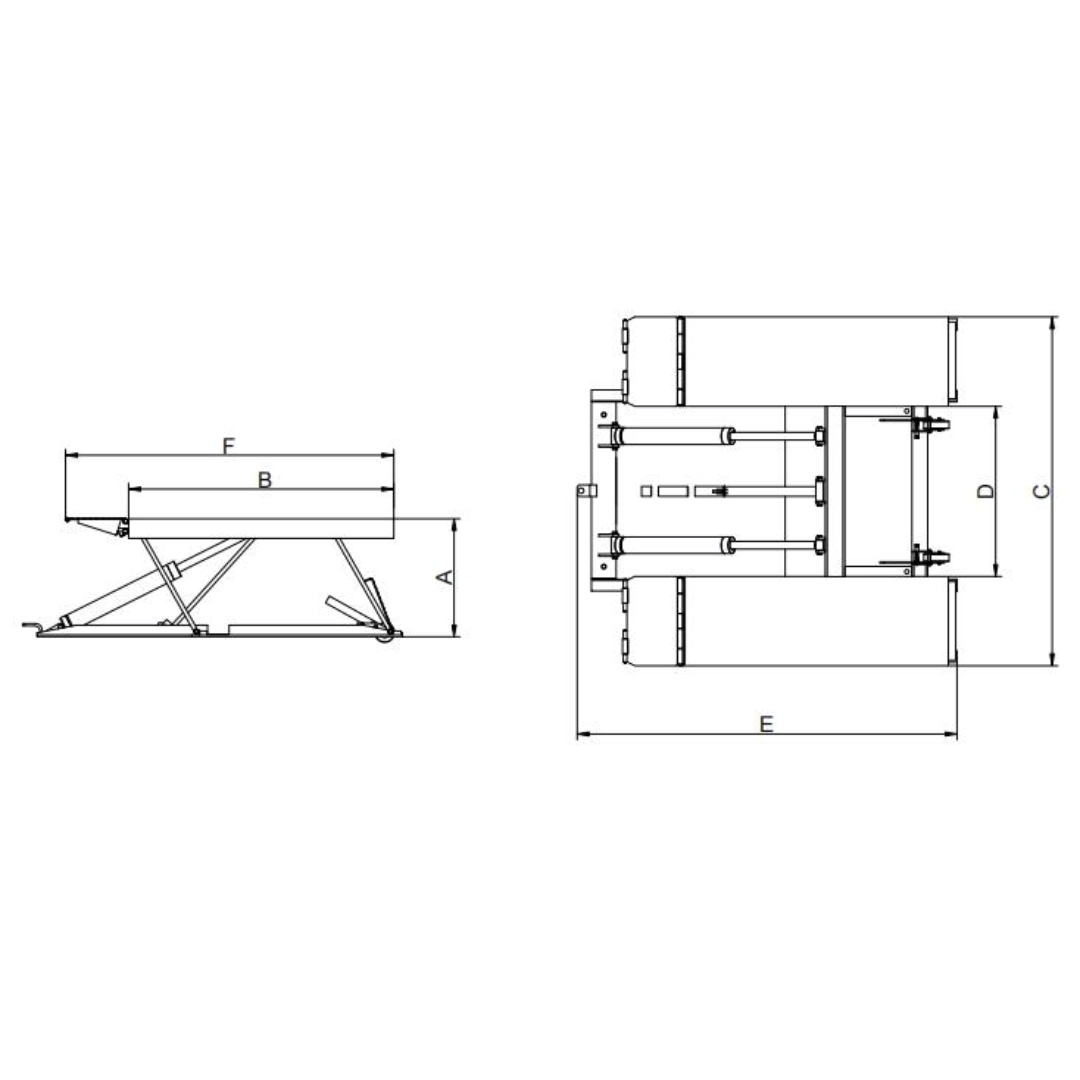

A1: Max. Lifting Height 23 5/8″ (600mm)
A2: Minimum Height 4 1/8″ (105mm)
B: Runway Length 53 1/4″ (1352mm)
C: Overall Width 70″ (1780mm)
D: Width Between Runways 34 1/8″ (868mm)
E: Overall Length 76 1/4″ (1938mm)
F: Overall Runway Length(Inc.Ramp) 66″ (1676mm)
Gross Weight 1,025lbs (465kg)
Motor 1.0HP 110V/60Hz, Single Phase

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
