Product Description

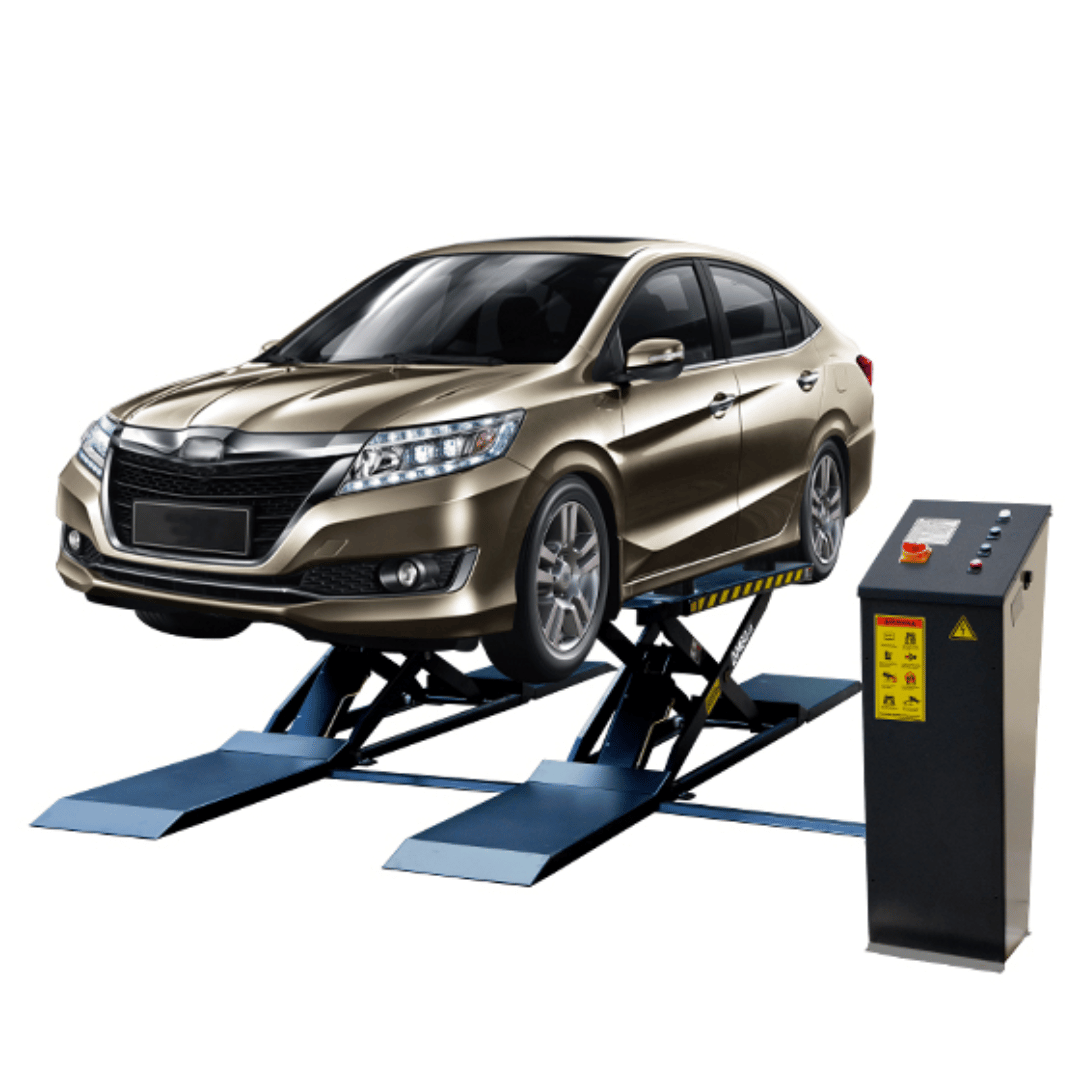

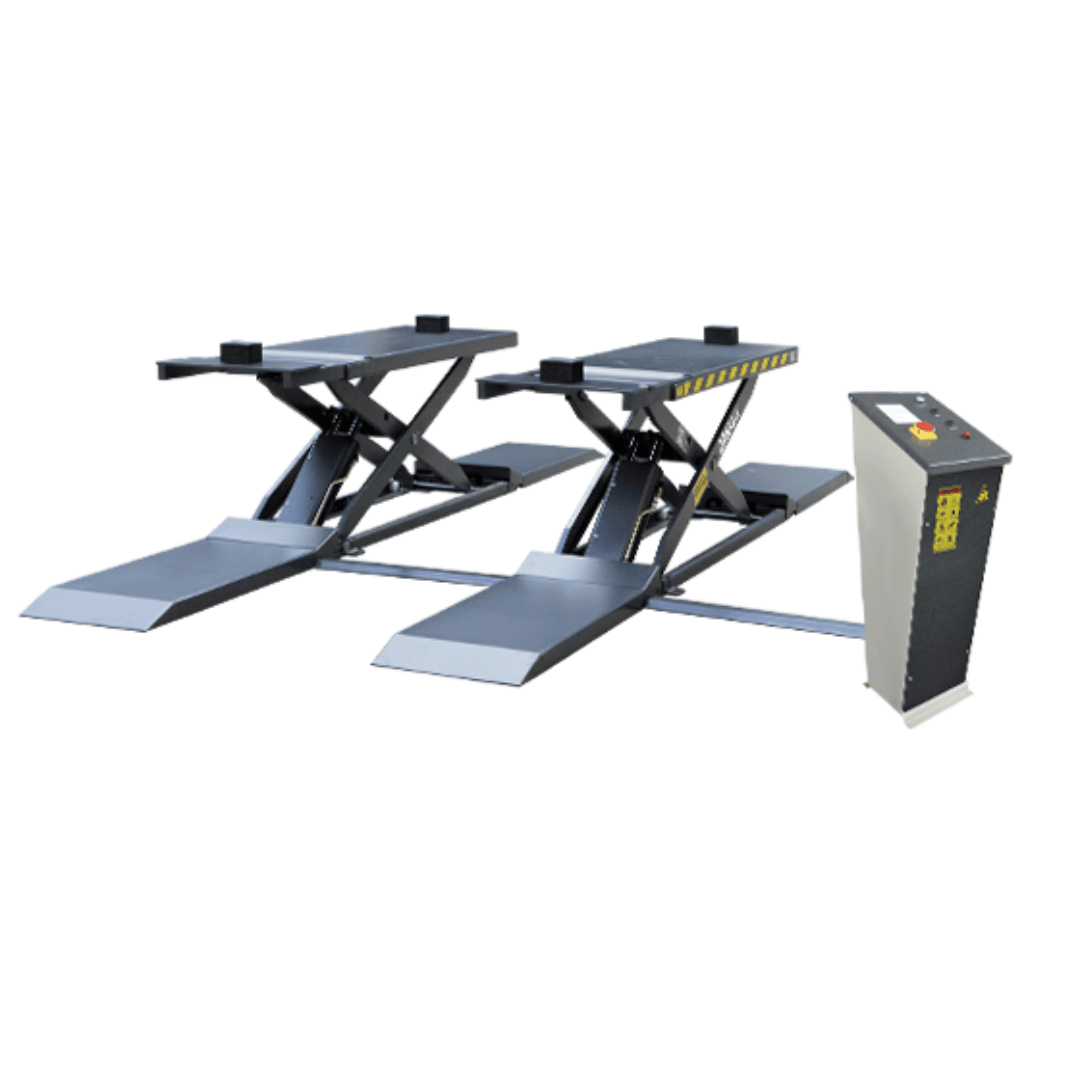

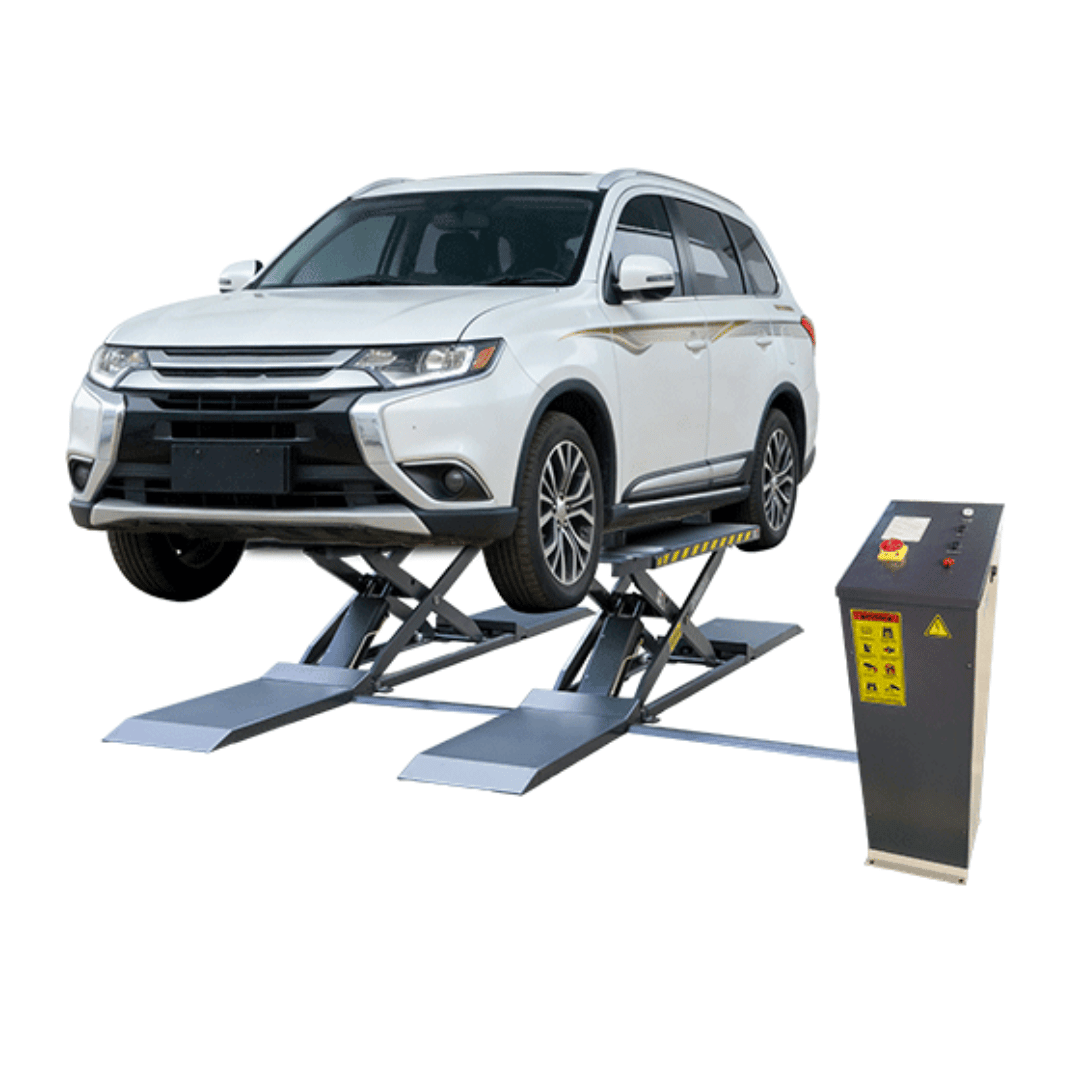

AMGO MRL09 Mid-Rise Scissor Lift – 9,000 lb Capacity
The AMGO MRL09 Mid-Rise Scissor Lift is a space-saving, high-efficiency solution designed for quick service bays, detailing shops, and home garages. Featuring an innovative two-stage runway design, this lift provides a super low profile (just 5 1/2" minimum height) and 2 3/4" entry ramps, making it ideal for lifting low-clearance vehicles from either side — with minimal effort.
With a 9,000 lb lifting capacity, this mid-rise lift is suitable for a wide range of vehicles, from sedans to small trucks. Its hydraulic synchronization system and hydraulic locking mechanism ensure stable and balanced lifting every time, while the thickened steel scissor arms deliver long-lasting structural strength and support.
The MRL09 offers adjustable-length runways to accommodate different wheelbases and a flexible mounting design that allows for flush or surface installation. It’s powered by a standard ETL-certified 2.0 HP motor, and features a 24V control system for added operator safety.
Available now at Gearforce USA, the MRL09 is the perfect blend of safety, space efficiency, and fast access — ideal for shops looking to increase productivity with limited space.

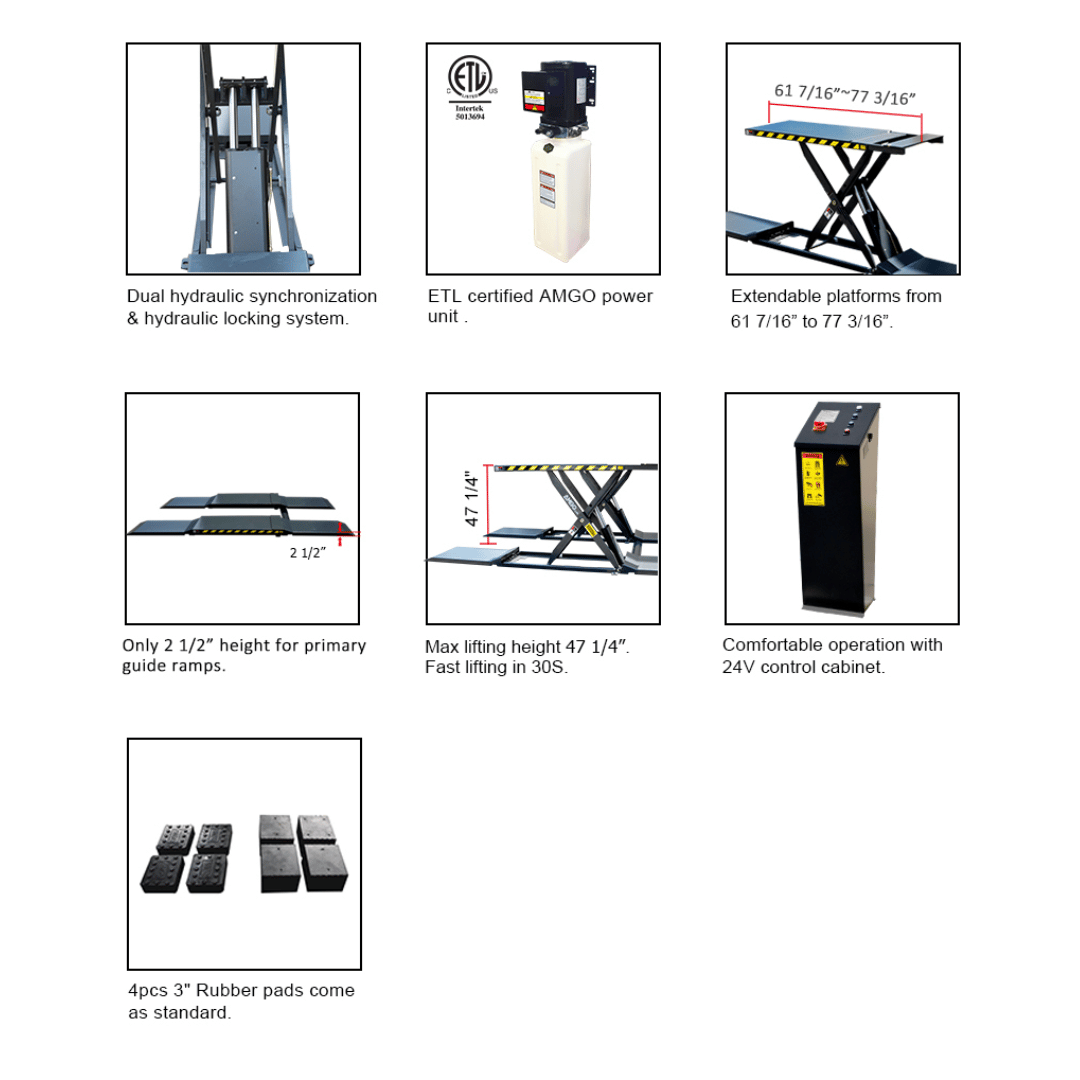

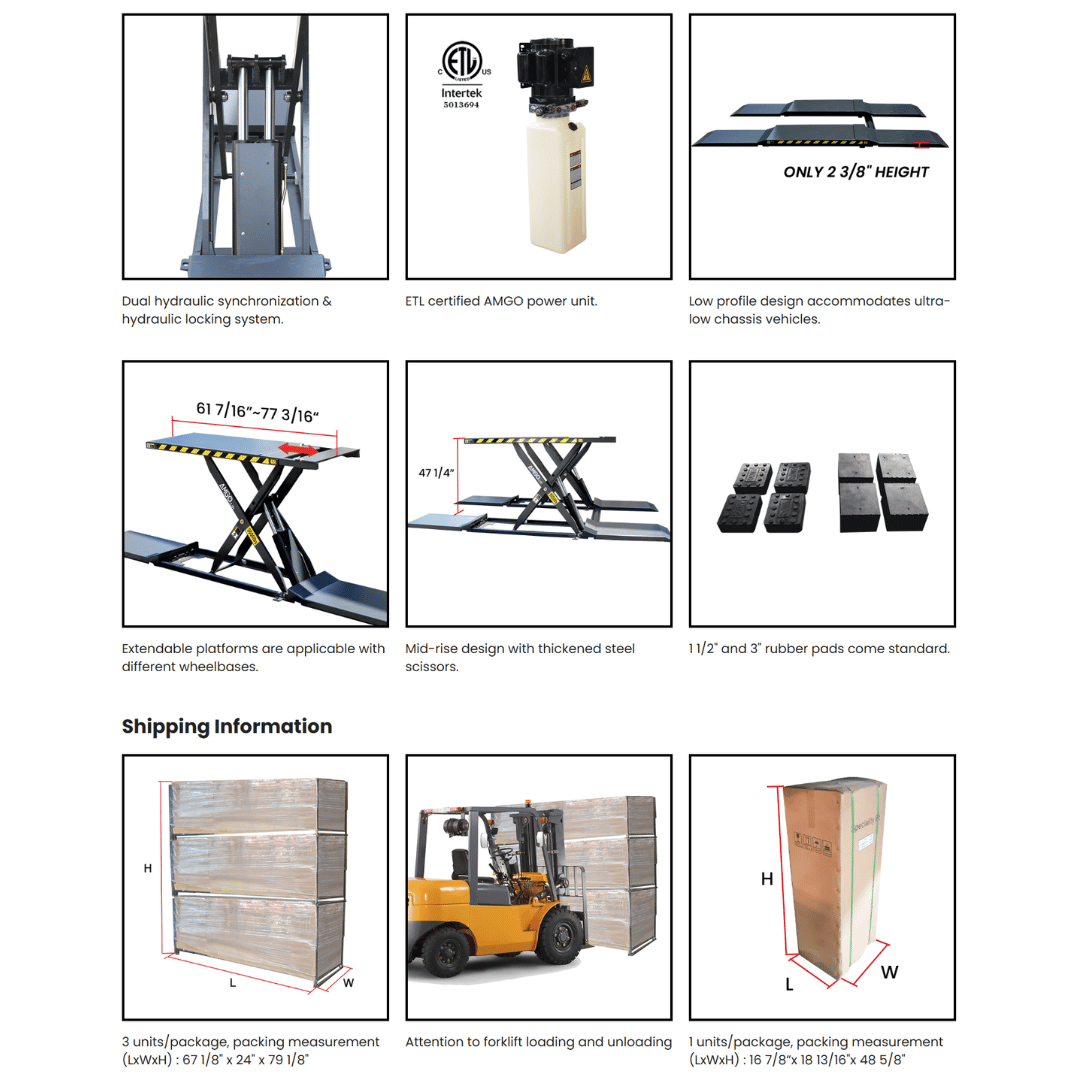

Key Features
- 9,000 lb lifting capacity – perfect for quick-service work on cars, SUVs, and light-duty trucks
- Ultra-low profile design – 5 1/2″ minimum height with 2 3/4″ entry ramps for low-clearance vehicle access
- Mid-rise lifting – max height of 47 1/4″ provides comfortable underbody access
- Adjustable runway length: 61 3/8" – 77 1/8" – accommodates various wheelbases
- Two-stage drive-on ramps – ideal for ultra-low chassis vehicles
- Hydraulic synchronization + hydraulic locking system – balanced and secure lifting
- Flexible install options – supports either flush mount or surface mount installation
- 24V low-voltage control system – increases user safety during operation
- Heavy-duty scissor structure – built with thickened steel for maximum durability
- Quick lift time: 29 seconds – ideal for high-turnover service environments
- Motor: 2.0 HP | ETL Certified – built to meet commercial safety and performance standards
- AMGO Warranty: 5 years on steel, 3 years on hydraulics, 2 years on electrical components
- Gross weight: 1,788 lbs | Overall length (with ramps): 157 1/16" | Width: 76 3/4"

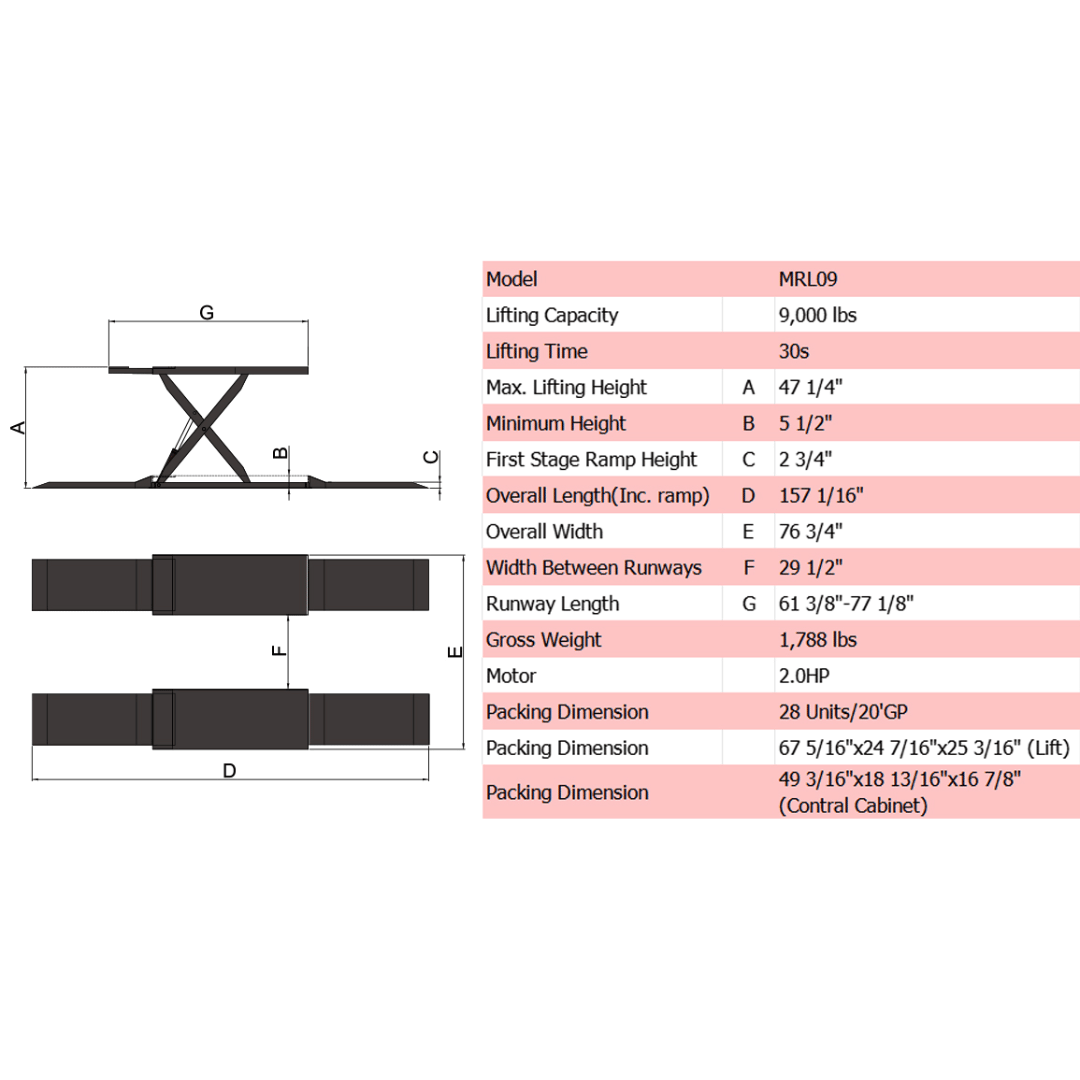

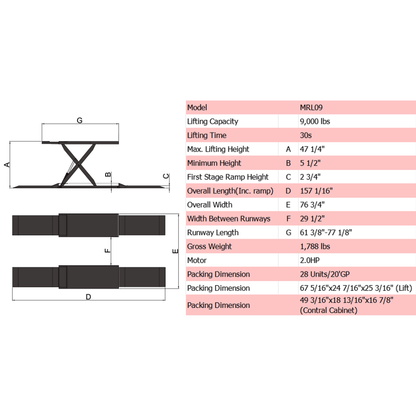

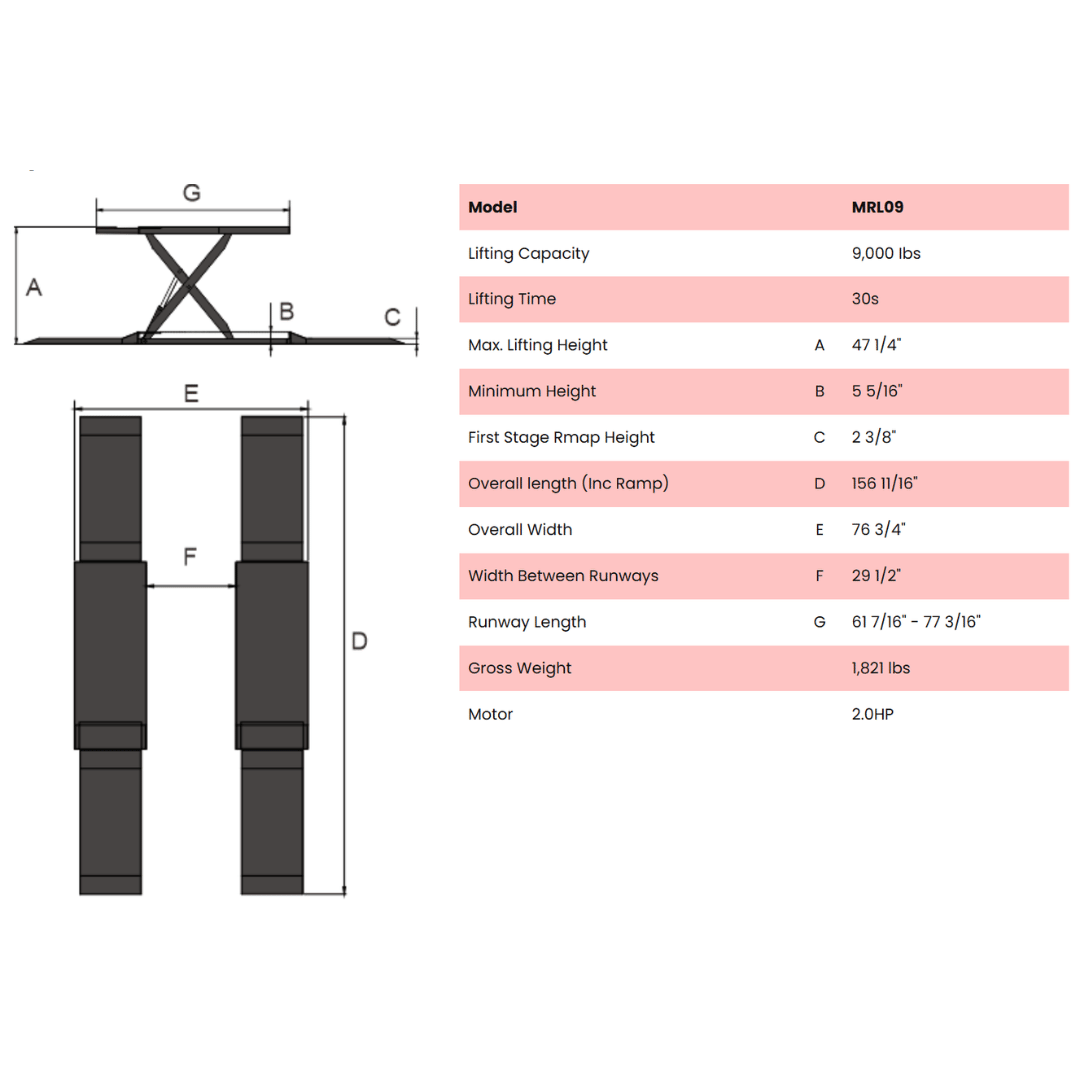

Product Specifications
| Model | MRL09 |
|---|---|
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 29s |
| A: Max. Lifting Height | 47 1/4" |
| B: Minimum Height | 5 1/2" |
| C: First Stage Ramp Height | 2 3/4" |
| D: Overall Length (Inc. ramps) | 157 1/16" |
| E: Overall Width | 76 3/4" |
| F: Width Between Runways | 29 1/2" |
| G: Runway Length | 61 3/8" - 77 1/8" |
| Gross Weight | 1,788 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
