Product Description

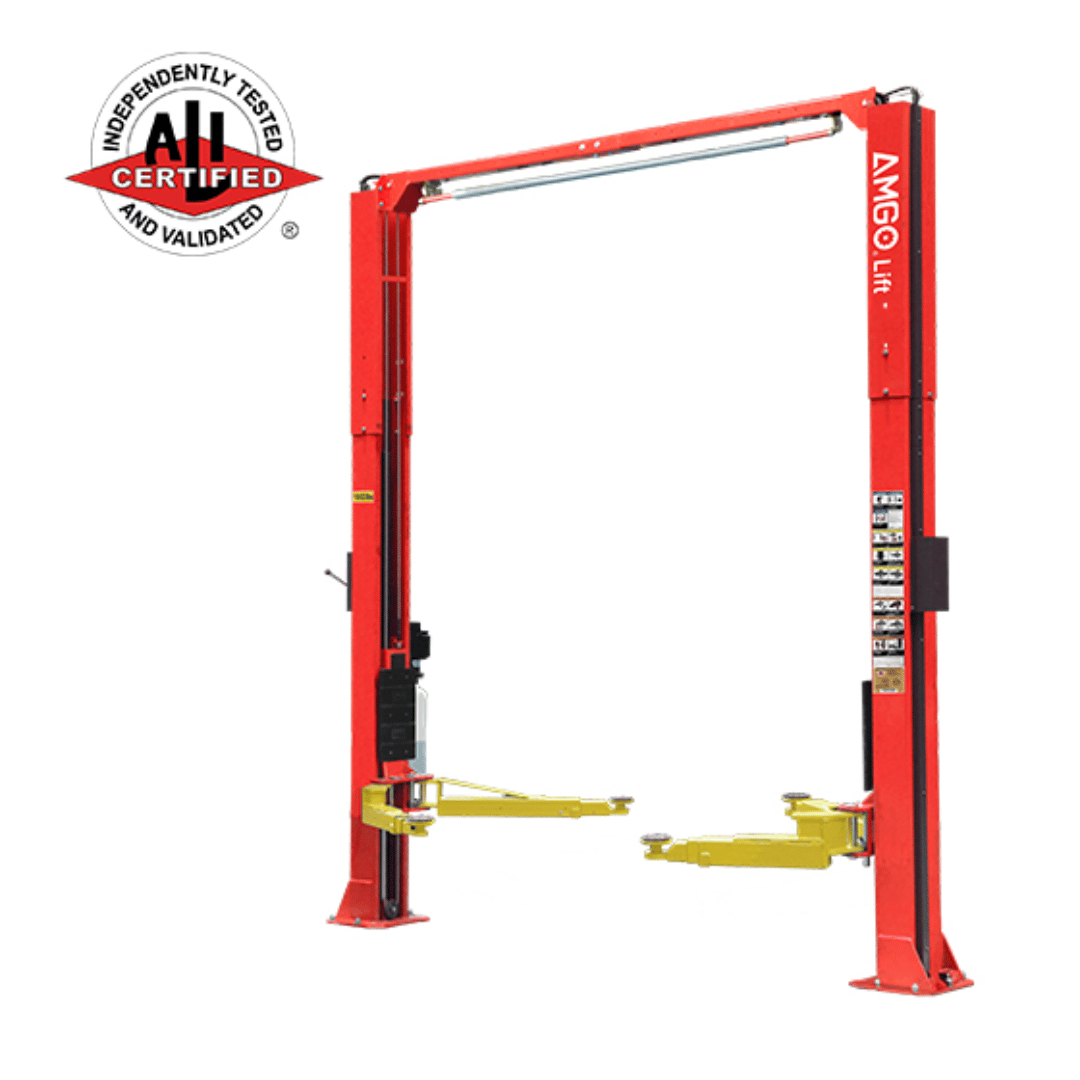

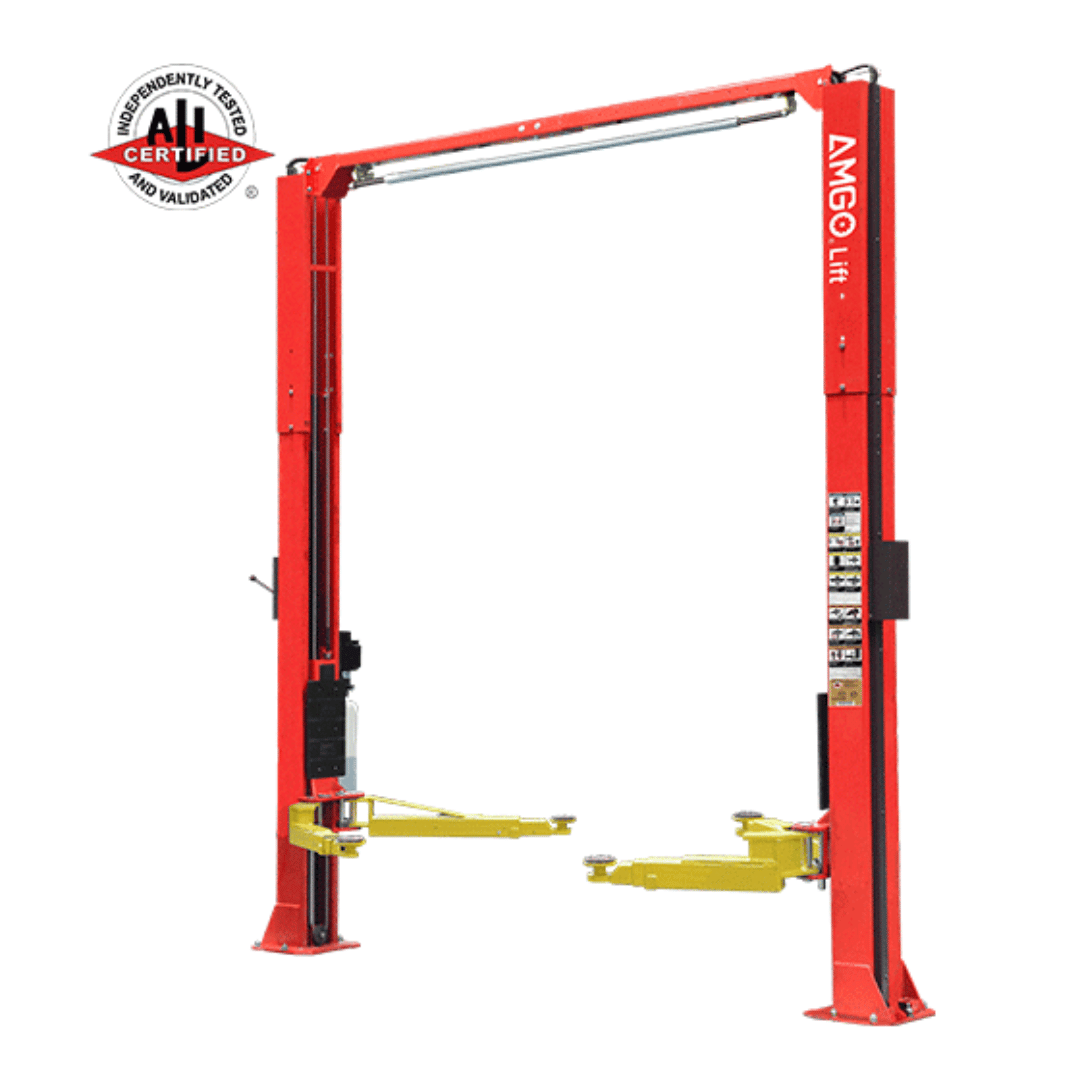

AMGO OH-10 Overhead 2-Post Lift – 10,000 lb Capacity (ALI Certified)
The AMGO OH-10 represents the pinnacle of two-post lift engineering — ALI certified for safety and performance, and designed for professional shops that demand superior quality and versatility. With a 10,000 lb lifting capacity, clearfloor design, and Super Asymmetric arms, this model offers the convenience, durability, and precision needed for high-volume commercial use or advanced DIY applications.

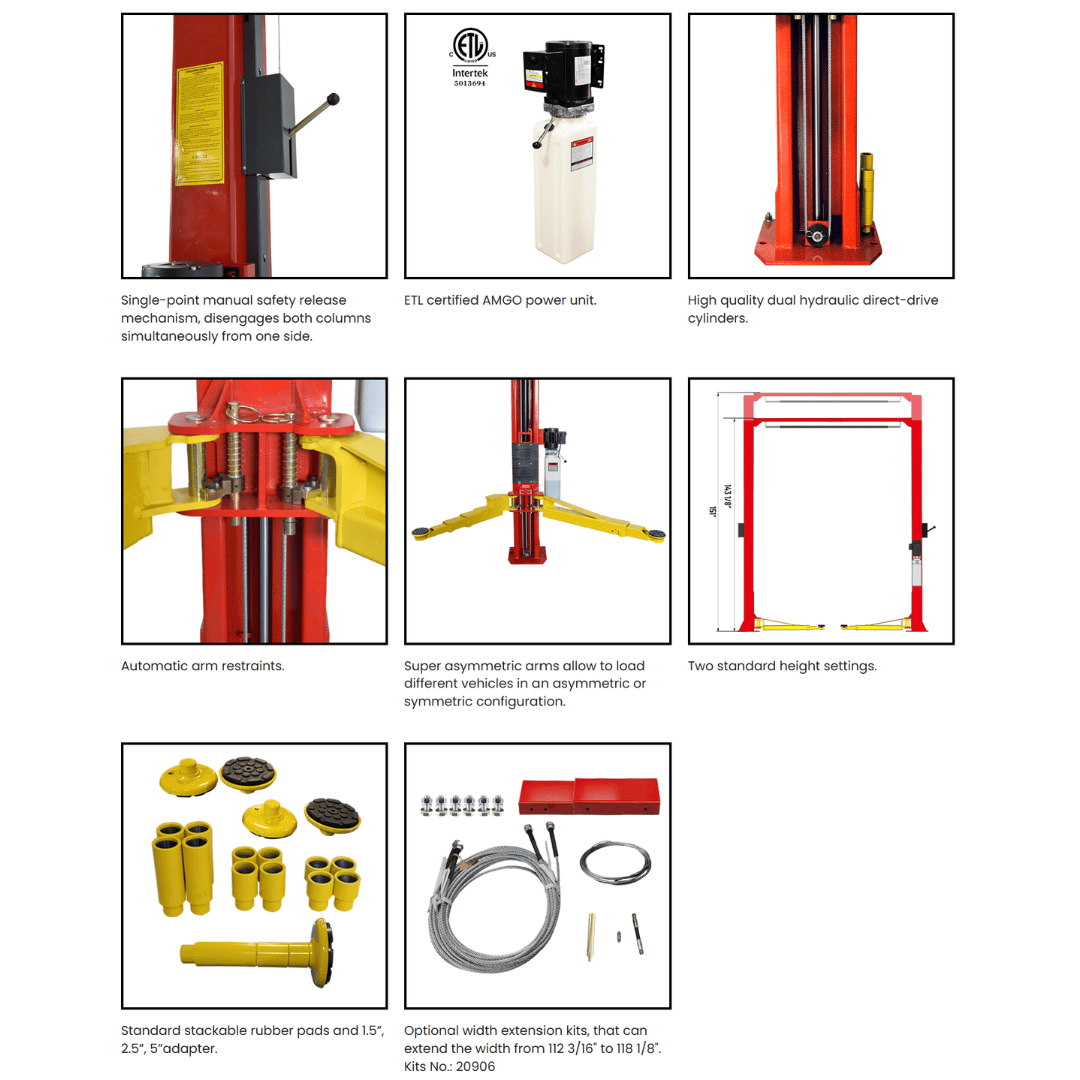

Built with dual direct-drive hydraulic cylinders and single-piece columns, the OH-10 delivers consistent lifting power and long-term reliability. Its Super Asymmetric arm design allows easier access to vehicle lift points and doors, while the single-point safety release system simplifies daily operation — disengaging both columns from one control.
The OH-10 includes two height settings (up to 151") and optional adjustable width configurations, providing maximum flexibility for your workspace layout. With a lifting height up to 80 15/32 inches (with adapters) and a drive-thru clearance of nearly 100 inches, it handles everything from compact cars to full-size trucks with ease.
At Gearforce USA, we’re proud to offer the AMGO OH-10 to our customers who value top-tier engineering, CE certification, and industry compliance. Whether you’re outfitting a dealership, repair shop, or serious home garage, the OH-10 is built to exceed expectations.

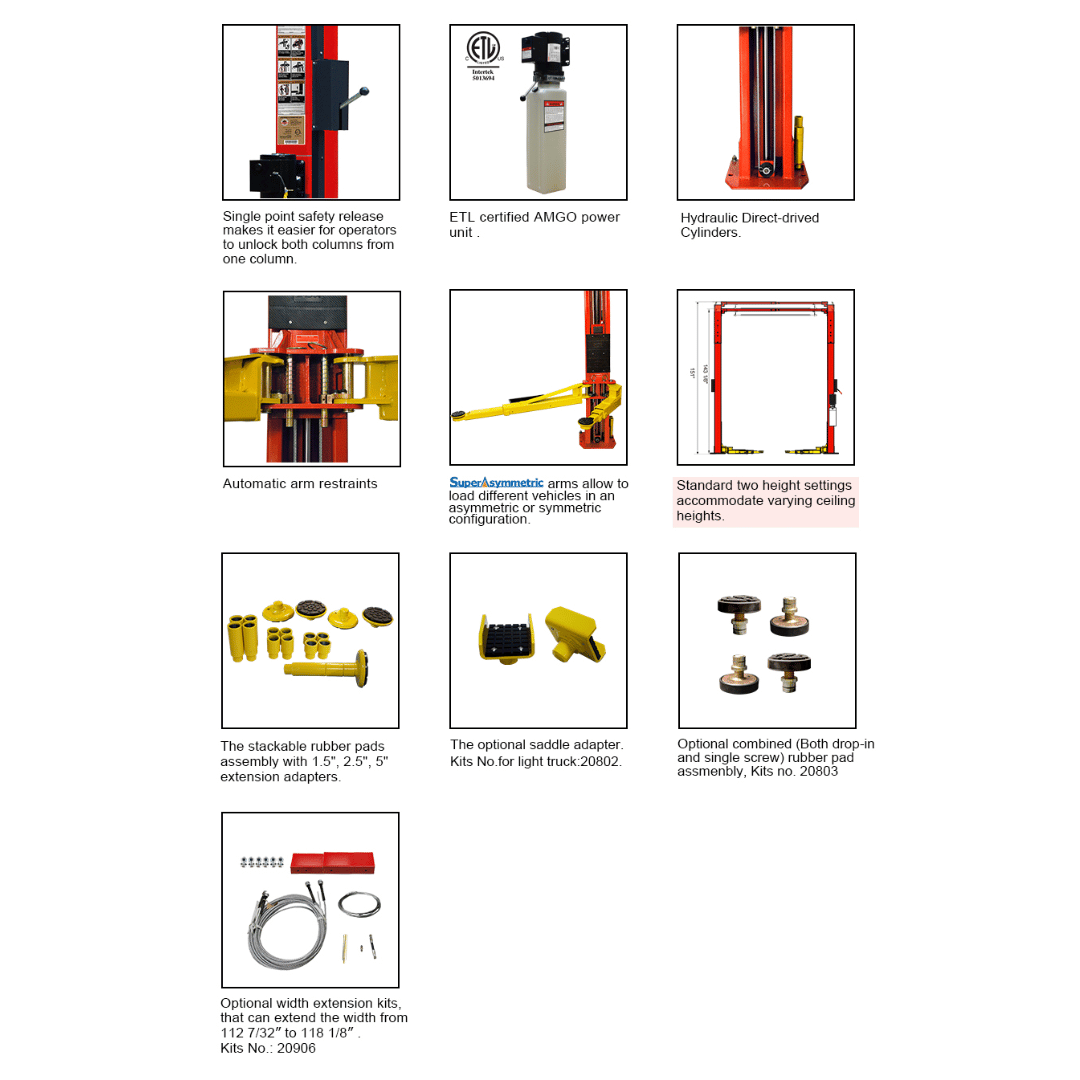

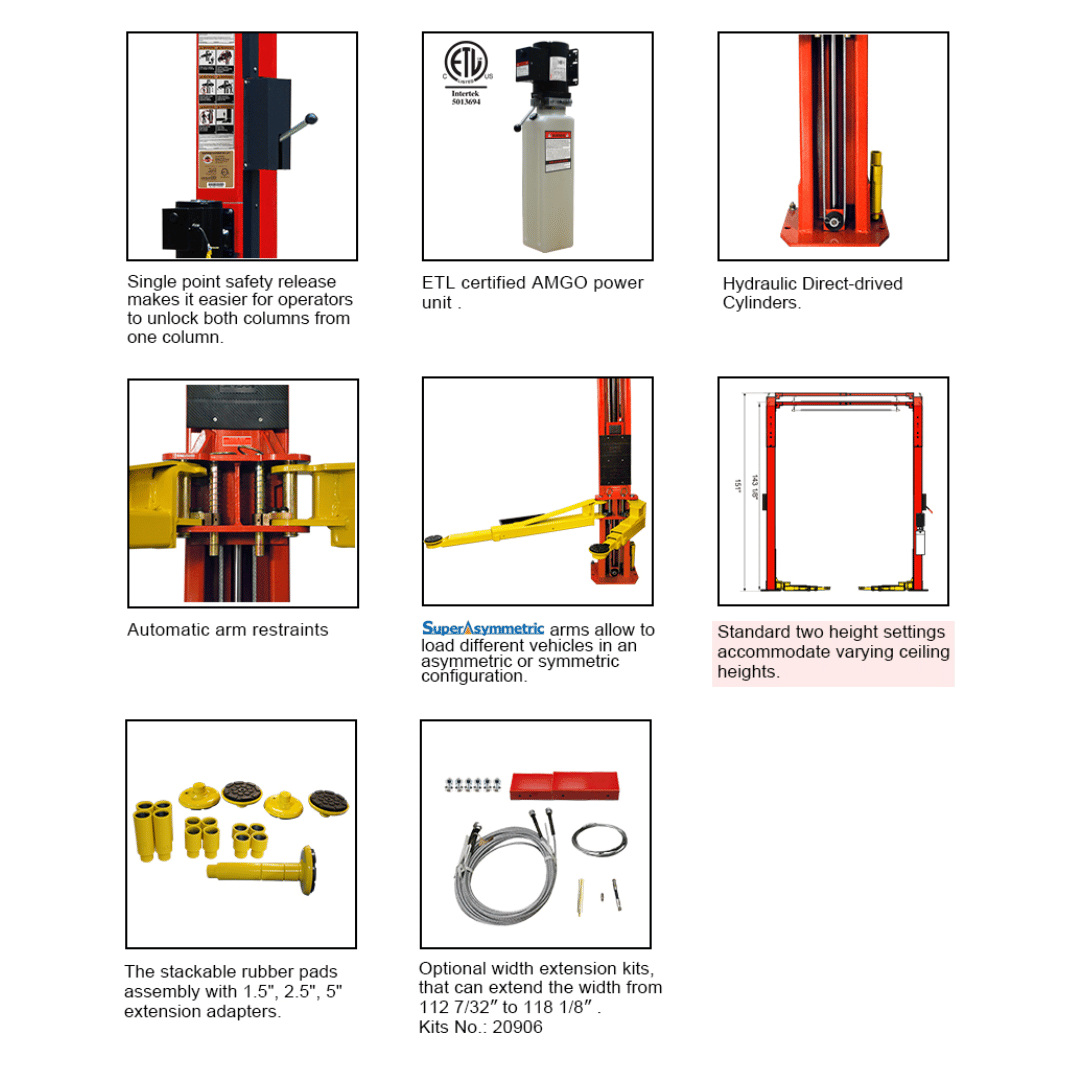

Key Features
- 10,000 lb lifting capacity – handles a wide range of vehicles including trucks and SUVs
- ALI Certified – meets strict safety and performance standards for professional shops
- Super Asymmetric arm design – easier access to vehicle doors and lift points
- Dual direct-drive hydraulic cylinders – high-efficiency, low-maintenance performance
- Single-point safety release – unlock both columns from one side
- Clearfloor overhead design – unrestricted floor space for tools and movement
- Overhead safety shut-off – prevents accidental vehicle damage
- Stackable rubber pad adapters: 1.5″, 2.5″, and 5″ included
- Adjustable height settings up to 151″ – fit high-ceiling shops and garages
- Drive-thru clearance: 99 1/2″ – accommodates wide vehicles
- CE Approved and Certified – conforms to European EN-1493 safety standard
- Self-lubricating UHMW sliders and bronze bushings – durable and quiet
- 2.0 HP motor – smooth, consistent lift operation
- AMGO Warranty: 5 years structural, 3 years hydraulic, 2 years electrical

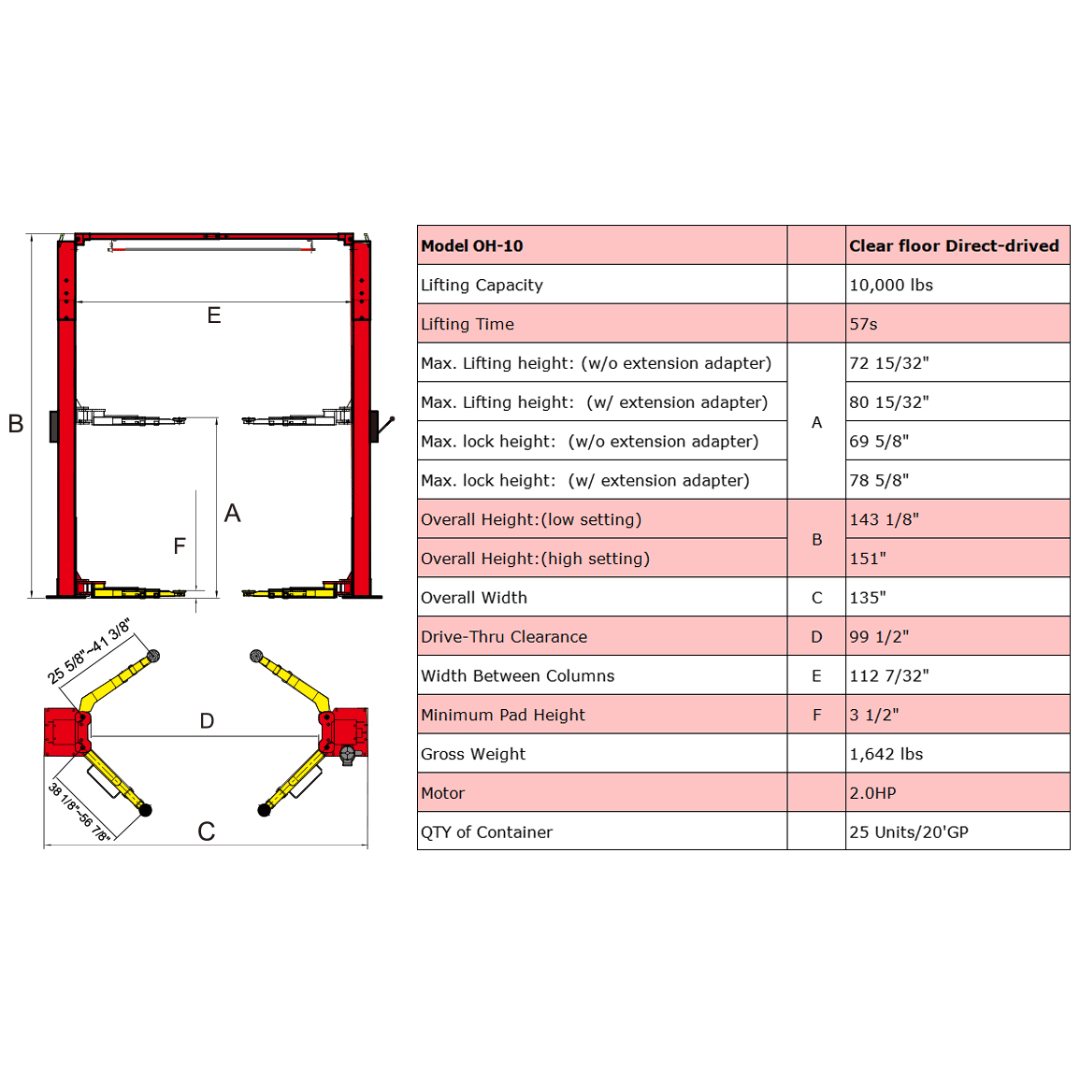

Product Specifications
| Model | OH-10 |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Lifting Time | 57S |
| A: Max. Lifting Height: (w/o extension adapter) | 72 15/32″ |
| A: Max. Lifting Height: (w/ extension adapter) | 80 15/32″ |
| A: Max. Lock Height: (w/o extension adapter) | 69 5/8″ |
| A: Max. Lock Height: (w/ extension adapter) | 78 5/8″ |
| B: Overall Height | 142 1/8″/ 151″ |
| C: Overall Width | 135″ |
| D: Drive Thru Clearance | 99 1/2″ |
| E: Width Between Columns | 112 7/32″ |
| F: Minimum Pad Height | 3 1/2″ |
| Motor | 2.0HP |
| Gross Weight | 1,642 lbs |
| QTY of Container | 25 Units/20'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
