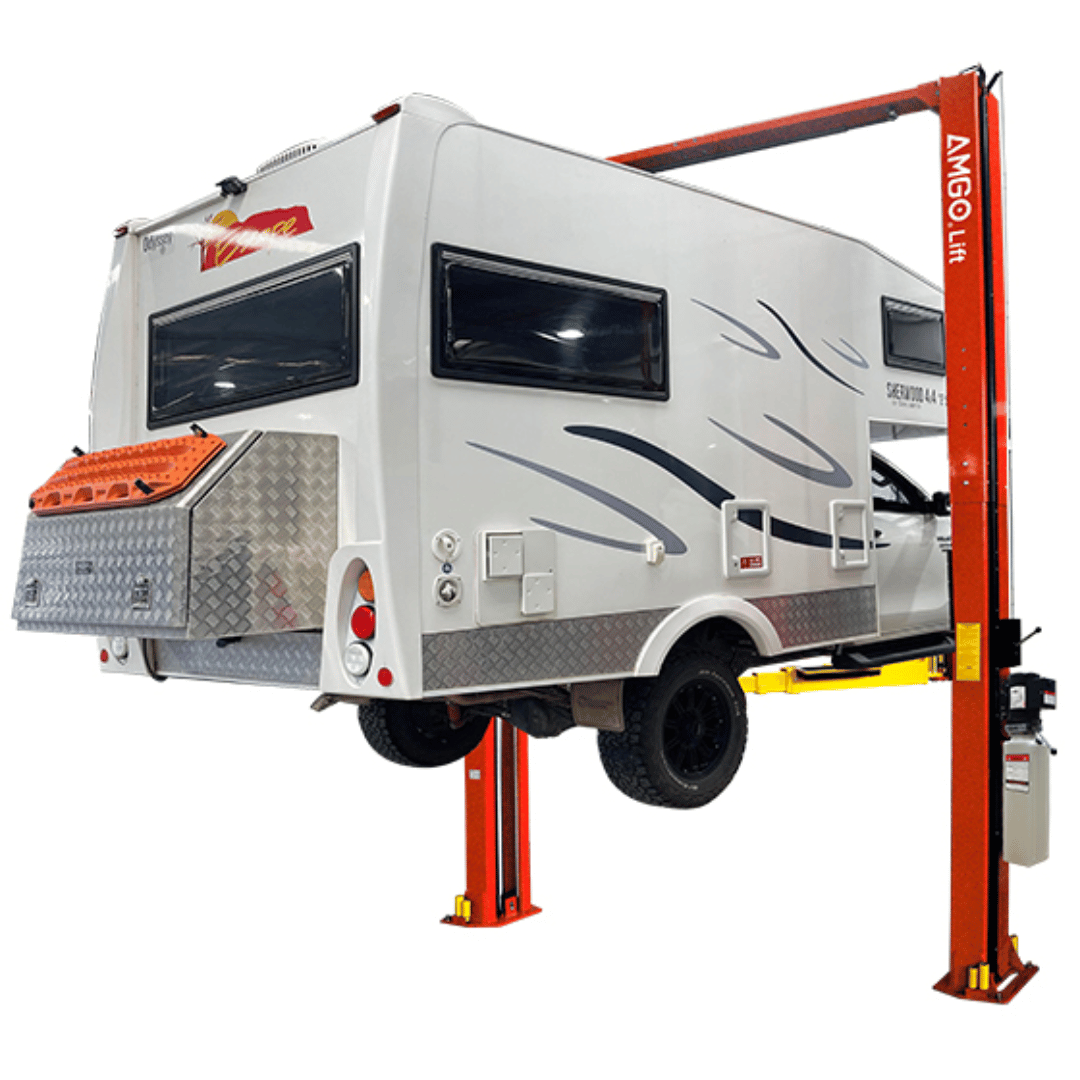

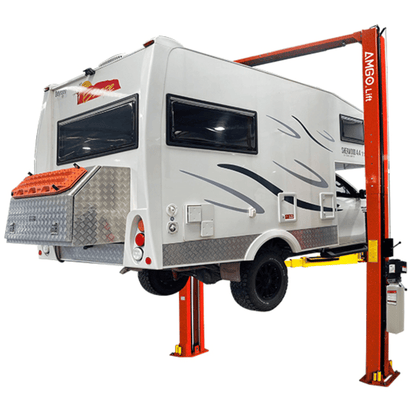

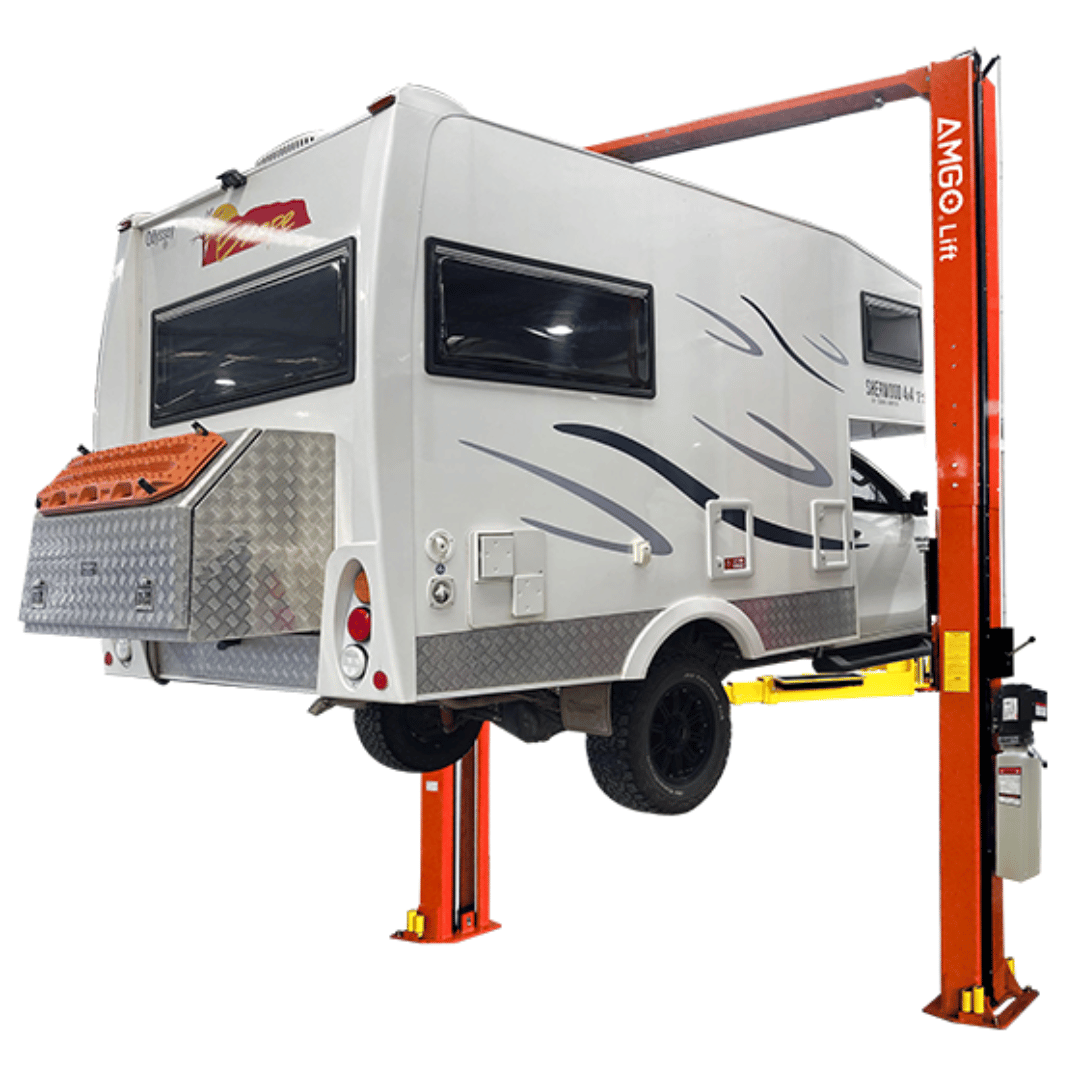

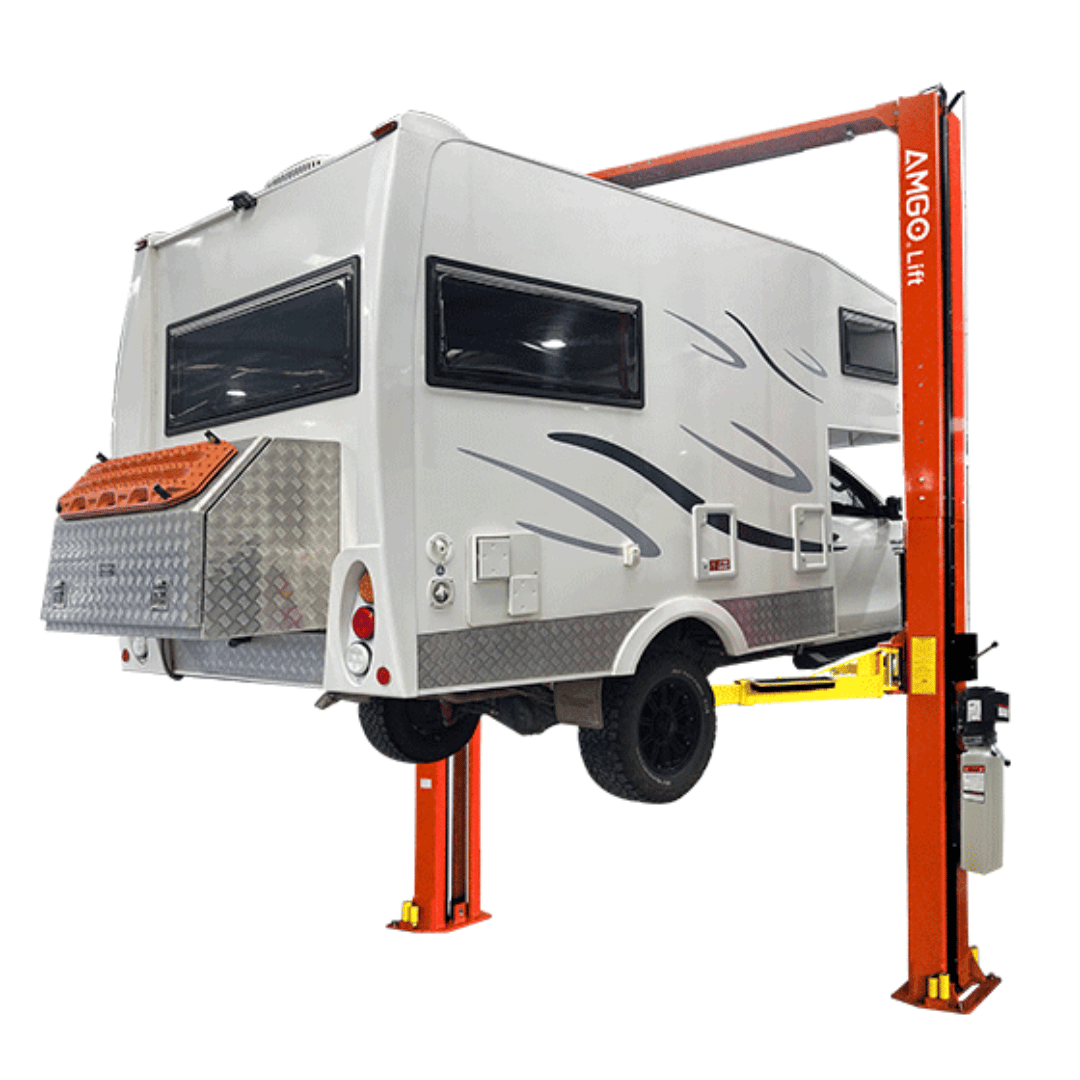

Amgo OH-12 12,000 lb Two Post Car Lift
The Amgo OH-12 12,000 lb Two Post Lift is engineered for high-capacity lifting and professional-grade durability, making it an excellent choice for busy automotive service centers and commercial repair facilities. With a 12,000 lb lifting capacity, this lift is capable of handling a wide variety of vehicles, from compact cars and SUVs to heavy-duty pickups and commercial vehicles.
Built with a robust structural design, the OH-12 incorporates dual hydraulic direct-drive cylinders manufactured to high standards, delivering smooth, reliable lifting performance. Its four three-stage full-reach arms provide exceptional flexibility, allowing technicians to safely position vehicles with both short and long wheelbases.
The lift also features three adjustable height settings reaching up to approximately 16.5 feet, allowing it to be installed in shops with varying ceiling heights while maintaining maximum lifting performance. AMGO’s 3-in-1 design technology simplifies installation and improves overall structural efficiency.
The clear-floor overhead design keeps cables and hoses routed above the lifting area, providing technicians with a clean, unobstructed workspace beneath the vehicle. Safety is enhanced with a single-point manual safety lock release, which disengages both columns simultaneously from one side, along with an overhead safety shut-off device that helps protect vehicles during lifting operations.
Constructed with self-lubricating UHMW polyethylene sliders and aircraft-grade synchronization cables, the OH-12 ensures long-lasting durability and consistent performance. Additional features such as automatic arm restraints, detachable toe guards, tool trays, and heavy-duty lifting pads with extension adapters make it a dependable solution for demanding daily service work.
Available through Gearforce USA, the Amgo OH-12 delivers powerful lifting capability, flexible installation options, and dependable safety for professional automotive repair environments.

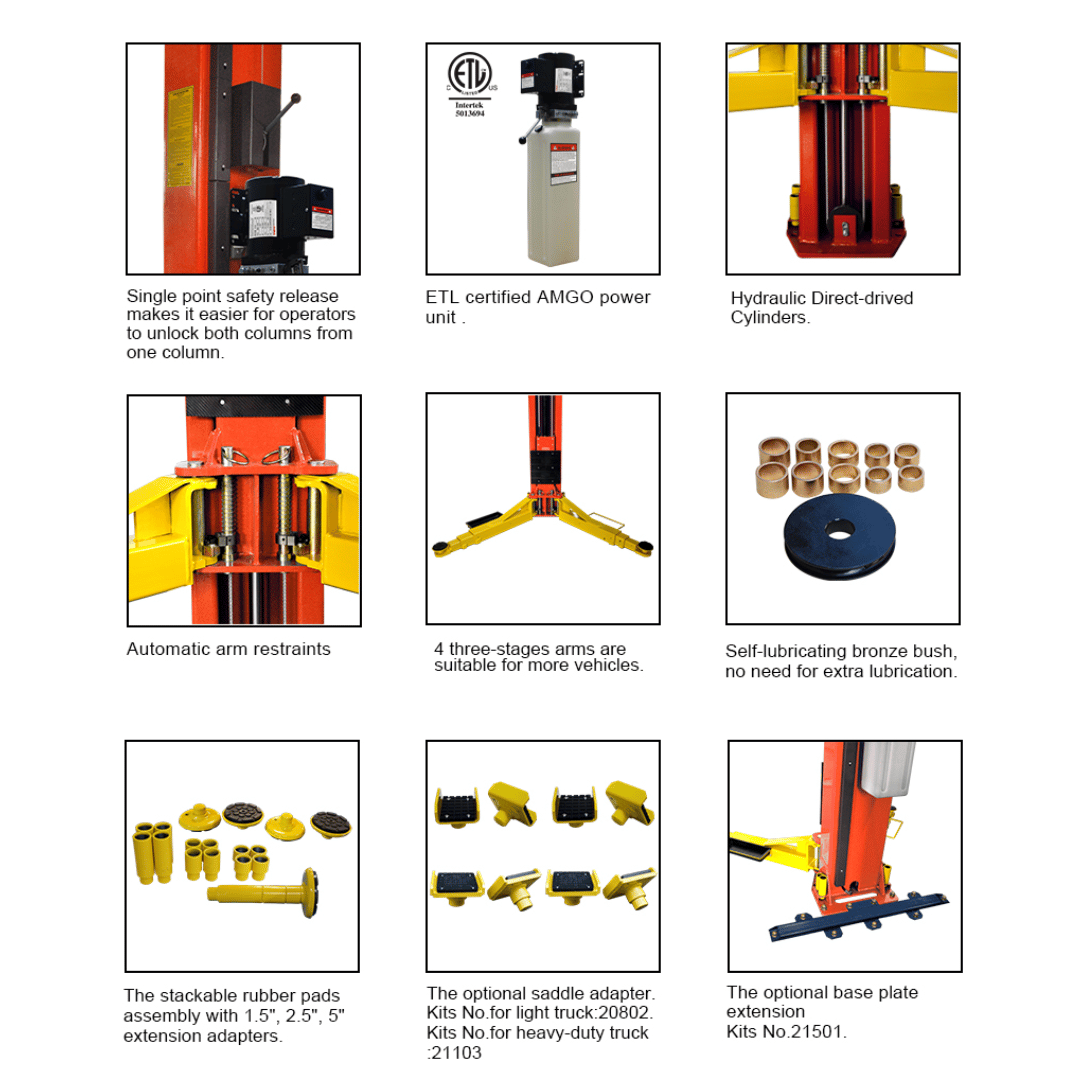

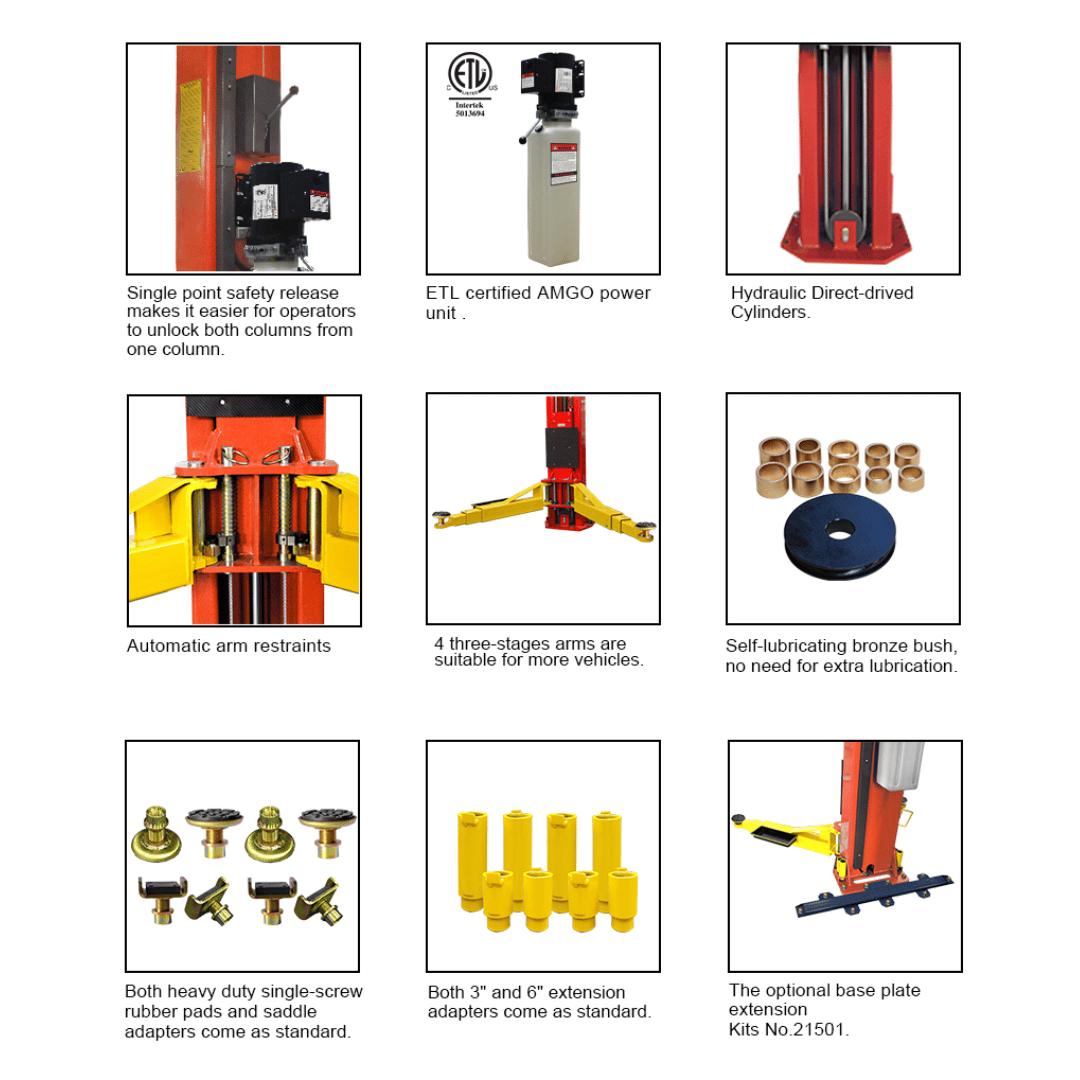

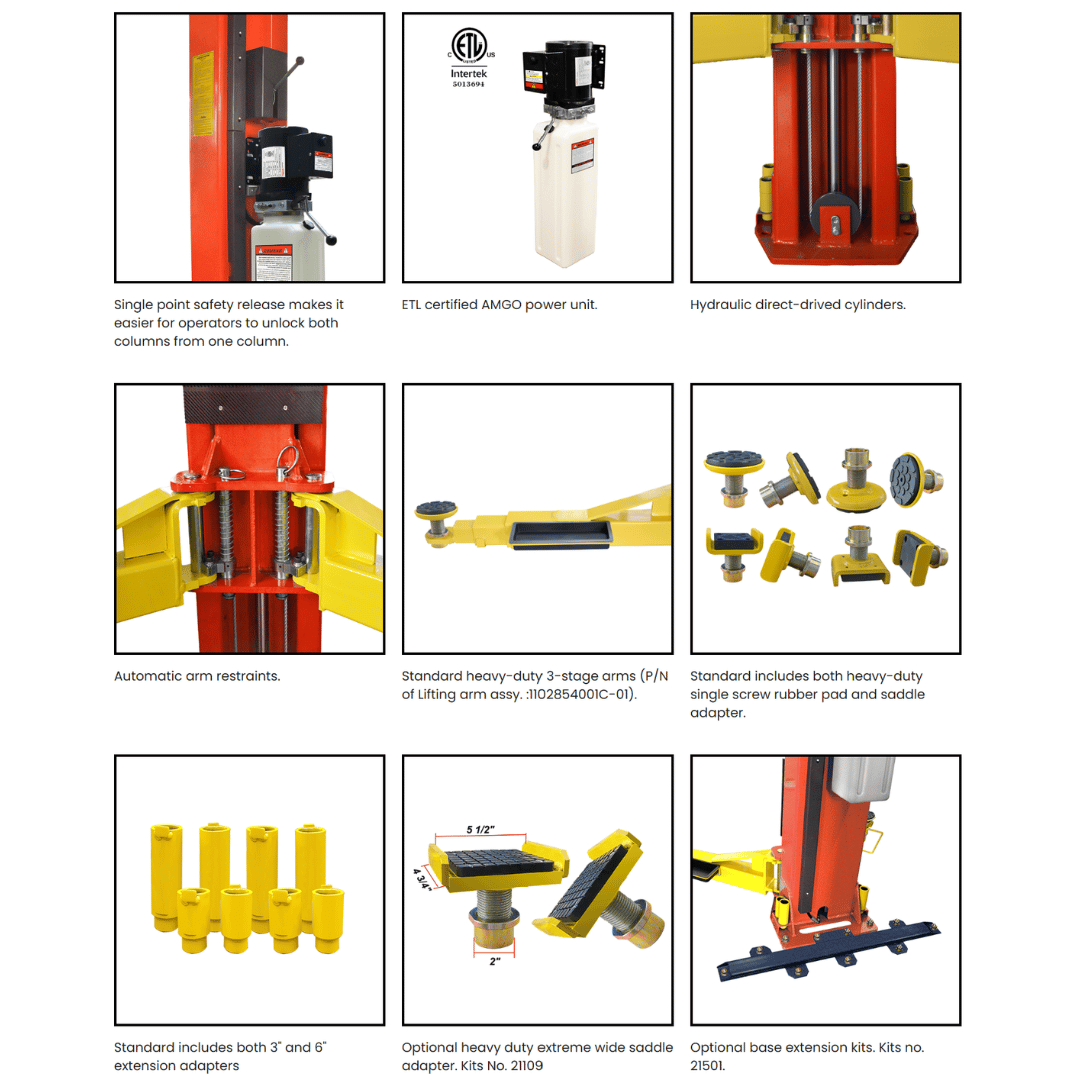

Key Features
- 12,000 lb lifting capacity for cars, SUVs, trucks, and commercial vehicles
- Dual hydraulic direct-drive cylinders for smooth and reliable lifting
- Four three-stage full-reach arms accommodate short and long wheelbase vehicles
- Three adjustable height settings (up to approx. 16.5 ft) for flexible installation
- AMGO 3-in-1 structural design technology simplifies installation
- Clear-floor overhead design provides an unobstructed workspace
- Single-point manual safety lock release unlocks both columns simultaneously
- Overhead safety shut-off device protects vehicles during lifting
- Self-lubricating UHMW polyethylene sliders for durability and reduced maintenance
- Aircraft-grade synchronization cables included
- Automatic arm restraint system included
- Detachable toe guards and tool trays included
- Heavy-duty single-screw rubber pads and saddle adapters included
- 3″ and 6″ extension adapters included

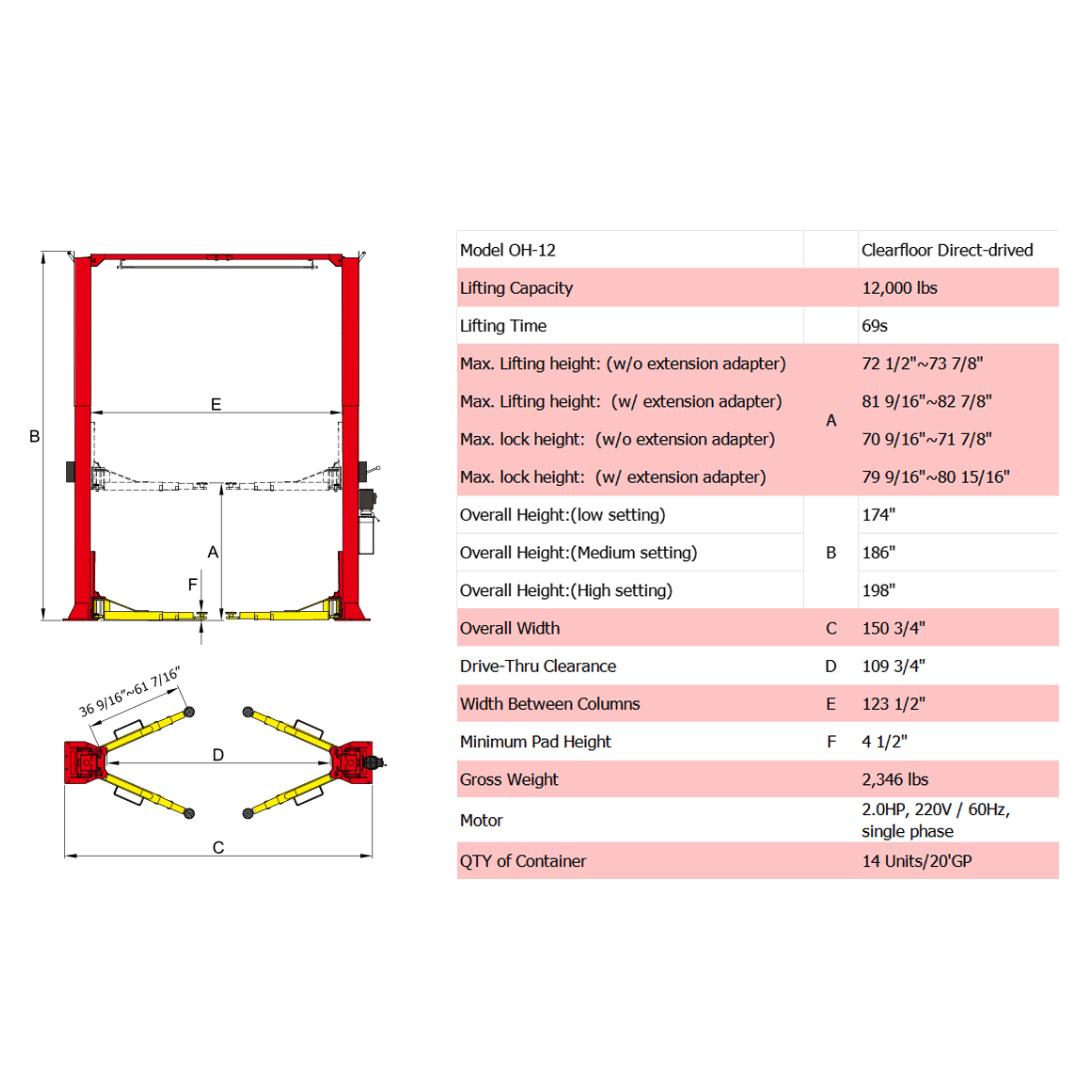

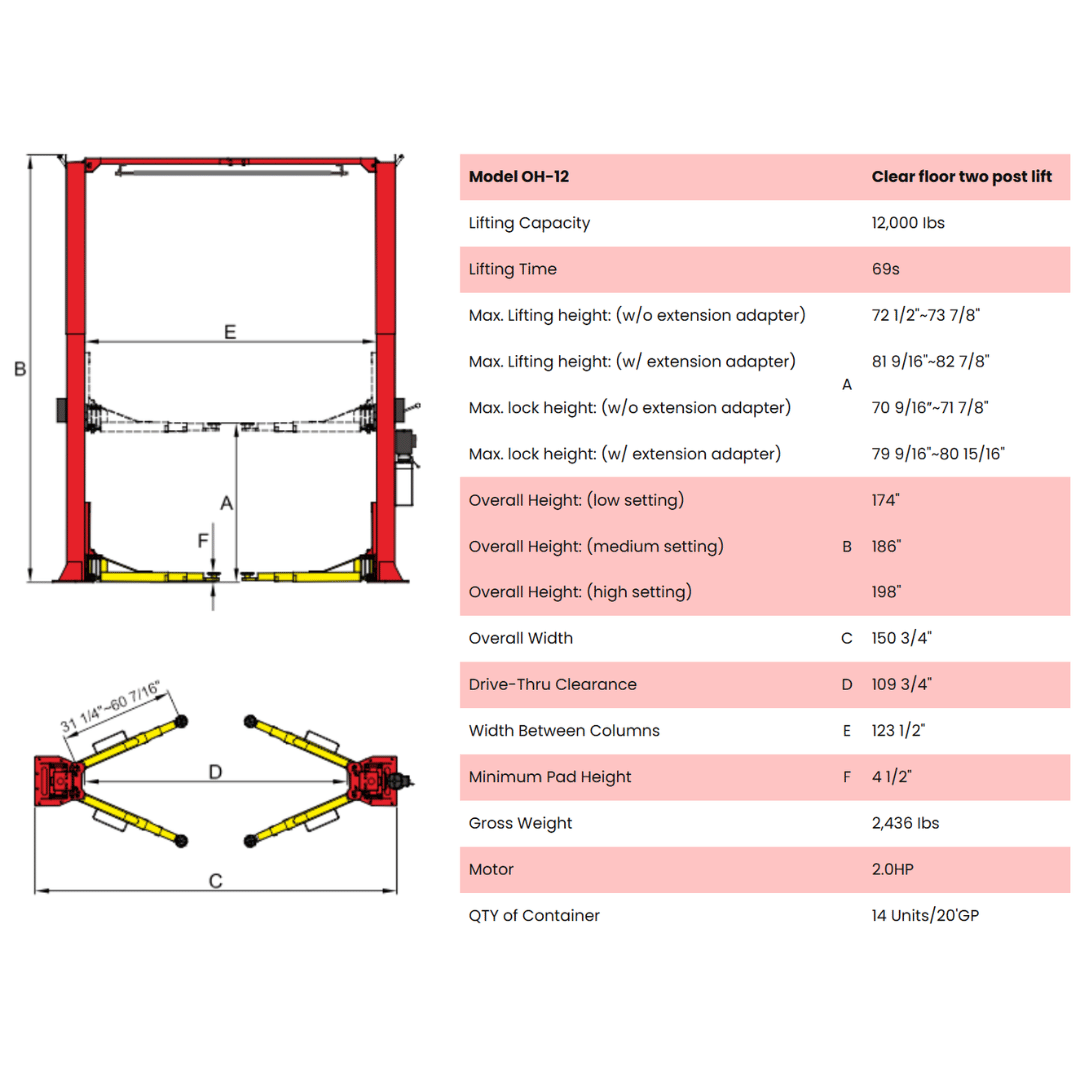

Product Specifications
| Model | OH-12 |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 69S |
| A: Max. Lifting Height: (w/o extension adapter) | 72 1/2"~73 7/8" |
| A: Max. Lifting Height: (w/ extension adapter) | 81 9/16"~82 7/8" |
| A: Max. Lock Height: (w/o extension adapter) | 70 9/16″~71 7/8" |
| A: Max. Lock Height: (w/ extension adapter) | 79 9/16"~80 15/16" |
| B: Overall Height: (Low Setting) | 174″ |
| B: Overall Height: (Medium Setting) | 186″ |
| B: Overall Height: (High Setting) | 198″ |
| C: Overall Width | 150 3/4″ |
| D: Drive Thru Clearance | 109 3/4″ |
| E: Width Between Columns | 123 1/2″ |
| F: Minimum Pad Height | 4 1/2″ |
| Gross Weight | 2,436 lbs |
| Motor | 2.0HP |

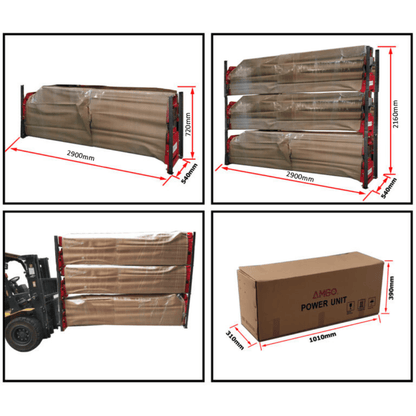

| QTY of Container | 14 Units/20'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
