Product Description

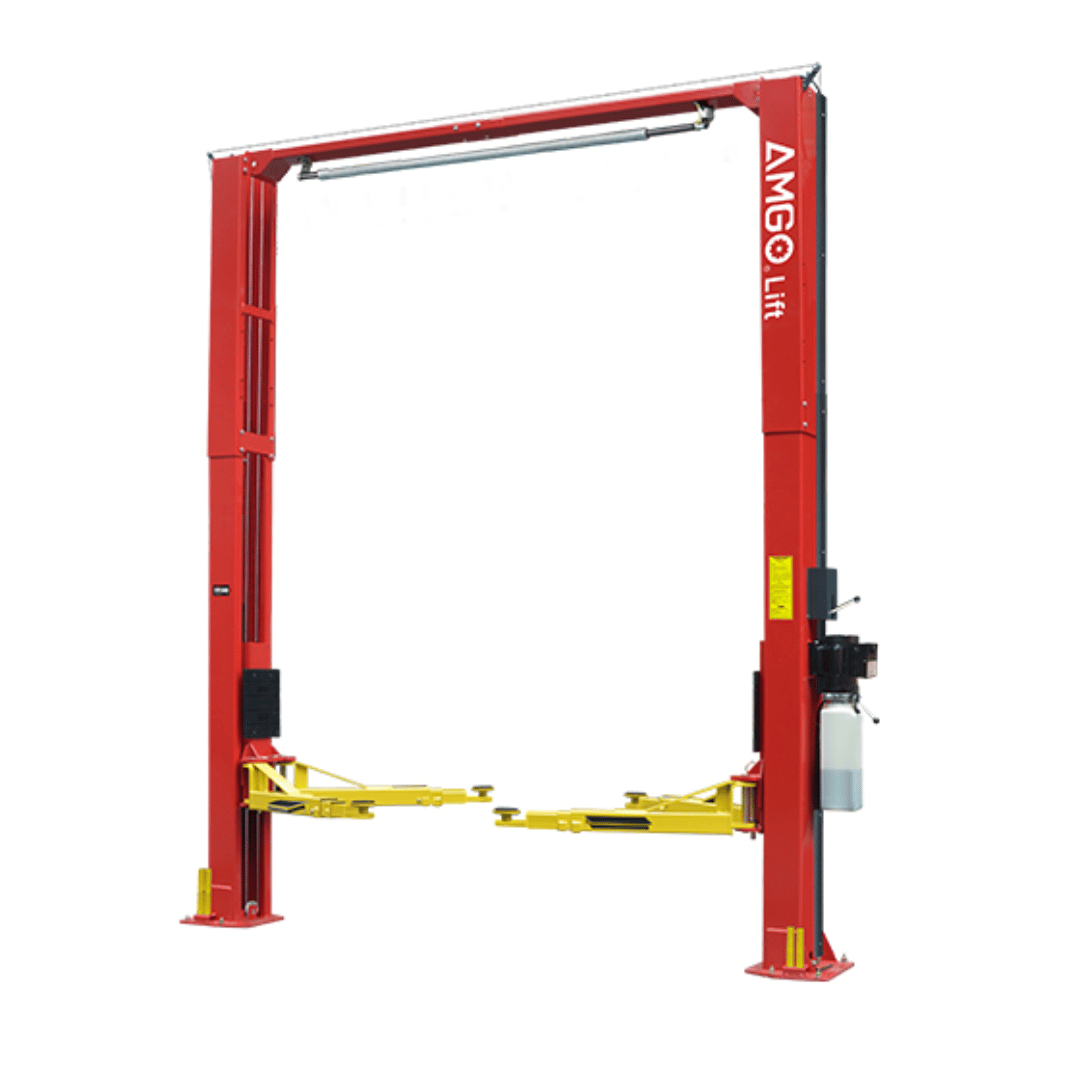

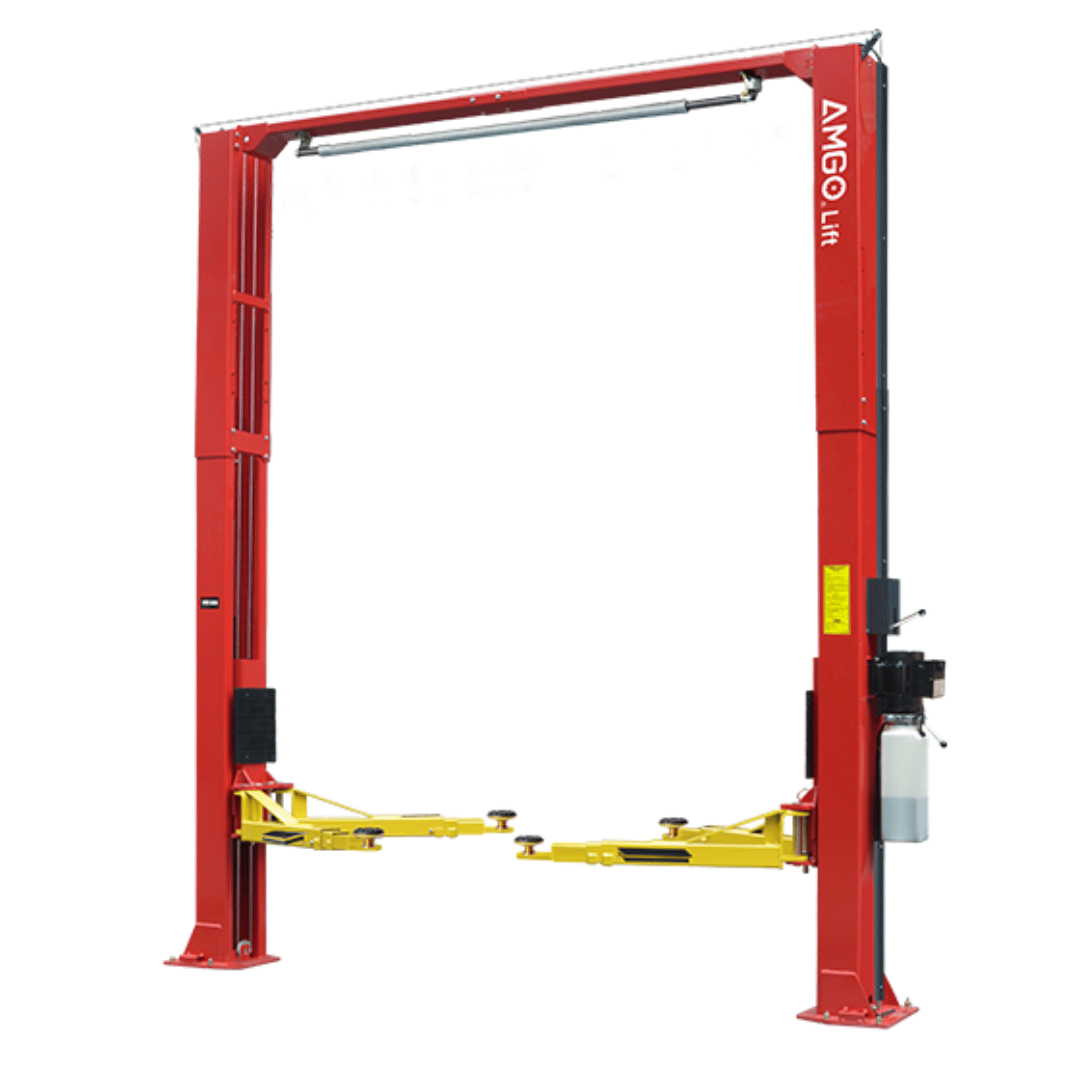

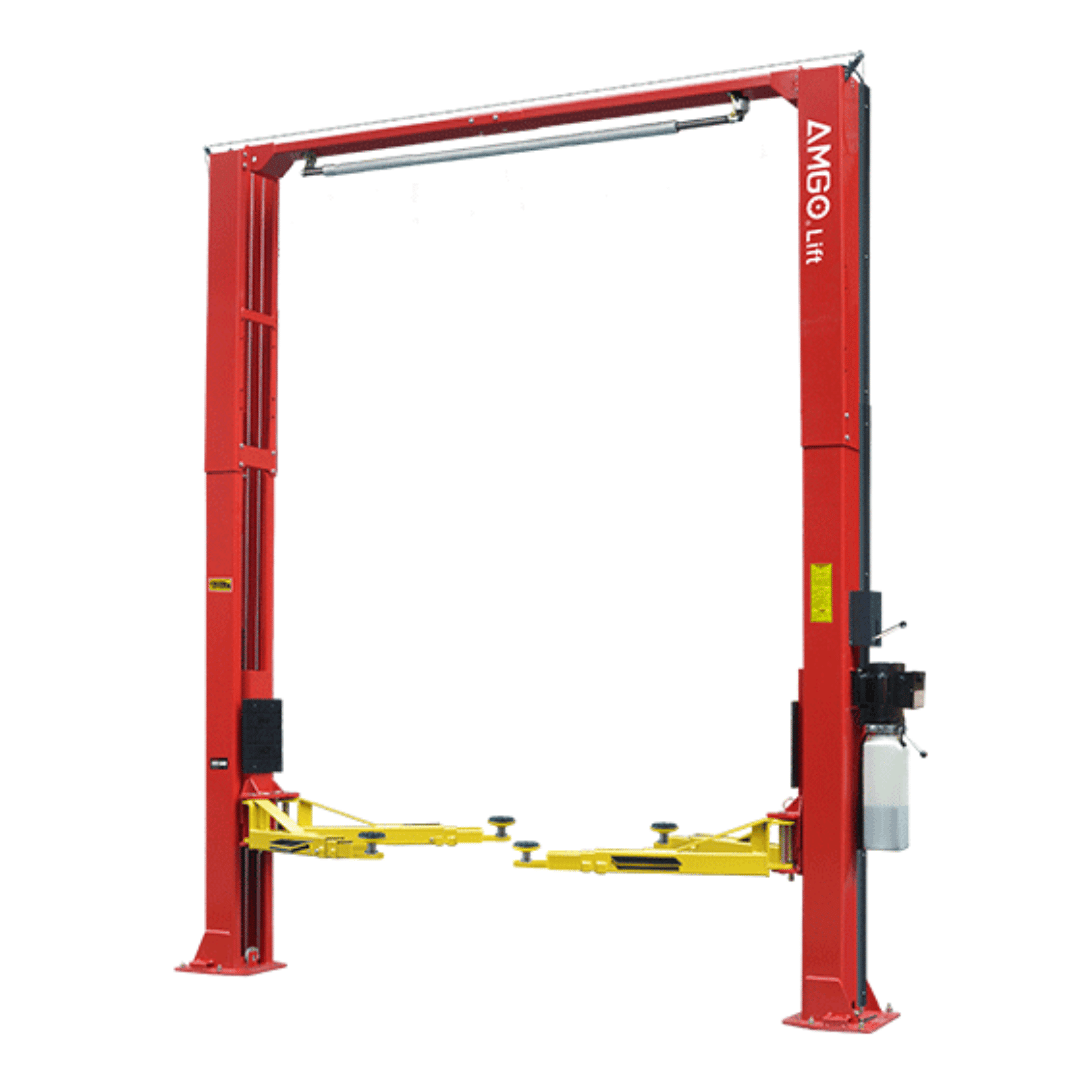

Amgo OH-12S (Short) 12,000 lb Two Post Car Lift
The Amgo OH-12S (Short) 12,000 lb Two Post Lift is a heavy-duty lifting solution specifically designed for automotive service centers with limited ceiling height. Built to maximize workspace efficiency without compromising lifting performance, the OH-12S delivers a powerful 12,000 lb lifting capacity, making it ideal for servicing cars, SUVs, and light trucks in space-restricted environments.
Engineered with three adjustable height settings, the OH-12S provides unmatched installation flexibility, allowing shops with varying ceiling heights to install a professional-grade lift while maintaining optimal working clearance. Despite its compact design, the lift maintains the strength and durability expected from AMGO’s industrial-grade equipment.
The lift features four three-stage retractable arms, providing excellent reach and versatility to accommodate vehicles with both short and long wheelbases. This design allows technicians to safely position a wide variety of vehicles for maintenance and repair.
Powered by dual hydraulic direct-drive cylinders and synchronized with aircraft-grade cables, the OH-12S delivers smooth, stable lifting performance. The clear-floor overhead design keeps cables and hoses routed above the vehicle, creating a clean and unobstructed workspace beneath the lift.
Safety features include a single-point manual safety lock release, allowing both columns to disengage simultaneously from one side, along with an overhead shut-off device that helps prevent vehicles from being lifted too high. Built with self-lubricating UHMW polyethylene sliders and automatic arm restraints, the OH-12S ensures reliable operation and reduced maintenance.
Available through Gearforce USA, the Amgo OH-12S is an ideal solution for shops that require heavy-duty lifting performance while working within lower ceiling height limitations.

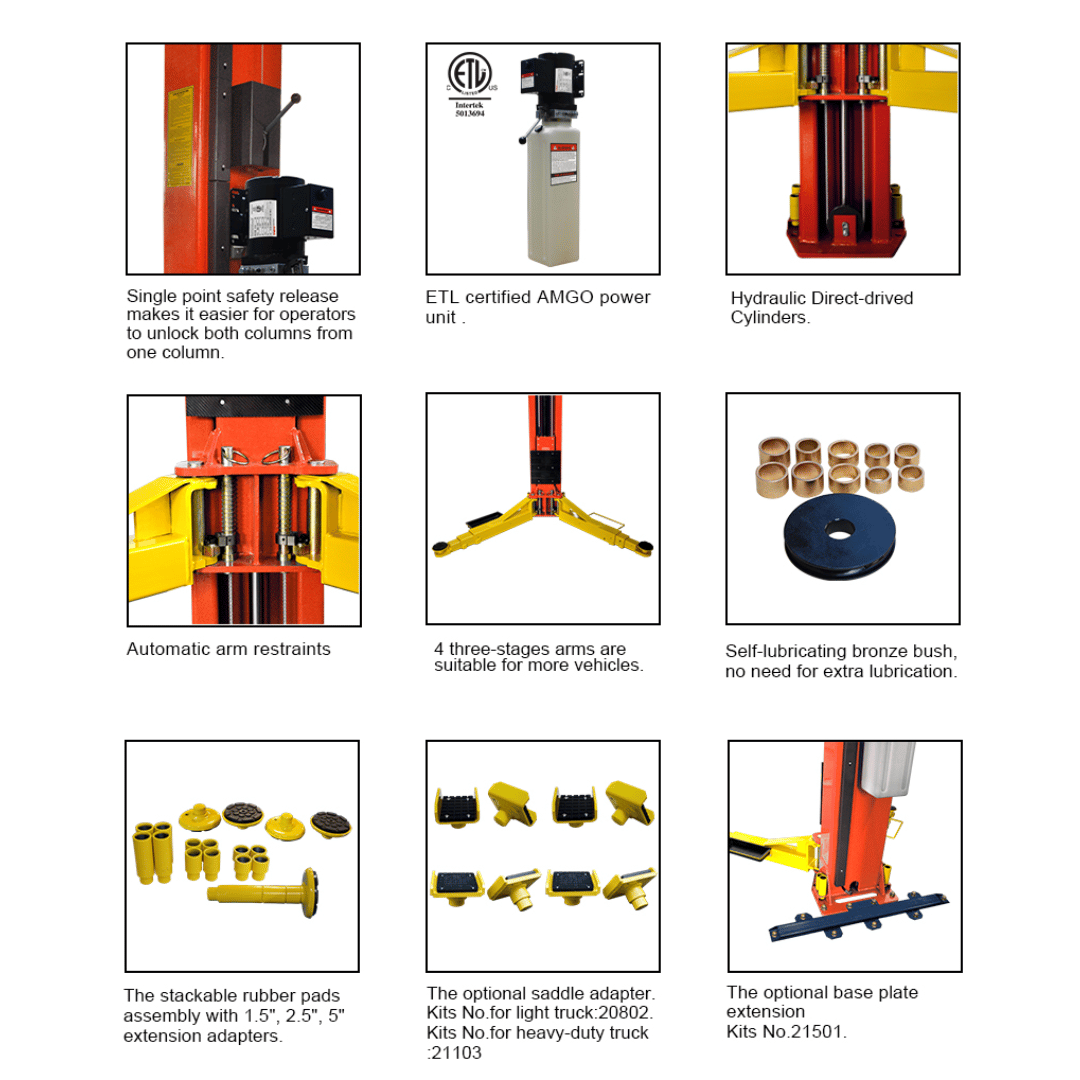

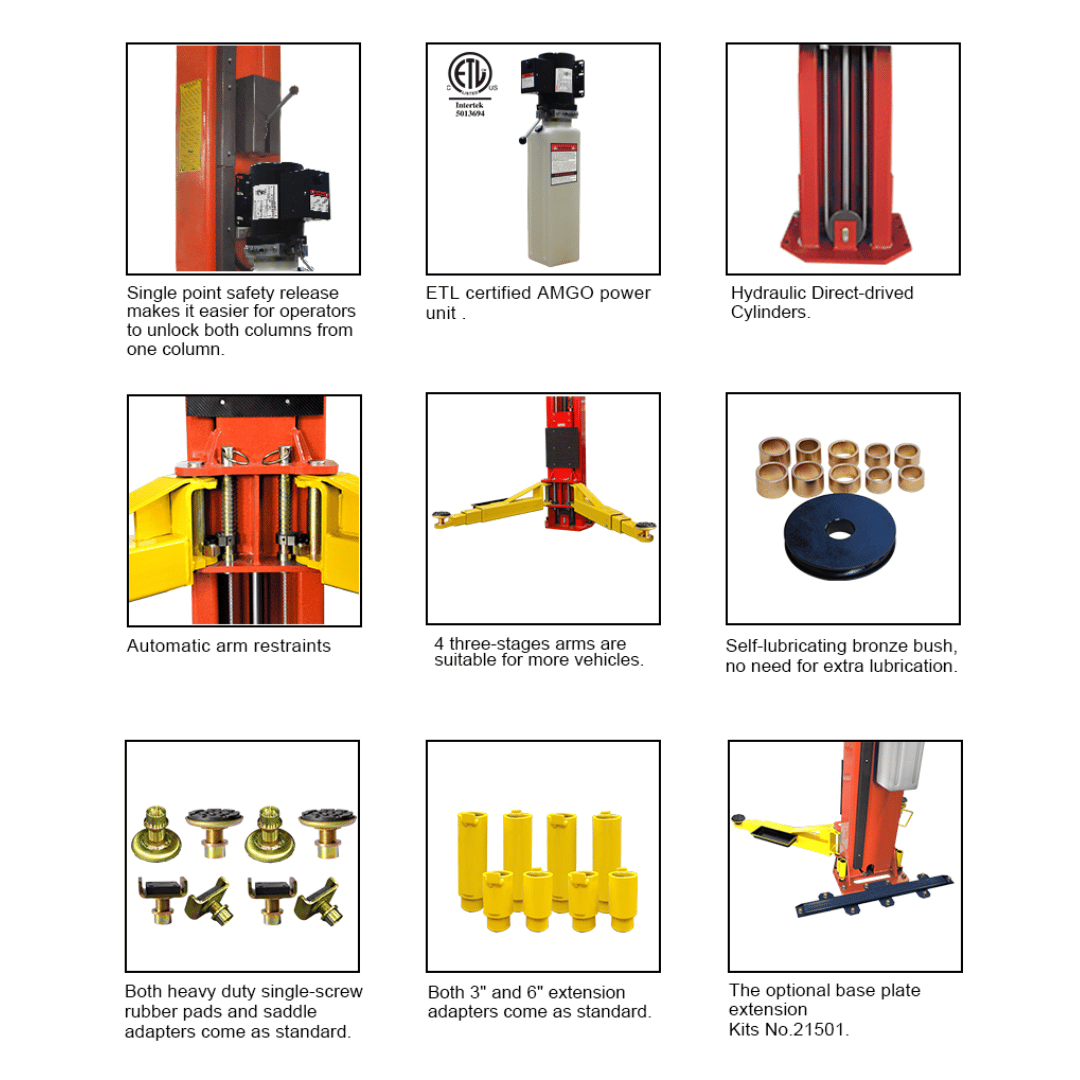

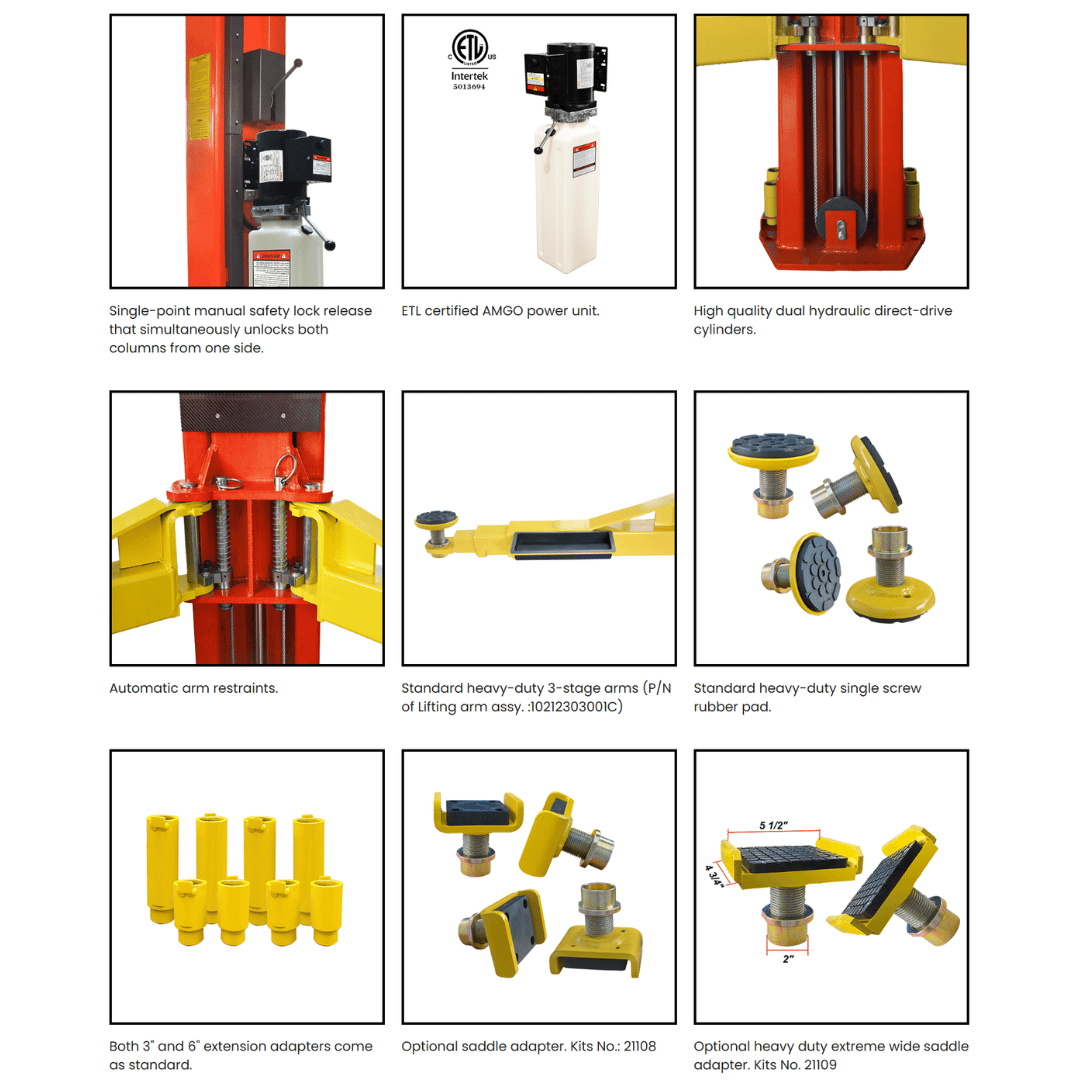

Key Features
- 12,000 lb lifting capacity for cars, SUVs, and light trucks
- Short design optimized for shops with restricted ceiling heights
- Exclusive three adjustable height settings for flexible installation
- Four three-stage retractable arms accommodate short and long wheelbase vehicles
- Dual hydraulic direct-drive cylinders for smooth and reliable lifting
- Aircraft-grade synchronization cables ensure balanced lifting performance
- Clear-floor overhead design provides an unobstructed work area
- Single-point manual safety lock release unlocks both columns simultaneously
- Overhead safety shut-off device protects vehicles during lifting
- Self-lubricating UHMW polyethylene sliders for durability and low maintenance
- Automatic arm restraint system included
- Detachable toe guards and tool trays included
- Heavy-duty single-screw rubber pads with 3″ and 6″ extension adapters included

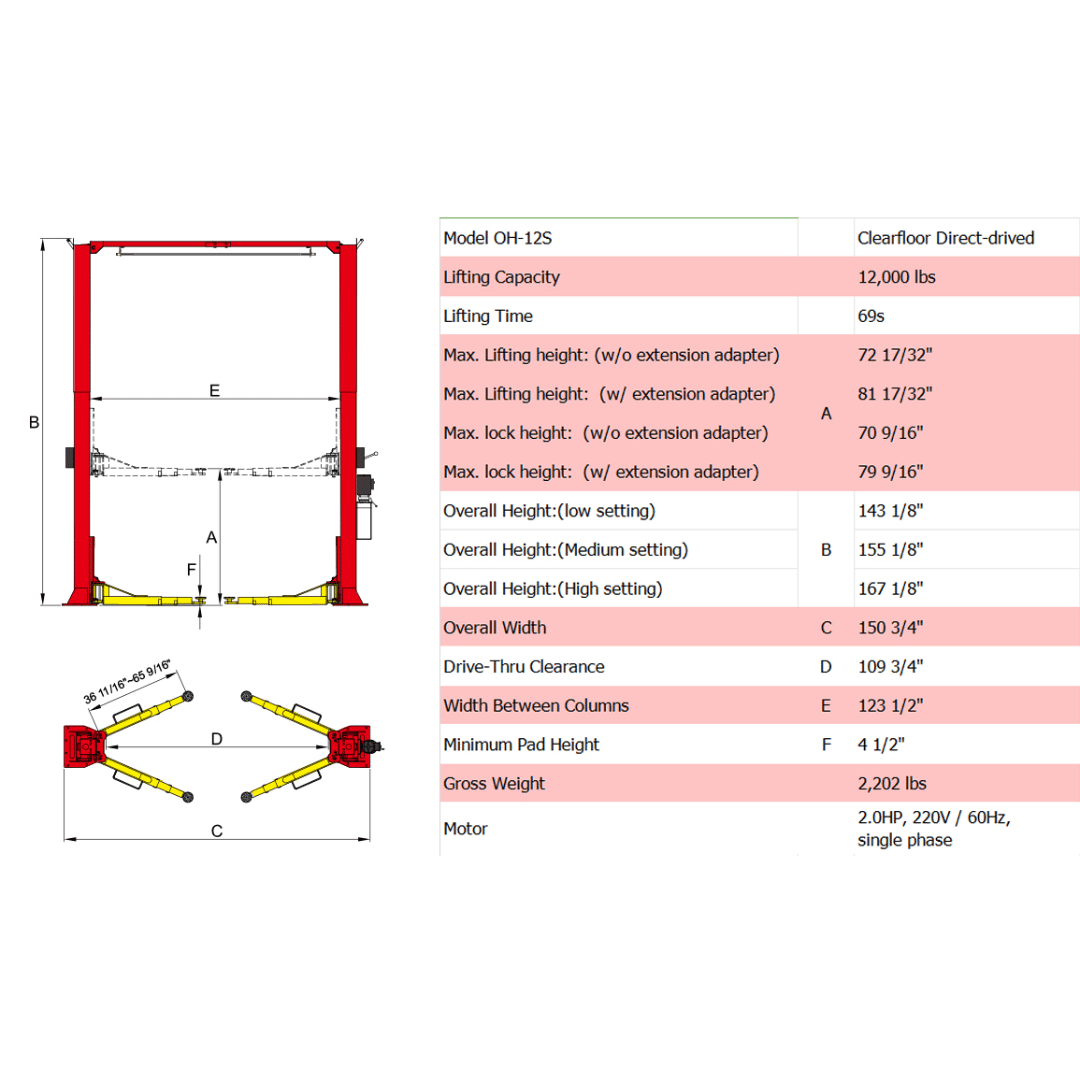

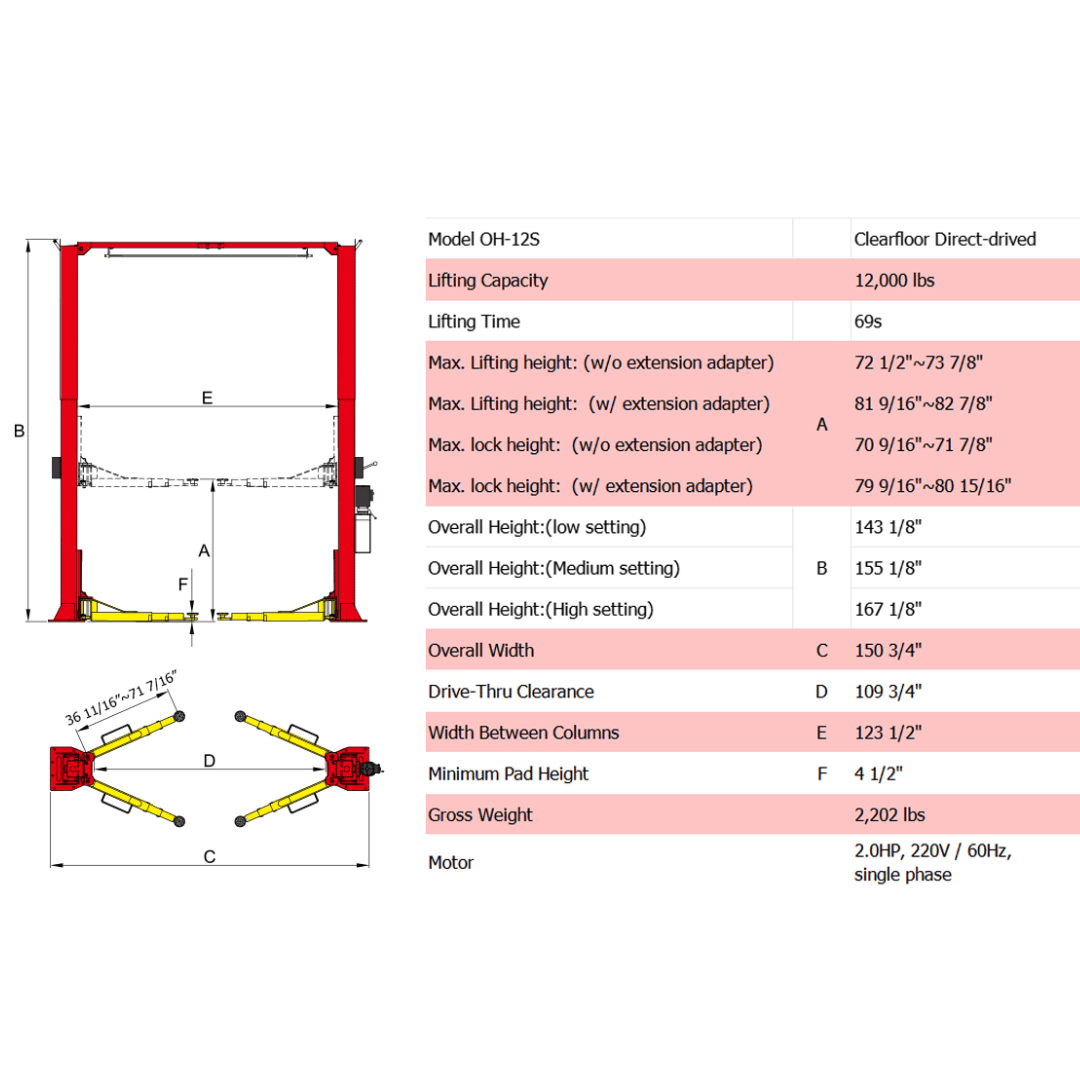

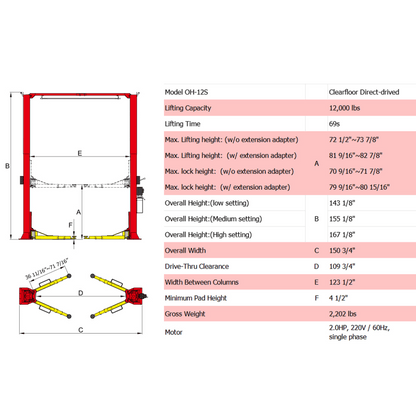

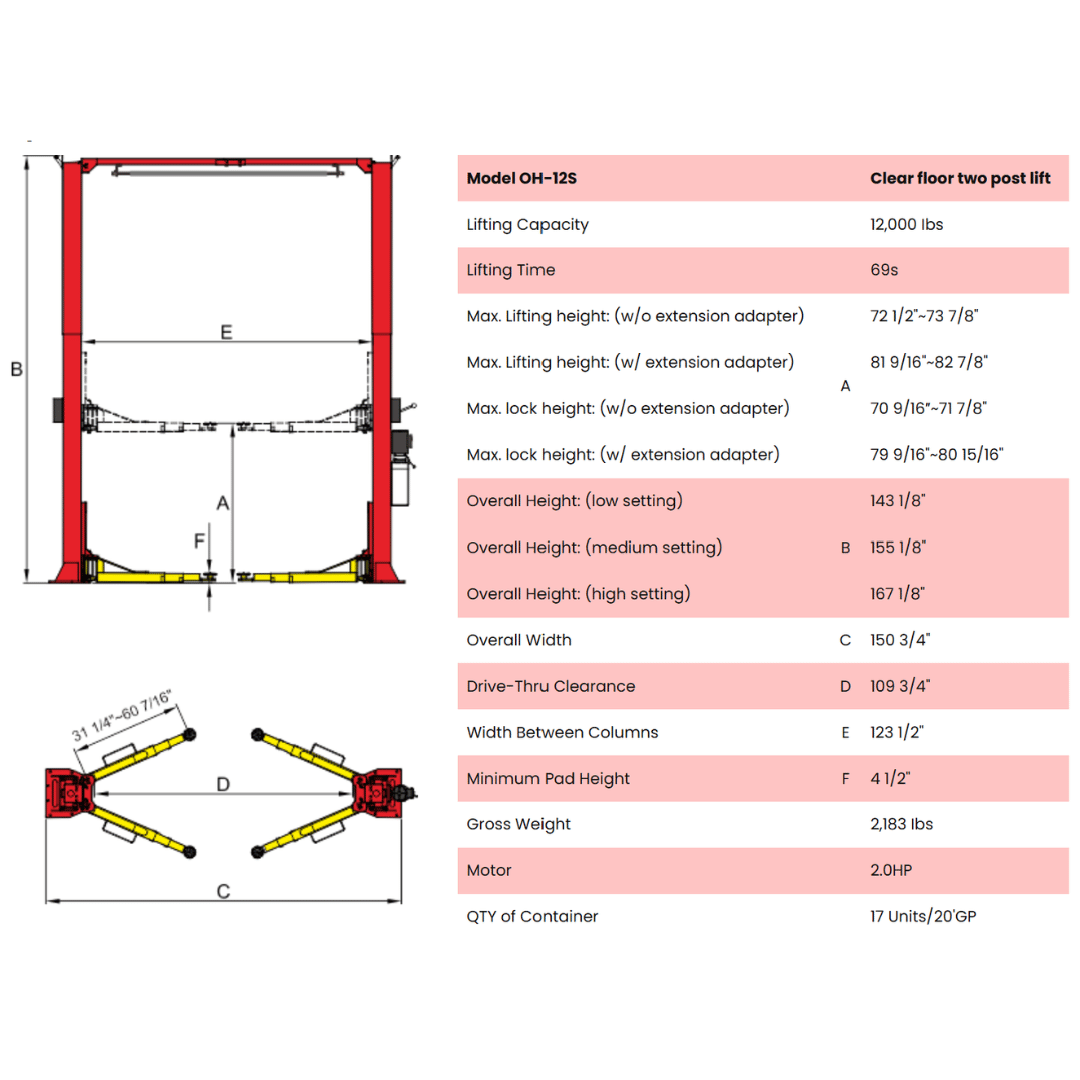

Product Specifications
| Model | OH-12S |
|---|---|
| Lifting Capacity | 12,000 lbs (5,443 kg) |
| Lifting Time | 69S |
| A: Max. Lifting Height: (w/o extension adapter) | 72 1/2"~73 7/8" |
| A: Max. Lifting Height: (w/ extension adapter) | 81 9/16"~82 7/8" |
| A: Max. Lock Height: (w/o extension adapter) | 70 9/16″~71 7/8" |
| A: Max. Lock Height: (w/ extension adapter) | 79 9/16"~80 15/16" |
| B: Overall Height: (Low Setting) | 143 1/8″ |
| B: Overall Height: (Medium Setting) | 155 1/8″ |
| B: Overall Height: (High Setting) | 167 1/8″ |
| C: Overall Width | 150 3/4″ |
| D: Drive Thru Clearance | 109 3/4″ |
| E: Width Between Columns | 123 1/2″ |
| F: Minimum Pad Height | 4 1/2″ |
| Gross Weight | 2,183 lbs |
| Motor | 2.0HP |
| QTY of Container | 17 Units/20'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
