Product Description

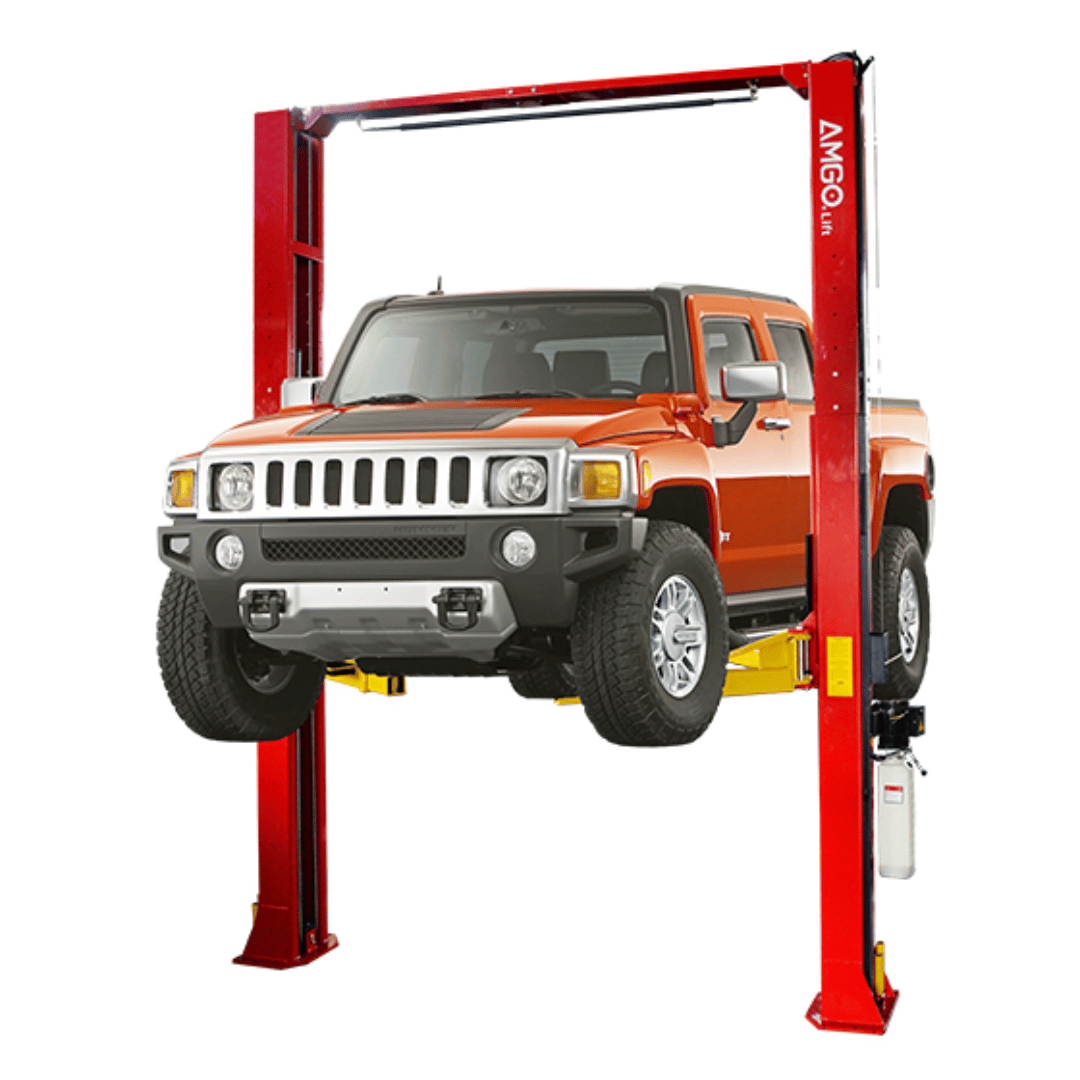

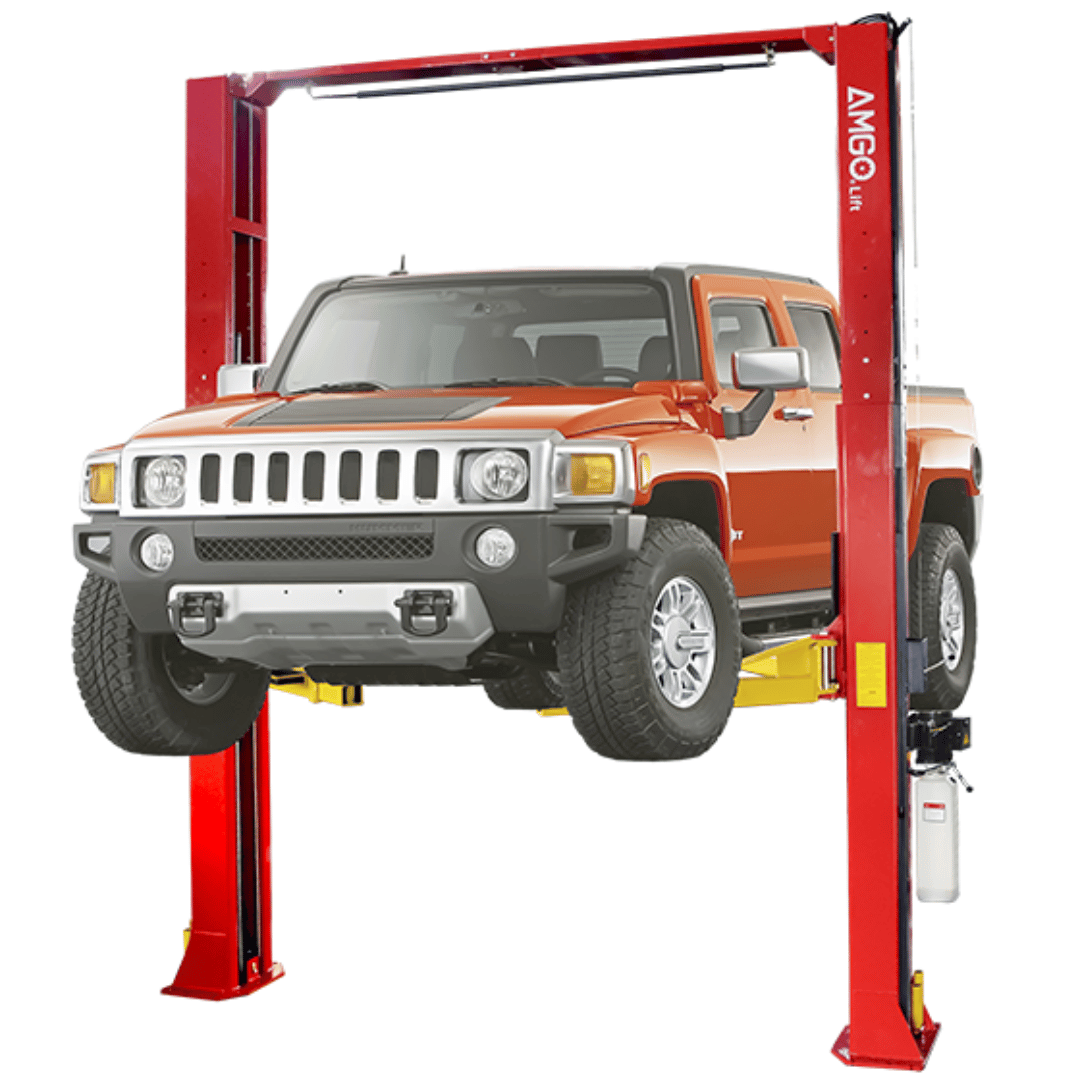

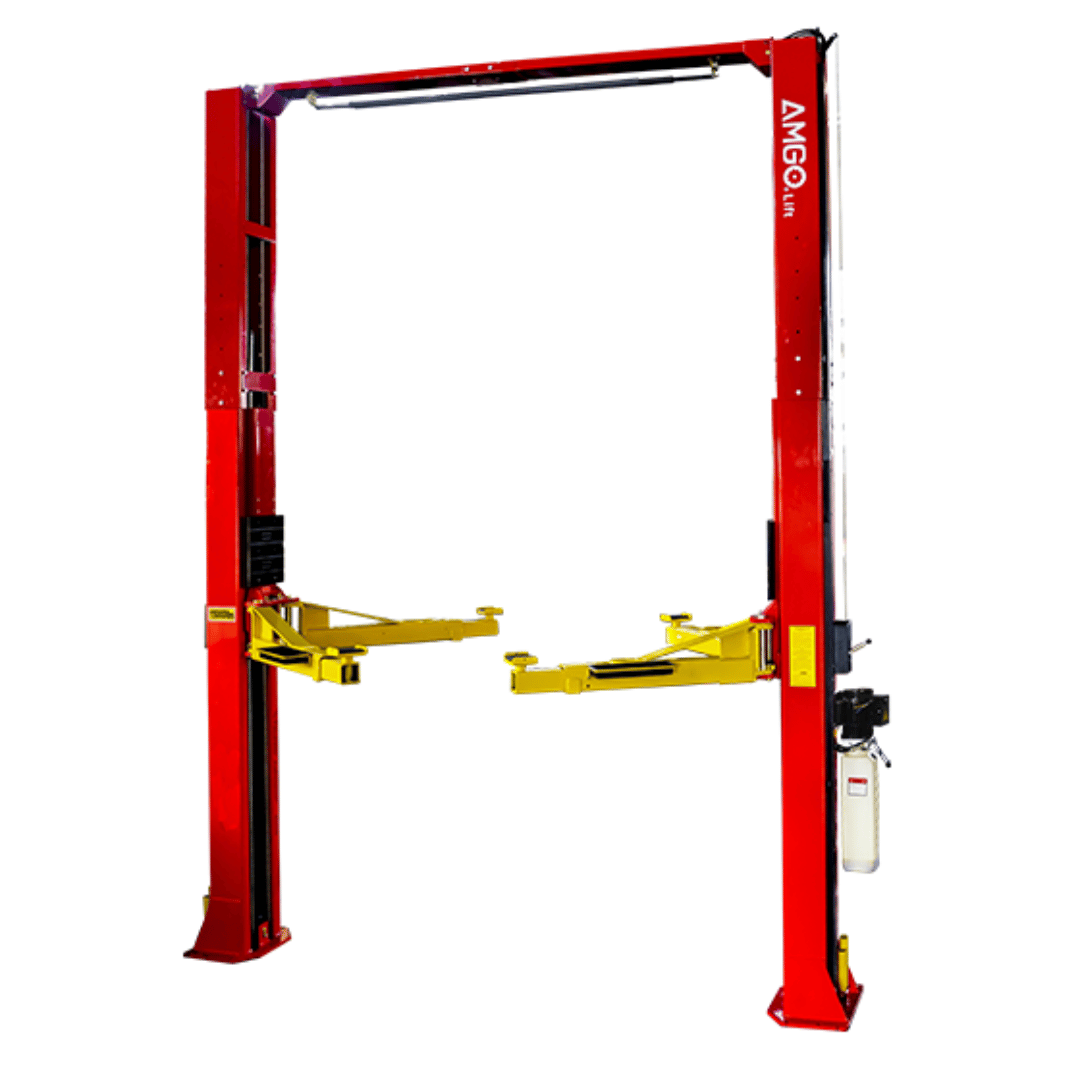

AMGO OH-15 Overhead 2-Post Lift – 15,000 lb Capacity
When it comes to lifting the heaviest vehicles in your fleet, the AMGO OH-15 2-Post Lift leads the way with 15,000 lbs of lifting power and a heavy-duty structure built for rigorous commercial use. Designed to handle large vans, box trucks, and heavy-duty pickups, the OH-15 is ideal for high-traffic shops, fleet service centers, and commercial garages.
This industrial-strength lift features AMGO’s 3-in-1 technology, giving you three height configuration options up to 198 inches, allowing it to fit a variety of ceiling heights while accommodating the tallest vehicles. It comes equipped with 4 two-stage arms, heavy-duty saddle adapters, and stackable rubber pads, ensuring it can safely support long-wheelbase and oversized vehicles with ease.
The OH-15 integrates a single-point manual safety release, automatic arm restraints, aircraft-grade sync cables, and self-lubricating UHMW polyethylene sliders with bronze bushings — all delivering durable, balanced, and low-maintenance performance. Its clearfloor overhead design provides full access beneath the vehicle, allowing easy movement of tools and personnel.
Available now at Gearforce USA, the OH-15 is the go-to lift when strength, height, and reliability are non-negotiable.

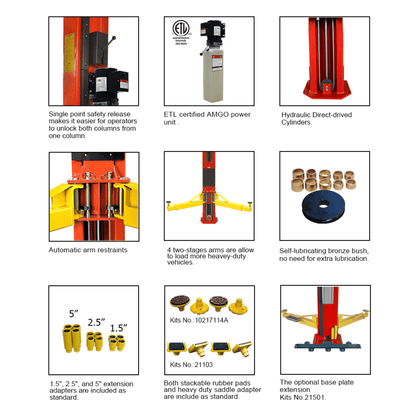

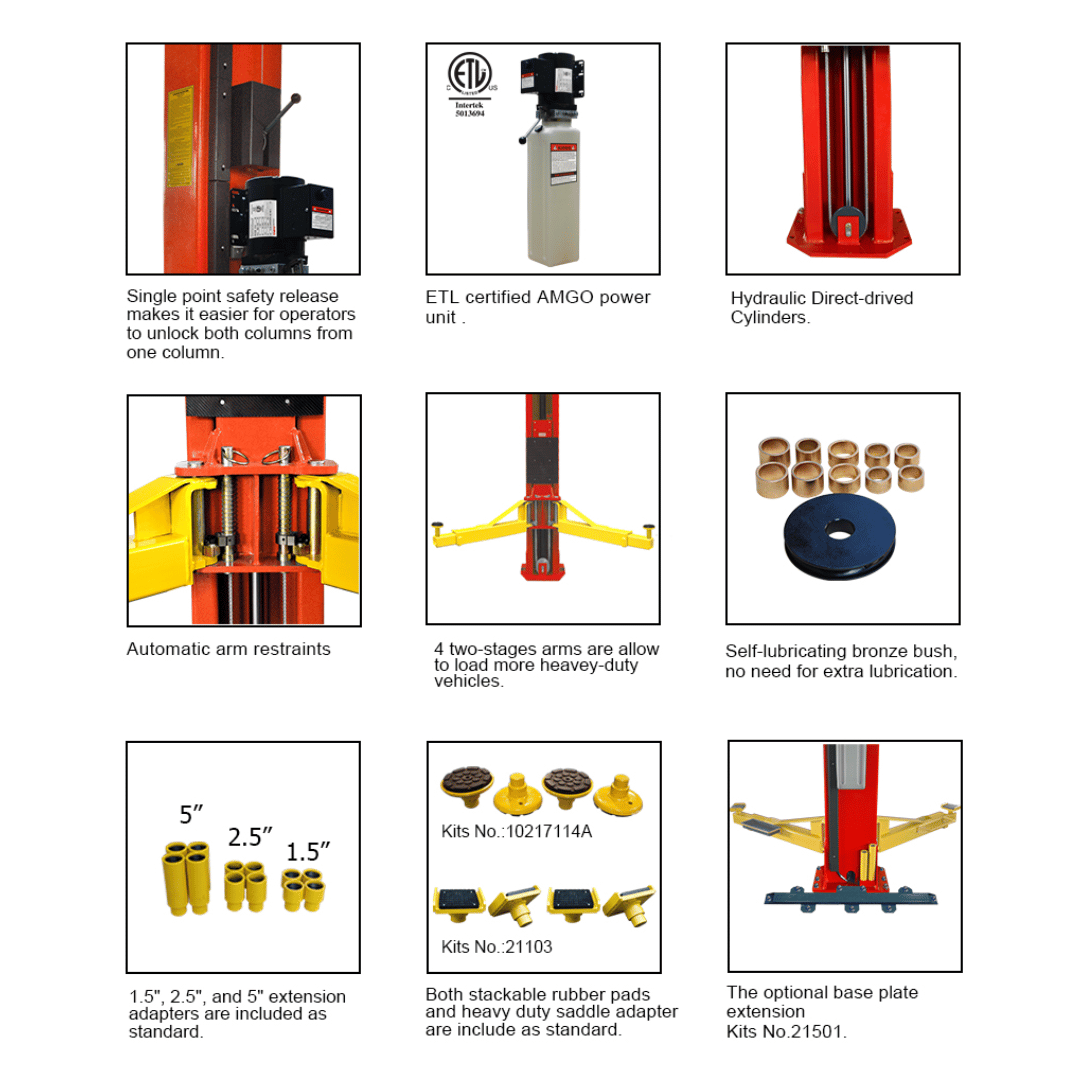

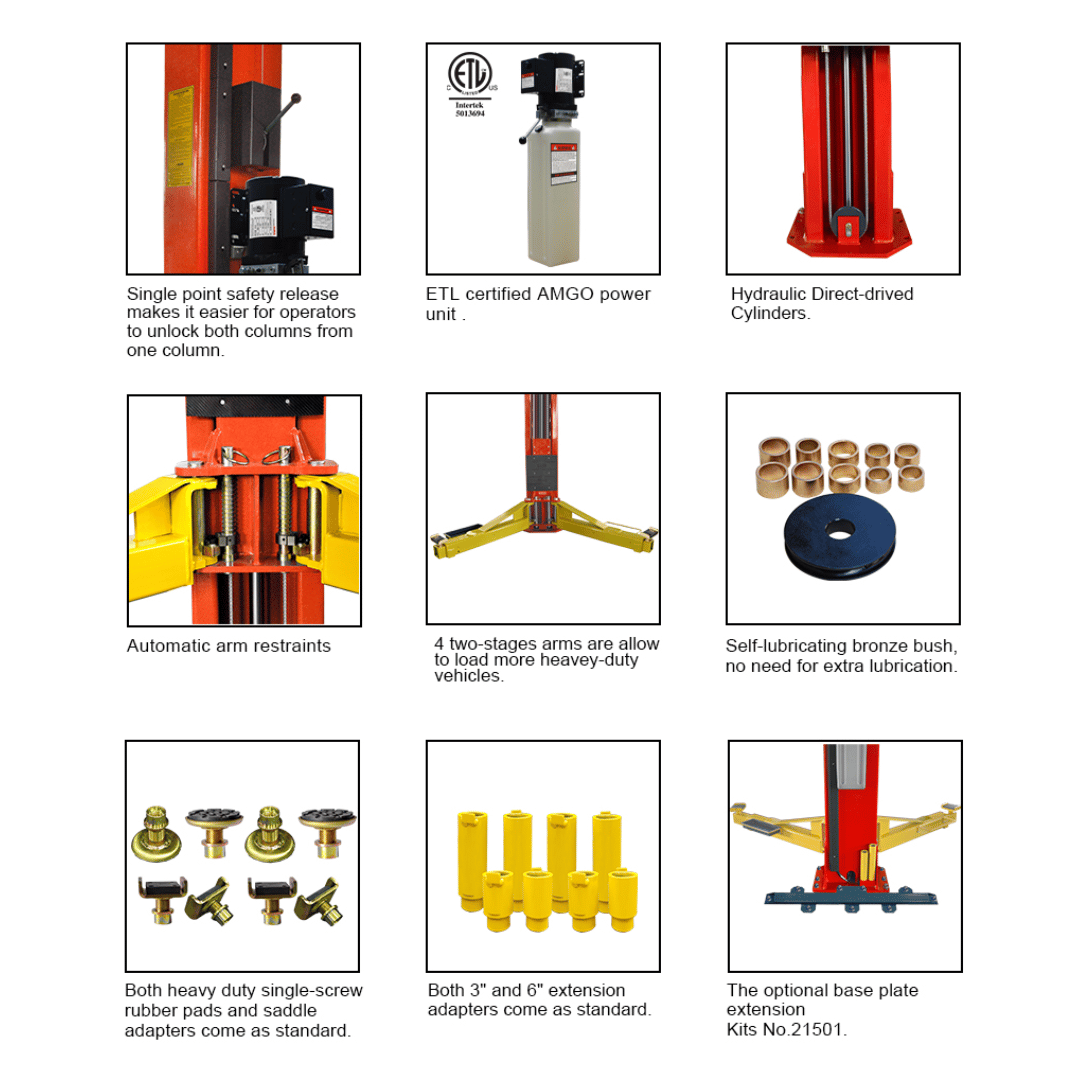

Key Features
- 15,000 lb lifting capacity – ideal for commercial trucks, large vans, and heavy-duty pickups
- Adjustable height settings – install at 174″, 186″, or 198″ to match your ceiling
- Overhead clearfloor design – offers unobstructed access to vehicle undercarriage
- 4 two-stage arms – designed for short to long wheelbase vehicles
- Heavy-duty saddle adapters and stackable rubber pads included
- Single-point safety lock release – disengage both columns from one location
- Automatic arm restraints – secure arms automatically during lift
- Aircraft-quality sync cables – ensures smooth, level lift operation
- Self-lubricating UHMW polyethylene sliders and bronze bushings – reduce friction and wear
- Drive-thru clearance: 109 3/4" – accommodates wide commercial vehicles
- Minimum pad height: 7 1/4" – supports tall and lifted vehicles
- Powered by 2.0 HP, 220V single-phase motor – strong, reliable performance
- AMGO 5-3-2 Warranty – 5 years on steel structure, 3 years on hydraulics, 2 years on electrical components

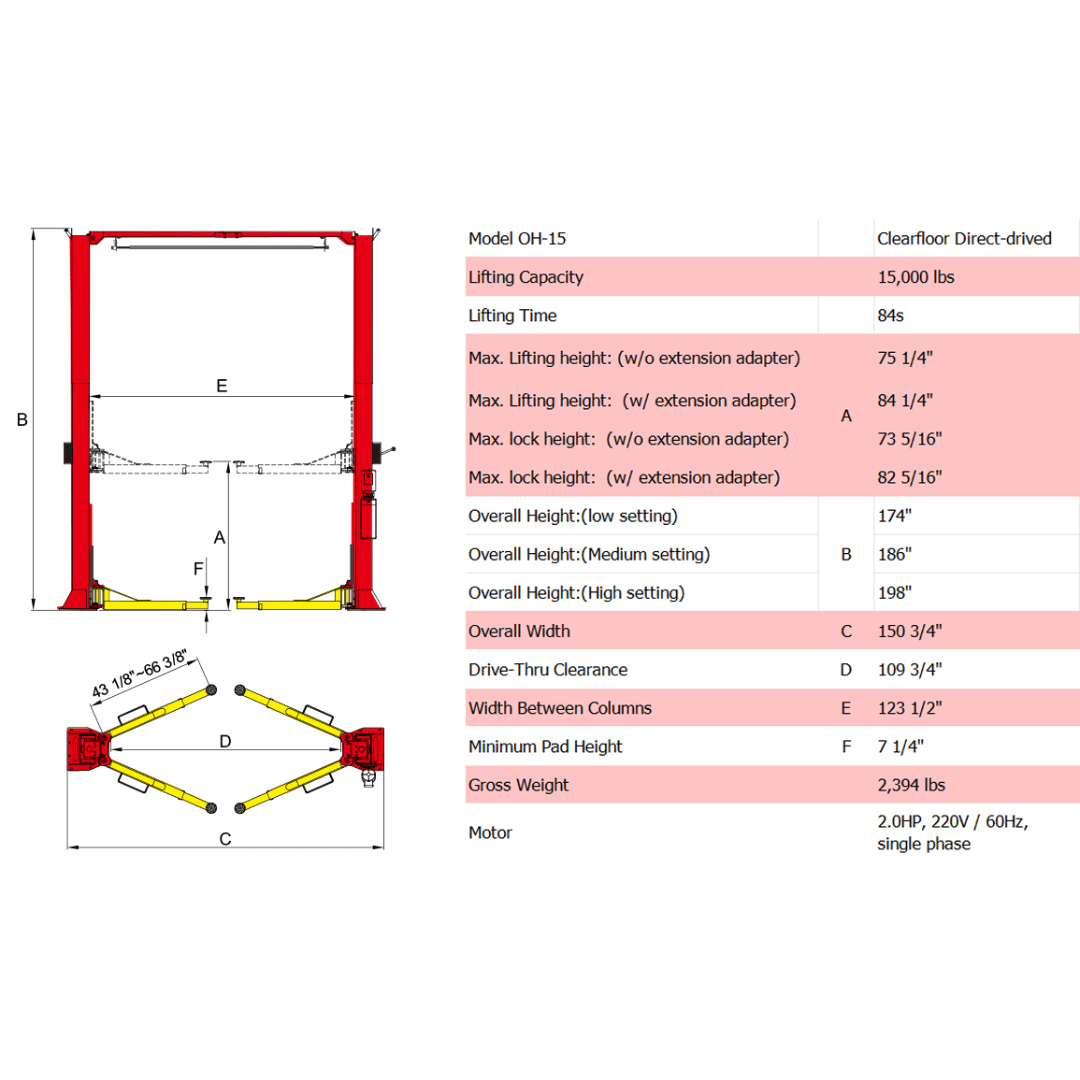

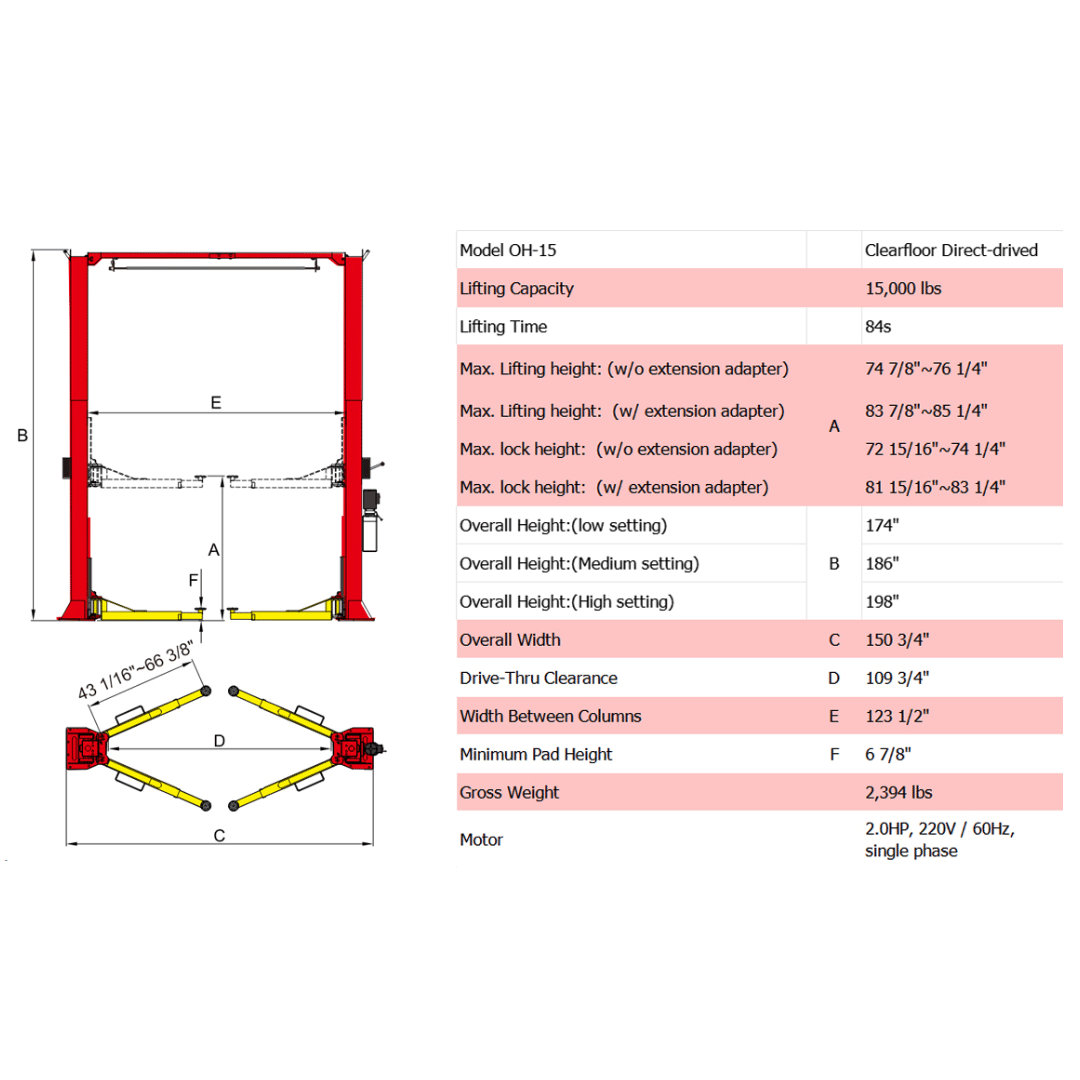

Product Specifications
| Model | OH-15 |
|---|---|
| Lifting Capacity | 15,000 lbs |
| Lifting Time | 84S |
| A: Max. Lifting Height: (w/o extension adapter) | 75 1/4″ |
| A: Max. Lifting Height: (w/ extension adapter) | 84 1/4″ |
| A: Max. Lock Height: (w/o extension adapter) | 73 5/16″ |
| A: Max. Lock Height: (w/ extension adapter) | 82 5/16″ |
| B: Overall Height: (Low Setting) | 174″ |
| B: Overall Height: (Medium Setting) | 186″ |
| B: Overall Height: (High Setting) | 198″ |
| C: Overall Width | 150 3/4″ |
| D: Drive Thru Clearance | 109 3/4″ |
| E: Width Between Columns | 123 1/2″ |
| F: Minimum Pad Height | 7 1/4″ |
| Motor | 2.0HP, 220V / 60Hz, Single Phase |
| Gross Weight | 2,394 lbs |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
