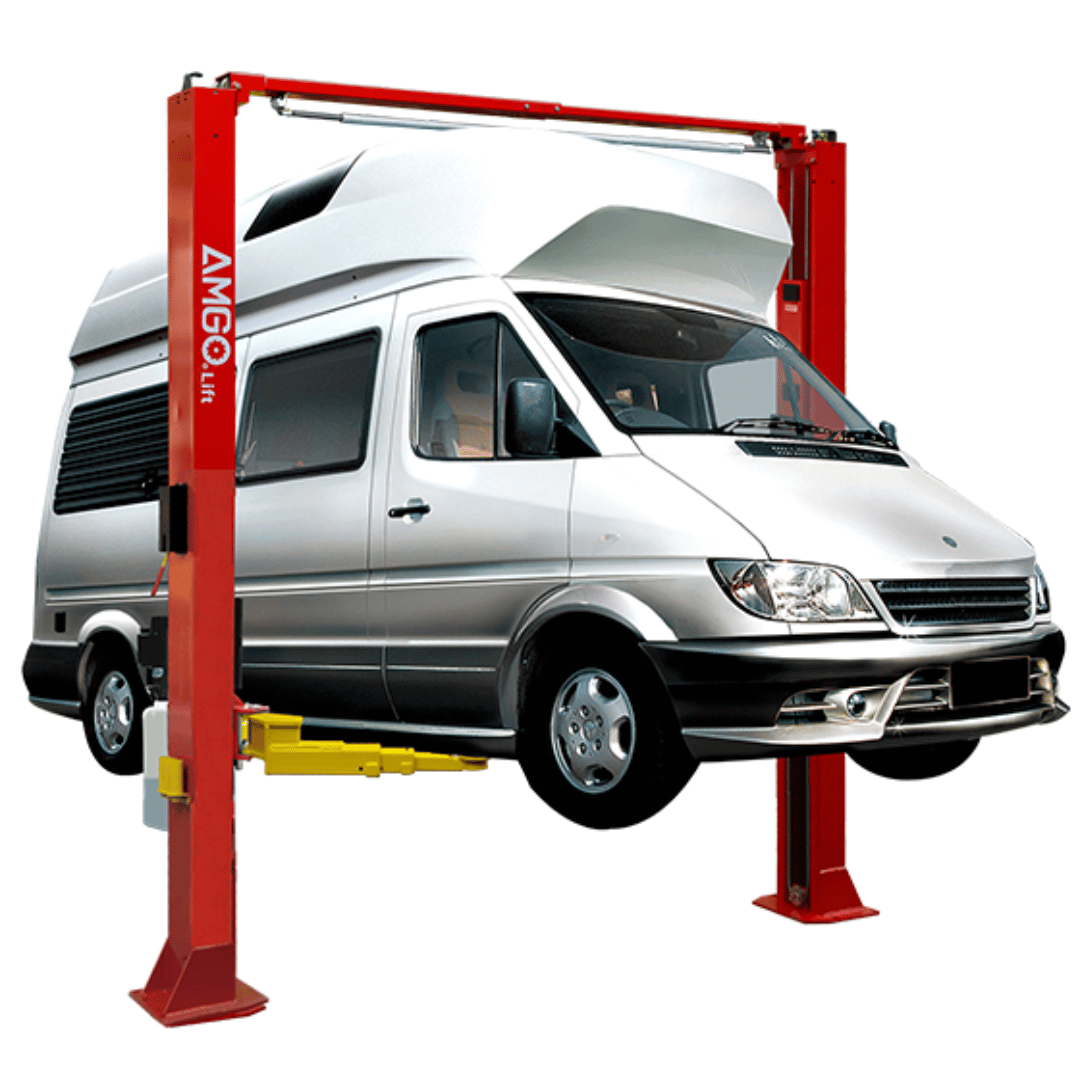

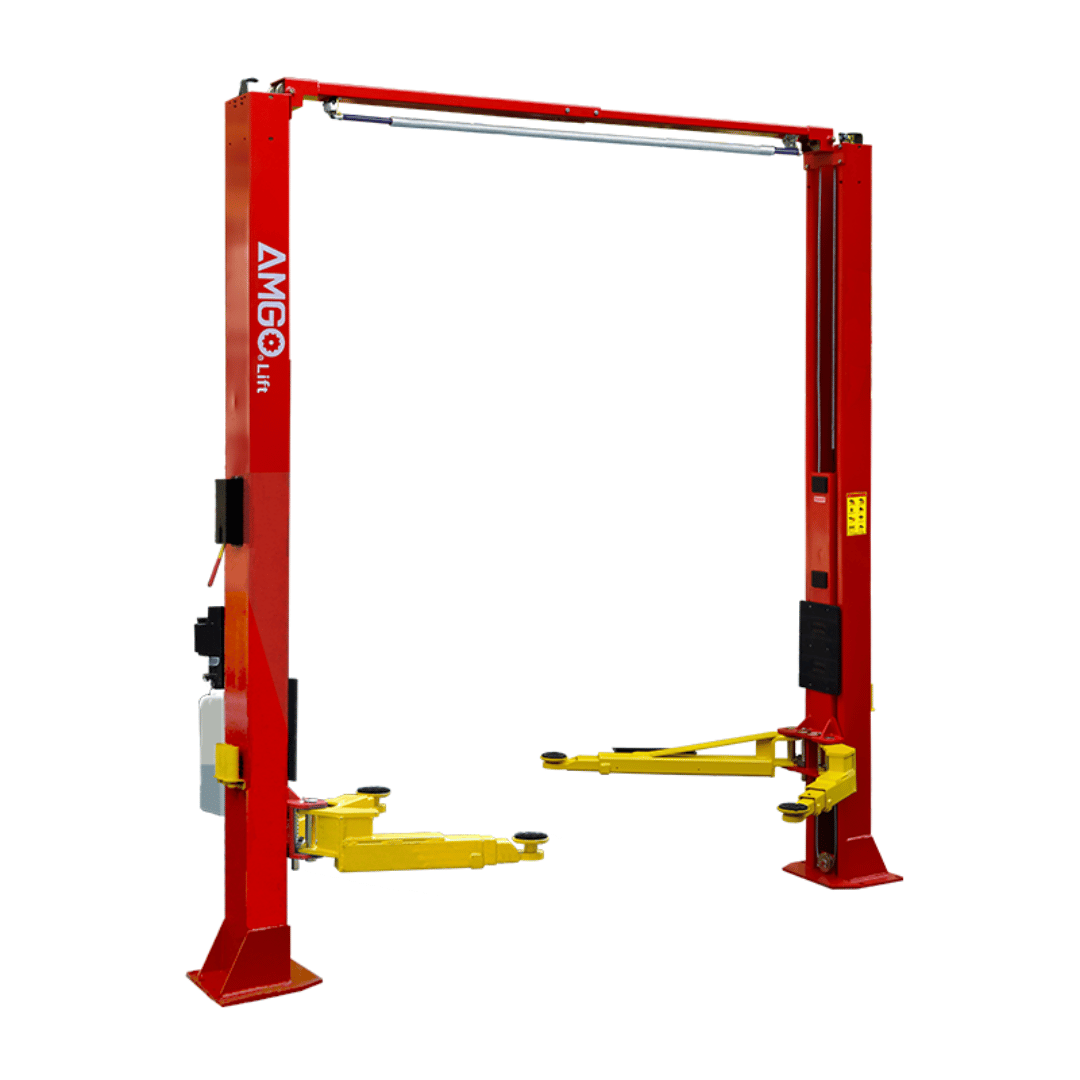

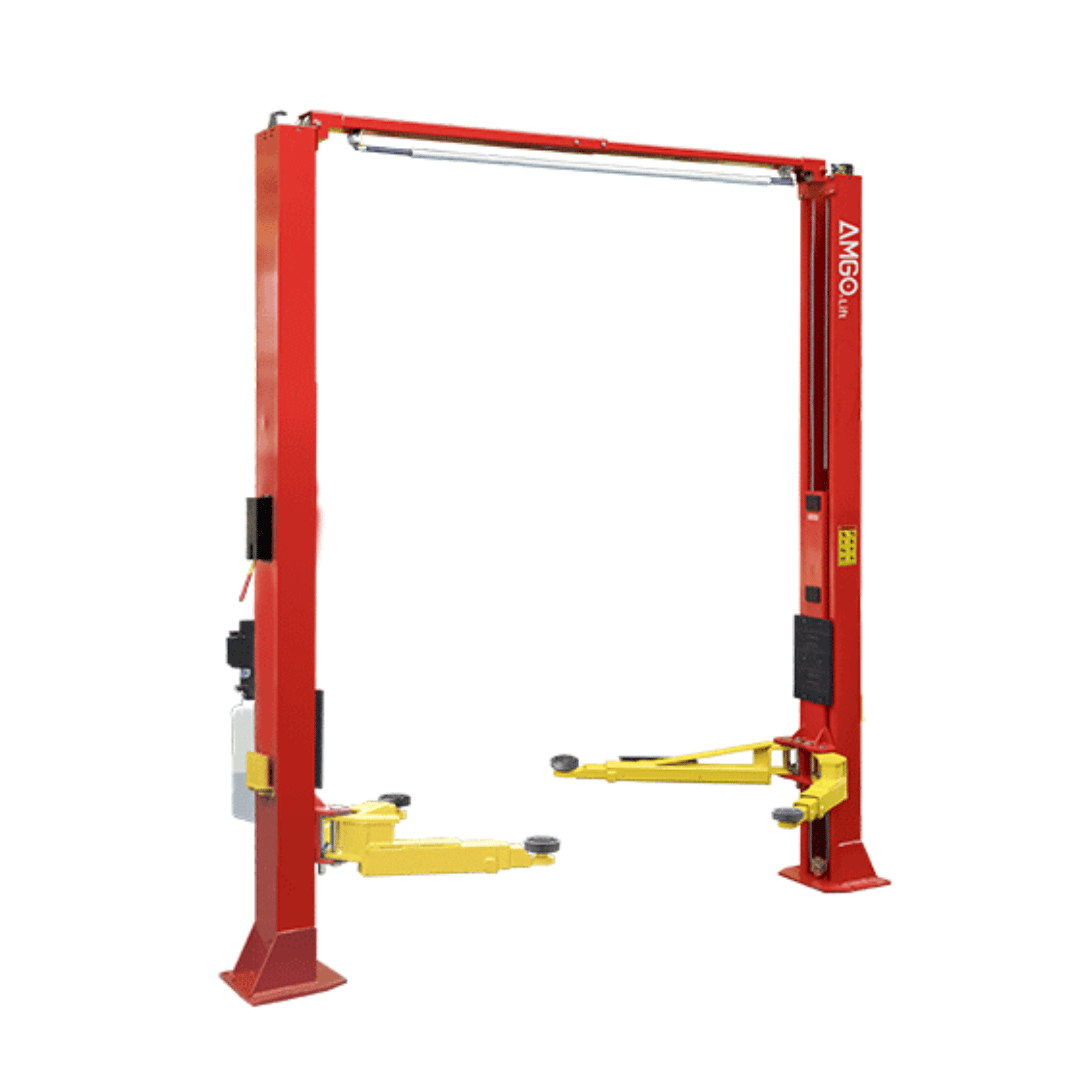

Amgo OHX-10 10,000 lb Two Post Car Lift
The Amgo OHX-10 10,000 lb Two Post Lift is engineered for professional workshops and service garages that require strength, durability, and flexible installation options. With a 10,000 lb lifting capacity, the OHX-10 is designed to handle a wide range of vehicles including cars, SUVs, and light trucks, making it an excellent choice for busy repair facilities.
The lift features a single-piece column design combined with a split-structure overhead beam, simplifying installation while improving long-term structural stability. Its extended carriages provide greater lifting support and improved load distribution, ensuring smooth operation and easier maintenance over time.
Equipped with AMGO’s patented Super Asymmetric arm technology, the OHX-10 allows both symmetric and asymmetric vehicle positioning, providing improved door clearance and easier vehicle access during service. This flexibility makes it ideal for modern repair shops that work on various vehicle sizes.
Powered by dual hydraulic direct-drive cylinders and synchronized with aircraft-grade cables, the OHX-10 delivers reliable lifting performance and balanced operation between both columns. The clear-floor overhead design keeps cables and hoses above the vehicle, providing technicians with a clean and unobstructed work area underneath.
Safety is a key priority with the OHX-10. The lift includes a single-point manual safety lock release, allowing both columns to disengage simultaneously from one side, along with an overhead shut-off device that protects vehicles from being lifted too high. Built with self-lubricating UHMW polyethylene sliders and automatic arm restraints, the lift ensures smooth operation and long-lasting durability.
Available through Gearforce USA, the Amgo OHX-10 is a professional-grade lifting solution that combines robust construction, flexible vehicle positioning, and dependable performance for demanding automotive service environments.

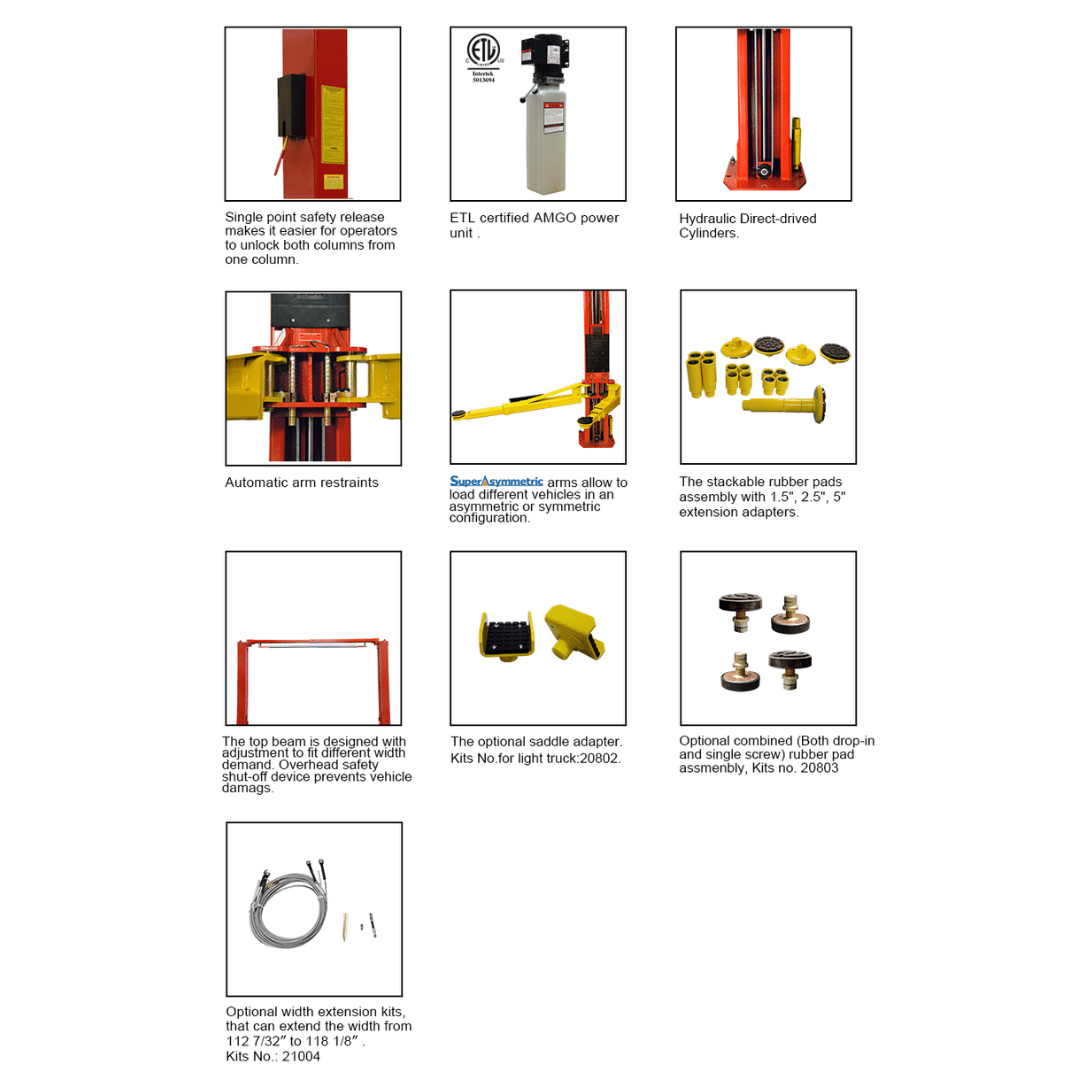

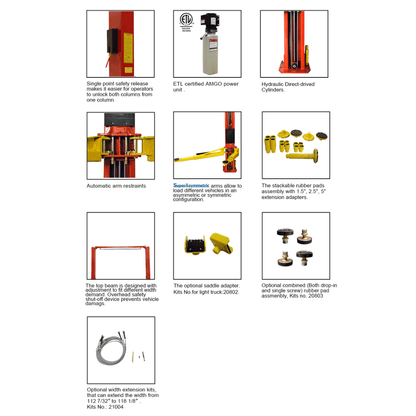

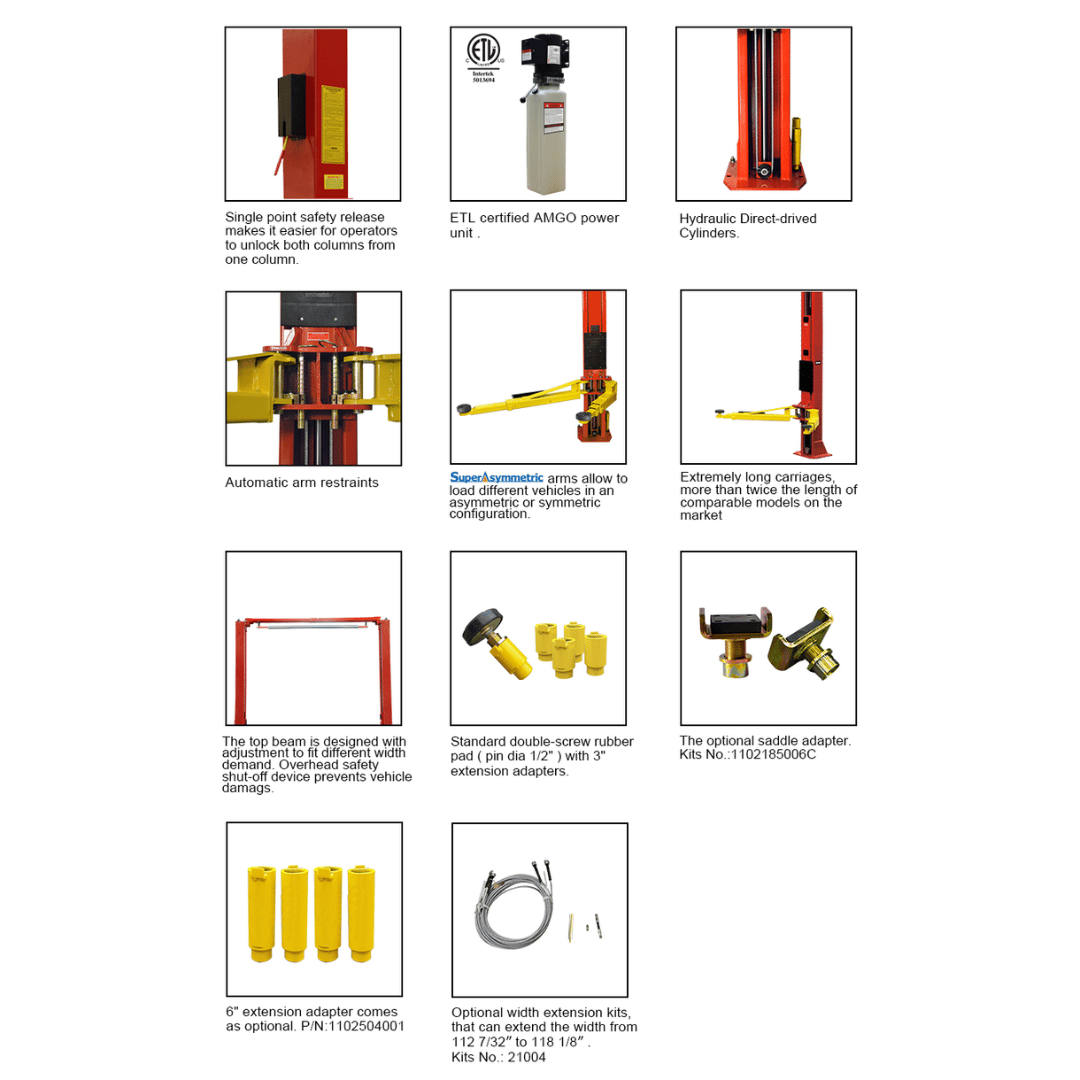

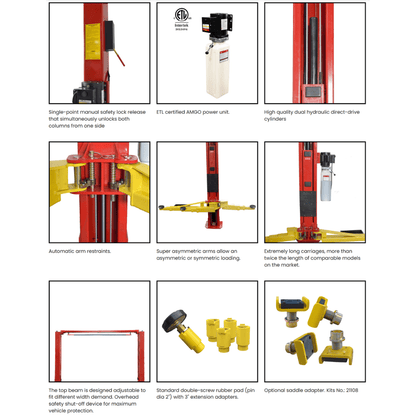

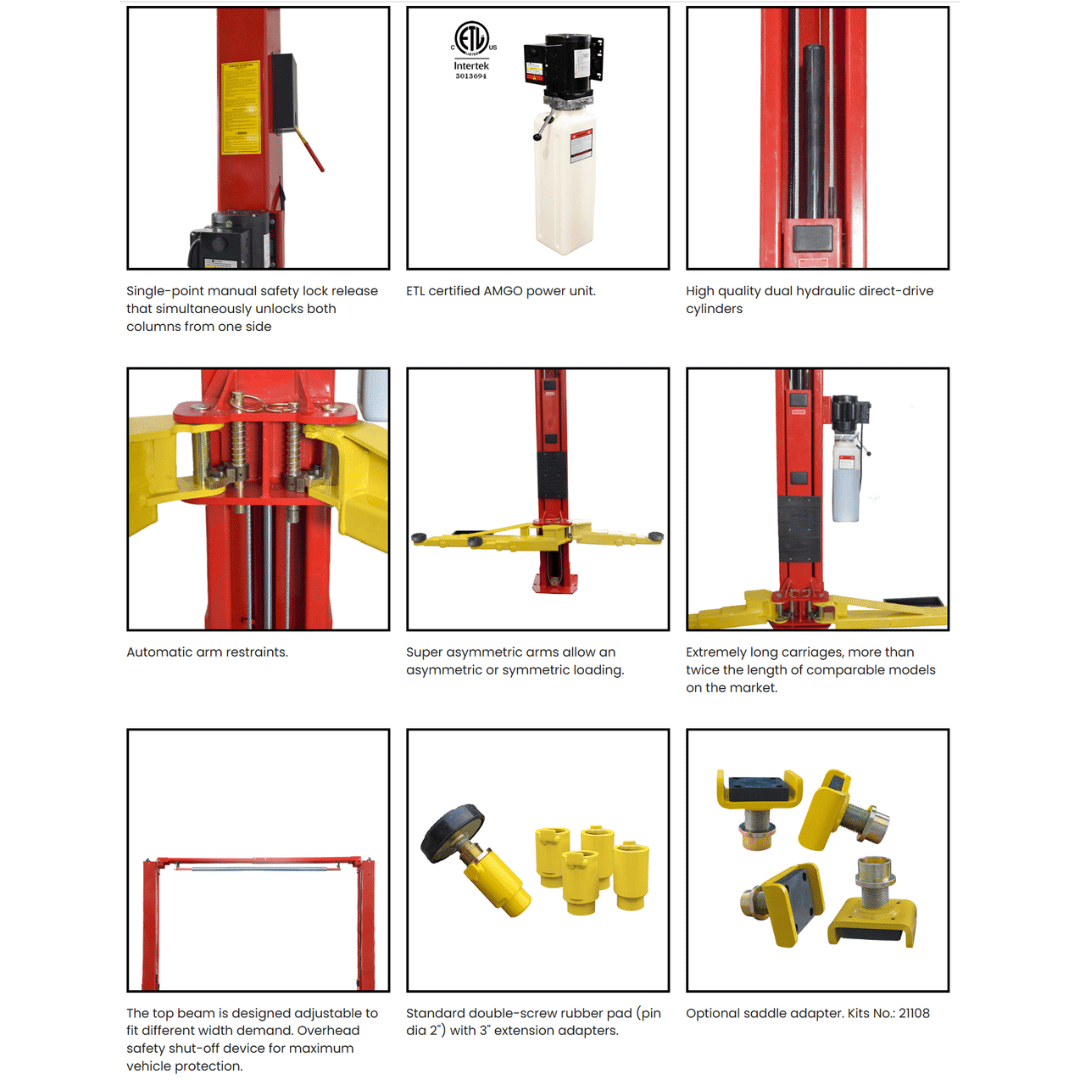

Key Features
- 10,000 lb lifting capacity for cars, SUVs, and light trucks
- Single-piece column design for easier installation and improved structural strength
- Split-structure overhead beam simplifies maintenance and servicing
- Extended carriages for improved stability and load distribution
- AMGO Super Asymmetric arm design allows symmetric or asymmetric loading
- Dual hydraulic direct-drive cylinders for smooth lifting performance
- Aircraft-grade synchronization cables for balanced operation
- Clear-floor overhead design provides unobstructed workspace
- Single-point manual safety lock release disengages both columns simultaneously
- Overhead safety shut-off device protects vehicles during lifting
- Self-lubricating UHMW polyethylene sliders for durability and reduced maintenance
- Automatic arm restraint system included
- Detachable toe guards and tool trays included
- Double-screw rubber lifting pads with 3″ extension adapters included

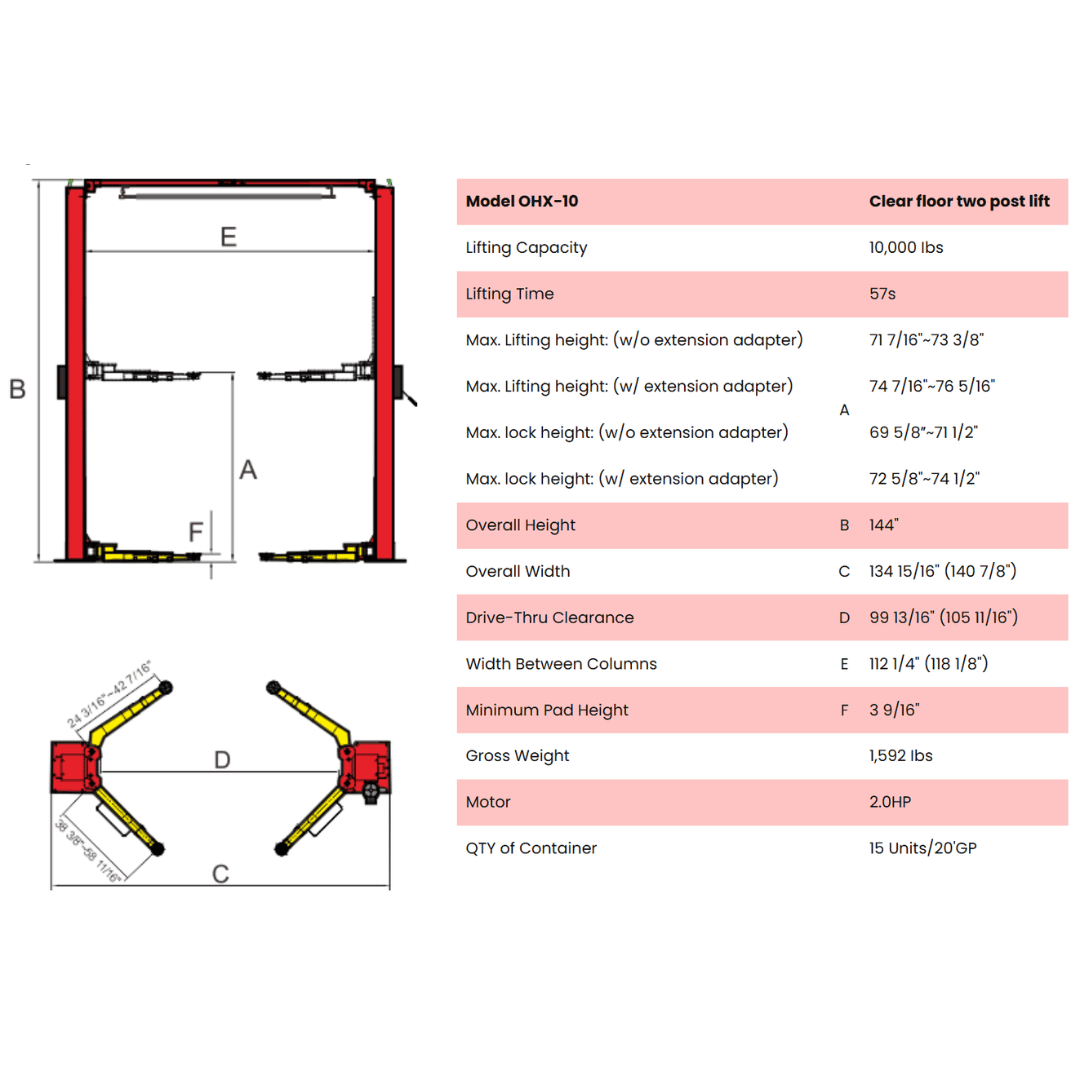

Product Specifications
| Model | OHX-10 |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Lifting Time | 57S |
| A: Max. Lifting Height: (w/o extension adapter) | 71 7/16"~73 3/8" |
| A: Max. Lifting Height: (w/ extension adapter) | 74 7/16"~76 5/16" |
| A: Max. Lock Height: (w/o extension adapter) | 69 5/8″~71 1/2" |
| A: Max. Lock Height: (w/ extension adapter) | 72 5/8"~74 1/2" |
| B: Overall Height | 144″ |
| C: Overall Width | 134 15/16" (140 7/8") |
| D: Drive Thru Clearance | 99 13/16" (105 11/16") |
| E: Width Between Columns | 112 1/4" (118 1/8") |
| F: Minimum Pad Height | 3 9/16″ |
| Gross Weight | 1,592 lbs |
| Motor | 2.0HP |

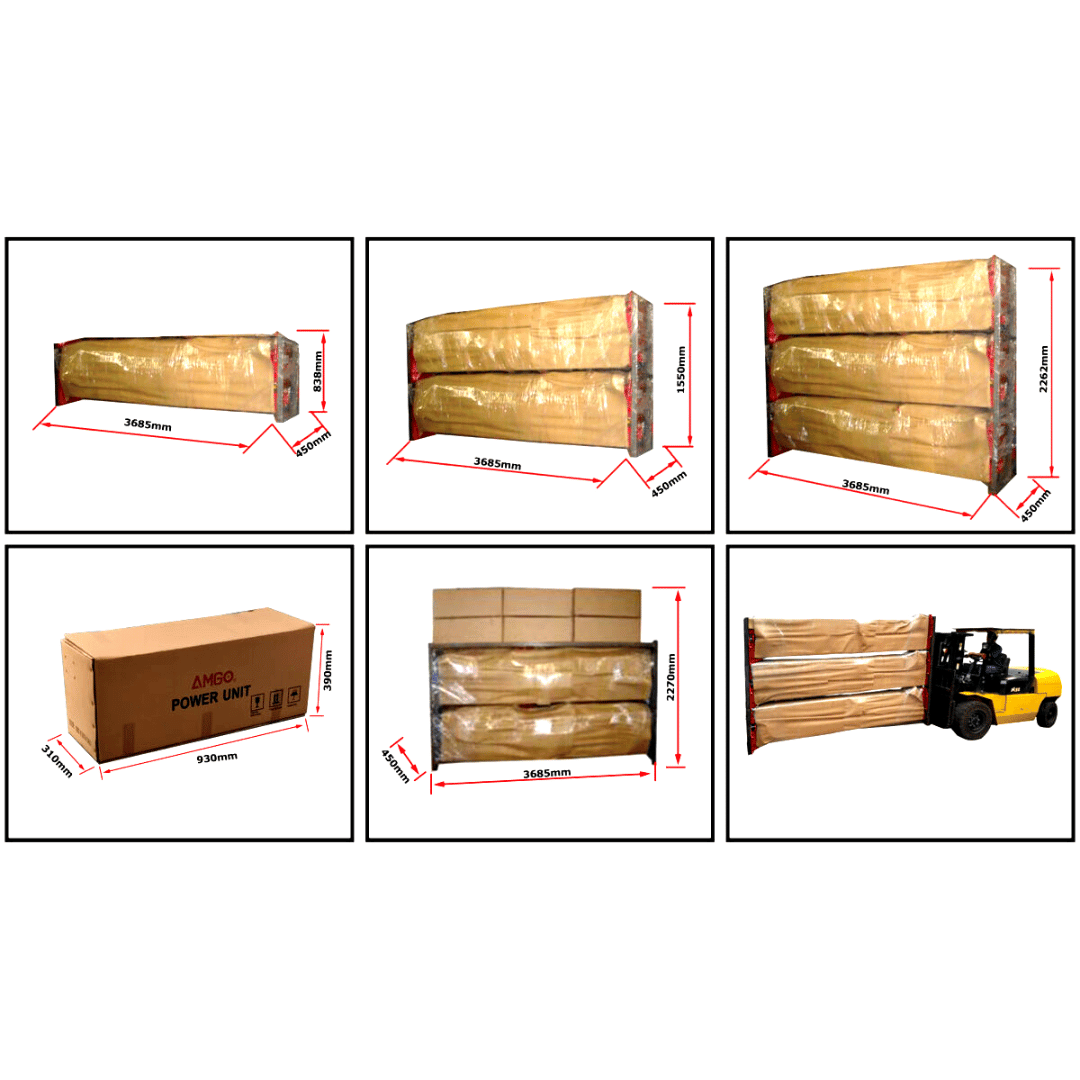

| QTY of Container | 15 Units/20'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
