Product Description

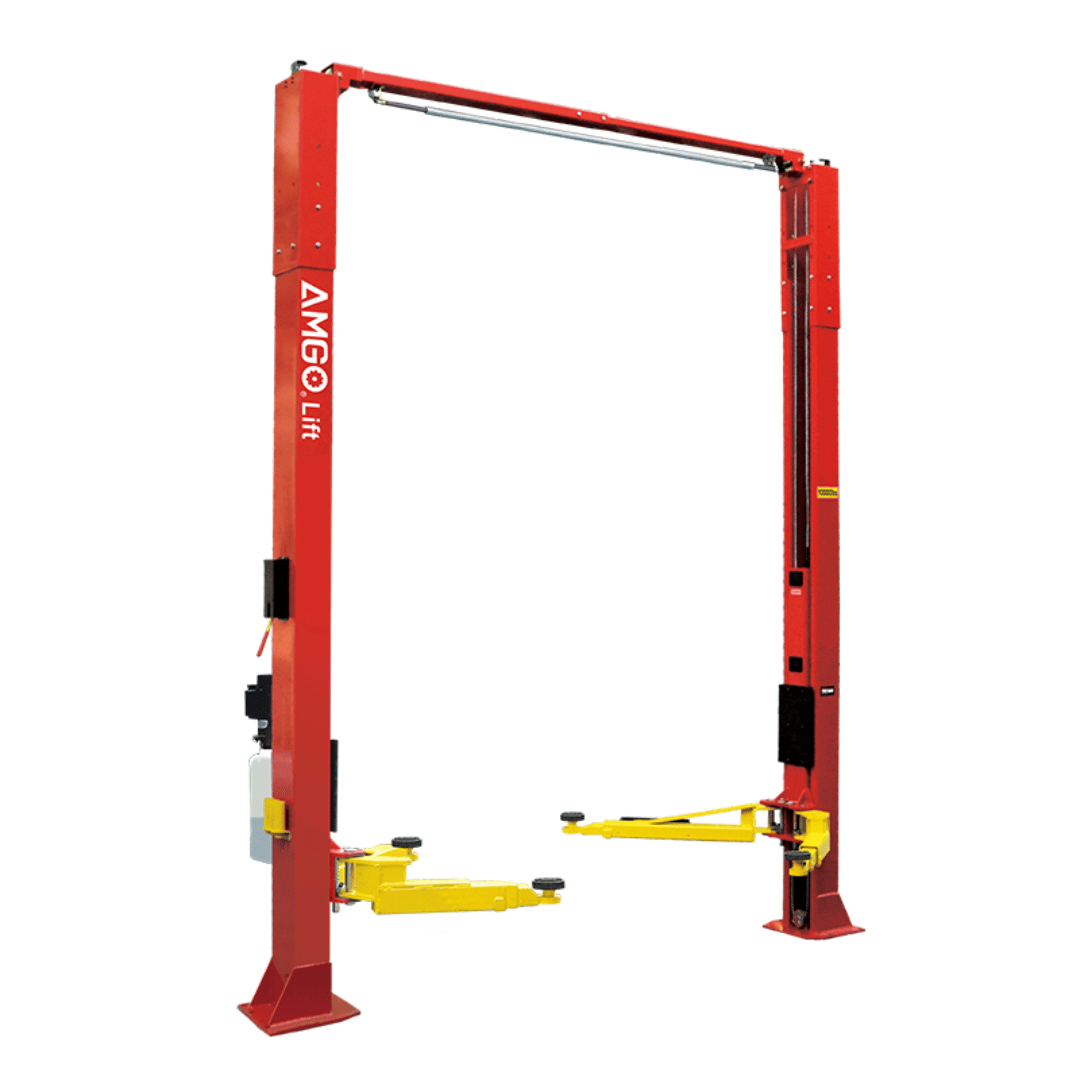

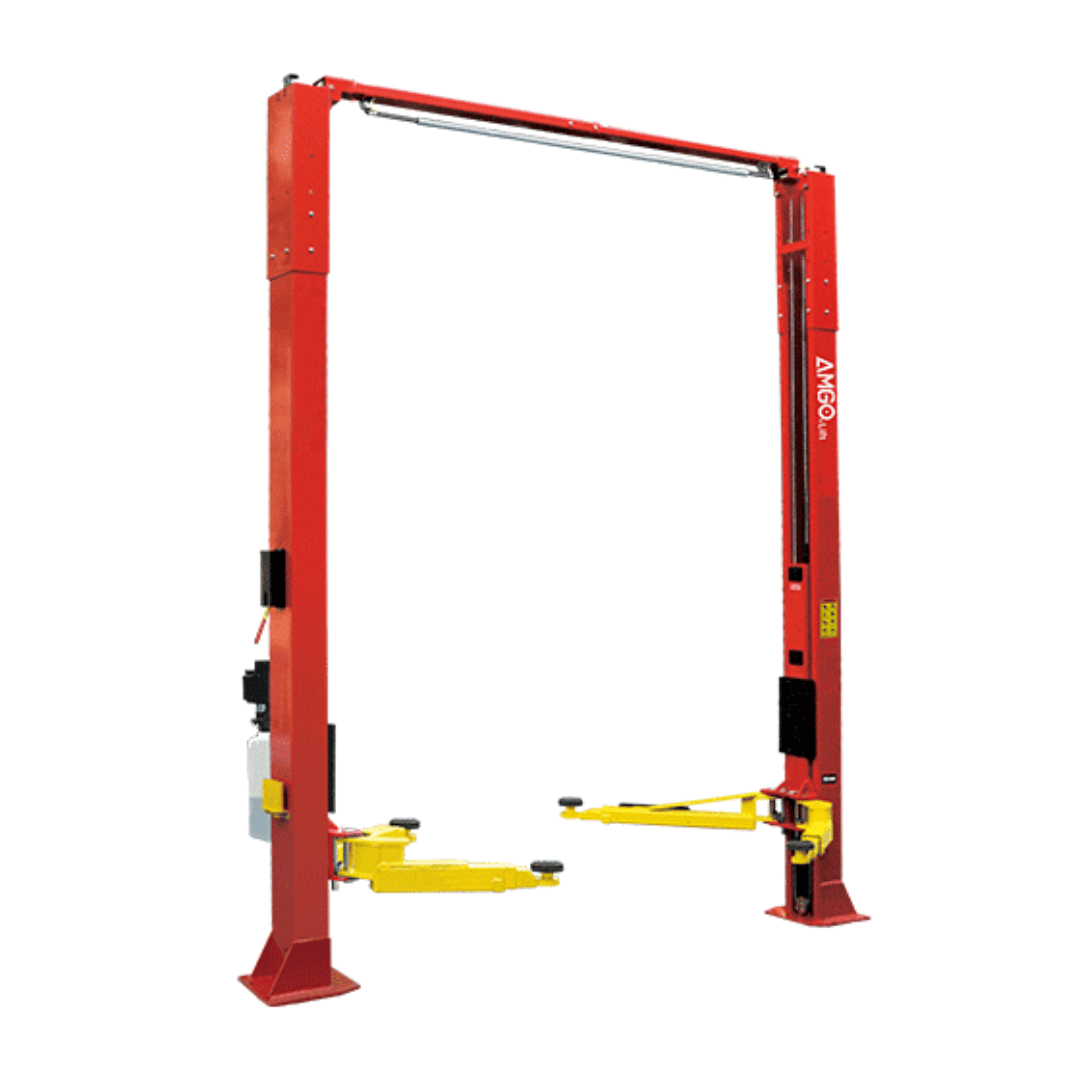

Amgo OHX-10H 10,000 lb Two Post Car Lift
The Amgo OHX-10H 10,000 lb Two Post Lift is engineered for professional automotive service environments that require exceptional lifting height and reliable performance. With a 10,000 lb lifting capacity and an extended lifting height of up to 87 3/4 inches, the OHX-10H provides technicians with increased working space beneath the vehicle for improved comfort and efficiency during repairs and maintenance.
Designed with extremely long carriages and a reinforced structure, this lift delivers excellent stability and dependable performance even under demanding workloads. The clear-floor overhead design keeps cables and hoses routed above the lift, creating an unobstructed workspace that allows technicians to move freely beneath the vehicle.
The OHX-10H incorporates AMGO’s Super Asymmetric arm technology, allowing vehicles to be positioned either symmetrically or asymmetrically for improved door clearance and easier access during service. This flexibility makes the lift suitable for servicing a wide variety of vehicles including cars, SUVs, and light trucks.
Powered by dual hydraulic direct-drive cylinders and synchronized with aircraft-grade cables, the OHX-10H ensures smooth, balanced lifting performance. The lift also features two adjustable height settings reaching up to 14 feet, allowing installation in shops with different ceiling heights. Optional height and width extension kits are also available to accommodate more specialized service requirements.
Safety remains a top priority with features such as a single-point manual safety lock release, which disengages both columns simultaneously from one side, and an overhead shut-off device to prevent vehicles from being lifted too high. Built with self-lubricating UHMW polyethylene sliders and automatic arm restraints, the OHX-10H is designed for long-term durability and minimal maintenance.
Available through Gearforce USA, the Amgo OHX-10H delivers high-clearance lifting, professional-grade construction, and dependable performance for demanding automotive service operations.

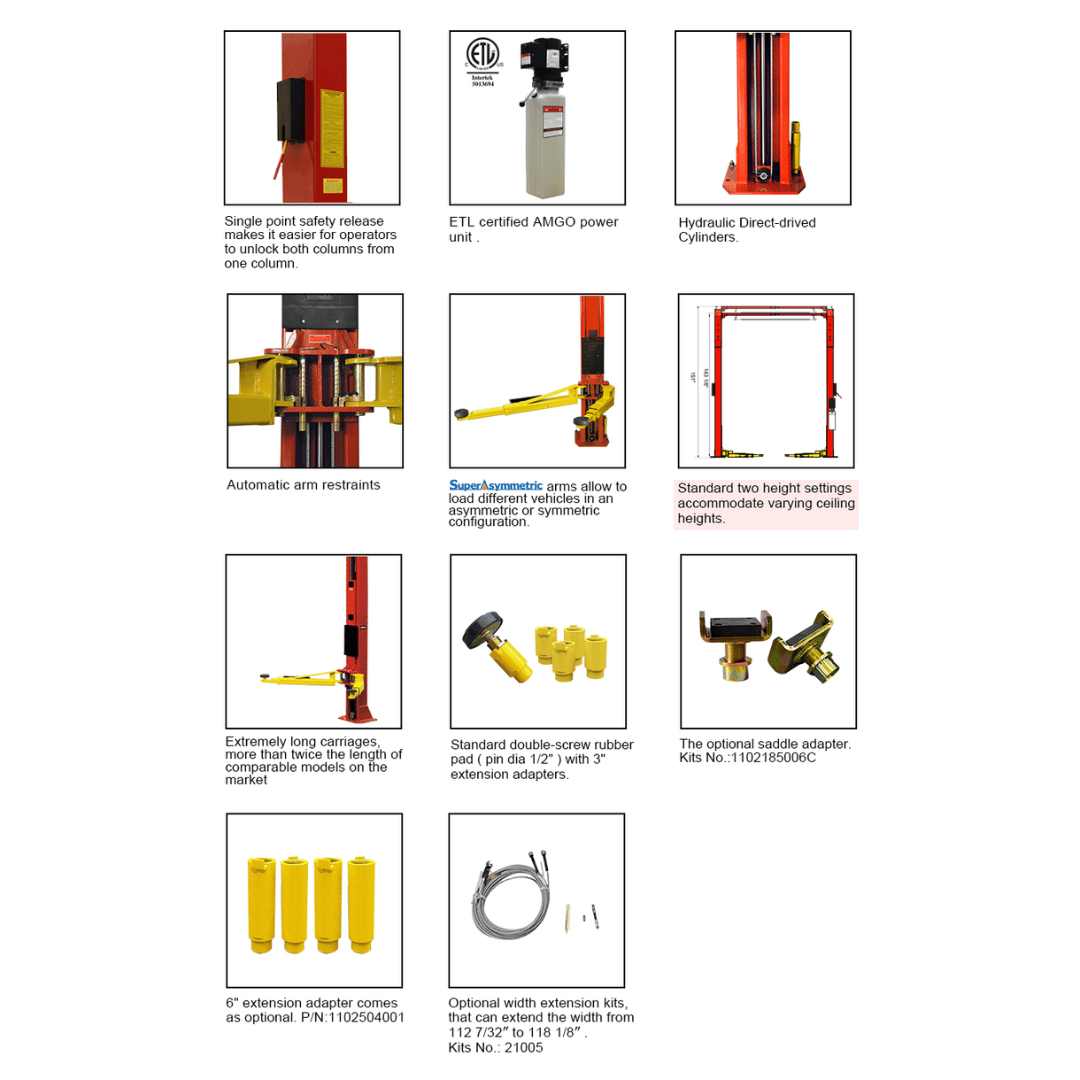

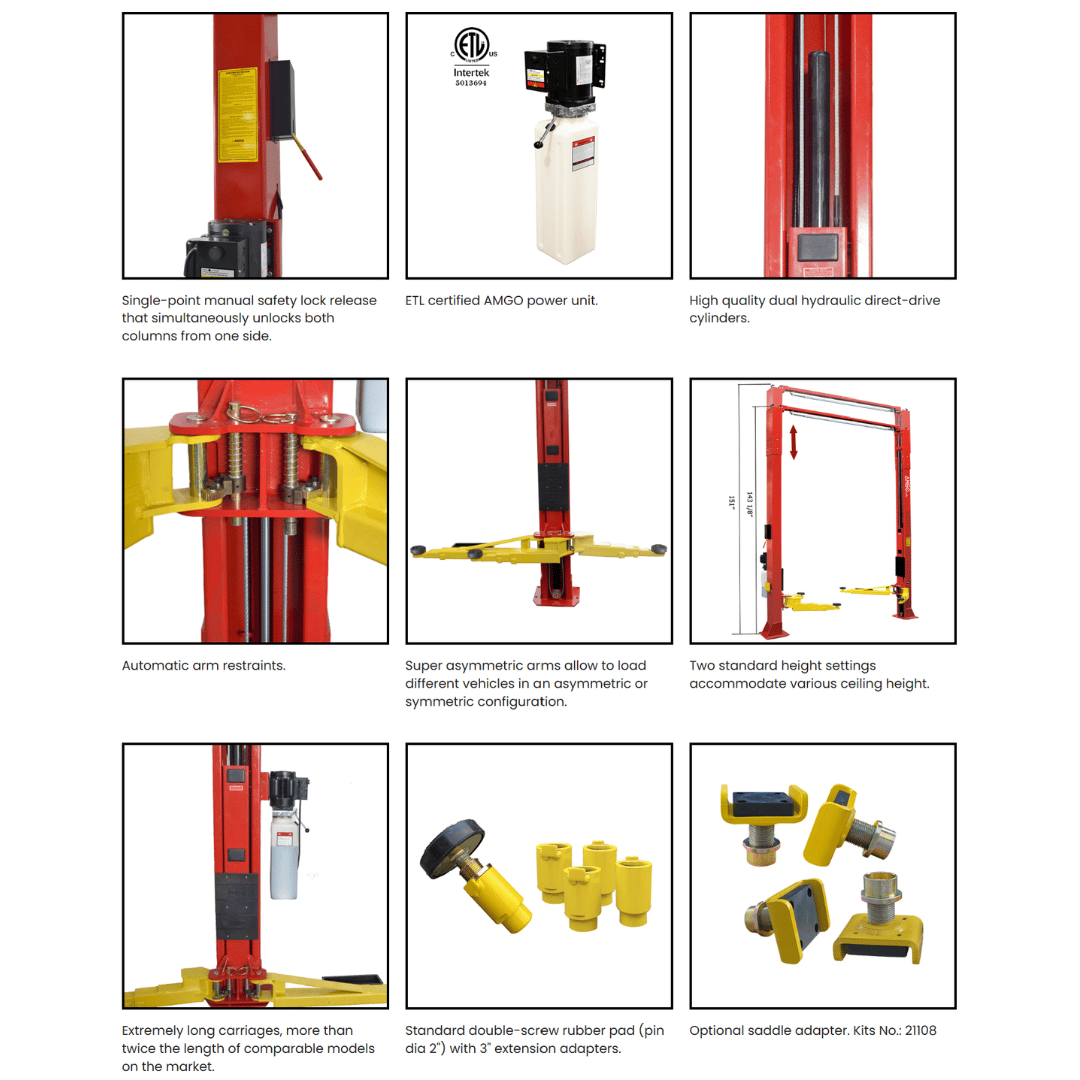

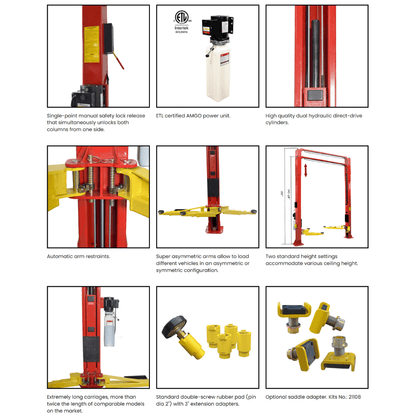

Key Features
- 10,000 lb lifting capacity for cars, SUVs, and light trucks
- Extended lifting height up to 87 3/4″ for improved working clearance
- Two adjustable height settings up to 14 ft to accommodate different ceiling heights
- AMGO Super Asymmetric arm design allows symmetric or asymmetric vehicle positioning
- Dual hydraulic direct-drive cylinders for smooth and reliable lifting
- Aircraft-grade synchronization cables ensure balanced lifting performance
- Clear-floor overhead design provides an unobstructed workspace
- Single-point manual safety lock release unlocks both columns from one side
- Overhead safety shut-off device protects vehicles during lifting
- Self-lubricating UHMW polyethylene sliders for long-lasting operation
- Automatic arm restraint system included

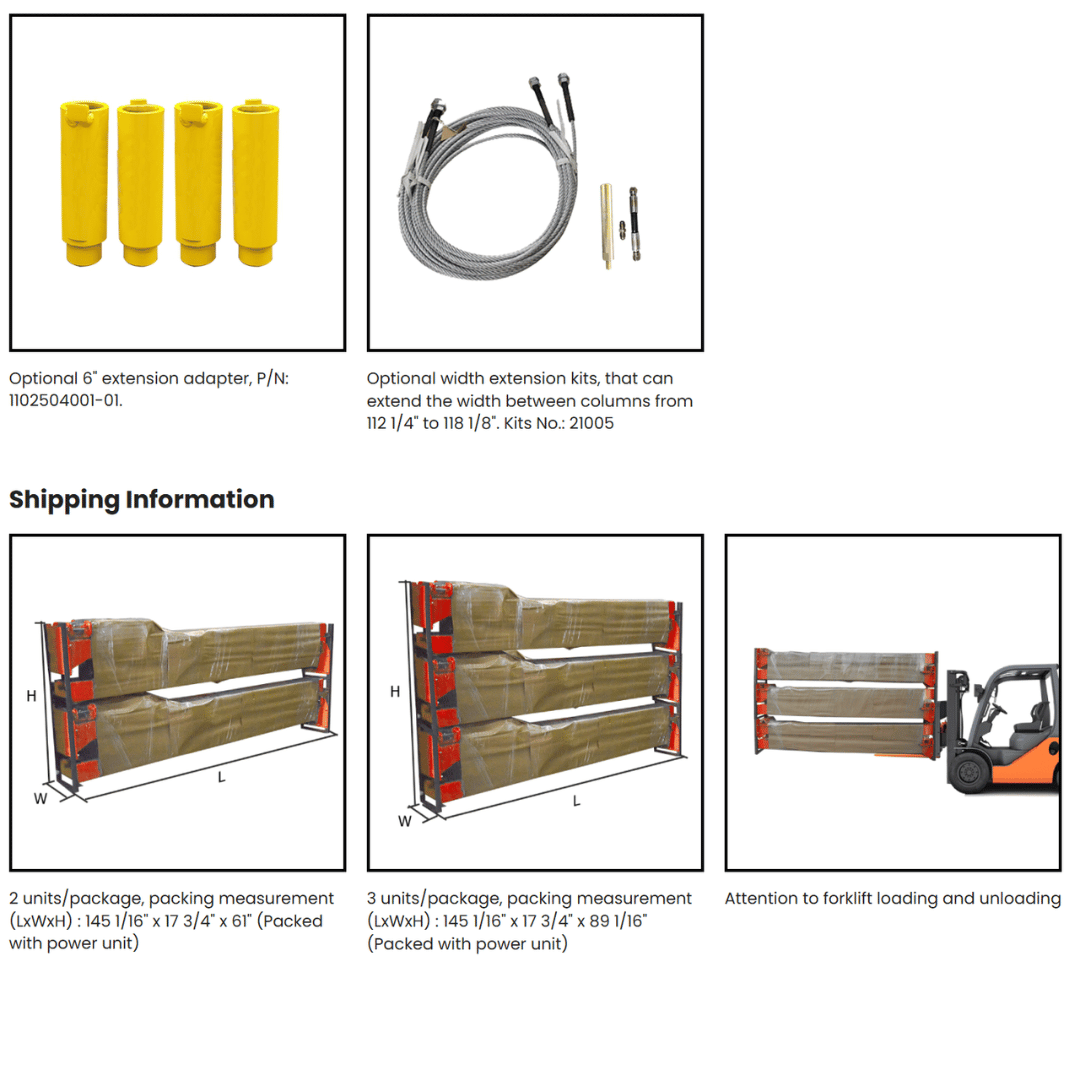

- Optional height and width extension kits available
- Detachable toe guards and tool trays included
- Heavy-duty double-screw rubber pads with 3″ extension adapters included

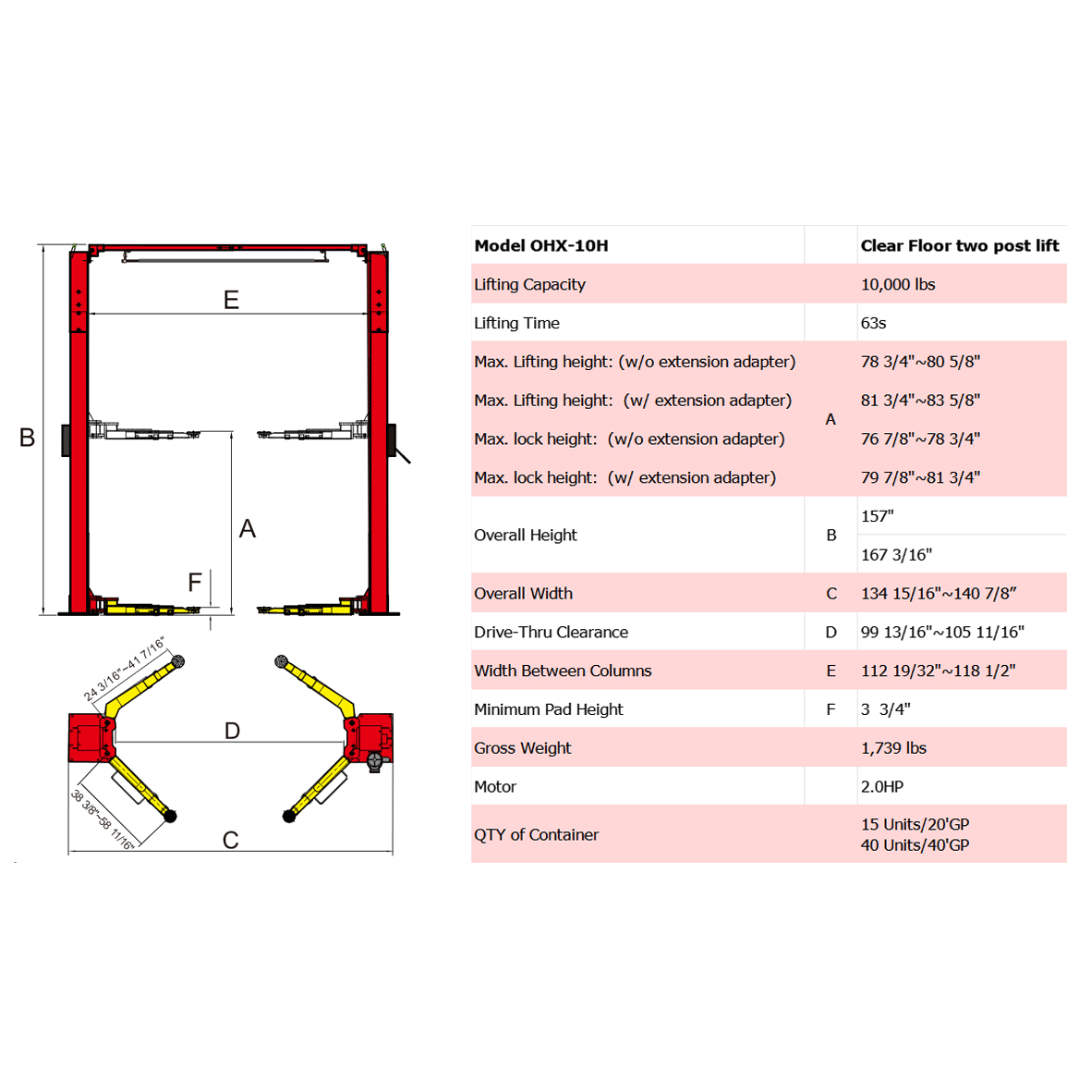

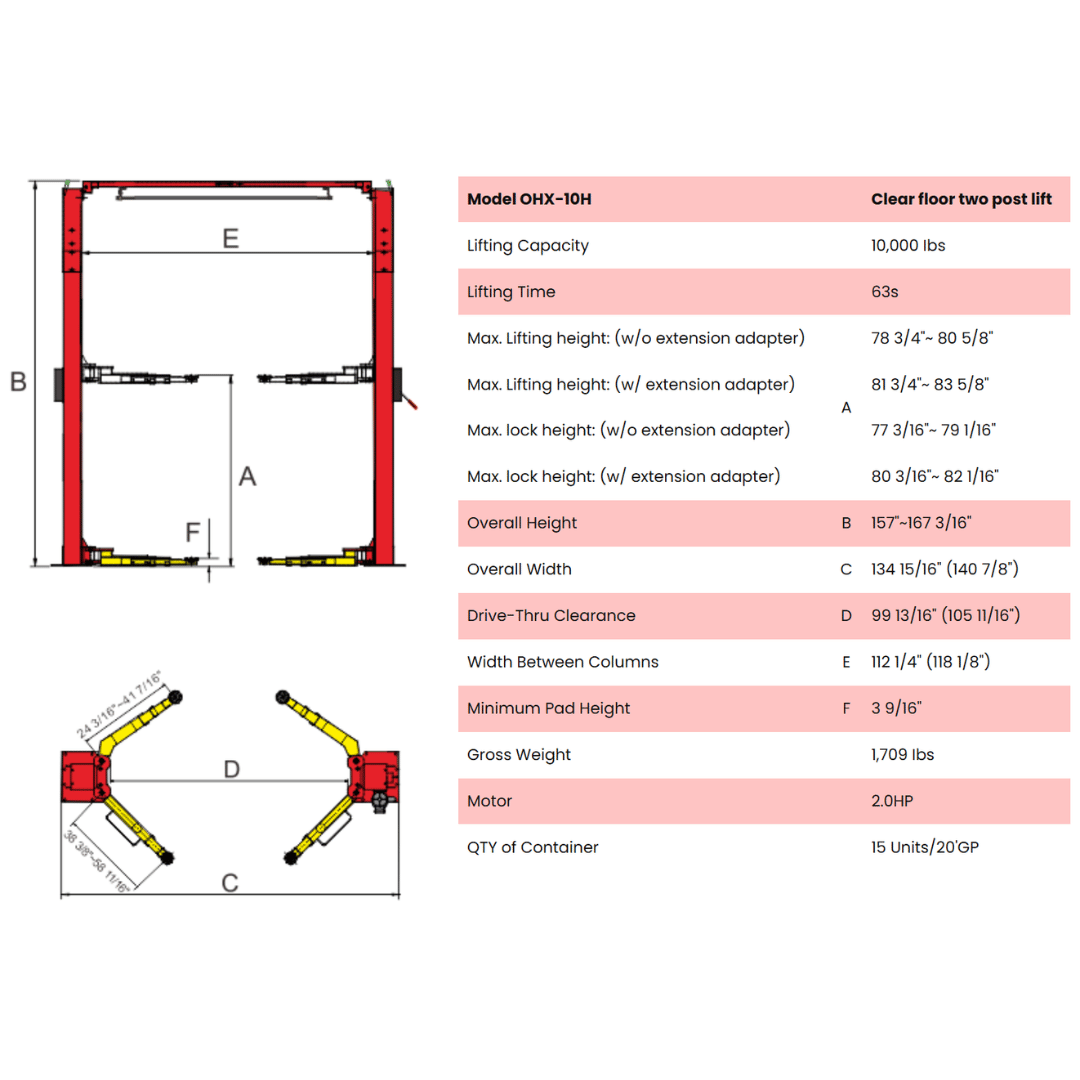

Product Specifications
| Model | OHX-10H |
|---|---|
| Lifting Capacity | 10,000 lbs |
| Lifting Time | 63S |
| A: Max. Lifting Height: (w/o extension adapter) | 78 3/4"~ 80 5/8" |
| A: Max. Lifting Height: (w/ extension adapter) | 81 3/4"~ 83 5/8" |
| A: Max. Lock Height: (w/o extension adapter) | 77 3/16"~ 79 1/16" |
| A: Max. Lock Height: (w/ extension adapter) | 80 3/16"~ 82 1/16" |
| B: Overall Height | 157"~167 3/16" |
| C: Overall Width | 134 15/16" (140 7/8") |
| D: Drive Thru Clearance | 99 13/16" (105 11/16") |
| E: Width Between Columns | 112 1/4" (118 1/8") |
| F: Minimum Pad Height | 3 9/16″ |
| Gross Weight | 1,709 lbs |
| Motor | 2.0HP |
| QTY of Container | 15 Units/20'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
