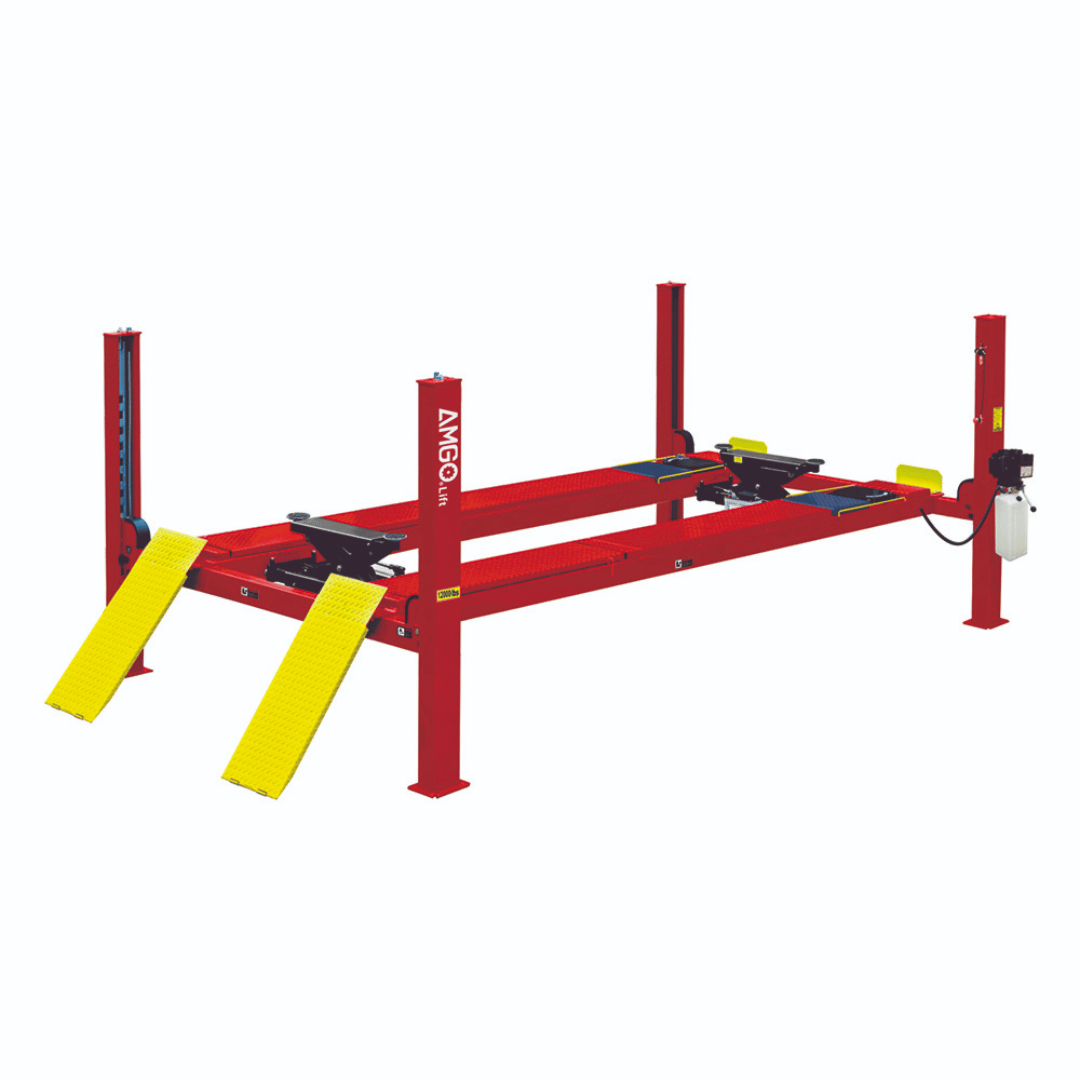

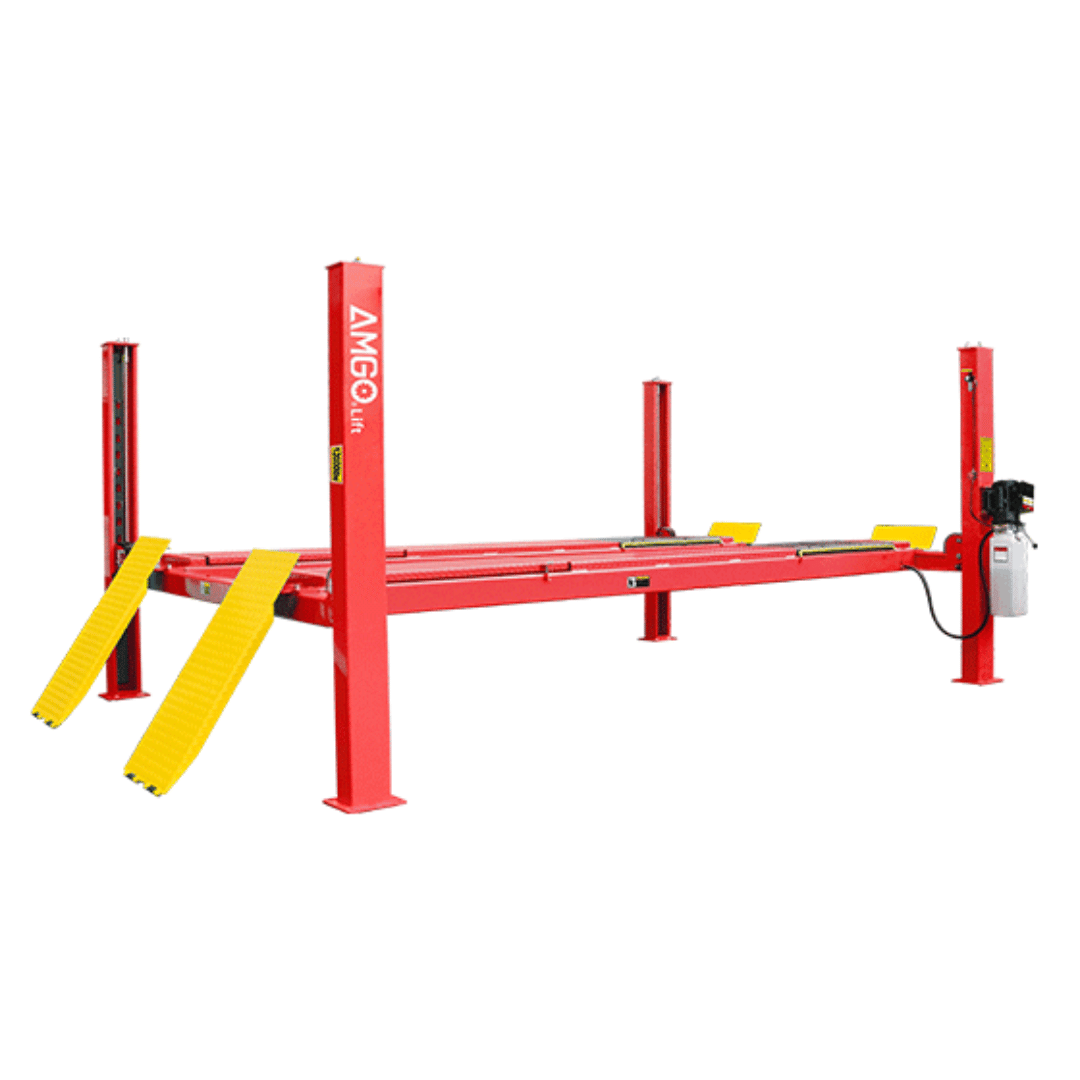

AMGO PRO-12A 4-Post Alignment Lift – 12,000 lb Capacity
Built for shops that want to expand into precision wheel service without sacrificing lifting power, the AMGO PRO-12A 4-Post Lift combines all the proven features of the PRO-12 with integrated alignment capabilities. With a 12,000 lb capacity, adjustable turnplate pockets, and slip plates built into the runways, this lift is a perfect all-in-one solution for general service and alignment work on everything from sedans to light-duty trucks.
Engineered for daily reliability and operator safety, the PRO-12A features a mechanical self-locking system, air-driven lock release, and a cable-slack protection system. Its aircraft-grade cables and high-quality hydraulic cylinder ensure smooth lifting, while the non-skid diamond platforms and stepless adjustable runway width deliver flexibility for various vehicle wheelbases.
With a drive-thru clearance of 98 3/8 inches and alignment wheelbase support from 78 3/4" to 163 3/8", the PRO-12A is built to accommodate a wide range of vehicles — making it a valuable addition to any professional garage or service center.
At Gearforce USA, the PRO-12A stands out as a versatile, shop-ready lift that supports fast-paced mechanical and alignment tasks, helping you increase productivity and expand your service offerings.

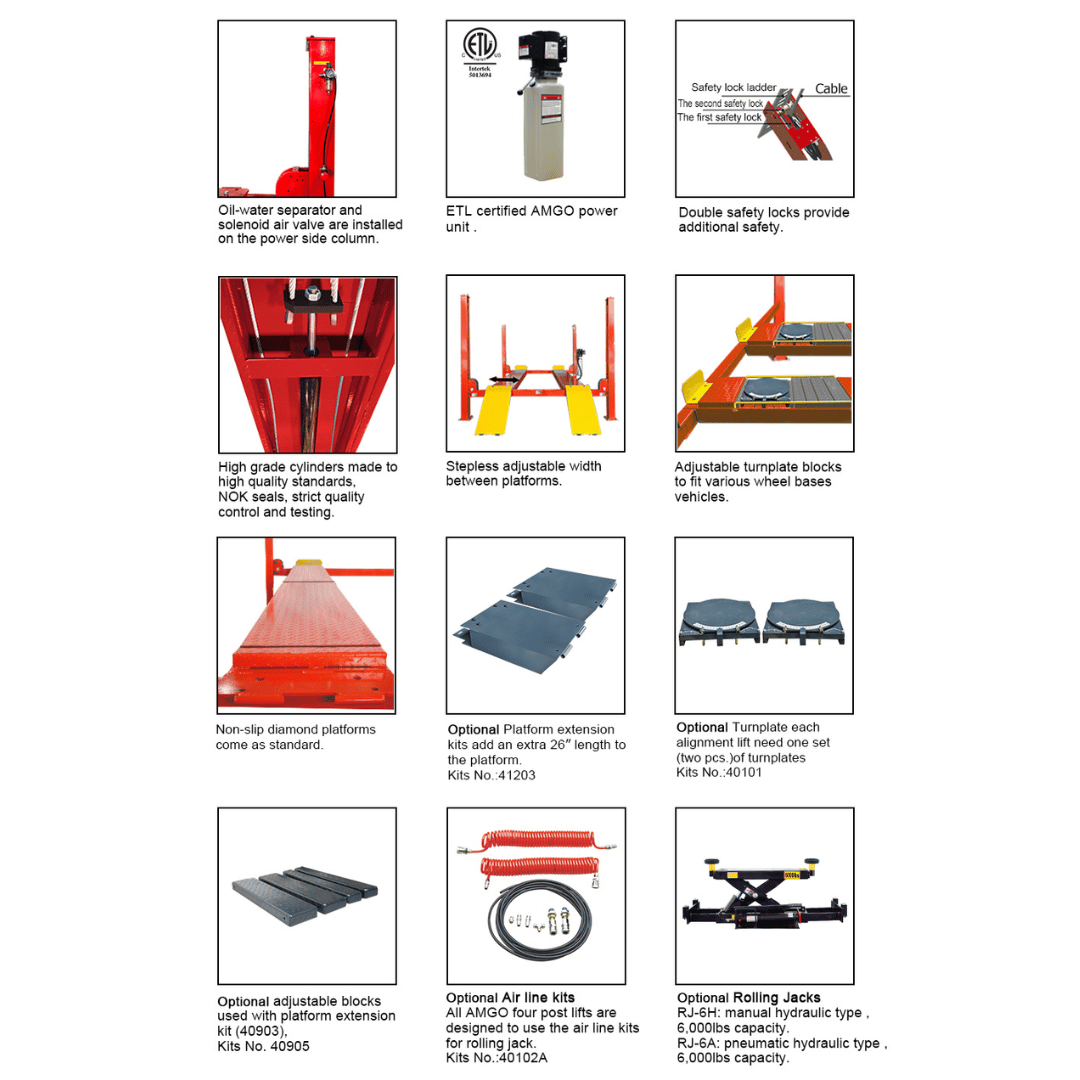

Key Features
- 12,000 lb lifting capacity – handles cars, SUVs, vans, and light-duty trucks
- Integrated slip plates – designed for precision rear wheel alignment
- Adjustable turnplate pockets – front wheel alignment flexibility for different vehicle sizes
- Stepless adjustable width between runways – adapts to a variety of wheel tracks
- ETL-certified power unit included – reliable and compliant with strict safety standards

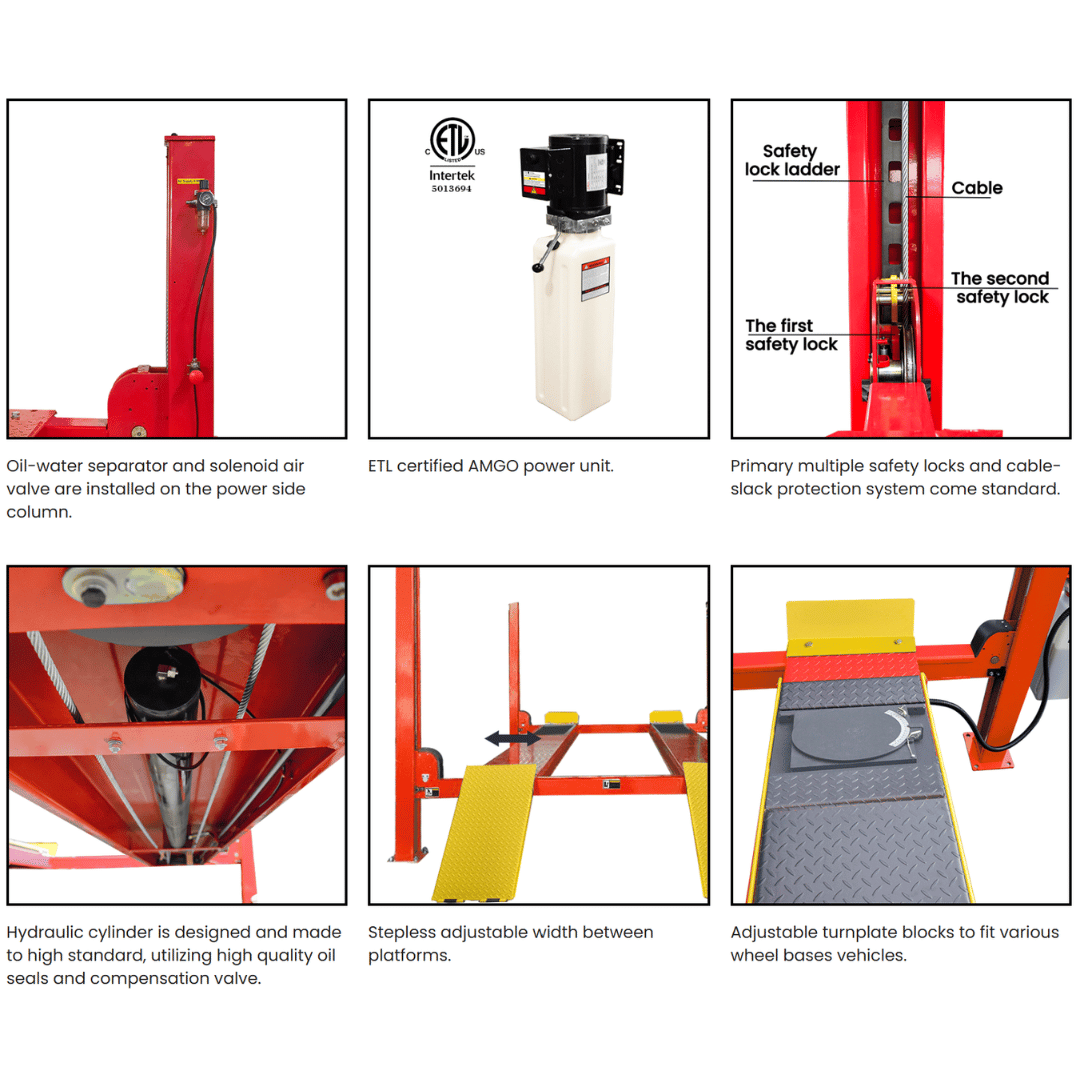

- Mechanical self-locking system with air-driven lock release – ensures safe, secure operation
- Aircraft-grade synchronization cables – high strength and smooth lift action
- High-performance hydraulic cylinder – with premium seals and compensation valve

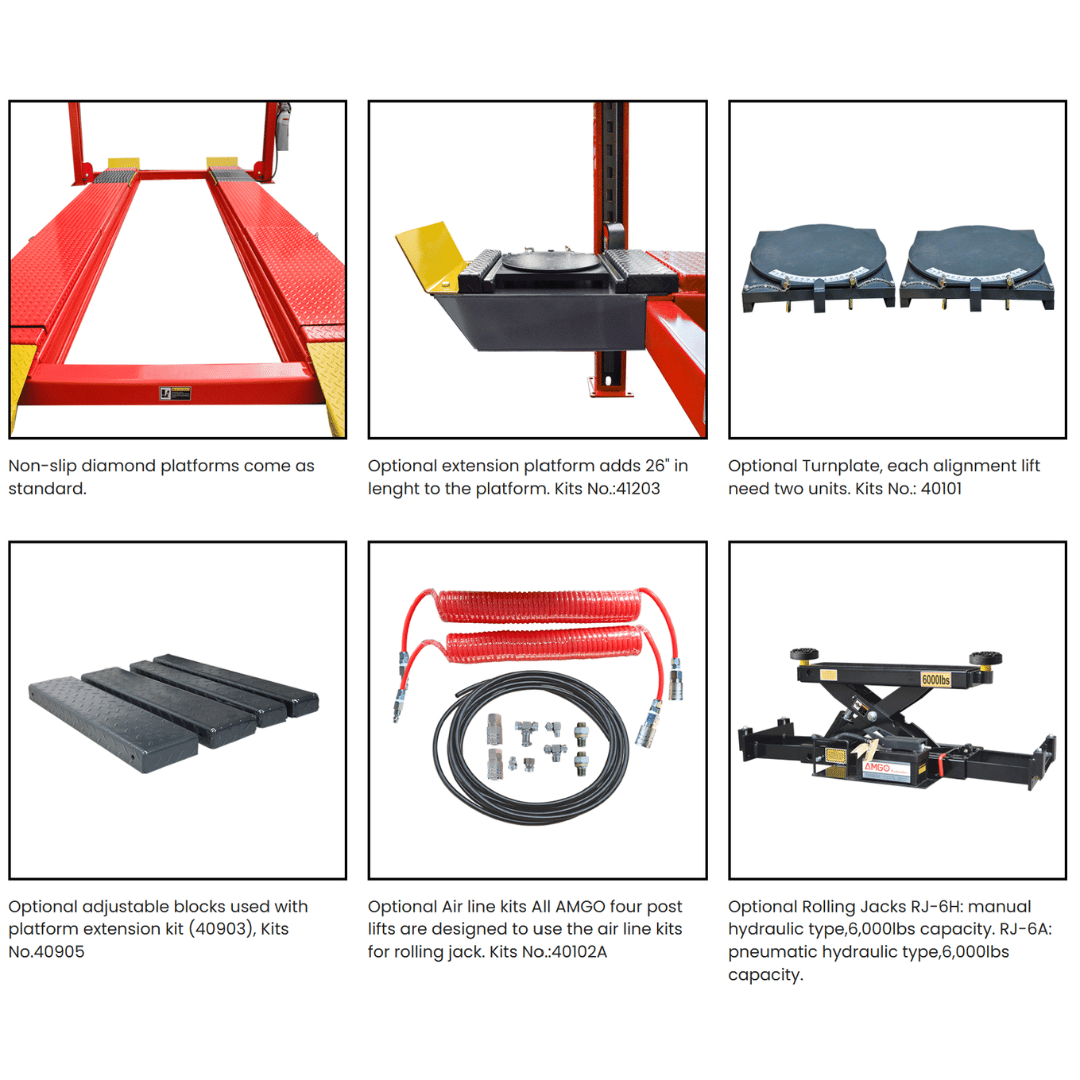

- Non-skid diamond runways – secure platform surface even during wheel service
- Drive-thru clearance: 98 3/8" – supports larger vehicles with ease
- Max lifting height: 76" | Under-runway clearance: 68 1/8"
- Motor: 2.0 HP – dependable and consistent lifting power
- Supports 4-wheel alignment wheelbases from 78 3/4″ to 155 1/2″
- AMGO Warranty: 5 years on structure, 3 years on hydraulics, 2 years on electrical components

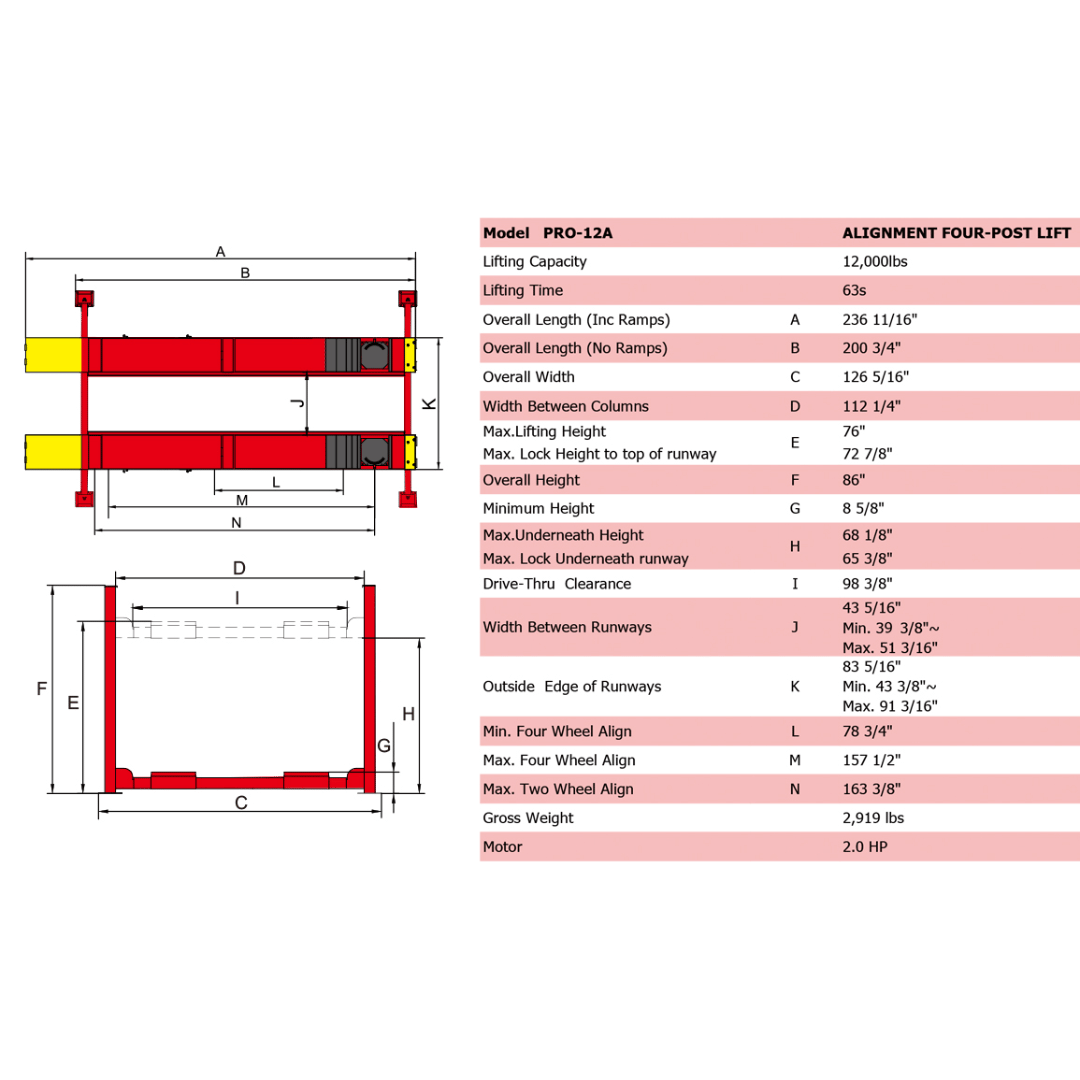

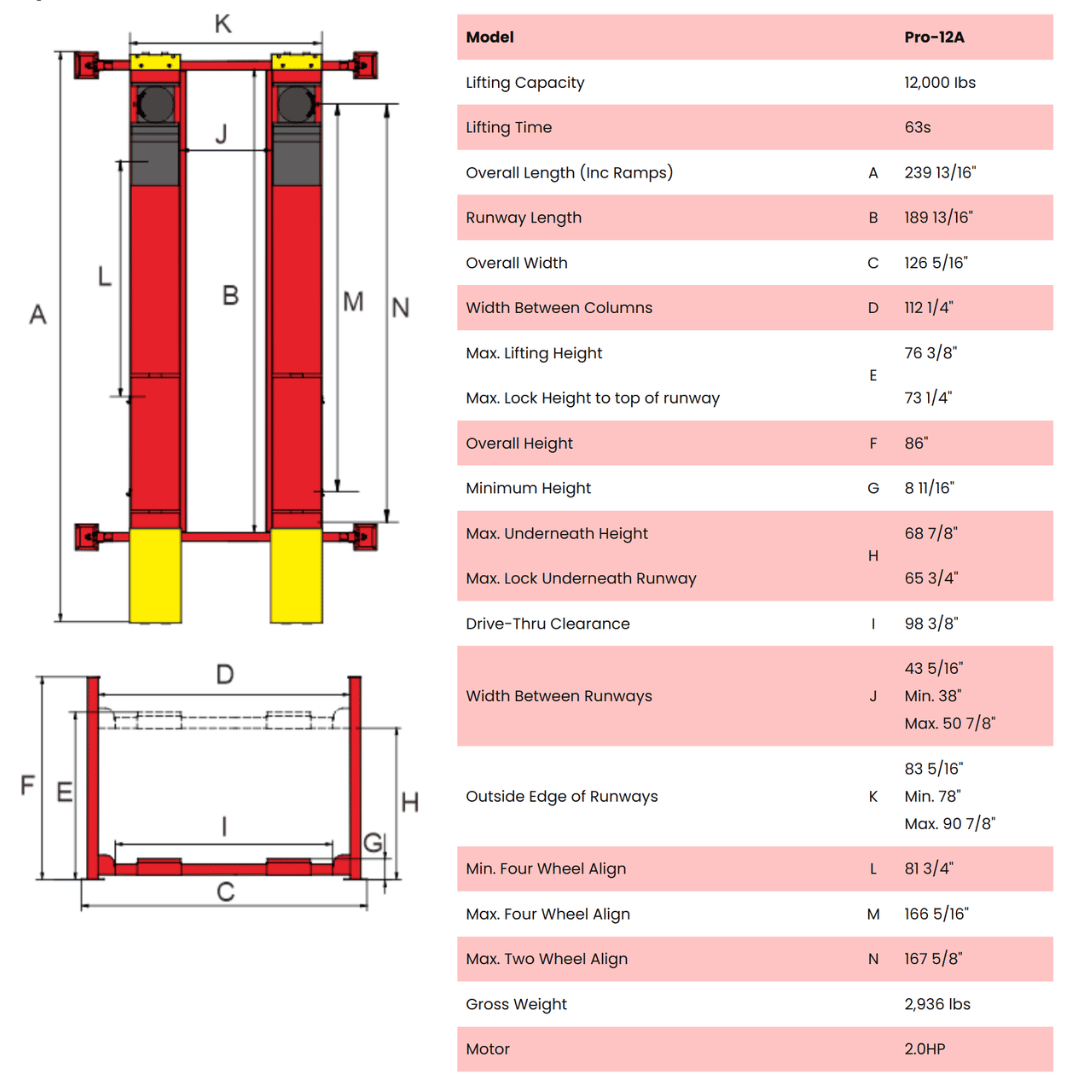

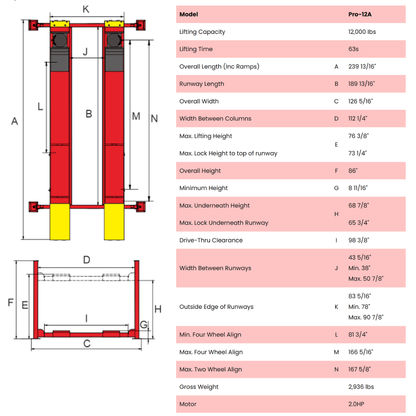

Product Specifications
| Model | PRO-12A |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 63S |
| A: Overall Length (Inc.Ramps) | 236 11/16″ |
| B: Overall Length (No.Ramps) | 200 3/4″ |
| C: Overall Width | 126 5/16″ |
| D: Width Between Columns | 112 1/4″ |
| E: Max. Lifting Height | 76″ |
| E: Max. Lock Height to Top of Runway | 72 7/8″ |
| F: Overall Height | 86″ |
| G: Minimum Height | 8 5/8″ |
| H: Max. Underneath Height | 68 1/8″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 98 3/8″ |
| J: Width Between Runways | 43 5/16″, Min. 39 3/8″, Max. 51 3/16″ |
| K: Outside Edge of Runways | 83 5/16″, Min. 43 3/8″, Max. 91 3/16″ |
| L: Min. Four Wheel Align | 78 3/4″ |
| M: Max. Four Wheel Align | 155 1/2″ |
| N: Max. Two Wheel Align | 163 3/8″ |
| Gross Weight | 2,919 lbs |
| Motor | 2.0HP |
