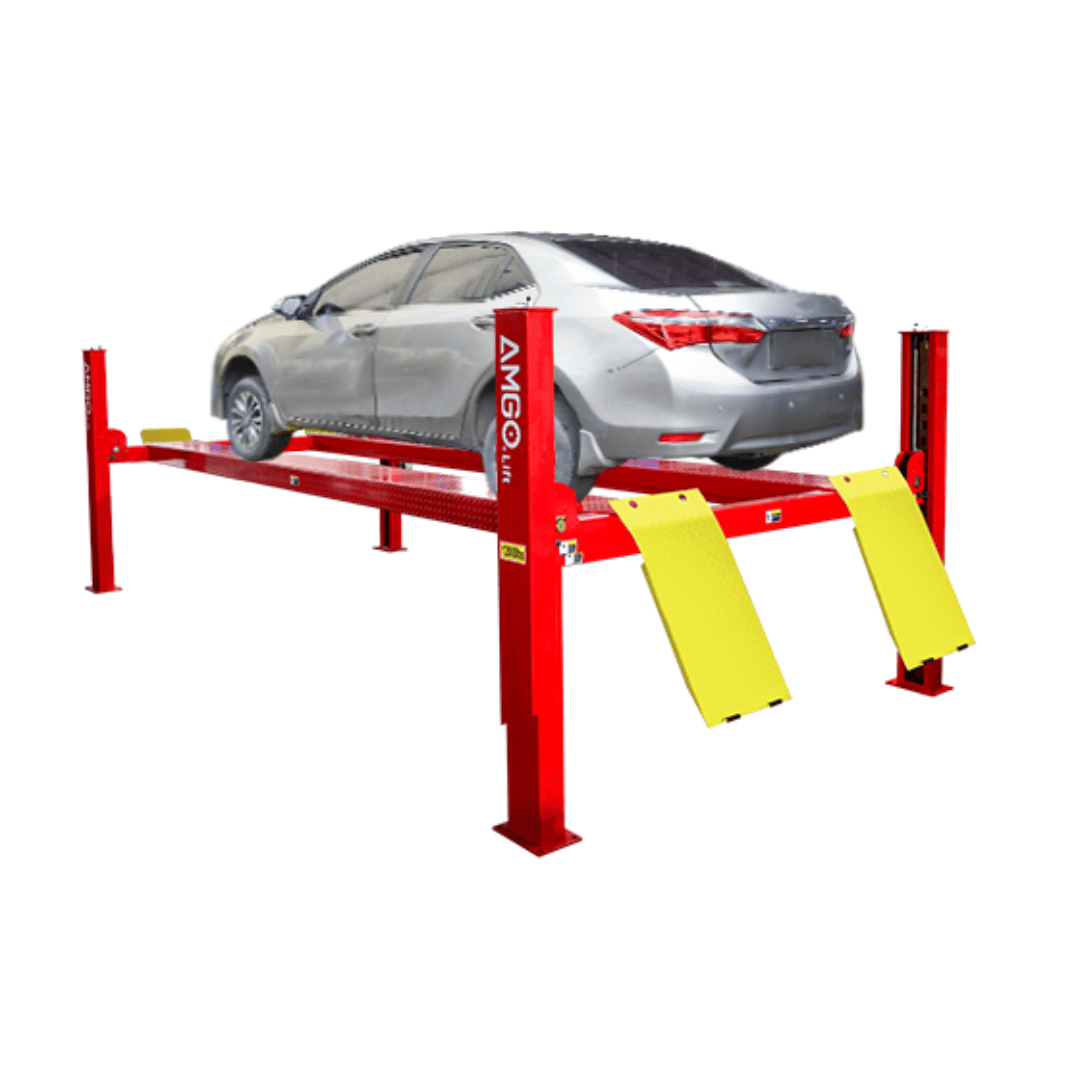

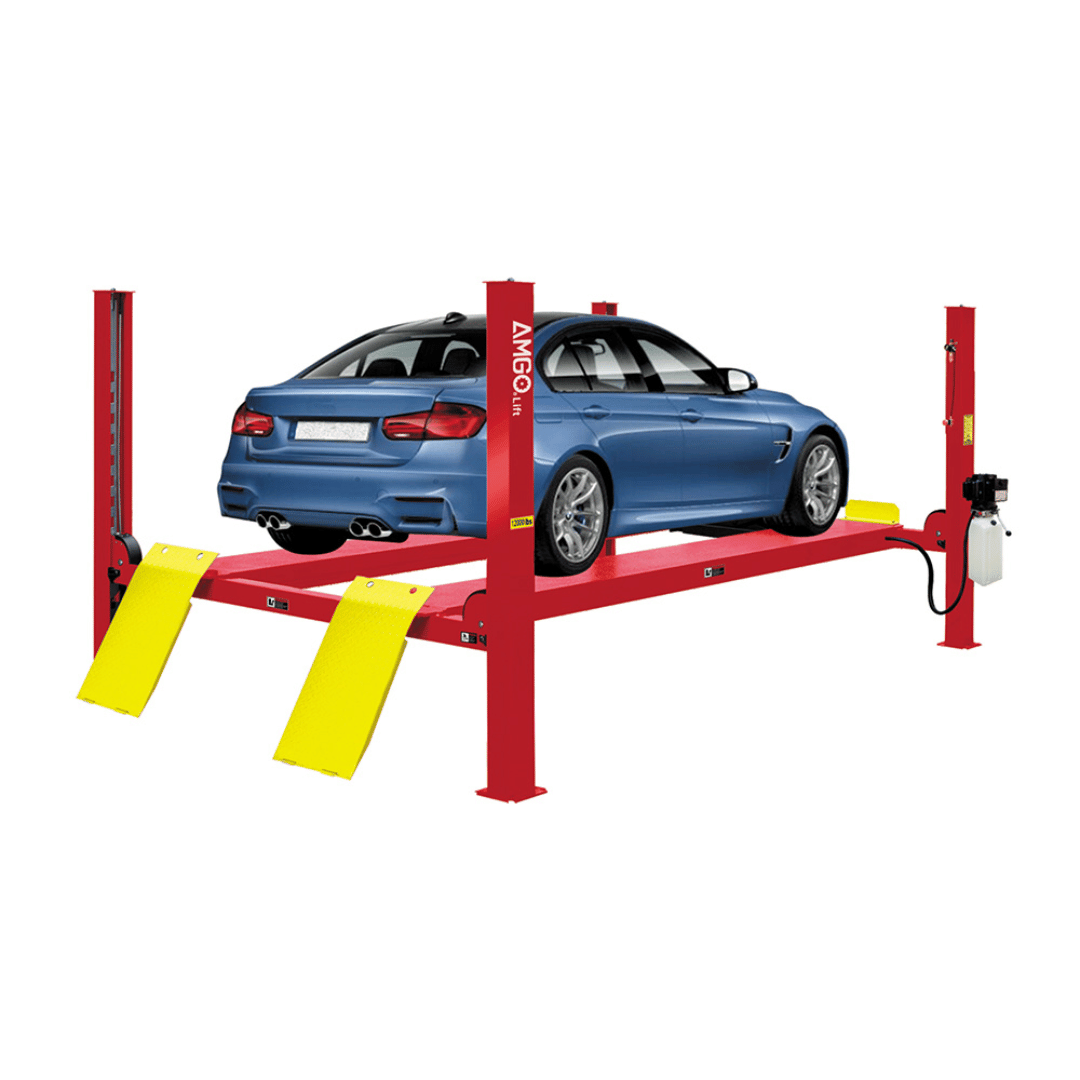

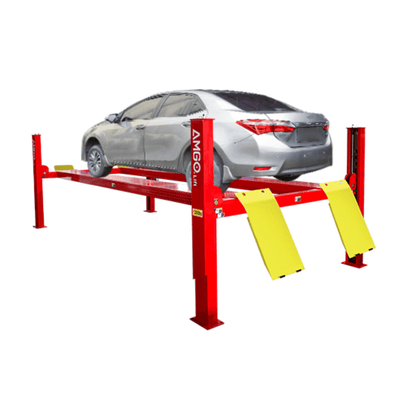

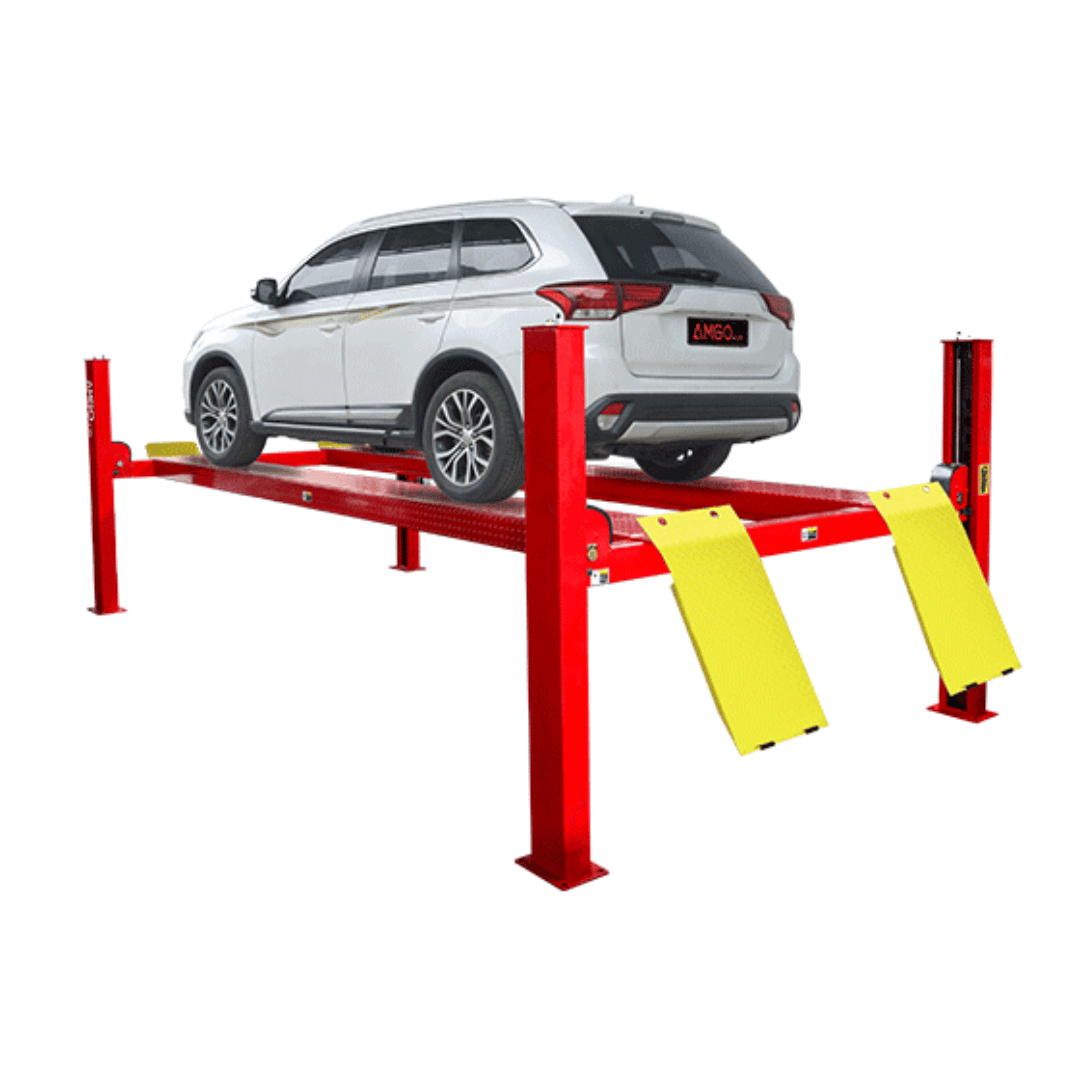

AMGO PRO-12SX Wide-Access 4-Post Lift – 12,000 lb Capacity
The AMGO PRO-12SX is a premium, commercial-grade 4-post lift that takes versatility and user comfort to the next level. With a 12,000 lb lifting capacity and an impressive 104 3/16″ drive-thru clearance, this model provides expanded accessibility for a wider range of vehicles — from compact cars to full-size pickups and commercial vans.

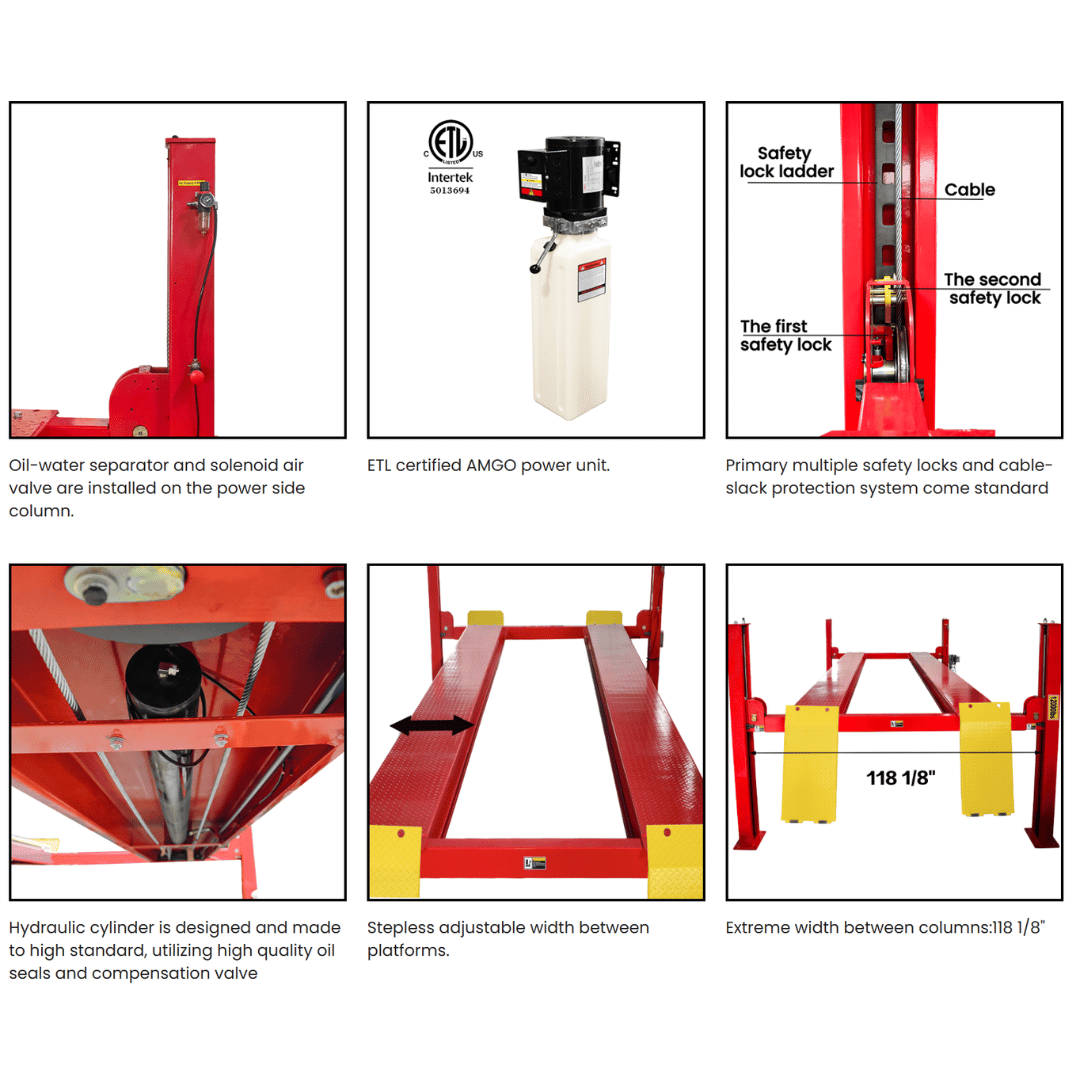

Designed for fast-paced professional shops and garages, the PRO-12SX features non-skid diamond platforms, stepless runway width adjustment, and rugged cable-driven synchronization using aircraft-quality materials. Its ETL-certified power unit and multi-level mechanical safety lock system with air-driven lock release ensure dependable operation and compliance with industry standards.
The PRO-12SX is engineered for safety and efficiency with a hydraulic cylinder that uses high-grade seals, a cable-slack protection system, and low platform height for easy vehicle access. Whether you're performing general service, inspections, or fleet maintenance, the PRO-12SX offers the strength, clearance, and reliability you need.
Now available at Gearforce USA, this lift is a perfect fit for shop owners and service professionals who want extra width without sacrificing strength or precision.

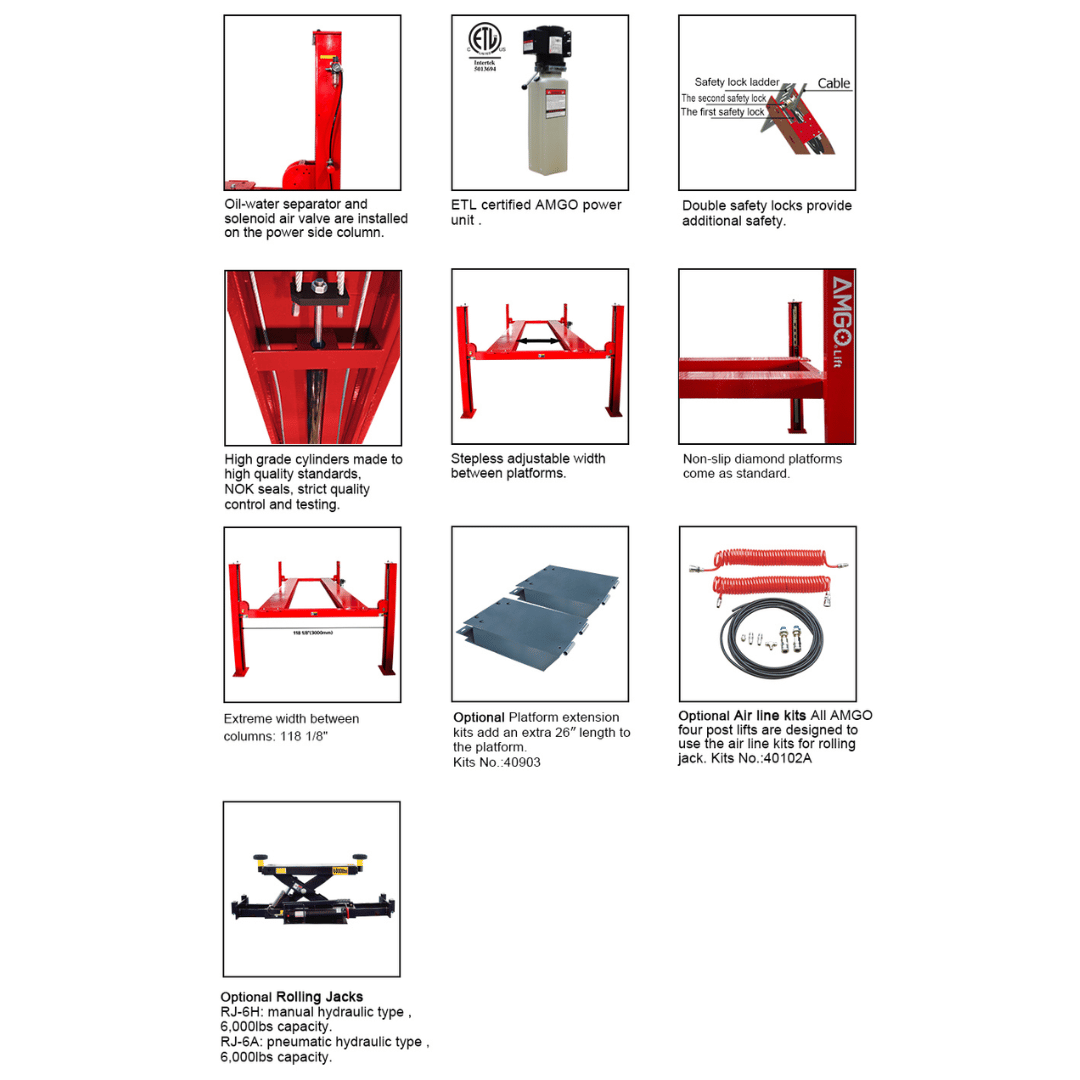

Key Features
- 12,000 lb lifting capacity – supports sedans, trucks, vans, and commercial vehicles
- Extra-wide drive-thru clearance: 104 3/16″ – offers more room than standard models
- Stepless adjustable runway width – accommodates diverse wheel tracks
- ETL-certified power unit included – ensures safe, consistent performance
- Non-skid diamond plate platforms – provide secure grip and surface durability
- Mechanical safety lock system with air-driven release – safe and easy operation
- Aircraft-grade synchronization cables – long-lasting and balanced lift motion
- Heavy-duty hydraulic cylinder – with high-quality oil seals and compensation valve
- Max lifting height: 74" | Clearance under runways: 68 1/2"
- Minimum platform height: 6 5/8″ – low-profile for easier vehicle loading
- Overall width: 132 1/8″ | Between columns: 118 1/8″
- Motor: 2.0 HP, single-phase 220V – smooth and efficient power
- AMGO 5-3-2 Warranty – 5 years on steel, 3 years on hydraulics, 2 years on electrical

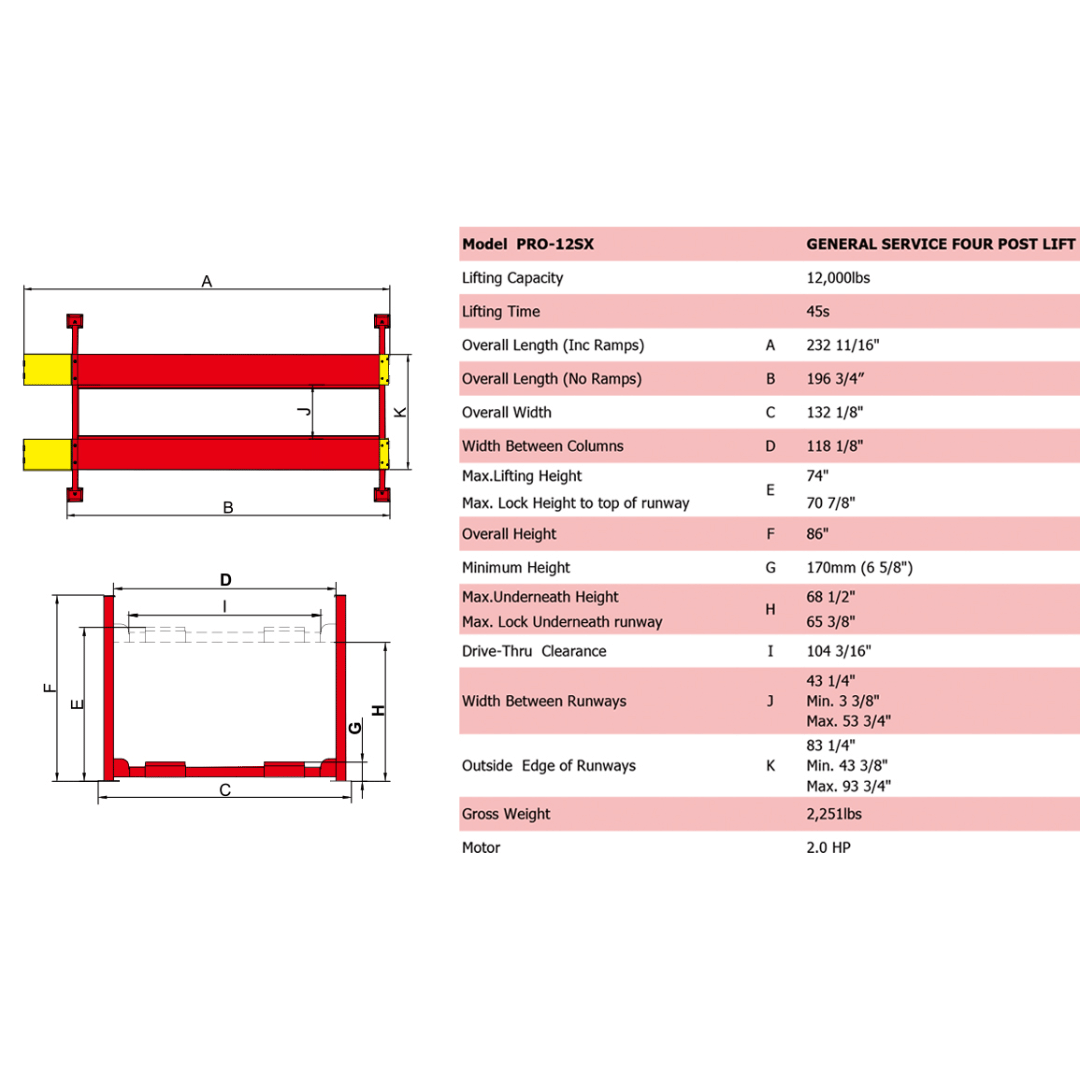

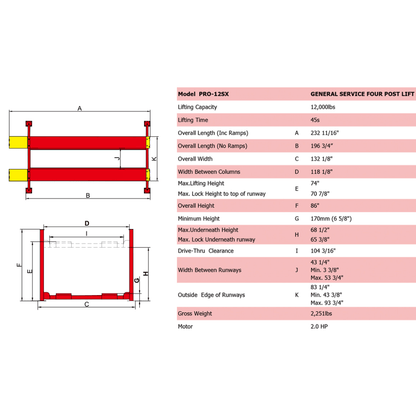

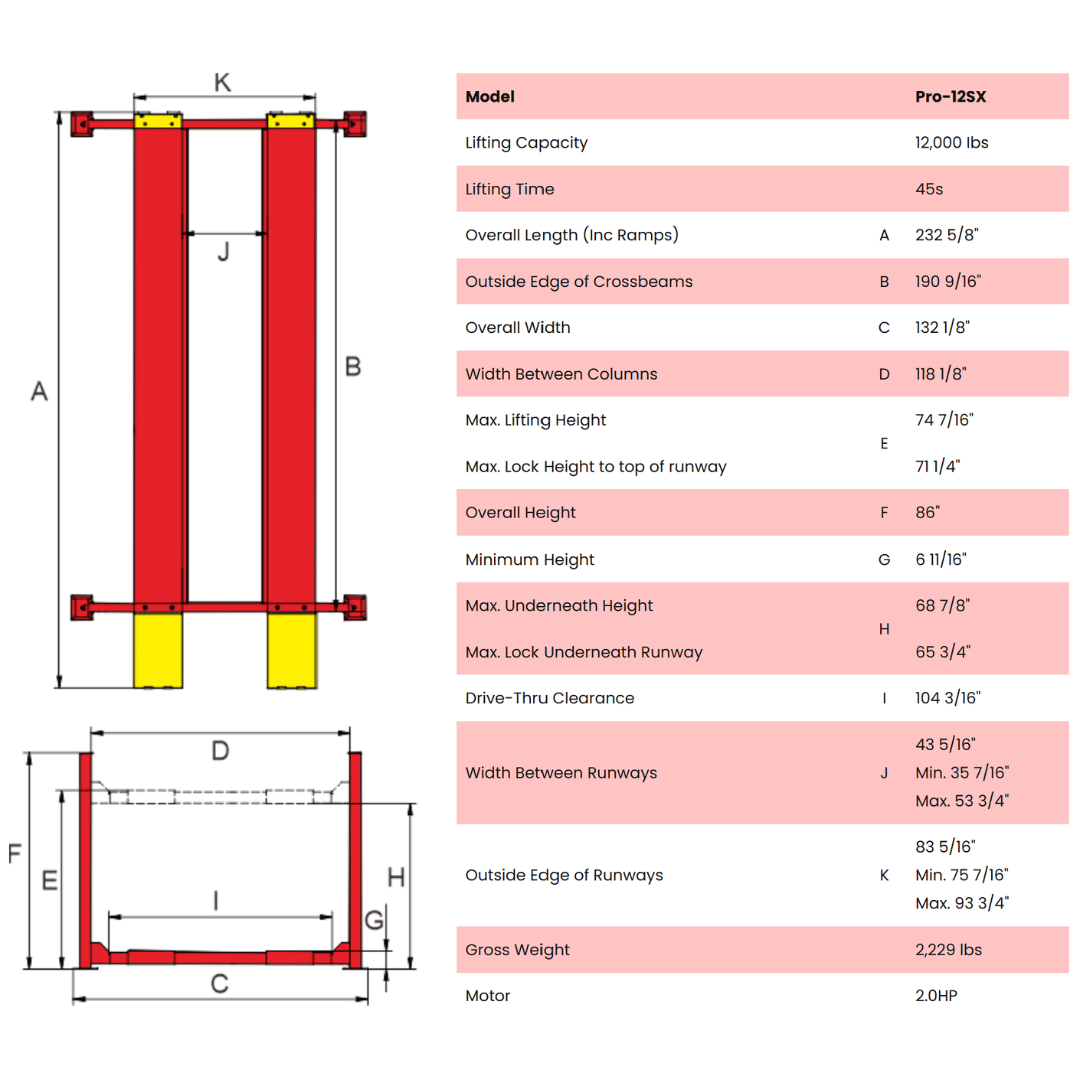

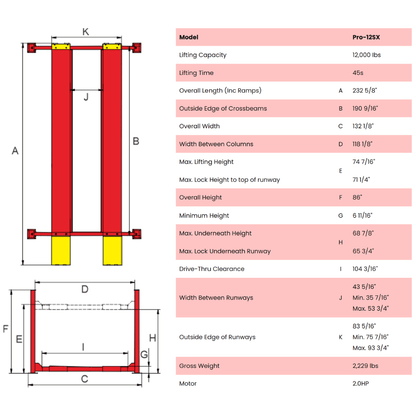

Product Specifications
| Model | PRO-12SX |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 45S |
| A: Overall Length (Inc.Ramps) | 232 11/16″ |
| B: Overall Length (No.Ramps) | 196 3/4″ |
| C: Overall Width | 132 1/8″ |
| D: Width Between Columns | 118 1/8″ |
| E: Max. Lifting Height | 74″ |
| E: Max. Lock Height to Top of Runway | 70 7/8″ |
| F: Overall Height | 86″ |
| G: Minimum Height | 6 5/8″ |
| H: Max. Underneath Height | 68 1/2″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 104 3/16″ |
| J: Width Between Runways | 43 1/4″, Min. 3 3/8″, Max. 53 3/4″ |
| K: Outside Edge of Runways | 83 1/4″, Min. 43 3/4″, Max. 93 3/4″ |
| Gross Weight | 2,251 lbs |
| Motor | 2.0HP |
