Product Description

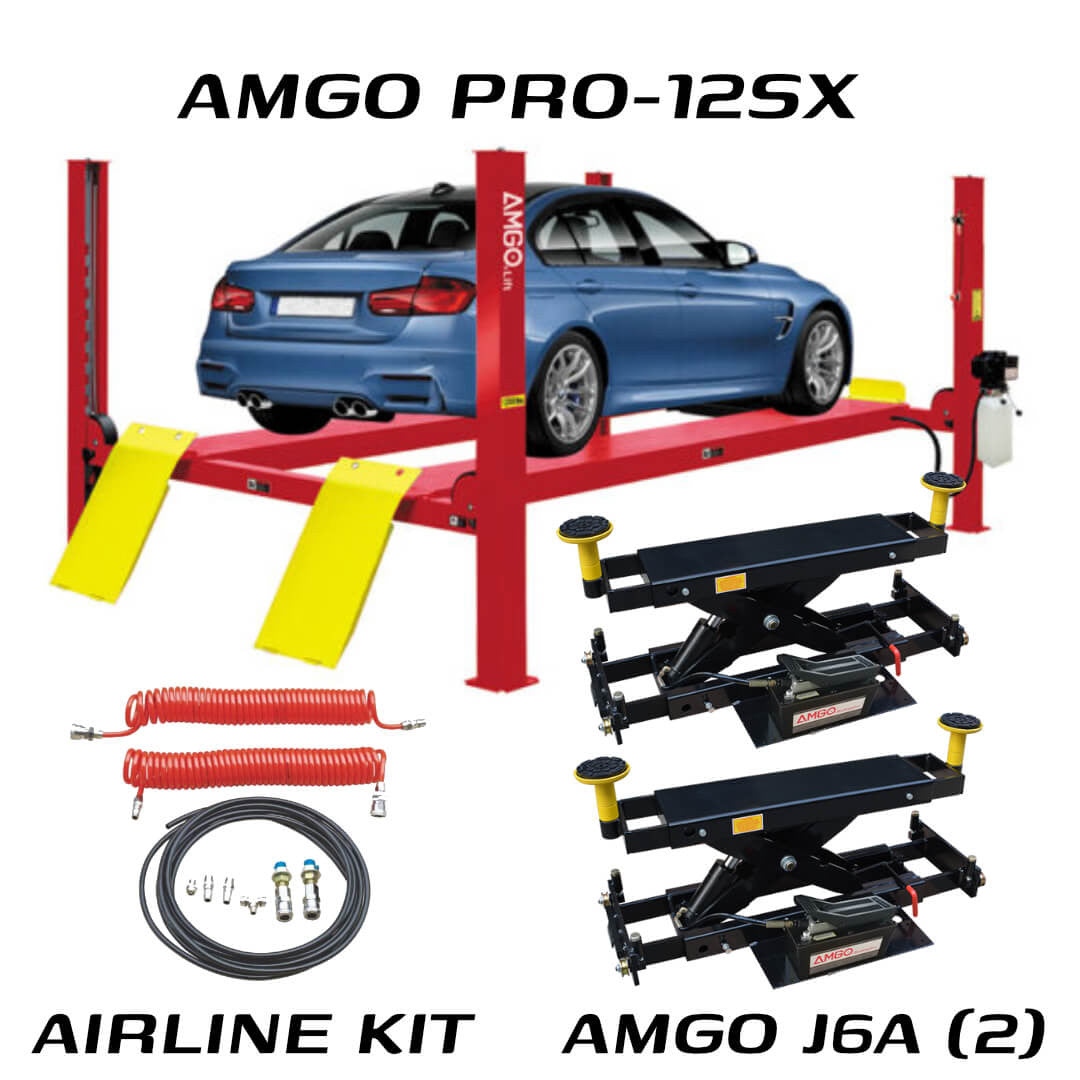

AMGO PRO-12SX Truck Service Combo – 12,000 lb 4-Post Lift + Rolling Jack (J6A)
The AMGO PRO-12SX Truck Service Combo is a complete lifting solution designed for shop owners and mechanics who need dependable performance, high clearance, and the flexibility to service everything from cars to light-duty trucks. This combo pairs the powerful 12,000 lb capacity PRO-12SX 4-post lift with the robust AMGO J6A rolling jack, giving you everything needed for full undercar service and wheel work in one convenient package.
The PRO-12SX features a clearfloor design, non-skid diamond platforms, and an extra-wide 104 3/16″ drive-thru clearance, making it ideal for wider vehicles and trucks. Built with stepless adjustable runway width and aircraft-grade synchronization cables, the lift ensures consistent and level lifting every time. A mechanical self-locking system with air-driven release and a cable-slack protection system are standard for operator safety.

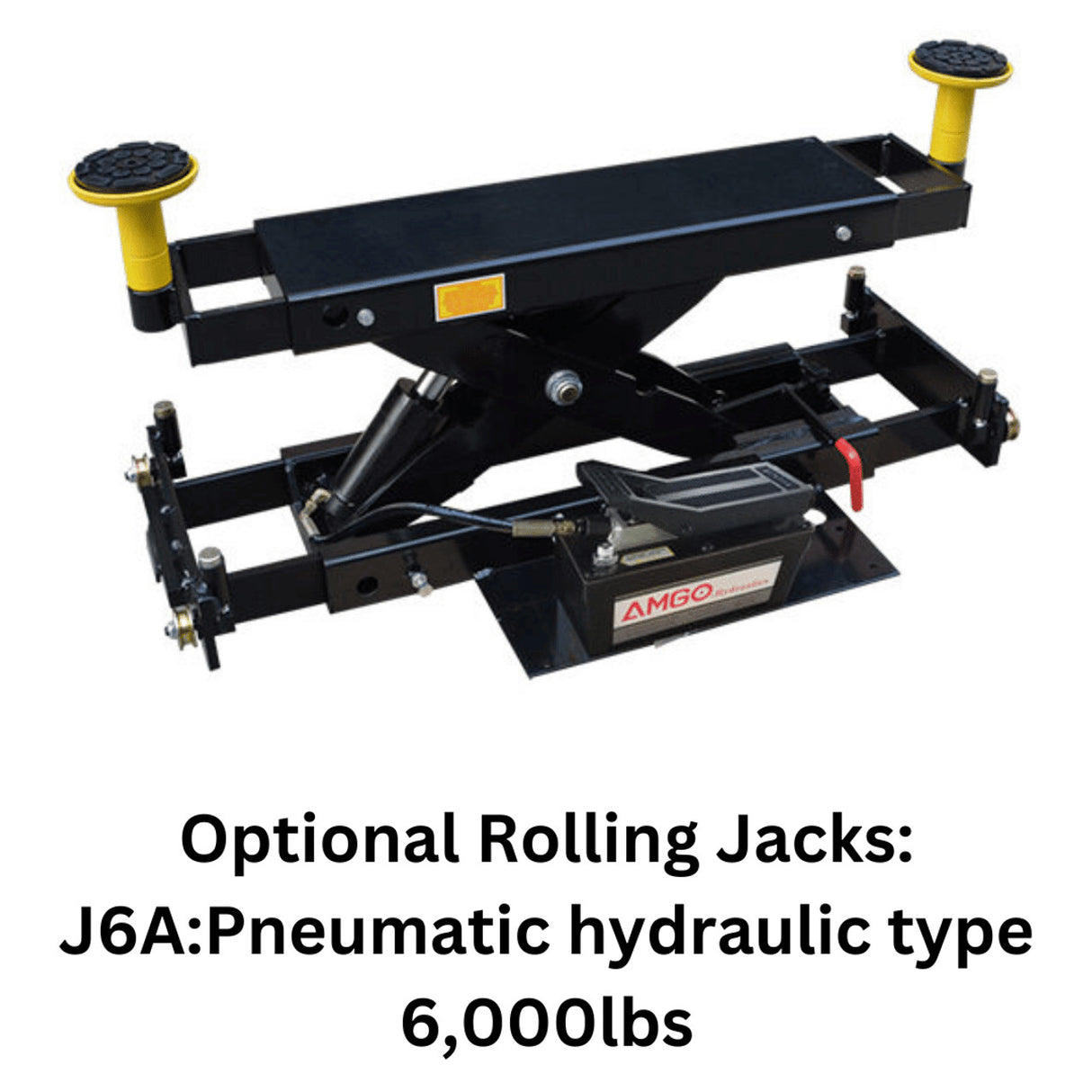

Included in this combo, the AMGO J6A rolling jack adds unmatched flexibility for lifting vehicle axles off the platform for tire, brake, and suspension work. Manufactured to AMGO’s same high standards, the J6A is built with premium components, delivering reliability, safety, and long-term performance.
Available now at Gearforce USA, this heavy-duty combo provides everything a professional shop needs to service full-size pickups, vans, and standard vehicles with ease and efficiency.
Key Features
- 12,000 lb lifting capacity – perfect for trucks, SUVs, vans, and everyday vehicles
- Includes J6A rolling jack – enables tire, brake, and suspension work directly on the lift
- Extra-wide 104 3/16″ drive-thru clearance – supports wide-body and dually trucks
- Stepless adjustable runway width – fits a wide range of wheelbases and track widths

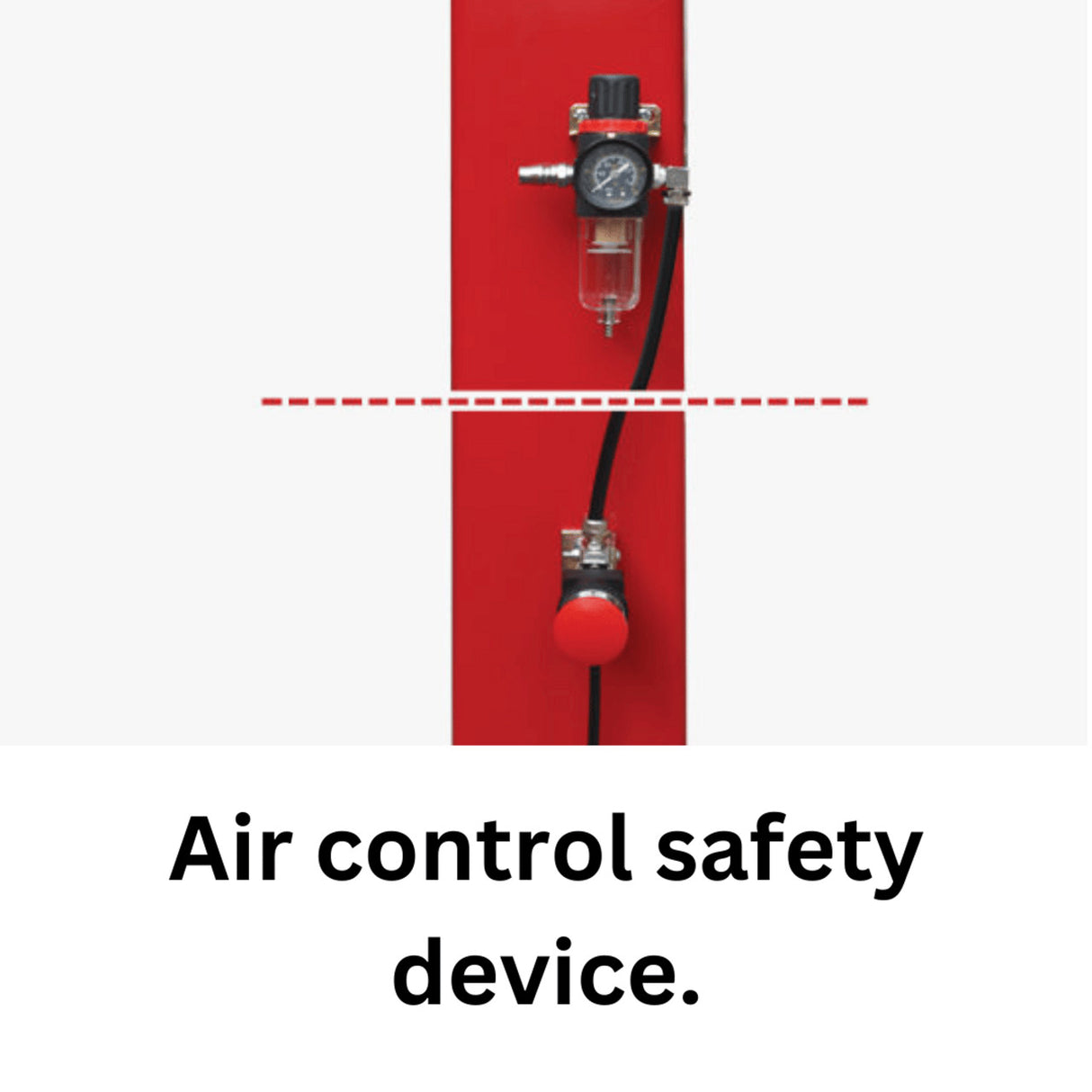

- Mechanical self-locking system with air-driven release – safe and simple operation

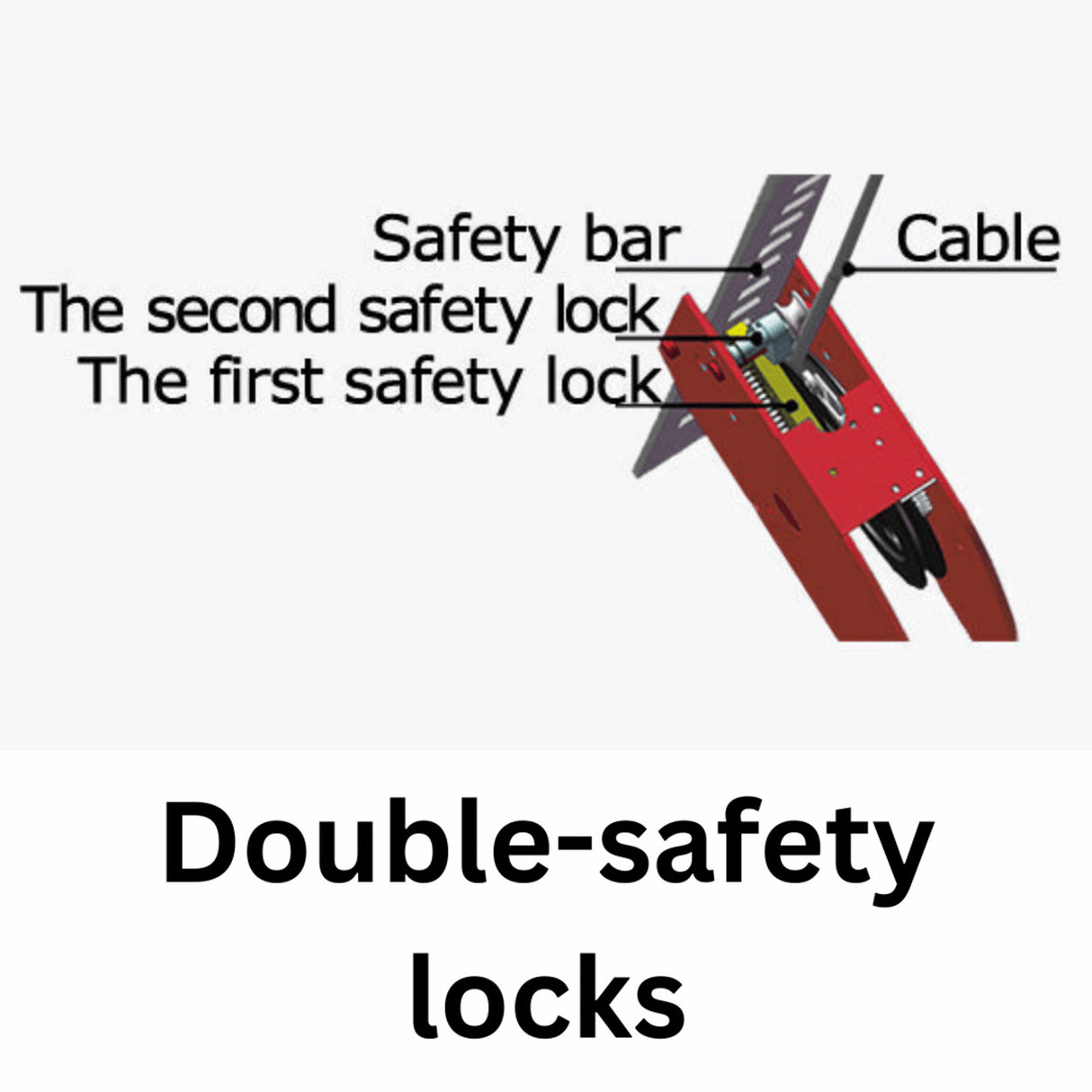

- Multiple safety lock positions + cable-slack protection – layered safety features
- Aircraft-grade synchronization cables – strong, reliable, and low maintenance

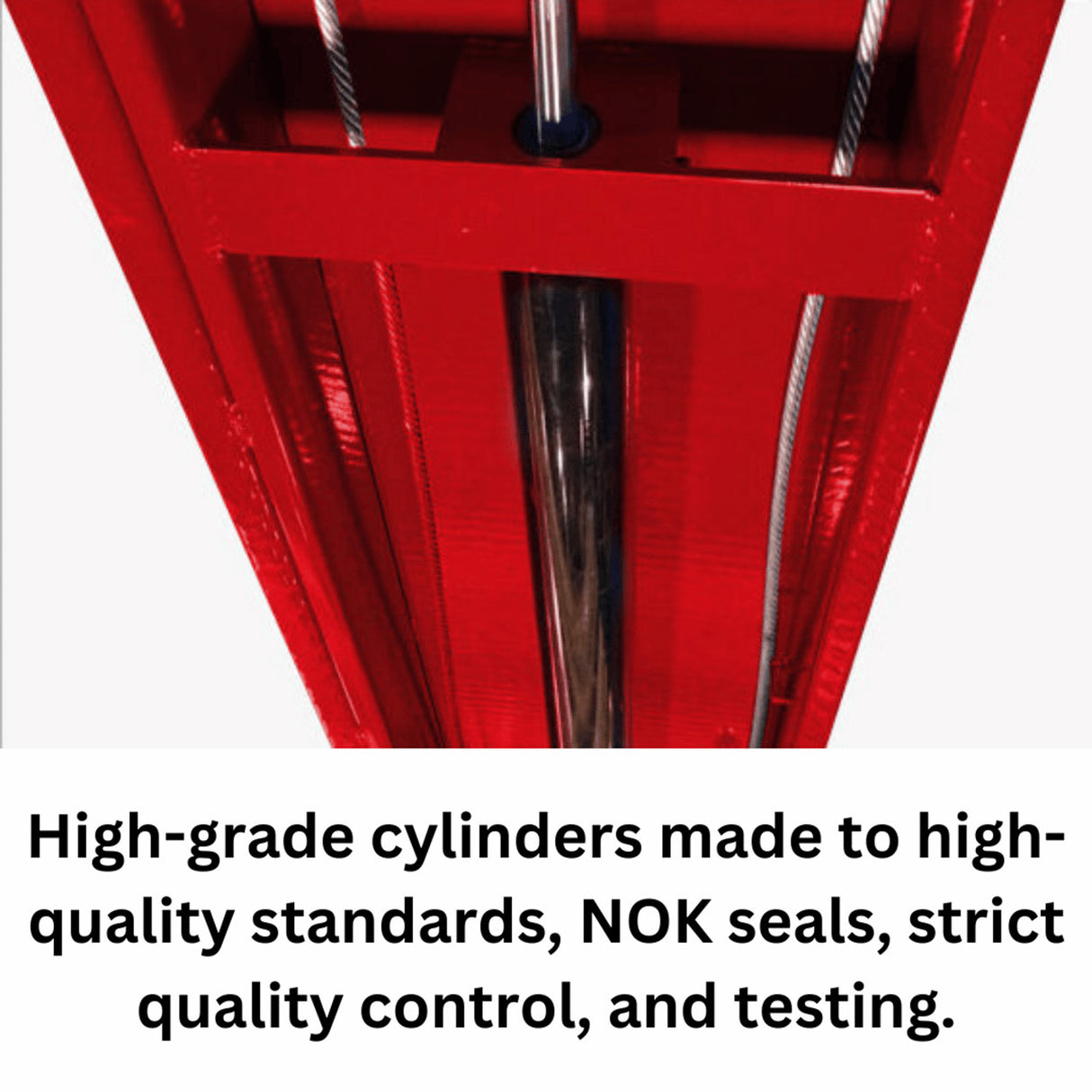

- High-quality hydraulic cylinder with premium oil seals and compensation valve
- Non-skid diamond platforms – secure vehicle positioning
- Max lifting height: 74" | Under-runway clearance: 68 1/2"
- ETL-certified power unit included
- Motor: 2.0 HP, 220V single-phase – smooth and consistent power
- AMGO 5-3-2 Warranty – 5 years on structure, 3 years on hydraulics, 2 years on electrical components

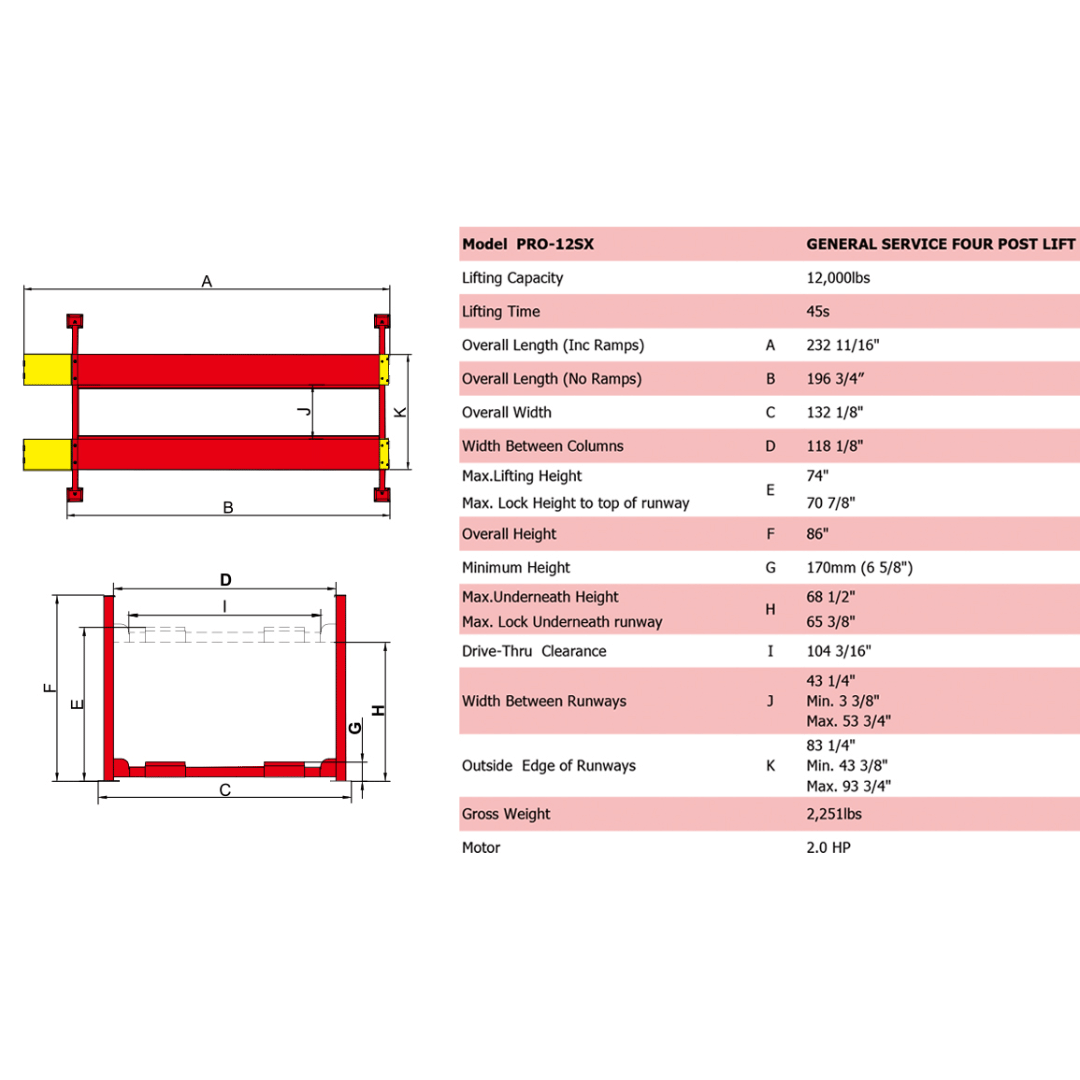

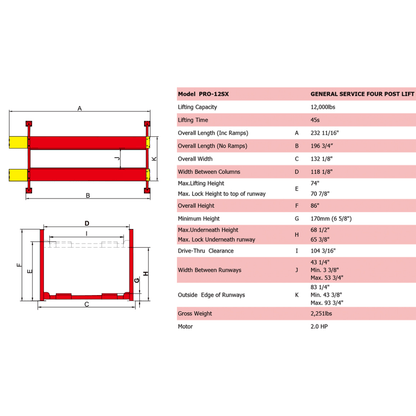

Product Specifications
| Model | PRO-12SX |
|---|---|
| Lifting Capacity | 12,000 lbs |
| Lifting Time | 45S |
| A: Overall Length (Inc.Ramps) | 232 11/16″ |
| B: Overall Length (No.Ramps) | 196 3/4″ |
| C: Overall Width | 132 1/8″ |
| D: Width Between Columns | 118 1/8″ |
| E: Max. Lifting Height | 74″ |
| E: Max. Lock Height to Top of Runway | 70 7/8″ |
| F: Overall Height | 86″ |
| G: Minimum Height | 6 5/8″ |
| H: Max. Underneath Height | 68 1/2″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 104 3/16″ |
| J: Width Between Runways | 43 1/4″, Min. 3 3/8″, Max. 53 3/4″ |
| K: Outside Edge of Runways | 83 1/4″, Min. 43 3/4″, Max. 93 3/4″ |
| Gross Weight | 2,251 lbs |
| Motor | 2.0HP |
