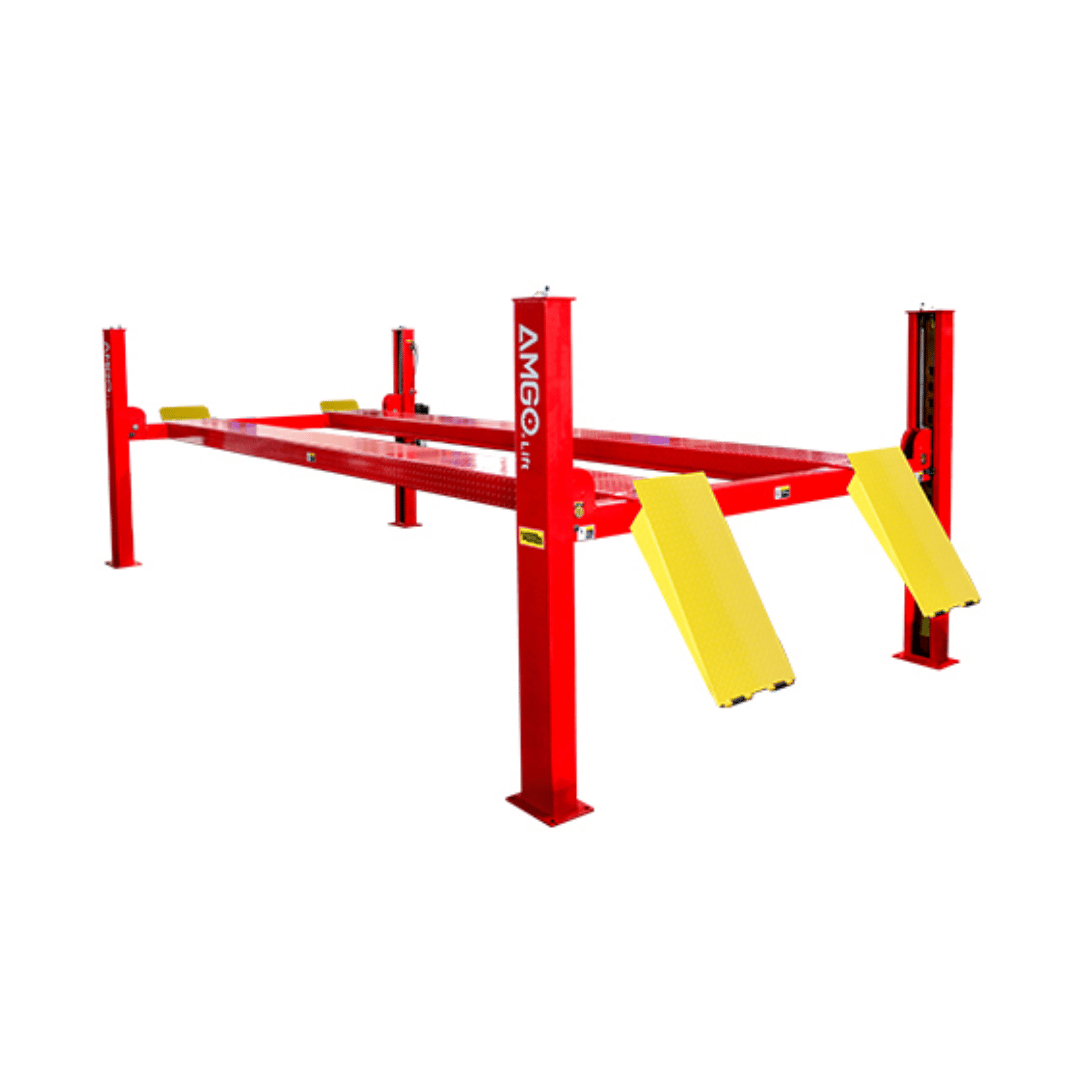

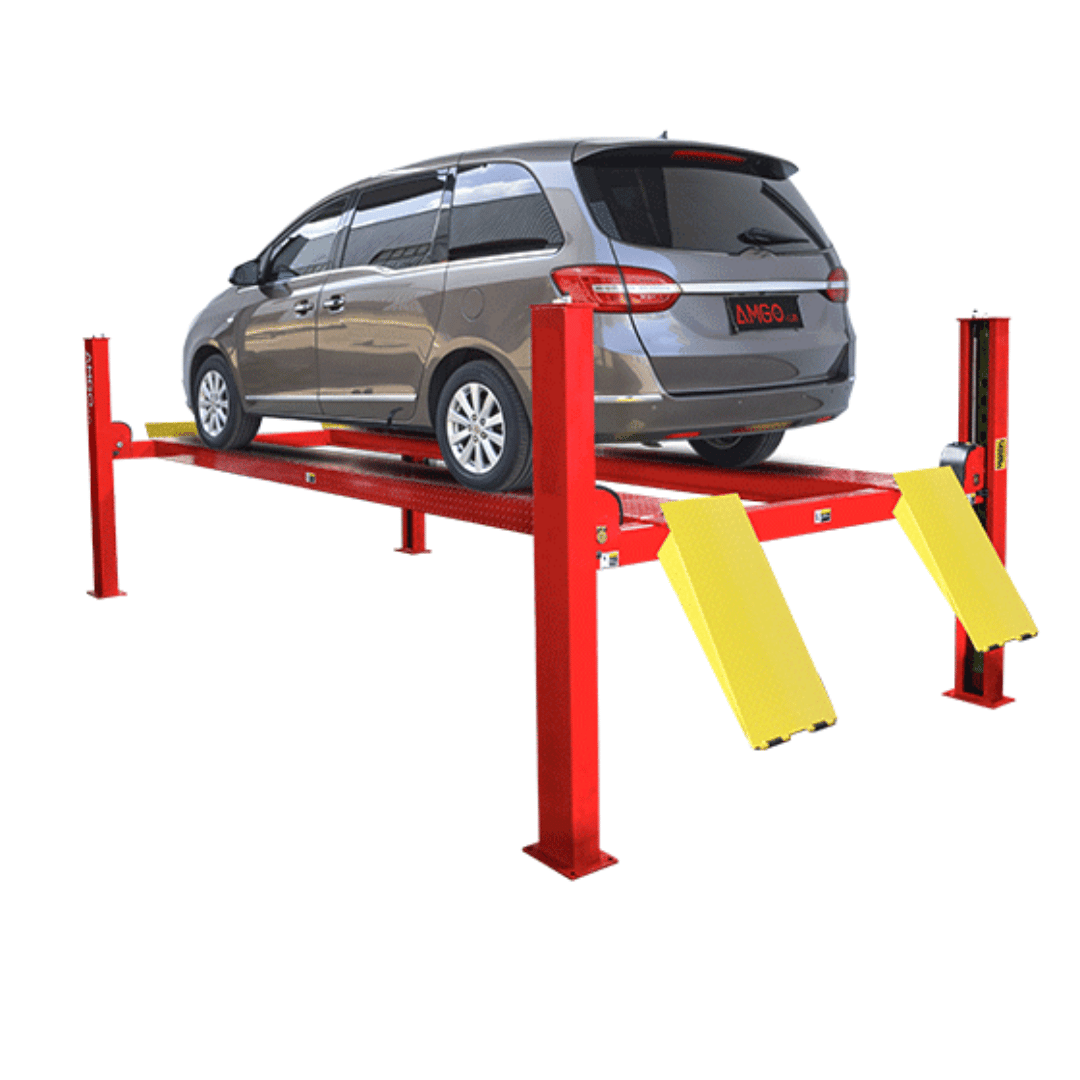

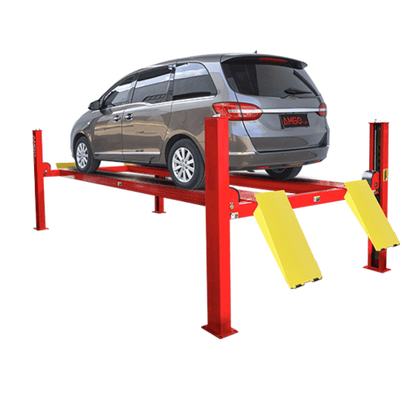

AMGO PRO-14 4-Post Lift – 14,000 lb Capacity

The AMGO PRO-14 is a high-capacity, commercial-grade 4-post lift built to take on your toughest service challenges — from sedans and pickups to full-size vans, box trucks, and even motor homes. With a 14,000 lb lifting capacity and stepless adjustable runway width, the PRO-14 offers the strength, versatility, and space to handle large, heavy vehicles safely and efficiently.

Engineered with heavy-duty steel construction and AMGO’s trusted design standards, the PRO-14 comes equipped with a mechanical self-locking safety system, air-driven lock release, and a redundant cable-slack protection system — all working together to deliver professional-grade safety and convenience. Its aircraft-grade synchronization cables, premium hydraulic components, and non-skid diamond plate runways ensure years of reliable performance with minimal maintenance.

With a generous drive-thru clearance of 102 1/16″ and a maximum lifting height of 75 1/8″, this lift gives technicians ample space to work comfortably on everything from compact cars to high-roof vans.

Available now at Gearforce USA, the AMGO PRO-14 is the perfect heavy-duty lift for shops, dealerships, fleet maintenance centers, and commercial garages looking for unmatched capacity and flexibility in a 4-post platform.

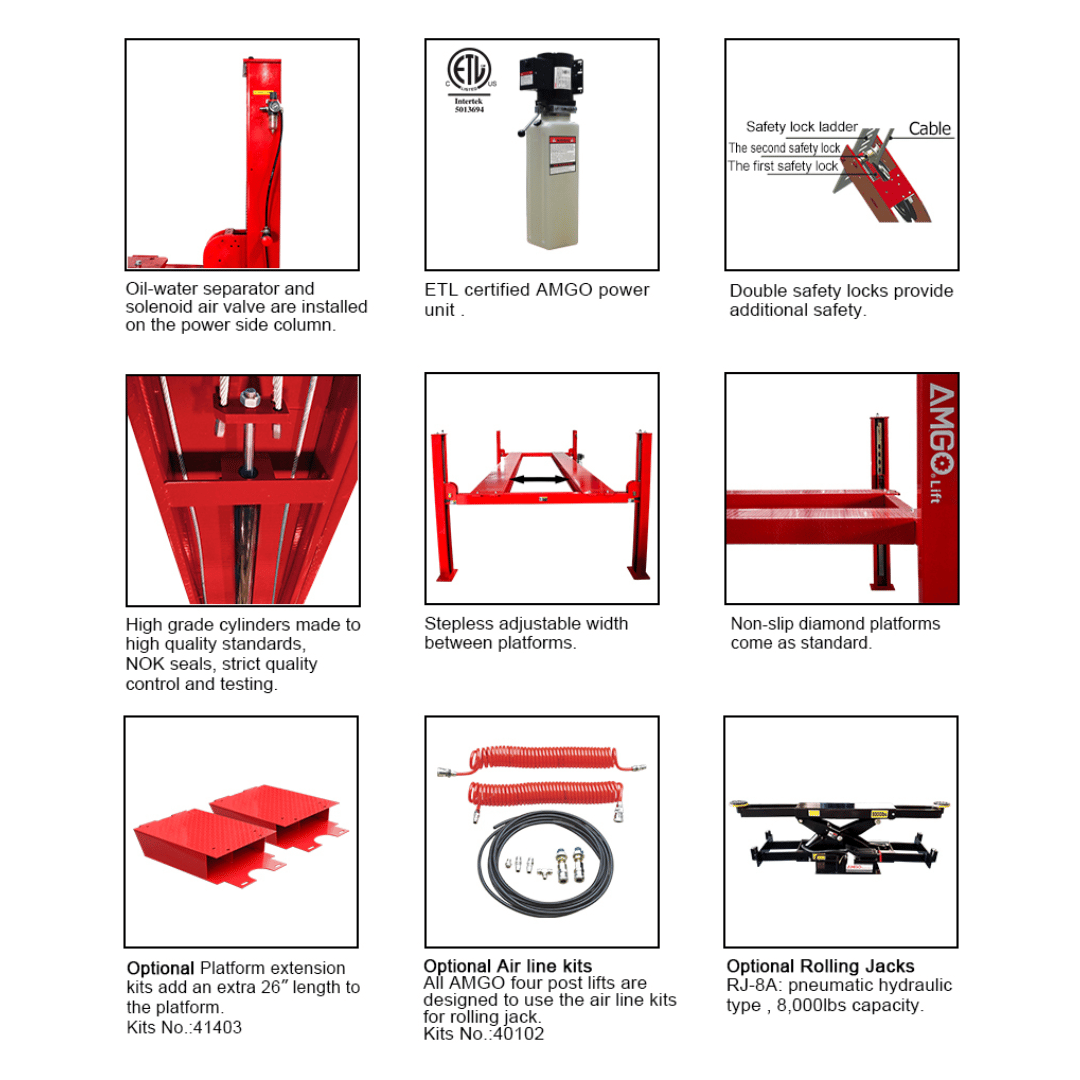

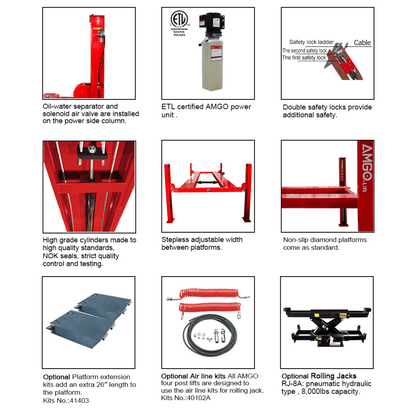

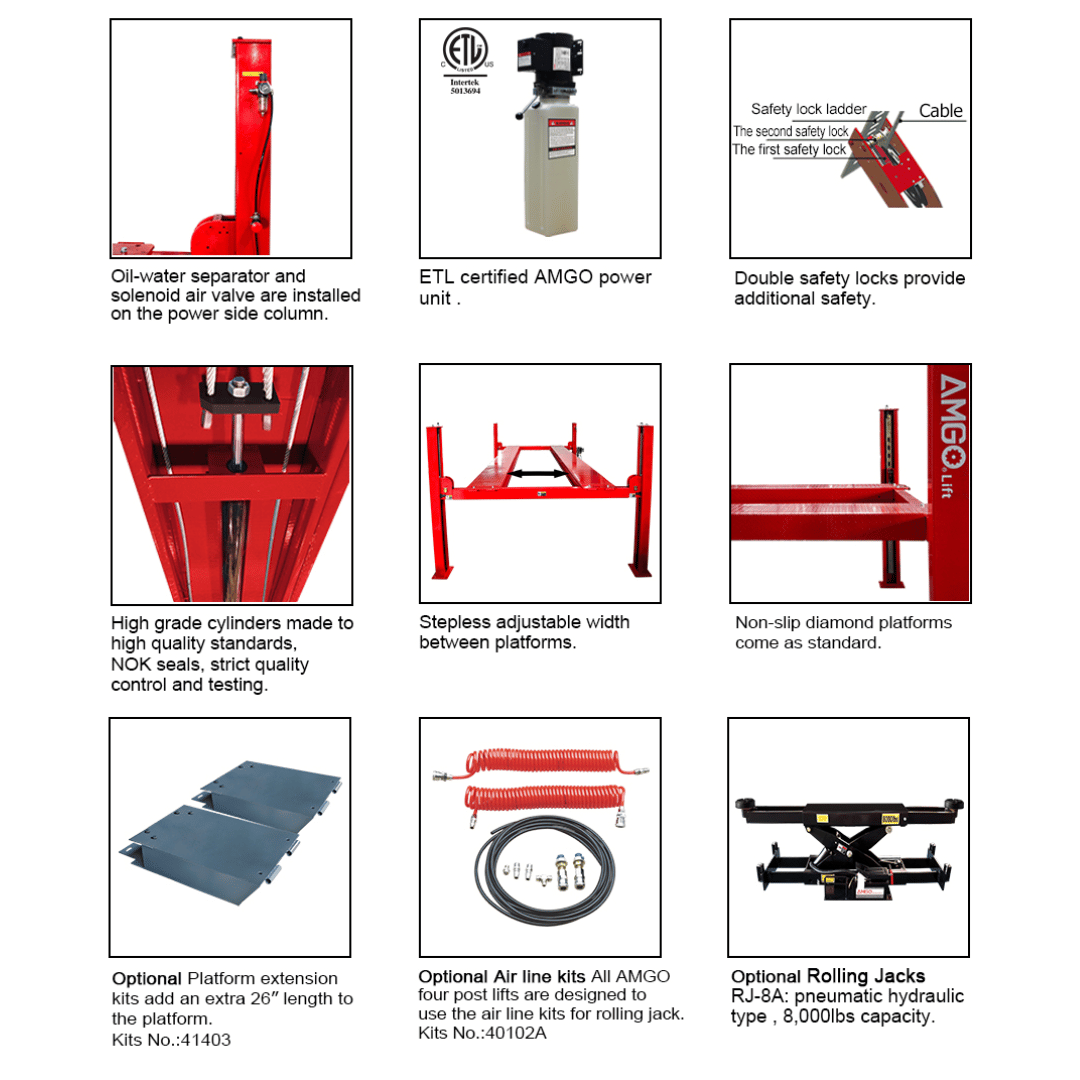

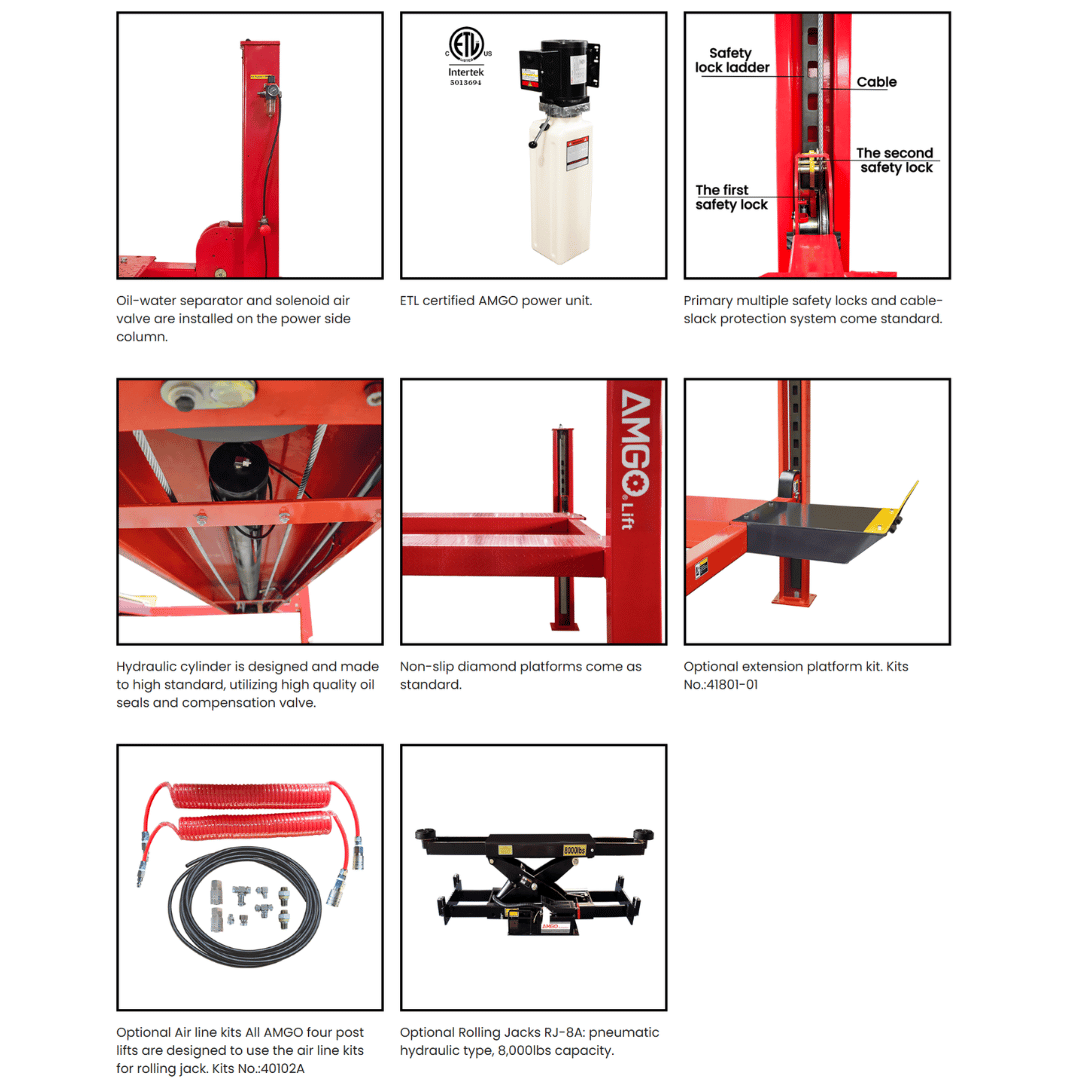

Key Features

  • 14,000 lb lifting capacity – built for large vehicles, work trucks, RVs, and high-capacity fleet service
  • Stepless adjustable runway width – accommodates a wide range of wheelbases and vehicle sizes
  • Drive-thru clearance: 102 1/16″ – fits wide-body and tall vehicles with ease
  • Non-skid diamond platforms – provide secure surface grip during service
  • Mechanical self-locking safety system with air-driven release – automatic multi-point locking for technician safety
  • Cable-slack protection system – ensures safe, balanced lifting
  • Aircraft-quality synchronization cables – smooth, reliable lifting motion
  • Heavy-duty hydraulic cylinder – with high-quality oil seals and internal compensation valve
  • Max lifting height: 75 1/8" | Max under-runway clearance: 68 1/2"
  • Motor: 2.0 HP, 220V single-phase – efficient and reliable power
  • AMGO Warranty: 5 years on steel structure, 3 years on hydraulics, 2 years on electrical components

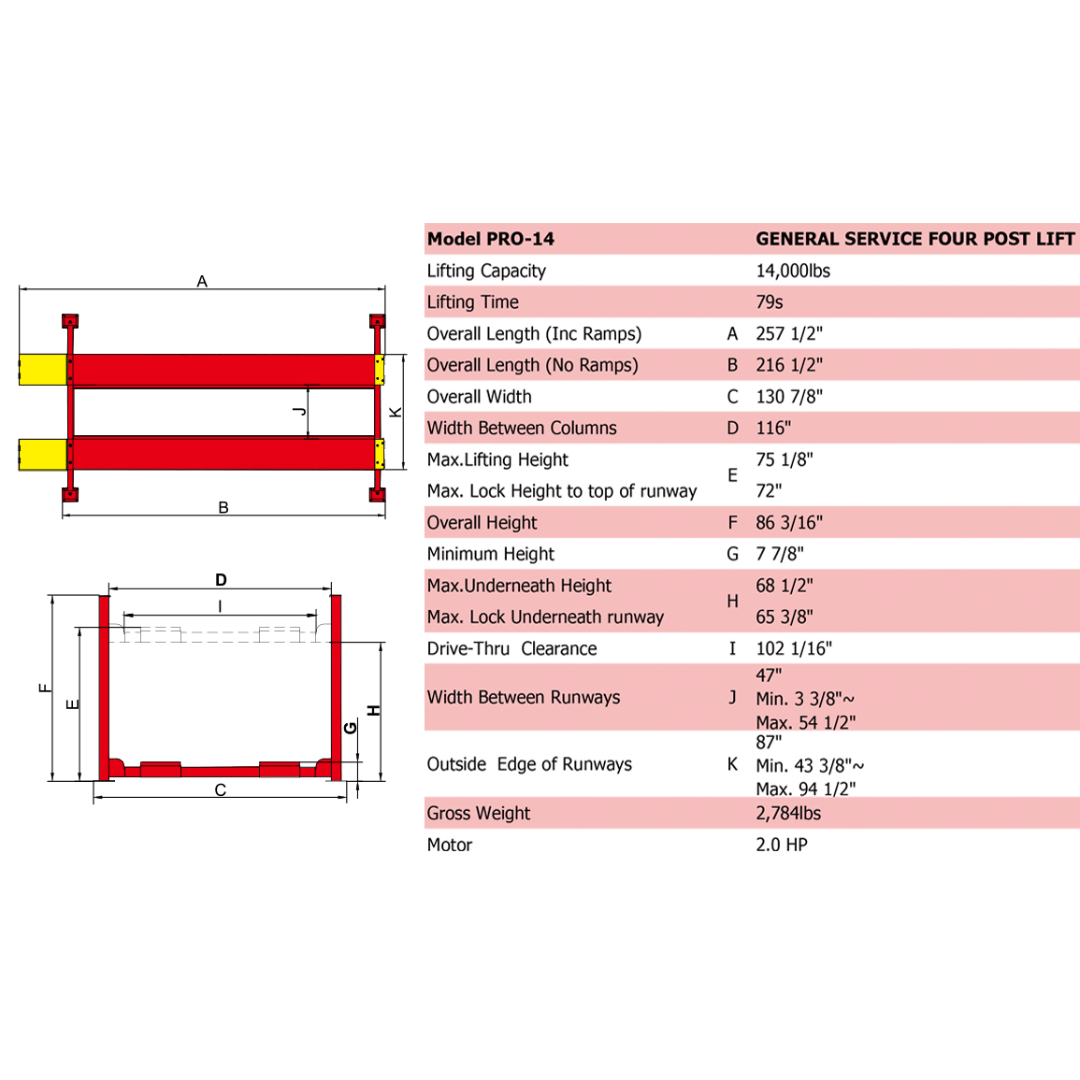

Product Specifications

Model PRO-14
Lifting Capacity 14,000 lbs
Lifting Time 79S
A: Overall Length (Inc.Ramps) 257 1/2″
B: Overall Length (No.Ramps) 216 1/2″
C: Overall Width 130 7/8″
D: Width Between Columns 116″
E: Max. Lifting Height 75 1/8″
E: Max. Lock Height to Top of Runway 72″
F: Overall Height 86 3/16″
G: Minimum Height 7 7/8″
H: Max. Underneath Height 68 1/2″
H: Max. Lock Underneath Runway 65 3/8″
I: Drive-Thru Clearance 102 1/16″
J: Width Between Runways 47″, Min. 3 3/8″, Max. 54 1/2″
K: Outside Edge of Runways 87″, Min. 43 3/8″, Max. 94 1/2″
Gross Weight 2,784 lbs
Motor 2.0HP

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
