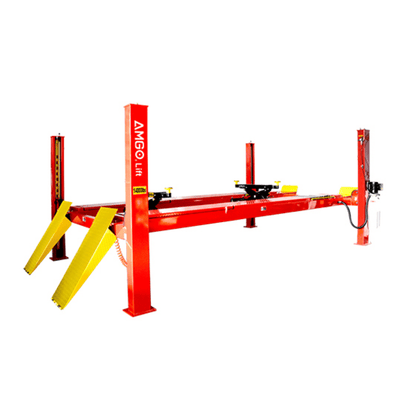

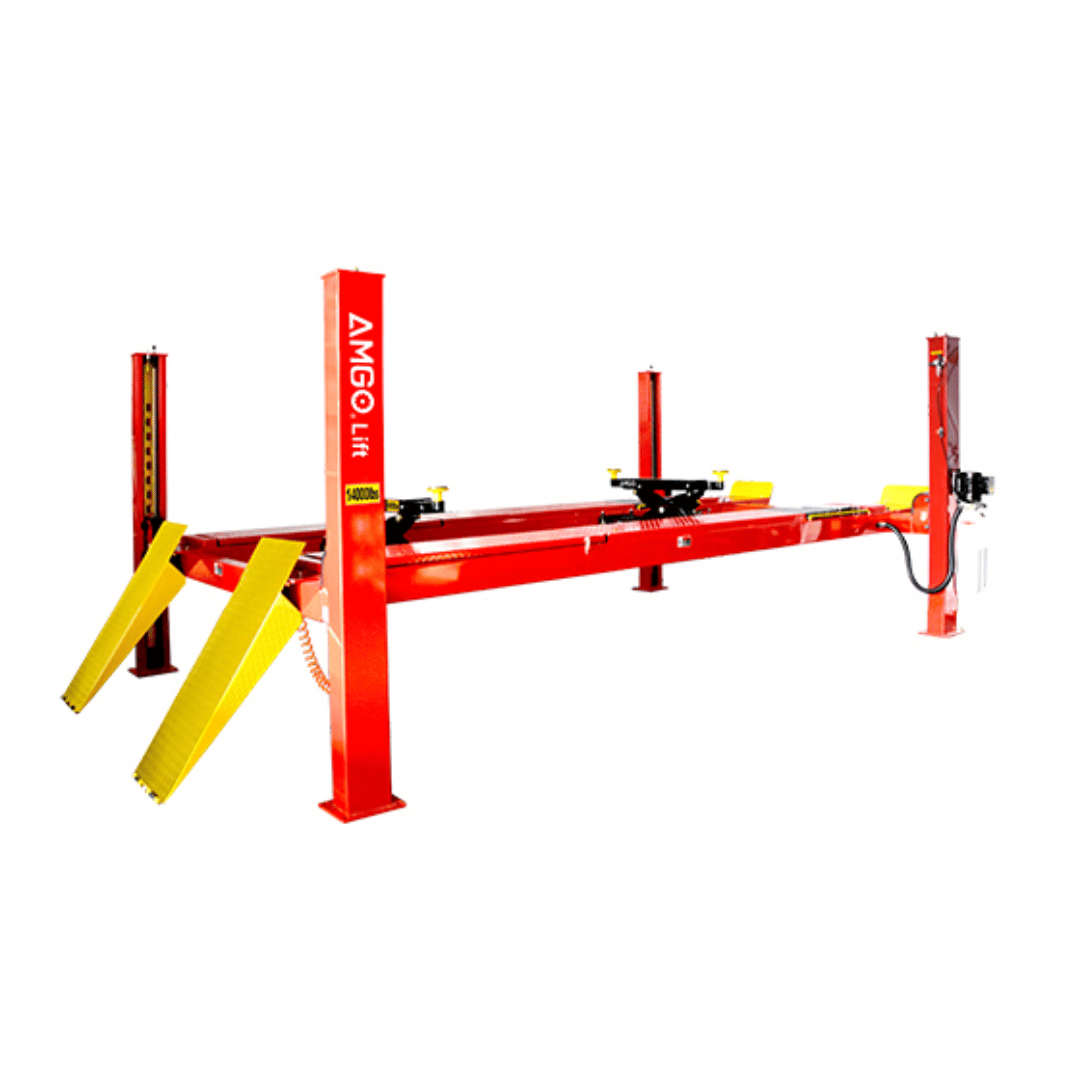

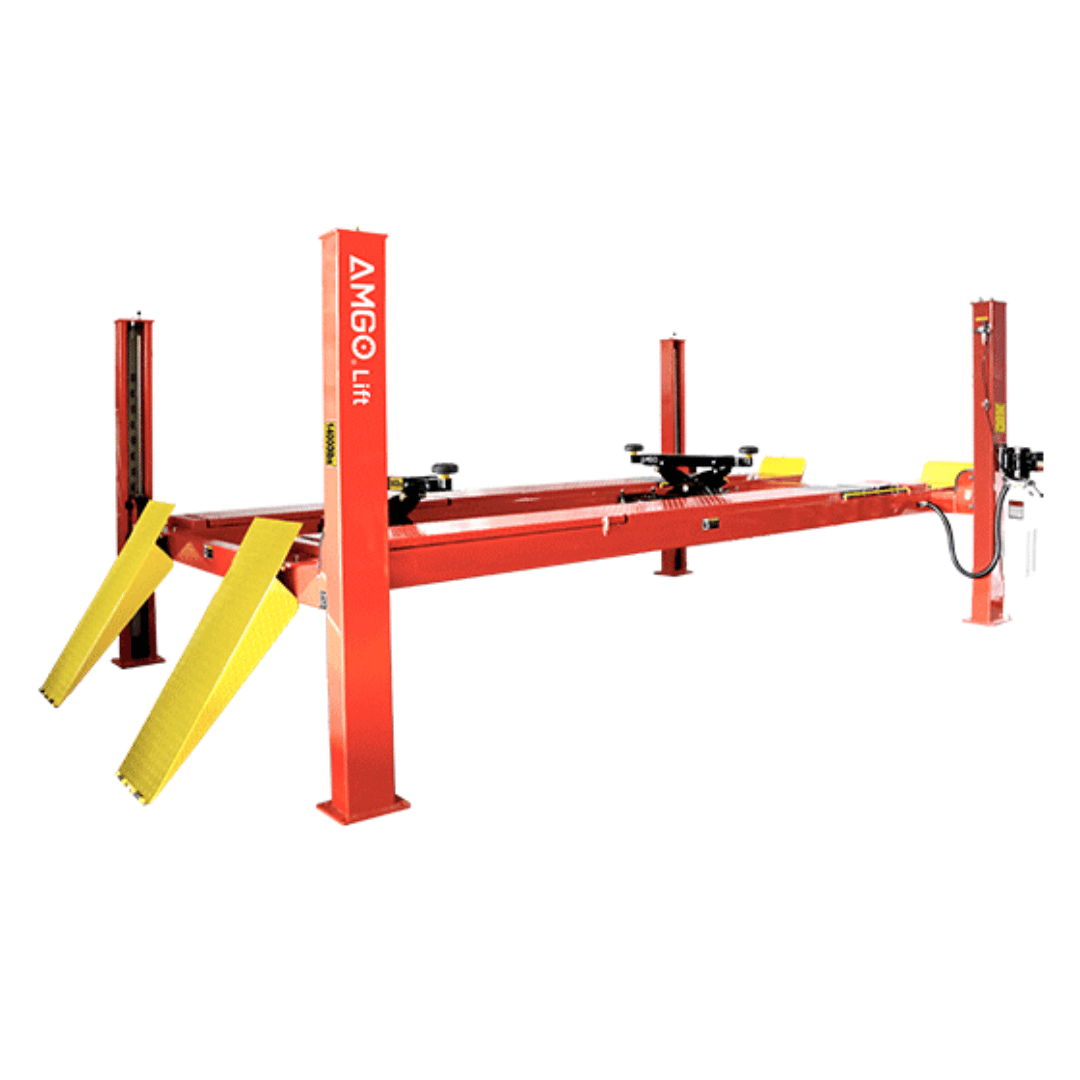

Amgo PRO-14A 14,000 lb Four Post Alignment Lift
The Amgo PRO-14A 14,000 lb Four Post Alignment Lift is a heavy-duty commercial lift designed to provide both general service capability and professional wheel alignment functionality. With a 14,000 lb lifting capacity, the PRO-14A is ideal for servicing cars, trucks, vans, and motorhomes, making it a powerful solution for busy automotive repair and alignment shops.
Built on the trusted foundation of the PRO-14, this model adds integrated slip plates and adjustable turnplate pockets, allowing technicians to perform precise alignment work directly on the lift. The extended runway design provides additional support for vehicles with longer wheelbases, making it especially useful for servicing large trucks, RVs, and commercial vehicles.
Constructed with heavy-duty steel components, the PRO-14A offers exceptional durability and stability for demanding shop environments. The lift uses a cable-driven lifting system with aircraft-grade cables, delivering smooth and balanced lifting performance.

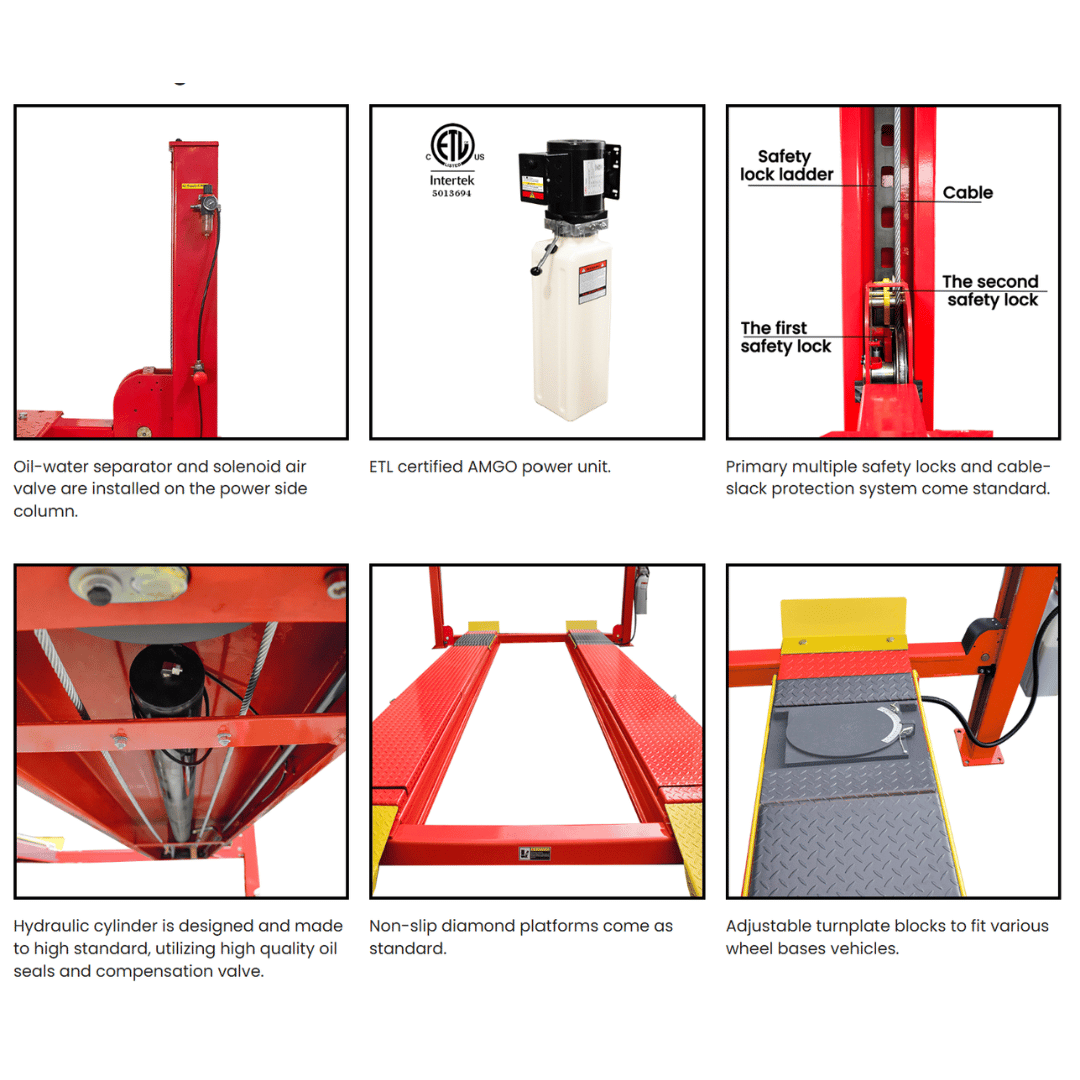

A high-quality hydraulic cylinder, built with premium oil seals and a compensation valve, ensures reliable lifting power and long-term durability. For safety, the PRO-14A features multiple mechanical safety locks and a cable-slack protection system, keeping vehicles securely supported during service operations. The mechanical self-locking safety device with air-driven lock release allows locks to engage and release smoothly for efficient operation.
The lift is also equipped with non-skid diamond platforms, providing improved traction and stability while vehicles are loaded onto the lift.
Powered by an AMGO ETL-certified power unit, the PRO-14A delivers dependable performance and safety standards required for professional service facilities.
Available through Gearforce USA, the Amgo PRO-14A offers heavy-duty lifting capacity, extended runway support, and alignment-ready functionality for professional automotive service and alignment operations.

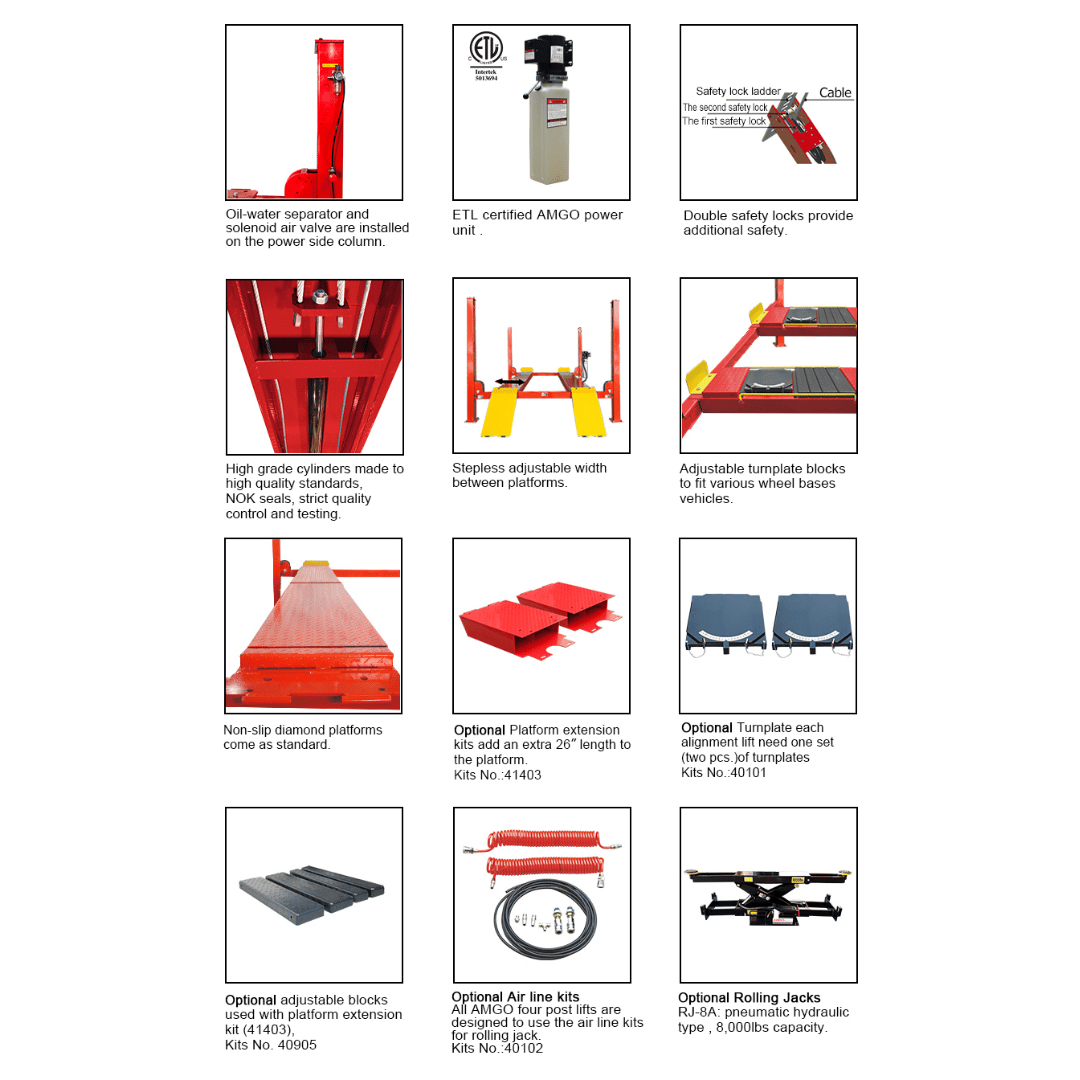

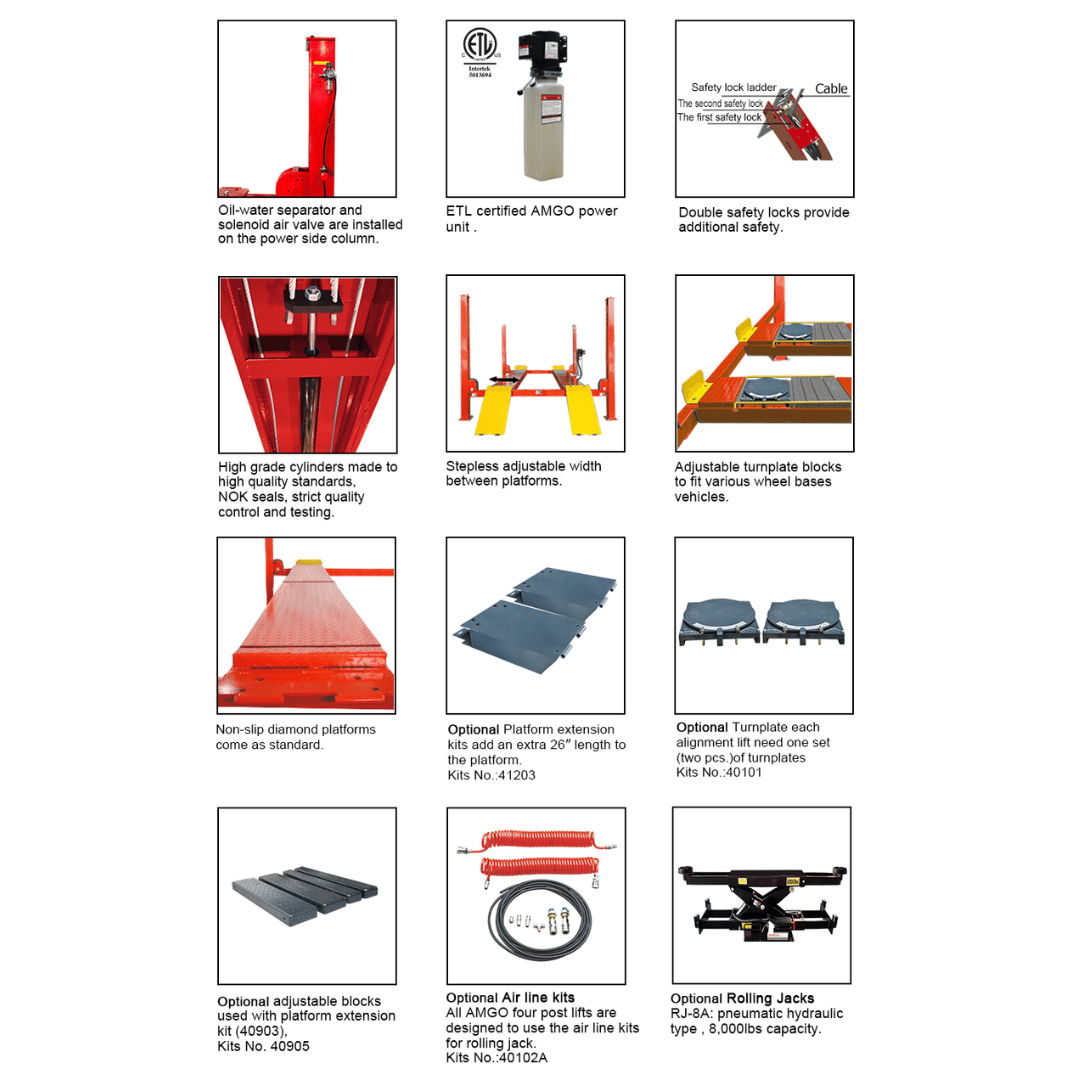

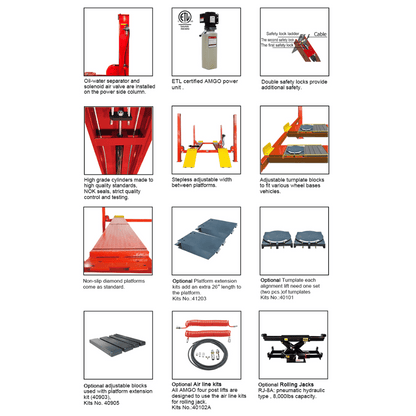

Key Features
- 14,000 lb lifting capacity for cars, trucks, vans, and motorhomes
- Alignment-ready design with integrated slip plates and adjustable turnplate pockets
- Extended runways support longer wheelbase vehicles such as trucks and RVs
- Heavy-duty commercial-grade construction for demanding shop environments
- Cable-driven lifting system with aircraft-grade cables for balanced lifting
- High-quality hydraulic cylinder with premium oil seals and compensation valve
- Mechanical self-locking safety device with air-driven lock release
- Multiple safety locks with cable-slack protection system
- Non-skid diamond platforms for improved vehicle traction and stability
- AMGO ETL certified power unit included
- Designed for professional automotive repair and alignment service shops
- Available through Gearforce USA

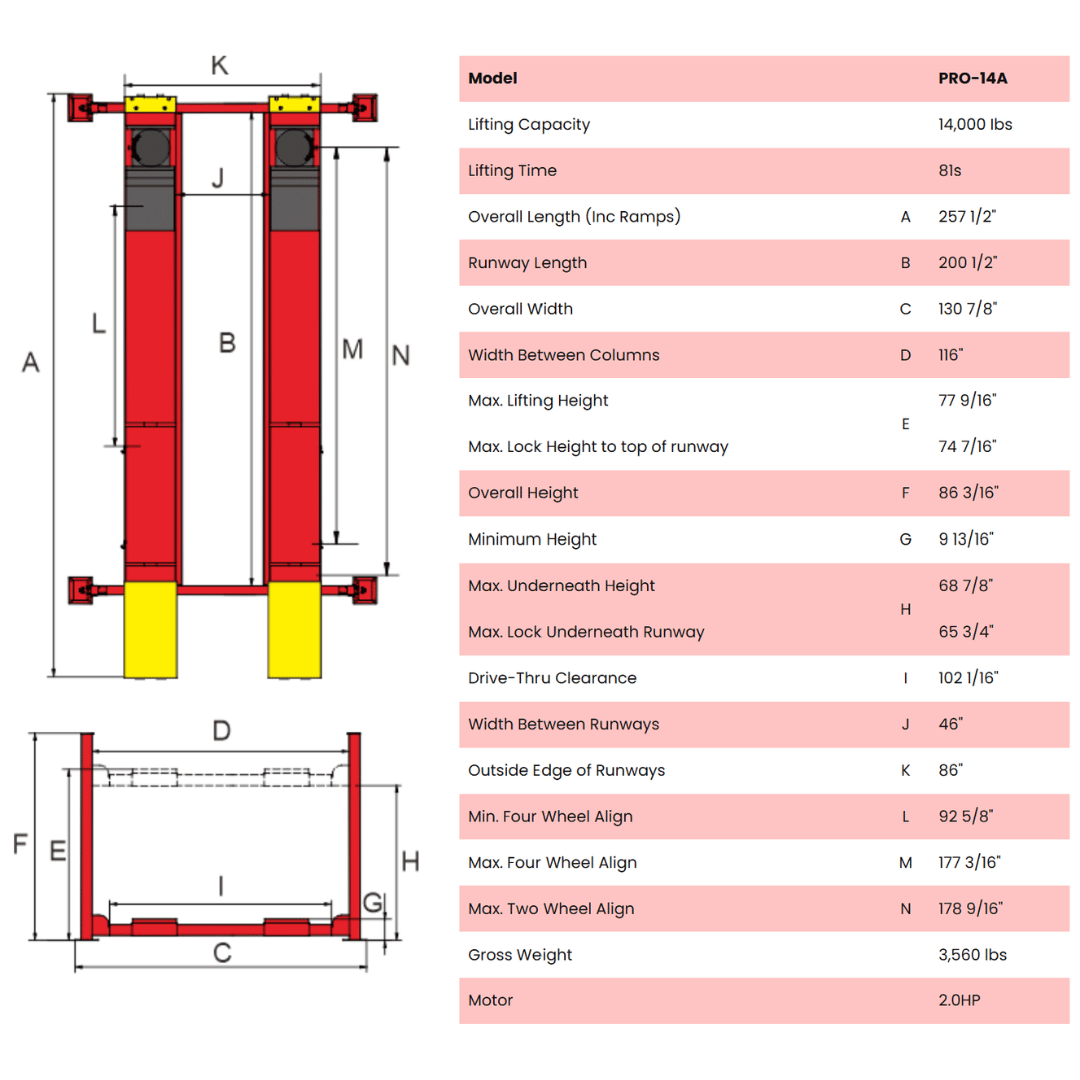

Product Specifications
| Model | PRO-14A |
|---|---|
| Lifting Capacity | 14,000 lbs |
| Lifting Time | 81S |
| A: Overall Length (Inc.Ramps) | 257 1/2″ |
| B: Runway Length | 200 1/2″ |
| C: Overall Width | 130 7/8″ |
| D: Width Between Columns | 116″ |
| E: Max. Lifting Height | 77 7/16″ |
| E: Max. Lock Height to Top of Runway | 74 7/16″ |
| F: Overall Height | 86 3/16″ |
| G: Minimum Height | 9 13/16″ |
| H: Max. Underneath Height | 68 7/8″ |
| H: Max. Lock Underneath Runway | 65 3/4″ |
| I: Drive-Thru Clearance | 102 1/16″ |
| J: Width Between Runways | 46″ |
| K: Outside Edge of Runways | 86″ |
| L: Min. Four Wheel Align | 92 5/8″ |
| M: Max. Four Wheel Align | 177 3/16″ |
| N: Max. Two Wheel Align | 178 9/16″ |
| Gross Weight | 3,560 lbs |
| Motor | 2.0HP |
