Amgo PRO-14E 14,000 lb 4 Post Lift

$7,306.00

Skip to product information
1 of 4

Regular price $7,306.00
Sale price $7,306.00 Regular price

Tap to Call 866-642-5888


Product Description

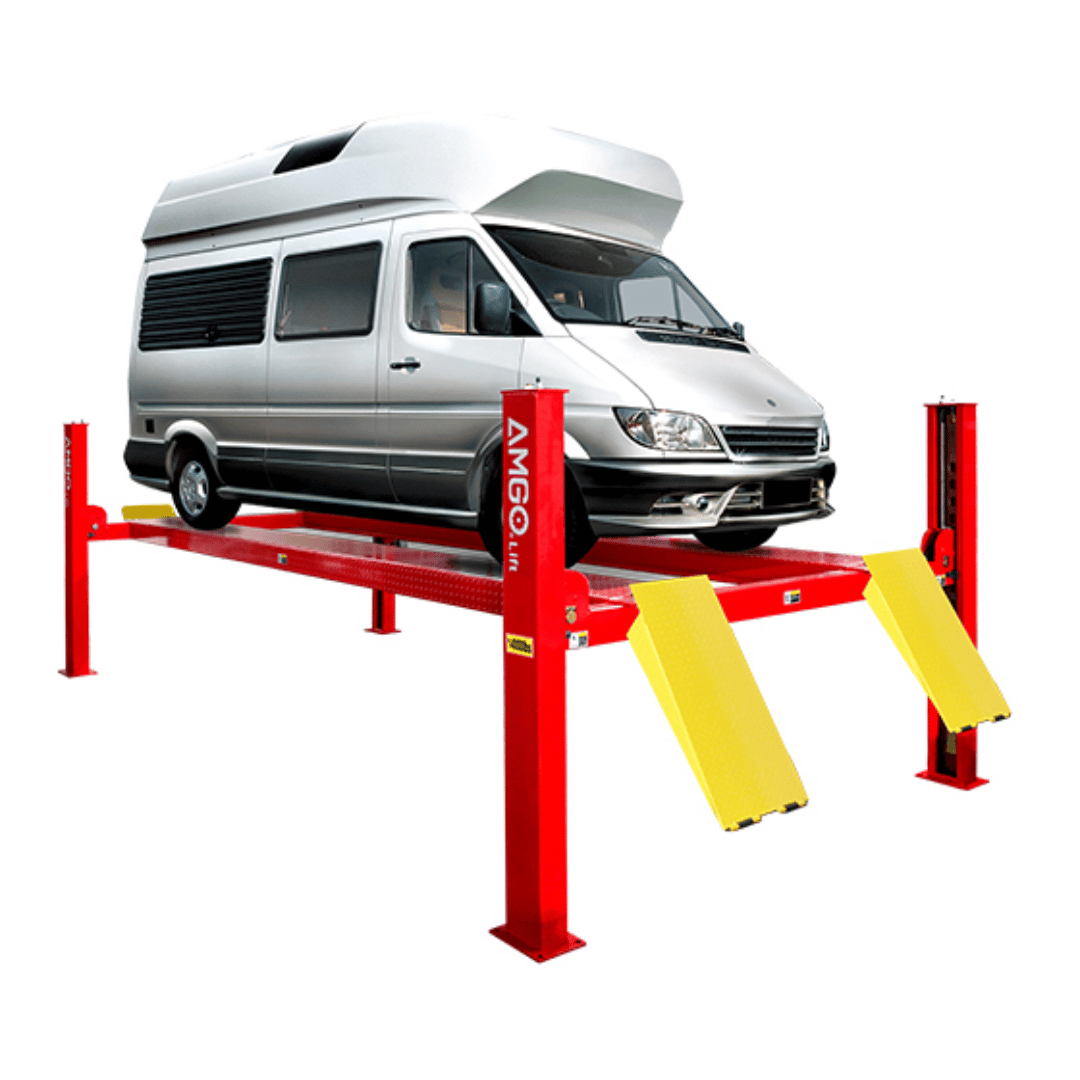

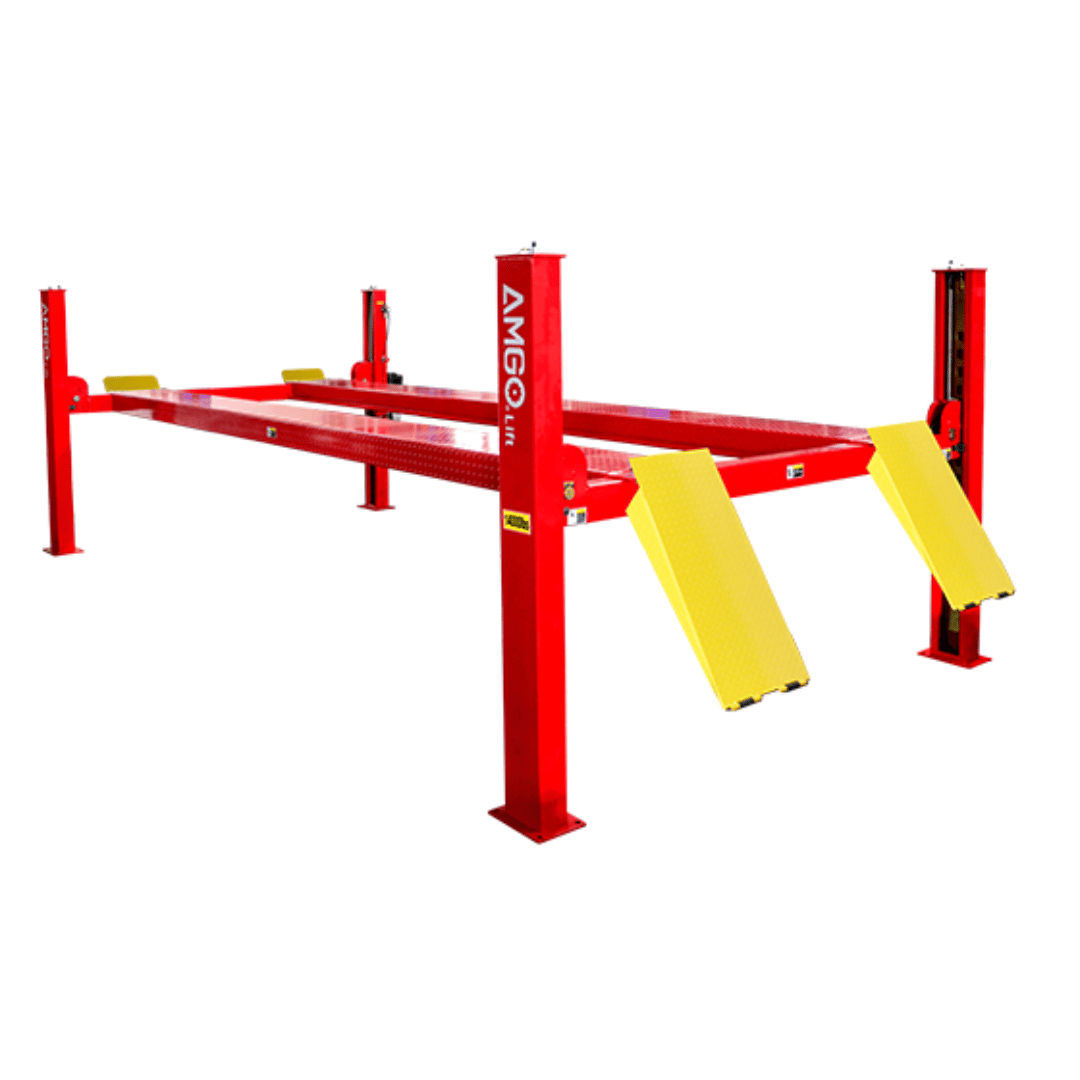

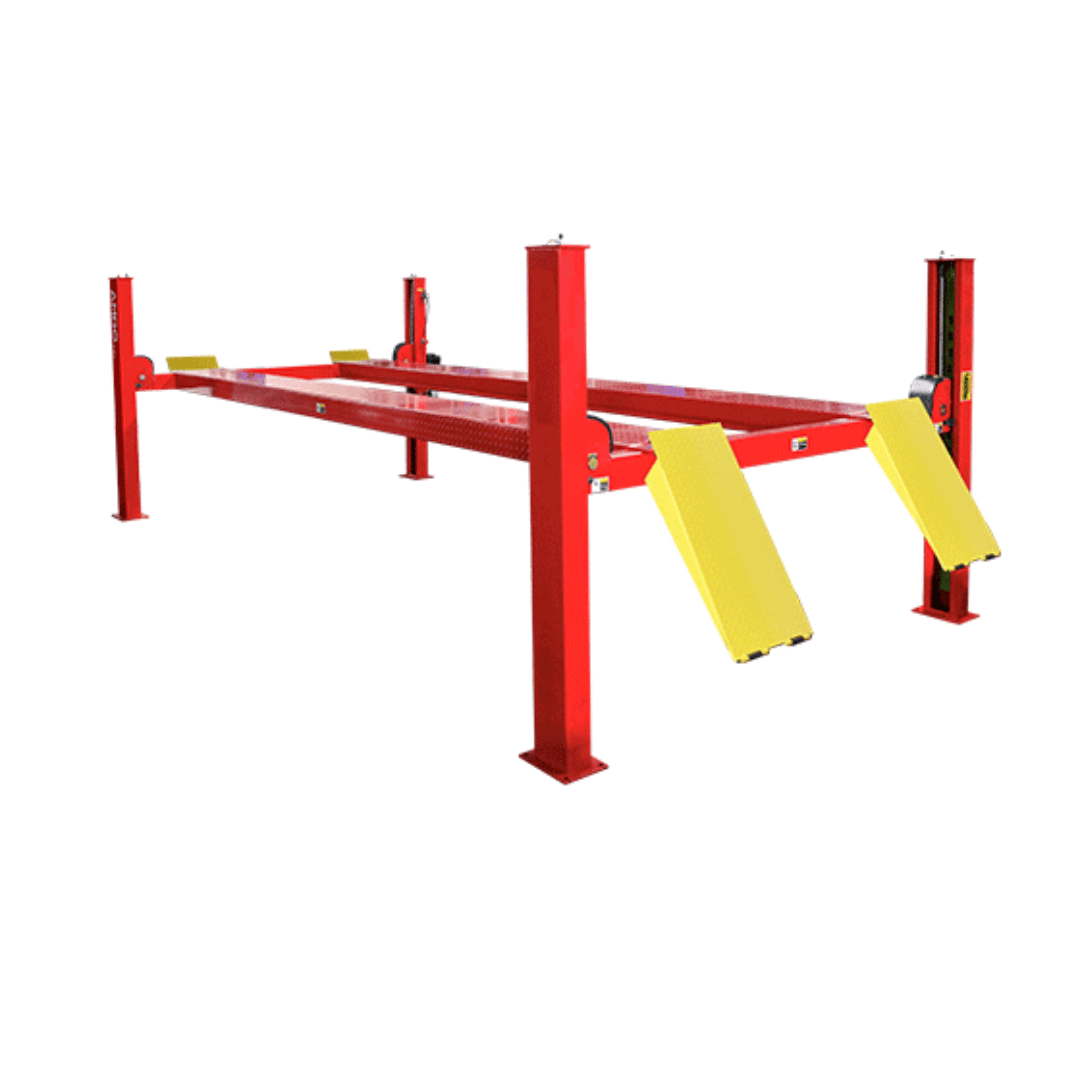

AMGO PRO-14E Extended Runway 4-Post Lift – 14,000 lb Capacity

For shops that work on long-wheelbase vehicles or require additional runway length for specialty service jobs, the AMGO PRO-14E delivers heavy-duty performance with extended capability. Built on the trusted foundation of the PRO-14, this enhanced version features runways that are 28″ longer, making it the go-to choice for servicing super long wheelbase trucks, vans, and commercial vehicles.

With a robust 14,000 lb lifting capacity and stepless adjustable runway width, the PRO-14E is engineered to accommodate a wide range of vehicle sizes while maintaining maximum stability and safety. Its extra-long platforms improve reach and positioning, allowing technicians to work on large and custom-frame vehicles without compromise.

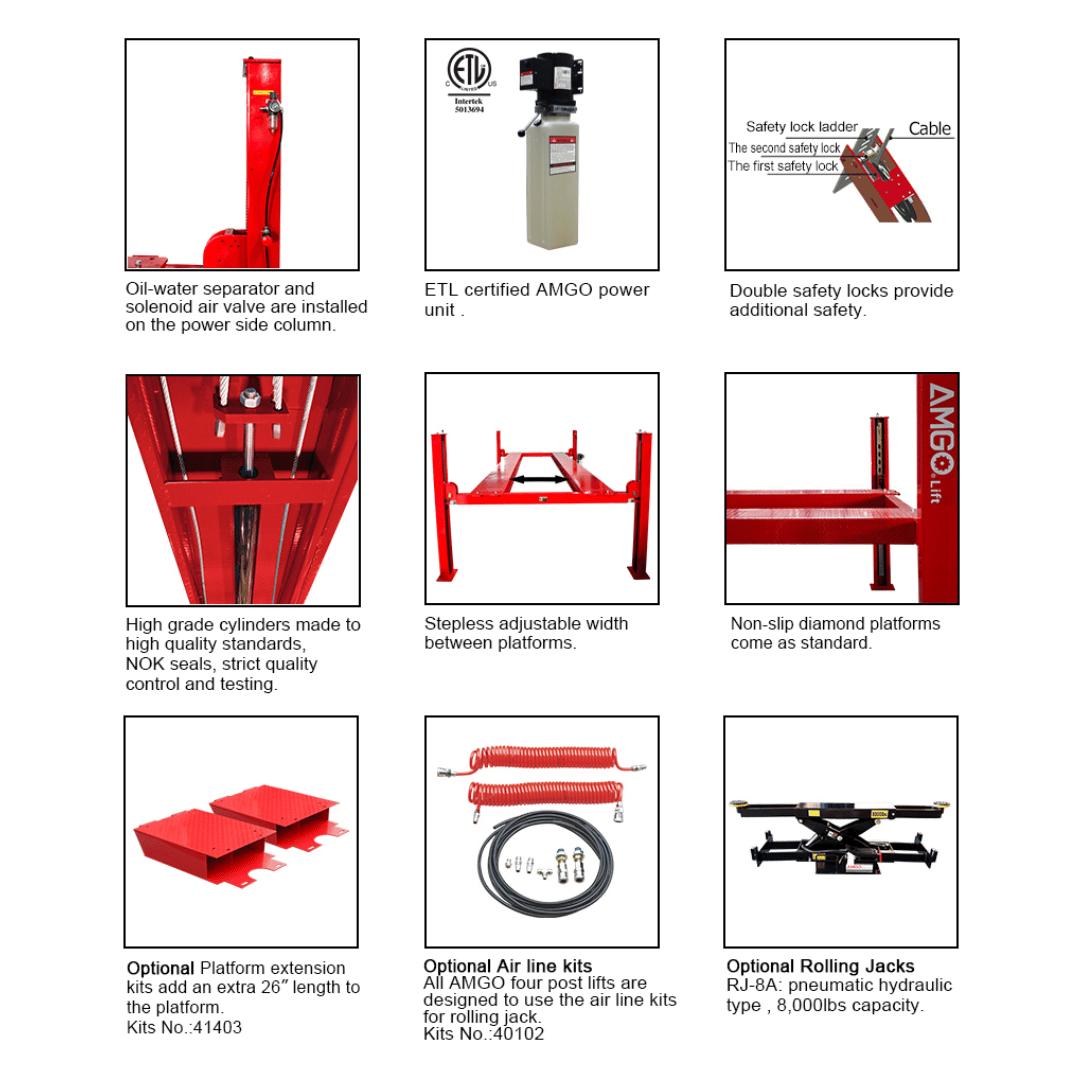

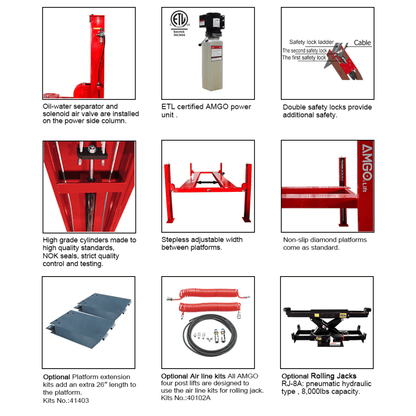

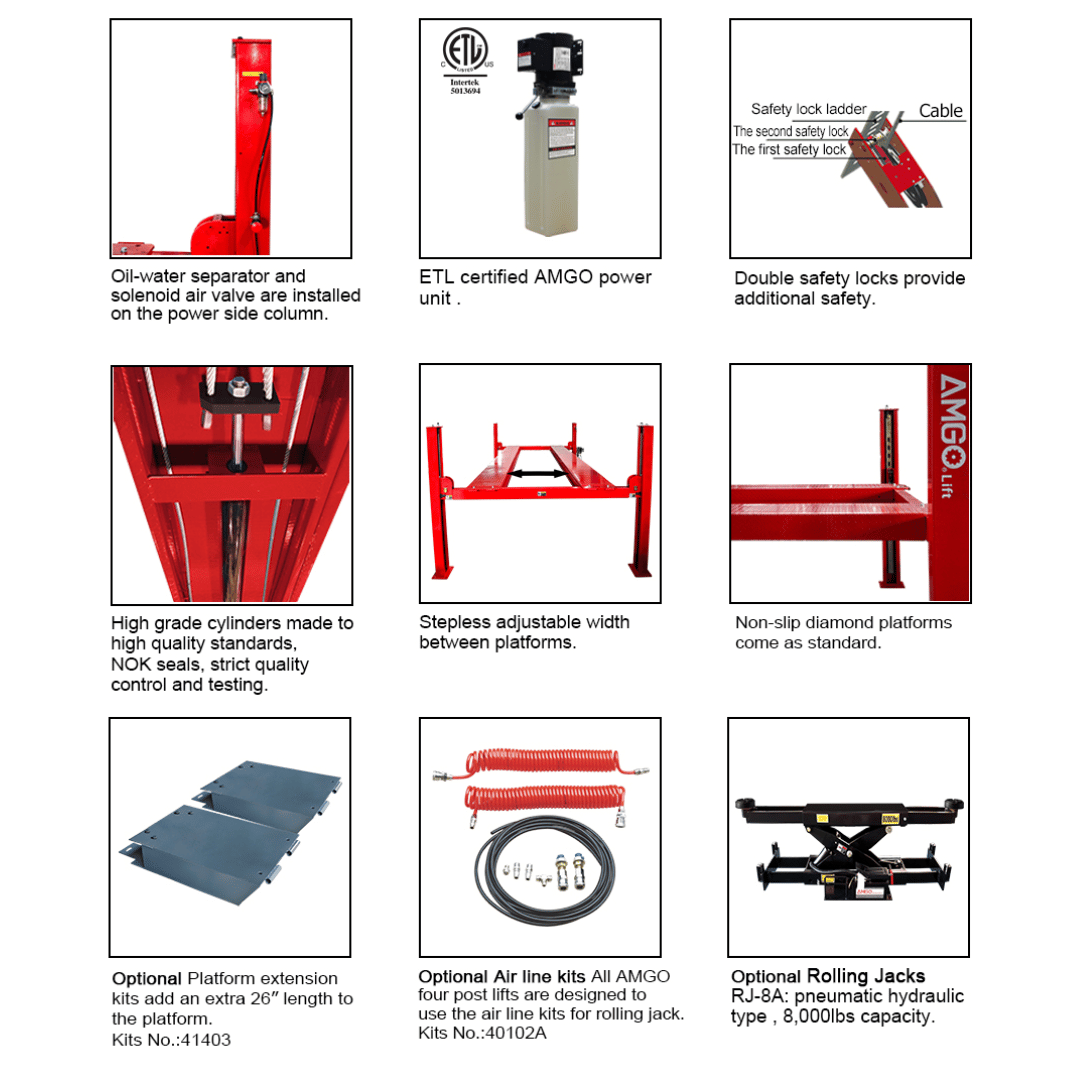

Designed with safety as a top priority, the PRO-14E includes a mechanical self-locking system with air-driven release, multiple locking positions, and a cable-slack protection system. The lift uses aircraft-grade synchronization cables, a precision hydraulic cylinder, and a non-skid diamond platform surface for consistent, worry-free operation.

Now available at Gearforce USA, the PRO-14E is ideal for shops that need to expand their service range to accommodate oversized vehicles — all while maintaining the quality and reliability AMGO lifts are known for.

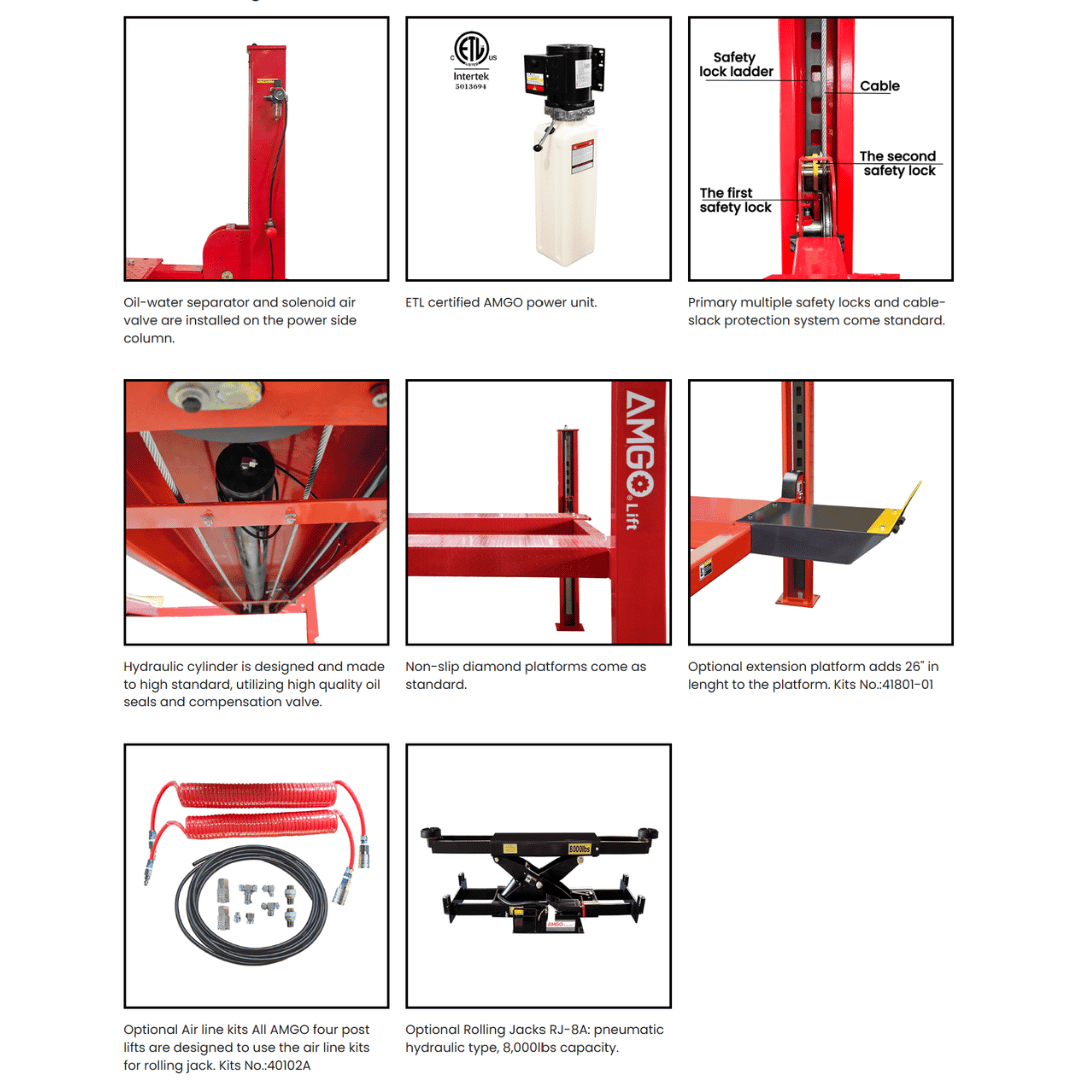

Key Features

  • 14,000 lb lifting capacity – built for servicing long-wheelbase trucks, vans, and commercial vehicles
  • Extended runway length – 28″ longer than the standard PRO-14, ideal for oversized vehicles
  • Stepless adjustable runway width – fits a broad range of wheelbases and track widths
  • Non-skid diamond plate platforms – ensure secure vehicle positioning
  • Mechanical self-locking safety system with air-driven release – multiple lock points for safety
  • Cable-slack protection system – adds redundancy and peace of mind
  • Aircraft-grade synchronization cables – ensure smooth, balanced lifting
  • High-performance hydraulic cylinder – includes premium oil seals and compensation valve
  • Drive-thru clearance: 102 1/16″ | Max lifting height: 74 13/16″
  • Max under-runway clearance: 68 1/2″ | Platform height: 7 7/8″
  • Motor: 2.0 HP, 220V single-phase – dependable lifting power for commercial use
  • AMGO Warranty: 5 years on structure, 3 years on hydraulics, 2 years on electrical components

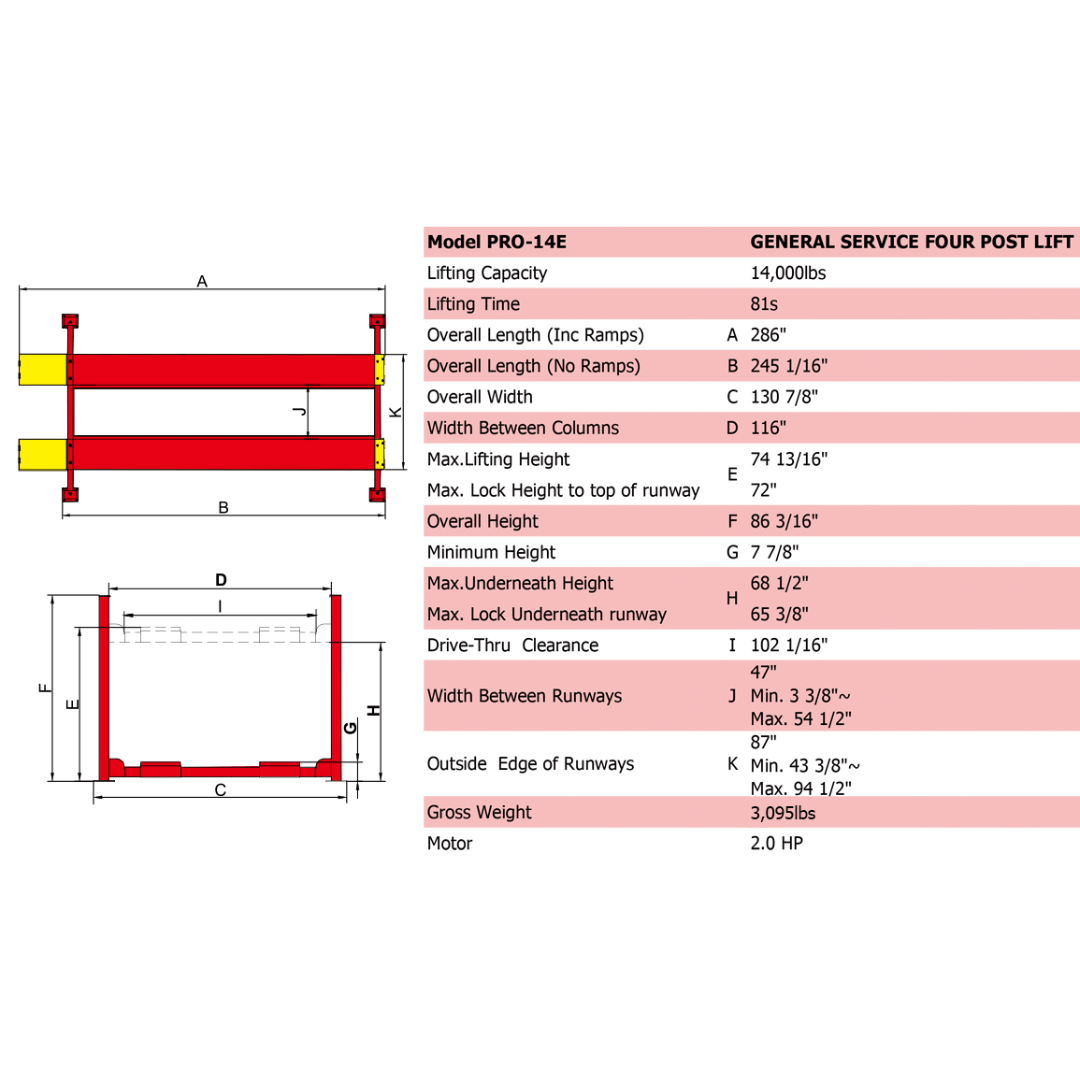

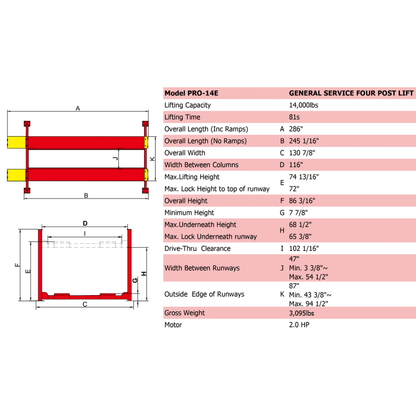

Product Specifications

Model PRO-14E
Lifting Capacity 14,000 lbs
Lifting Time 81S
A: Overall Length (Inc.Ramps) 286″
B: Overall Length (No.Ramps) 245 1/16″
C: Overall Width 130 7/8″
D: Width Between Columns 116″
E: Max. Lifting Height 74 13/16″
E: Max. Lock Height to Top of Runway 72″
F: Overall Height 86 3/16″
G: Minimum Height 7 7/8″
H: Max. Underneath Height 68 1/2″
H: Max. Lock Underneath Runway 65 3/8″
I: Drive-Thru Clearance 102 1/16″
J: Width Between Runways 47″, Min. 3 3/8″, Max. 54 1/2″
K: Outside Edge of Runways 87″, Min. 43 3/8″, Max. 94 1/2″
Gross Weight 3,095 lbs
Motor 2.0HP

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
