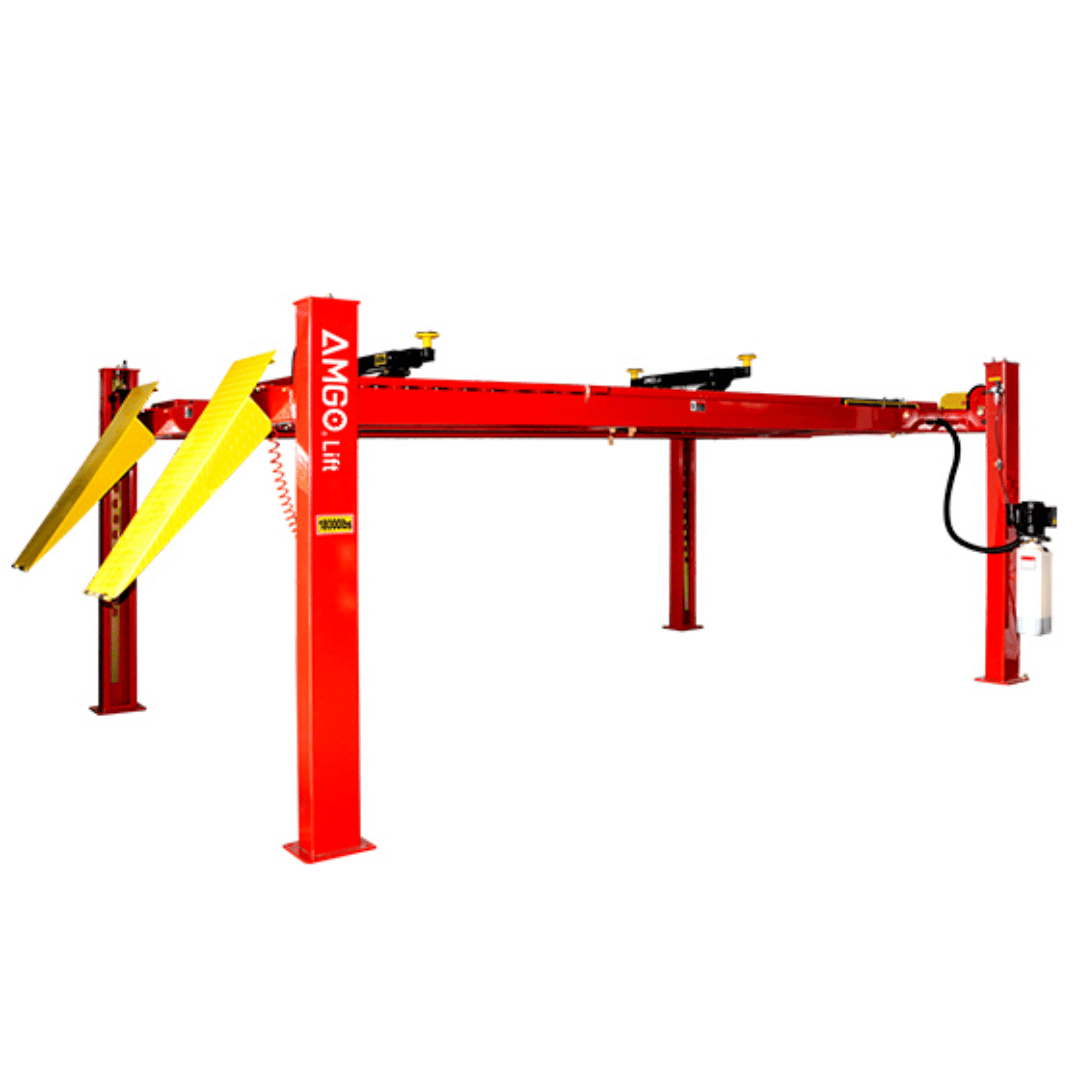

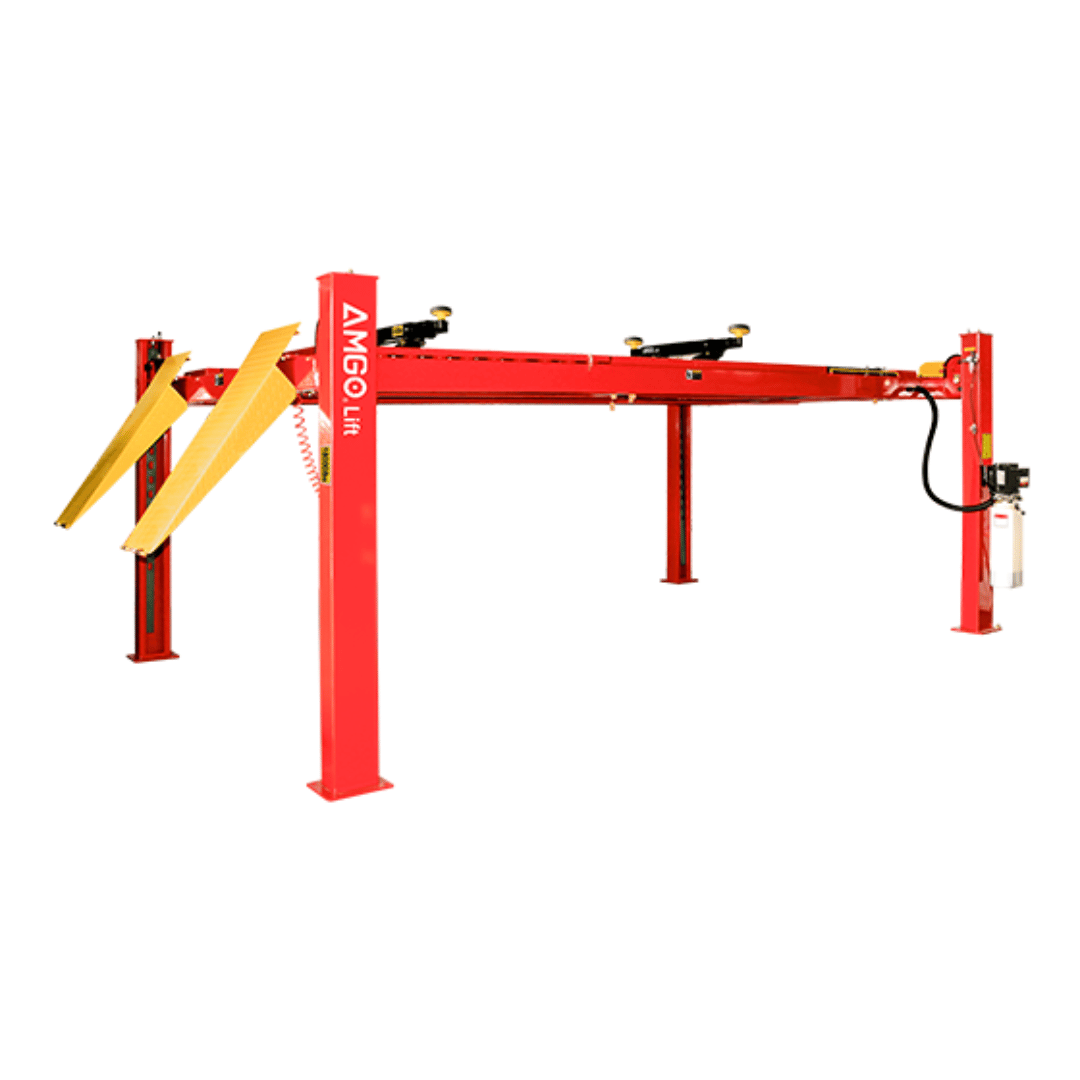

AMGO PRO-18A Heavy-Duty Alignment 4-Post Lift – 18,000 lb Capacity
When your shop needs maximum lifting power with full alignment capabilities, the AMGO PRO-18A delivers unmatched strength and precision. Designed for commercial shops and fleet service centers, this heavy-duty 4-post alignment lift features a robust 18,000 lb capacity, extended-length runways, and built-in alignment functionality — making it the ultimate tool for handling large trucks, vans, buses, and long-wheelbase commercial vehicles.
The PRO-18A includes integrated slip plates and adjustable turnplate pockets, allowing for fast and accurate 4-wheel and 2-wheel alignments across a wide range of vehicle sizes. Its stepless adjustable platform width and non-skid diamond plate runways ensure flexible vehicle positioning and safe, stable service.

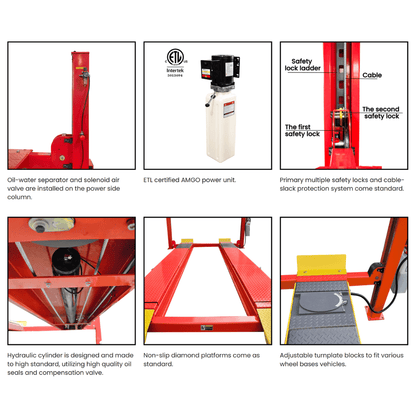

Packed with high-performance safety features, the lift is equipped with a mechanical self-locking system, air-driven lock release, and cable-slack protection system for built-in operator security. Powered by a 2.0 HP ETL-certified motor, and reinforced with aircraft-grade synchronization cables and a high-quality hydraulic cylinder, the PRO-18A is built for nonstop shop performance.
Available at Gearforce USA, the PRO-18A is ideal for alignment shops and commercial garages that need to handle oversized vehicles without sacrificing accuracy or safety.

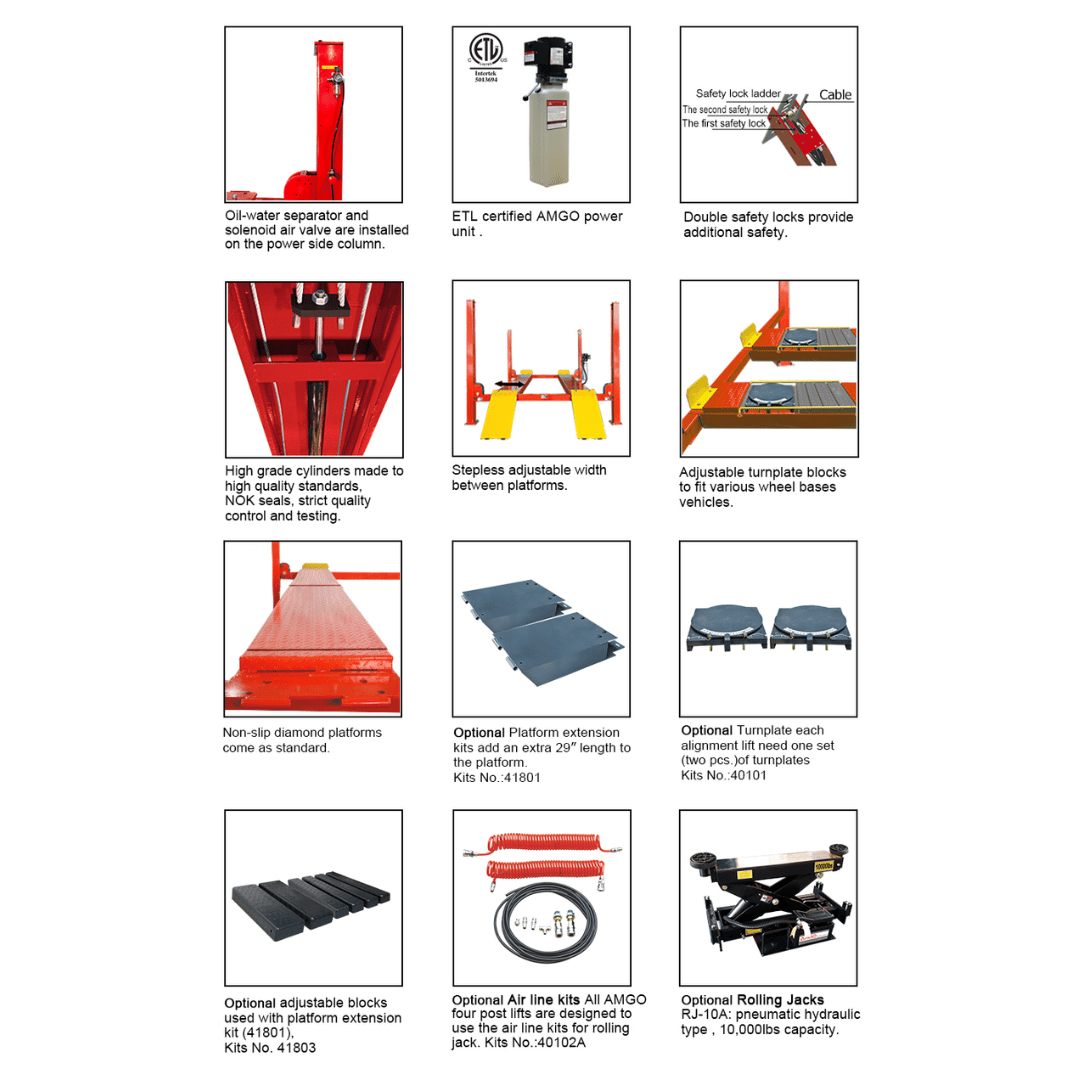

Key Features
- 18,000 lb lifting capacity – ideal for trucks, vans, buses, fleet vehicles, and large commercial applications
- Integrated slip plates & adjustable turnplate pockets – ready for professional alignment work out of the box
- Extra-long runways – 252 1/4" (without ramps) for extended wheelbases
- Stepless adjustable platform width – accommodates a wide range of track widths and vehicle types
- Non-skid diamond plate platforms – prevent slipping during lift operation

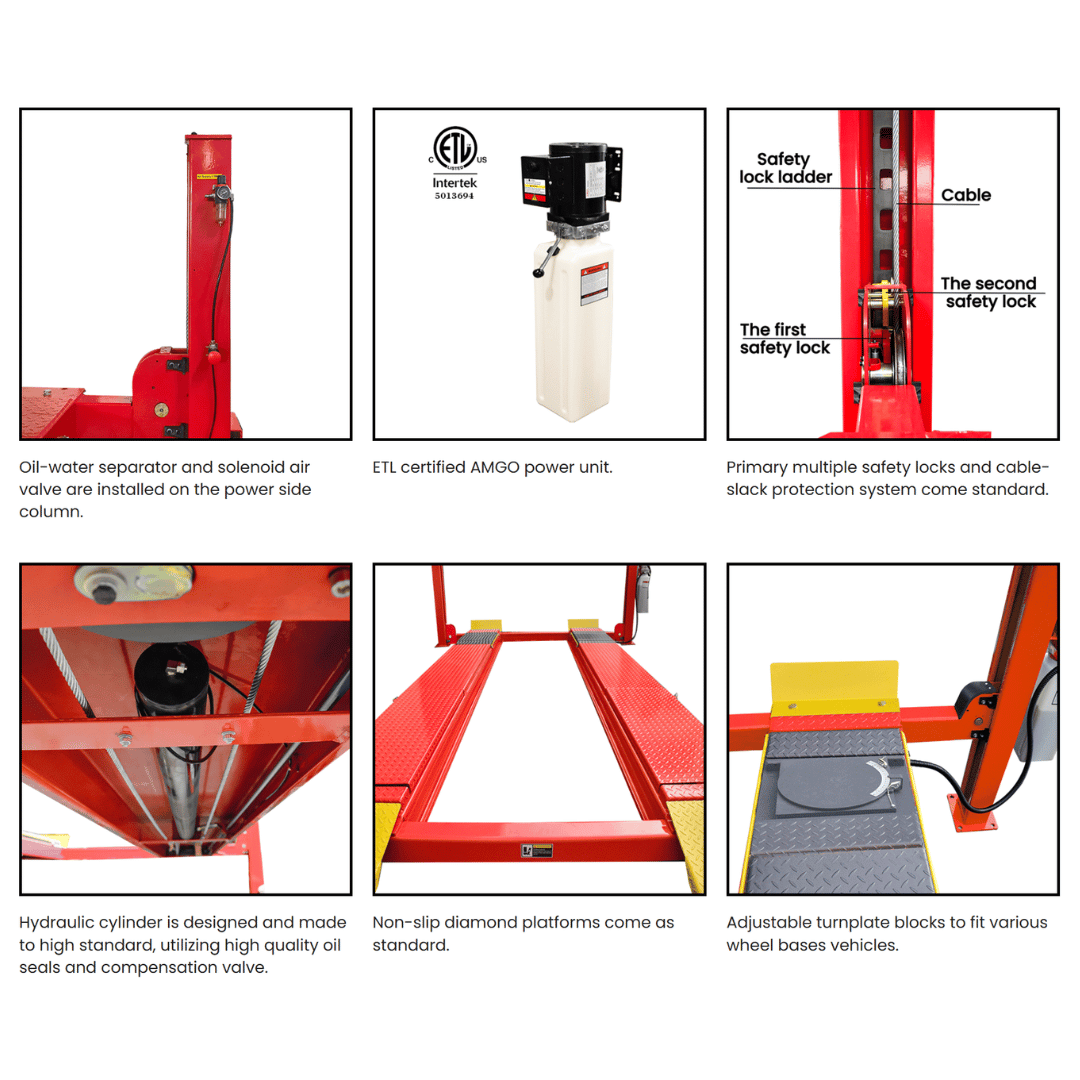

- Mechanical safety lock system with air-driven release – secure and easy to use
- Cable-slack protection system – adds critical safety redundancy
- Aircraft-grade synchronization cables – ensure even, balanced lifting
- High-quality hydraulic cylinder – with oil seals and compensation valve for smooth performance
- Max lifting height: 77 3/16" | Under-platform clearance: 68 1/2"
- Drive-thru clearance: 108 1/4" – accommodates wide vehicles and dually trucks
- Supports 4-wheel alignments from 99 5/8″ to 182 11/16″ | 2-wheel up to 209 1/16″
- Motor: 2.0 HP, 220V single-phase – dependable, commercial-grade power
- AMGO Warranty: 5 years on structural steel, 3 years on hydraulics, 2 years on electrical

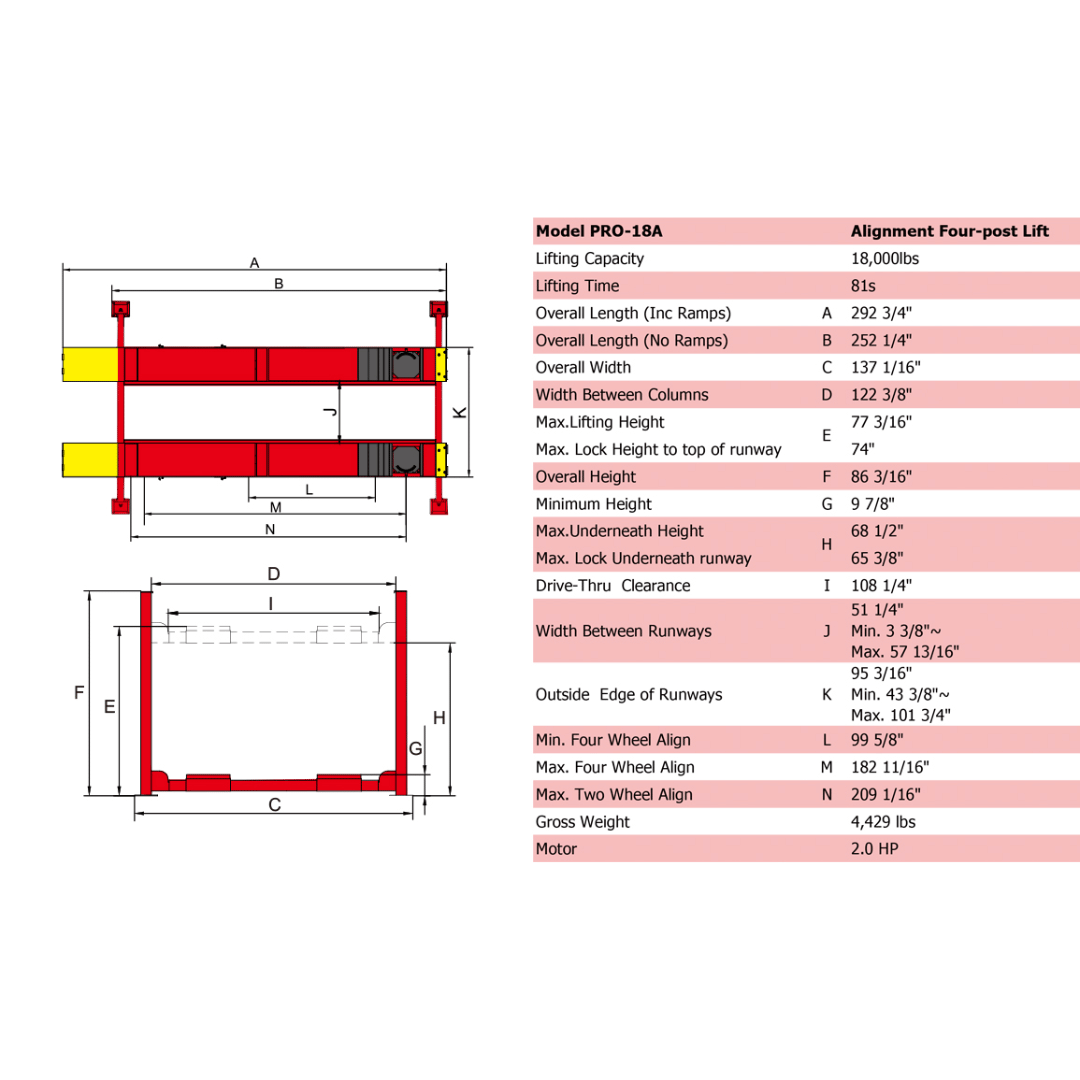

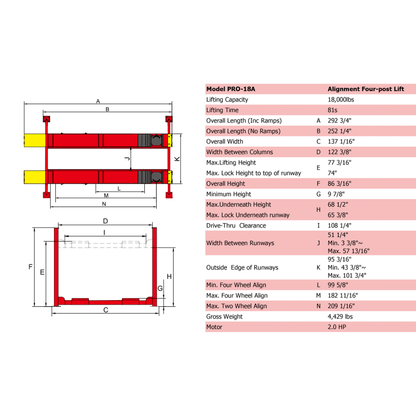

Product Specifications
| Model | PRO-18A |
|---|---|
| Lifting Capacity | 18,000 lbs |
| Lifting Time | 81S |
| A: Overall Length (Inc.Ramps) | 292 3/4″ |
| B: Overall Length (No.Ramps) | 252 1/4″ |
| C: Overall Width | 137 1/16″ |
| D: Width Between Columns | 122 3/8″ |
| E: Max. Lifting Height | 77 3/16″ |
| E: Max. Lock Height to Top of Runway | 74″ |
| F: Overall Height | 86 3/16″ |
| G: Minimum Height | 9 7/8″ |
| H: Max. Underneath Height | 68 1/2″ |
| H: Max. Lock Underneath Runway | 65 3/8″ |
| I: Drive-Thru Clearance | 108 1/4″ |
| J: Width Between Runways | 51 1/4″, Min. 3 3/8″, Max. 57 13/16″ |
| K: Outside Edge of Runways | 95 3/16″, Min. 43 3/8″, Max. 101 3/4″ |
| L: Min. Four Wheel Align | 99 5/8″ |
| M: Max. Four Wheel Align | 182 11/16″ |
| N: Max. Two Wheel Align | 209 1/16″ |
| Gross Weight | 4,429 lbs |
| Motor | 2.0HP |
