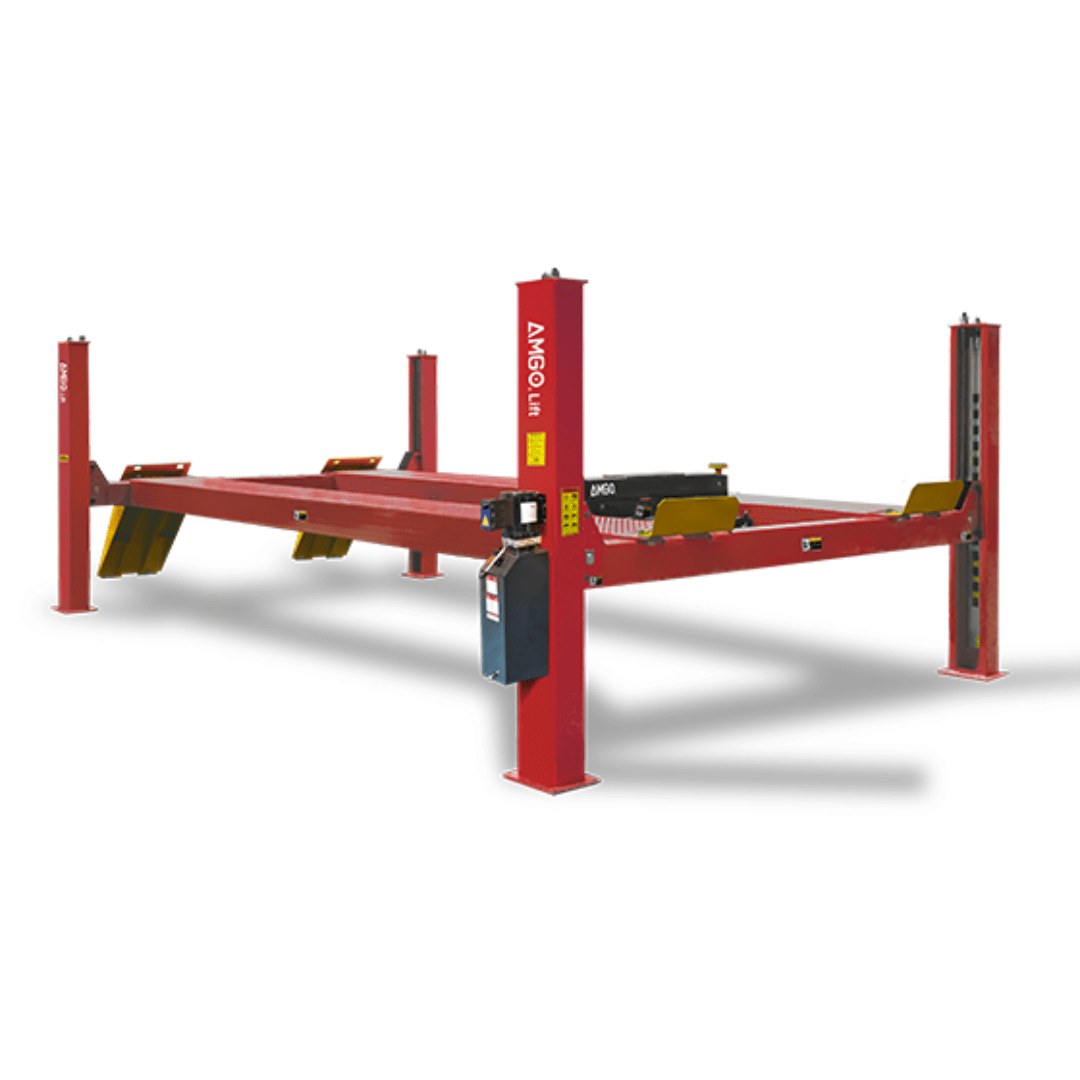

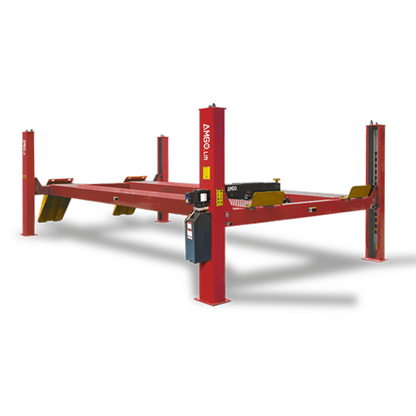

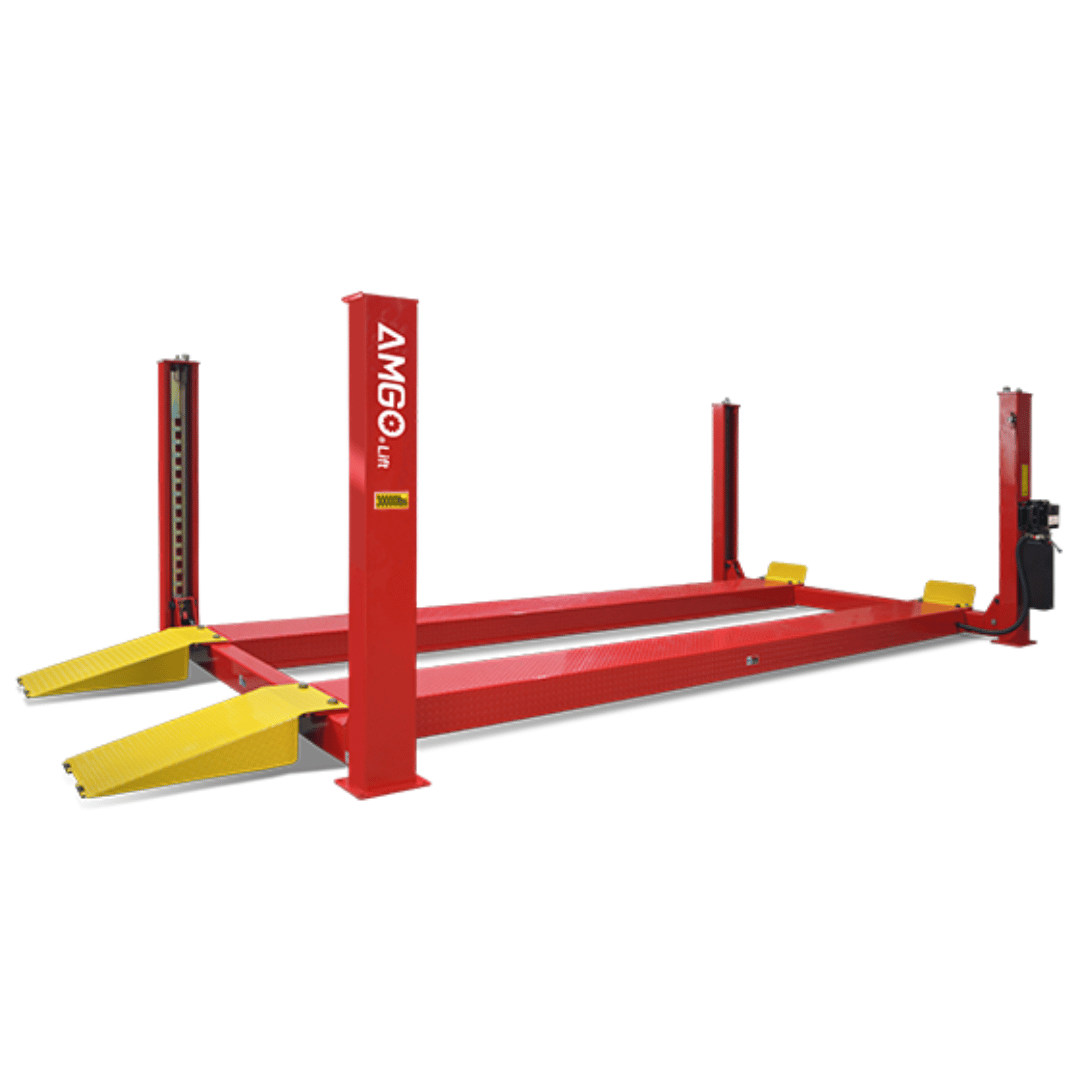

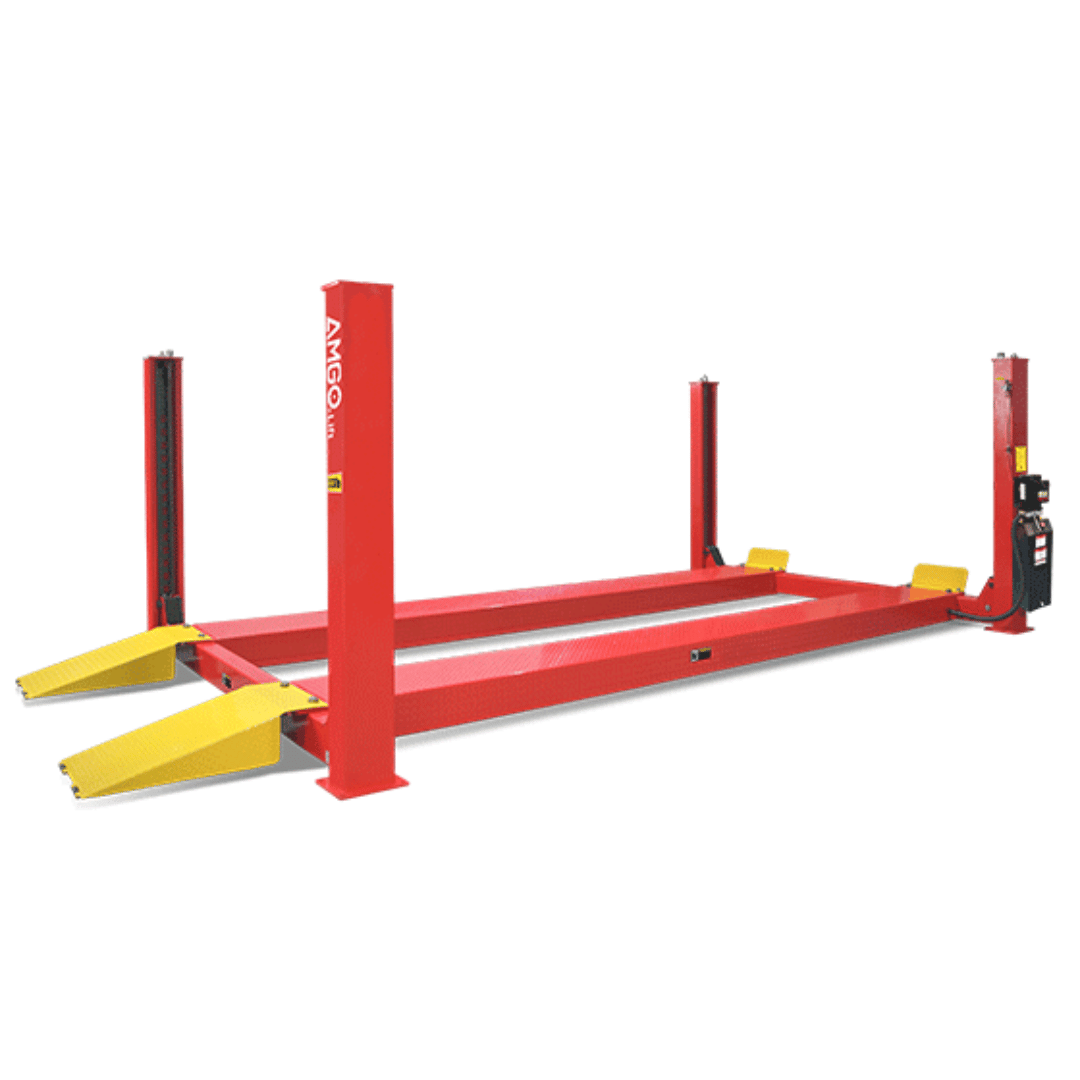

AMGO PRO-30 HD Super-Duty 4-Post Lift – 30,000 lb Capacity
When only the most rugged and powerful lifting solution will do, the AMGO PRO-30 HD rises to the challenge. Built for municipal, construction, fleet, and commercial applications, this super-duty 4-post lift delivers a massive 30,000 lb lifting capacity, with an oversized structure designed to handle the largest vehicles on the road or job site.
Featuring spacious non-skid diamond plate runways, a wide 117 13/16″ drive-thru clearance, and heavy-duty steel construction, the PRO-30 is ideal for servicing dump trucks, school buses, fire trucks, flatbeds, and large municipal equipment. Its reinforced dual-safety system, mechanical self-locking locks, and air-driven release mechanism provide maximum protection and reliable performance in demanding environments.
The lift is powered by a 2.0 HP ETL-certified motor, and includes aircraft-grade synchronization cables, a precision hydraulic cylinder, and a cable-slack protection system — ensuring consistent lift balance, minimal maintenance, and smooth operation even under extreme weight.
Available now at Gearforce USA, the PRO-30 HD is the premier heavy-lifting solution for shops, depots, and fleets that require uncompromising strength, safety, and operational efficiency.
Key Features
- 30,000 lb lifting capacity – ideal for construction trucks, buses, municipal vehicles, and fleet equipment
- Oversized, reinforced frame – built for heavy-duty commercial use
- Non-skid diamond plate platforms – ensure secure traction under heavy load
- Wide drive-thru clearance: 117 13/16″ – accommodates large-frame vehicles and dual rear wheels

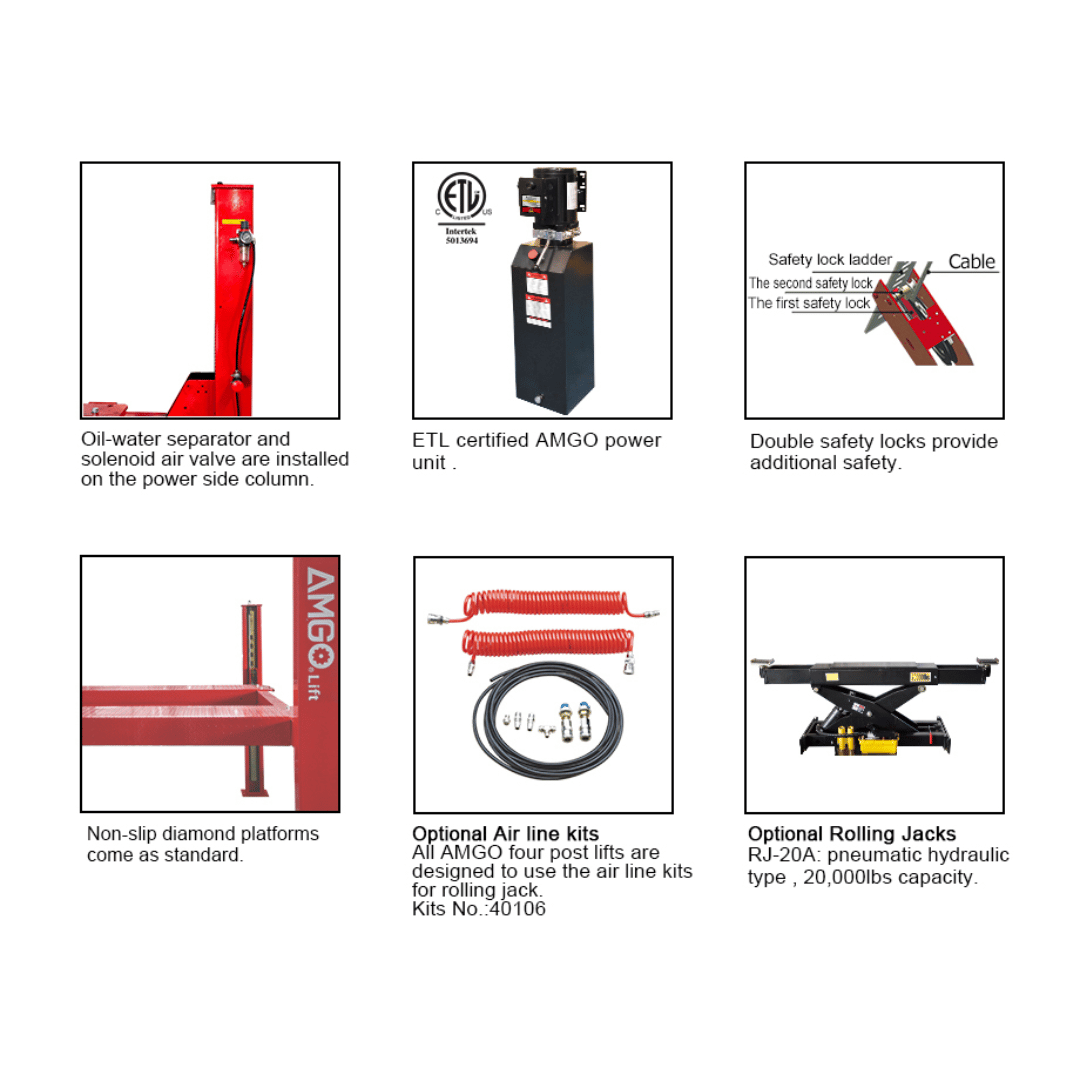

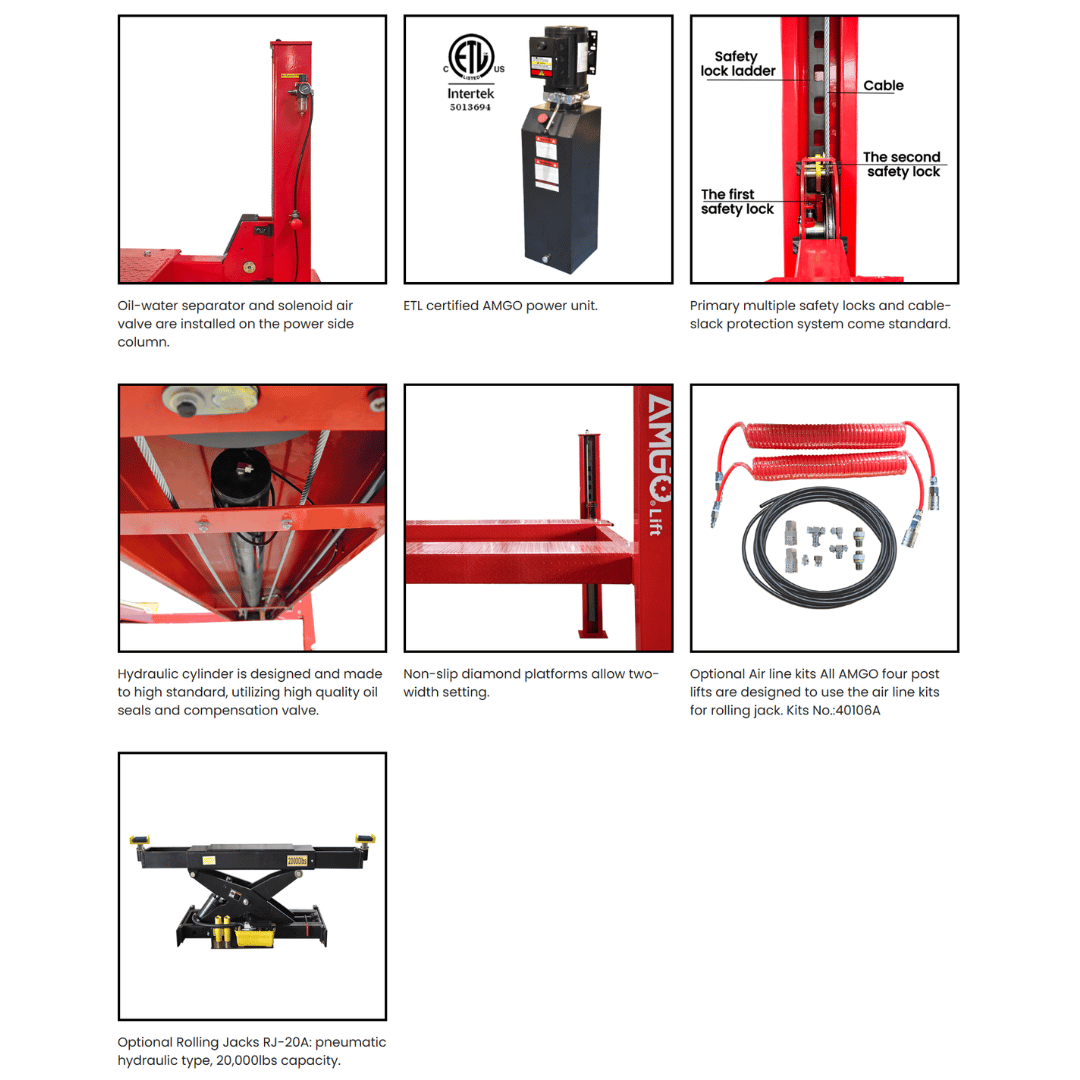

- Mechanical self-locking system with air-driven release – safety-first operation with multiple lock points
- Cable-slack protection system – automatic secondary safety backup
- Aircraft-grade synchronization cables – smooth, even lifting under full capacity
- High-performance hydraulic cylinder – includes premium oil seals and built-in compensation valve
- Max lifting height: 74 13/16″ | Under-runway clearance: 65 7/8″
- Min platform height: 10 7/16″ – easy access for large commercial vehicles
- Runway width range: 44 7/8″ to 54 3/4″ | Outside edge width: up to 102 3/4″
- Motor: 2.0 HP, 220V single-phase – consistent power for industrial-grade demands
- AMGO Warranty: 5 years on structural steel, 3 years on hydraulics, 2 years on electrical components

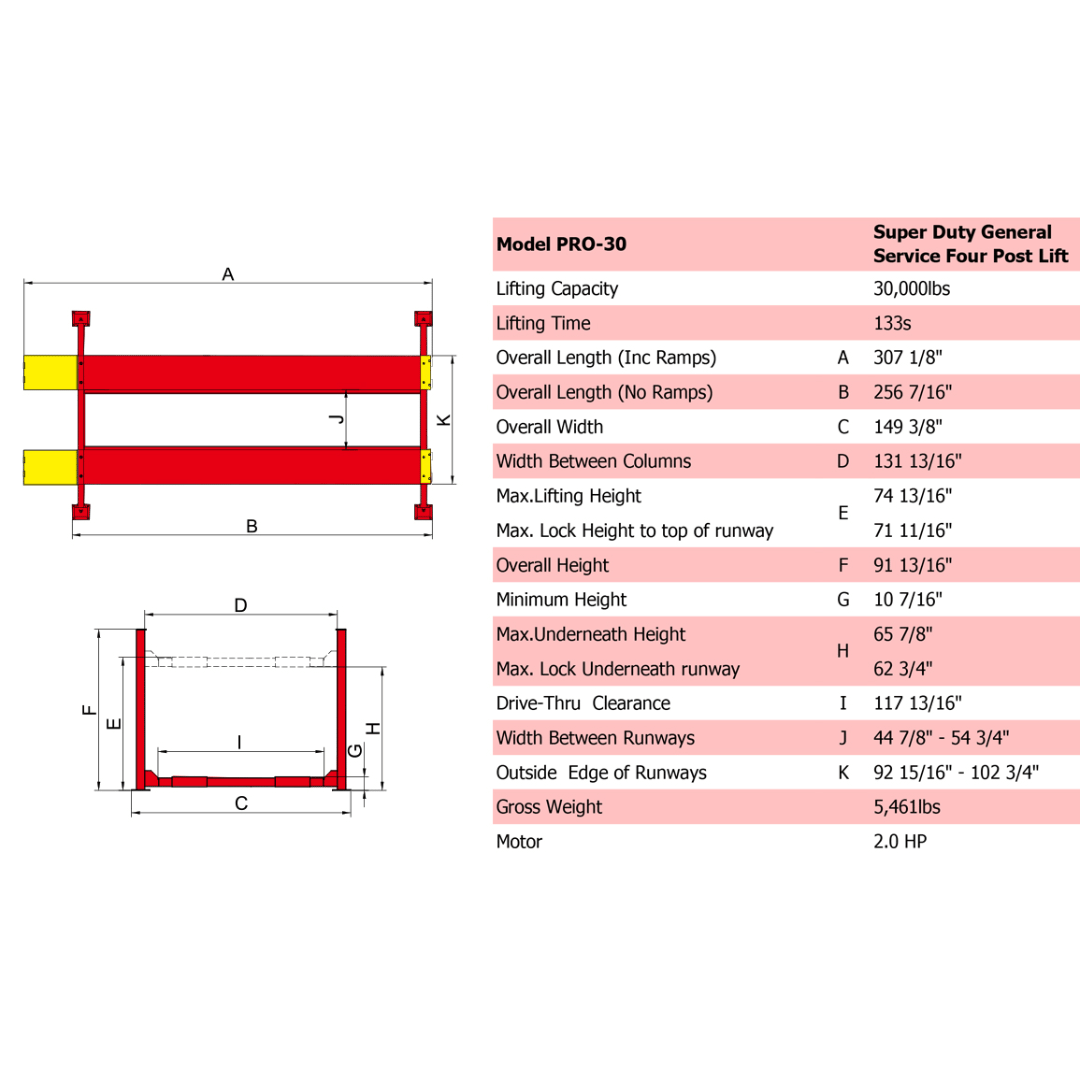

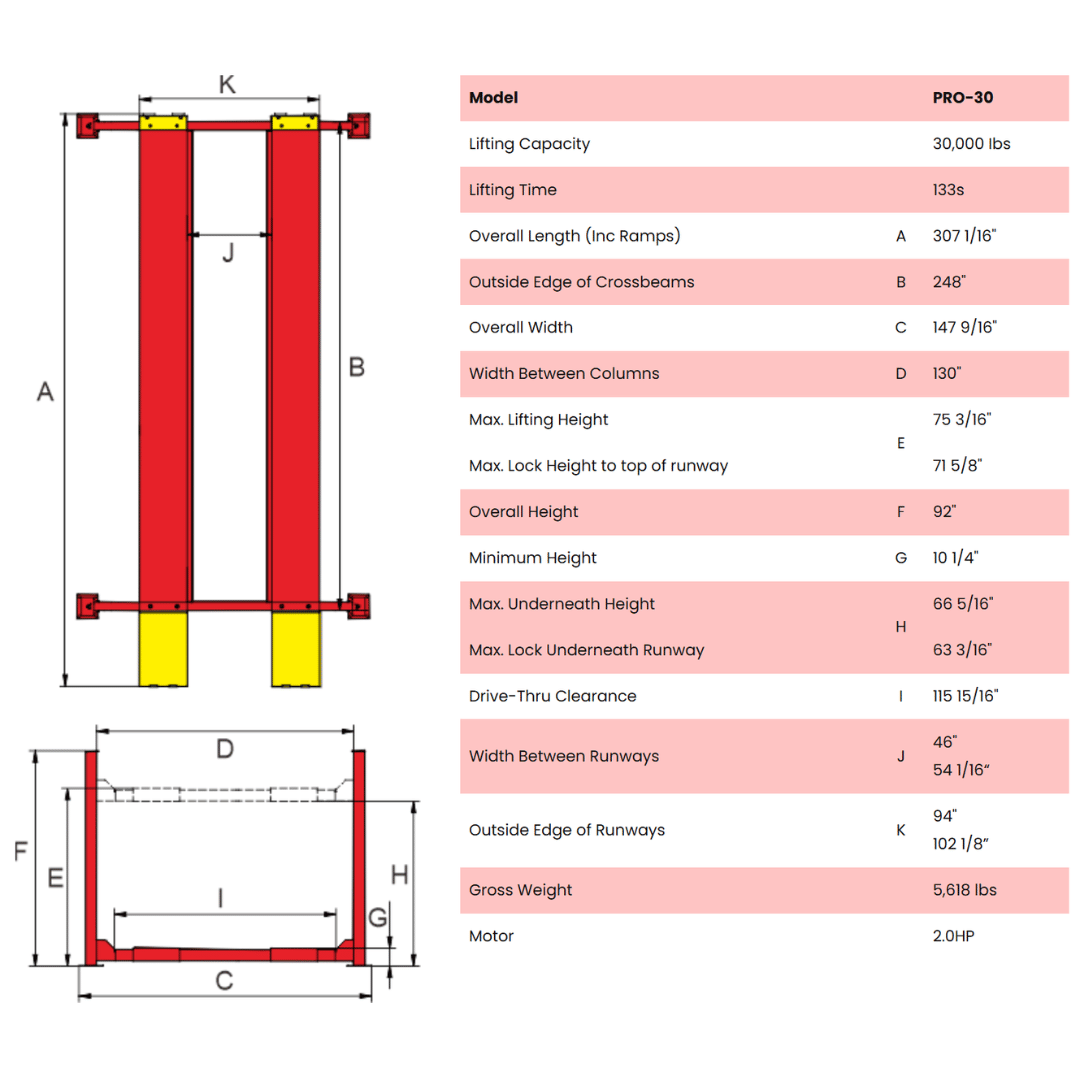

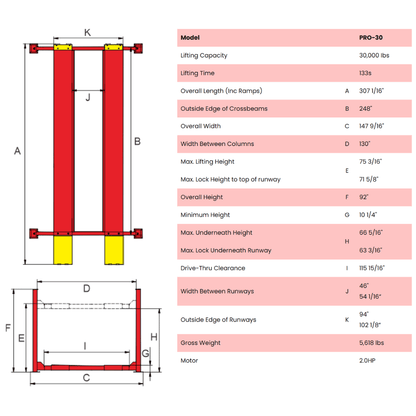

Product Specifications
| Model | PRO-30 |
|---|---|
| Lifting Capacity | 30,000 lbs |
| Lifting Time | 133S |
| A: Overall Length (Inc.Ramps) | 307 1/8″ |
| B: Overall Length (No.Ramps) | 256 7/16″ |
| C: Overall Width | 149 3/8″ |
| D: Width Between Columns | 131 13/16″ |
| E: Max. Lifting Height | 74 13/16″ |
| E: Max. Lock Height to Top of Runway | 71 11/16″ |
| F: Overall Height | 91 13/16″ |
| G: Minimum Height | 10 7/16″ |
| H: Max. Underneath Height | 65 7/8″ |
| H: Max. Lock Underneath Runway | 62 3/4″ |
| I: Drive-Thru Clearance | 117 13/16″ |
| J: Width Between Runways | 44 7/8″ - 54 3/4″ |
| K: Outside Edge of Runways | 92 15/16″ - 102 3/4″ |
| Gross Weight | 5,461 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
