Product Description

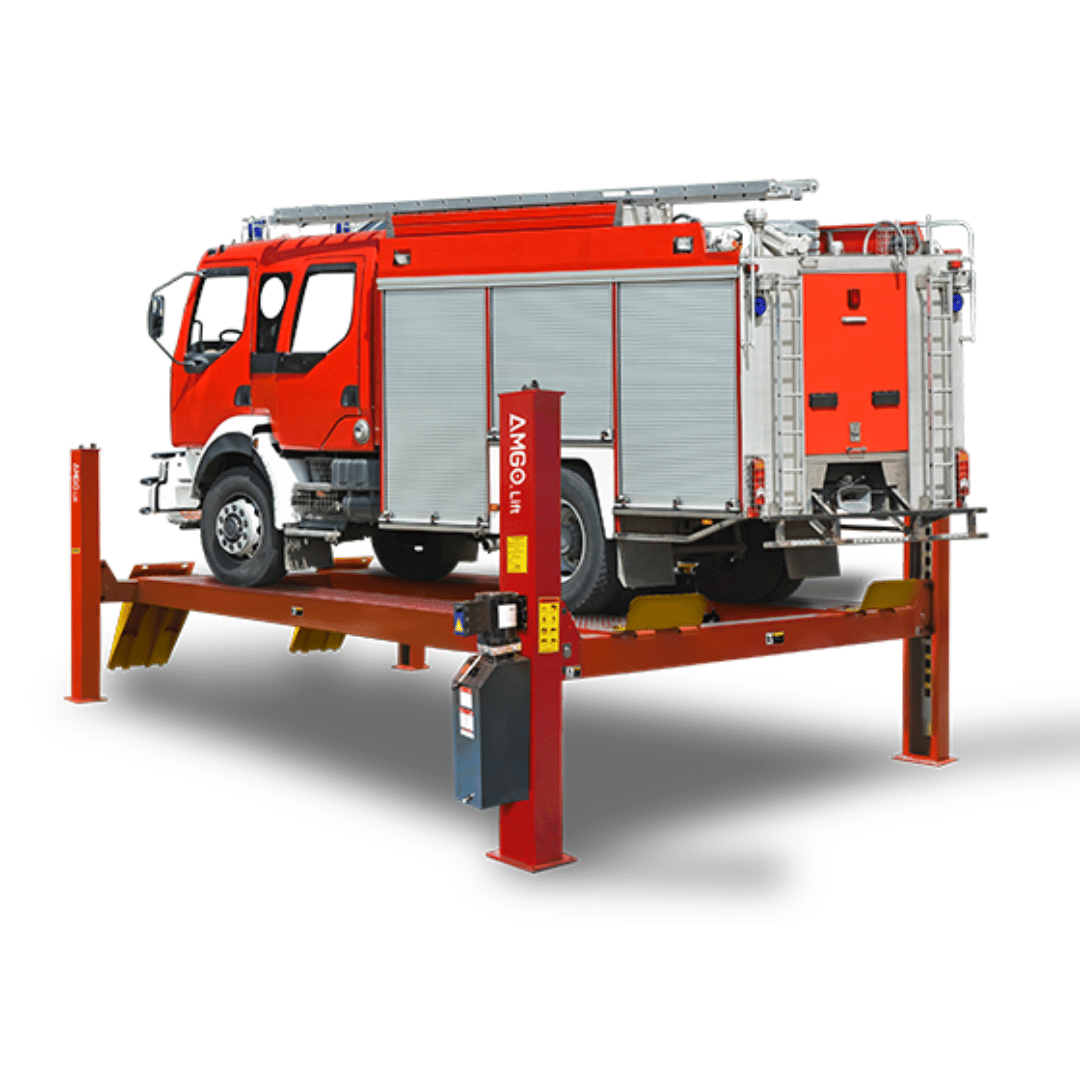

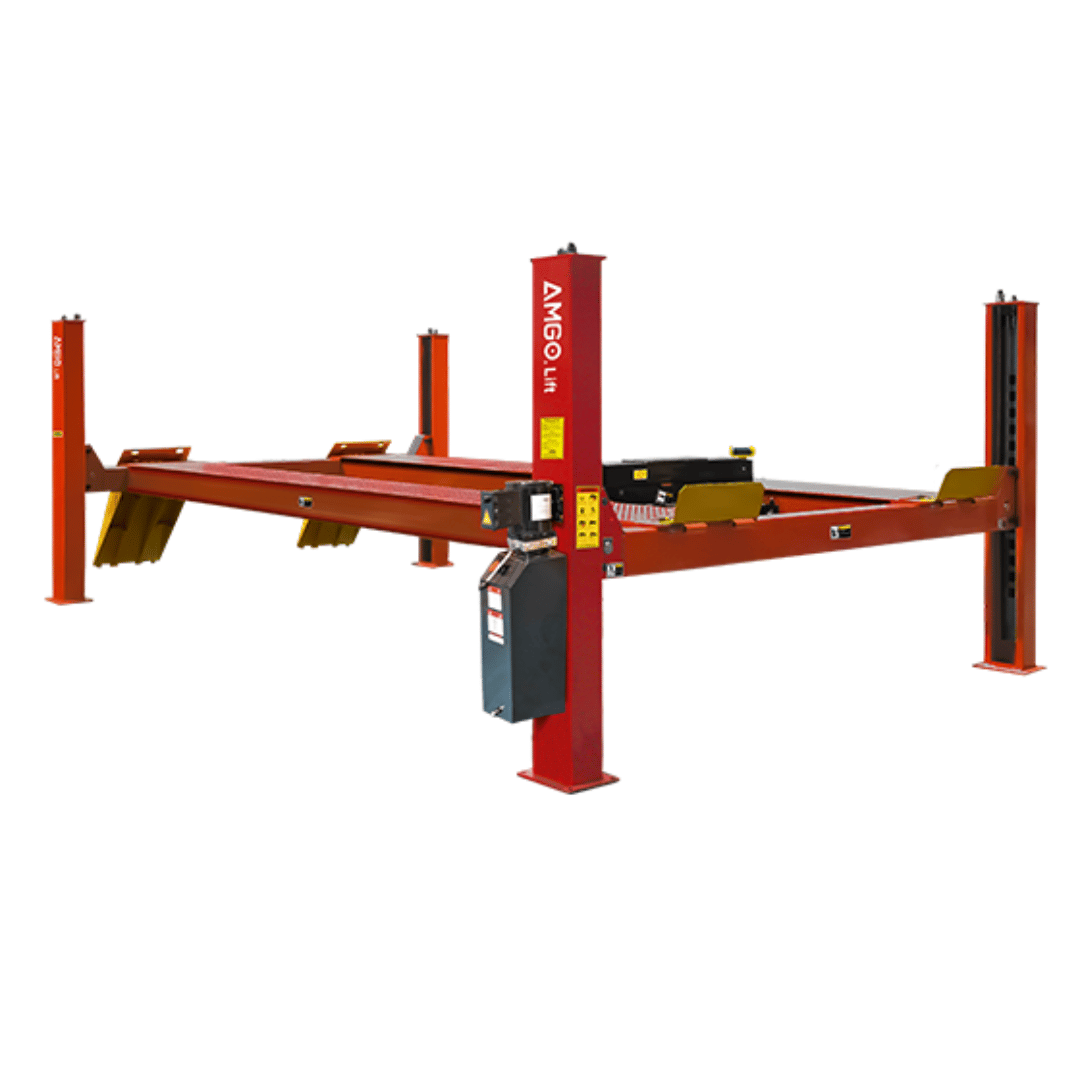

AMGO PRO-30E HD Extended 4-Post Lift – 30,000 lb Capacity
Designed for the most demanding commercial and fleet service environments, the AMGO PRO-30E HD brings exceptional power and extended versatility to your garage. With a massive 30,000 lb lifting capacity and runways that are 59″ longer than the standard PRO-30, this lift is engineered to handle super long vehicles like buses, fire trucks, RVs, articulated service vehicles, and construction rigs with unmatched ease.
Its oversized, rugged frame and non-skid diamond platforms offer stability and grip even under extreme weight. The PRO-30E provides a drive-thru clearance of 117 13/16″, and its extended overall platform length of 315 1/2" (without ramps) ensures ample space for extra-long wheelbases.

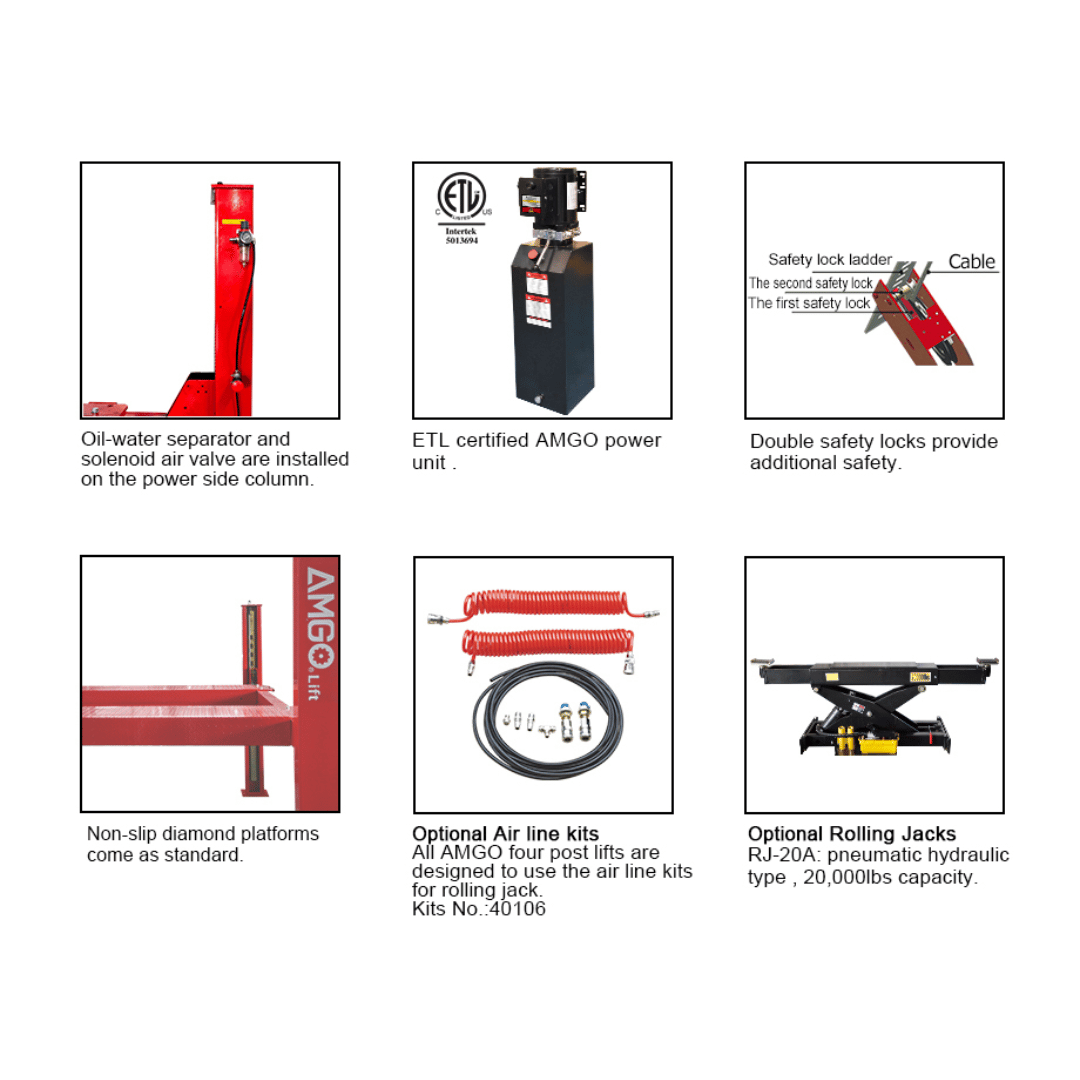

As part of AMGO’s Super Duty series, this lift includes a dual-safety system with mechanical self-locking safety locks, air-driven release, and a cable-slack protection system. Combined with aircraft-grade synchronization cables, a high-performance hydraulic cylinder, and an ETL-certified 2.0 HP power unit, the PRO-30E delivers consistent, reliable performance while keeping safety and efficiency at the forefront.
Available now from Gearforce USA, the PRO-30E is the go-to solution for commercial garages and municipal fleet operations that require extra length without compromising lifting strength.
Key Features
- 30,000 lb lifting capacity – perfect for buses, articulated vehicles, municipal rigs, and long commercial trucks
- Extended runway length – 315 1/2" platform (no ramps) adds 59" over the PRO-30 for extra-long wheelbases
- Non-skid diamond plate platforms – ensure traction and vehicle stability during heavy-duty service
- Drive-thru clearance: 117 13/16″ – accommodates wide-body and dual-wheel commercial vehicles
- Mechanical safety lock system with air-driven release – automatic, multi-position safety engagement
- Cable-slack protection system – adds redundant safety for peace of mind under full loads
- Aircraft-grade synchronization cables – provide balanced, synchronized lifting
- Hydraulic cylinder built to high standards – features premium oil seals and integrated compensation valve
- Max lifting height: 74 13/16″ | Under-platform clearance: 65 7/8″
- Platform width: 44 7/8″ to 54 3/4″ | Outside edge: up to 102 3/4″
- Motor: 2.0 HP, 220V single-phase – delivers consistent industrial-grade power
- AMGO Warranty: 5 years on structural steel, 3 years on hydraulics, 2 years on electrical components
Product Specifications

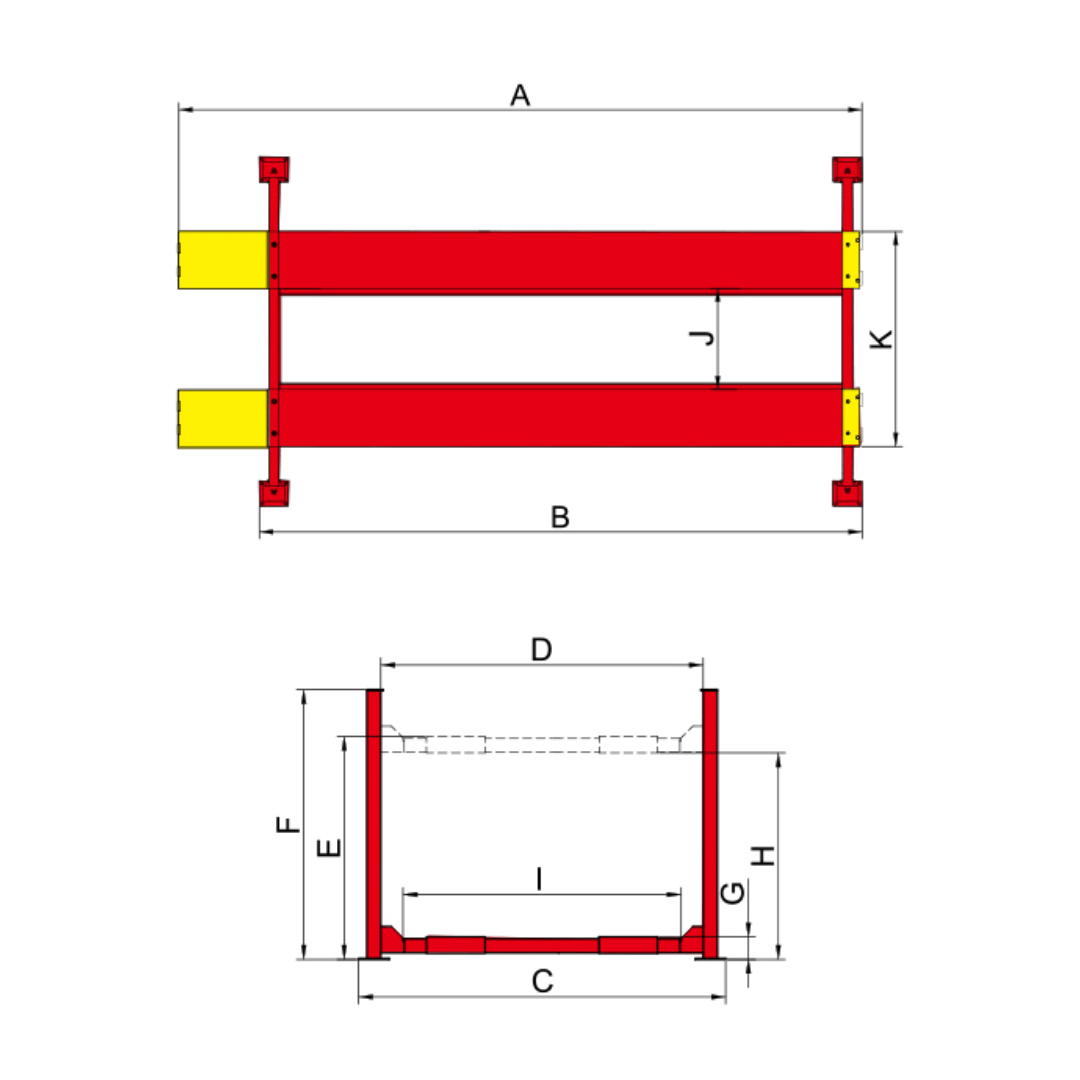

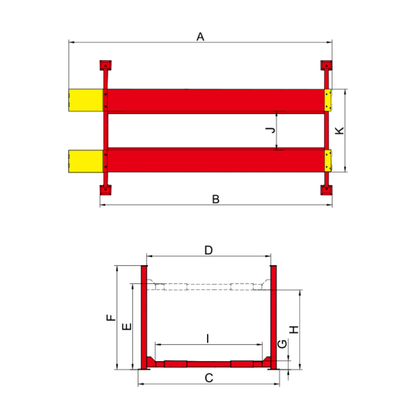

| Model | PRO-30E |
|---|---|
| Lifting Capacity | 30,000 lbs |
| Lifting Time | 133S |
| A: Overall Length (Inc.Ramps) | 366 1/8″ |
| B: Overall Length (No.Ramps) | 315 1/2″ |
| C: Overall Width | 149 3/8″ |
| D: Width Between Columns | 131 13/16″ |
| E: Max. Lifting Height | 74 13/16″ |
| E: Max. Lock Height to Top of Runway | 71 11/16″ |
| F: Overall Height | 91 13/16″ |
| G: Minimum Height | 10 7/16″ |
| H: Max. Underneath Height | 65 7/8″ |
| H: Max. Lock Underneath Runway | 62 3/4″ |
| I: Drive-Thru Clearance | 117 13/16″ |
| J: Width Between Runways | 44 7/8″ - 54 3/4″ |
| K: Outside Edge of Runways | 92 15/16″ - 102 3/4″ |
| Gross Weight | 6,676 lbs |
| Motor | 2.0HP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
