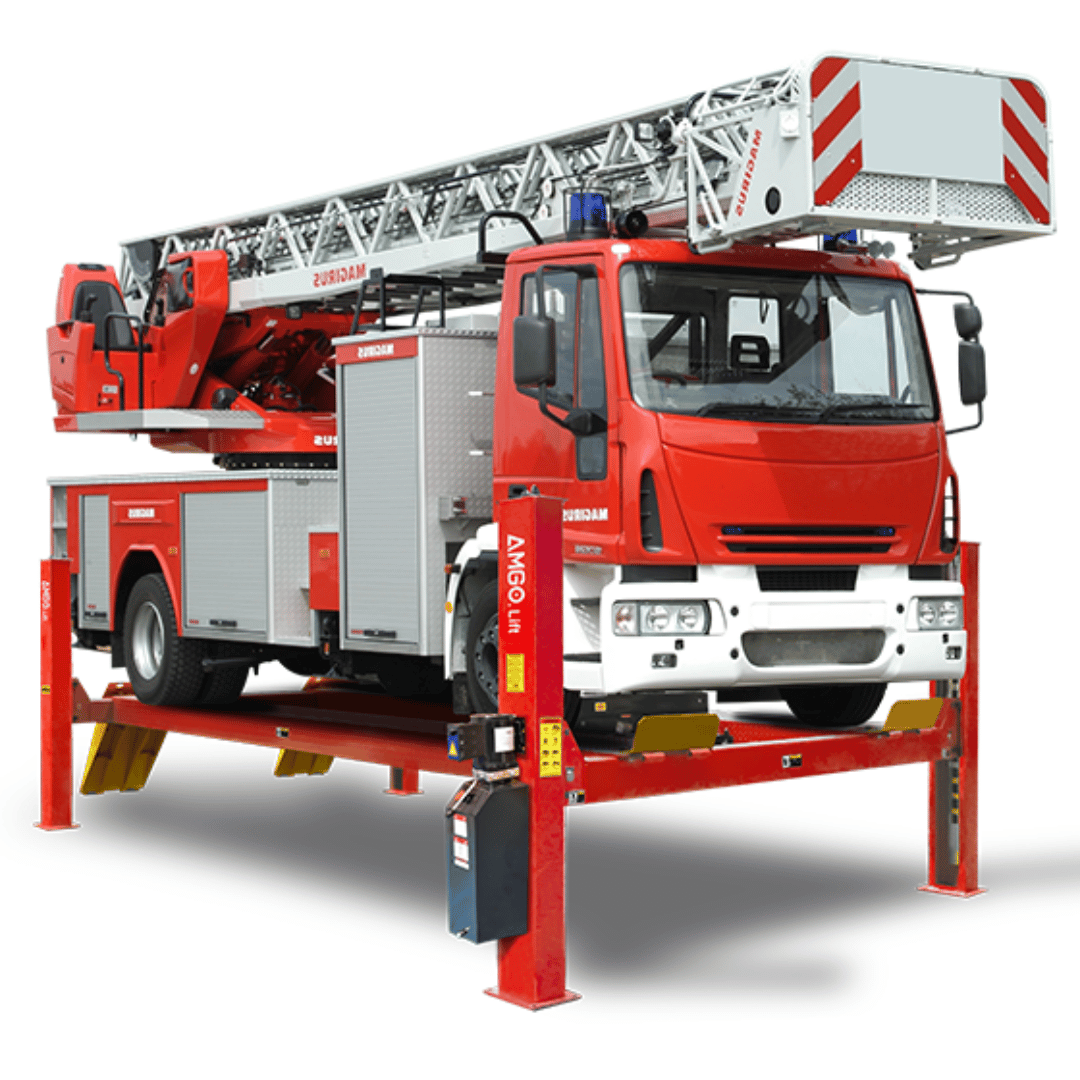

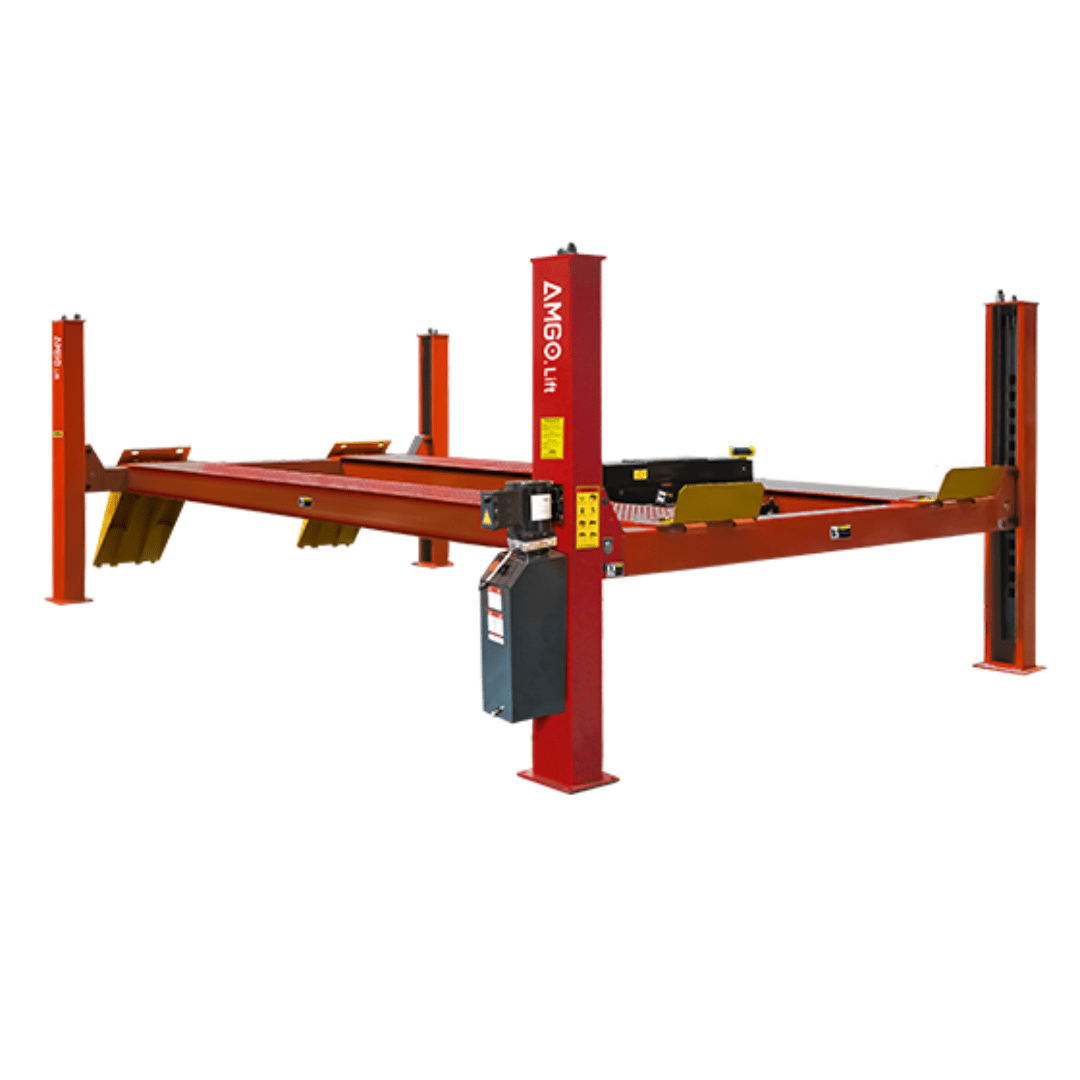

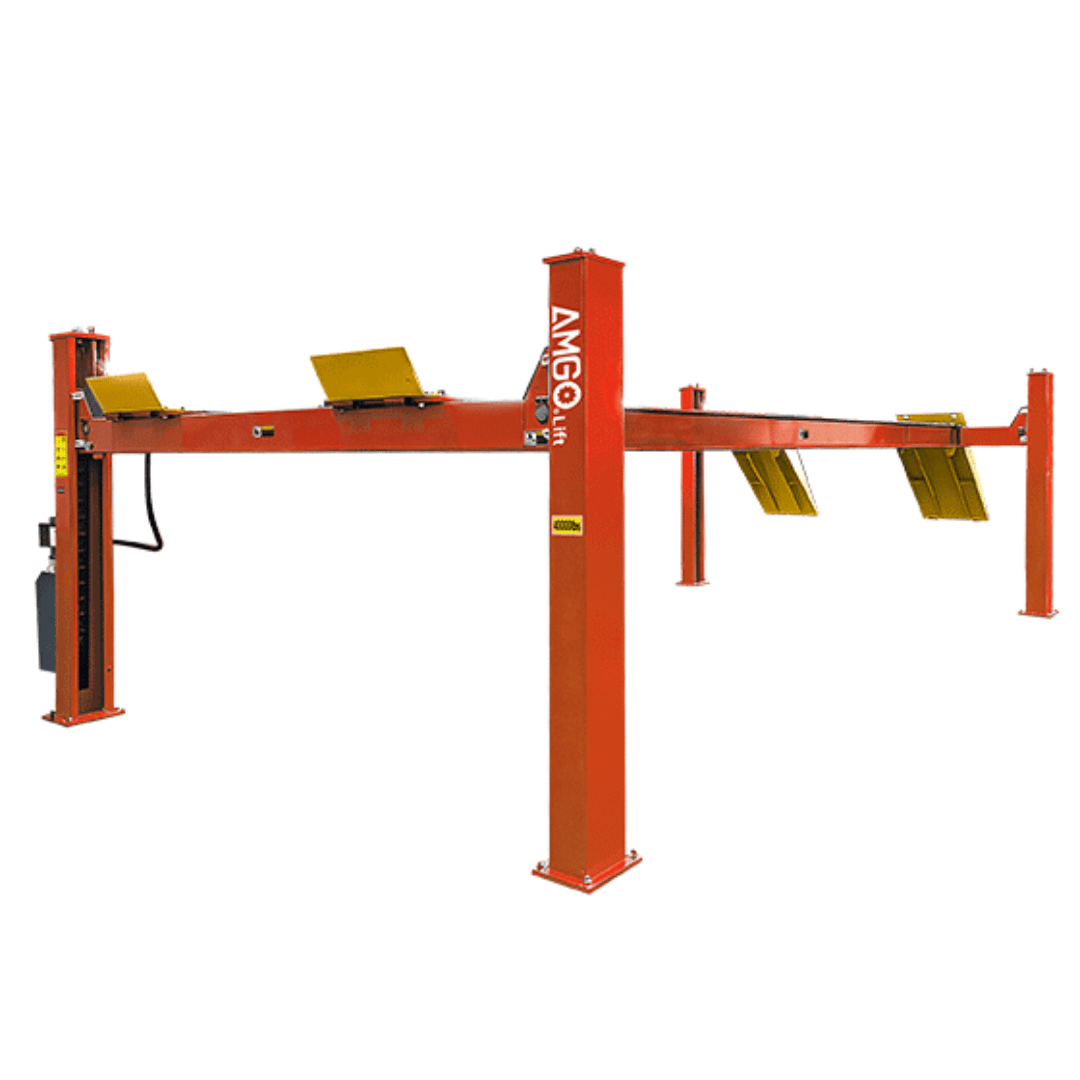

AMGO PRO-40 Super-Duty 4-Post Lift – 40,000 lb Capacity

Built to lift the biggest and heaviest vehicles on the road, the AMGO PRO-40 is the flagship of the AMGO Super Duty series. With a staggering 40,000 lb lifting capacity, this industrial-grade 4-post lift is designed to service construction trucks, buses, fire engines, municipal rigs, and extra-large commercial vehicles with ease, safety, and precision.

The PRO-40 features oversized non-skid diamond plate runways, extended platform lengths, and an extra-wide drive-thru clearance of 129 7/8", giving you ample room to service dual-wheel and wide-body vehicles with confidence. Its reinforced steel frame, mechanical self-locking safety system, and air-driven lock release provide unmatched reliability and operator safety during heavy lifting tasks.

Equipped with aircraft-grade synchronization cables, a high-performance hydraulic cylinder, and a cable-slack protection system, the PRO-40 is engineered to deliver consistent and level lifting even under extreme loads. Powered by a 2.0 HP ETL-certified motor, this lift is built for long-term performance and low maintenance in even the most demanding commercial environments.

Available now at Gearforce USA, the AMGO PRO-40 is the definitive solution for shops, government facilities, and transit depots that require uncompromising lifting capacity and safety for their heaviest vehicles.

Key Features

  • 40,000 lb lifting capacity – perfect for construction vehicles, buses, fire trucks, military, and heavy municipal fleets
  • Oversized platform length – 315 1/2″ (no ramps) handles extra-long wheelbases
  • Extra-wide design – 129 7/8″ drive-thru clearance for dual-rear-wheel and wide-frame vehicles
  • Non-skid diamond plate platforms – ensure maximum traction under heavy loads

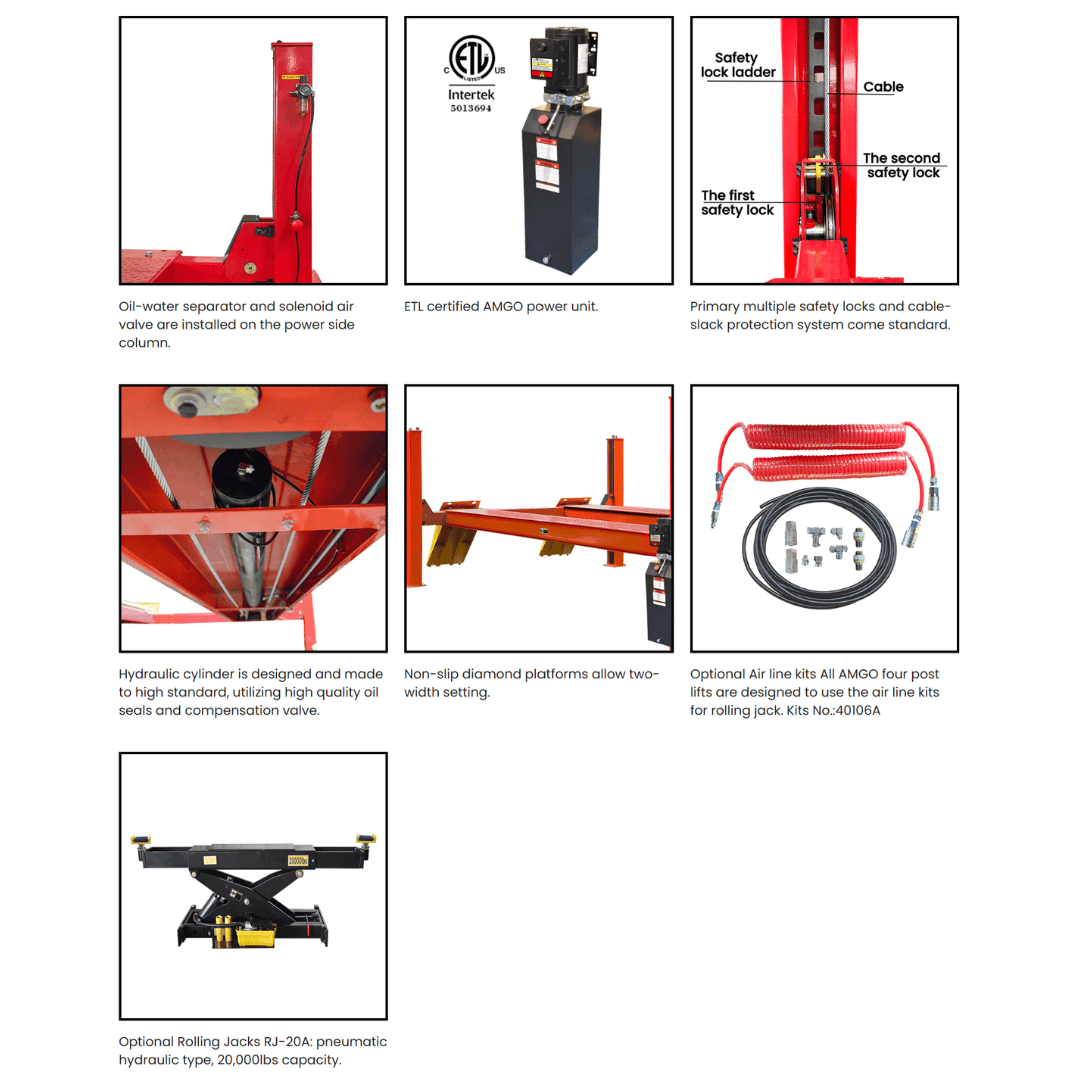

  • Mechanical self-locking safety system with air-driven release – multi-point locking for operator safety
  • Cable-slack protection system – adds a secondary layer of lifting security
  • Aircraft-quality synchronization cables – smooth, even lifting with extreme stability
  • Heavy-duty hydraulic cylinder – includes high-grade oil seals and a compensation valve
  • Max lifting height: 74 13/16″ | Max under-platform clearance: 65 7/8″
  • Runway width: 49 1/16″ to 58 7/8″ | Outside edge width: up to 114 13/16″
  • Motor: 2.0 HP, 220V single-phase – dependable, shop-ready power output
  • Gross Weight: 8,283 lbs – built with commercial-grade materials for long-term durability
  • AMGO Warranty: 5 years on structure, 3 years on hydraulics, 2 years on electrical components

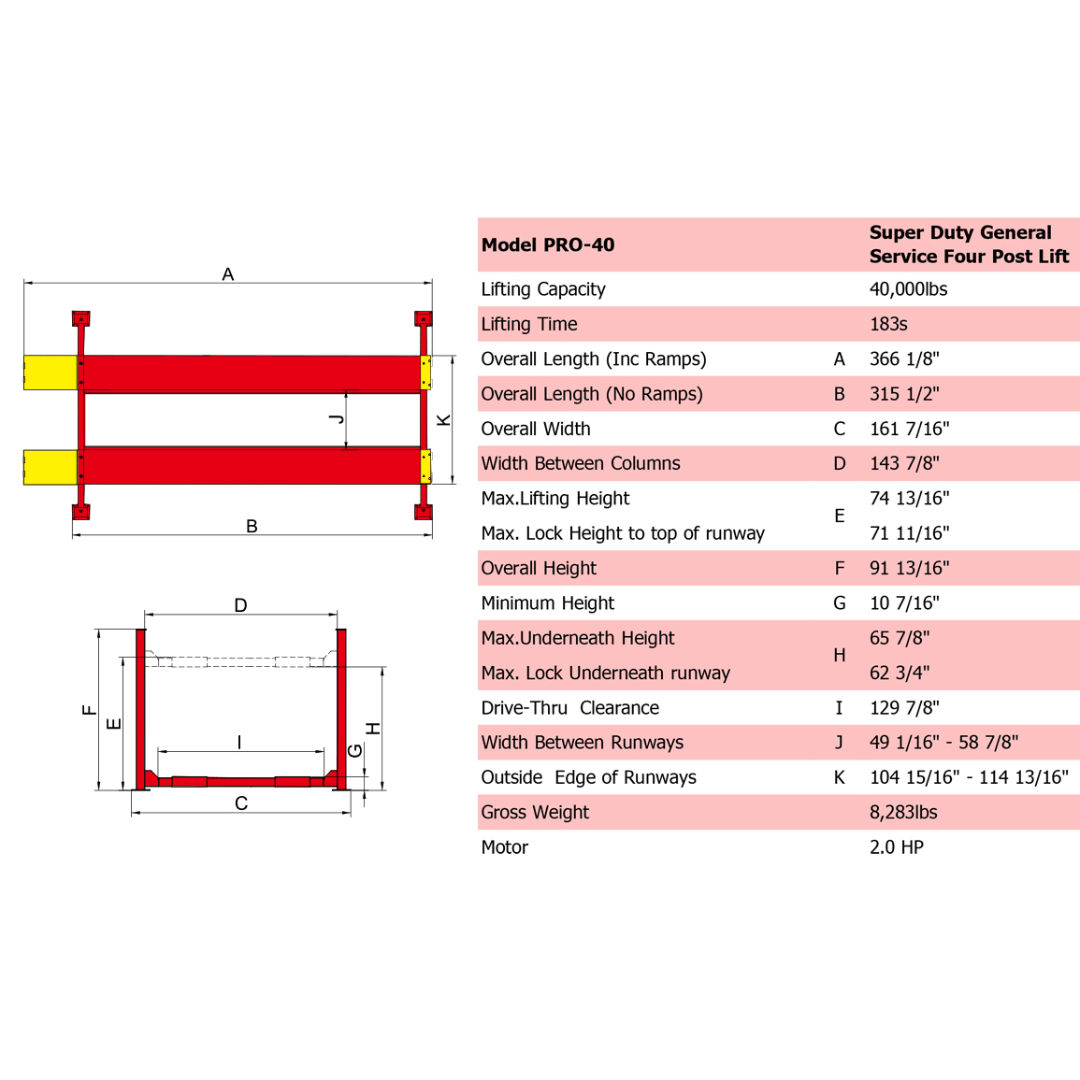

Product Specifications

Model PRO-40
Lifting Capacity 40,000 lbs
Lifting Time 183S
A: Overall Length (Inc.Ramps) 366 1/8″
B: Overall Length (No.Ramps) 315 1/2″
C: Overall Width 161 7/16″
D: Width Between Columns 143 7/8″
E: Max. Lifting Height 74 13/16″
E: Max. Lock Height to Top of Runway 71 11/16″
F: Overall Height 91 13/16″
G: Minimum Height 10 7/16″
H: Max. Underneath Height 65 7/8″
H: Max. Lock Underneath Runway 62 3/4″
I: Drive-Thru Clearance 129 7/8″
J: Width Between Runways 49 1/16″ - 58 7/8″
K: Outside Edge of Runways 104 15/16″ - 114 13/16″
Gross Weight 8,283 lbs
Motor 2.0HP

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
