Product Description

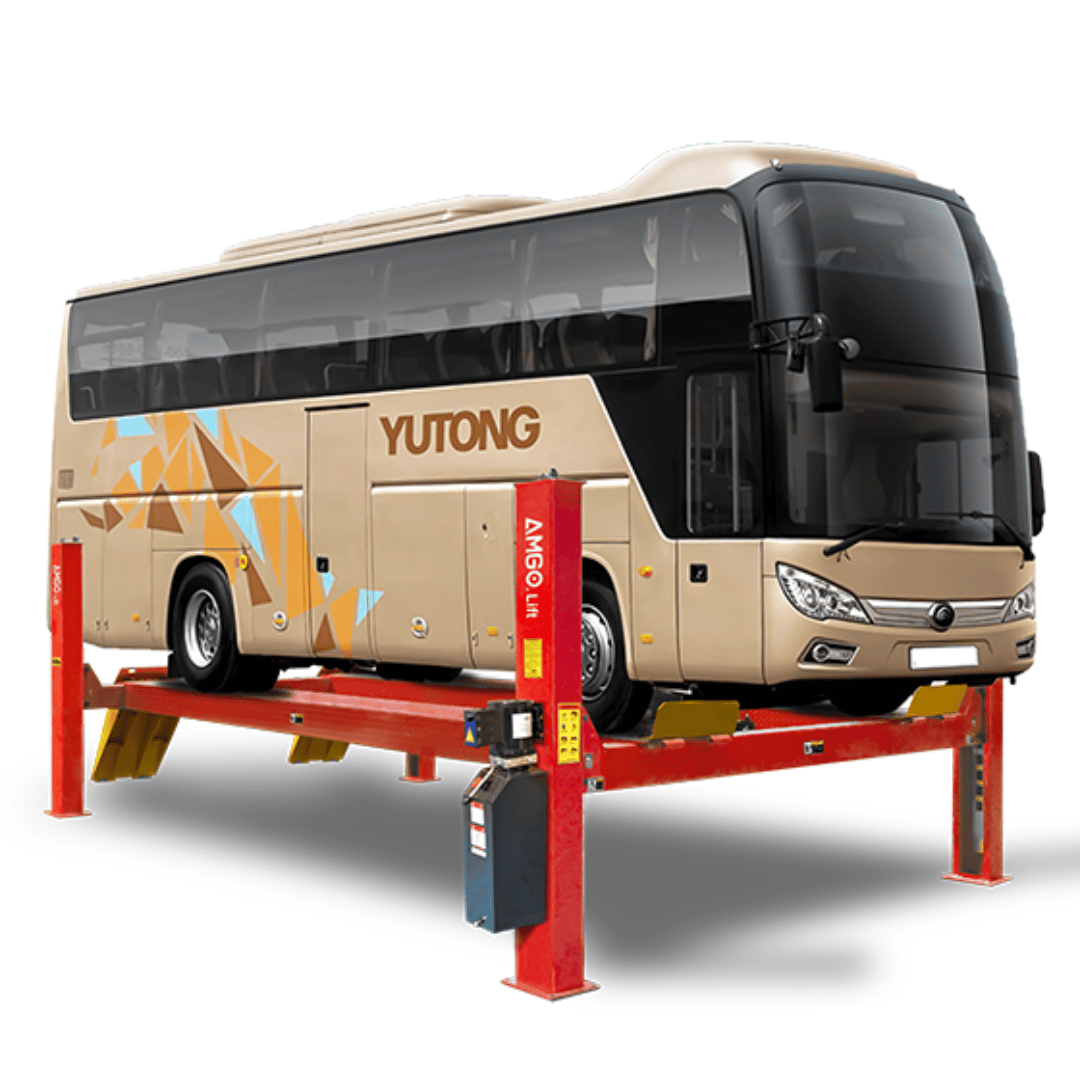

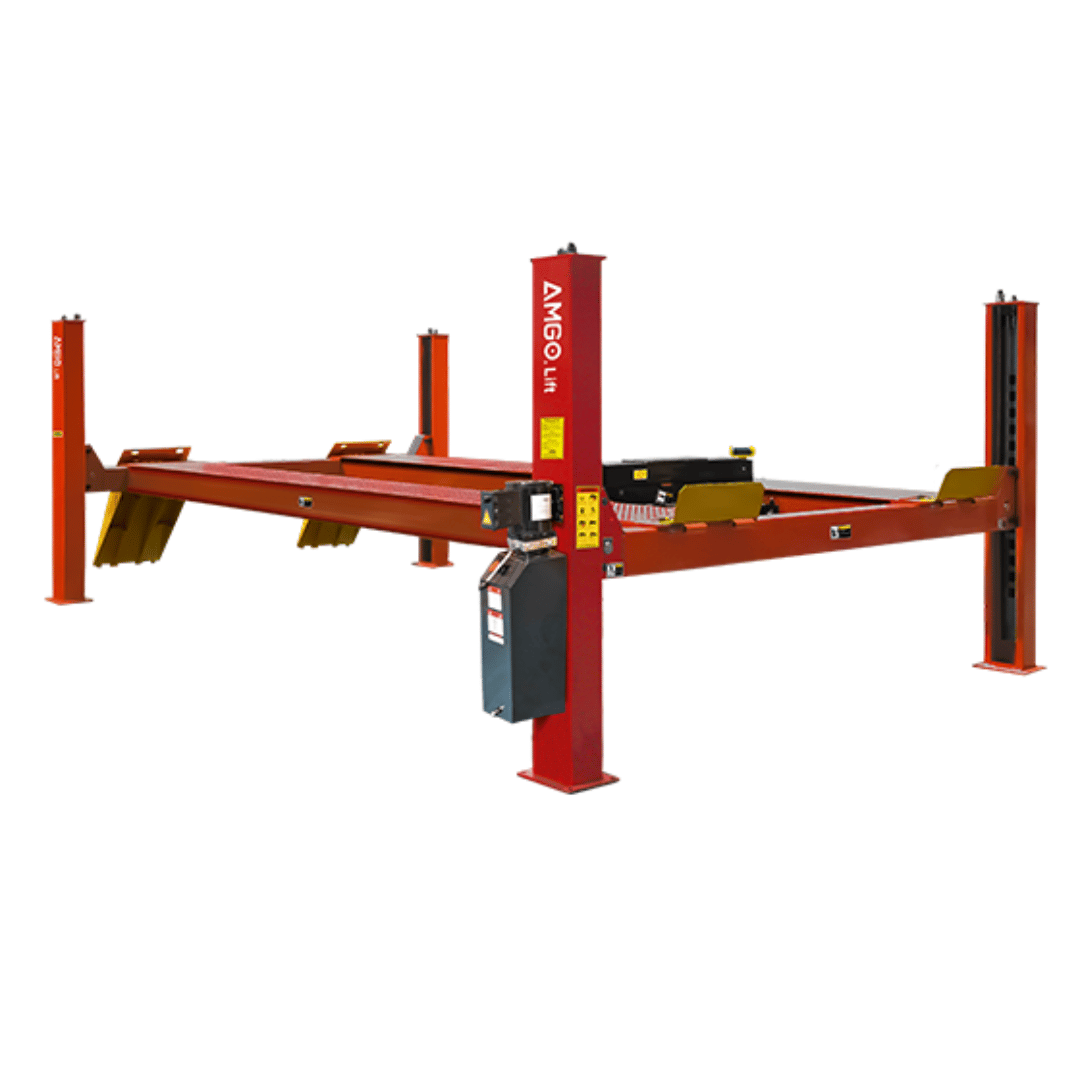

AMGO PRO-40E Extra-Length 4-Post Lift – 40,000 lb Capacity

Meet the pinnacle of heavy-duty vehicle lifting — the AMGO PRO-40E Extra-Length 4-Post Lift, purpose-built for oversized municipal, construction, transit, and specialty vehicles. With a massive 40,000 lb capacity and 59″ of additional runway length over the standard PRO-40, this super-duty lift is your ultimate solution for extra-long wheelbases without compromising on power, safety, or workspace.

The PRO-40E features reinforced, oversized platforms with non-skid diamond surfaces, a drive-thru clearance of 129 7/8″, and a platform length of over 374″ (without ramps) — making it one of the longest and strongest 4-post lifts in its class. Ideal for fire trucks, articulated buses, utility rigs, and heavy commercial fleets, it delivers professional-grade reliability for even the most extreme lifting needs.

Built with aircraft-grade synchronization cables, a heavy-duty hydraulic cylinder, and a dual-safety lock system, the PRO-40E ensures level, stable lifting and operator safety under the heaviest loads. An ETL-certified 2.0 HP motor, air-driven lock release, and a cable-slack protection system come standard for low-maintenance, high-output shop performance.

Available through Gearforce USA, the PRO-40E is the definitive heavy-vehicle lift for municipal, industrial, and high-volume fleet operators seeking unparalleled capacity and reach.

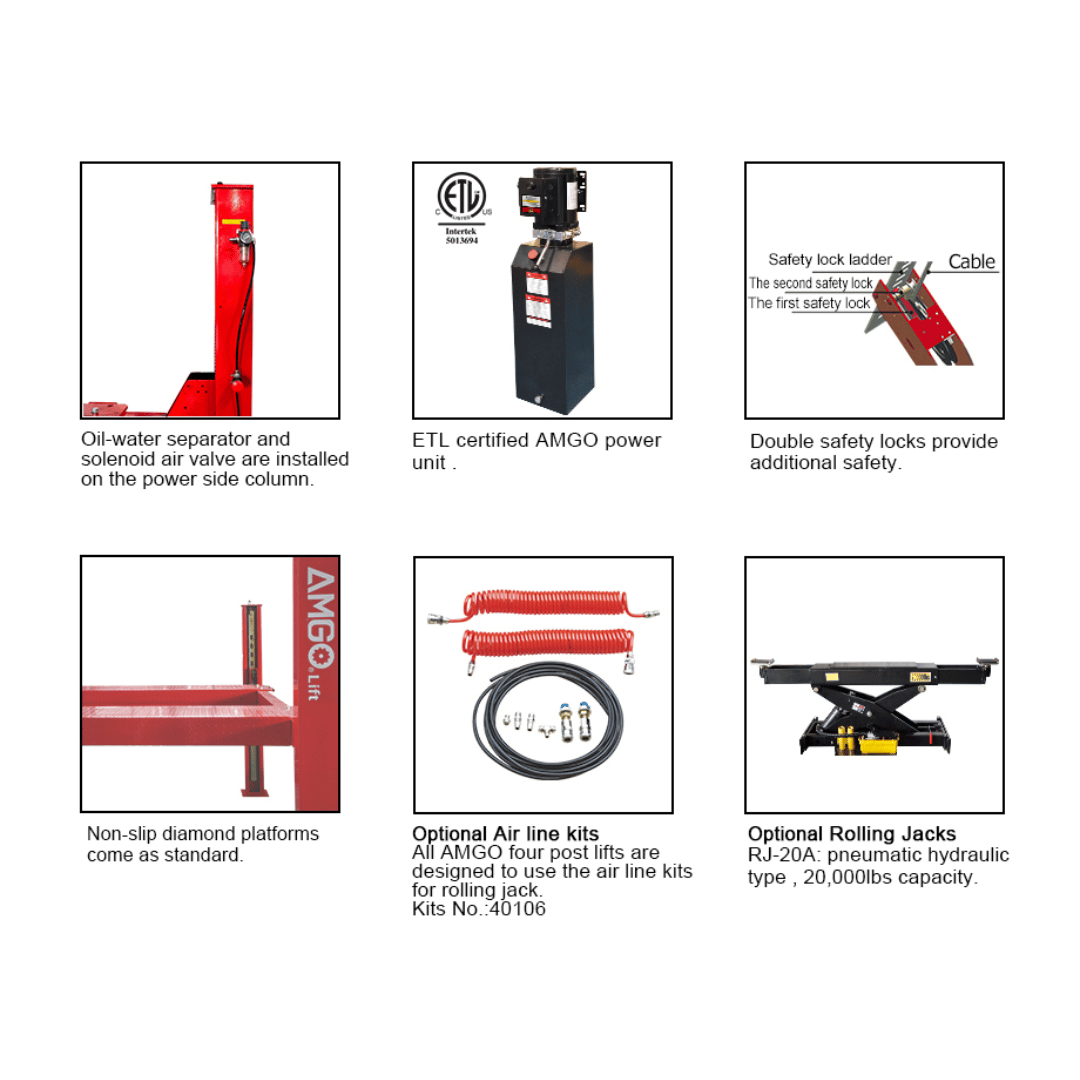

Key Features

  • 40,000 lb lifting capacity – engineered for super-duty trucks, transit buses, fire engines, and extra-long commercial vehicles
  • Extended runway length – 374 9/16″ platform (no ramps) adds 59″ over the PRO-40 for ultra-long wheelbases
  • Non-skid diamond plate platforms – deliver safe, secure vehicle grip during heavy lifting
  • Extra-wide 129 7/8″ drive-thru clearance – supports the widest commercial and dual-wheel vehicles
  • Mechanical self-locking system with air-driven release – built-in operator safety at multiple locking positions
  • Cable-slack protection system – added safety redundancy for peace of mind under full load
  • Aircraft-grade synchronization cables – enable smooth, level platform raising
  • High-performance hydraulic cylinder – uses premium seals and compensation valve for reliability
  • Max lifting height: 74 13/16″ | Under-platform clearance: 65 7/8″
  • Runway width: 49 1/16″ – 58 7/8″ | Total width at outer edges: up to 114 13/16″
  • Motor: 2.0 HP, 220V single-phase – consistent power for heavy industrial use
  • Gross weight: 9,306 lbs – built with reinforced commercial-grade steel
  • AMGO Warranty: 5 years on structural steel, 3 years on hydraulics, 2 years on electrical components

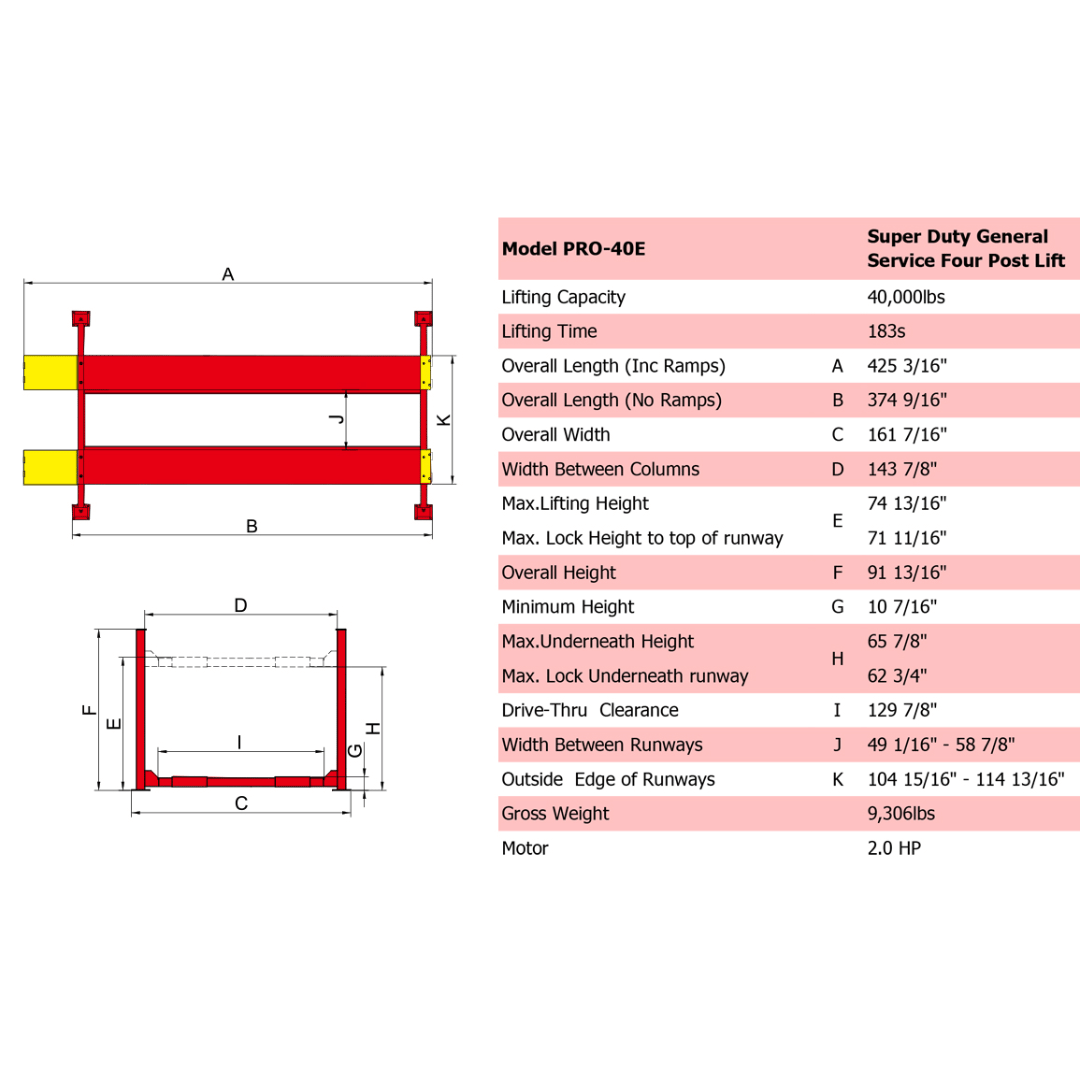

Product Specifications

Model PRO-40E
Lifting Capacity 40,000 lbs
Lifting Time 183S
A: Overall Length (Inc.Ramps) 425 3/16″
B: Overall Length (No.Ramps) 374 9/16″
C: Overall Width 161 7/16″
D: Width Between Columns 143 7/8″
E: Max. Lifting Height 74 13/16″
E: Max. Lock Height to Top of Runway 71 11/16″
F: Overall Height 91 13/16″
G: Minimum Height 10 7/16″
H: Max. Underneath Height 65 7/8″
H: Max. Lock Underneath Runway 62 3/4″
I: Drive-Thru Clearance 129 7/8″
J: Width Between Runways 49 1/16″ - 58 7/8″
K: Outside Edge of Runways 104 15/16″ - 114 13/16″
Gross Weight 9,306 lbs
Motor 2.0HP

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
