AMGO Hydraulics

Amgo SPL-6 Single Post Parking Lift

$5,210.00

Skip to product information
1 of 4

Regular price $5,210.00
Sale price $5,210.00 Regular price

Tap to Call 866-642-5888


Product Description

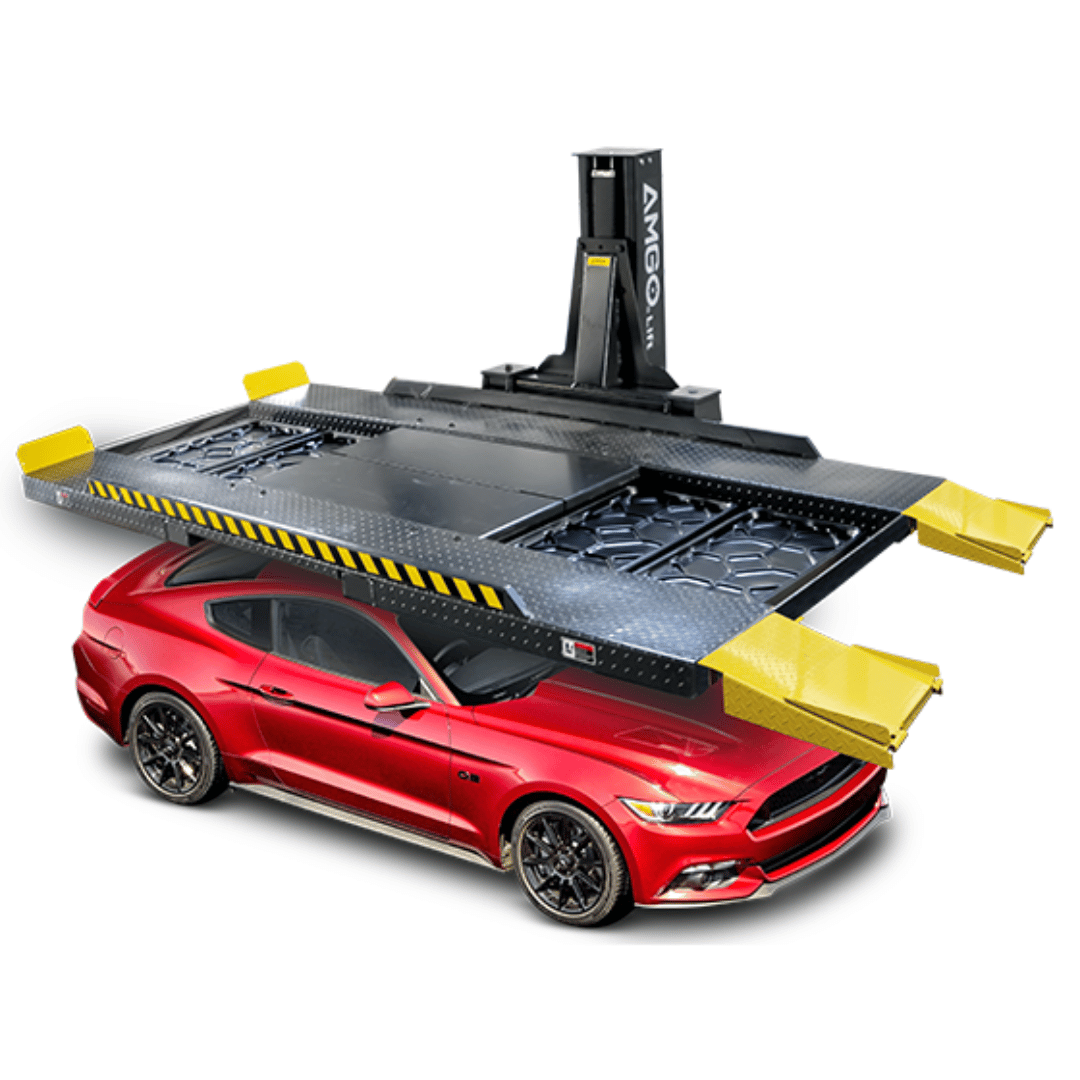

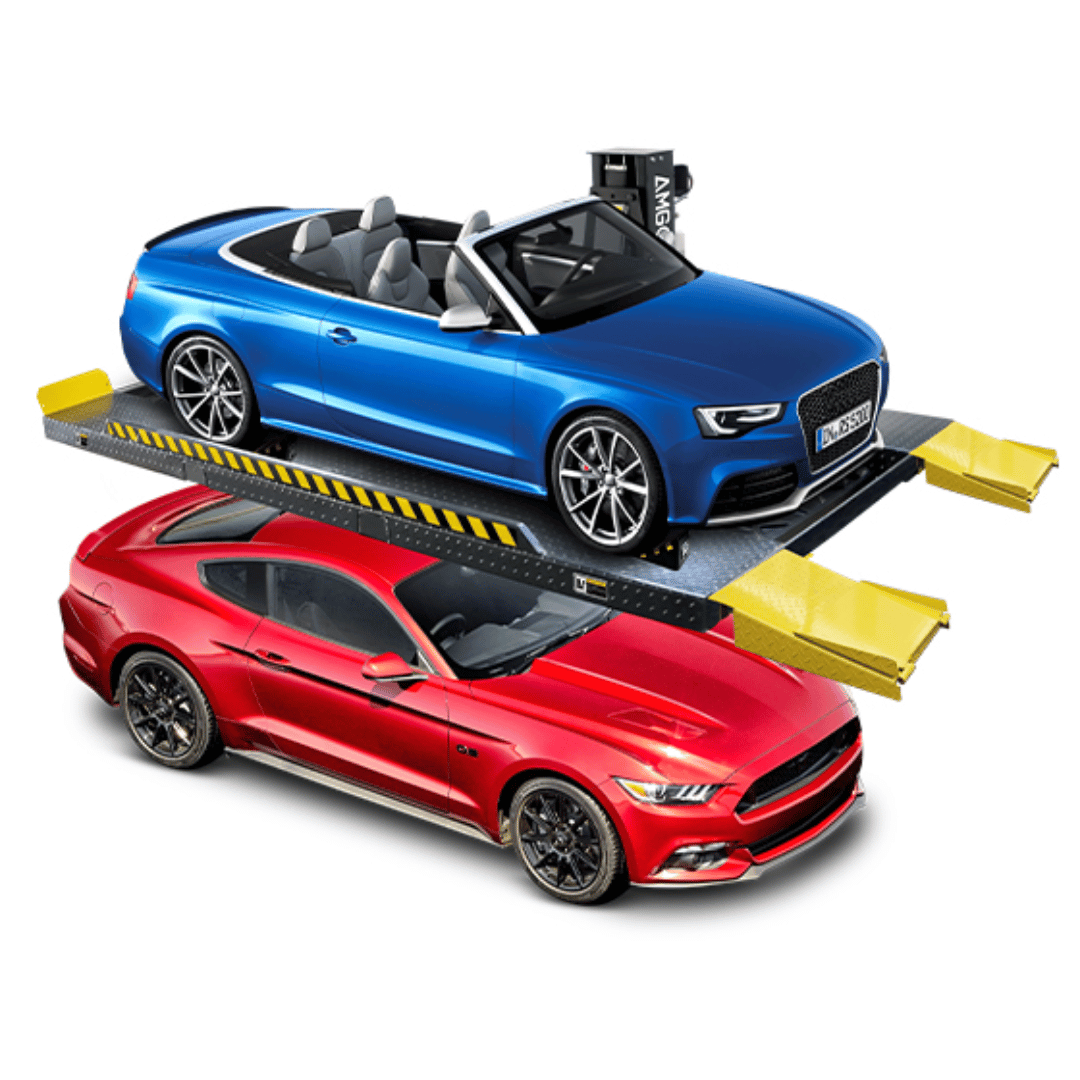

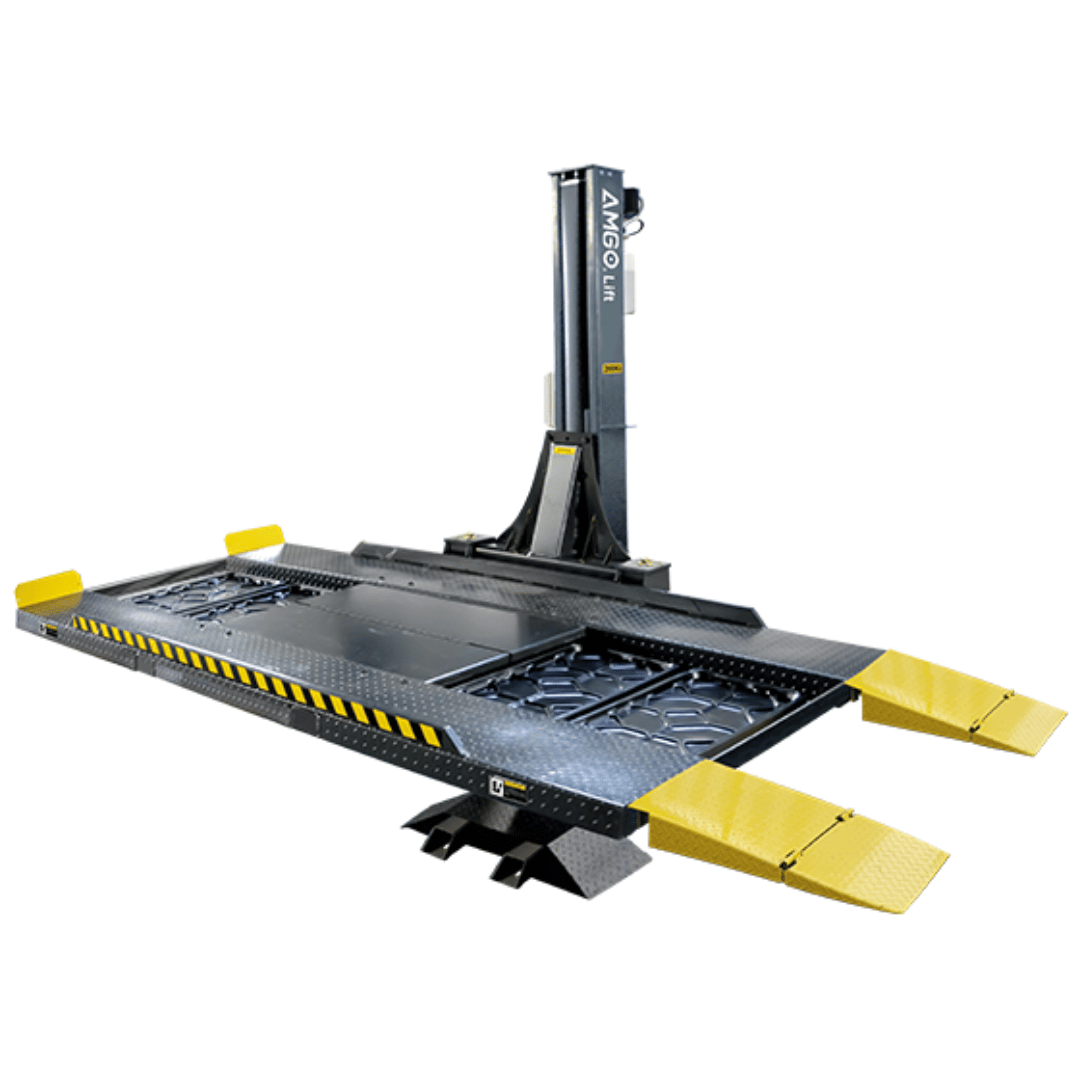

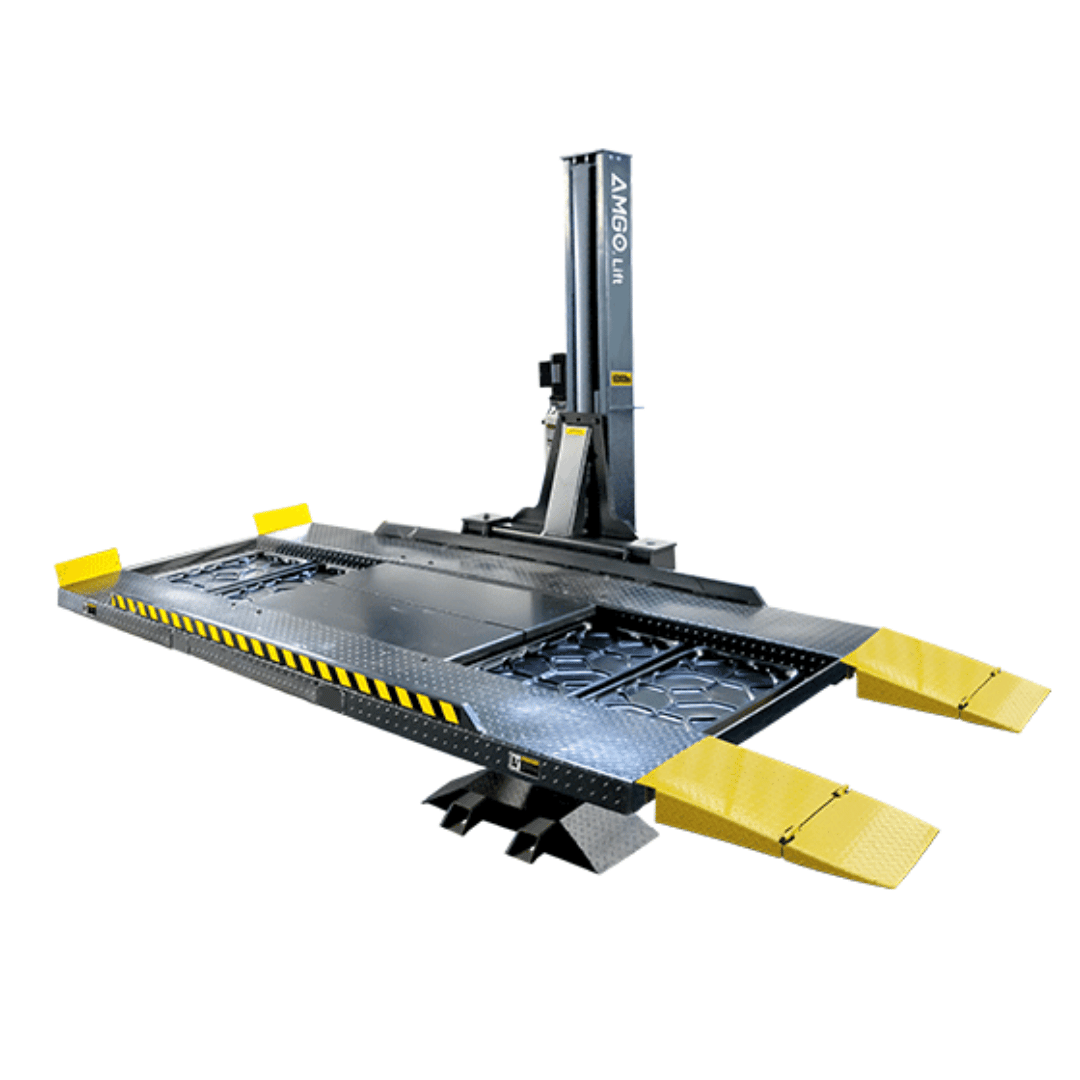

AMGO SPL-6 Single Post Parking Lift – 6,000 lb Capacity

The AMGO SPL-6 Single Post Parking Lift offers a compact, high-strength solution for maximizing vehicle storage in garages, dealerships, and commercial properties. With a 6,000 lb lifting capacity, this newly enhanced model features reinforced structural design, dual safety mechanisms, and a space-saving footprint, making it perfect for both personal and professional parking needs.

Built with commercial-grade components, the SPL-6 is engineered for long-term durability while maintaining a sleek form factor. It can be installed in low ceiling garages (as low as 110"), and comes equipped with foldable drive-on ramps, interchangeable platforms, and a single-point mechanical safety lock — all without the need for an external air source.

The H-style, non-slip platform and reinforced column/base assembly provide unmatched vehicle stability and user confidence, while the included guide ramp ensures easy parking under the lift. Whether you're optimizing space in a dealership, storing collector cars at home, or managing stacked parking in a valet facility, the SPL-6 is the ideal single-post solution.

Available now at Gearforce USA, the SPL-6 combines function, flexibility, and footprint efficiency for shops and homeowners looking to reclaim garage space without compromising on performance.

Key Features

  • 6,000 lb lifting capacity – designed for cars, light trucks, and SUVs
  • Single post design – ideal for tight spaces or single-vehicle stacking
  • Space-saving installation – works in garages with ceiling heights as low as 110"
  • Max lifting height: 74″ | Clearance underneath: 69 1/4″

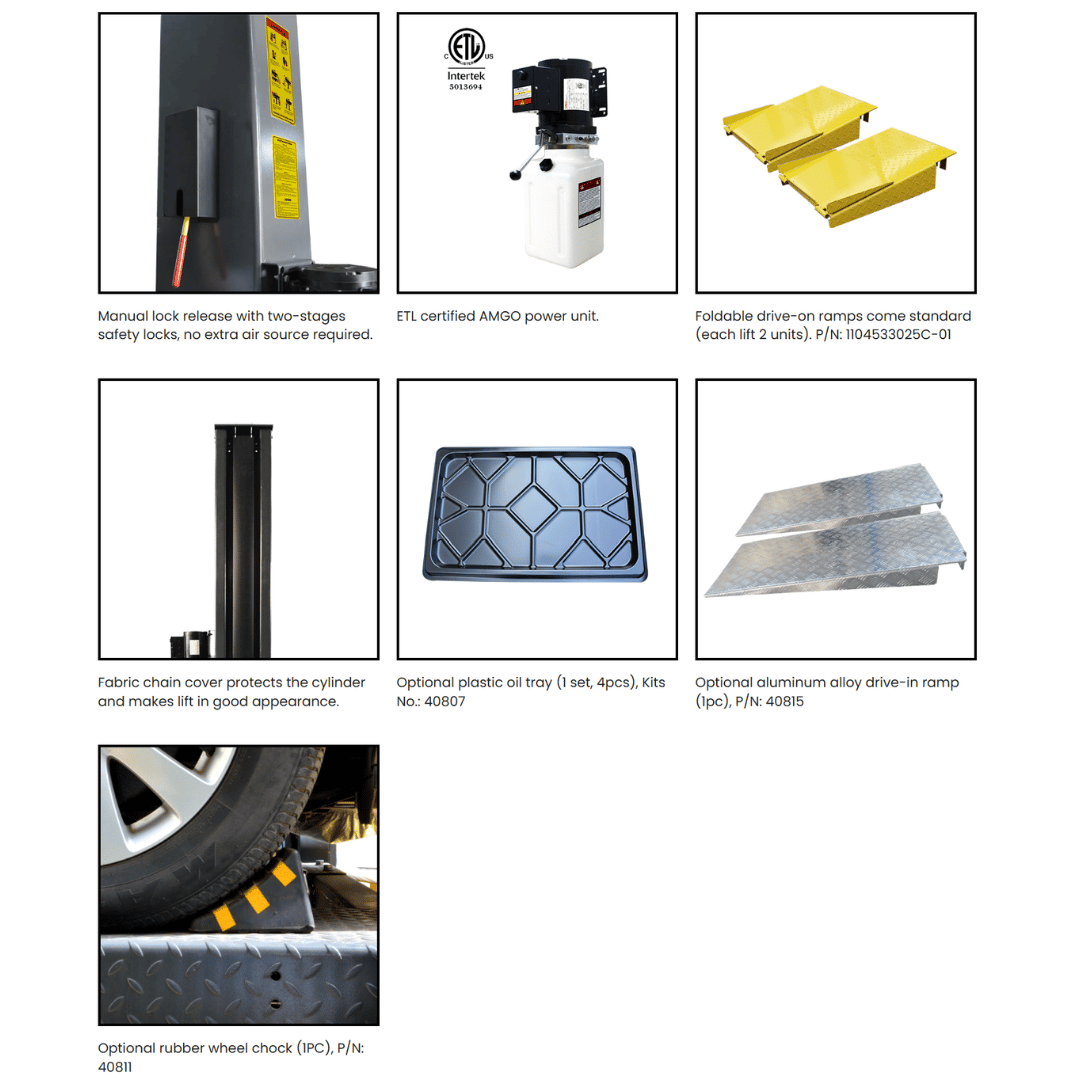

  • Foldable drive-on ramps – included standard for easier loading and compact footprint
  • Interchangeable dual platforms – increased flexibility in installation
  • H-shaped, non-slip runways – enhanced tire traction and vehicle safety

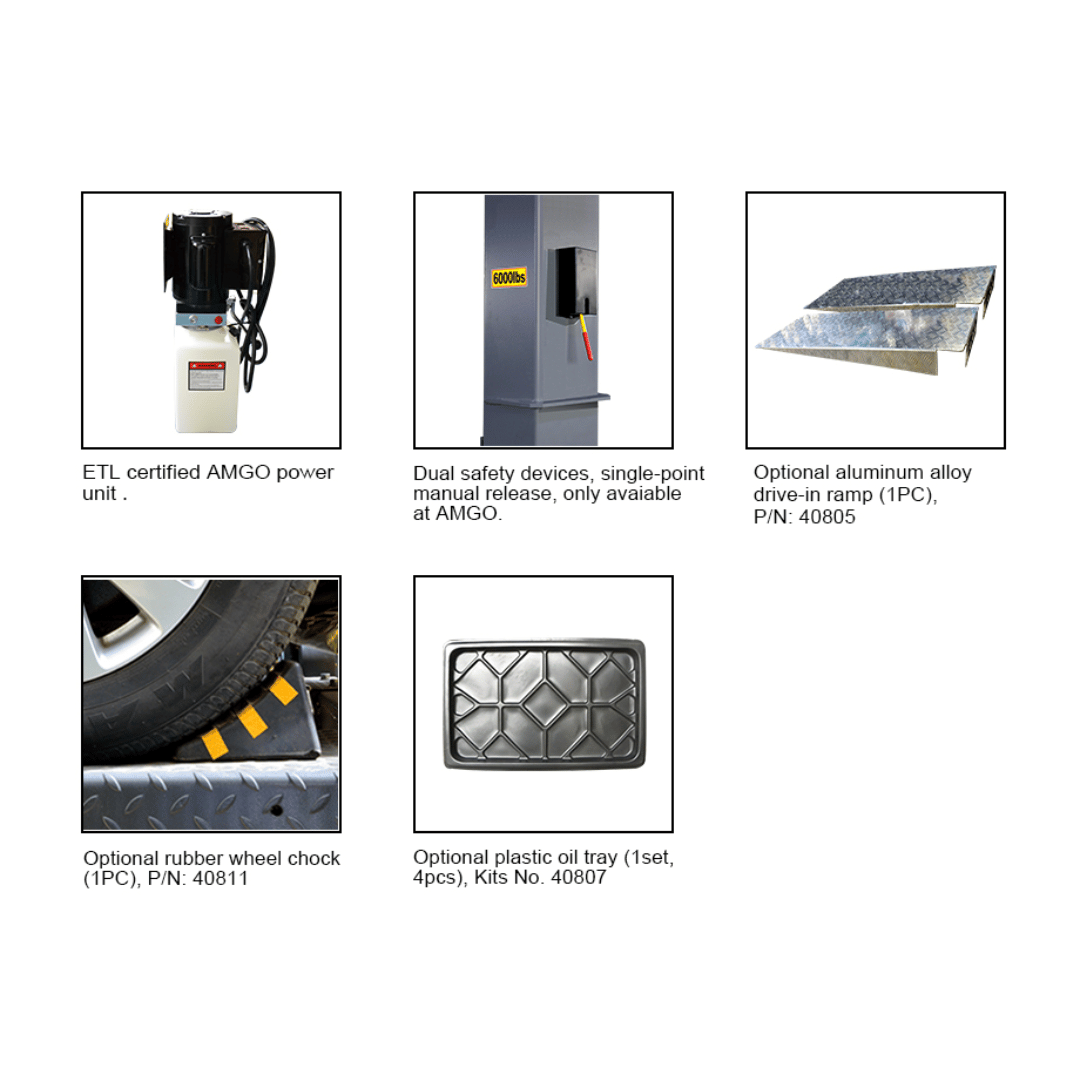

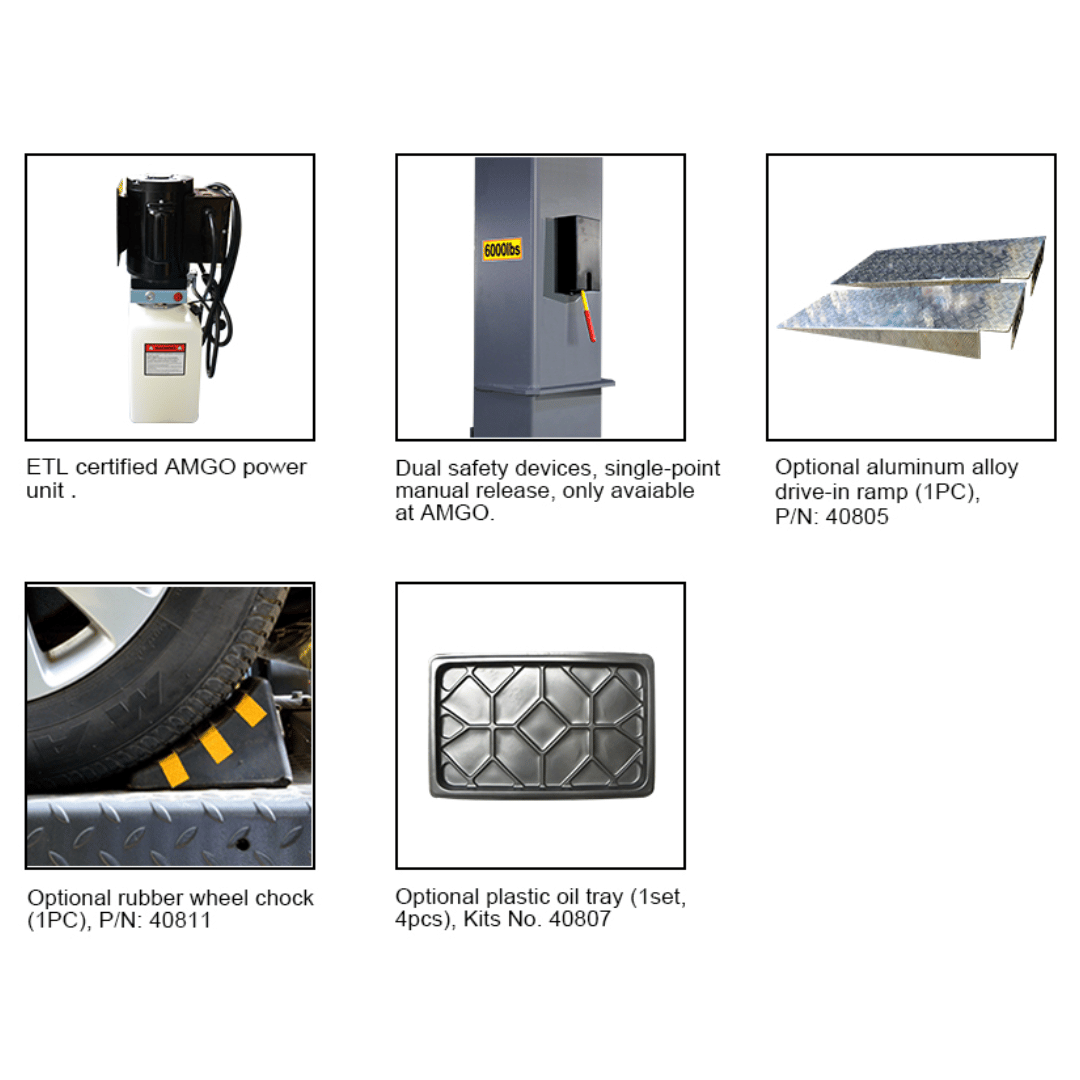

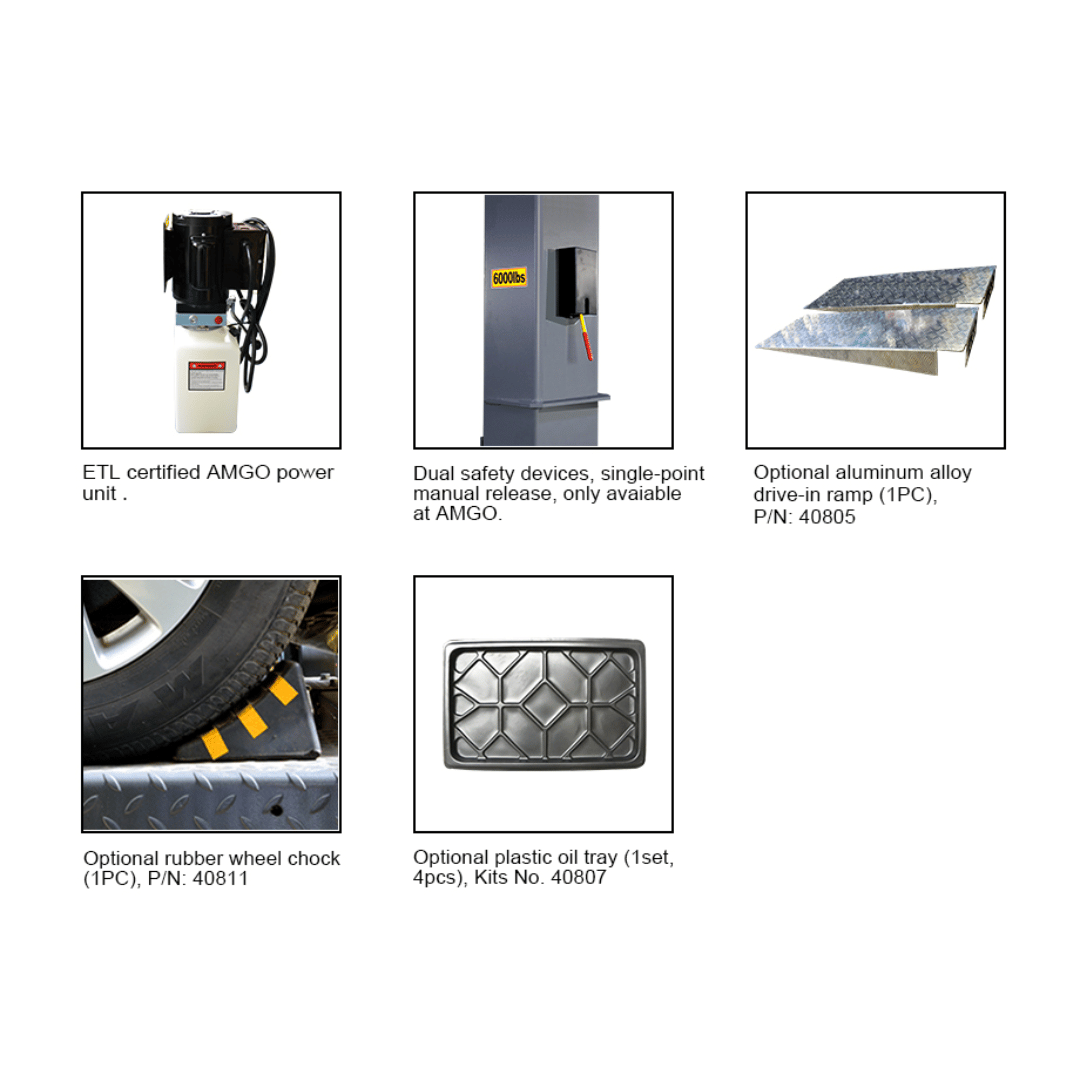

  • Dual mechanical safety locks with single-point release – reliable and easy to operate (no air required)
  • Platform length: 152″ | Overall length: 192 1/8″ | Width between runways: 42 7/16″
  • Motor options: 1.0 HP (110V) or 2.0 HP (220V) – adaptable to residential or commercial power supplies
  • Lifting time: 84s (110V) / 32s (220V) – fast and efficient operation
  • Gross weight: 2,787 lbs – built to commercial standards for daily use
  • AMGO Warranty: 5 years on structural components, 3 years on hydraulics, 2 years on electrical

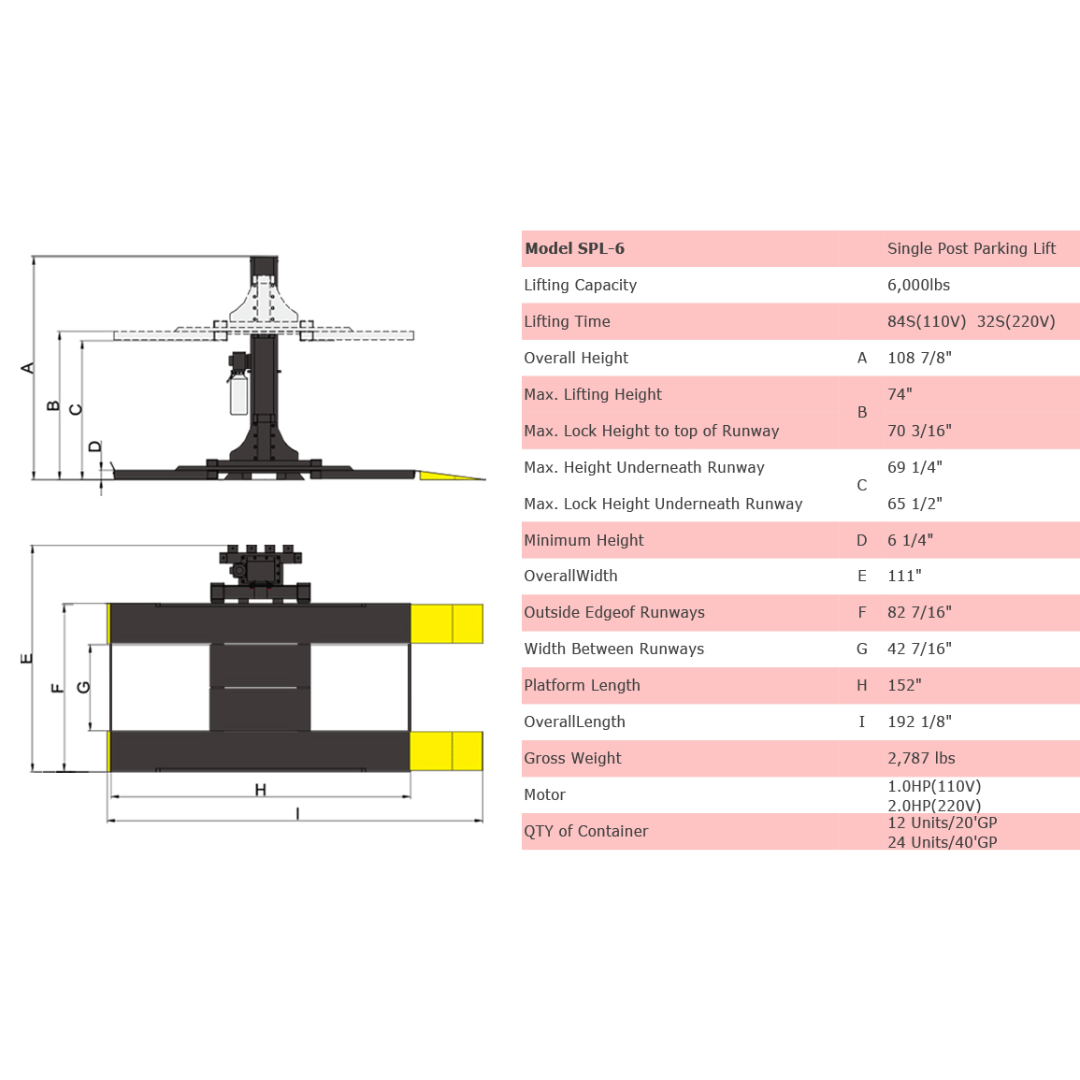

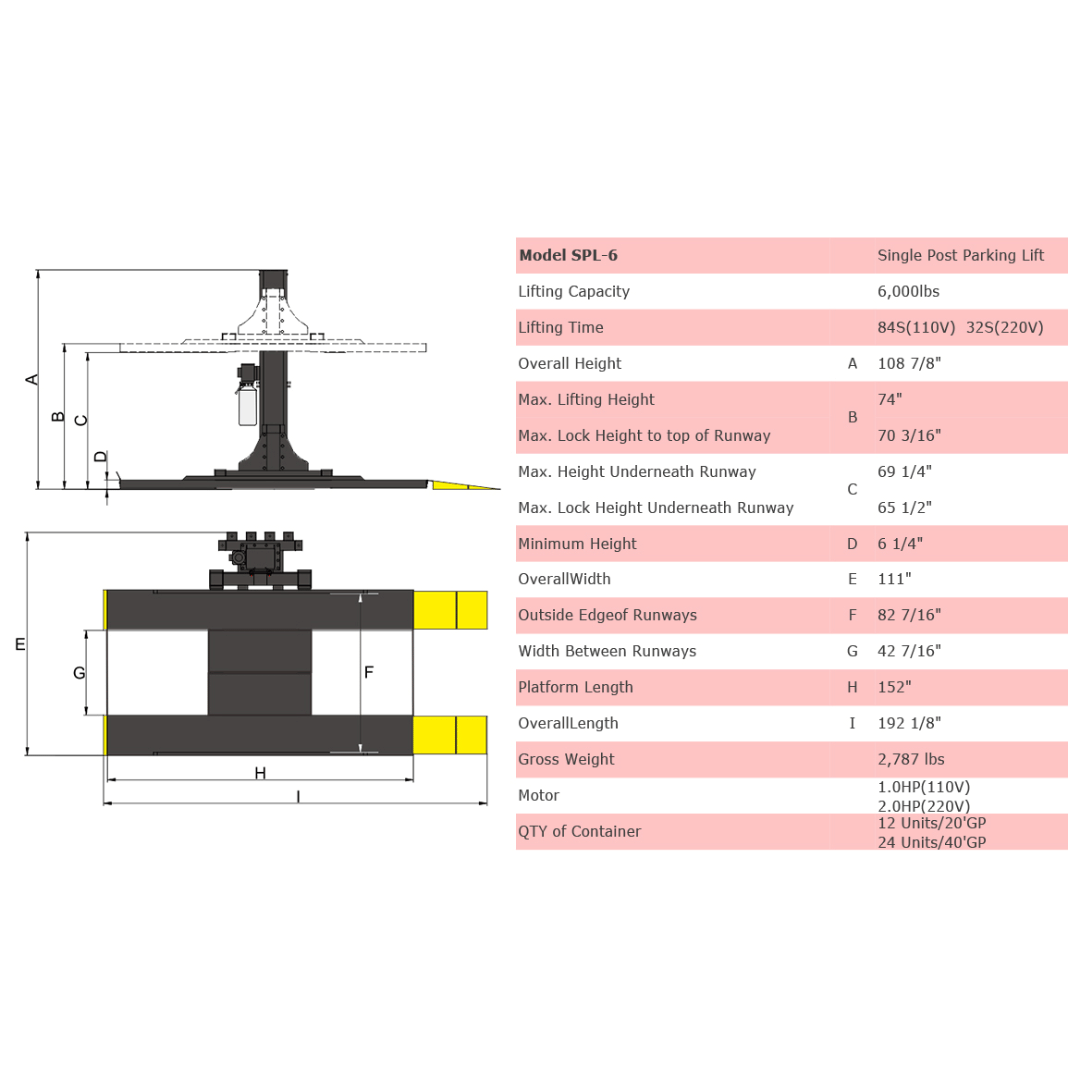

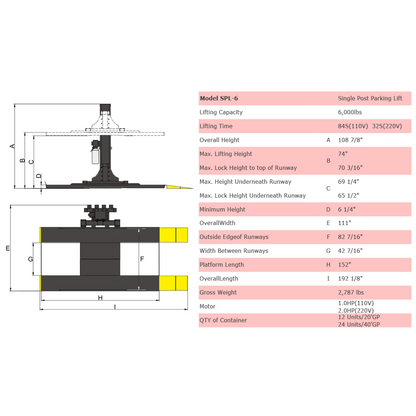

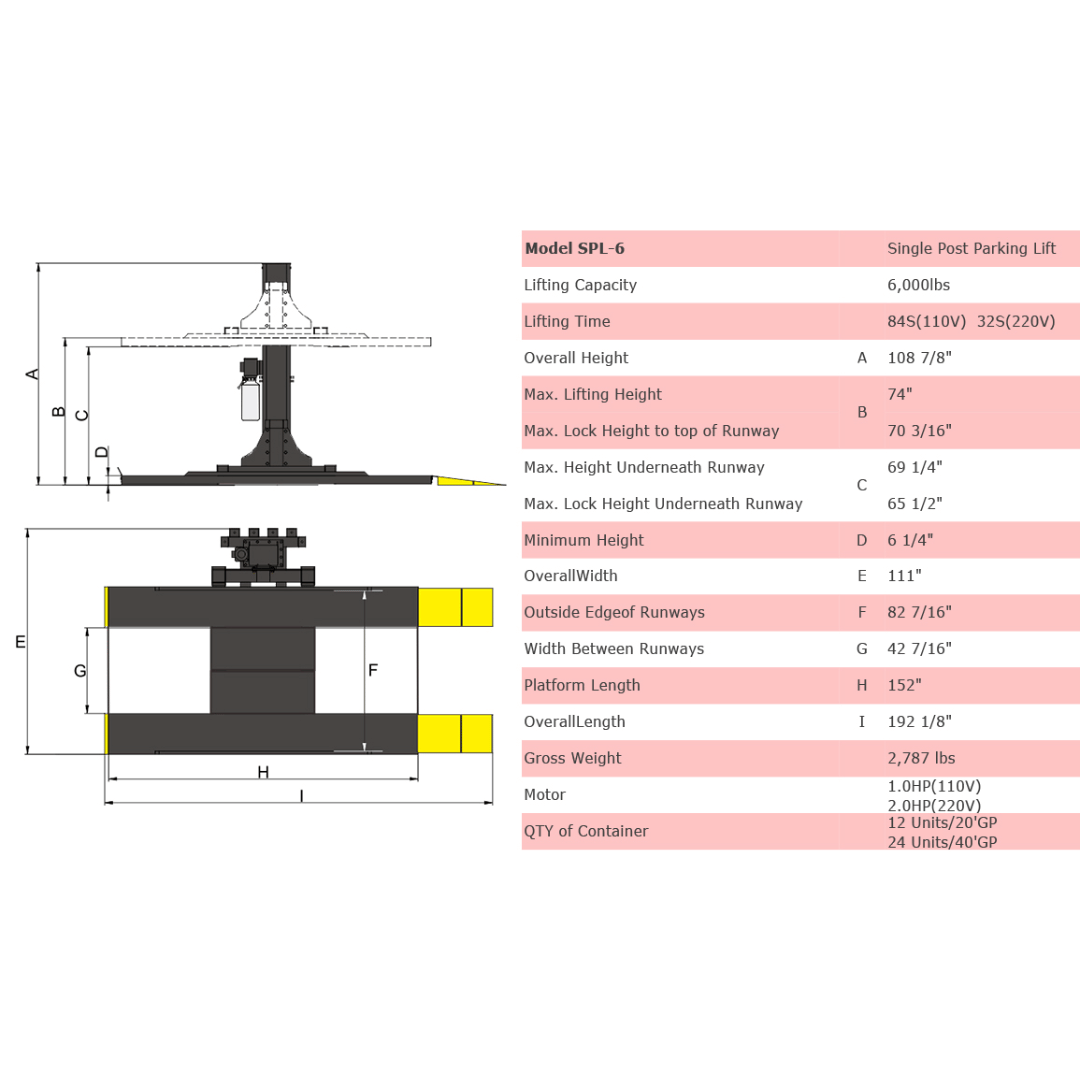

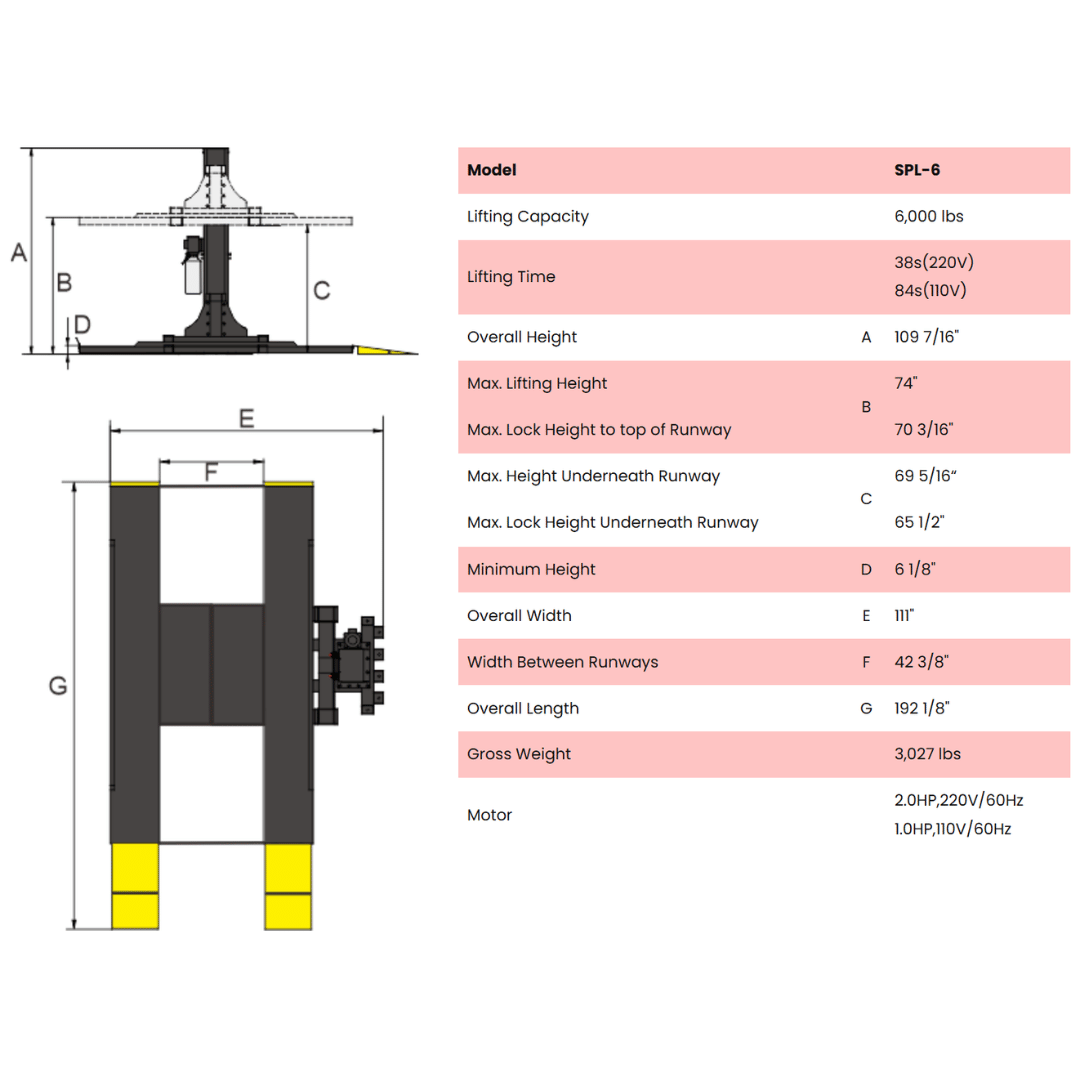

Product Specifications

Model SPL-6
Lifting Capacity 6,000 lbs
Lifting Time 84S (110V) 32S (220V)
A:Overall Height 108 7/8″
B:Max. Lifting Height 74″
B:Max. Lock Height to top of Runway 70 3/16″
C:Max. Height Underneath Runway 69 1/4″
C:Max. Lock Height Underneath Runway 65 1/2″
D: Minimum Height 6 1/4″
E:Overall Width 111″
F:Outside Edge of Runways 82 7/16″
G:Width Between Runways 42 7/16″
H:Platform Length 152″
I:Overall Length 192 1/8″
Gross Weight 2,787 lbs
Motor 1.0HP(110V) / 2.0HP(220V)

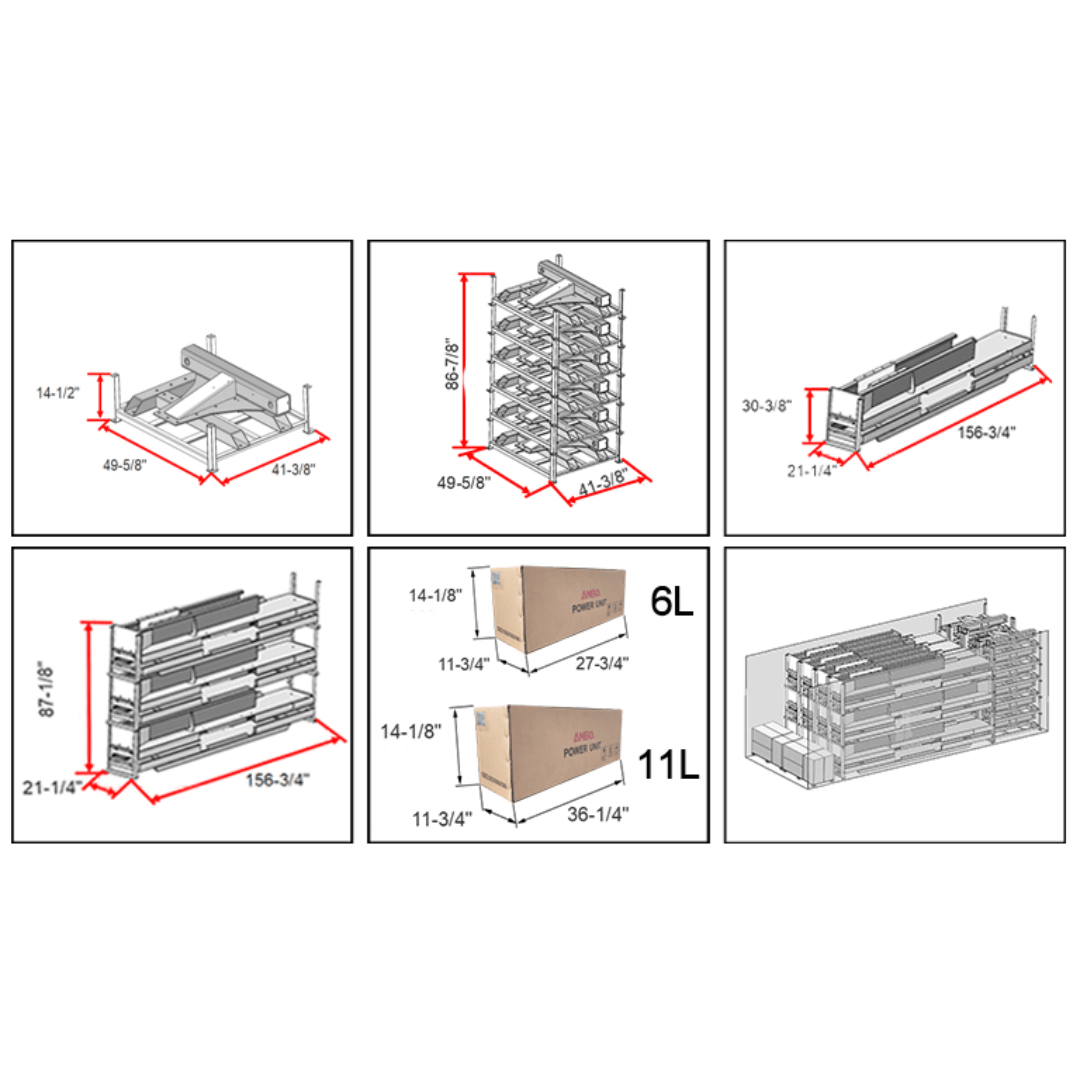

QTY of Container 12 Units/20'GP | 24 Units/40'GP

Pick Up and Delivery

Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
