Product Description

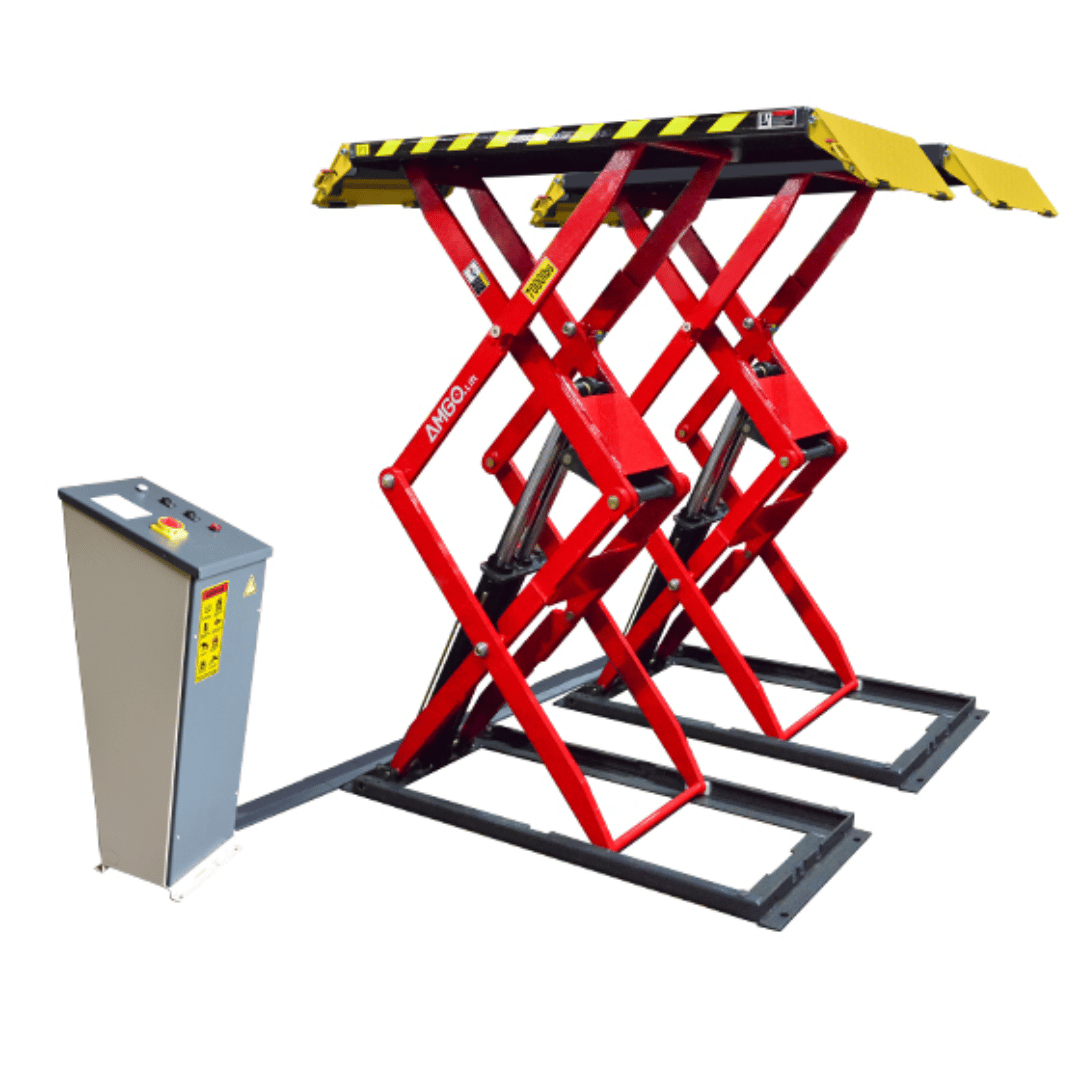

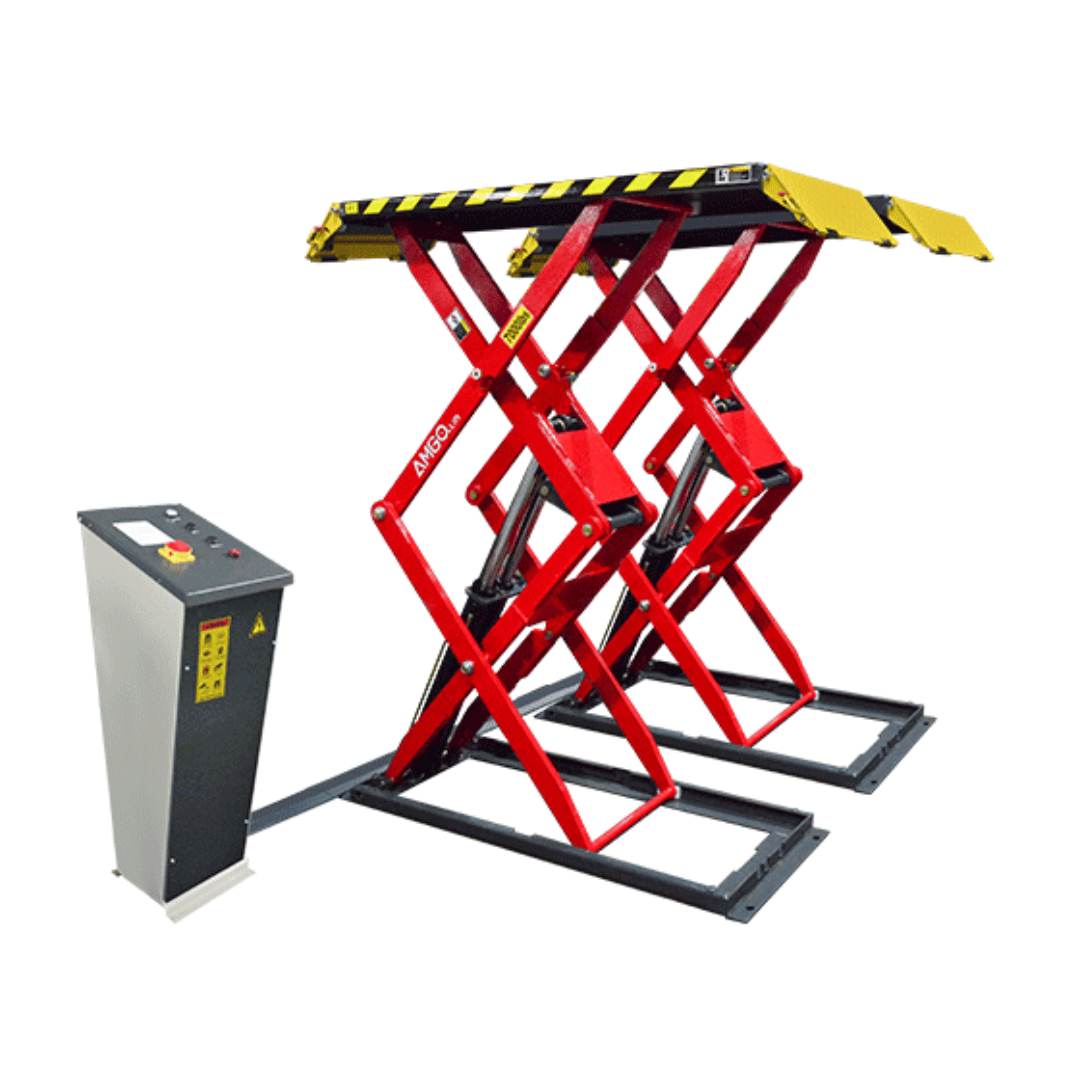

AMGO XL-7 Low Profile Scissor Lift – 7,000 lb Capacity
The AMGO XL-7 Low Profile Scissor Lift is the perfect combination of compact form and full-rise performance. Engineered for maximum safety and minimal space usage, this lift features a low profile design at just 4 5/8" height when lowered and a full lifting height of 78 3/4", giving you undercar access without the need for a bulky two-post system.
With dual hydraulic and mechanical locks, burst valve protection, and a 24V low-voltage control system, the XL-7 is one of the safest small scissor lifts in its class. It includes a dual-cylinder synchronization system for perfectly level lifting, as well as a built-in safety stop at 11 7/8" height requiring dual-button control and audio alarm for lowering — making it an ideal fit for shops focused on technician safety.
Whether you're working in a tight service bay or home garage, the XL-7’s “No-Service-Required” design, fast lift speed, and straightforward installation make it the go-to solution for reliable everyday use.
Now available at Gearforce USA, the XL-7 is your compact lift with full-size performance — trusted by professionals, designed for simplicity.

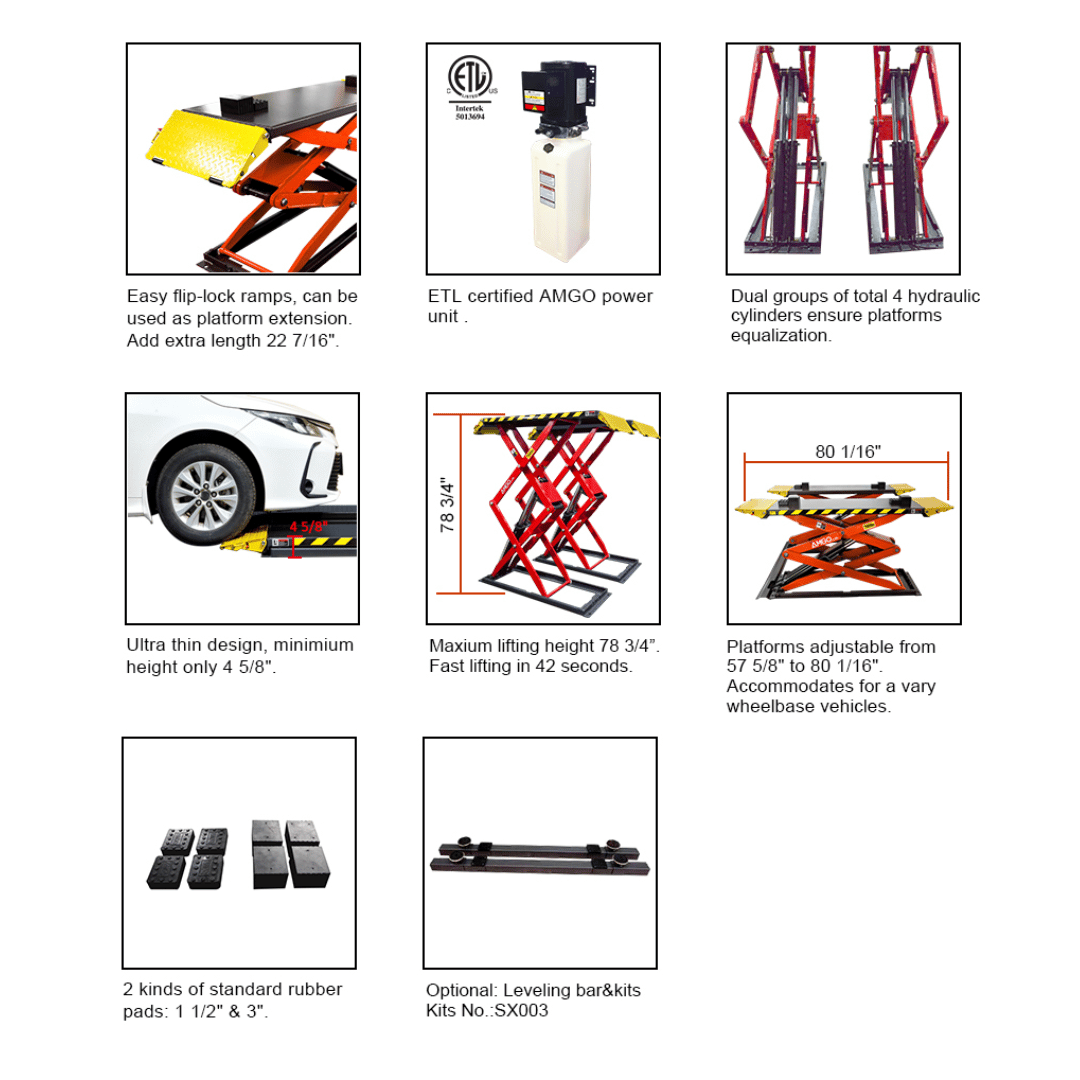

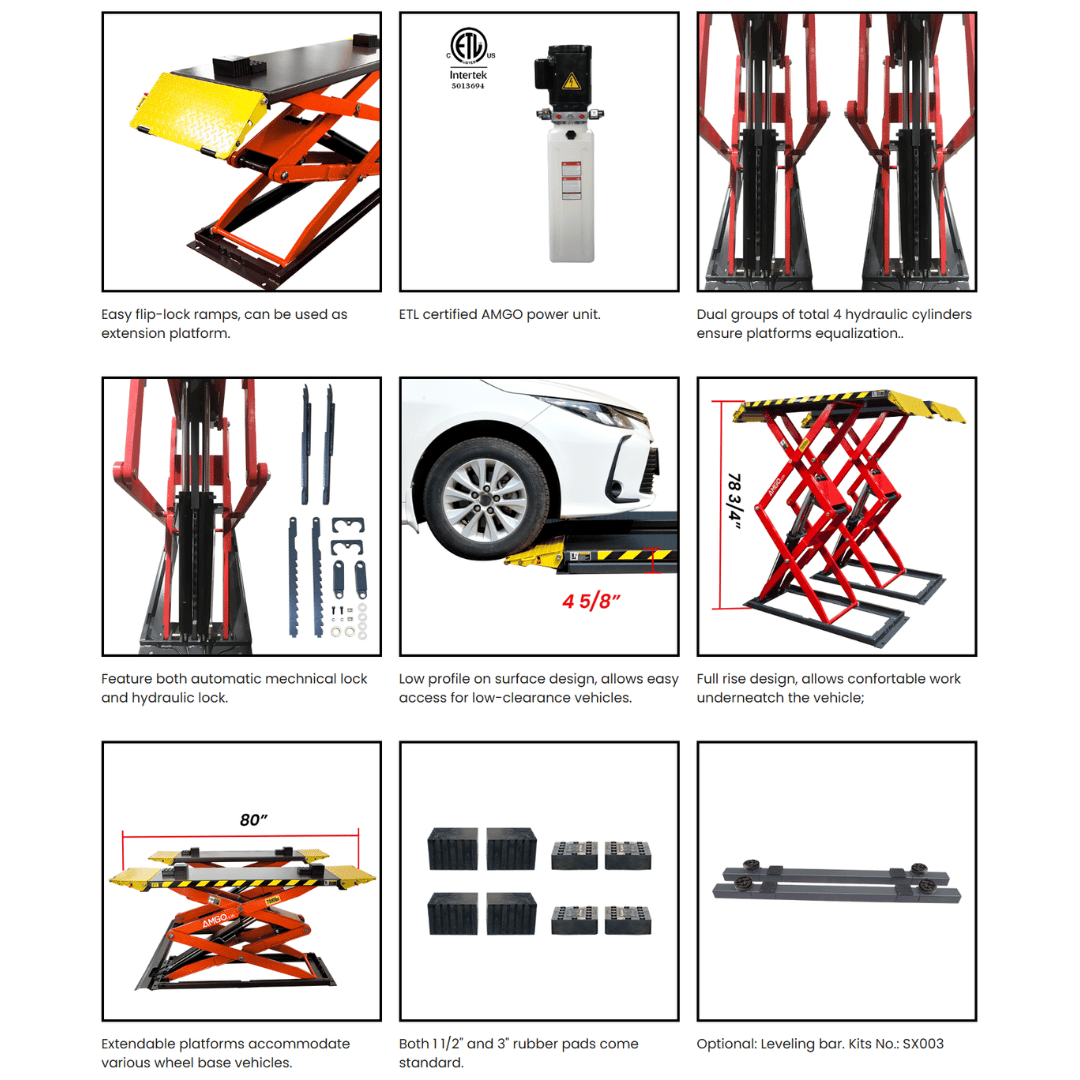

Key Features
- 7,000 lb lifting capacity – supports cars, SUVs, and light-duty trucks
- Ultra-low profile: 4 5/8″ lowered height – ideal for lowered vehicles and space-limited installations
- Max lifting height: 78 3/4″ – full undercar access for inspections and repairs
- Hydraulic + mechanical dual locking system – industry-leading safety built in
- 24V control system – safer, low-voltage operation
- Dual synchronous hydraulic cylinders – maintain level platform elevation
- Hydraulic burst valves – safety in case of sudden pressure loss
- Safety stop at 11 7/8″ with tone alarm + dual-button lowering – enhances operator awareness
- Quick 50-second lift time – efficient operation for busy shops
- No regular maintenance required – simple, service-free design
- Compact dimensions: 80″ overall length, 76 3/4″ overall width
- 2.0 HP motor – reliable power output for daily use
- AMGO 5-3-2 Warranty – 5 years on steel components, 3 years on hydraulics, 2 years on electrical

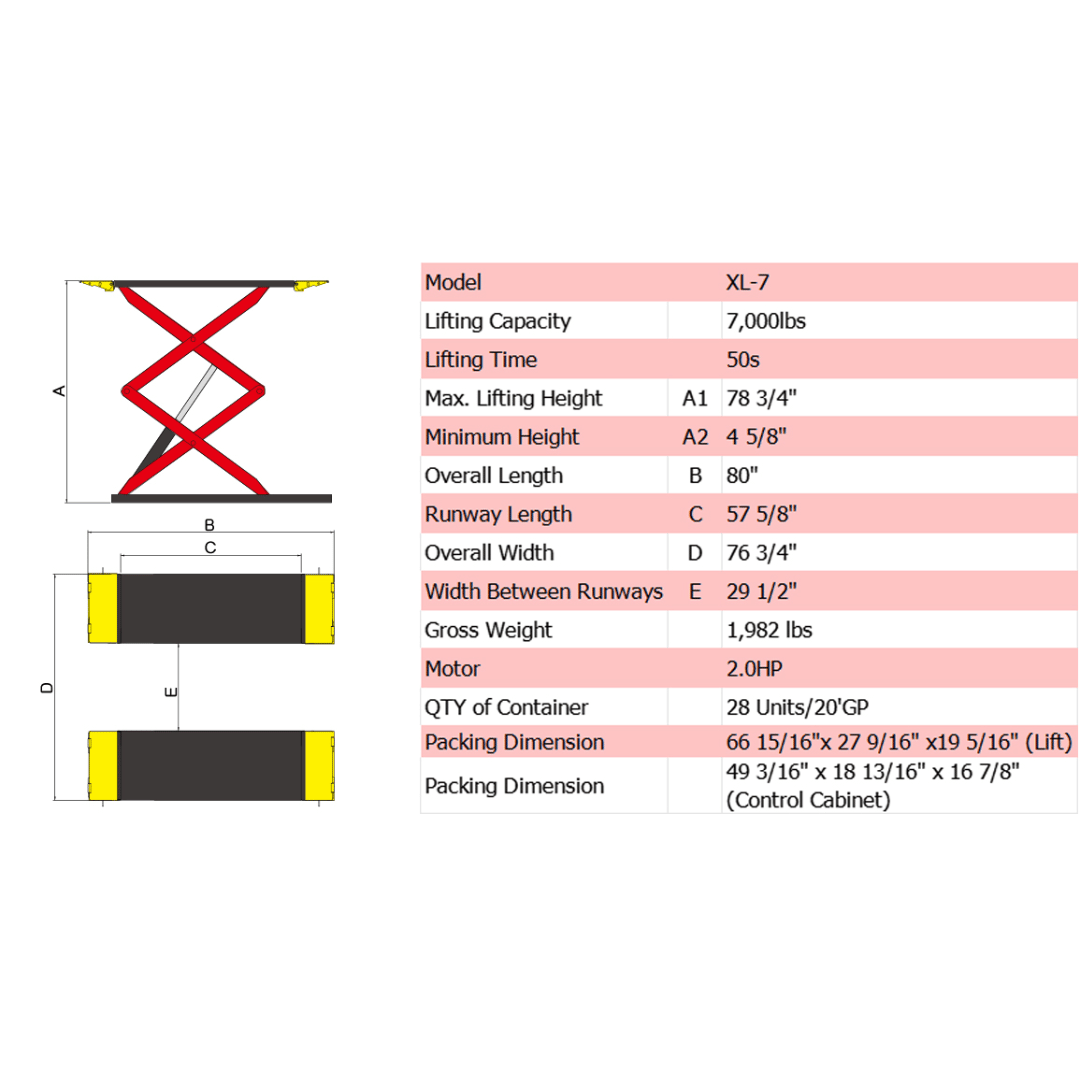

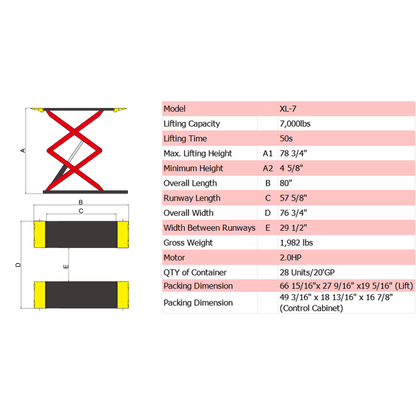

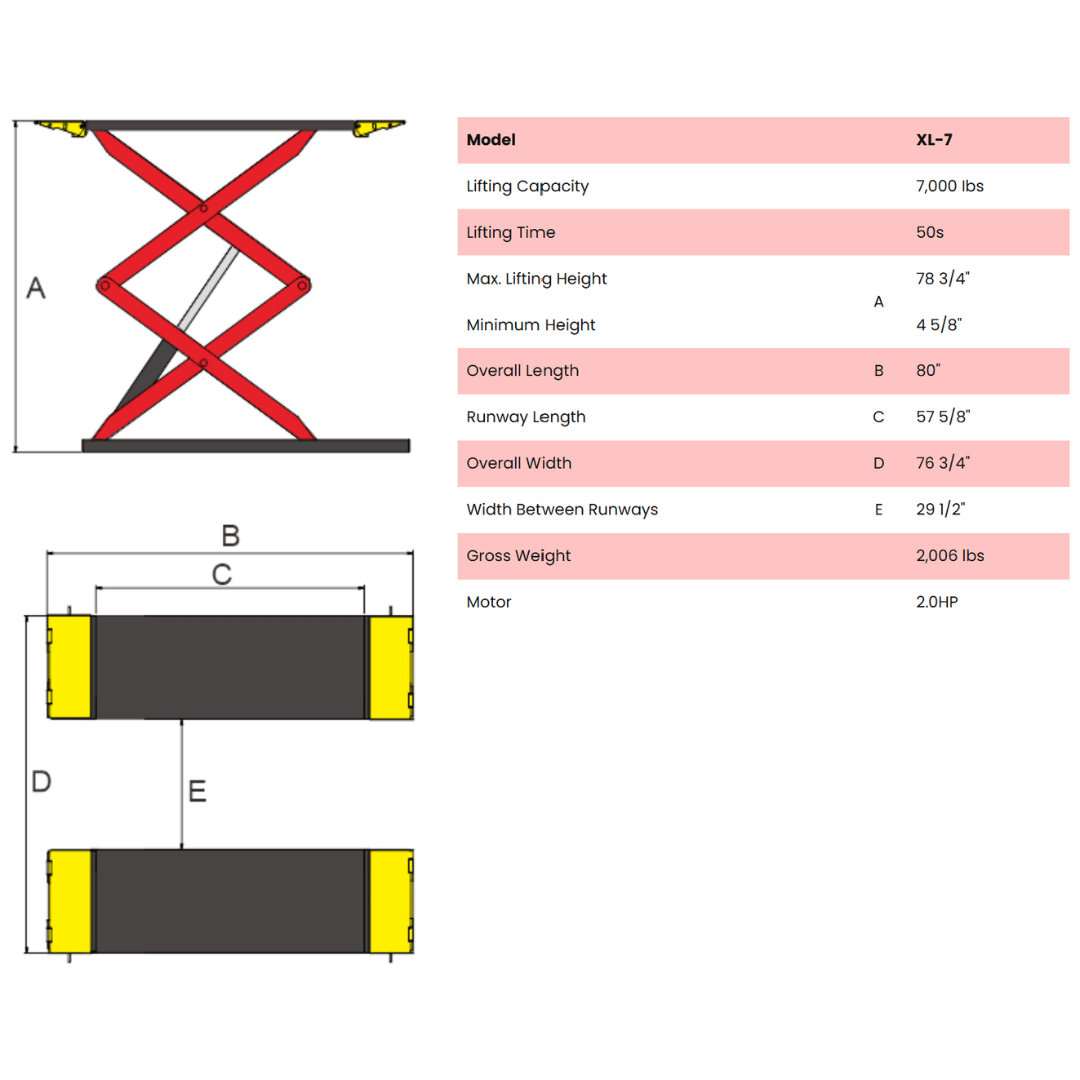

Product Specifications
| Model | XL-7 |
| Lifting Capacity | 7,000 lbs |
| Lifting Time | 50 seconds |
| A1: Max. Lifting Height | 78 3/4″ |
| A2: Minimum Height | 4 5/8″ |
| B: Overall Length | 80″ |
| C: Runway Length | 57 5/8″ |
| D: Overall Width | 76 3/4″ |
| E: Width Between Runways | 29 1/2″ |
| Gross Weight | 1,982 lbs |
| Motor | 2.0HP |
| QTY of Container | 28 Units/20'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
