Product Description

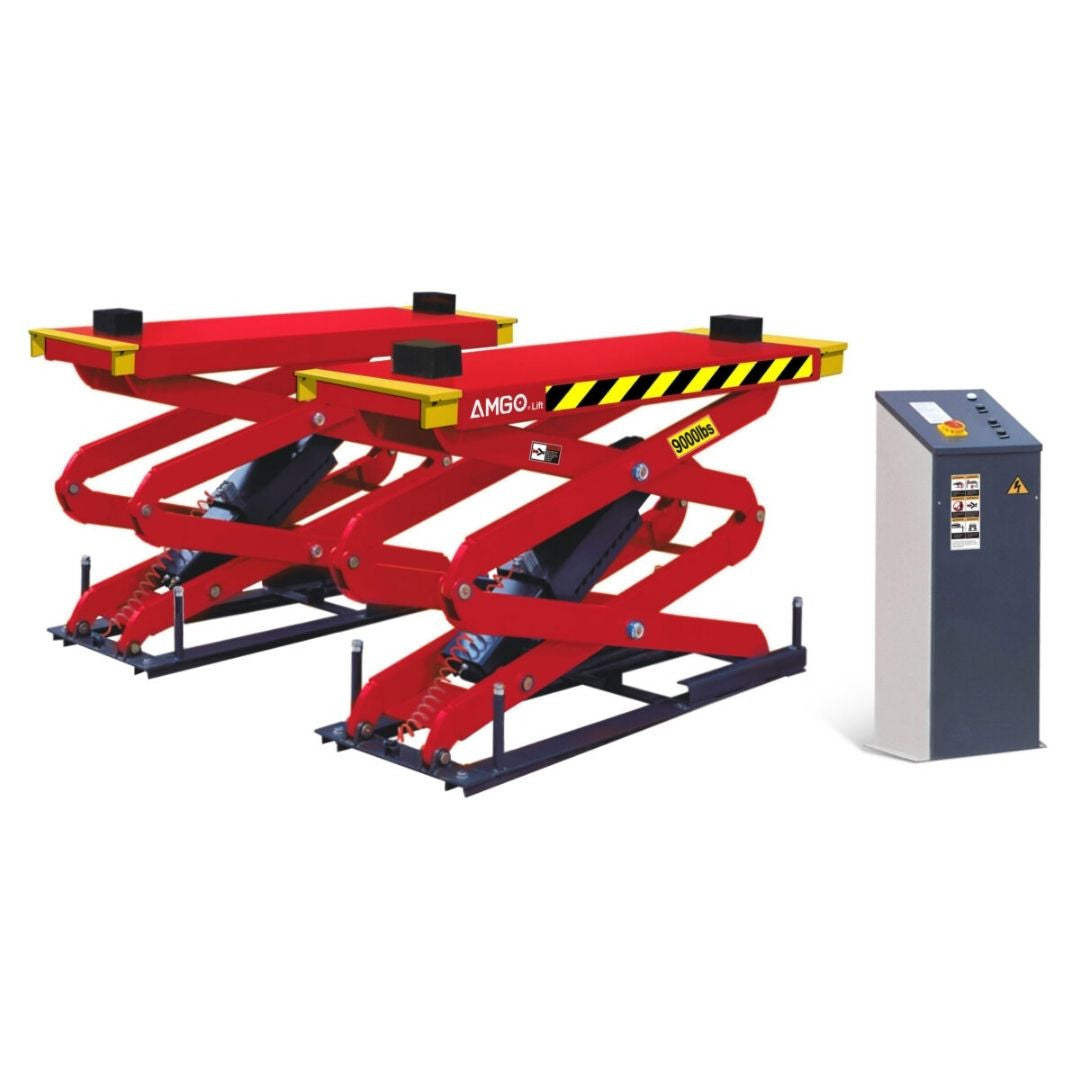

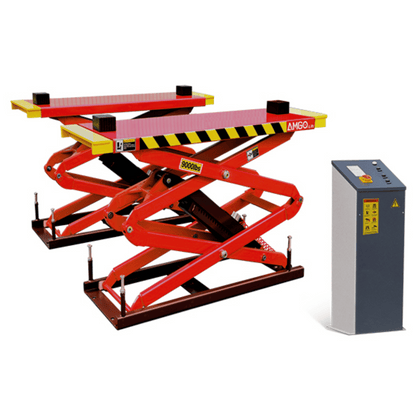

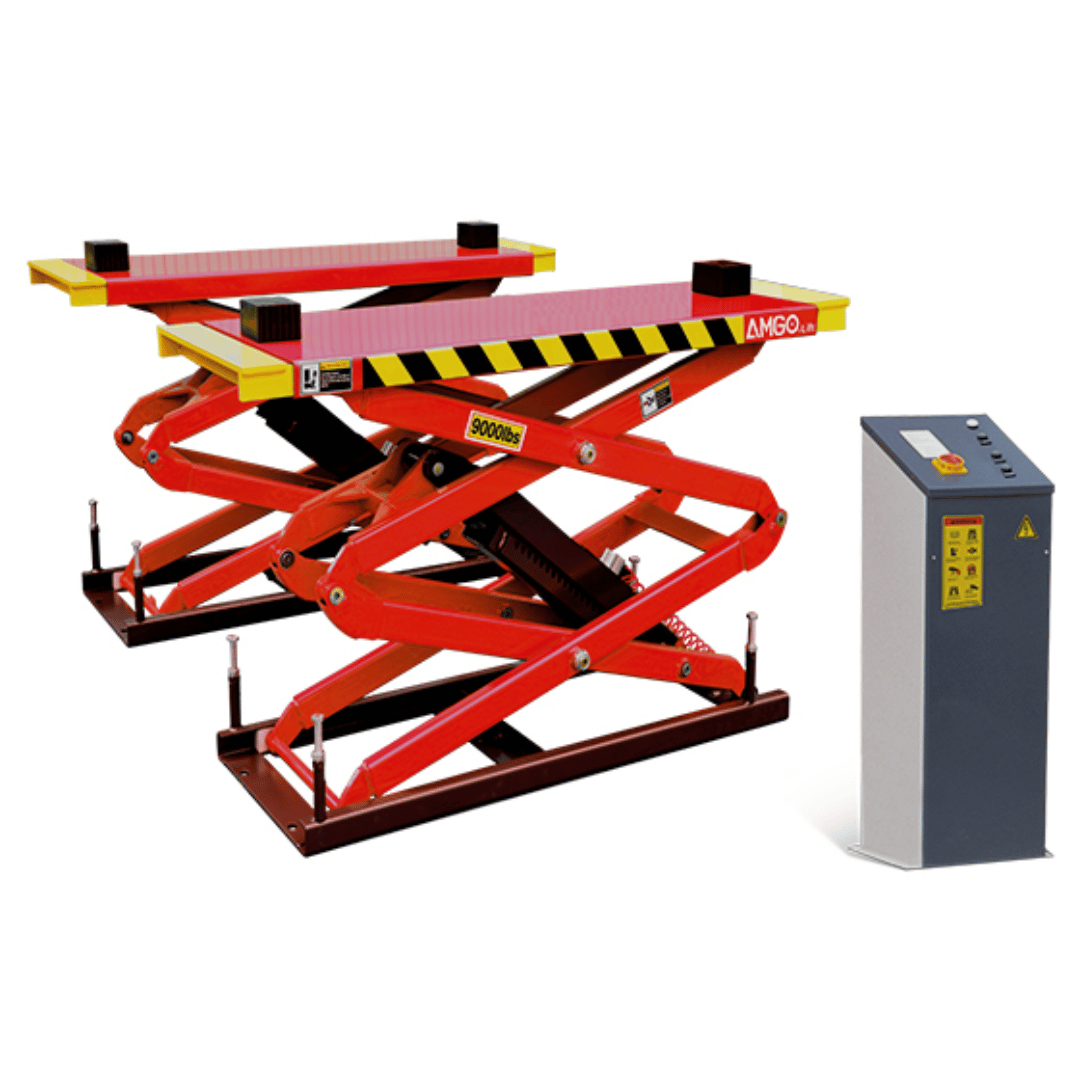

AMGO XL-9F Flush Mount Scissor Lift – 9,000 lb Capacity
Built for clean-floor efficiency and everyday performance, the AMGO XL-9F Flush Mount Scissor Lift is the ultimate solution for shops that want full-rise capabilities without floor obstructions. With a 9,000 lb lifting capacity and flush-mount installation, the XL-9F provides a seamless work surface and clear undercar access, making it perfect for busy professional garages and premium home installs alike.
The XL-9F features a dual-cylinder synchronization system for even lifting, and its electric/hydraulic power unit ensures smooth, fast operation — reaching its max height of 87 3/4" in just 49 seconds. The wide, heavy-duty platforms are also adjustable and extendable, enabling it to accommodate a broad range of wheelbases, from compact cars to full-size pickups.
A mechanical locking system, activated by air cylinder safety release, offers peace of mind with each lift, while the 13 3/4" lowered profile allows for smooth vehicle access and integration into the shop floor. With minimal maintenance requirements, industrial-grade construction, and a clean, open working area, the XL-9F is a shop essential for maximizing space and efficiency.
Available now at Gearforce USA, the XL-9F is the ideal combination of strength, low-profile installation, and versatile service support.

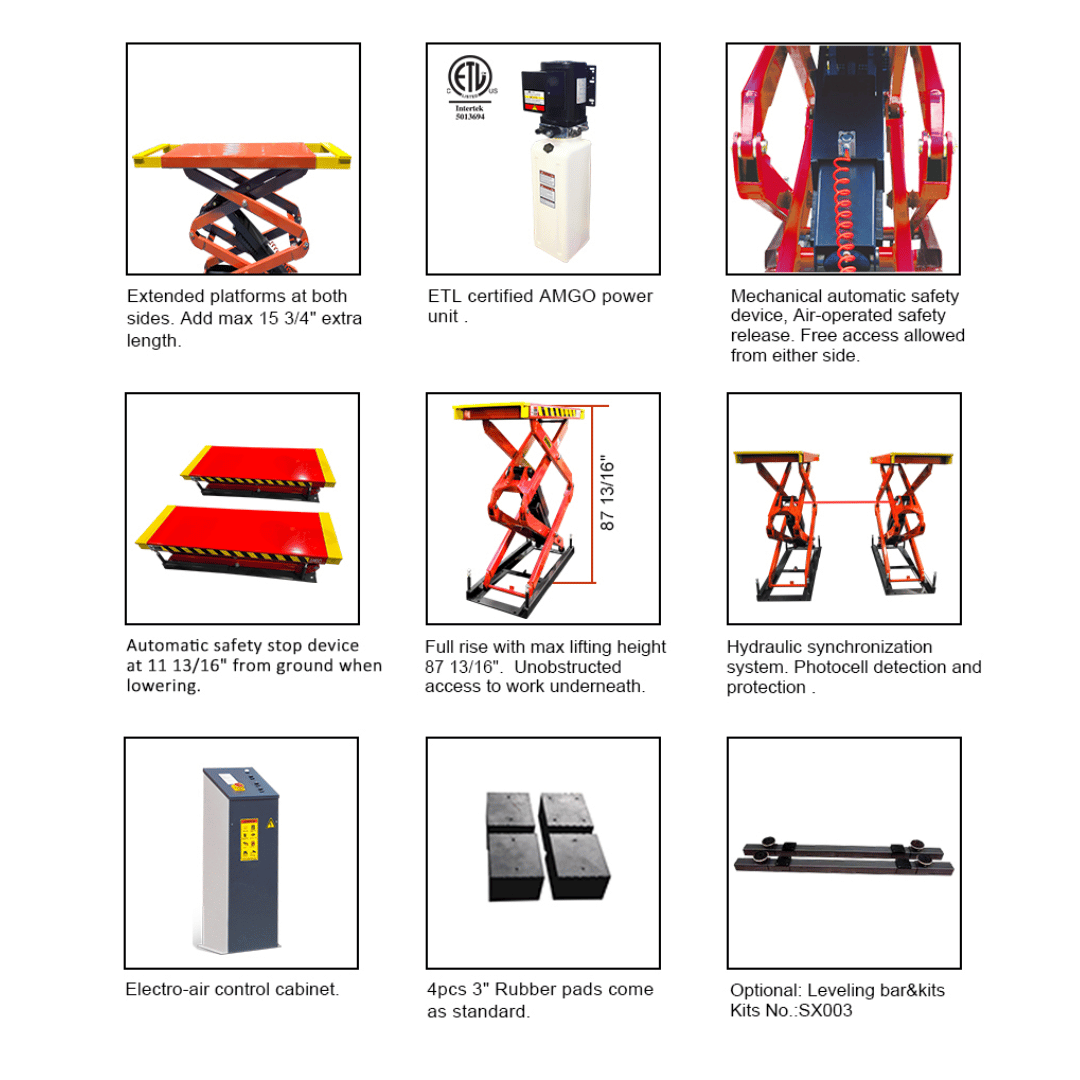

Key Features
- 9,000 lb lifting capacity – handles a wide range of vehicles, from sedans to light-duty trucks
- Flush mount installation – provides a clean, flat surface when lowered, with no trip hazards
- Max lifting height: 87 3/4" | Min lowered height: 13 3/4" – full-rise functionality with low-profile design
- Dual synchronous hydraulic cylinders – ensure even platform lift
- Heavy-duty adjustable and extendable platforms – fits various wheelbases with ease
- Mechanical locking system with air-actuated safety release – secure lifting and user-friendly operation
- Electric/hydraulic power system – smooth and reliable lifting control
- Fast lift time: 49 seconds – built for high-efficiency shop environments
- Platform length: 65 1/8" – 80 7/8" | Width between runways: 31 1/2"
- Overall width: 74 3/4" – compact footprint with maximum utility
- Motor: 3.0 HP – industrial-grade power for consistent daily use
- AMGO 5-3-2 Warranty – 5 years on steel structure, 3 years on hydraulics, 2 years on electrical components

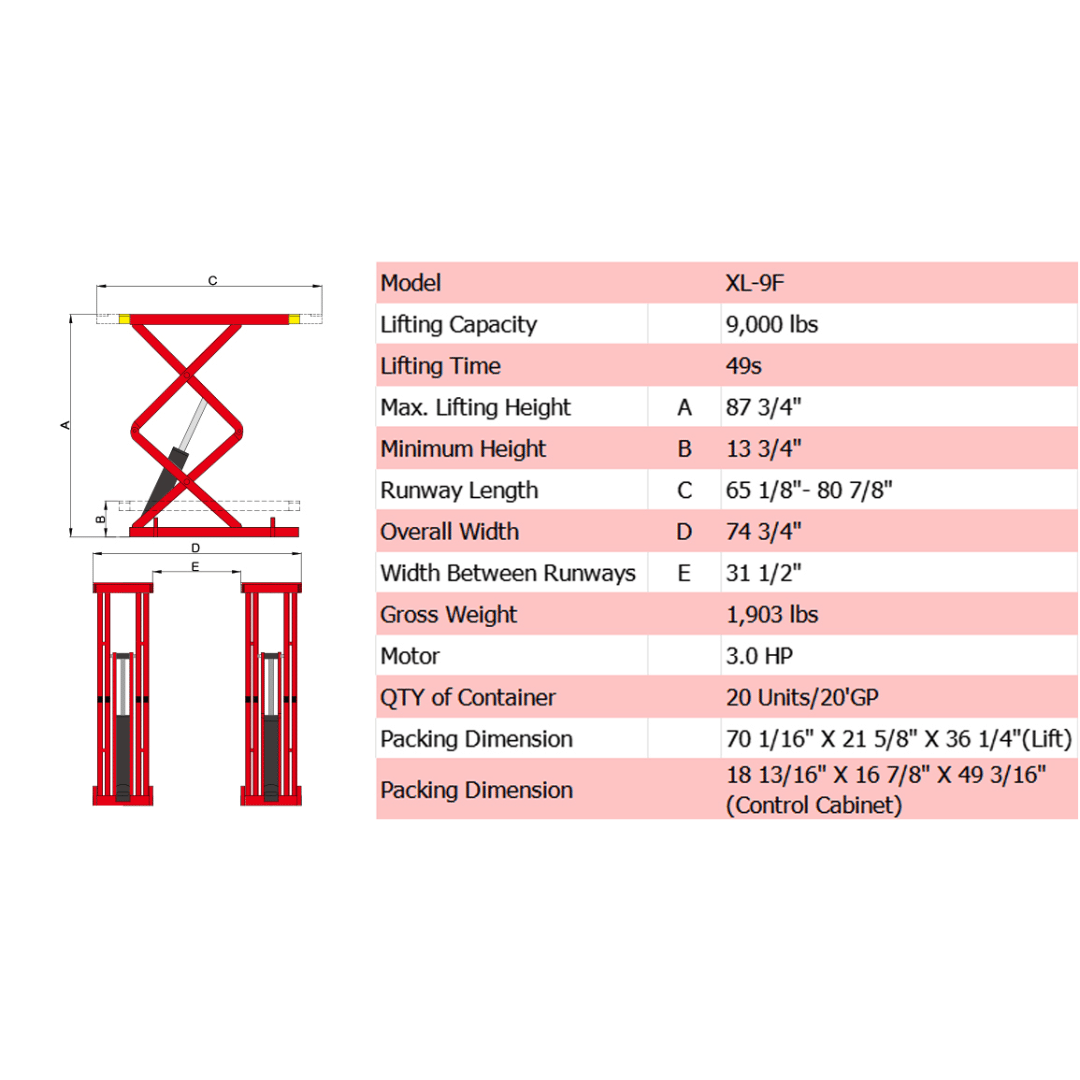

Product Specifications
| Model | XL-9F |
| Lifting Capacity | 9,000 lbs |
| Lifting Time | 49 seconds |
| A: Max. Lifting Height | 87 3/4″ |
| B: Minimum Height | 13 3/4″ |
| C: Overall Length | 65 1/8″-80 7/8″ |
| D: Overall Width | 74 3/4″ |
| E: Width Between Runways | 31 1/2″ |
| Gross Weight | 1,903 lbs |
| Motor | 3.0HP |
| QTY of Container | 20 Units/20'GP |
Pick Up and Delivery
Our Pick Up locations for AMGO are located in Manning, SC / Dallas, TX / Temecula, CA.
