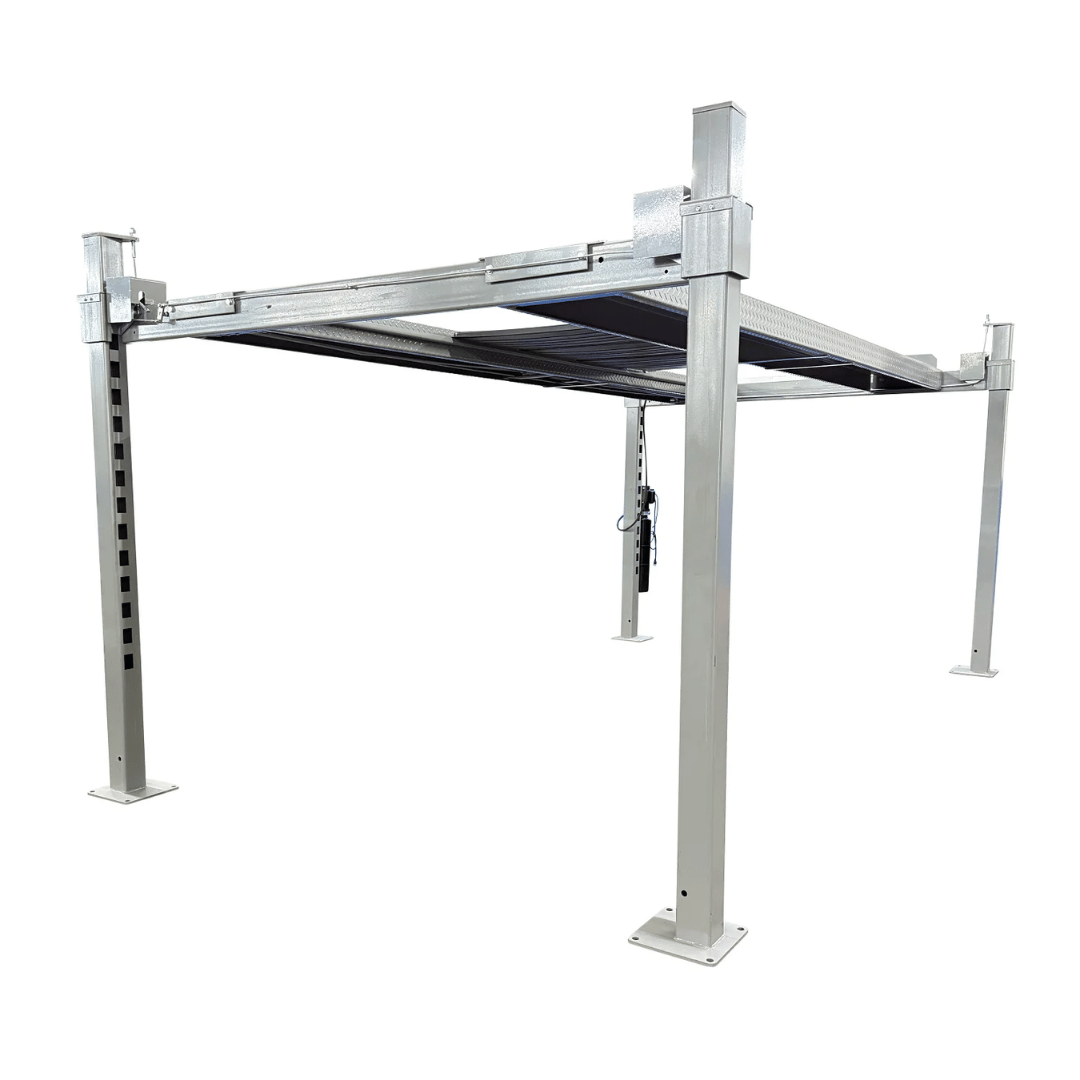

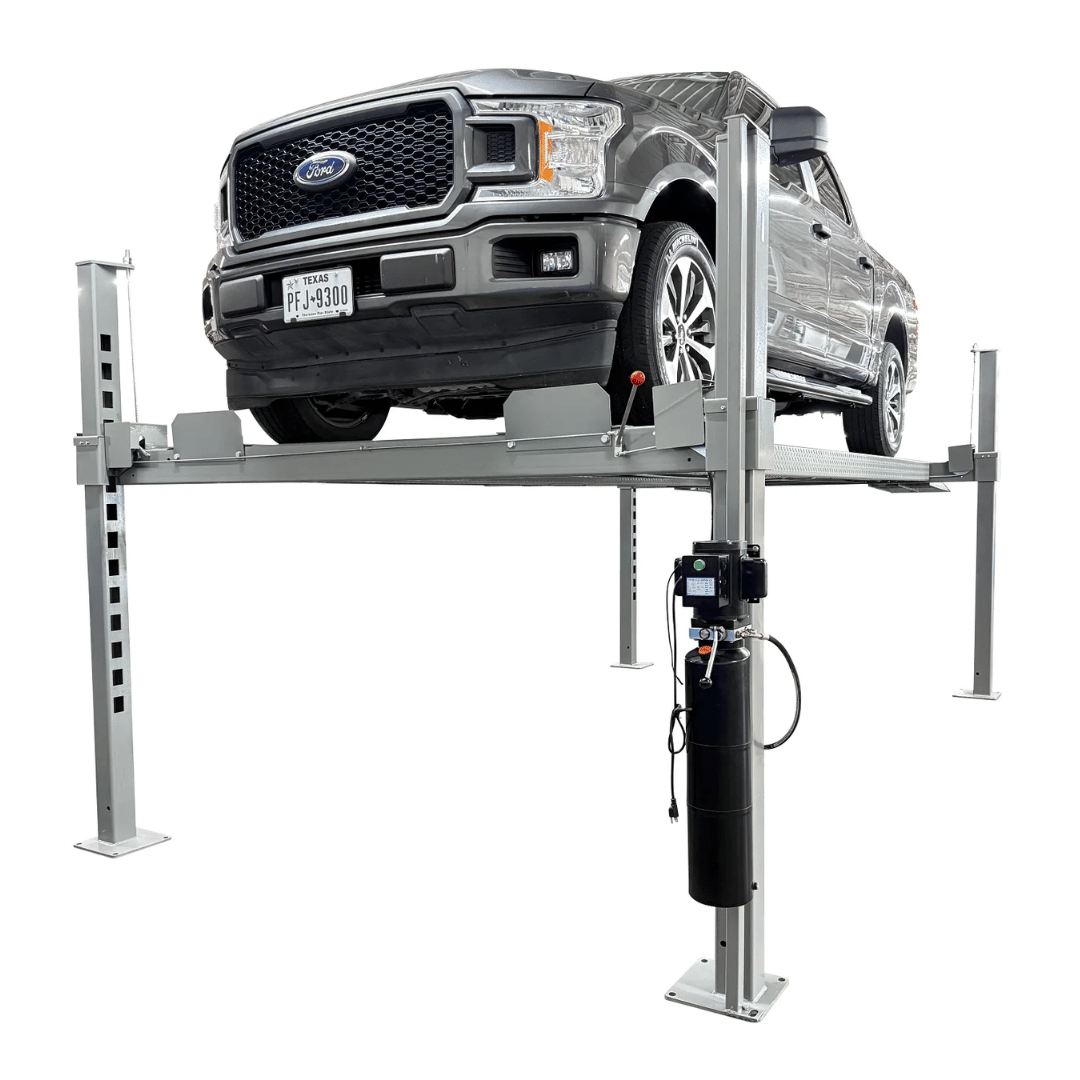

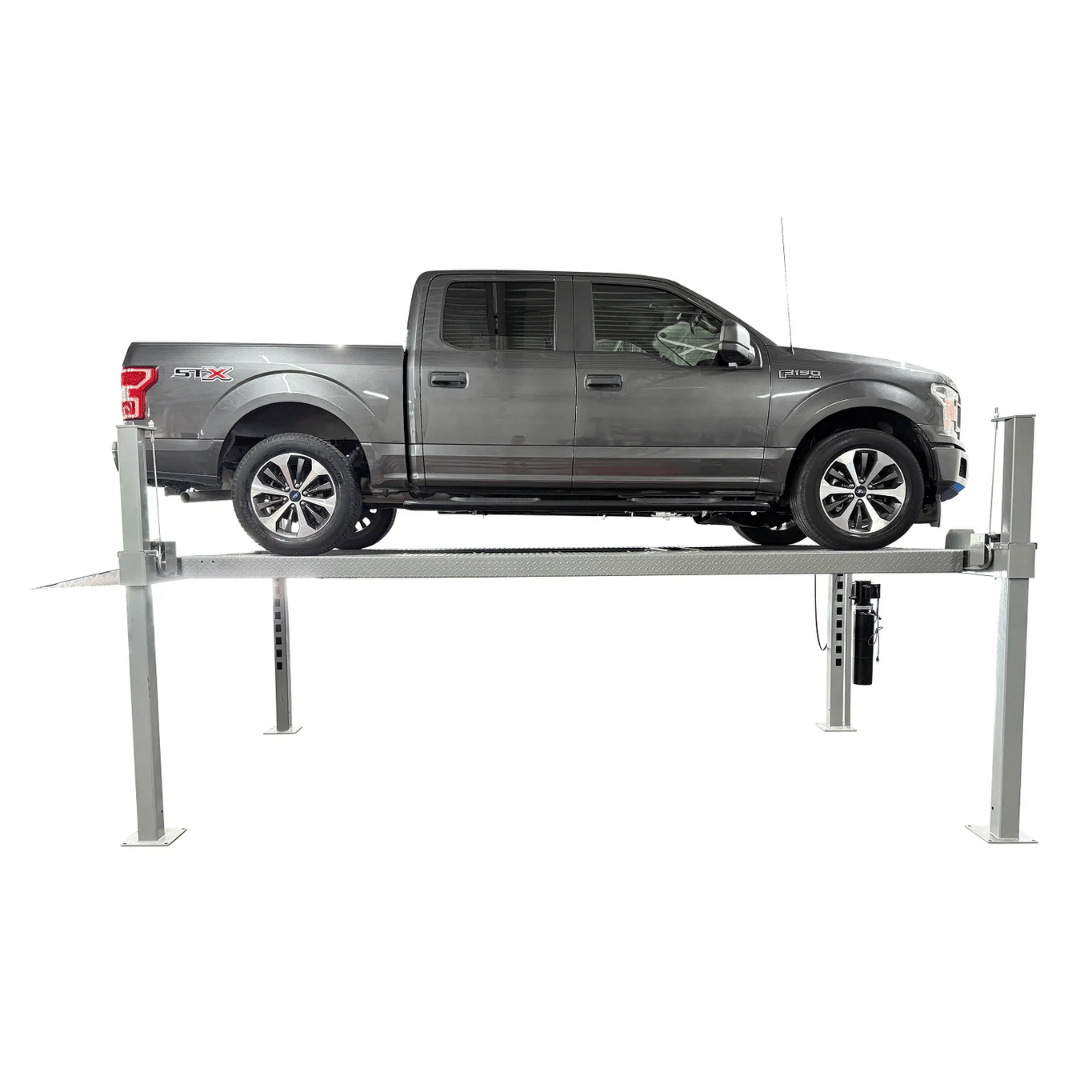

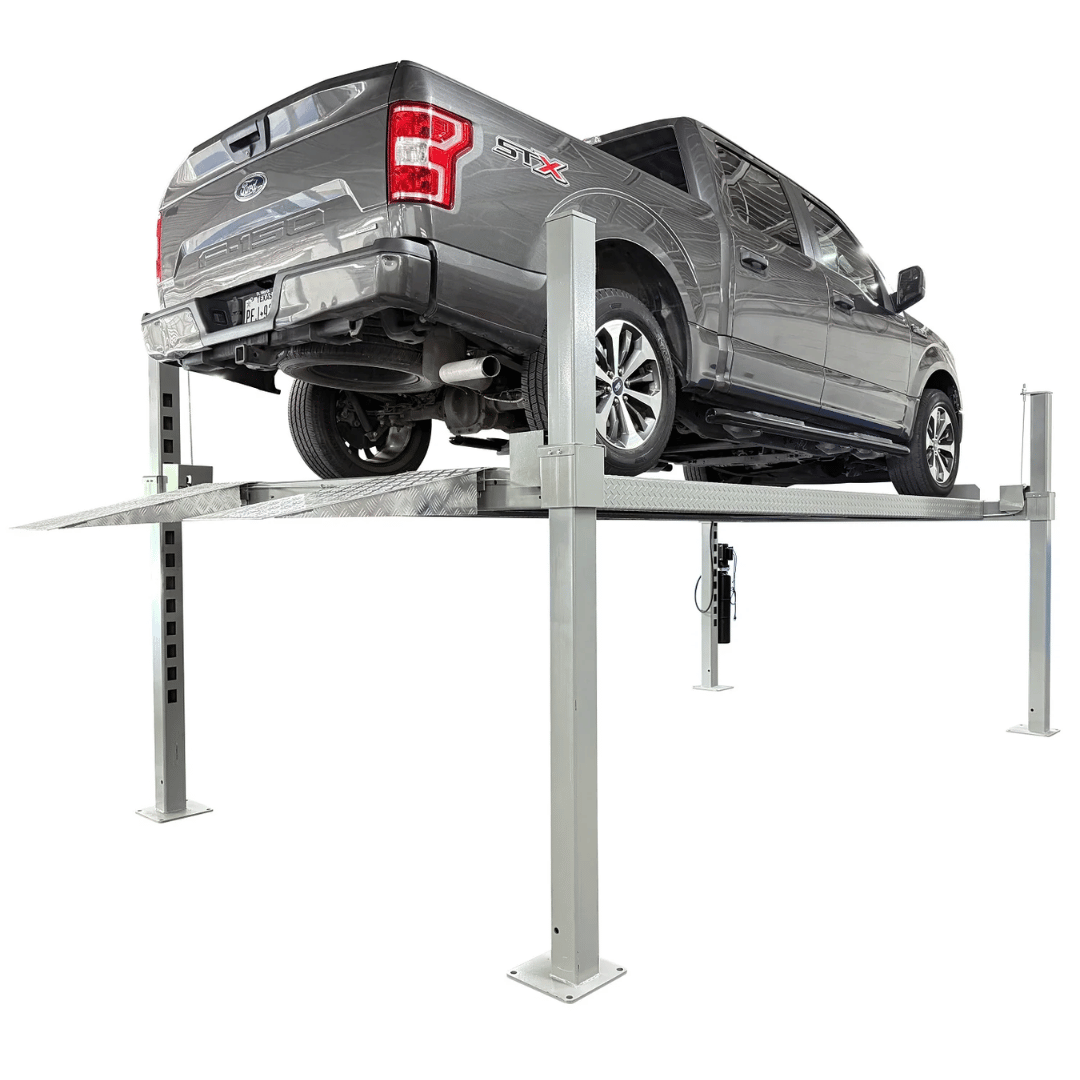

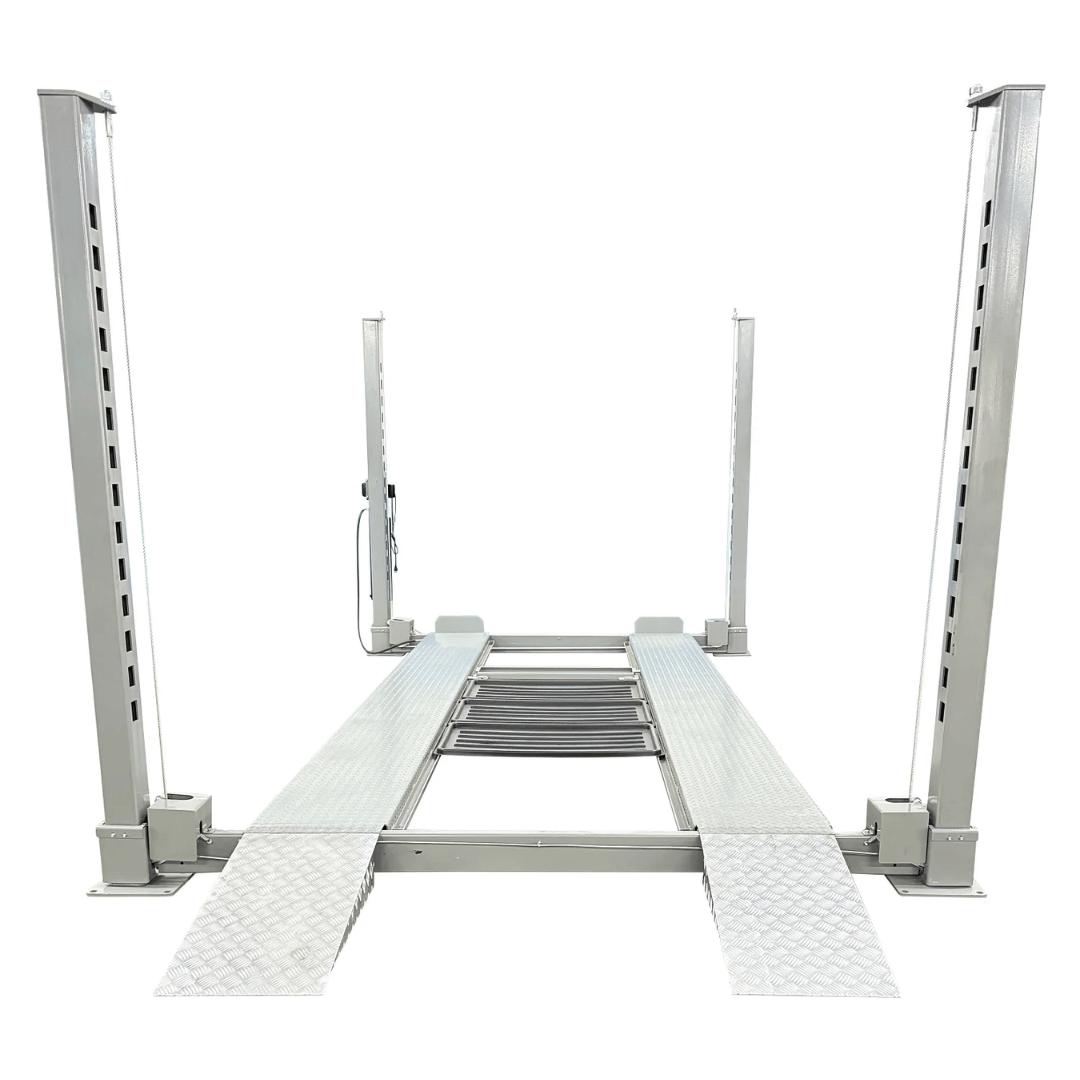

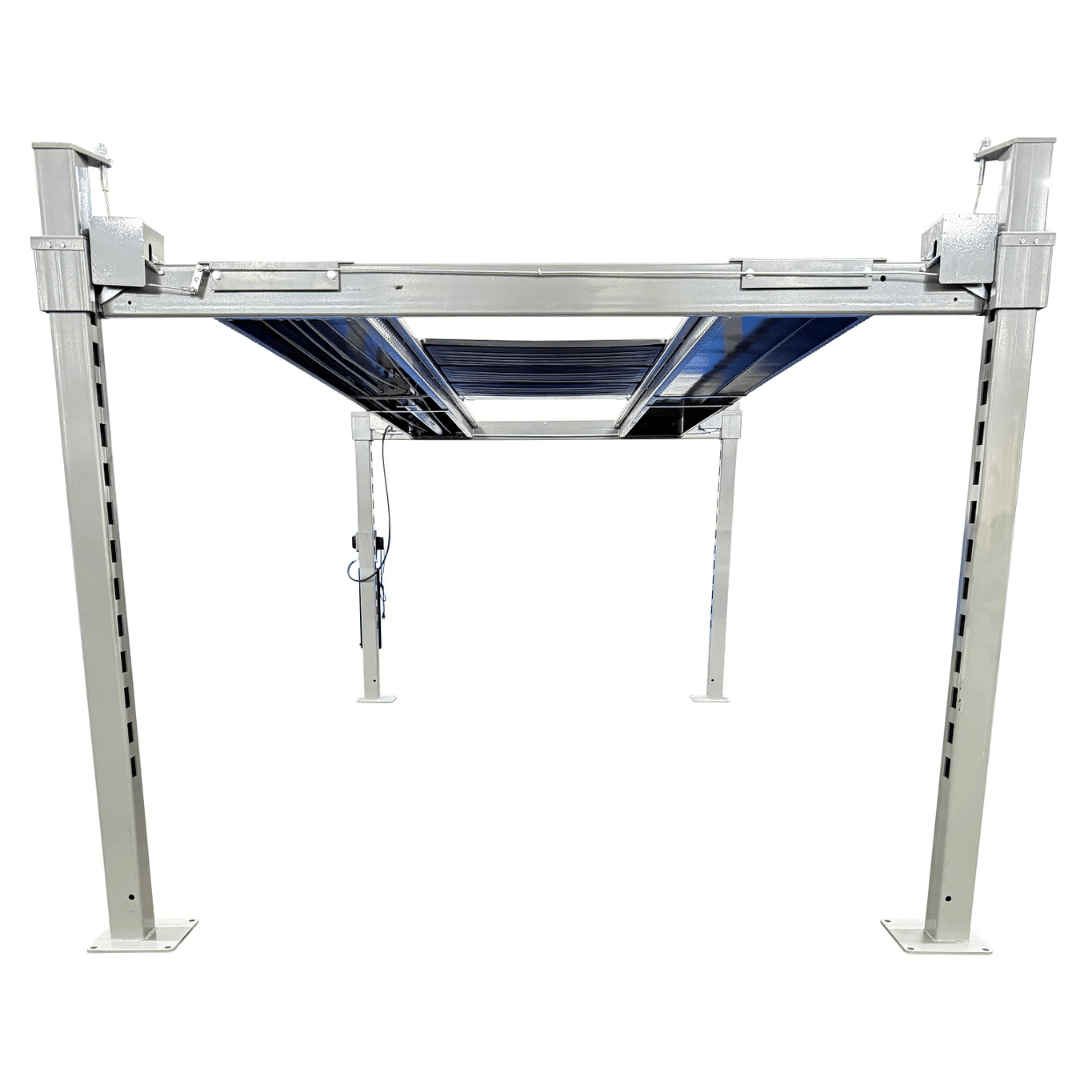

Triumph NOS-10 10,000 lb Service Storage Four Post Automotive Lift
Free shipping to the lower 48 United StatesThe Triumph NOS10000 is a heavy-duty four-post automotive lift built for serious storage and service capacity. With a robust 10,000 lb lifting capability and a time-tested Outside Slider design, this lift delivers both strength and stability for your garage or commercial shop.
This model is engineered for confidence and convenience. Its reinforced boxed runways provide enhanced rigidity, while 12" x 12" 5/8" thick base plates ensure rock-solid stability on your shop floor. Featuring oversized slide collars (6.5" x 6.5") paired with 4.75" x 4.75" columns, the NOS10000 is built to handle your heaviest jobs.
The lift is equipped with a manual deadbolt locking system featuring an oversized release linkage for secure and straightforward operation. A secondary redundant safety system adds peace of mind during every lift. The package includes lightweight 36" aluminum ramps (just 29 lbs each), heavy-duty poly-coated casters for portability, a rolling jack tray with drain plug, and a full set of drip trays to protect the vehicle below from any leaking fluids.
Unlike other sellers, Gearforce USA always includes freight in your upfront pricing—no surprises at checkout. With its sleek black powder-coated finish and durable components, the NOS10000 is a premium-grade lift without the premium markup.
Key Features
- Massive 10,000 lb Lifting Capacity – Handles passenger vehicles, light-duty trucks, and SUVs.
- Outside Slider Design – Ensures rock-solid lift stability and a rigid stance during operation.
- Oversized Structural Support – Includes 4.75" x 4.75" columns with 6.5" x 6.5" slide collars for added strength.
- Manual Deadbolt Locks – Heavy-duty locking system with oversized release linkage.
- Secondary Safety System – Redundant safety features ensure safe lifting and locking at every stage.
- Heavy-Duty Casters Included – Easily move the lift around your garage or workshop.

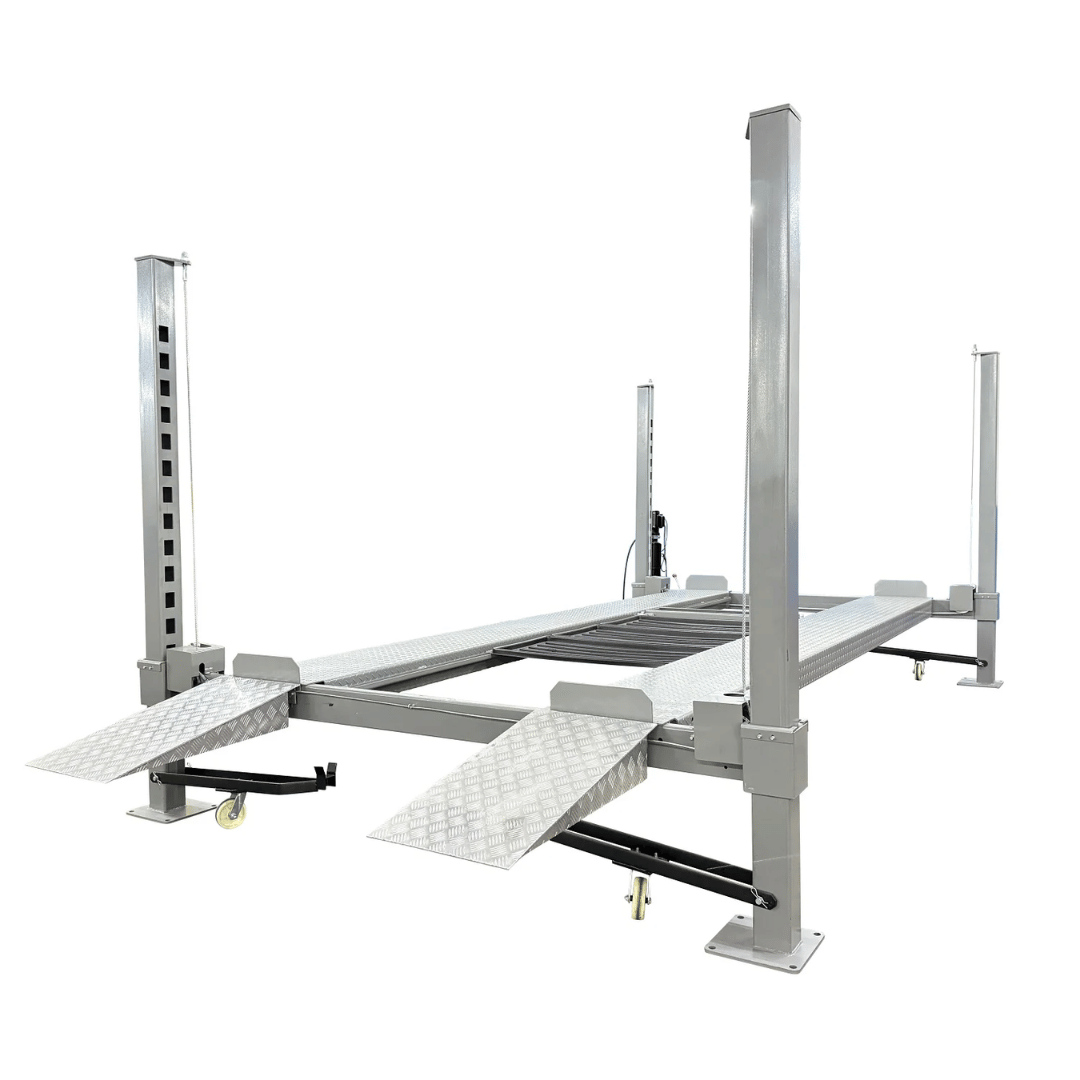

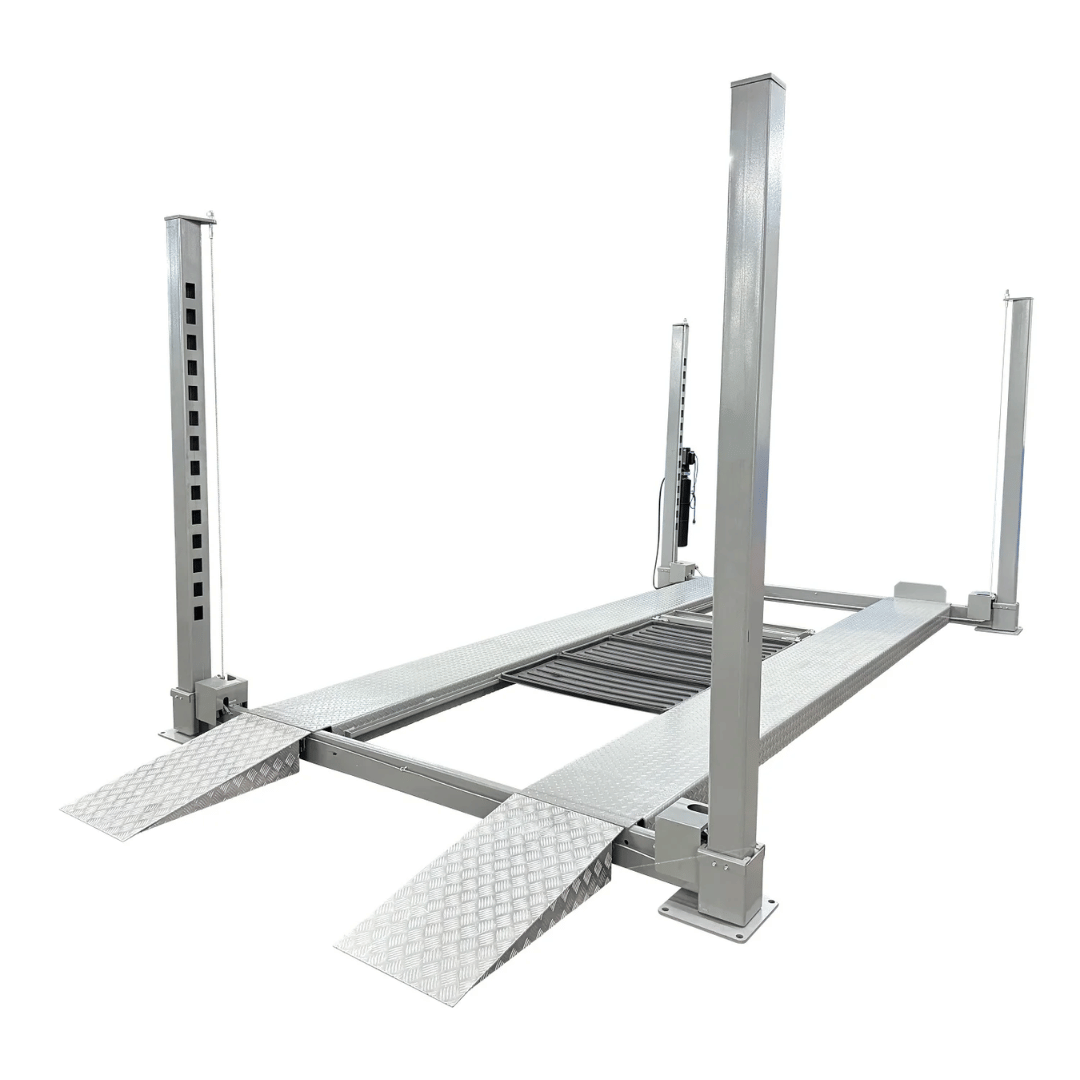

- 36" Lightweight Aluminum Ramps – Each ramp weighs only 29 lbs for easy positioning and removal.
- Boxed Tracks – Enhanced structural rigidity and load support.
- Rolling Jack Tray with Drain Plug – Ideal for undercarriage work or fluid draining.

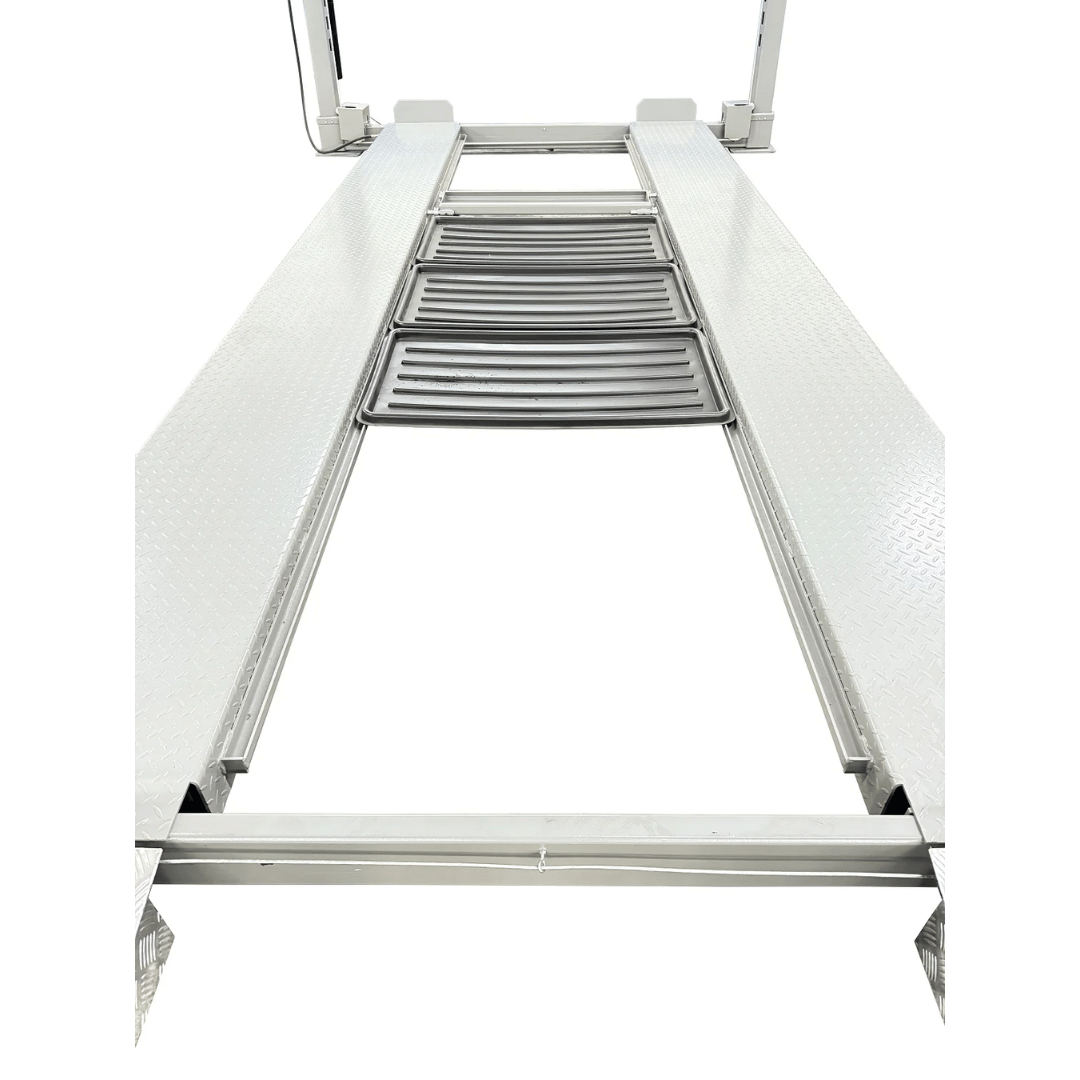

- Set of Drip Trays – Keeps your lower-level vehicles clean from leaks above.
- Cable Keepers – Prevent cable run-off and extend cable life.
- Transparent Pricing – Freight included in the price — no surprise fees at checkout.

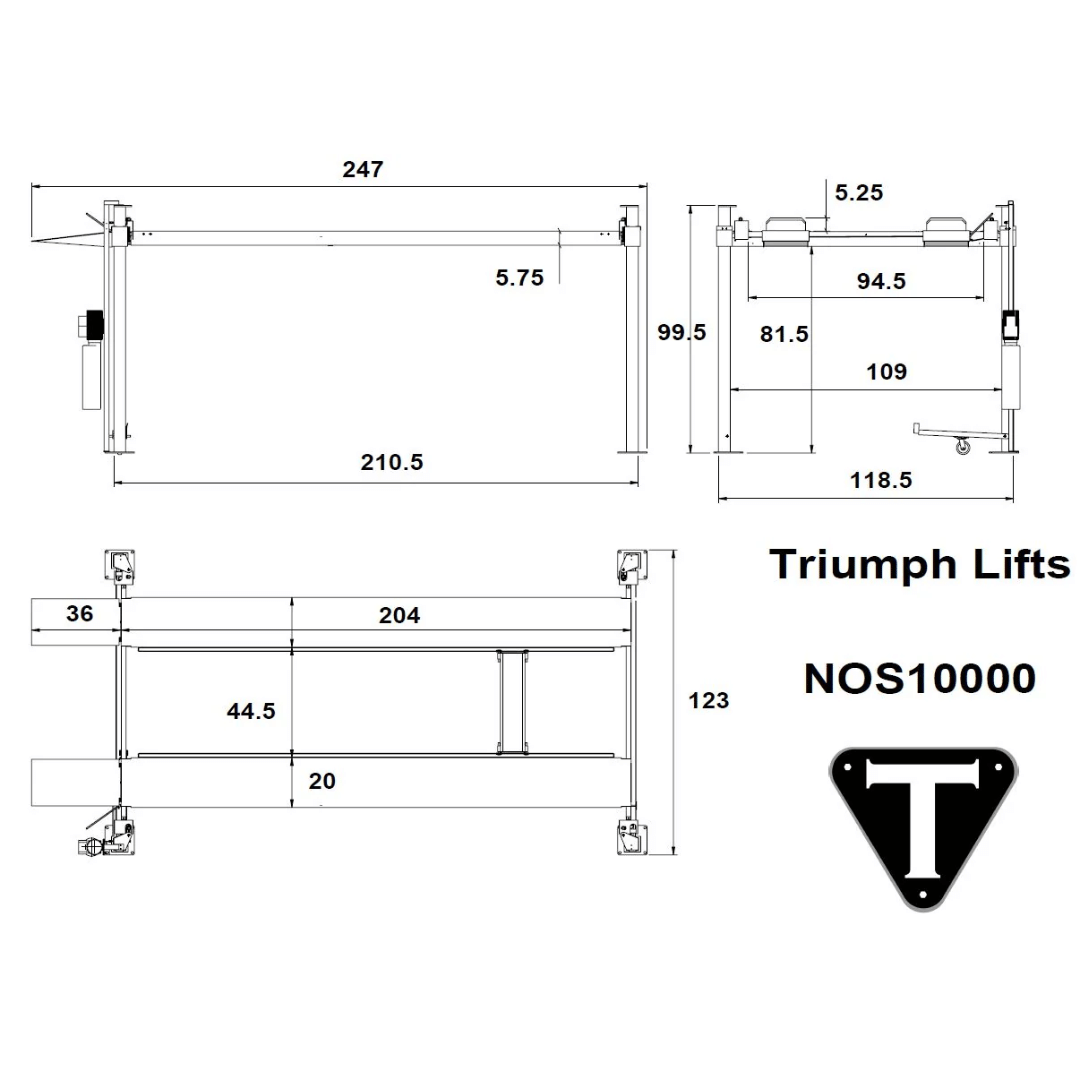

Product Specifications
| Lift Model | NOS-10 |
|---|---|
| Capacity | 10,000 lbs |
| Overall Height | 99.5" |
| Overall Length | 210-1/2″ |
| Overall Width | 123″ |
| Lift Height | 87″ |
| Height Under Runway | 81-1/2″ |
| Runway Length | 204″ |
| Drive Thru Width | 109" |
| Runway Width | 20″ |
| Lowered Height | 5-1/2″ |
| Locking Positions | 14 |
| Base Plate Size | 12″ x 12″ |
| Lock Release | Single Point |
| Lift Time | 60 Seconds |
| Voltage | 110 Volts |
| Shipping Weight | 2,535 lbs |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Las Vegas, NV.
