Product Description
The Ultimate Dually Shop Setup. Two Jacks, Maximum Width, Zero Compromises.

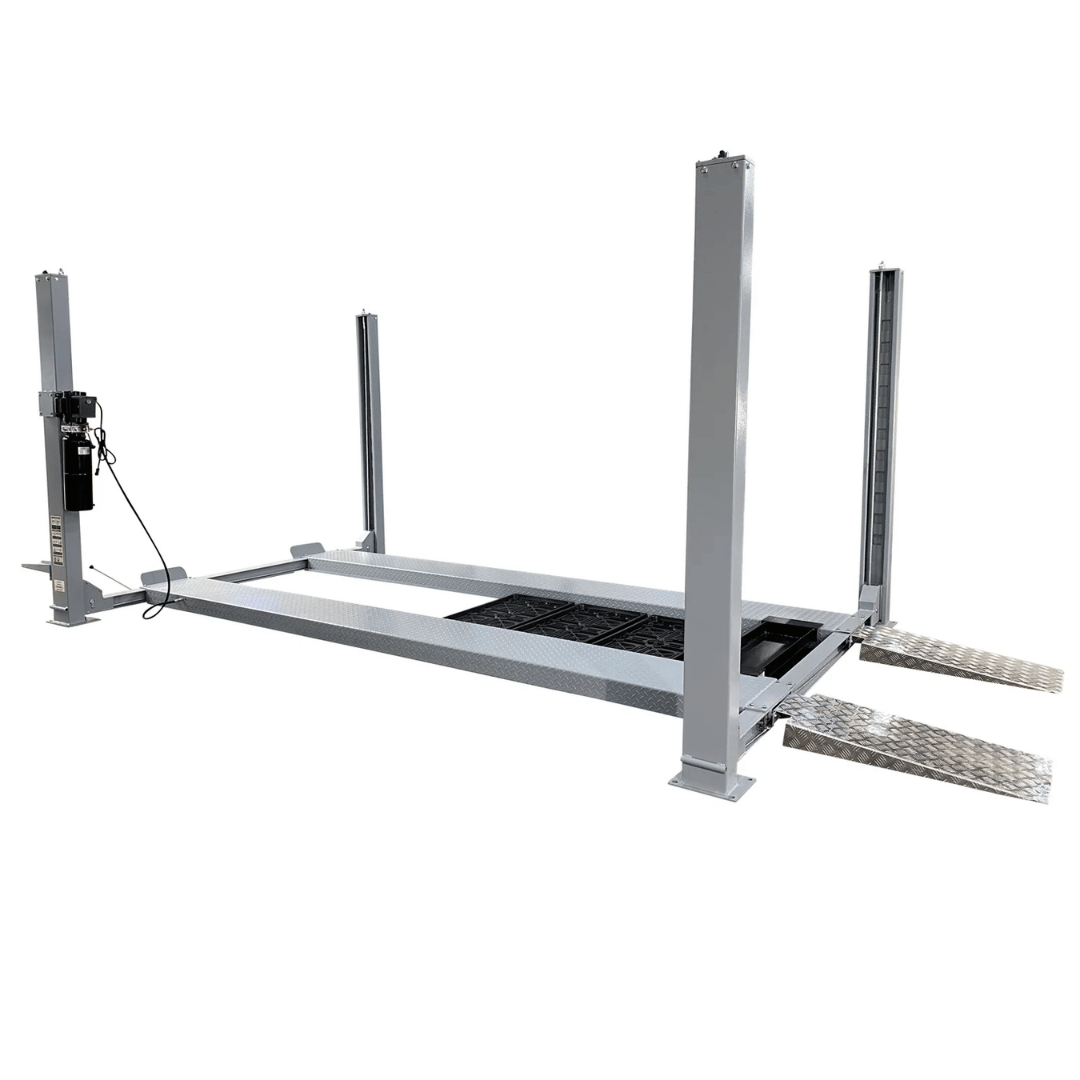

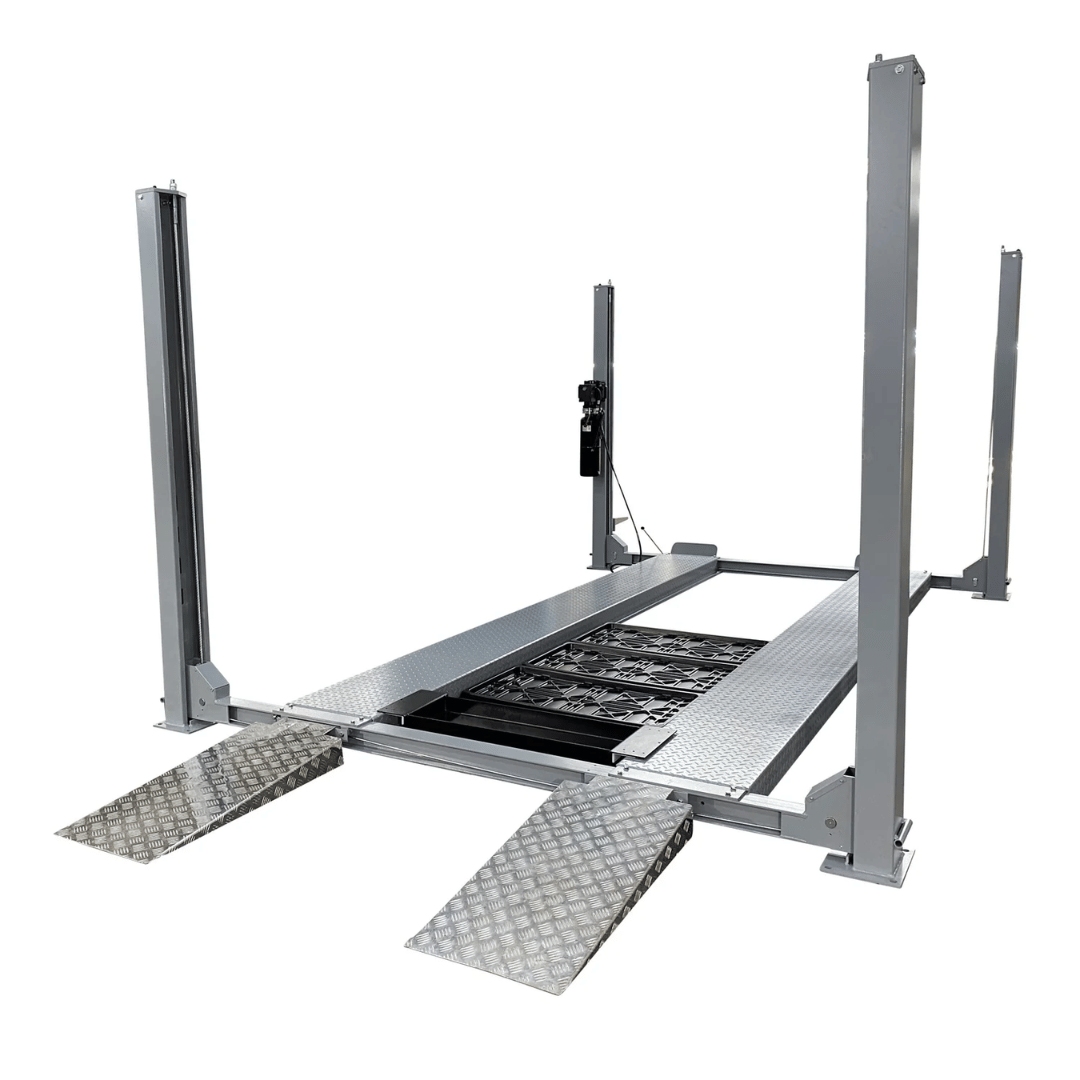

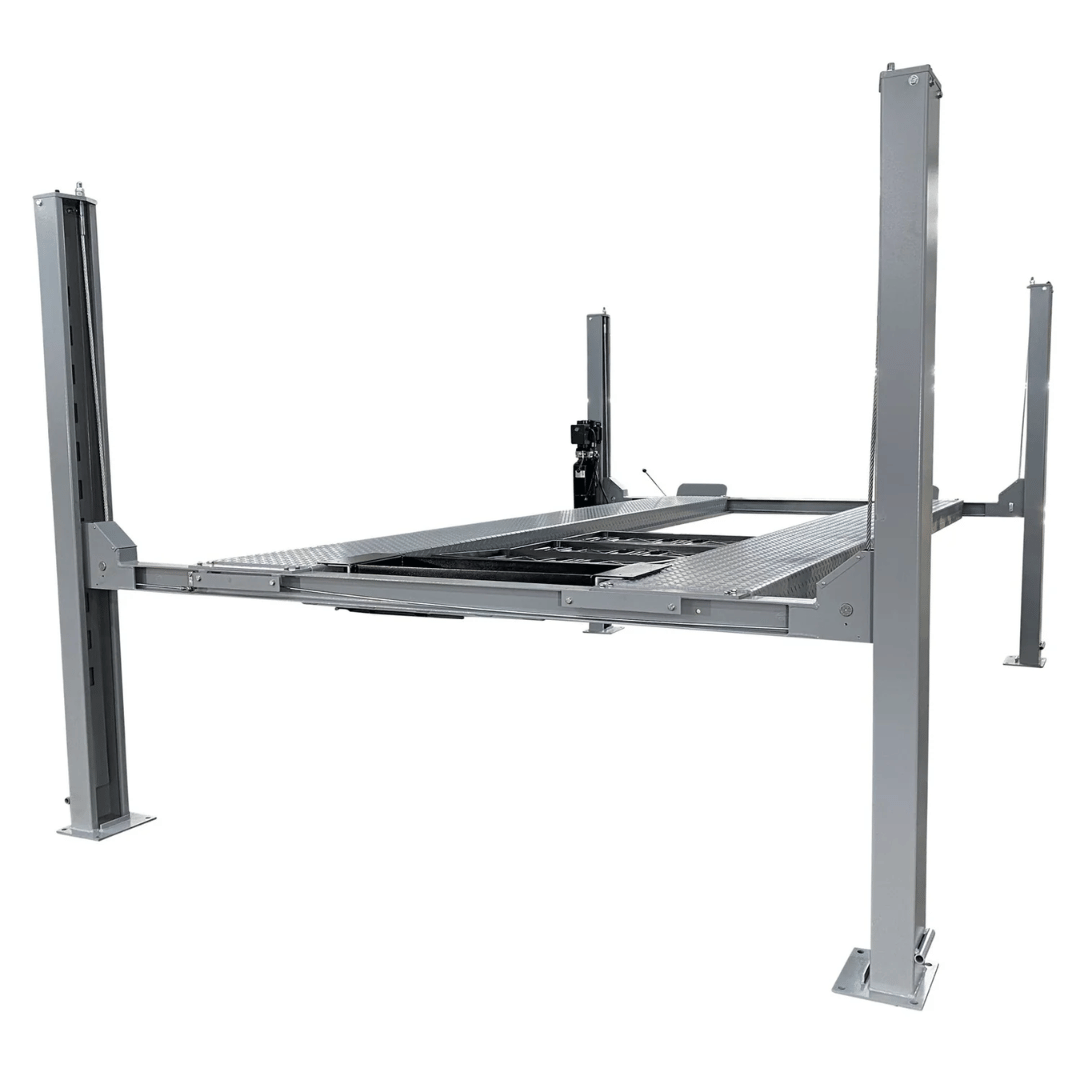

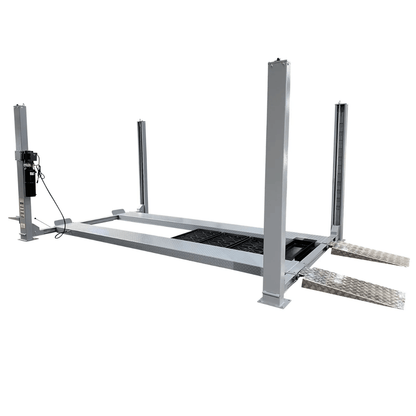

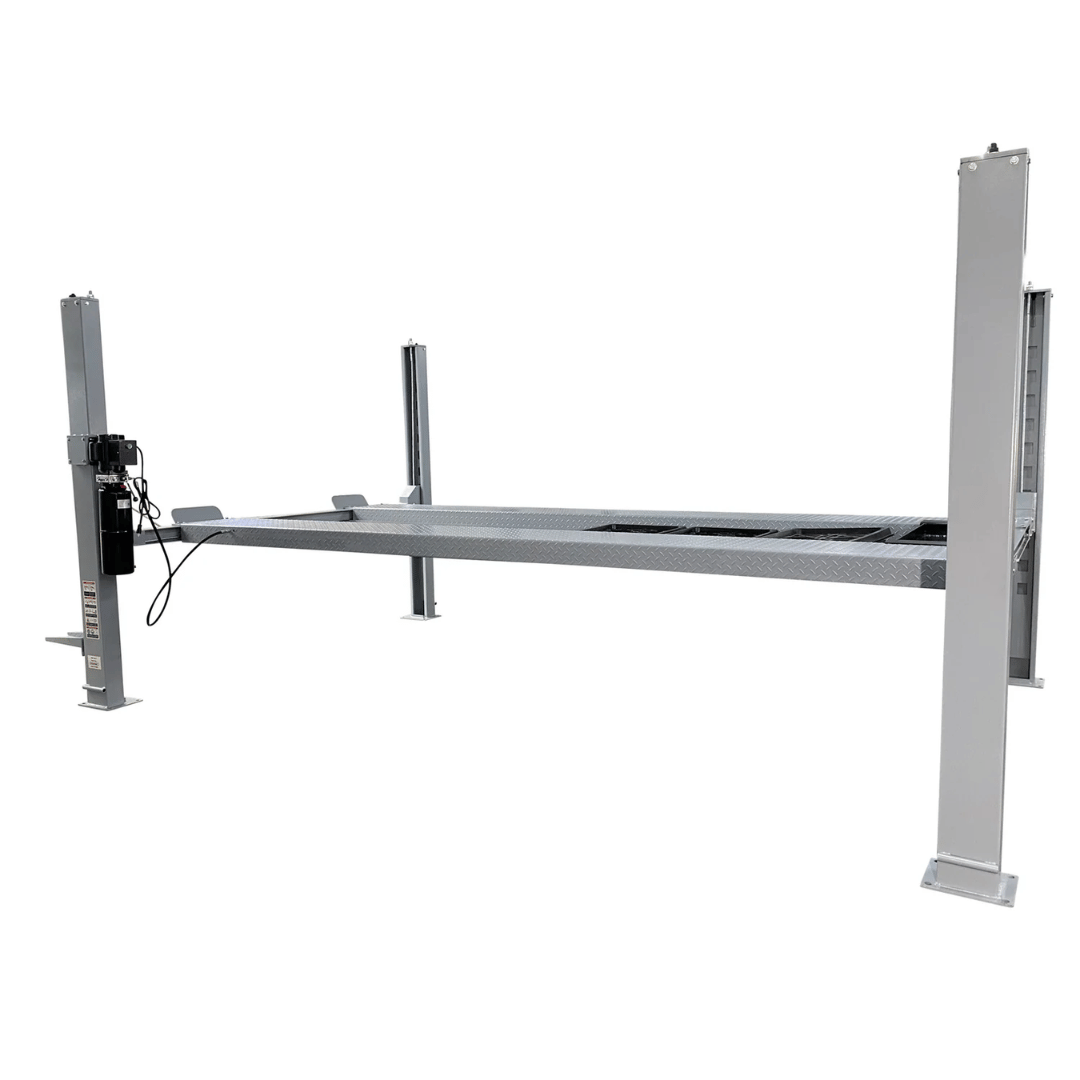

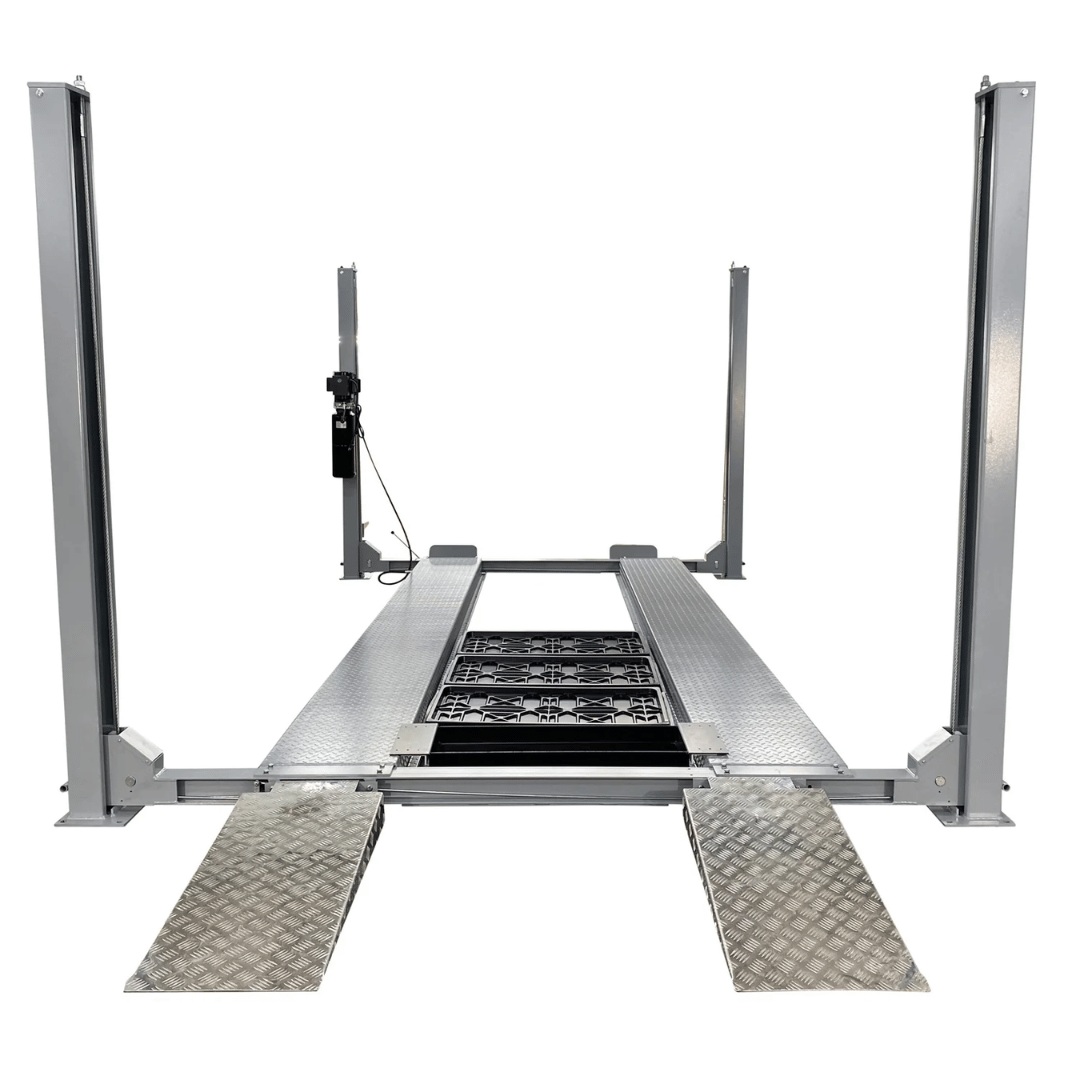

Triumph NSS-11 Truck Combo – 11,000 lb Extra-Wide 4-Post Lift with Dual Rolling Jacks
This is the most complete version of the Triumph NSS-11—paired with two rolling bridge jacks to give you full lifting capability on both ends of the vehicle.
If you’re serious about working on trucks, SUVs, or multiple vehicle types, this setup gives you maximum flexibility, efficiency, and control.
Why Two Rolling Jacks?
Most 4-post lift setups include one jack—but with two, you unlock full front-and-rear lifting capability.
With dual rolling jacks, you can:
- Lift all four wheels off the runways at once
- Perform full brake jobs and tire rotations faster
- Work on front and rear suspension simultaneously
- Balance lifting more evenly on larger vehicles
This is how professional shops run 4-post lifts—and it makes a major difference in usability.
Built for Trucks, Duallys & Oversized Vehicles
The NSS-11 is designed specifically for larger vehicles that standard lifts struggle to accommodate.
With a massive 118” drive-thru width and extended runways, it’s ideal for:
- Dually trucks
- Full-size pickups (F-250, F-350, 2500/3500 series)
- Large SUVs
- Long wheelbase and wide-body vehicles
You get the space you need to drive on confidently—without tight clearance.
Storage + Full Service Capability
This setup gives you the best of both worlds:
- Vehicle Storage Lift – Stack vehicles and maximize garage space
- Full-Service Workstation – Perform complete maintenance and repairs
With two rolling jacks, you’re not limited—you’re fully equipped.
Key Features & Benefits
NSS-11 Lift:
- 11,000 lb lifting capacity
- 118” extra-wide drive-thru clearance
- 196” extended runways
- 110V power (standard outlet)
- Dual lock safety system
Dual Rolling Jacks (2x RJ-5):
- 5,000 lb capacity each
- Lift front and rear simultaneously
- Slide easily between runways
- Ideal for full vehicle service
What’s Included
- Triumph NSS-11 4-post lift

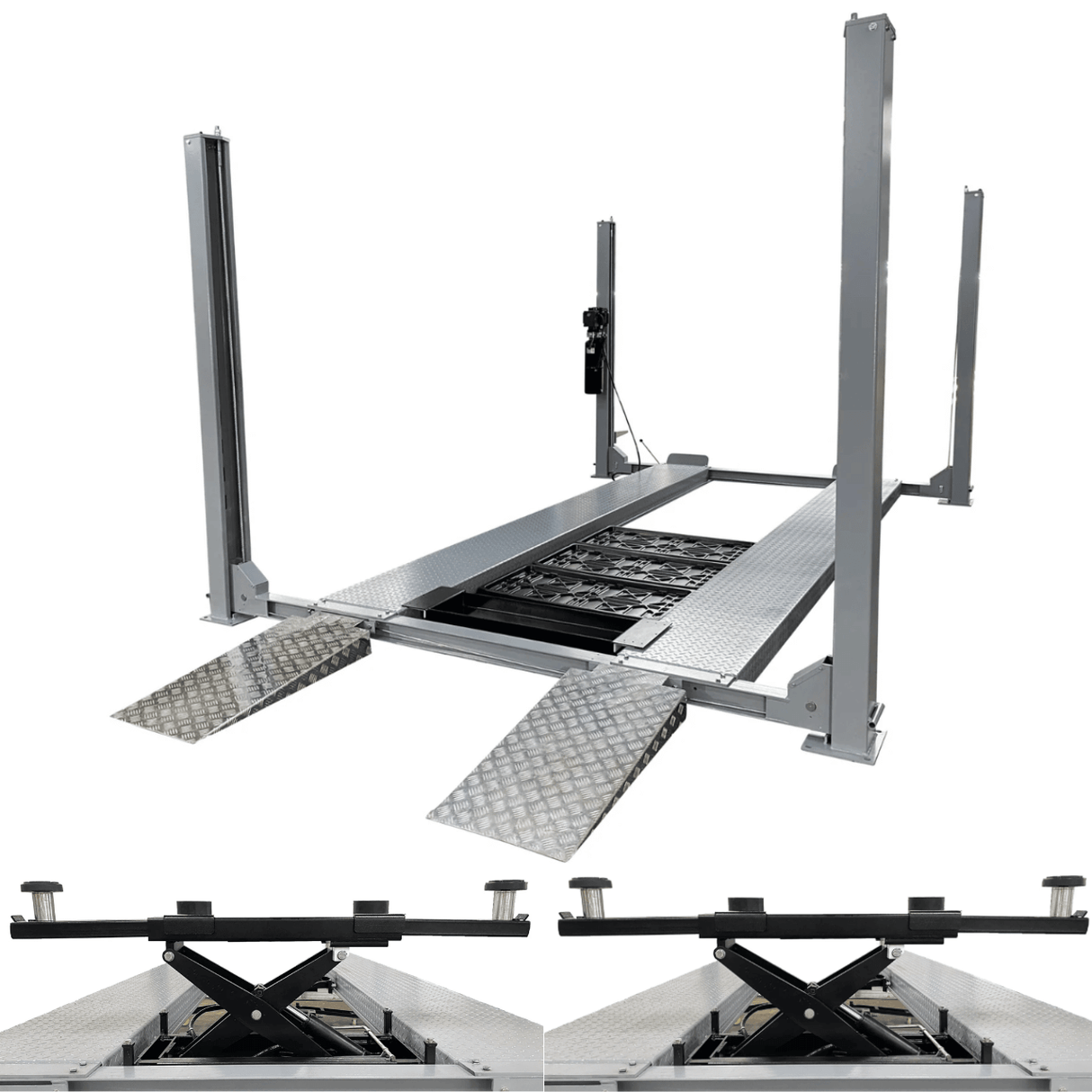

- (2) Triumph RJ-5 rolling bridge jacks
- Caster kit
- Drip trays

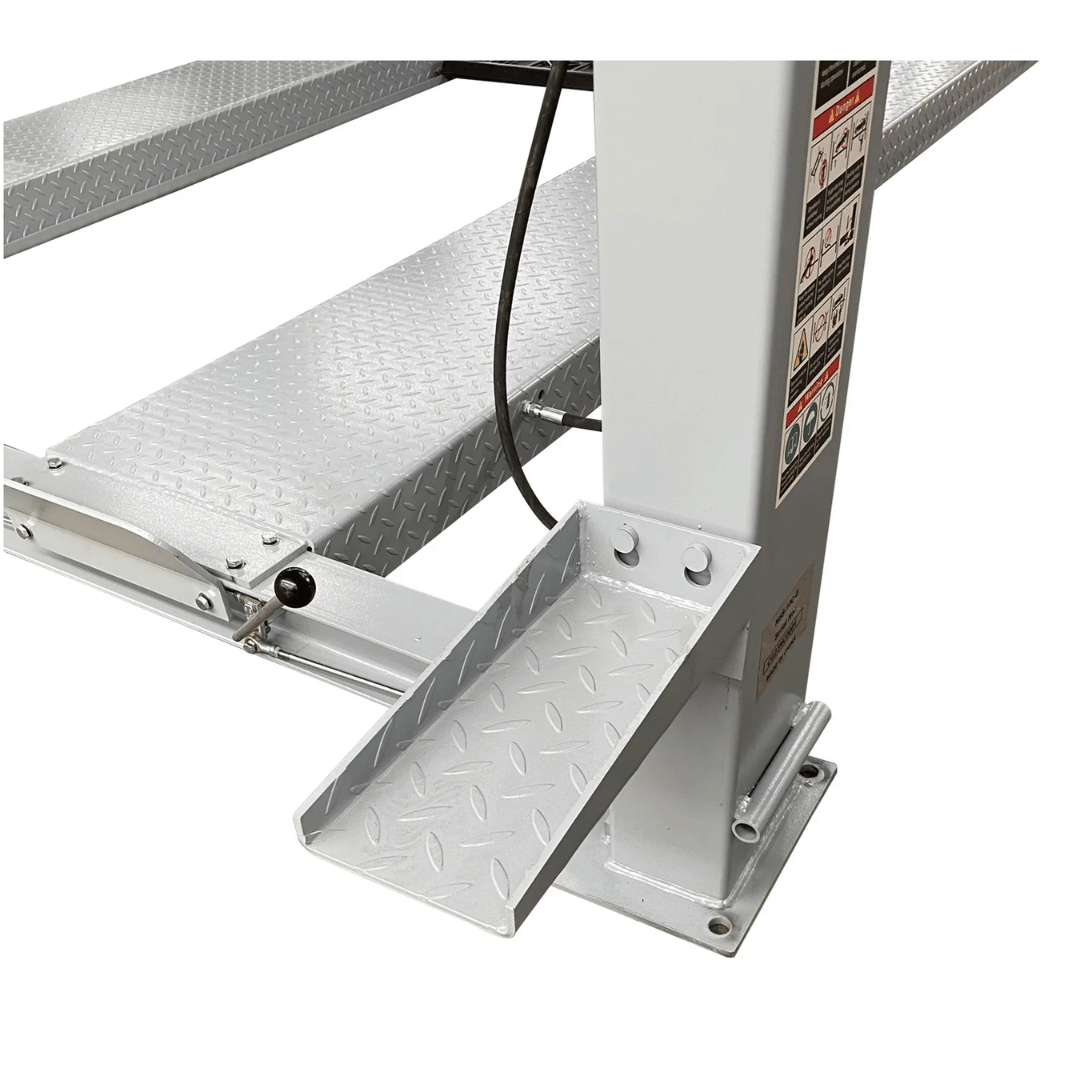

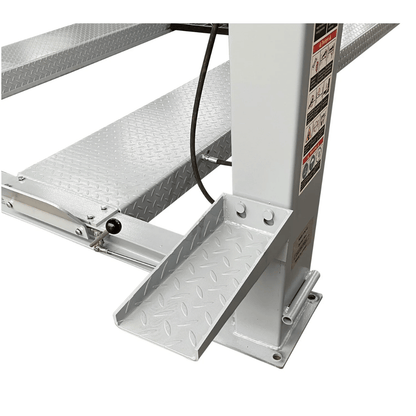

- Jack tray

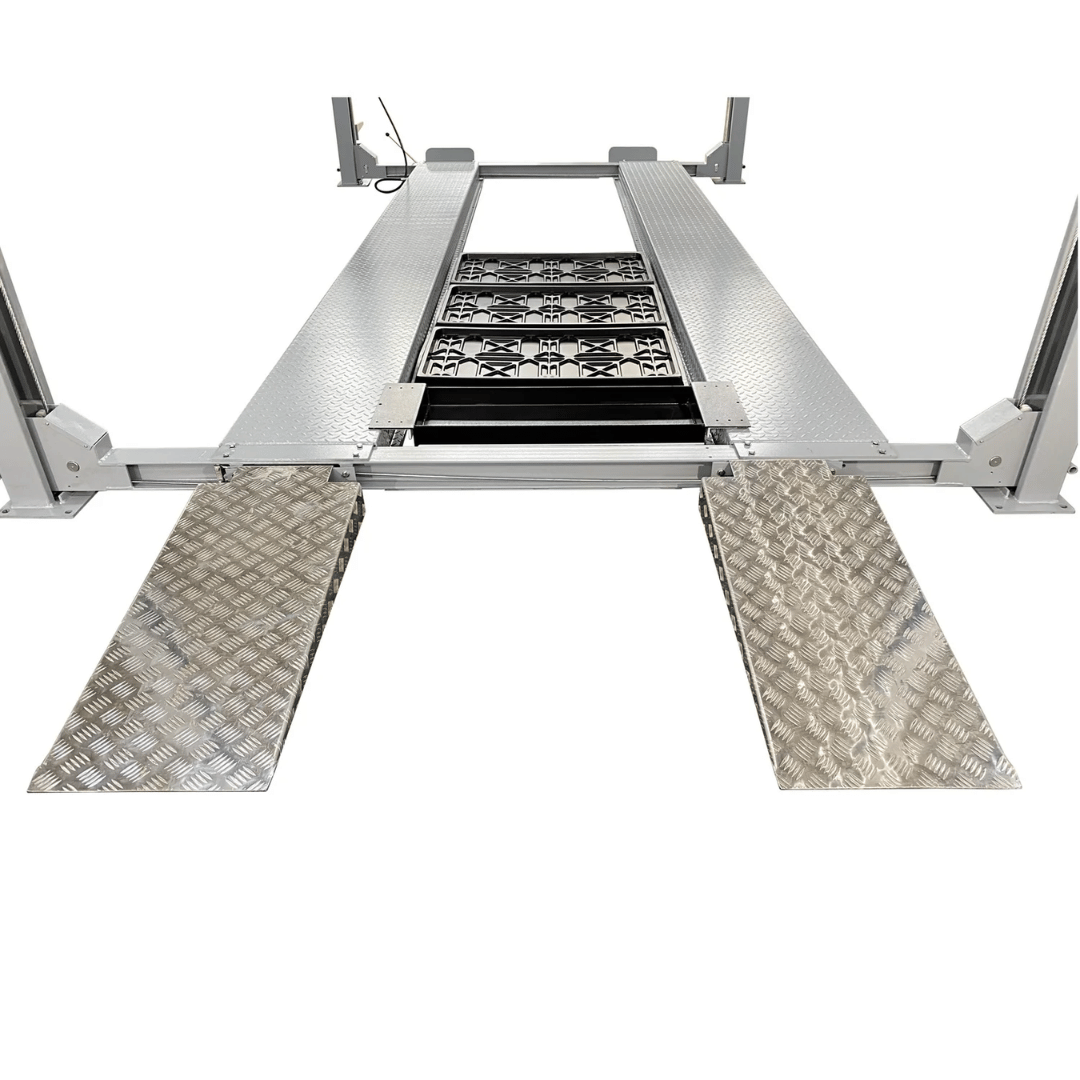

- Aluminum Approach ramps

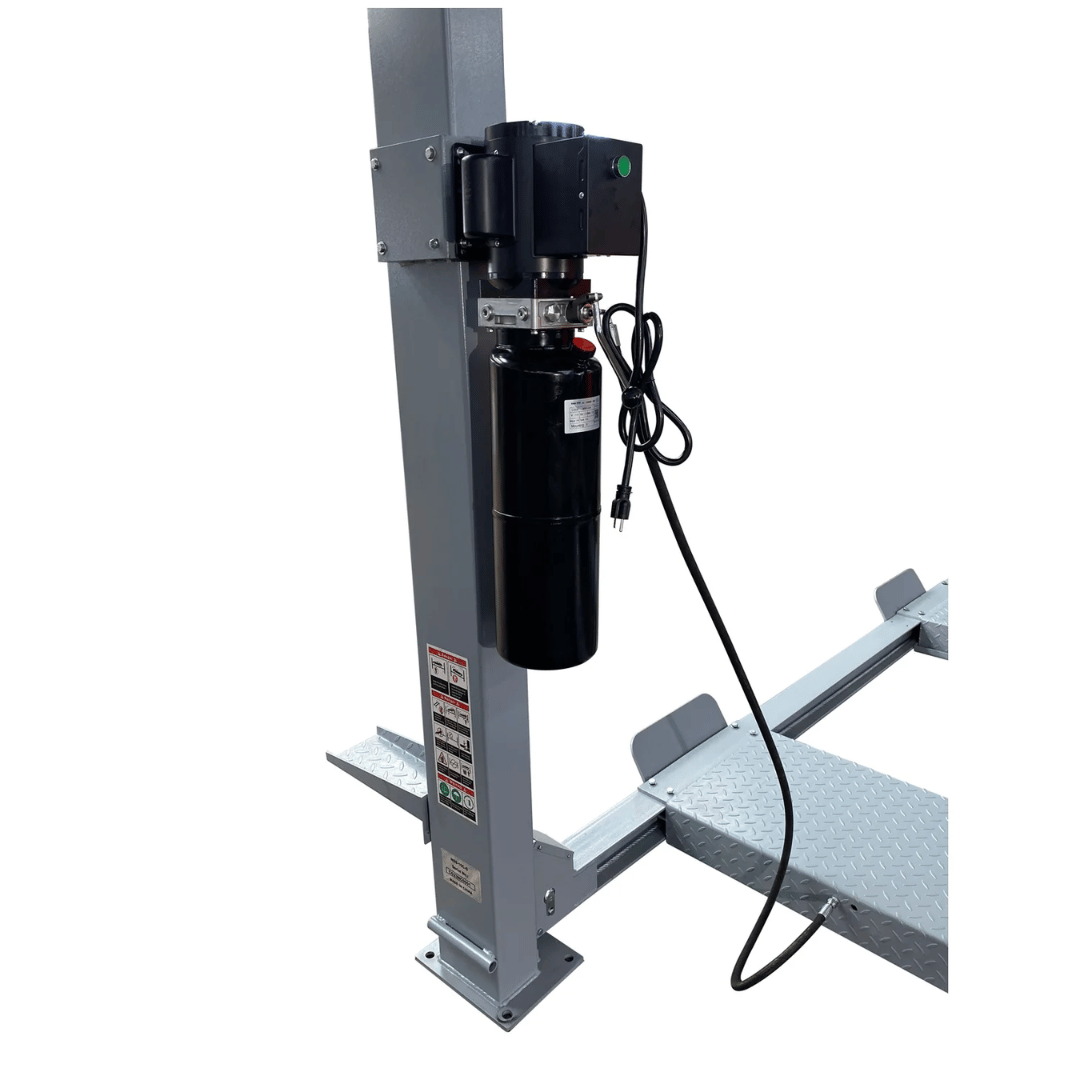

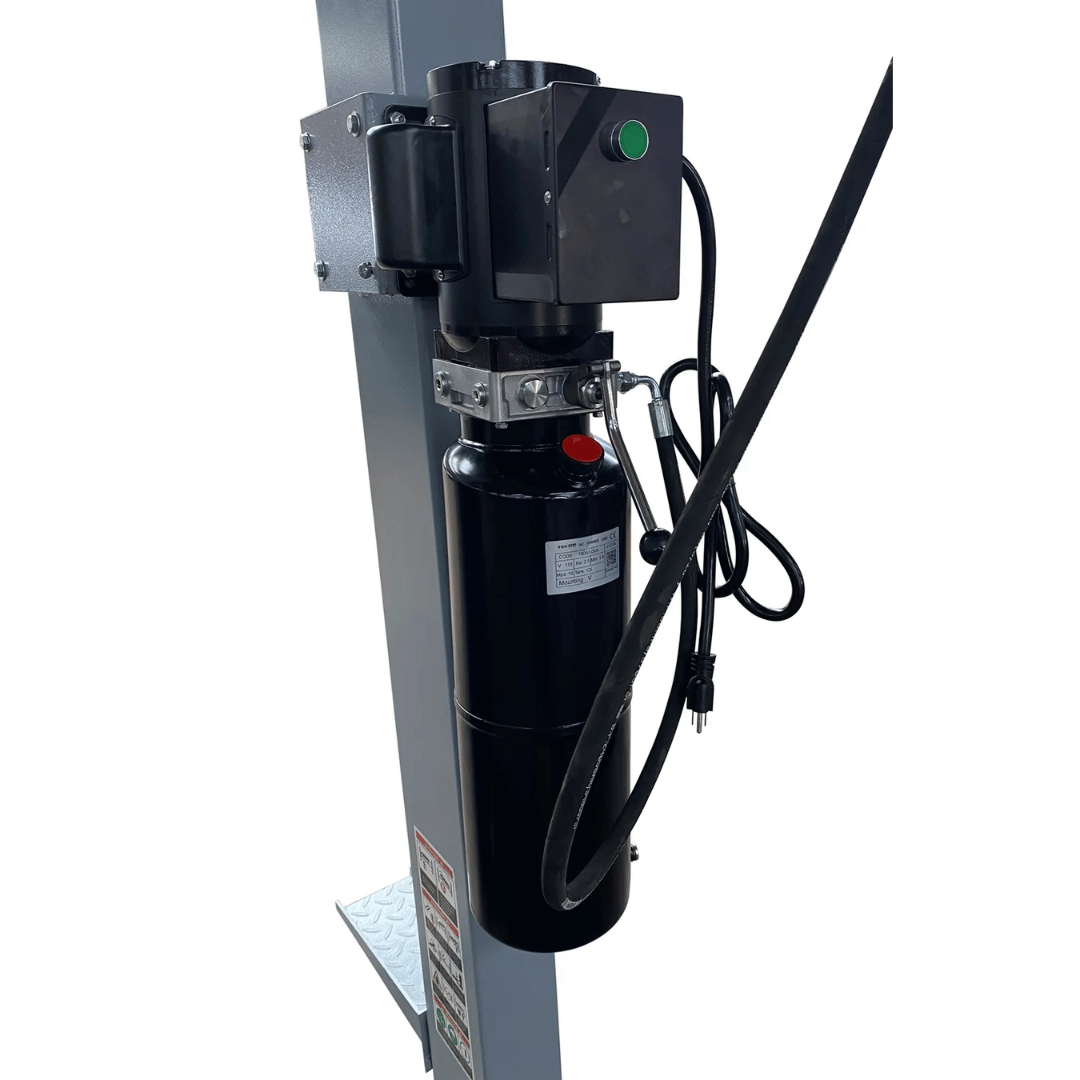

- 110V Power unit
Everything you need for a complete storage and service setup.
Lift Only vs 1 Jack vs 2 Jacks
- Lift Only: Storage + limited service
- 1 Jack: Can lift one end at a time
- 2 Jacks (This Package): Full vehicle lifting capability
If you plan to do regular maintenance or want maximum efficiency, two jacks is the best setup.
Product Specifications
| Lift Model | NSS-11 |
|---|---|
| Capacity | 11,000 lbs |
| Overall Height | 97" |
| Overall Length Without Ramps | 216" |
| Overall Width | 130" |
| Lift Height | 86.5" |
| Height Under Runway | 81" |
| Runway Length | 196″ |
| Drive Thru Width | 118" |
| Runway Width | 19.5" |
| Between Runways | 39" or 44.5" |
| Lowered Height | 5″ |
| Locking Positions | 11 |
| Base Plate Size | 11.5" x 9.75" |
| Lock Release | Single Point |
| Lift Time | 40 Seconds |
| Voltage | 110 Volts |
| Shipping Weight | 2,400 lbs |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Las Vegas, NV.
