Product Description

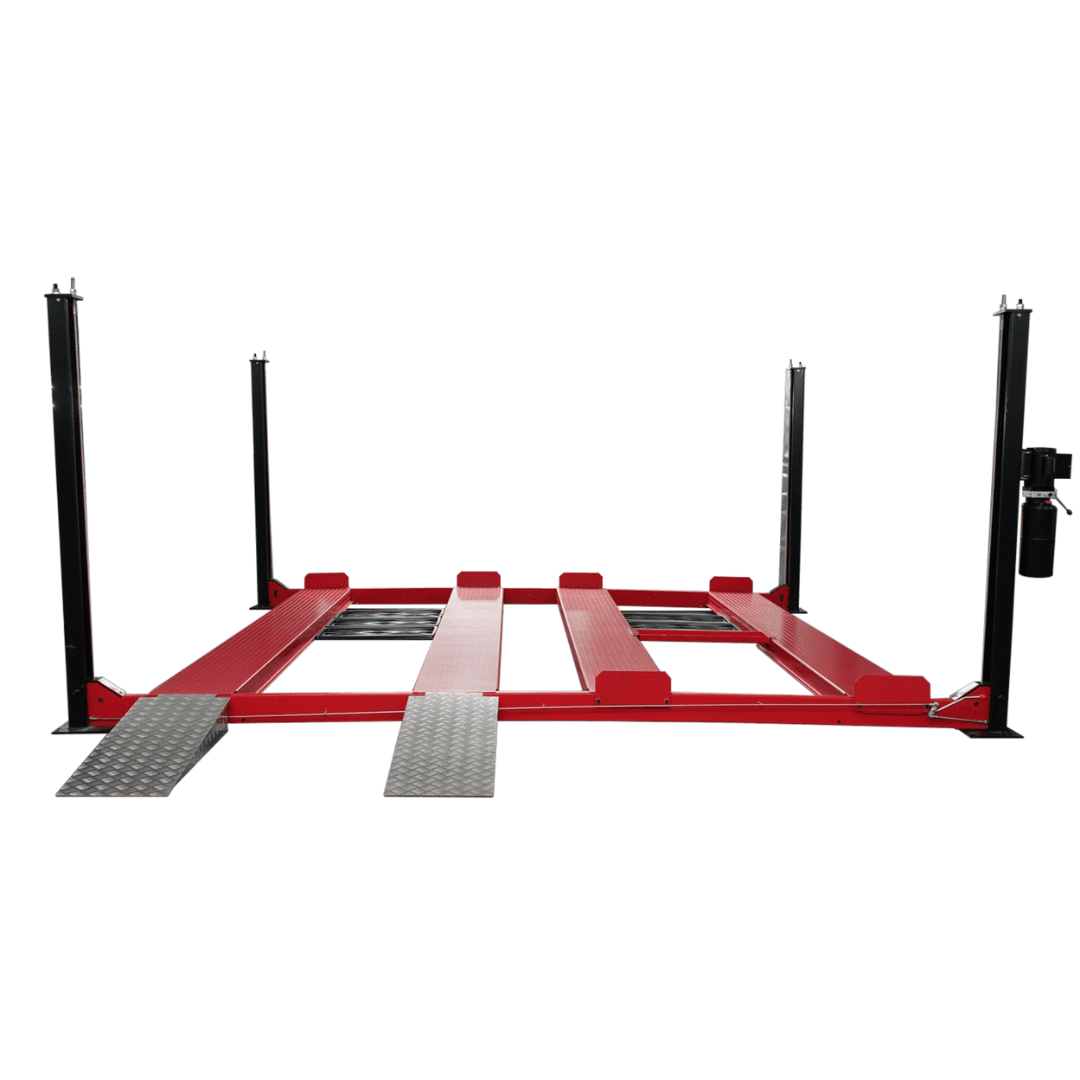

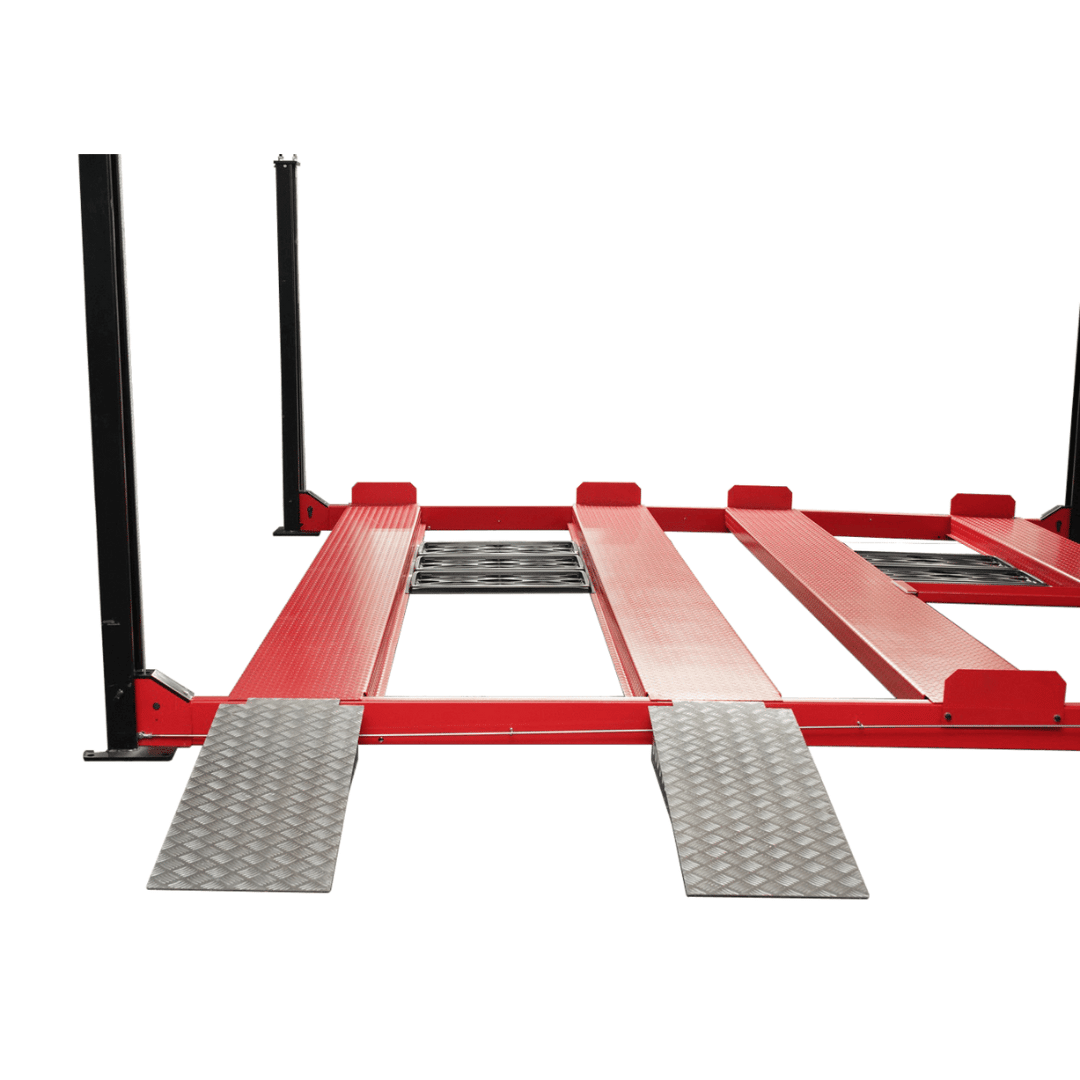

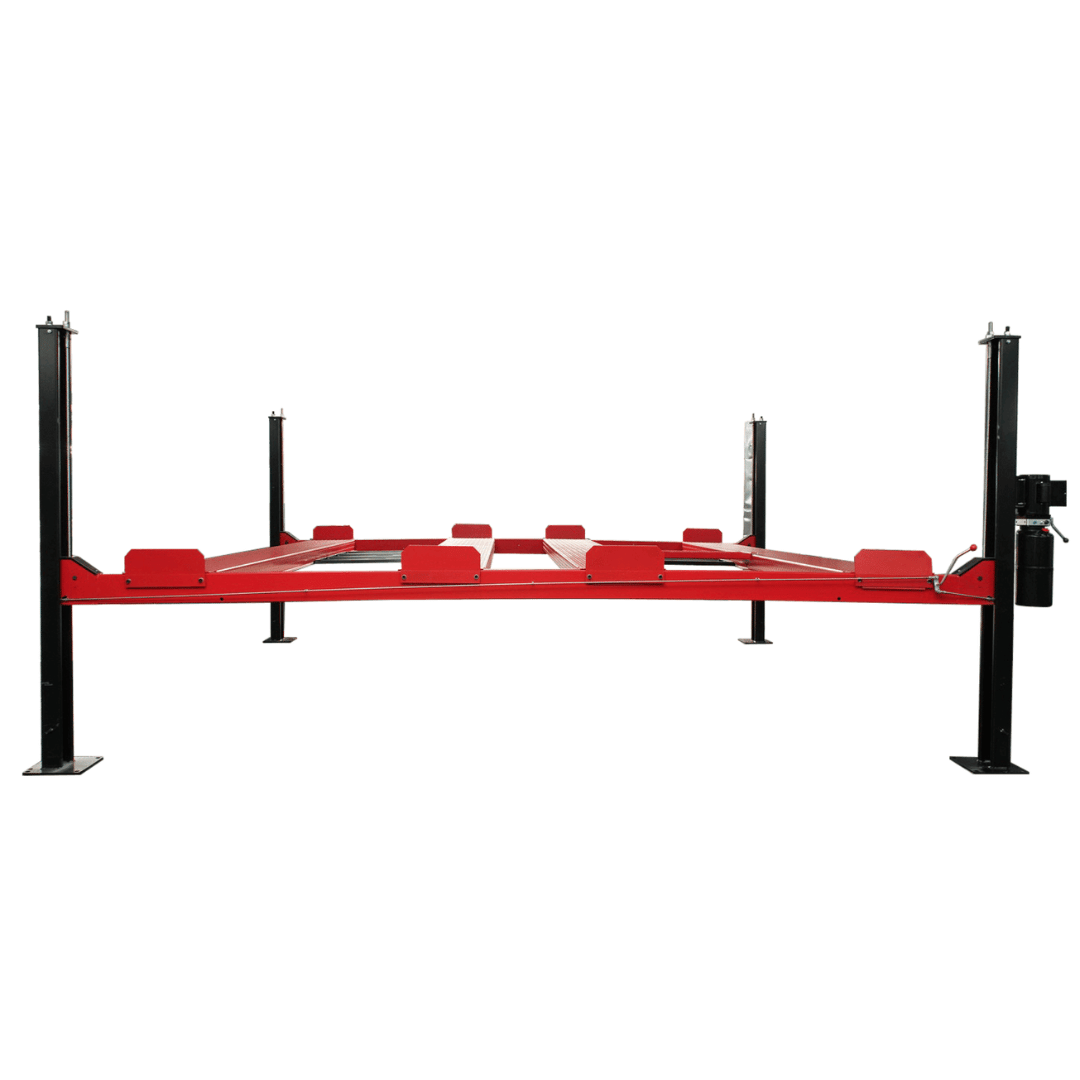

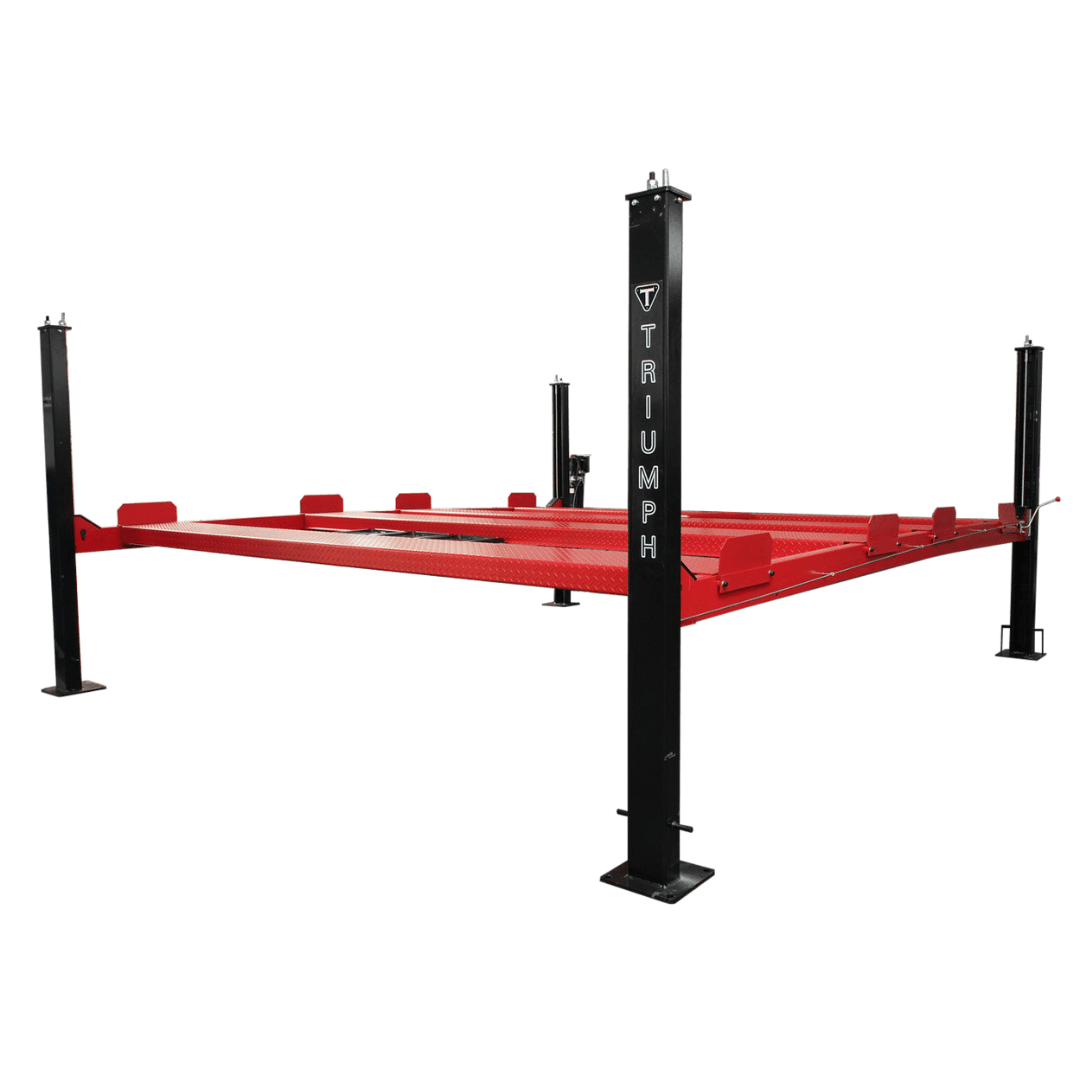

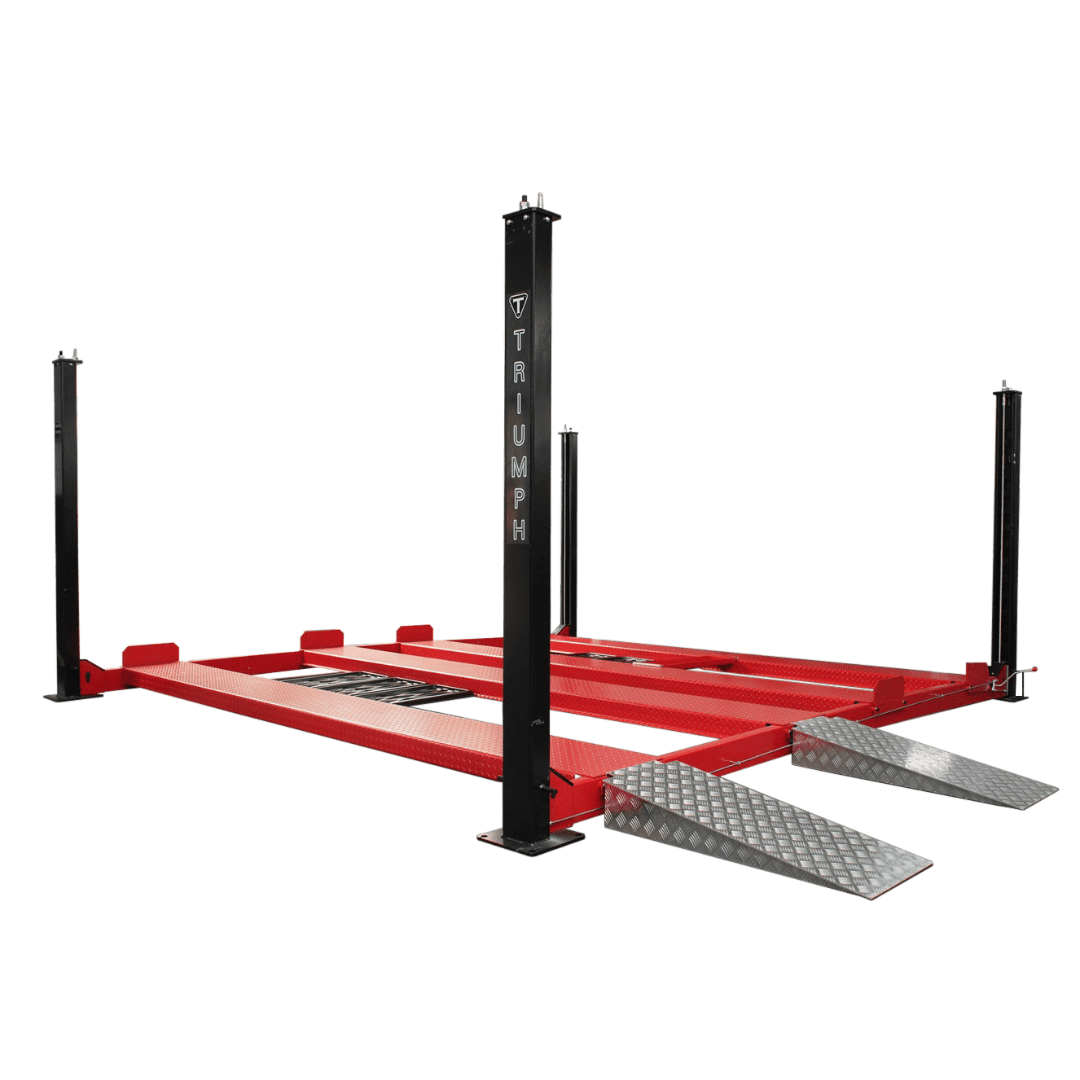

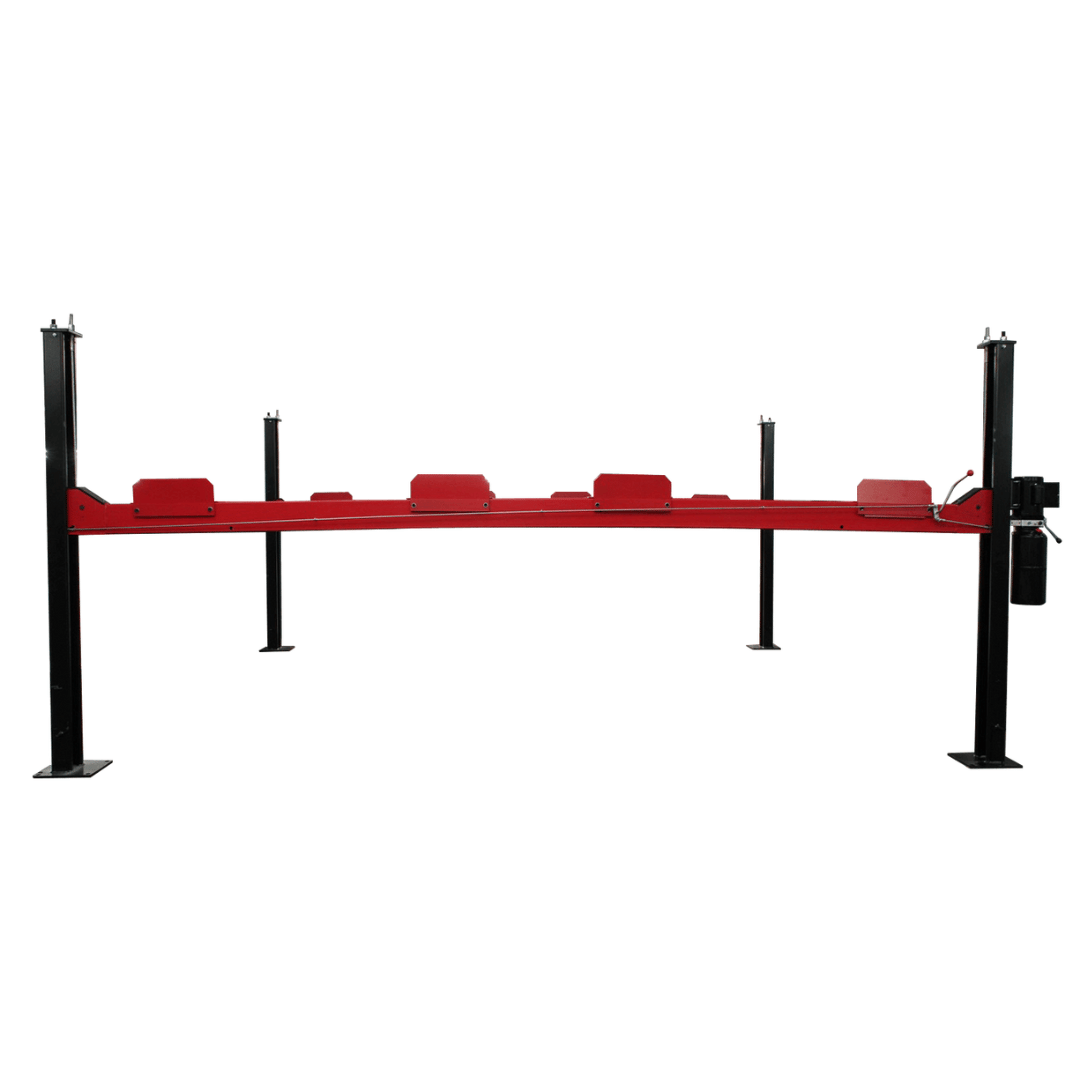

Triumph NSS-9 Double Service 4-Post Car Lift – 9,000 lb Capacity
When one lift just isn’t enough, the Triumph NSS-9 Double-Wide Four-Post Lift offers a powerful solution for dual-vehicle storage or service in a single footprint. With a 9,000 lb capacity and double-wide platform, this heavy-duty lift is ideal for maximizing floor space in busy shops, private collections, or multi-vehicle home garages.
The NSS-9 is built on a time-tested four-post design that’s been trusted for over 20 years, offering easy operation, high strength, and dependable safety features. With a 12-position automatic locking system, single-point lock release, and 110V plug-and-play power, this lift delivers full-sized capability with surprising convenience.
At 208" wide overall, the NSS-9 can comfortably accommodate two vehicles side-by-side, with a total drive-thru width of 192". The runways stretch 180" in length, allowing plenty of clearance for long-wheelbase vehicles, trucks, or SUVs. It comes equipped with a jack tray for lifting one end of a vehicle with a bottle or floor jack, and three drip trays to keep stored cars below clean and fluid-free.
Finished in bold black and red, the Triumph NSS-9 doesn’t just perform — it looks great doing it. At Gearforce USA, we’re proud to offer this unique dual-lift solution for customers who need the capacity, stability, and layout flexibility of a truly professional setup.
Key Features
- 9,000 lb lifting capacity – supports two vehicles side-by-side
- Dual-platform design – optimized for storage or service of multiple vehicles
- 12-position automatic locking system – enhanced safety and control
- 77" lifting height with 72" under-runway clearance – great for tall vehicle stacking
- Includes jack tray and three drip trays – protect your vehicles and add utility
- 180" runway length with 18.5" runway width – fits longer vehicles with ease
- Drive-thru width of 192" – wide enough for full-size trucks and SUVs
- 110V operation – easy plug-and-play setup for home or commercial garages
- Single-point lock release – smooth, simple operation
- Durable black and red finish – modern style for premium garages
- Heavy-duty 12"x12" base plates – stable foundation for secure lifts
- Backed by Gearforce USA – your trusted source for powerful automotive storage solutions

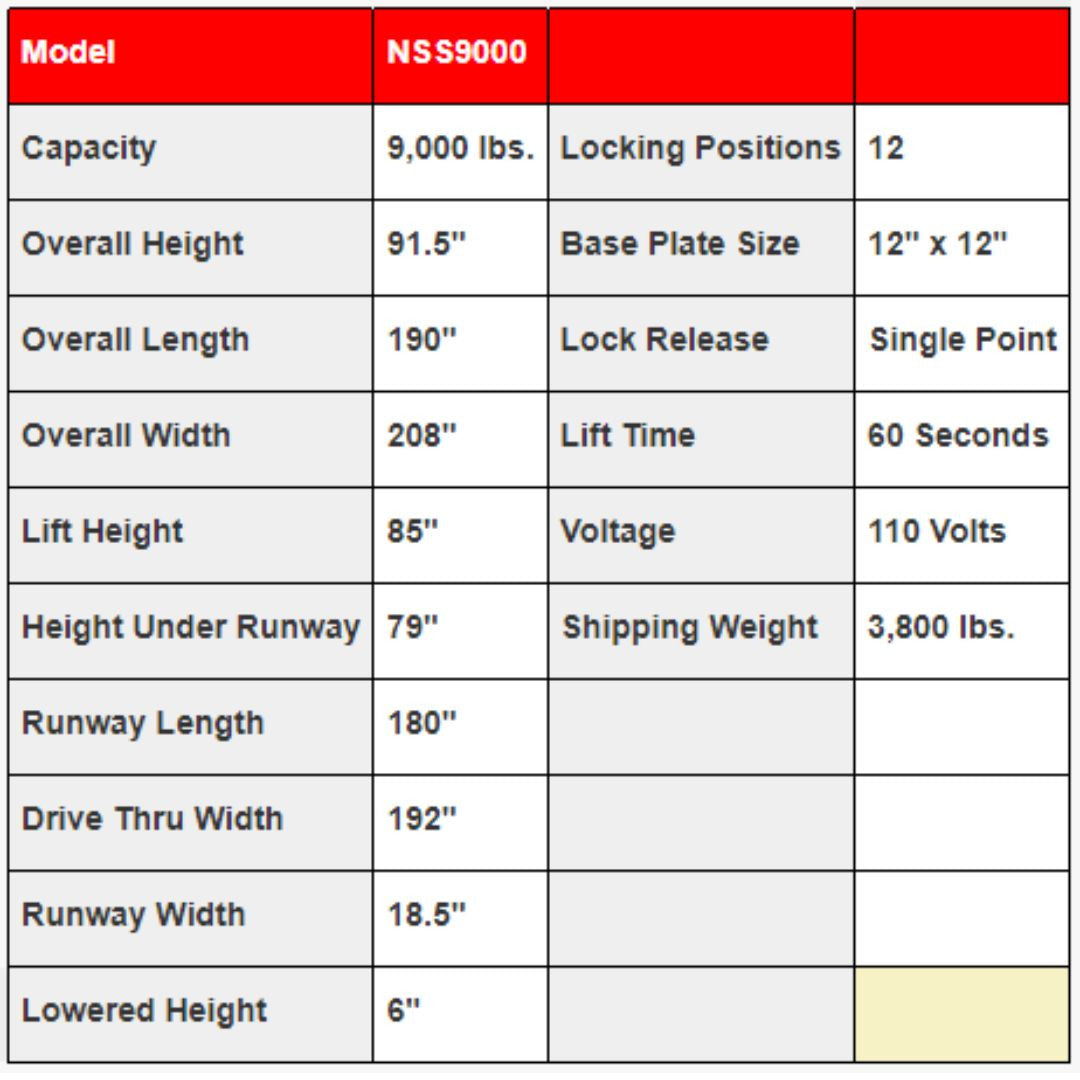

Product Specifications
| Lift Model | NSS-9 |
|---|---|
| Capacity | 9,000 lbs |
| Overall Height | 91-1/2″ |
| Overall Length | 190″ |
| Overall Width | 208″ |
| Lift Height | 85″ |
| Height Under Runway | 79″ |
| Runway Length | 180″ |
| Drive Thru Width | 192" |
| Runway Width | 18-1/2" |
| Between Runways | 37" |
| Lowered Height | 6″ |
| Locking Positions | 12 |
| Base Plate Size | 12″ x 12″ |
| Lock Release | Single Point |
| Lift Time | 60 Seconds |
| Voltage | 110 Volts |
| Shipping Weight | 3,800 lbs |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Las Vegas, NV.
