Product Description

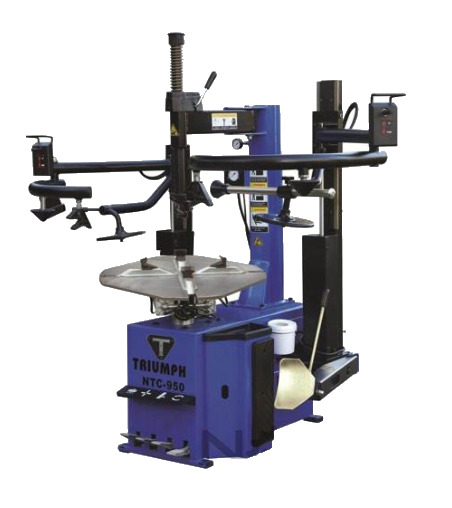

Triumph NTC-950-2 Tire Changer with Dual Assist Arms – Built for High-Volume Shops
When you're running a busy tire shop, speed, precision, and flexibility matter. The Triumph NTC-950-2 Tire Changer is engineered to meet the demands of high-volume operations by combining robust performance with user-friendly features — including dual pneumatic assist arms for easy handling of the most challenging tire types, from run-flats and low-profiles to wide, high-performance setups.
This machine is a powerhouse in its class, featuring an inside clamping range up to 28” and a rugged bead breaker delivering 5,500 lbs of force, mounted conveniently on the side. The integrated Jet Blast bead seating system shoots a powerful blast of air into the tire sidewall, helping to quickly and effectively seat stubborn beads — minimizing manual effort and reducing service times.
With dual assist arms, operators gain extra leverage and control when working with stiff sidewalls, specialty wheels, and oversized tires. These arms streamline mounting and demounting, making the NTC-950-2 the perfect fit for shops that frequently service trucks, SUVs, and performance vehicles.
Everything you need is included right out of the box — from metal and plastic demount heads to wheel clamp covers, soap tank with application brush, and a tire iron. It runs on 110V power, making it a convenient, plug-and-play addition to any commercial shop setup.
At Gearforce USA, the NTC-950-2 is our go-to recommendation for shops that want maximum capability and premium performance without the cost of a fully automatic system.
Key Features
- Dual pneumatic assist arms – easily handles run-flats, low-profile, and wide tires
- Clamping range: Inside: 16"–28" | Outside: 14"–26"
- Max Tire Diameter: 43" | Max Wheel Width: 15"
- Bead Blast System – powerful inflation assist for rapid bead seating
- Side-mounted bead breaker – 5,500 lbs of force for quick separation
- 1.5 HP motor – delivers consistent torque and performance
- 110V operation – easy integration into most shop environments
- Includes:
- Steel & plastic demount heads
- Plastic wheel clamp covers
- Soap tank & application brush
- Tire iron/tool bar
- Assembled size: 56" x 93" x 80"
- Shipping weight: 900 lbs | Shipping size: 38" x 65" x 51"
- Backed by Gearforce USA – premium tire service equipment for serious professionals
Product Specifications
| Inside Clamping | 16-28" (406-711 mm) |
| Outside Clamping | 14-26" (355-660 mm) |
| Max Wheel Width | 15" (381 mm) |
| Max Tire Diameter | 43" (1092 mm) |
| Bead Blast | Yes |
| Horse Power | 1 1/2 HP |
| Bead Breaker Force | 5,500 lbs. |
| Max PSI | 120 PSI (8.3 Bar) |
| Voltage | 110 Volt |
| Assembled Size | 56" x 93" x 80" (1,422mm X 2,362mm X 2,032mm) |
| Shipping Size | 38" x 65" X 51" (965mm X 1651mm X 1,295mm) |
| Shipping Weight | 900 lbs. |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Las Vegas, NV.
