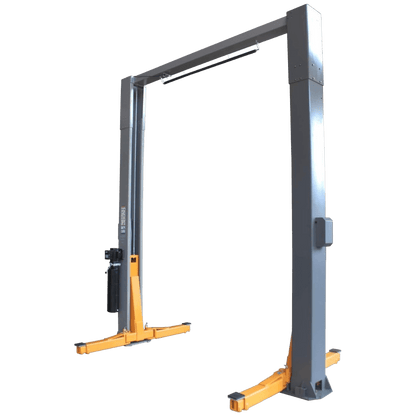

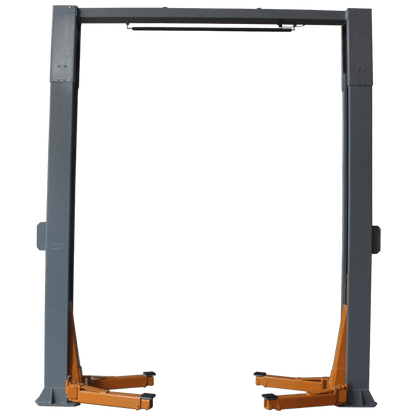

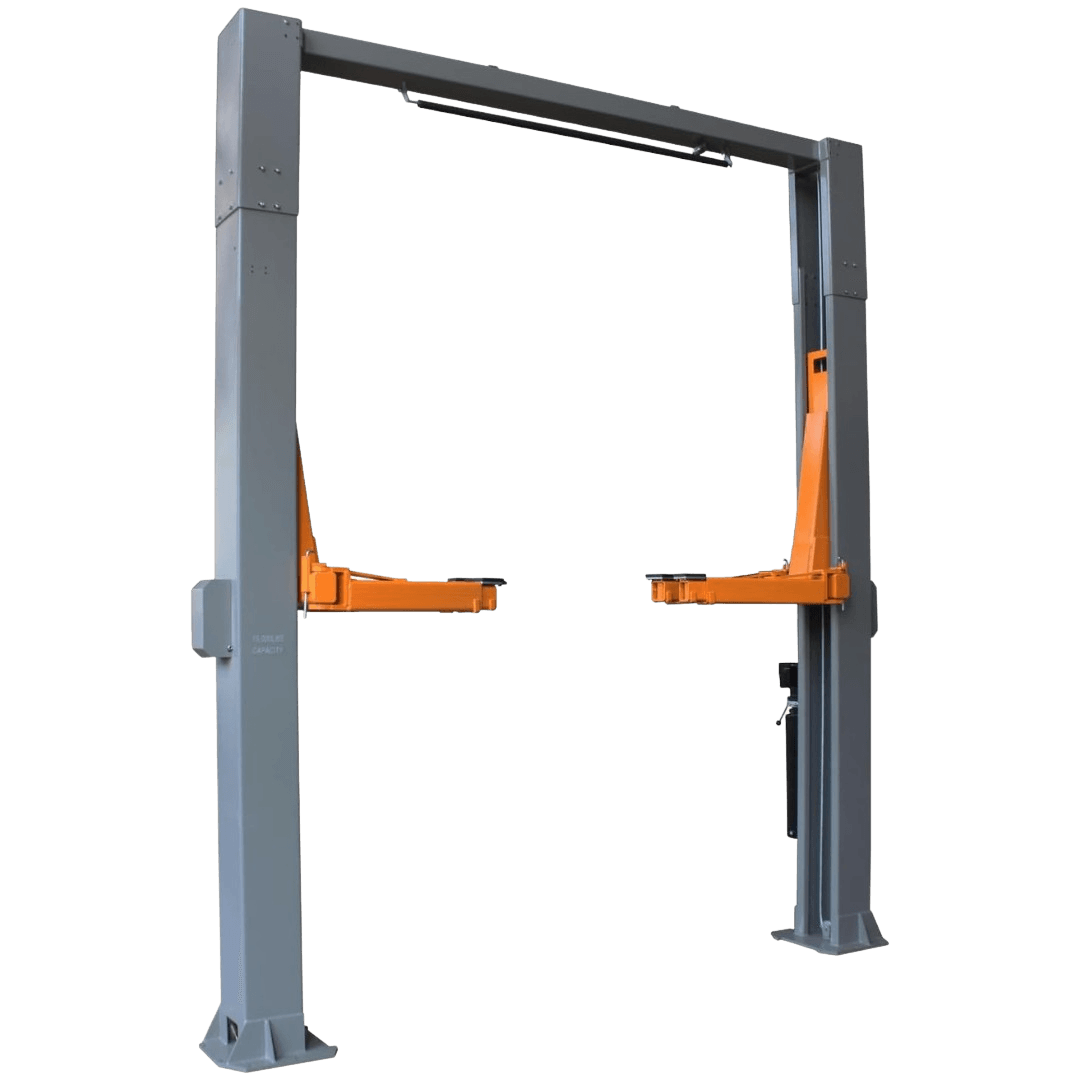

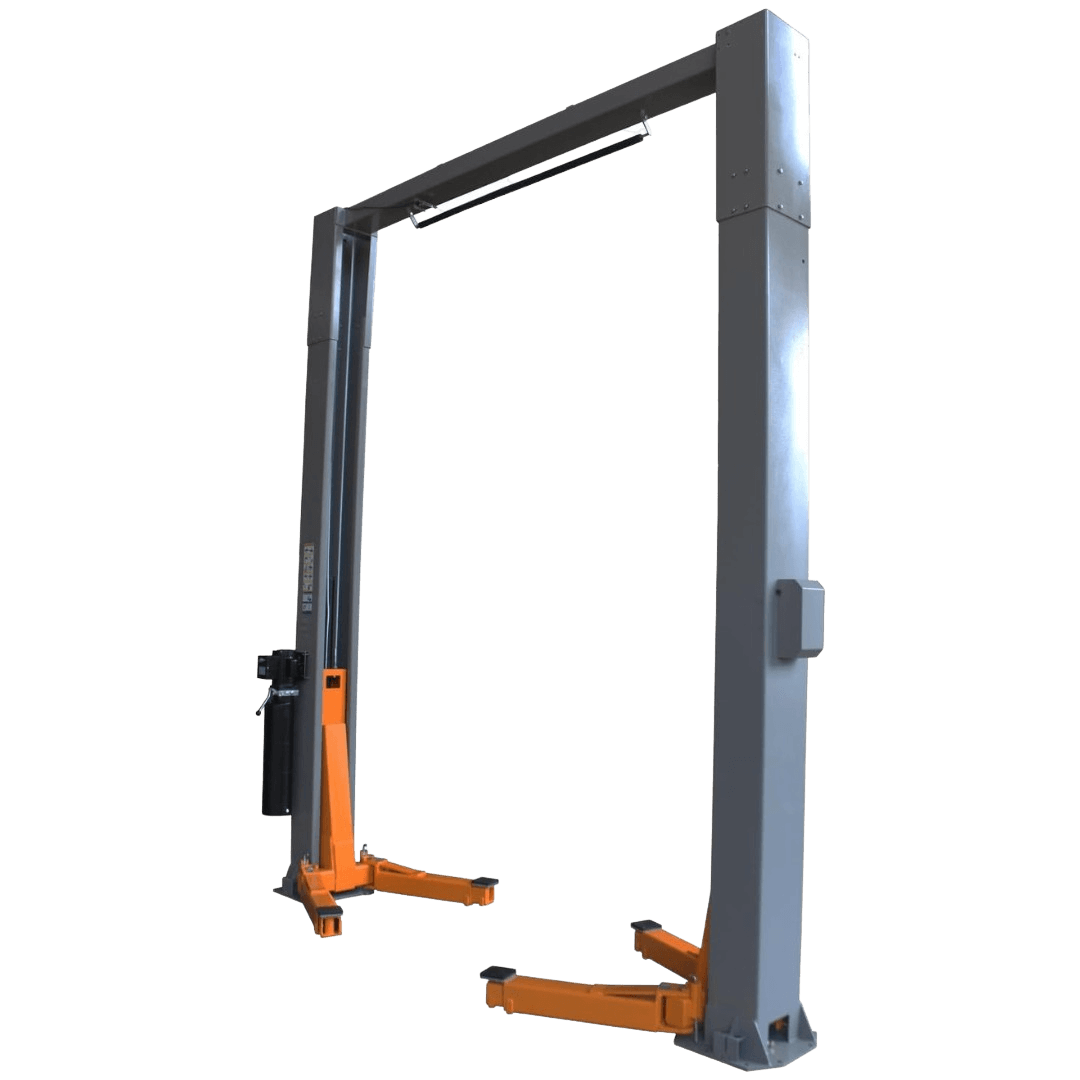

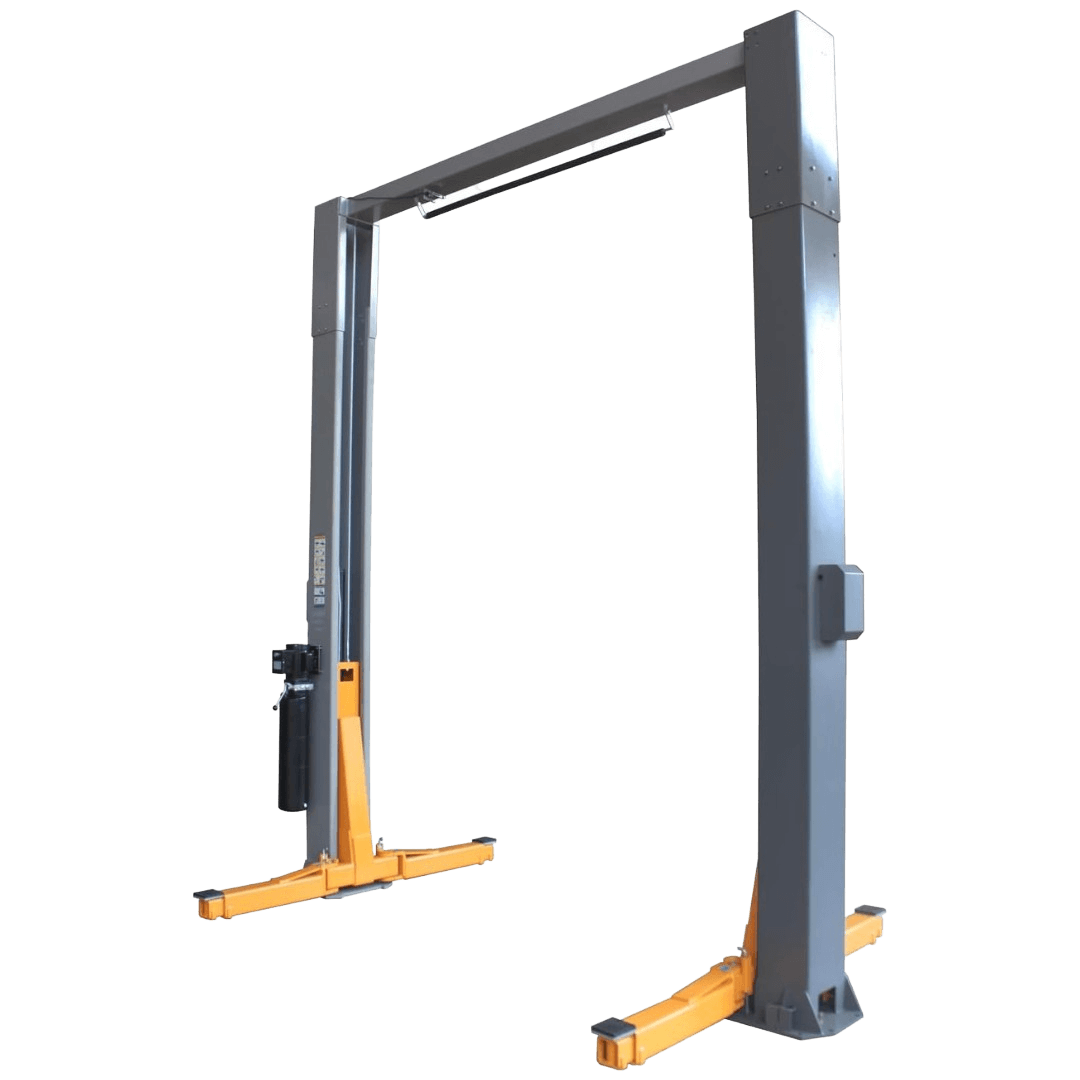

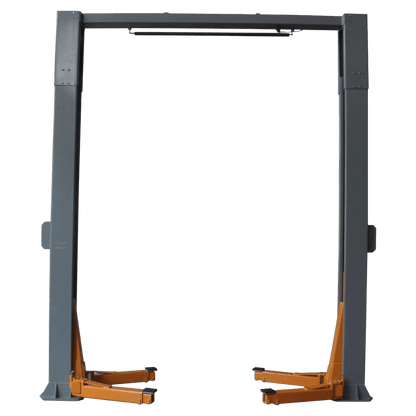

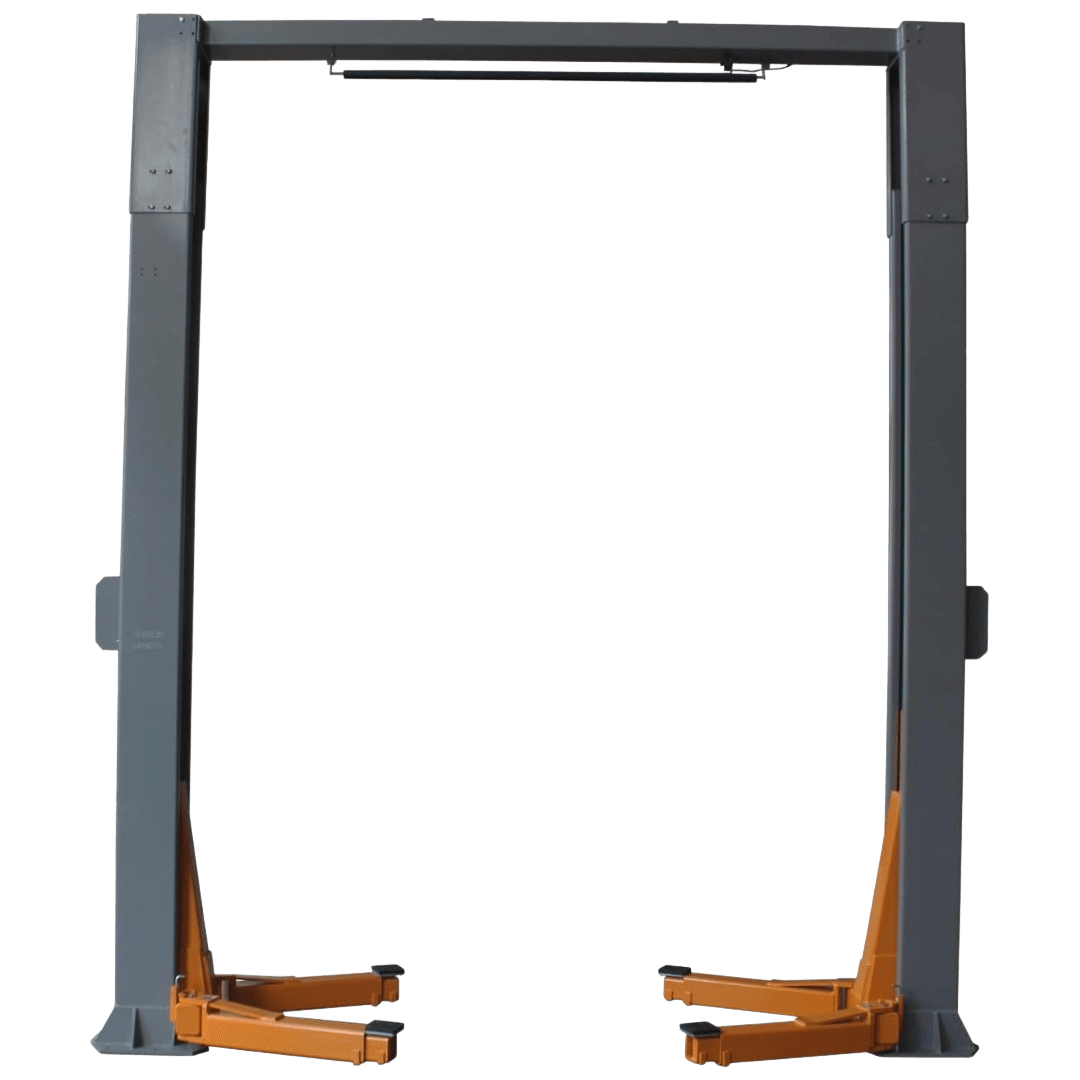

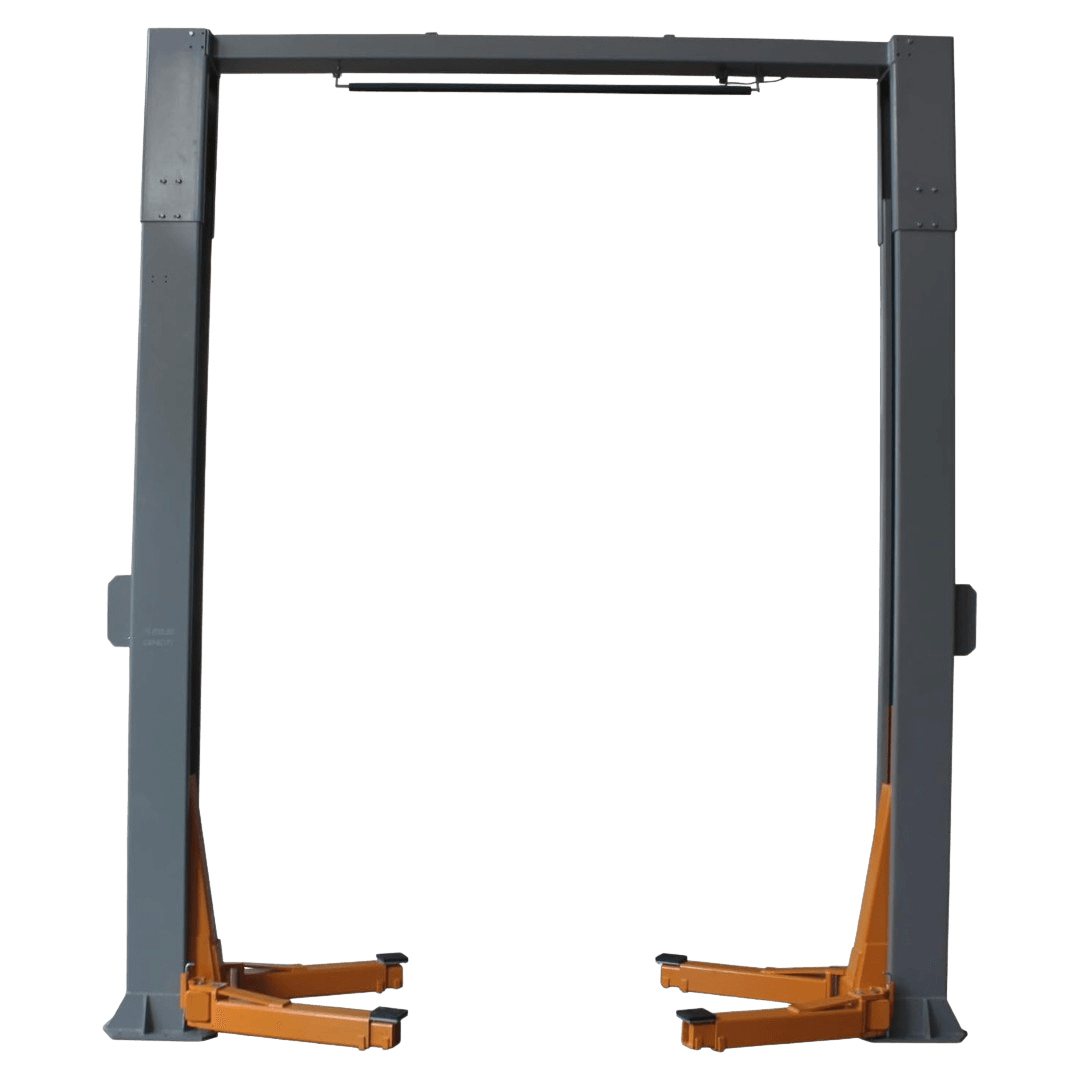

Triumph NTO-15 Overhead 2-Post Auto Lift – 15,000 lb Capacity
For shops that demand serious strength, the Triumph NTO-15 Overhead Two-Post Lift delivers maximum lifting power in a rugged, high-capacity design. Built to support up to 15,000 lbs, this heavy-duty lift is engineered for servicing large trucks, commercial vans, diesel pickups, and fleet vehicles — all while maintaining exceptional safety, performance, and ease of use.
Certified to ISO 9001 and CE standards, the NTO-15 features direct-drive hydraulic cylinders for smooth, efficient lifting with minimal maintenance. The overhead cable routing keeps your floor clear for jacks, carts, and tools, while the electric safety shutoff bar prevents accidental over-lifting. A single-point lock release system makes vehicle lowering quick and convenient, and the included truck adapters ensure compatibility with a wide range of vehicle frames and heights.
With a tall 165" overall height, 116" between the posts, and a wide 102" drive-thru clearance, the NTO-15 provides the space and structure needed to lift and work on larger vehicles comfortably and securely. Installation requires a 6” thick concrete slab rated at 3,000 PSI, ensuring stability for the most demanding environments.
At Gearforce USA, we offer the NTO-15 as a go-to solution for serious technicians who need professional-grade performance, dependable engineering, and unmatched strength — all backed by a 1-year parts warranty and our commitment to quality.
Key Features
- 15,000 lb capacity – ideal for heavy-duty trucks, vans, and commercial vehicles
- ISO 9001 and CE certified – built to global safety and quality standards
- Direct-drive hydraulic cylinders – smooth, efficient lifting with low maintenance
- Overhead cable design – keeps shop floor fully accessible
- Single-point lock release – simplifies lift operation
- Electric overhead shutoff – prevents accidental over-extension
- 116" between posts and 102" drive-thru width – wide enough for large vehicles
- Lifting height of 72" with a 7" lowered height – full access for serious service work
- Heavy-duty 20"x20" base plates for added mounting stability
- 220V, 3 HP motor – powerful, commercial-ready operation
- Requires 6” thick, 3,000 PSI concrete slab
- Includes truck adapters and mounting hardware at no additional cost
- Backed by Gearforce USA – your trusted partner in professional-grade lifting solutions

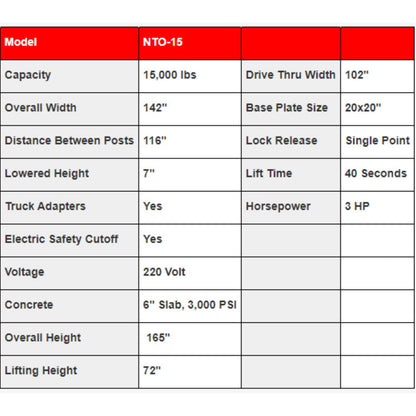

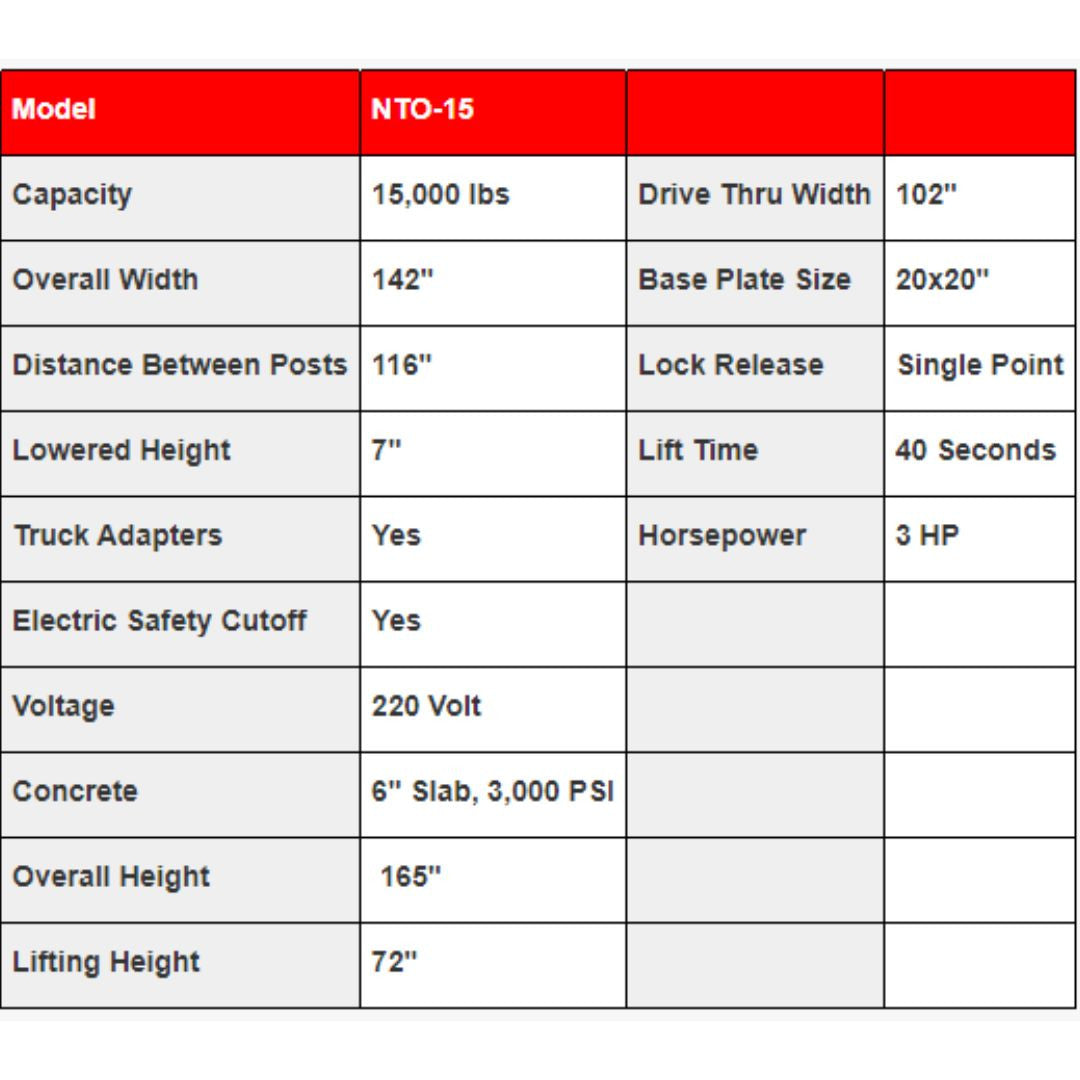

Product Specifications
| Lift Model | NTO-15 |
|---|---|
| Capacity | 15,000 lbs |
| Overall Height | 165″ |
| Overall Width | 142″ |
| Lifting Height | 72″ |
| Distance Between Posts | 116″ |
| Drive Thru Width | 102″ |
| Lowered Height | 7″ |
| Base Plate Size | 20x20″ |
| Truck Adapters | Yes |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 40 Seconds |
| Voltage | 220 Volt |
| Horsepower | 3 HP |
| Concrete | 4" Slab, 3,000 PSI |
| Style | Overhead |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Las Vegas, NV.
