Product Description
Triumph NTO-20S Overhead 2-Post Auto Lift – 20,000 lb Capacity
When maximum strength and professional-grade performance are non-negotiable, the Triumph NTO-20S Overhead Two-Post Lift is ready to take on the toughest lifting jobs in the garage. With a massive 20,000 lb lifting capacity, this commercial-duty lift is built for serious operators servicing heavy-duty trucks, fleet vehicles, utility vans, and industrial equipment.
Designed with rugged reliability in mind, the NTO-20S features direct-drive hydraulic cylinders for smooth, low-maintenance lifting and an electric safety override shutoff to prevent accidental over-lifting. Its ISO 9001 and CE certifications ensure international quality compliance, and a single-point lock release system makes operation simple and efficient — even under heavy workloads.
The overhead cable routing keeps your garage floor completely clear, while the massive 124" width between posts and 113" drive-thru clearance provide unmatched accessibility for wide and tall vehicles. Standing at 170.5" tall, the lift allows for a full 74" lifting height and comes equipped with heavy-duty truck adapters and free mounting hardware for a complete installation.
Backed by a 1-year parts warranty and available from Gearforce USA, the NTO-20S is the powerhouse lift trusted by commercial garages, government maintenance bays, and high-capacity service operations across the country.
Key Features
- 20,000 lb lifting capacity – built for full-size commercial trucks, fleet vehicles, and heavy-duty applications
- ISO 9001 and CE certified – meets international safety and quality standards
- Direct-drive hydraulic cylinders – efficient, smooth, and low-maintenance lifting
- Overhead cable design – provides full floor access for tools and equipment
- Single-point lock release – easy, secure operation
- Electric shutoff bar – prevents accidental over-extension
- Extra-wide 124" between posts and 113" drive-thru width – accommodates the largest vehicles
- 74" lifting height and 6" lowered height – optimized for service access
- Heavy-duty 21"x20" base plates – superior mounting stability
- 220V, 3 HP motor with a 40-second lift time – quick, powerful performance
- Requires 6” thick, 4,000 PSI-rated concrete for secure installation
- Includes truck adapters and mounting hardware
- Trusted by professionals and offered by Gearforce USA – your partner in high-capacity lifting solutions

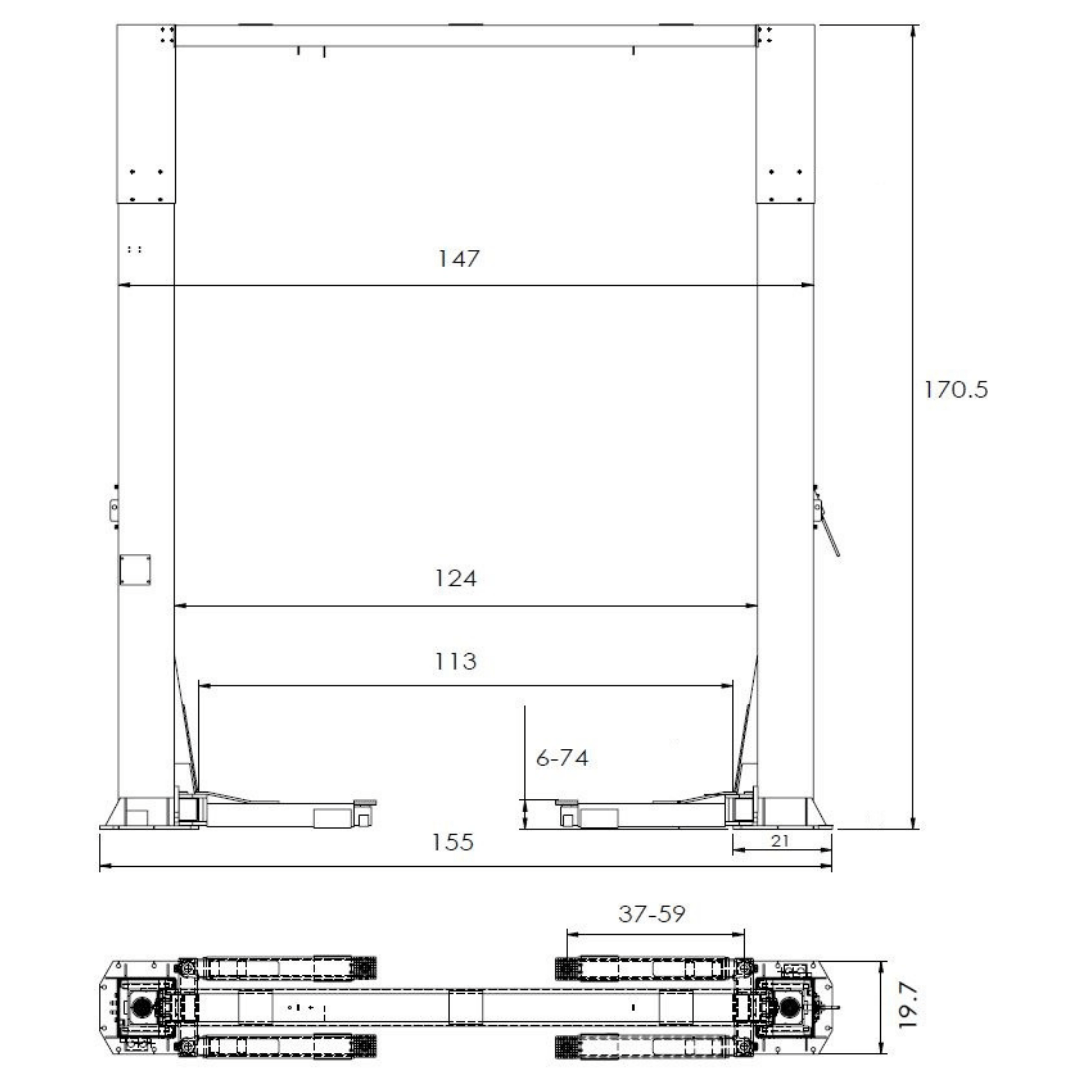

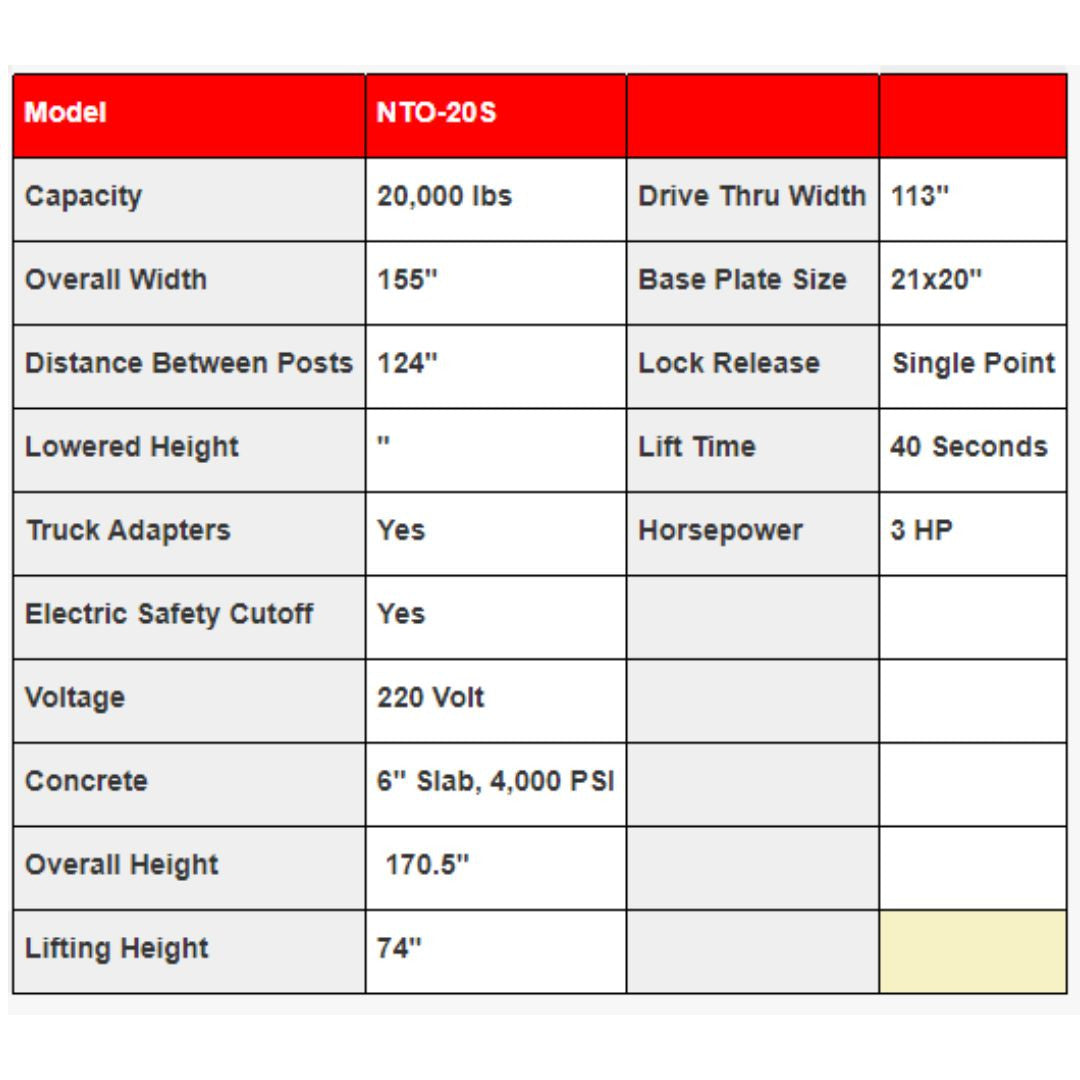

Product Specifications
| Lift Model | NTO-20S |
|---|---|
| Capacity | 20,000 lbs |
| Overall Height | 170-1/2″ |
| Overall Width | 155″ |
| Lifting Height | 74″ |
| Distance Between Posts | 124″ |
| Drive Thru Width | 113″ |
| Lowered Height | 6″ |
| Base Plate Size | 21x20″ |
| Truck Adapters | Yes |
| Lock Release | Single Point |
| Electric Safety Cutoff | Yes |
| Lift Time | 40 Seconds |
| Voltage | 220 Volt |
| Horsepower | 3 HP |
| Concrete | 6" Slab, 4,000 PSI |
| Style | Overhead |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Las Vegas, NV.
Downloads
