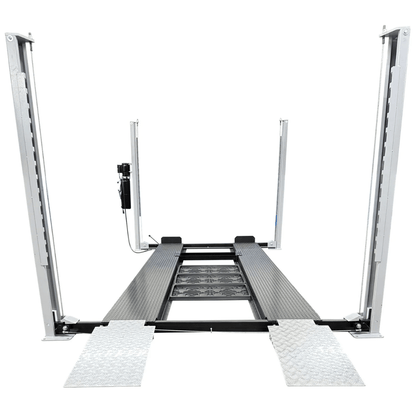

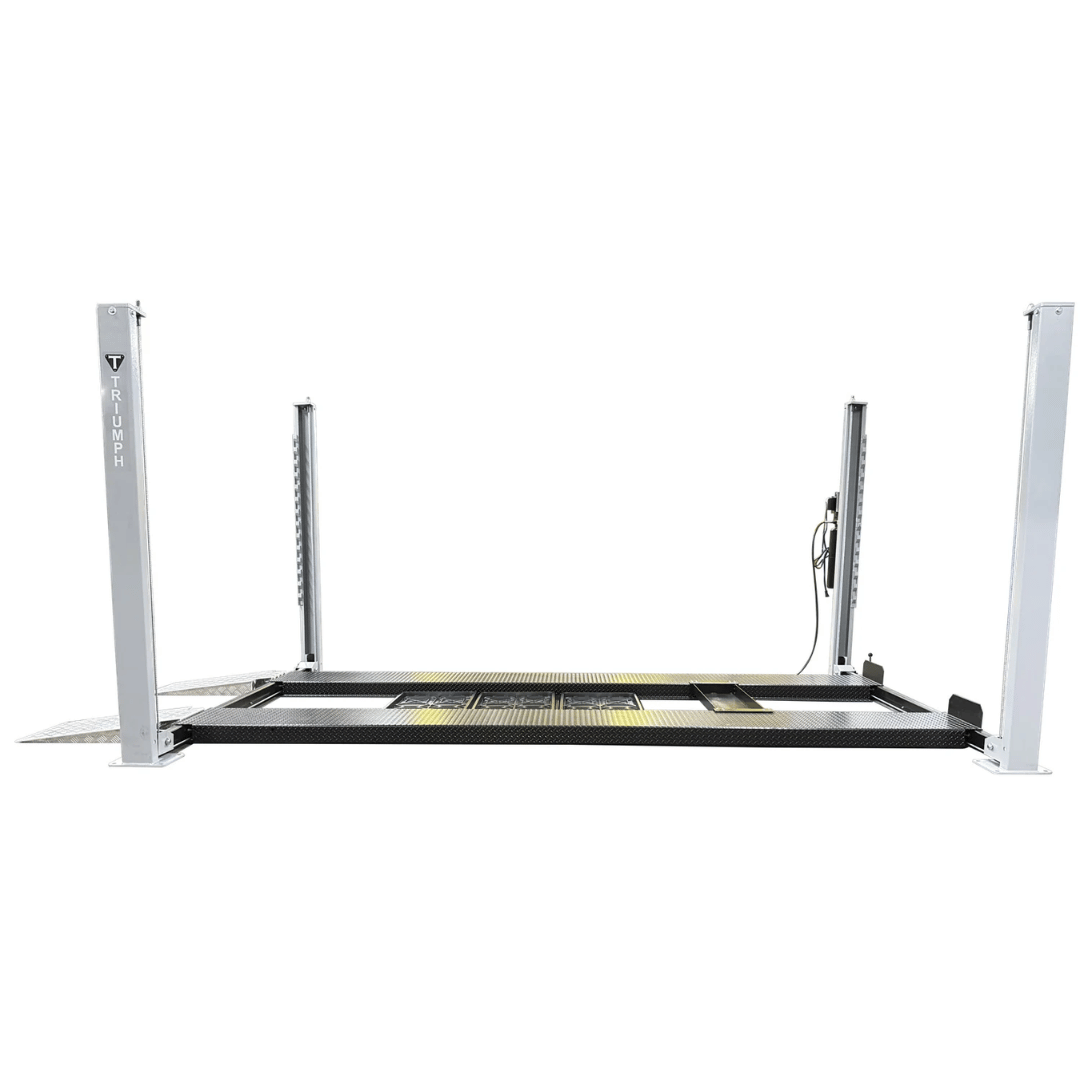

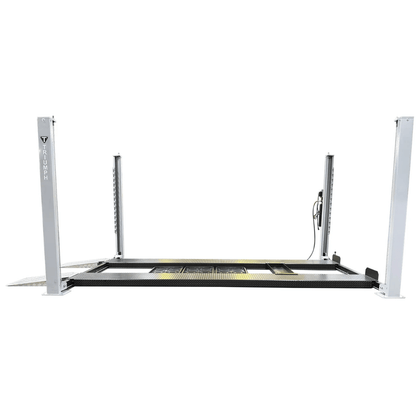

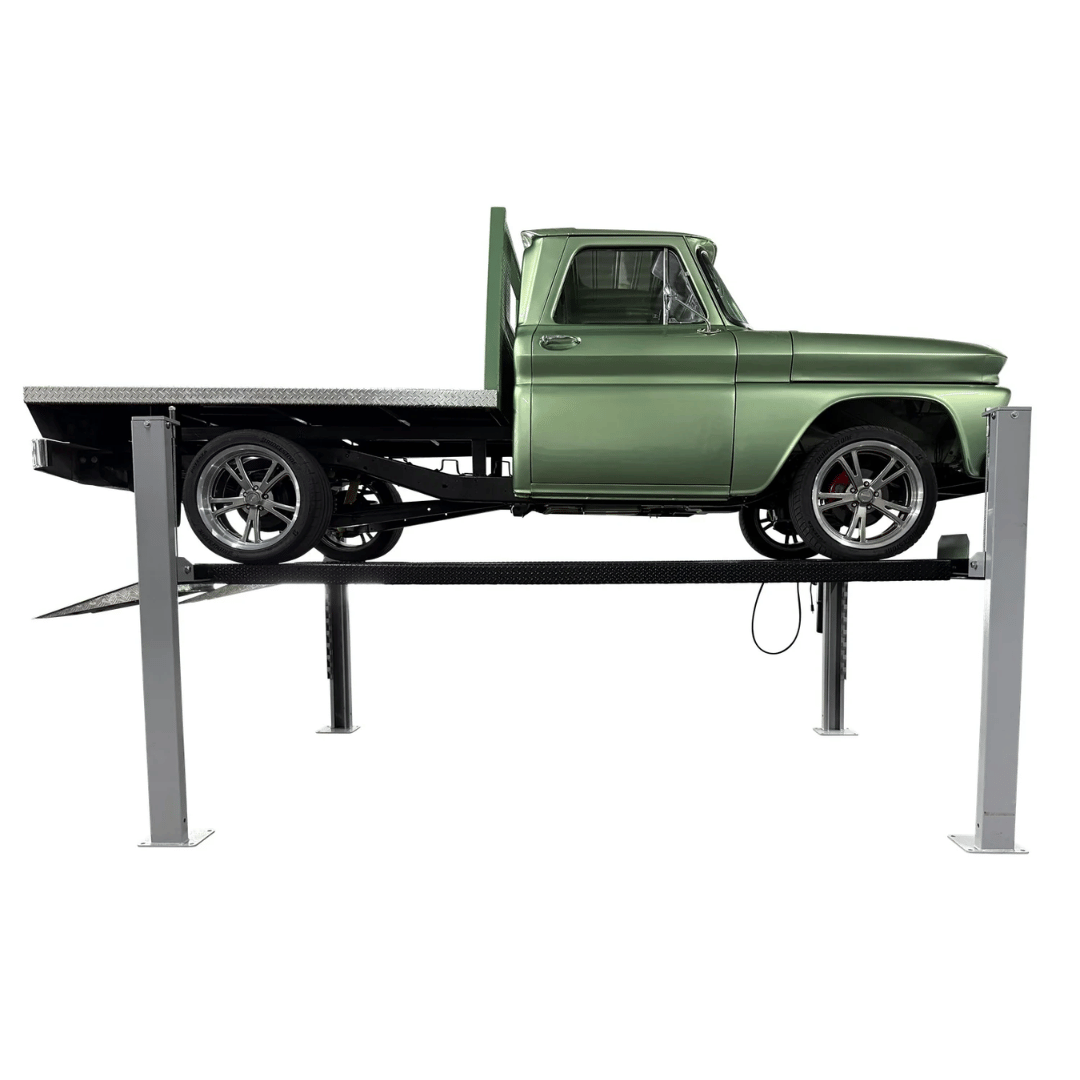

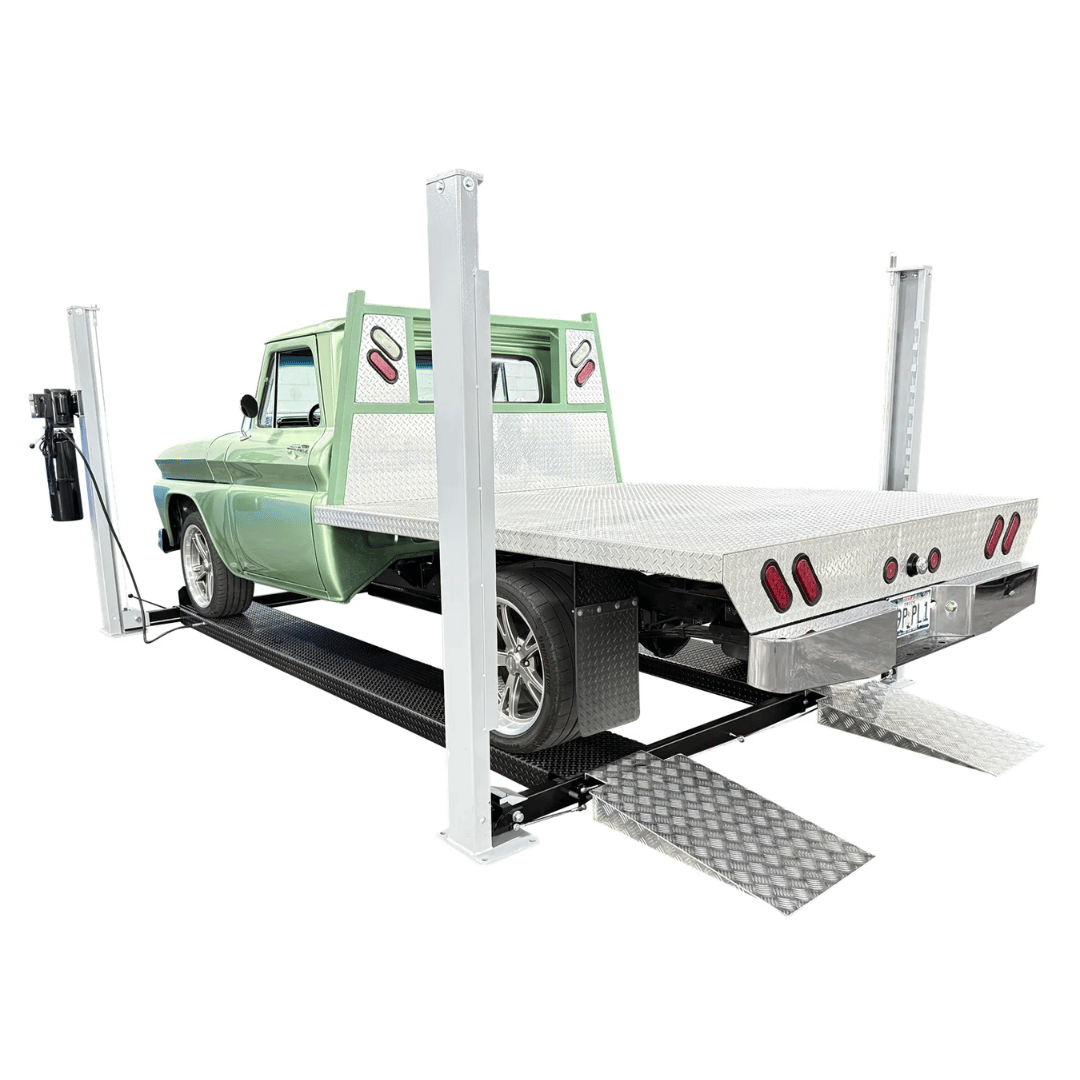

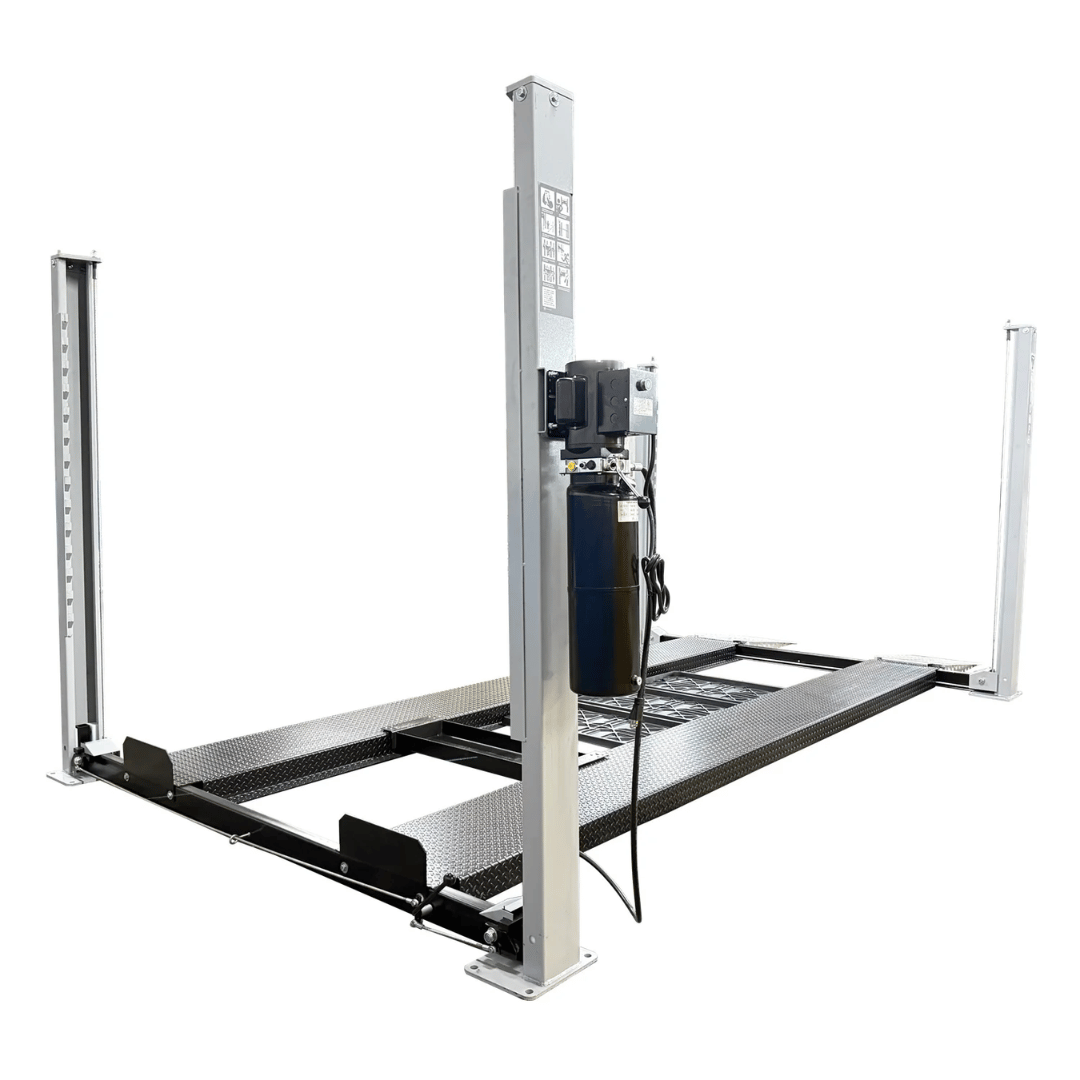

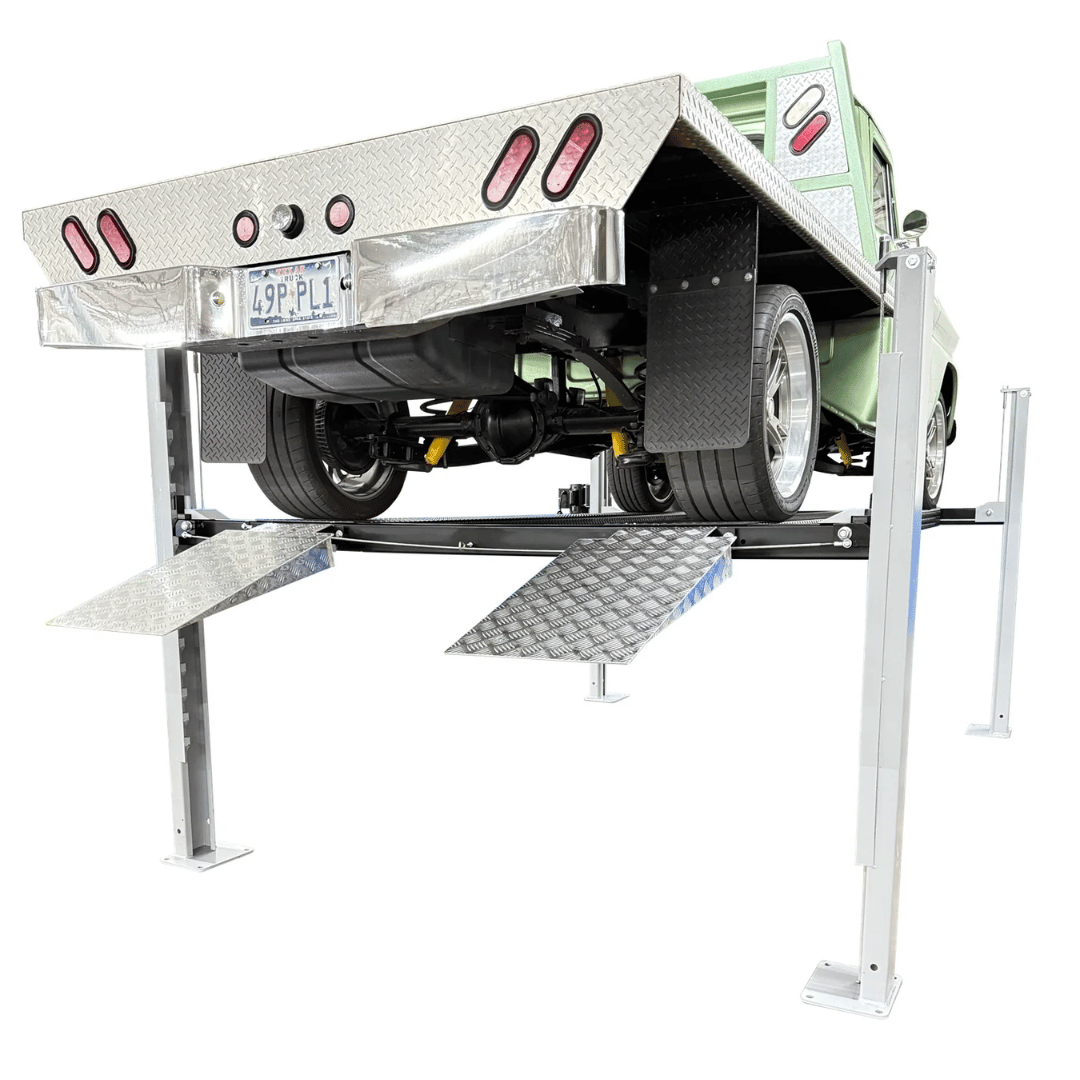

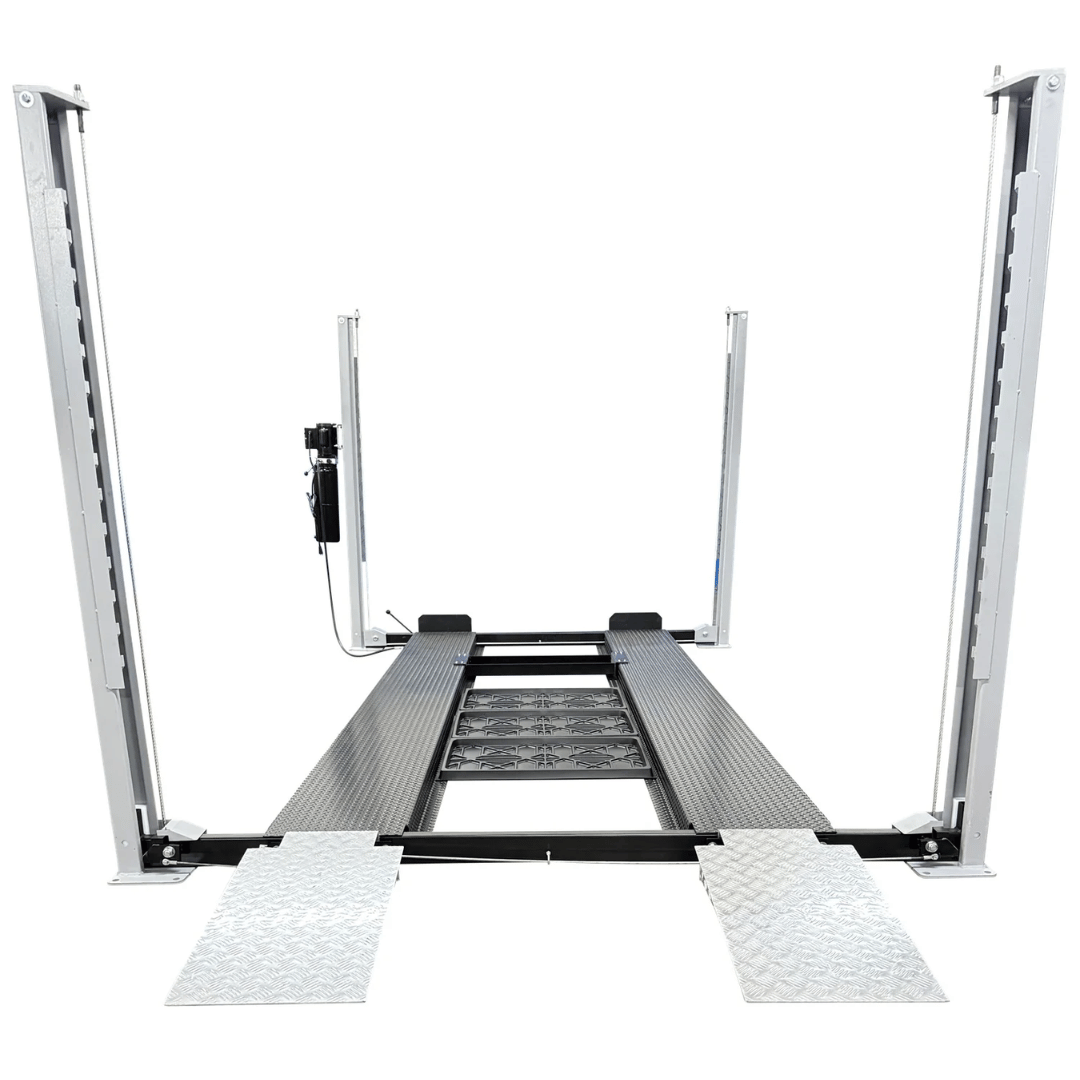

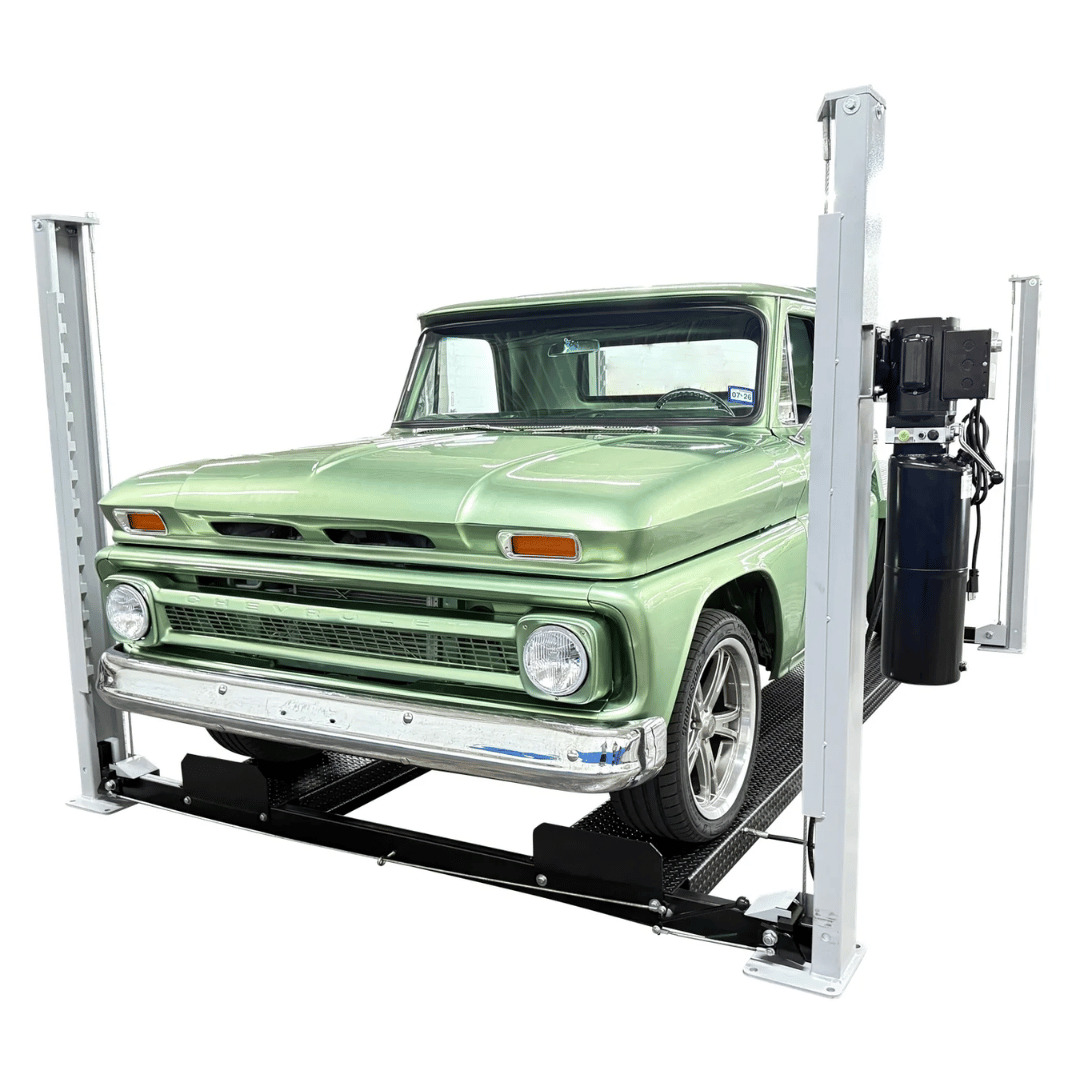

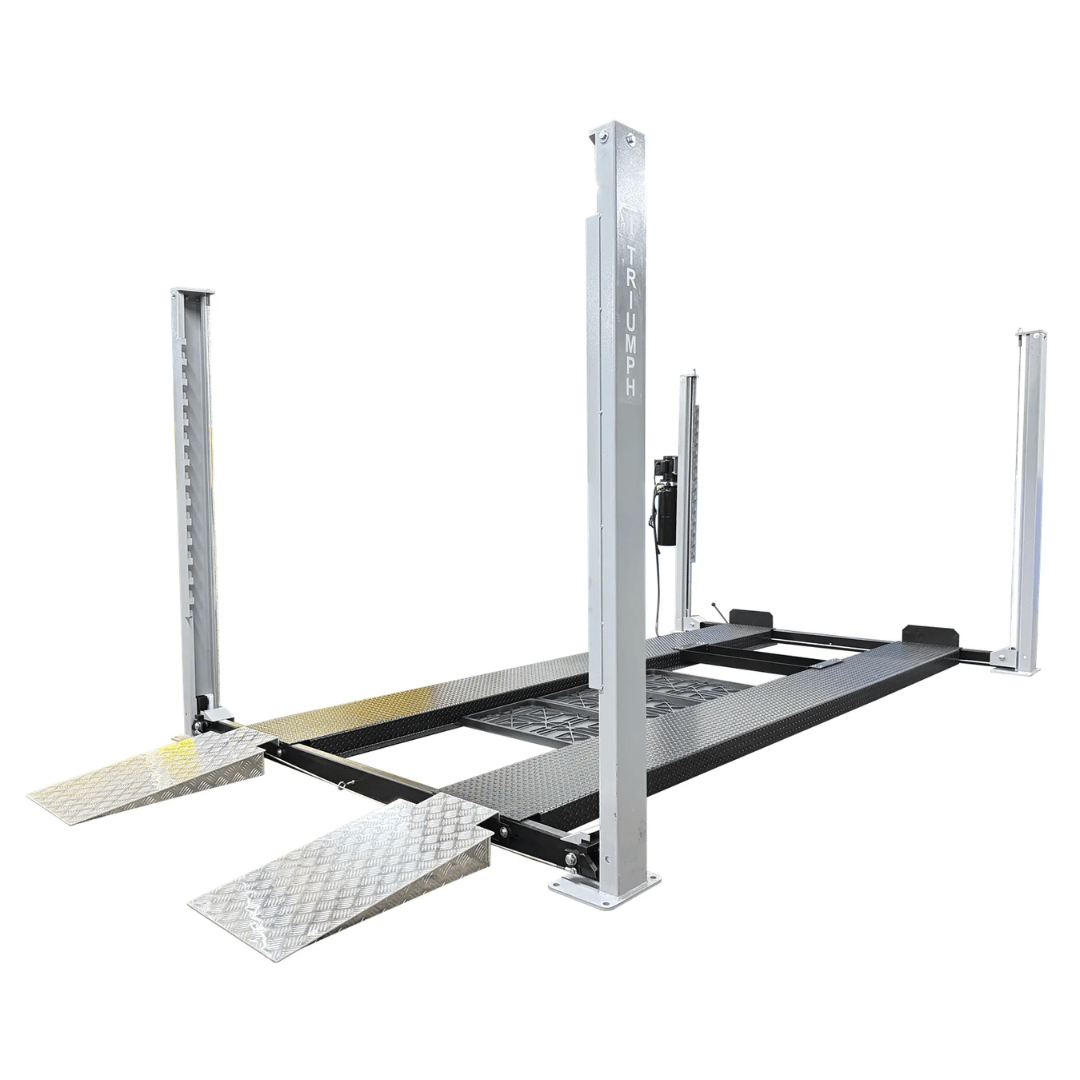

Triumph USA8000 8,000 lb Made in USA Service Storage 4 Post Automotive Lift
The Triumph USA8000 is a premium four-post car lift ideal for both service and storage applications. Built with reliability and convenience in mind, this lift includes a caster kit, jack tray, and three drip trays—everything you need to keep your workspace clean, mobile, and functional.

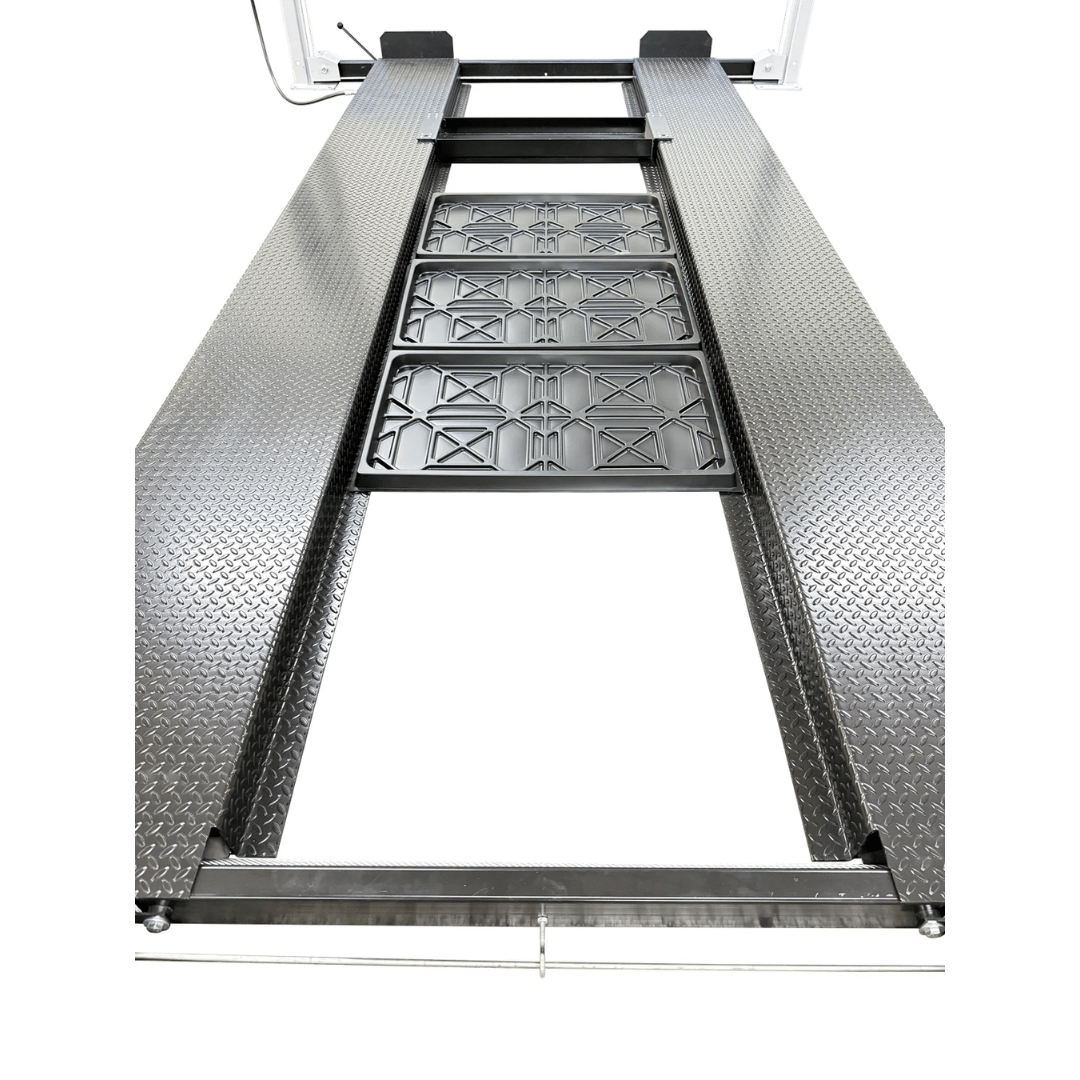

The drip trays are designed to catch fluid from the top vehicle to protect the vehicle stored underneath. The included jack tray allows for lifting one end of the vehicle with a bottle jack or floor jack, making tire rotations and suspension work easy. The heavy-duty caster kit enables you to move the lift around your garage or shop effortlessly, transforming this robust unit into a truly portable automotive solution.
This lift uses a time-tested design with automatic locking positions at 14 points throughout the lifting range, giving you confidence and safety at every height. With a durable grey and black finish, the USA8000 is not only functional but sharp-looking in any space.
Key Features
- 8,000 lb lifting capacity for cars, light trucks, and SUVs
- Includes caster kit, jack tray, and three drip trays
- Fully portable with locking positions at 14 heights
- Sleek grey and black powder-coated finish
- Easy setup, ideal for both residential and commercial garages
- Single-point lock release for user-friendly operation
- Wide drive-thru clearance to accommodate a variety of vehicles
Product Specifications
| Lift Model | USA-8 |
|---|---|
| Capacity | 8,000 lbs |
| Overall Height | 82″ |
| Overall Length Without approach ramps | 175″ |

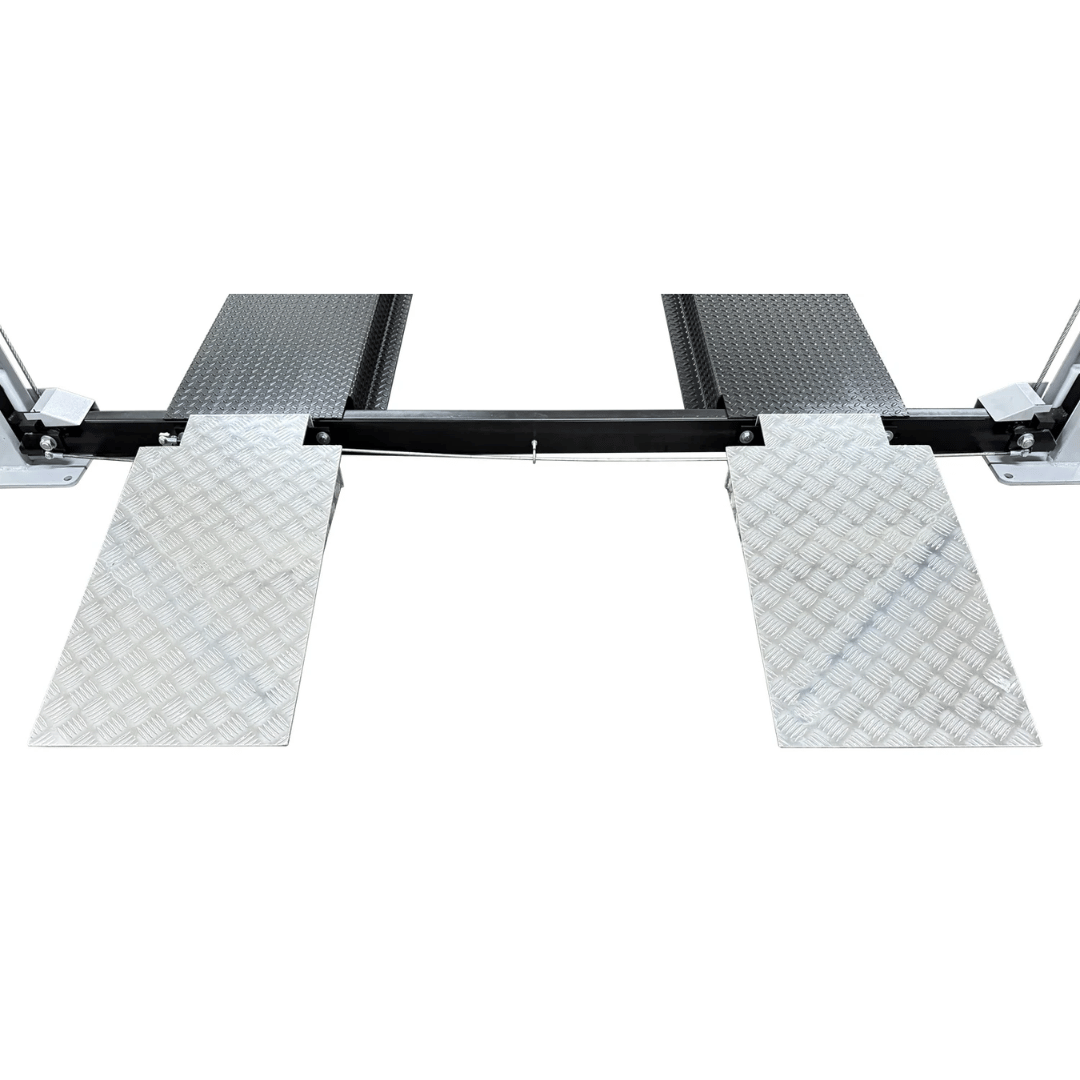

| Overall Length With approach ramps | 207″ |
| Overall Width | 112″ |
| Overall Width w/ Power Unit | 124″ |
| Lift Height | 73″ |
| Height Under Runway | 69″ |
| Runway Length | 165″ |
| Drive Thru Width | 102.5" |
| Runway Width | 19" |
| Between Runways | 37" |
| Lowered Height | 5″ |
| Locking Positions | 14 |
| Base Plate Size | 12" x 10" |
| Lock Release | Single Point |
| Lift Time | 40 Seconds |
| Voltage | 110 Volts |
| Shipping Weight | 1,600 lbs |
Pick Up and Delivery
Our Pick Up locations for Triumph are located in Forth Worth, TX / Columbus, OH / Las Vegas, NV.
